Celsius C2 User manual



CONTENTS
PRECAUTIONS
OPERATING INSTRUCTION
EXPLODED DRAWING
PARTS LIST
ASSEMBLY INSTRUCTIONS
MONITOR INSTRUCTION MANUAL
WARRANTY INFORMATION
page 2
page 2
page 3
page 4
page 5-7
page 8-11
page 12
1

PRECAUTIONS
1) Read all the instructions in this manual and do warm up exercises before using this
equipment.
2) This upright bike is home stationary fitness equipment, and also aerobic training equipment
that can help you to develop your cardiovascular function.
3) Please make sure all parts are not damaged and fixed well before use. The equipment
should be placed on a flat surface when using. Using a carpet or other covering material
on the ground is recommended.
4) Please wear proper clothes and shoes when using this magnetic upright bike; do not wear
clothes that might catch any part of the equipment; remember to tighten the pedaling
straps.
5) Consult your physician and make a suitable exercise schedule before exercise. This is
particularly important to people who are over 35 years old or who have prior medical
history. In order to attain the ideal exercise result, besides executing a suitable amount of
exercise, it is also very important to insist on doing exercise every day.
6) Before exercise, in order to avoid injuring the muscle, warm-up exercise of every position
of the body is necessary. Refer to Warm Up Exercises. After exercise, relaxation of the
body is suggested for cool-down.
7) Keep children and pets away from the equipment while operating the equipment. This
machine is designed for adults only. The minimum free space required for safe operation
is not less than two meters.
8) Do not use this equipment one hour before or after dinner.
9) If you feel any chest pains, nausea, dizziness, or short of breath, you should stop exercising
immediately and consult your physician before continuing.
10) The maximum weight capacity of the user is 100kgs.
Warning: It will be harmful if you disobey the above-mentioned precautions.
OPERATING INSTRUCTION
1. Operate according to your own condition.
2. Adjustment of the seat post: Turn the seat post knob on the counterclockwise direction
and pull it to adjust the height of seat cushion on your suitable position until the seat post
knob “pops” down into the locked position. For added safety, turn the seat post knob on
the clockwise direction to tighten the seat post knob after adjustment.
3. Sitting pose: sit on the seat cushion when exercising, please tighten the pedaling straps
and hold the handlebar with hands, adjust your posture according to your exercise speed
and intensity.
2

EXPLODED DRAWING
3


PARTS LIST
NO. DESCRIPTION QTY NO. DESCRIPTION QTY
1 Main frame 1 18 Screw M8×15 4
2 Front stabilizer 1 19 Flat washer D10 1
3 Rear stabilizer 1 20 Plum knob M10 1
4 Handlebar post 1 21 Upper sensor wire 1
5 Handlebar 1 22 Flat washer 2
6 Saddle post 1 23 Spring washer 2
7 Saddle 1 24 Bolt 2
8L/R Crank 2 25 End cap 2
9 Computer 1 26 Foam grip 2
10L/R Pedal 2 27 Pulse sensor wire 2
11 Front end cap 2 28 Knob bolt 1
12 Rear end cap 2 29 Saddle bushing 1
13 Carriage bolt 4 30 Handlebar chuck cover 1
14 Arc washer 8 31 Saddle slide 1
15 Cap nut 4 32 U shape bracket 1
16 Sensor wire 1 33 Flat washer 2
17 Square end cap 2 34 Cross head screw M4X12 2
4

ASSEMBLY INSTRUCTIONS
Attention:
Please follow these assembly instructions step by step to assemble this upright bike.
1. Install the Front and Rear Stabilizers
Attach the front stabilizer (2) and rear stabilizer (3) onto the curve plates of main frame (1)
with carriage bolt (13), arc washer (14) and cap nut (15).
After assembly, the bike can be adjusted to slightly uneven ground by adjusting the height
of the foot caps at the rear stabilizer.
2.Install the Handlebar Post
Connect the sensor wire (16) from the main frame (1) to the upper sensor wire (21) from
the handlebar post (4). And then insert the handlebar post (4) to the main frame (1) and
secure with the screw (18) and arc washer (14).
5



4. Install the Saddle Post
a. Push the saddle (7) with saddle bracket into the saddle slide (31) and tight it up in
desired position.
b. Place the saddle slide (31) into the holder of saddle post (6), set it at the desired
horizontally position and screw it onto the saddle post (6) by flat washer (19) and plum
nut (20).
c. Push the saddle post (6) into the matching locator in the main frame (1), set it at the
desired position and lock it by inserting the knob bolt (28) with the quick release in place
and doing it up tight.
Attention: Ensure before every exercising that the saddle is tightened firmly.
3. Install the Handlebar
Put the pulse sensor wires (27) through the hole of the handlebar post (4) then pull the pulse
sensor wires (27) out from the top of handlebar post (4).Fix the handlebar (5) on the handle-
bar post (4) with the hex bolt (24) the spring washer (23) and flat washer (22), then put the
handlebar chuck cover (30) on it.
6



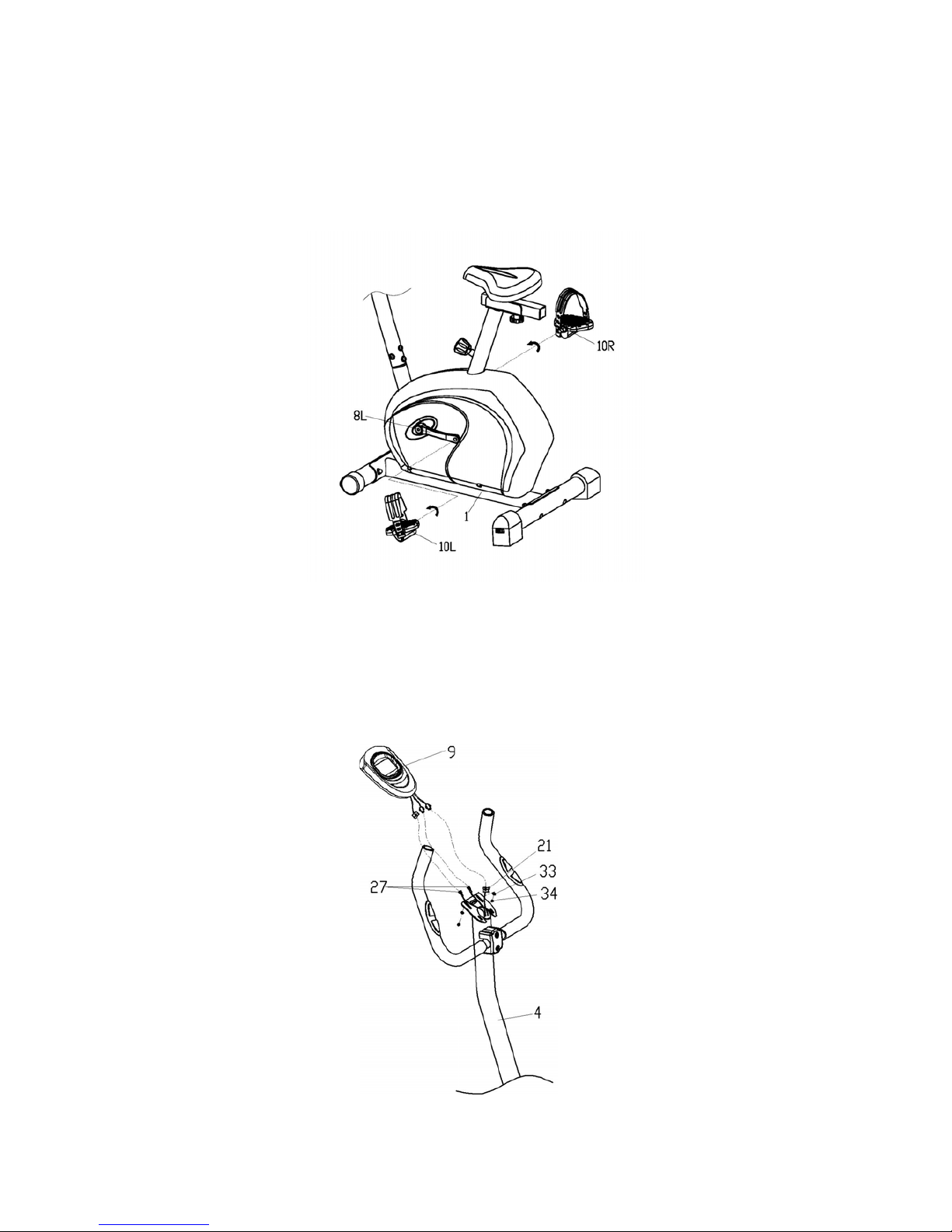

5. Install the Right and Left Pedals
Attach the right and left pedals (10L/R) to the crank (8L/R). The right pedal (10R) should
be threaded on clockwise direction. The left pedal (10L) should be threaded on counter-
clockwise direction.
NOTE: The right and left pedals (10L/R) and crank (8L/R) are marked with “R” & “L”.
6. Install the Computer
Connect the pulse sensor wires (27) and upper sensor wire (21) to the wires that come
from the computer (9).Then fix the computer (9) on the handlebar post (4) with flat washer
(33) and cross head screw (34).
7



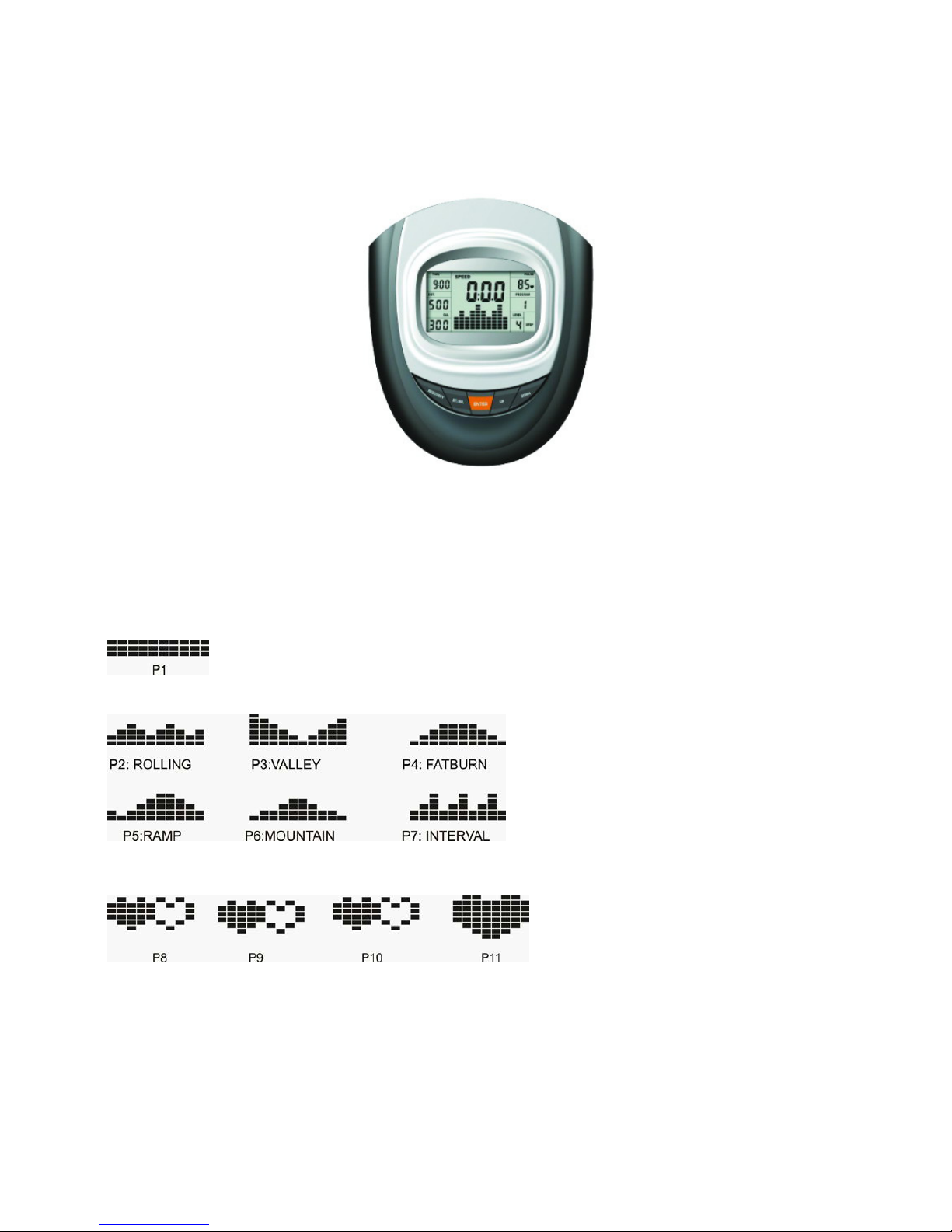

MONITOR INSTRUCTION MANUAL
Function:
1.Program: 11 programs as following
A: 1 Manual Program P1
B: 6 Auto Program P2 ~ P7
C: 4 Heart Rate Control Program P8 ~ P11
2. Record the user’s target heart rate value and age setting data even cut off the power.
3. Display Program, Speed (RPM), TIME, DIST., CAL., WATT, PULSE, at the same time in
different window.
4. The computer will turn off automatically if there is no operation, speed signal or pulse signal
over 4 minutes. Meanwhile, it will store your current exercise data and turn the loading resist
ance to the minimum. Once you press any button or in motion, the computer will turn on auto
matically.
8

Buttons:
1.ENTER
• In “stop” mode(display STOP), press ENTER button to enter into program selection and setting
value which flash in related window.
A: When you choose the program, press Enter to confirm the one you like.
B: When in setting, press ENTER to confirm the value that you would like to preset.
• During the start mode(display START), press ENTER to choose display the speed or RPM, or
switch automatically.
• During any mode, hold down this button for 2 seconds to totally reset the computer.
2.ST/SP:
• Press ST/SP button to start or stop the programs.
• During any mode, hold down this button for 2 seconds to totally reset the computer.
3. UP:
• In stop mode and the program window character flash, press this button to select the program
up. If the related window value flash, press this button to increase the value.
• During the start mode (display START), press this button to increase the training resistance.
4. DOWN:
• In stop mode and the program window character flash, press this button to select the program
down. If the related window value flash, press this button to decrease the value.
• During the start mode (display START), press this button to decrease the training resistance.
5. PULSE RECOVERY:
• First test your current heart rate and show your heart rate value, press this button to enter into
pulse recovery testing.
• When you are in pulse recovery mode, press this button to exit.
OPERATION
1. Turn on the computer
Plug in one end of the adaptor to the AC electrical source and connect the other end to the
computer. The computer will beep and enter into initial mode.
2. Program select and value setting
• Manual Program P1 and Preset Program P2~P7
A. Press UP, DOWN button to select the program that you like.
B. Press ENTER button to confirm the selected program and enter time setting window.
C. The time will flash, and then press UP, DOWN button to set up your desired time. Press
ENTER to confirm the value.
D. The distance will flash, and then press UP, DOWN to set up the desired distance value.
Press ENTER to confirm the value.
E. The calories will flash, and then press UP, DOWN to set up the desired calories to be
consumed. Press ENTER to confirm the value.
F. Press ST/ SP to begin exercise.
• HEART RATE CONTROL PROGRAM P8
User can set the target heart rate to do healthy exercise within the training zone.
A. Press UP, DOWN to choose the heart rate control program P8
9
