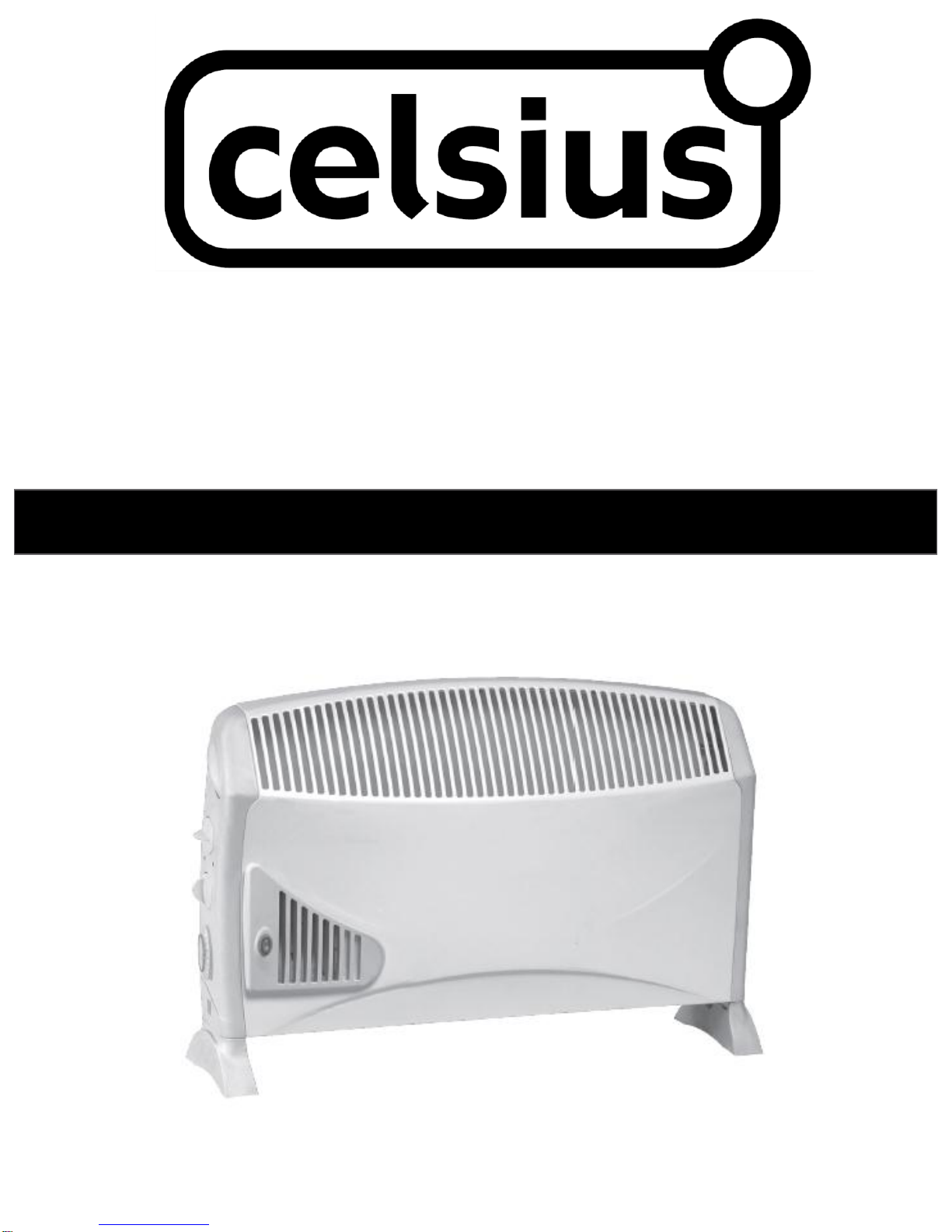

Celsius CELCV200 User manual

CONVECTOR HEATER WITH TIMER
OPERATING INSTRUCTIONS
For Model: CELCV200

1. Use only the voltage specified on the rating label
of the appliance.
2. Keep all objects at least 1 metre from the front,
sides and rear of the appliance. Do not place
appliance close to radiant heat source.
3. Do not operate in areas where petrol, paint or
other flammable liquids are used or stored.
4. Do not insert or allow foreign objects to enter
any ventilation or exhaust opening, as this may
cause an electric shock, fire or damage to the
appliance. Do not sit on the appliance.
5. Do not operate this appliance with a damaged
cord, plug or after the appliance malfunctions or
has been dropped or damaged in any manner.
Return to a qualified electrical person for
examination, electrical service or repair.
6. This appliance is intended for household use
only and not for commercial or industrial use.
7. Use this appliance only as described in this
manual. Any other use is not recommended by
the manufacturer and may cause fire, electrical
shock or injury.
8. The common cause of overheating is deposits of
dust or fluff in the appliance. Ensure these
deposits are removed regularly by unplugging
the appliance and vacuum cleaning the air vents
and grills.
9. Do not use abrasive cleaning products on this
appliance. Clean with a damp cloth (not wet)
rinsed in hot soapy water only. Always remove
plug from the mains supply before cleaning.
10. Do not connect the appliance to mains supply
until completely assembled and adjusted.
11. Switch off and use handles provided when
moving.
12. Do not operate with cord set coiled up as a heat
build up is likely, which could be sufficient to
become a hazard.
13. Do not use an extension cord, power board or
external timer with this unit.
14. Do not remove plug from power socket until the
appliance has been switched off.
15. Do not remove plug from power socket by
pulling cord; always grip plug.
16. Always unplug appliance when not in use.
17. Do not locate the heater directly below any
power socket during operation.
18. Do not twist, kink or wrap the cord around the
appliance, as this may cause the insulation to
weaken and split. Always ensure that all cord
has been removed from any cord storage area
and is unrolled before use.
19. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge, unless they are
supervised or have been given instruction
concerning the use of the appliance by a person
responsible for their safety.
20. Do not use this appliance in the immediate
surrounds of a bath, a shower, or a swimming
pool or other liquids. The appliance must not be
immersed in any liquids.
21. When the appliance has been unpacked, check
it for transport damage and ensure all parts have
been delivered. If parts are missing or the
appliance has been damaged, contact the
Celsius Customer Services Team.
22. If your appliance does not work, or is not
working properly, contact the place of purchase
or the Celsius Customer Services Team. Repair
work on the appliance by unqualified persons
can cause serious risk to the user.
23. There are no user serviceable parts installed in
the unit.
24. Do not place the unit in wardrobes or other
enclosed spaces as this may cause fire hazards.
25. This unit is not supposed to be used in or
around locations where foodstuffs, works of art
or delicate articles of science, etc are stored.
26. Indoor use only.
27. Children should be supervised to ensure that
they do not play with the appliance.
28. Ensure heater is on a flat, stable, heat-resistant
surface.
29. It is important that you do not cover this heater.
WARNINGSAND SAFEGUARDS
Celsius –New Zealand
Monday –Friday 8am-5pm
Phone [phone]
Phone [phone]
[email protected]
Celsius –Australia
Monday –Friday 8am-5pm
Phone [phone]
Phone [phone]
[email protected]
SUPPORT AND TECHNICAL ADVICE

HEAT CONTROL
The control switch positions are:
O Off
I Low Heat
II Medium Heat
III High Heat
Check that the Heat Control Dial is in the Off position before plugging the heater into the mains supply. For
greater economy, use the High Heat setting initially and then switch to the Lower Heat settings.
THERMOSTAT
Turn the thermostat knob clockwise until you reach the maximum temperature on the graduated scale.
When the desired room temperature is reached, slowly turn the knob anti-clockwise until the heater turns off
(you will hear a click). The heater will now cycle on and off to maintain the set temperature.
FAN BOOST
Additional to the three heat settings there is a fan with a separate On/Off switch located on the control panel.
The fan function is for distributing heat into the room at a faster rate.
SAFETY DEVICE
This appliance has two protection devices. The first device, automatically disconnects & reconnects the
appliance at a pre-set temperature. The second safety device disconnects the appliance permanently in
case of overheating, by means of a thermal fuse (it is non resettable).
Do not attempt to dismantle the heater. There are no user serviceable parts. For service or repair, contact
an authorised electrical service technician.
IMPORTANT! NEVER COVER THIS HEATER!
OPERATING YOUR HEATER
Always choose a safe location for the heater, keeping in mind the safety precautions outlined. Ensure all
packaging has been removed form the unit before use. This appliance requires no installation, it should be
used solely as a portable appliance.
PLEASE NOTE: As this product is fitted with a timer, the timer has been set to the “ON” position.
Please refer to the timer section for setting instructions.
ASSEMBLING YOUR HEATER
Before using the heater the feet (supplied separately in the carton), must be fitted to the unit. These are to
be attached to the base of the heater by placing the lugs on the feet in the bottom ends of the heater side
mouldings. The screw pack to attach the feet to your heater will be taped to either one of the feet for your
heater, or taped to the plug head.

Indicates actual time
“ON”button
“TIMER”button
“OFF”button
Mode Switch
TIMER
TIMER
Set the MODE switch to the Timer position (this function can only be used once a heat level has been
selected (Heat Control).
You must set the time prior to programming the Timer. To do this; turn the outer dial of the timer in a
clockwise direction until the time of the day (24-hour clock) corresponds with the triangular marking.
Example if it is 2pm (1400 hours) then set the triangular mark in line with 14. One complete turn of the dial
corresponds to 24 hours.
There are 96 “riders”, positioned around the dial, each rider represents 15 minutes.
Where all the “riders” are pushed to the outside of the timer the heater will be ON continuously.
To set a specific time for example:
If you want the heater to be on from 6pm to 10pm, then set all the riders from 18 to 22 (1800 hours to 2200
hours) to the outside of the rim and all other riders to the inside of the timer. The unit will then turn on
automatically at 6pm and off again at 10pm.
WARNING! Take care in positioning your heater, using the timer will mean the heater will come on
automatically. Fire may result if placed next to combustible material.
CLEANING YOUR HEATER
The heater requires regular cleaning to ensure trouble free operation:
Unplug the heater from the mains supply before cleaning.
Ensure that the heater has been allowed to cool down completely before cleaning.
Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and dirt.
Use a vacuum cleaner to remove dust and fluff from around the grills.
Never use solutions such as benzene, thinners or polishing agents.
Ensure the heater is dry before plugging back into the mains supply.
CAUTION: This heater generates heat during use. Proper precautions must be taken to prevent the risk of
burns, scalds, fires or other damage to persons
WARNING: Keep all objects at least 1 metre from the front, sides and rear of the appliance.
WARNING: Do not use this heater with a programmer, remote-control system, separate timer or any other
device that switches the heater on automatically.
PROOF OF PURCHASE
To receive warranty retain receipt as proof of purchase. TECHNICAL SPECIFICATIONS
Model No: CELCV200
Supply: 220-240VAC 50Hz
Wattage: 2000W

Thank you for purchasing this Celsius product. Your product is warranted against faults and manufacture when used in
normal domestic use for a period of one year. In non-domestic use Celsius limits the voluntary warranty to three
months.
Celsius undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during
the warranty period.
This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by
anyone other than a qualified electrical service technician.
PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
The benefits given to you by this warranty are in addition to other rights and remedies available to you under law in
relation to the goods or services to which this warranty relates.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
One Year Warranty
Celsius One Year Warranty (IMPORTANT: Please complete and retain this warranty card)
Name
Address
Place Of Purchase Date Of Purchase
Name Of Product Model Number
Attach a copy of the purchase receipt to this warranty card
Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual product.
