Central Machinery 67536 Assembly instructions
Visit our website at: http://www.harborfreight.com
Visit our website at: http://www.harborfreight.com
NOTICE
FOR CEMENT AND
MORTAR ONLY.
Do not use with Epoxy
2-part resin mix.
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference. 23b
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright©2022 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
SAFETY OPERATION MAINTENANCESETUP
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
Table of Contents
Safety ........................................................................2
Specifications ............................................................5
Setup .........................................................................6
Operation..................................................................10
Maintenance.............................................................11
Parts List and Diagram.............................................14
Warranty ...................................................................16
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
WARNING Read all safety warnings and instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Assembly Precautions
1. Assemble only according to these instructions.
Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and
heavy-duty work gloves during assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the
influence of alcohol, drugs or medication.
6. Weight capacity and other product capabilities apply
to properly and completely assembled product only.
Use Precautions
1. This product is not a toy. Do not allow
children to play with or near this item.
2. Use as intended only.
3. Inspect before every use; do not use
if parts are loose or damaged.
4. Do not exceed listed weight capacity.
Be aware of dynamic loading!
Sudden load movement may briefly create
excess load causing product failure.
5. DO NOT OVERLOAD MIXER. An
overload can damage equipment.
6. DO NOT MOVE MIXER DURING OPERATION.
The Mixer can tip over or motor could be damaged.
7. KEEP SAFE CLEARANCE AROUND MIXER.
Keep all persons (except operator) at least
six feet from Mixer during operation.
8. DON’T USE IN DANGEROUS ENVIRONMENT.
Don’t use power tools in damp or wet locations, or
expose them to rain. Keep work area well lighted.
9. KEEP CHILDREN AWAY. All visitors should
be kept safe distance from work area.
10. MAKE WORKSHOP KID PROOF with padlocks,
master switches, or by removing starter keys.
Page 3For technical questions, please call 1-888-866-5797.Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
SAFETYOPERATIONMAINTENANCE SETUP
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
11. DON’T FORCE TOOL. It will do the job better
and safer at the rate for which it was designed.
12. USE RIGHT TOOL. Don’t force tool or attachment
to do a job for which it was not designed.
13. USE PROPER EXTENSION CORD. Make sure
your extension cord is in good condition. When
using an extension cord, be sure to use one
heavy enough to carry the current your product
will draw. An undersized cord will cause a drop
in line voltage resulting in loss of power and
overheating. Table A shows the correct size to use
depending on cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge. The
smaller the gauge number, the heavier the cord.
14. WEAR PROPER APPAREL. Do not wear loose
clothing, gloves, neckties, rings, bracelets, or
other jewelry which may get caught in moving
parts. Nonslip footwear is recommended. Wear
protective hair covering to contain long hair.
15. SECURE WORK. Use clamps or a vise to hold
work when practical. It’s safer than using your
hand and it frees both hands to operate tool.
16. DON’T OVERREACH. Keep proper
footing and balance at all times.
17. MAINTAIN TOOLS WITH CARE. Keep
tools sharp and clean for best and safest
performance. Follow instructions for
lubricating and changing accessories.
18. DISCONNECT TOOLS before servicing;
when changing accessories, such as
blades, bits, cutters, and the like.
19. REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure switch is in
off position before plugging in.
20. NEVER STAND ON TOOL. Serious injury
could occur if the tool is tipped or if the
cutting tool is unintentionally contacted.
21. NEVER LEAVE TOOL RUNNING
UNATTENDED. TURN POWER OFF. Don’t
leave tool until it comes to a complete stop.
22. Maintain product labels and nameplates.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
Mixer Safety Warnings
1. FOR CEMENT AND MORTAR ONLY. DO NOT
USE WITH EPOXY 2-PART RESIN MIX.
2. Do not attempt to move the Cement Mixer
when it is full and/or in operation. It is unsafe
to move the mixer while in this condition, and
serious injury to personnel could occur.
3. When servicing use only identical replacement parts.
4. Only use safety equipment that has been approved
by an appropriate standards agency. Unapproved
safety equipment may not provide adequate
protection. Eye protection must be ANSI-approved
and breathing protection must be NIOSH-approved
for the specific hazards in the work area.
5. Industrial applications must follow OSHA guidelines.
6. Maintain labels and nameplates on
the tool. These carry important safety
information. If unreadable or missing, contact
Harbor Freight Tools for a replacement.
7. Avoid unintentional starting. Prepare to
begin work before turning on the tool.
8. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
9. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Page 4 For technical questions, please call 1-888-866-5797. Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
SAFETY OPERATION MAINTENANCESETUP
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
Grounding
TO PREVENT ELECTRIC SHOCK AND DEATH FROM
INCORRECT GROUNDING WIRE CONNECTION:
Check with a qualified electrician if you are in doubt as to whether the outlet is properly
grounded. Do not modify the power cord plug provided with the tool. Never remove the
grounding prong from the plug. Do not use the tool if the power cord or plug is damaged. If damaged, have
it repaired by a service facility before use. If the plug will not fit the outlet, have a proper outlet installed by
a qualified electrician.
Grounded Tools: Tools with Three Prong Plugs
3-Prong Plug and Outlet
1. Tools marked with “Grounding Required” have
a three wire cord and three prong grounding
plug. The plug must be connected to a properly
grounded outlet. If the tool should electrically
malfunction or break down, grounding provides
a low resistance path to carry electricity away
from the user, reducing the risk of electric
shock. (See 3-Prong Plug and Outlet.)
2. The grounding prong in the plug is connected
through the green wire inside the cord to the
grounding system in the tool. The green wire
in the cord must be the only wire connected
to the tool’s grounding system and must
never be attached to an electrically “live”
terminal. (See 3-Prong Plug and Outlet.)
3. The tool must be plugged into an appropriate outlet,
properly installed and grounded in accordance
with all codes and ordinances. The plug and outlet
should look like those in the preceding illustration.
(See 3-Prong Plug and Outlet.)
Extension Cords
1. Grounded tools require a three wire extension cord.
Double Insulated tools can use either
a two or three wire extension cord.
2. As the distance from the supply outlet increases,
you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire
causes a serious drop in voltage, resulting in loss of
power and possible tool damage. (See Table A.)
3. The smaller the gauge number of the wire, the
greater the capacity of the cord. For example,
a 14 gauge cord can carry a higher current
than a 16 gauge cord. (See Table A.)
4. When using more than one extension cord
to make up the total length, make sure
each cord contains at least the minimum
wire size required. (See Table A.)
5. If you are using one extension cord for more
than one tool, add the nameplate amperes
and use the sum to determine the required
minimum cord size. (See Table A.)
6. If you are using an extension cord outdoors, make
sure it is marked with the suffix “W-A” (“W” in
Canada) to indicate it is acceptable for outdoor use.
7. Make sure the extension cord is properly wired
and in good electrical condition. Always replace
a damaged extension cord or have it repaired
by a qualified electrician before using it.
8. Protect the extension cords from sharp objects,
excessive heat, and damp or wet areas.
Page 5For technical questions, please call 1-888-866-5797.Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
SAFETYOPERATIONMAINTENANCE SETUP
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.

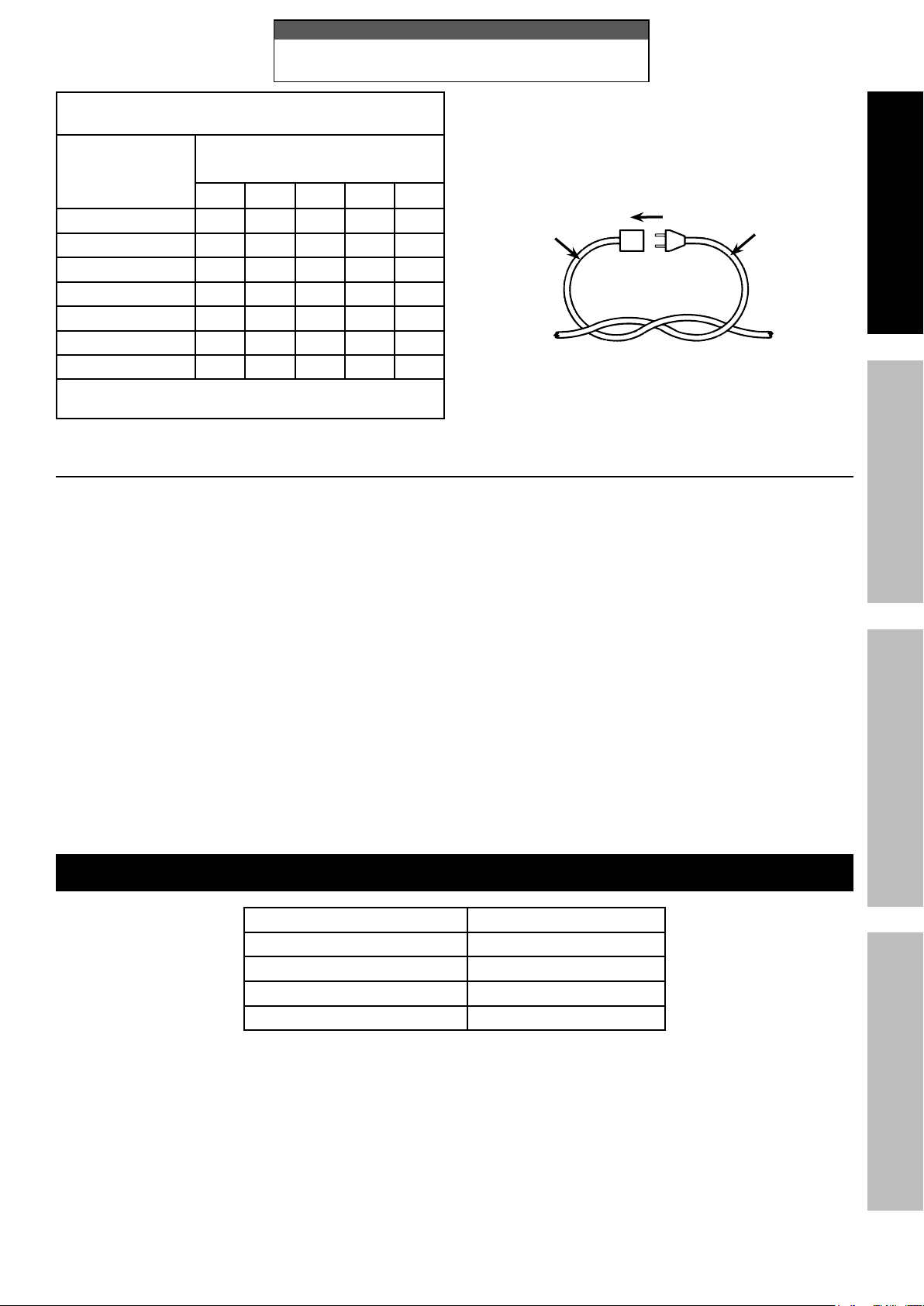

TABLE A: RECOMMENDED MINIMUM WIRE
GAUGE FOR EXTENSION CORDS* (120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25´ 50´ 75´ 100´ 150´
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
* Based on limiting the line voltage drop to five volts at
150% of the rated amperes.
Connecting Cords
To reduce the risk of the cords pulling apart
during operation, do one of the following:
a. Make a knot as shown below
then connect the cords:
b.
Extension
Cord
Appliance
Cord
1
2
Or, use a plug-receptacle retaining
strap or connector designed to hold
extension cords to appliance cords.
Vibration Safety
This tool vibrates during use. Repeated or
long-term exposure to vibration may cause
temporary or permanent physical injury,
particularly to the hands, arms and shoulders.
To reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for an
extended period should first be examined by a
doctor and then have regular medical check-
ups to ensure medical problems are not being
caused or worsened from use. Pregnant women
or people who have impaired blood circulation
to the hand, past hand injuries, nervous system
disorders, diabetes, or Raynaud’s Disease should
not use this tool. If you feel any medical or
physical symptoms related to vibration (such as
tingling, numbness, and white or blue fingers),
seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration when there
is a choice between different processes.
5. Include vibration-free periods each day of work.
6. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
Specifications
Electrical Input 120 VAC / 60 Hz / 3.35 A
Motor No Load Speed 1400 RPM
Drum Speed 23 RPM
Drum Capacity 3.5 Cubic Feet
Drum Opening 15"
Page 6 For technical questions, please call 1-888-866-5797. Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
SAFETY OPERATION MAINTENANCESETUP
Setup - Before Use
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document
including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool off before performing any procedure in this section.

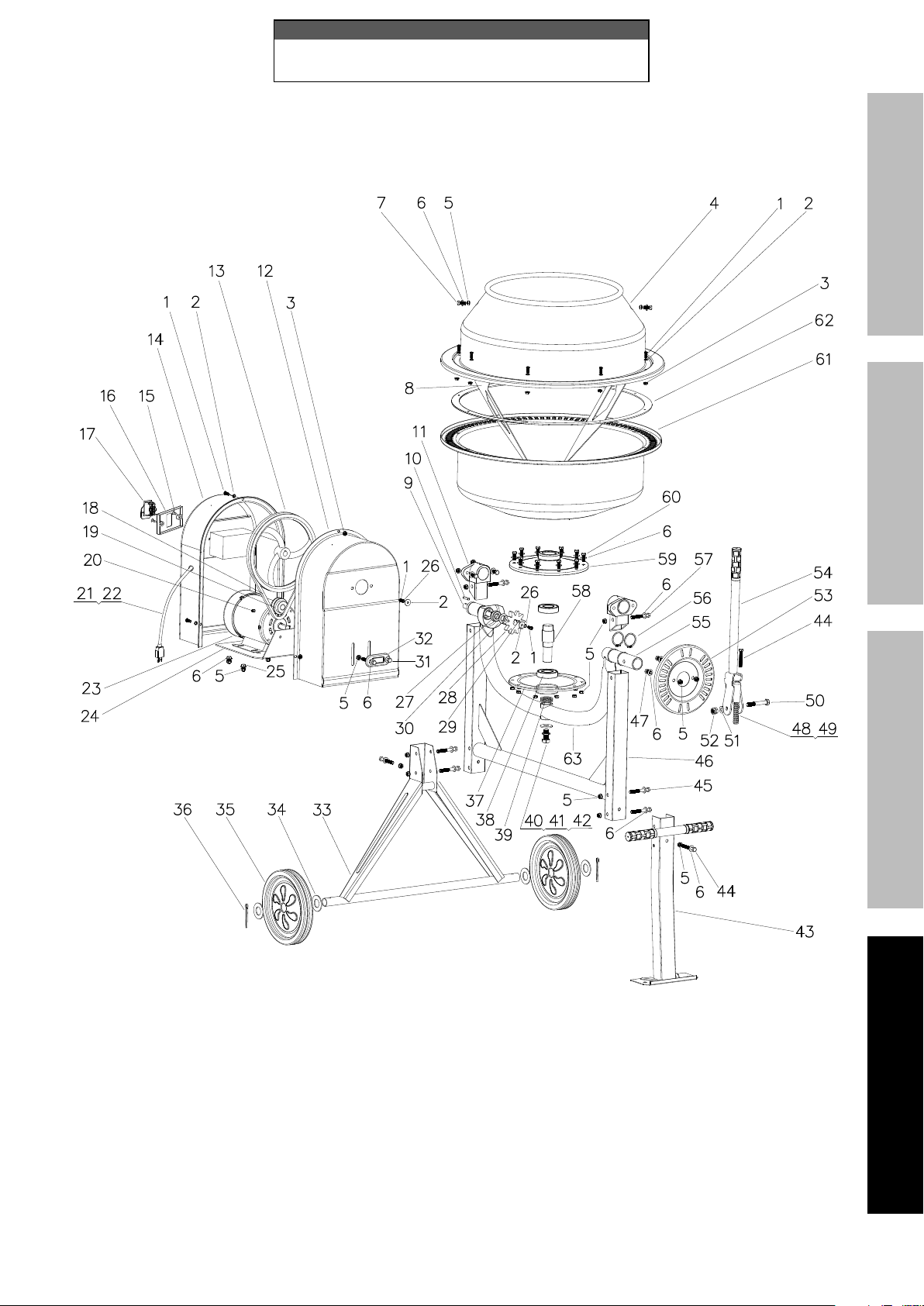

Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
Components and Controls
Mixer Blade
Drum
Motor
Housing
Stand
Wheel
Control
Handle
ON / OFF
Switch
Power
Cord
Page 7For technical questions, please call 1-888-866-5797.Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
SAFETYOPERATIONMAINTENANCE SETUP

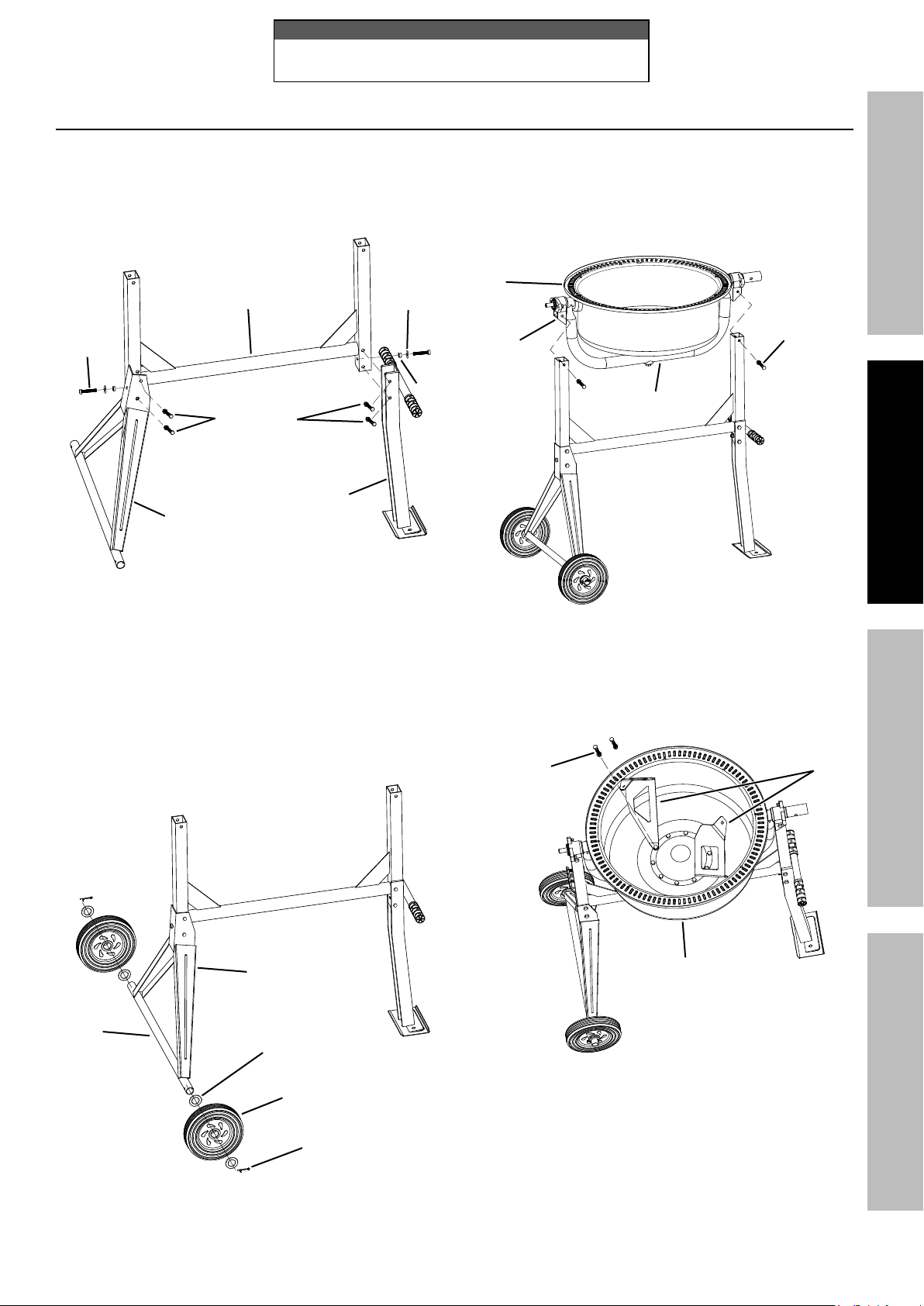

Assembly/Mounting
1. Attach the Wheel Bracket (33) to the Stand (46)
using one M8 x 55 Hex Bolt (44), two M8 x 65
Hex Bolts (45), three M8 Washers (6), and
three M8 Nuts (5). Tighten securely.
Washer
(6)
Stand
Support
Bracket (43)
Stand (46)
Hex Bolt
(44)
Wheel
Bracket (33)
Nut
(5)
Hex Bolt (45)
Washer (6)
Nut (5)
Use Hardware Bag #2 and #12
2. Attach the Stand Support Bracket (43) to
the Stand using one M8 x 55 Bolt (44), two
M8 x 65 Bolts (45), three M8 Washers (6),
and three M8 Nuts (5). Tighten securely.
3. Slide an M25 Flat Washer (34), Wheel (35),
and second Flat Washer onto each end of the
Wheel Bracket axle. Insert a Cotter Pin (36)
through holes in each end of Bracket axle
and bend Cotter Pins to secure Wheels.
Wheel
Bracket (33)
Wheel (35)
Cotter Pin
(36)
Flat Washer
(34)
Axle
Use Hardware Bag #13
4. With assistance, set the Lower Drum (61) with
attached Support Bracket (63) and Support Bracket
Seats (11) into Stand assembly. Fasten together
using two M8 x 60 Hex Bolts (57), M8 Washers (6),
and M8 Nuts (5). Tighten securely.
Support
Bracket (63)
Hex Bolt (57)
Washer (6)
Nut (5)
Lower
Drum
(61)
Support
Bracket
Seat (11)
Use Hardware Bag #3
5. Mount Mixer Blades (8) inside Lower Drum with the
pointed ends facing downward using two M8 x 20
Hex Bolts (60), M8 Washers (6), and M8 Nuts (5).
The open end of each Blade should point in
direction of Drum rotation (counterclockwise).
Mixer
Blade
(8)
Hex Bolt (60)
Washer (6)
Nut (5)
Lower
Drum (61)
Use Hardware Bag #10
Page 8 For technical questions, please call 1-888-866-5797. Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
SAFETY OPERATION MAINTENANCESETUP
6. Use gasket sealer (not included) to stick the Rubber
Gasket (62) to the Upper Drum (4), making sure
the holes in both align. The Gasket must be flat
on the Upper Drum to ensure a proper seal.
Rubber
Gasket
(62)
Screw (1)
Washer (2)
Nut (3)
Upper
Drum (4)
Lower
Drum (61)
Use Hardware Bag #8
7. Place the Upper Drum onto the Lower Drum (61),
making sure the mounting holes align in both.
Fasten Drums together using eight M6 x16
Screws (1), M6 Washers (2), and M6 Nuts (3).
8. Mount Control Handle Plate (53) to Support
Bracket Seat (11) using two M8 x 25 Hex
Bolts (47), M8 Washers (6), and M8 Nuts (5).
Hex Bolt (47)
Washer (6)
Nut (5)
Support Bracket
Seat (11)
ControlControl
HandleHandle
PlatePlate ((5353))
Use Hardware Bag #4
9. Insert Washer (49), then Coil Spring (48)
into lower hole on Control Handle (54).
10. Place Control Handle over Support Arm (55)
shaft. Press down on Handle to align
holes on Handle and Support Arm.
11. Secure Control Handle to Support Arm
shaft with a M10 x 70 Hex Bolt (50), M10
Washer (51), and two M10 Nuts (52).
Washer
(49)
Support
Arm (55)
Control Handle
(54)
Coil Spring
(48)
Hex Bolt
(50)
Washer
(51)
Nut
(52)
Hex Bolt
(44)
Use Hardware Bag #5
Use Hardware
Bag #13 for Spring
12. Thread M8 x 55 Hex Bolt (44) into nut on
Control Handle to secure Coil Spring down.
Control
Handle
(54)
Washer
(49)
Coil
Spring
(48)
Hex Bolt
(44)
ControlControl
HandleHandle
PlatePlate
((5353))
Page 9For technical questions, please call 1-888-866-5797.Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
SAFETYOPERATIONMAINTENANCE SETUP
13. Fasten tops of Mixer Blades to Upper Drum using
two M8 x16 Screws (7), M8 Washers (6), and
M8 Nuts (5), one set per Blade.
14. Mount the Motor Hood (12) to the Support Bracket
Seat (11) using two M8 x 25 Hex Bolts (47), M8
Washers (6), and M8 Nuts (5). Tighten securely.
15. Attach the Motor Bracket (24) to the Motor
Hood and Wheel Bracket using two M8 x 60
Hex Bolts (31), M8 Washers (6), M8 Nuts (5),
and Clamp (32). Tighten securely.
16. Clean the Pinion Shaft (9) of all protective
material and other debris. Clean debris
out of the Drum Pulley (13) hub. Remove
screw and washer from Pinion Shaft.
17. Spread a few drops of lubricating oil on the
Pinion Shaft and squarely push the Drum
Pulley onto the Shaft, aligned so the groove
in the Pulley hub engages the Flat Key (10).
The Pulley should be flush with the step on
the Pinion Shaft. Secure Drum Pulley with
screw and washer removed in previous step.
Note: Do not hammer the Drum Pulley onto
the Pinion Shaft. Doing so can damage the
unit and lead to a loose fitting V-Belt (18).
18. Place the Motor (23) onto the Motor Bracket.
Secure the Motor to the Bracket using four
M8 x16 Hex Bolts (25), M8 Washers (6), and
M8 Nuts (5). Hand-tighten all four Nuts.
19. Attach the V-Belt by placing it around
the Motor Pulley (19) and then over the
Drum Pulley. Use a flat-edge screwdriver
(not included) to push the Motor inward
until the Motor Pulley is directly under the
Drum Pulley. Tighten the Bolts securing
the Motor to the Motor Bracket.
20. Slightly loosen the Hex Bolts (31) holding
the Motor Bracket in place. Push the Motor down
until V-Belt tension is tight. When proper V-Belt
tension is achieved, tighten the Hex Bolts. Refer
to Belt Inspection and Tensioning on page 11.
21. Check if Motor and V-Belt turn correctly. Hand
turn the Drum Pulley and verify that Motor
Pulley and Drum Pulley do not rub against any
other part. Adjust Motor location as needed.
22. Undo four Screws and remove backplate from
Switch Box (16). Attach green ground wire
from Motor to ground bolt inside Switch Box
and secure with nut. Connect white and black
motor wires to terminals on Switch – black to
black, white to white. Replace backplate and
secure with four screws previously removed.
Note: Refer to Wiring Connection Diagram on
page 12. If you are uncertain about your ability to
perform this procedure safely or correctly have the work
performed by an electrician or qualified technician.
23. Mount the Motor Cover (14) to the Motor
Hood (12) using three M6 x16 Screws (1),
M6 Washers (2), and M6 nuts (3).
CAUTION! Make sure that the wiring from
the Motor to the Switch does not come
in contact with any moving parts.
24. Check all connections to verify that all screws,
nuts, and bolts are securely tightened.
Motor
Hood
(12)
Motor
Cover
(14)
Motor
Bracket
(24)
MotorMotor
((2323))
Drum
Pulley
(13)
V-Belt
(18)
Clamp
(32)
Screw (7)
Washer (6)
Nut (5)
Hex Bolt (47)
Washer (6)
Nut (5)
Screw (1)
Washer (2)
Nut (3)
Hex
Bolt (31)
Washer (6)
Nut (5)
Support
Bracket
SeatSeat ((1111))
Hex Bolt (25)
Washer (6)
Nut (5)
Pulley
Screw,
Washer,
Flat Key
SwitchSwitch
Box (16)Box (16)
Use Hardware Bag #4, #6, #7, #9, and #11
WheelWheel
BracketBracket
Page 10 For technical questions, please call 1-888-866-5797. Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
SAFETY OPERATION MAINTENANCESETUP
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
General Operating Instructions
WARNING! TO PREVENT SERIOUS INJURY:
Do not operate the Mixer on slopes or uneven
surfaces with an incline greater than 5º. Ensure the
Mixer is stable before and after starting the Motor.
WARNING! TO PREVENT SERIOUS INJURY:
Do not attempt to move the Mixer when it is
full and/or in operation. Block the wheels
with wheel chocks (not included).
WARNING! TO PREVENT SERIOUS INJURY: Keep
clear of rollers and other pinch points when running the
Mixer, pivoting, or changing the angle of the Drum.
1. This appliance is intended for household use only.
2. Place the Cement Mixer on a solid, even surface.
3. Connect the Power Cord to an electric
outlet (or properly rated, grounded
three prong extension cord).
4. Adjust the Drum angle by pulling on the Control
Handle. First, disengage the locking pins by
pulling the Control Handle away from the Drum
and then pushing on the Handle until the desired
angle is reached. Re-engage the locking pins.
Note: Turn the Motor on before filling the Drum. This
will protect the Motor and evenly mix materials.
5. Press the ON / OFF Switch to the ON (I)
position – the Drum will spin.
6. Add material to the Drum. Typical maximum
quantities include: 2 gallons water with 3 shovels
of cement and 15 shovels aggregate rock
(using a size 3 shovel, not included.). Refer
to material manufacturer’s instructions.
Note: Inspect the mix frequently to ensure it does
not harden or dry. Allowing mix to harden or dry
could damage the Mixer or cause a malfunction.
7. Once materials are mixed, use the Control
Handle to tilt Drum opening downward and
dump materials where needed. The materials
are dumped while the Drum is rotating.
CAUTION! Never leave the Cement Mixer running while
unattended. Do not turn Mixer off while full of cement.
8. When finished, press the ON / OFF Switch
to the OFF (O) position – the Drum will
stop. Disconnect the Power Cord.
9. Tilt the Drum angle as far down as
possible to drain all fluids from Drum.
10. Clean, then store indoors out of children’s reach.
Page 11For technical questions, please call 1-888-866-5797.Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
SAFETYOPERATIONMAINTENANCE SETUP
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool to its “OFF” position and unplug the tool from its
electrical outlet before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• Loose hardware
• Misalignment or binding of moving parts
• Cracked or broken parts
• Damaged electrical wiring
• Damaged or cracked belts
• Any other condition that may
affect its safe operation.
2. AFTER USE, immediately wash out all debris
from the inside and outside of the Cement Mixer.
Scrub the inside of the Drum with a stiff, long
handled bristle brush for best results. Wipe
external surfaces of the tool with clean cloth.
3. DO NOT apply water in or around the Motor.
4. PERIODICALLY recheck all fasteners
and other connections for tightness.
5. WARNING! TO PREVENT SERIOUS
INJURY: If the supply cord of this power
tool is damaged, it must be replaced only
by a qualified service technician.
Belt Inspection and Tensioning
1. Retighten V-Belt after the first 25 hours of use.
To test the tension, follow the steps below.
2. Remove Motor Cover.
3. Examine Belt for cracks, tears in the
backing, or other damage. Replace Belt
if damaged according to steps below:
a. Loosen the Motor Bracket Bolts and slide
Motor Bracket up as far as possible.
b. Slide the old Belt off of the Drum Pulley first,
then remove it from the Motor Pulley.
c. Put the new Belt around the Motor Pulley
first, then around the Drum Pulley.
d. Move the Motor Bracket down until the Belt is
properly tensioned according to the directions
below. Tighten the Motor Bracket Bolts.
4. Check and adjust belt tension
according to the following steps:
a. Press on the center of the longest span
on the Belt with moderate finger pressure.
Then measure the deflection distance, the
distance that the Belt moved. The Belt
should deflect anywhere from 1/2″ to 3/4″.
b. If the Belt deflects too much, tighten Belt
by loosening the Motor Bracket Bolts and
moving the Motor down slightly, away from
the Drum Pulley. Secure Motor Bracket Bolts
and retest tension. If the Belt is too long to
be properly tensioned, it must be replaced.
= 1/2″ to 3/4″
Deflection
Distance
c. If the Belt deflects too little, loosen the Motor
Bracket Bolts and lift Motor upward. Secure
Motor Bracket Bolts and retest tension.
5. Before use, replace Motor Cover.
Page 12 For technical questions, please call 1-888-866-5797. Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
SAFETY OPERATION MAINTENANCESETUP
Troubleshooting
Problem Possible Causes Likely Solutions
Tool will not start. 1. Cord not connected.
2. No power at outlet.
3. Internal damage or wear.
1. Check that cord is plugged in.
2. Check power at outlet. If outlet is unpowered, turn
off tool and check circuit breaker. If breaker is
tripped, make sure circuit has the correct capacity
for the tool and circuit has no other loads.
3. Have technician service tool.
Tool operates slowly. Extension cord too long
or wire size too small.
Eliminate use of extension cord. If an extension
cord is needed, use shorter/heavier gauge cord.
See Extension Cords in GROUNDING section.
Excessive noise
or rattling.
Internal damage or wear. Have technician service tool.
Overheating/
Overloading.
1. Running at 100% load
for extended time.
2. Blocked motor housing vents.
3. Motor being strained by long or
small diameter extension cord.
1. Allow for lighter no-load intervals.
2. Wear ANSI-approved safety goggles and NIOSH-
approved dust mask/respirator while blowing
dust out of motor using compressed air.
3. Eliminate use of extension cord. If an
extension cord is needed, use one with the
proper diameter for its length and load. See
Extension Cords in GROUNDING section.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect power supply before service.
Wiring Connection Diagram
M
1
30UF/350V
120V
60HZ
CK-5
GREEN RED
1
3
2
4
CAPACITANCE
OVERLOAD
PROTECTOR
Page 13For technical questions, please call 1-888-866-5797.Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
SAFETYOPERATIONMAINTENANCE SETUP
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 792363675369 when ordering parts.
Page 14 For technical questions, please call 1-888-866-5797. Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
SAFETY OPERATION MAINTENANCESETUP
Parts List and Diagram
Parts List
Part Description Qty
1 Screw M6 x16 13
2 Elastic Washer M6 13
3 Nut M6 11
4 Upper Drum 1
5 Nut M8 30
6 Washer M8 30
7 Screw M8 x16 2
8 Mixer Blade 2
9 Pinion Shaft 1
10 Flat Key A5 x 28 1
11 Support Bracket Seat 2
12 Motor Hood 1
13 Drum Pulley 1
14 Motor Cover 1
15 Cross Recessed Screw M4 2
16 Switch Box 1
17 Switch 1
18 V-Belt 1
19 Motor Pulley 1
20 Set Screw M6 x12 2
21 Cord Sleeve 1
22 Power Cord 1
23 Motor 1
24 Motor Bracket 1
25 Hex Bolt M8 x16 4
26 Washer M6 5
27 Ball Bearing 1
28 Gear 1
29 Flat Key A5 x16 1
30 Flat Washer M15 1
31 Hex Bolt M8 x 60 2
32 Clamp 1
Part Description Qty
33 Wheel Bracket 1
34 Flat Washer M25 4
35 Wheel 2
36 Cotter Pin 5 x 45 2
37 Lower Bearing Cover 1
38 Ball Bearing 60206 2
39 Washer 2-4
40 Hex Bolt M14 x 30 1
41 Elastic Washer M14 1
42 Washer 1
43 Stand Support Bracket 1
44 Hex Bolt M8 x 55 3
45 Hex Bolt M8 x 65 4
46 Stand 1
47 Hex Bolt M8 x 25 4
48 Coil Spring 1
49 Washer 1
50 Hex Bolt M10 x 70 1
51 Washer M10 1
52 Nut M10 2
53 Control Handle Plate 1
54 Control Handle 1
55 Support Arm 1
56 C-Clip 2
57 Hex Bolt M8 x 60 2
58 Shaft 1
59 Upper Bearing Cover 1
60 Hex Bolt M8 x 20 10
61 Lower Drum 1
62 Rubber Gasket 1
63 Support Bracket 1
Page 15For technical questions, please call 1-888-866-5797.Item 67536
