Central Machinery 04333 User manual

12”TABLE SAW - 2 HP
Model 04333
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
Copyright 2003 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
®

PRODUCT SPECIFICATIONS
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures, parts list and as-
sembly diagram. Keep your invoice with this manual. Write the invoice number
on the inside of the front cover. Keep this manual and invoice in a safe and dry
place for future reference.
GENERAL SAFETY WARNINGS AND PRECAUTIONS
1. KEEP WORK AREA CLEAN AND DRY. Cluttered, damp, or wet work areas
invite injuries.
2. KEEP CHILDREN AWAY FROM WORK AREA. Do not allow children to handle
this product.
3. STORE IDLE EQUIPMENT. When not in use, tools and equipment should be
stored in a dry location to inhibit rust. Always lock up tools and equipment, and
keep out of reach of children.
4. DO NOT USE THIS PRODUCT IF UNDER THE INFLUENCE OF ALCOHOL OR
DRUGS. Read warning labels on prescriptions to determine if your judgement or
reflexes are impaired while taking drugs. If there is any doubt, do not attempt to
use this product.
SKU 04333 PAGE 2
Item Descri
p
tion
Electrical Requirements 120V / 60 Hz / 3400 RPM
18 Amps / 2 HP Motor
Saw Blade Size 12” Diameter, 5/8” Arbor, 40T C2
Table Dimensions 32” x 21-1/2”
Maximum Cutting Capacities 3-1/2” At 90 Degrees.
2” At 45 Degrees.
Spindle Diameter 5/8”
Spindle Thread 5/8”-18 Right Hand
Tilting Arbor 0-45 Degrees Left/0-10 Degrees Right
Fence Dimensions 21-7/8” x 2-1/2”
Stand Dimensions 35” x 32” x 24-1/2”
Dust Port Dimensions 4” O.D.
Stand Leg Spread 35” x 32”
Weight 102 Pounds

5. USE EYE AND BREATHING PROTECTION. Wear ANSI approved safety impact
eye goggles and a dust mask or respirator when using this product. ANSI ap-
proved safety impact eye goggles, dust masks and respirators are available from
Harbor Freight Tools.
6. DRESS SAFELY. Do not wear loose clothing or jewelry, as they can become
caught in moving parts. Wear a protective hair covering to prevent long hair from
becoming caught in moving parts. If wearing a long-sleeve shirt, roll sleeves up
above elbows.
7. DO NOT OVERREACH. Keep proper footing and balance at all times to prevent
tripping, falling, back injury, etcetera.
8. INDUSTRIAL APPLICATIONS MUST FOLLOW OSHA REQUIREMENTS.
9. STAY ALERT. Watch what you are doing at all times. Use common sense. Do
not use this product when you are tired or distracted from the job at hand.
10. CHECK FOR DAMAGED PARTS. Before using this product, carefully check that
it will operate properly and perform its intended function. Check for damaged
parts and any other conditions that may affect the operation of this product.
Replace or repair damaged or worn parts immediately.
11. REPLACEMENT PARTS AND ACCESSORIES: When servicing, use only identi-
cal replacement parts. Only use accessories intended for use with this product.
Approved accessories are available from Harbor Freight Tools.
12. MAINTAIN THIS PRODUCT WITH CARE. Keep this product clean and dry for
better and safer performance.
13. MAINTENANCE: For your safety, service and maintenance should be performed
regularly by a qualified technician.
14. USE THE RIGHT TOOL FOR THE JOB. Do not attempt to force a small tool or
attachment to do the work of a larger industrial tool. There are certain applica-
tions for which this tool was designed. It will do the job better and more safely at
the rate for which it was intended. Do not modify this tool, and do not use this
tool for a purpose for which it was not intended.
15. WARNING: The warnings, precautions, and instructions discussed in this manual
cannot cover all possible conditions and situations that may occur. The operator
must understand that common sense and caution are factors, which cannot be
built into this product, but must be supplied by the operator.
SKU 04333 PAGE 3

SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS
1. MAINTAIN A SAFE WORKING ENVIRONMENT. Keep the work area well lit.
Make sure there is adequate surrounding workspace. Always keep the work
area free of obstructions, sawdust, grease, oil, trash, and other debris. Do not
use the Table Saw in areas near flammable chemicals, dusts, and vapors. Do
not use the Table Saw in a damp or wet location.
2. GROUND THIS PRODUCT. The electrical Power Cord for this product is
equipped with a grounded, 3-Prong Plug. Never remove the grounding prong or
modify the Plug in any way. Do not use adapter plugs with this product. To
comply with the National Electric Code, and to provide additional protection from
the risk of electrical shock, this product should only be connected to a 120 Volt,
3-hole electrical outlet that is protected by a Ground Fault Circuit Interrupter
(GFCI).
3. DO NOT ABUSE THE POWER CORD. Do not use the Power Cord to pull its 3-
Prong Plug from an electrical power outlet. Keep the Power Cord away from
heat, oil, sharp edges, and moving parts. Route the Power Cord safely. Do not
route the Power Cord where it can be walked on or tripped over. Replace a
damaged Power Cord immediately.
4. IF AN EXTENSION CORD (not included) IS USED, MAKE SURETO USE
ONLY UL APPROVED CORDS HAVING THE CORRECT GAUGE AND
LENGTH. (See Figure A.)
5. REDUCE THE RISK OF ACCIDENTAL STARTING. Make sure the Power
Switch (part #91) is in the “STOP” position before plugging the Power Cord into a
grounded, 3-hole, 120 Volt, electrical outlet.
(See Assy. Diagram.)
6. PRIOR TO STARTING THE TABLE SAW, MAKE SURE ALL ADJUSTING
KEYS AND WRENCHES ARE REMOVED FROM THE TOOL.
SKU 04333 PAGE 4
FIGURE A
REQUIRED MINIMUM EXTENSION CORD GAUGE – 120 VOLT
NAMEPLATE
AMPERES EXTENSION CORD LENGTH
0 - 25
Feet 25 - 50 Feet 50 - 100 Feet 100 – 150 Feet 150 – 200 Feet
16.1 – 20.0 12 10 - - -

7. BEFORE SAWING,TURN ON THE TABLE SAW BRIEFLY AND CHECK FOR
EXCESSIVELY LOOSE SAW BLADE (part #45) OR MACHINE VIBRATION. If
this is found, turn off the tool and correct the problem before using.
8. KEEP HANDS AND FINGERS AS FAR AWAY AS POSSIBLE FROMTHE SAW
BLADE (part #45) AND OTHER MOVING PARTS OF THE TABLE SAW.
9. ALLOW THE SAW BLADE (part #45) TO TURN UP TO FULL SPEED BEFORE
FEEDING A WORKPIECE INTO THE SAW BLADE. When turning off the Table
Saw, allow the Saw Blade to slow down and stop on its own. Do not press
against the Saw Blade to stop it.
10. FEED THE WORKPIECE INTO THE SAW BLADE (part #45) GRADUALLY . Do
not force the machine to remove material faster than it was designed to cut.
11. WHEN SAWING A LARGE WORKPIECE, MAKE SURE ITS ENTIRE LENGTH
IS PROPERLY SUPPORTED. If necessary, use a roller stand (not included) with
a larger workpiece.
12. NEVER ATTEMPT TO REMOVE MATERIAL STUCK IN THE MOVING PARTS
OF THETABLE SAW WHILE IT IS PLUGGED IN AND RUNNING.
13. KEEP ALL GUARDS IN PLACE AND IN PROPER WORKING ORDER.
14. TURN OFF THE TABLE SAW IF THE WOOD STOCK IS TO BE BACKED OUT
OF AN UNCOMPLETED CUT.
15. ALWAYS FEED THE WOOD STOCK INTO THE SAW BLADE (part #45) AND
AGAINST ITS ROTATION.
16. MAKE SURETHE WOOD STOCK IS FREE OF NAILS AND OTHER FOREIGN
OBJECTS THAT COULD DAMAGE THE SAW BLADE (part #45).
17. NEVER STAND ON THE TABLE SAW. Serious injury could result if the Table
Saw is tipped or if the turning Saw Blade (part #45)) is accidentally contacted.
18. ALWAYS TURN THE POWER SWITCH (part #91) TO ITS “OFF” POSITION
AND UNPLUG THETABLE SAW FROM ITS ELECTRICAL OUTLET BEFORE
PERFORMING ANY INSPECTION, ADJUSTMENTS, MAINTENANCE, OR
CLEANING PROCEDURES.
19. WARNING: Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities, contain chemicals known (to the State of California)
to cause cancer, birth defects or other reproductive harm. Some examples of
these chemicals are: lead from lead-based paints, and arsenic and chromium
SKU 04333 PAGE 5

from chemically treated lumber. Your risk from these exposures varies
depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to filter out
microscopic particles.
(California Health & Safety Code 25249.5, et seq.)
20. WARNING: People with pacemakers should consult their physician(s) before
using this product. Operation of electrical equipment in close proximity to a heart
pacemaker could cause interference or failure of the pacemaker.
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts List on page 14
are included. If any parts are missing or broken, please call Harbor Freight Tools at the
number shown on the cover of this manual as soon as possible.
SKU 04333 PAGE 6
ASSEMBLY INSTRUCTIONS
NOTE: For additional references to the parts listed in the following pages, refer to the

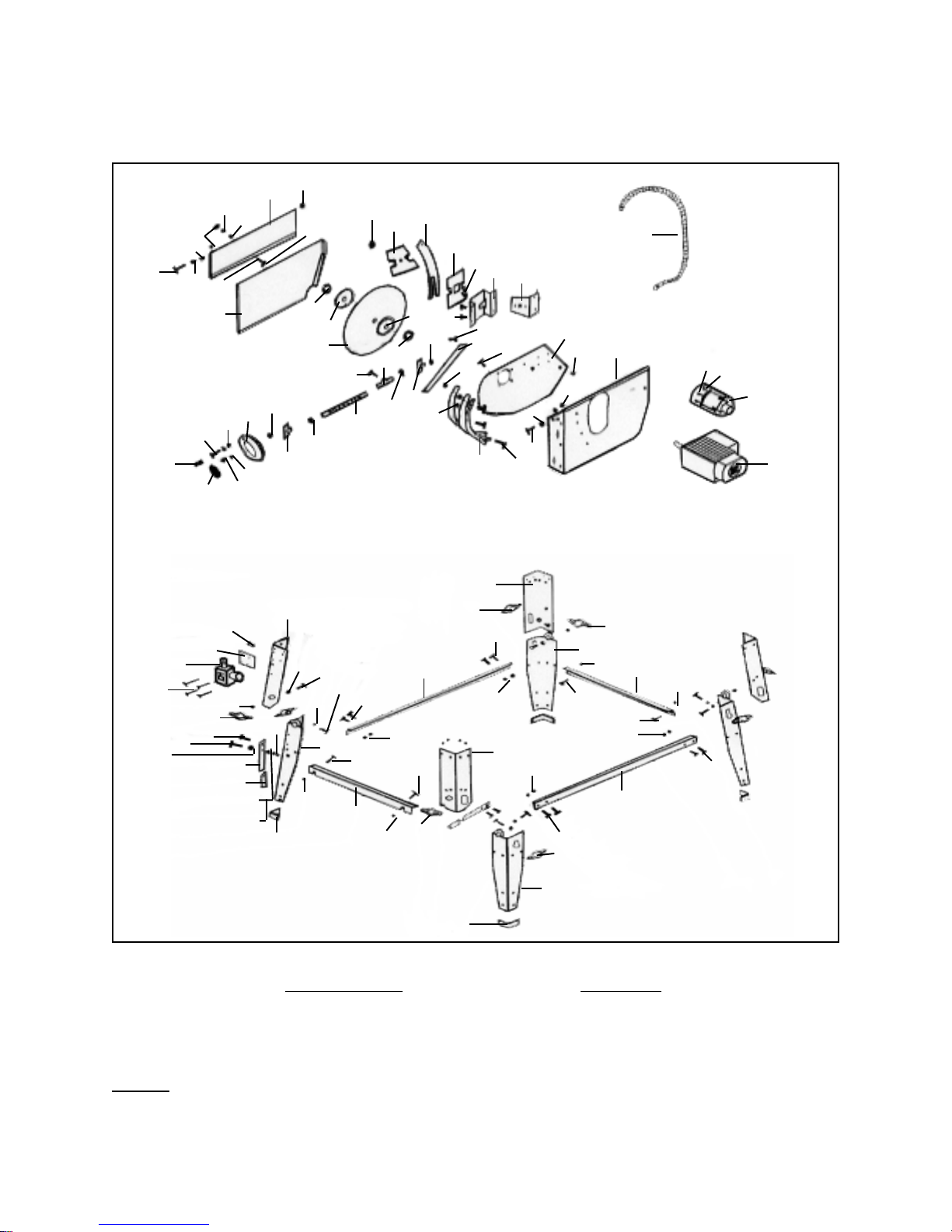

Assembly Diagrams on pages 14 and 15 .
1. Attach a Right Upper Leg (part #100) to a Right Lower Leg (part #101), using two
Carriage Bolts (part #103), two Washers (part #93), and two Wing Nuts
(part #94). (See Figure B, next page.)
2. Attach the remaining Right Upper Leg (part #100) to the remaining Right Lower
Leg (part #101), using two Carriage Bolts (part #103), two Washers (part #93),
and two Wing Nuts (part #94). (See Figure B.)
3. Attach a Left Upper Leg (part #104) to a Left Lower Leg (part #105), using two
Carriage Bolts (part #103), two Washers (part #93), and two Wing Nuts
(part #94). (See Figure B.)
4. Attach the remaining Left Upper Leg (part #104) to the remaining Left Lower Leg
(part #105), using two Carriage Bolts (part #103), two Washers (part #93), and
two Wing Nuts (part #94). (See Figure B.)
5. Insert the four Rubber Feet (part #97) onto the four Leg Assemblies.
(See Figure B.)

SKU 04333 PAGE 7
LEFT UPPER
LEG
(#104)
RIGHT UPPER
LEG
(#100)
LEFT LOWER
LEG
(#105)
RIGHT LOWER
LEG
(#101)
CARRIAGE
BOLT
(#103)
CARRIAGE
BOLT
(#103)
WASHER
(#93)
WASHER
(#93)
WING NUT
(#94)
WING NUT
(#94)
RUBBER FOOT
(#97)
RUBBER FOOT
(#97) FIGURE B
6. Attach a Long Crossbeam (part #102) to one Right Leg Assembly
(parts #100, #101) and to one Left Leg Assembly (parts #104, #105), using four
Hex Bolts (part #10), and four Self-Locking Hex Nuts (part #21).
(See Figure C, next page.)
7. Attach the remaining Long Crossbeam (part #102) to the remaining Right Leg
Assembly (parts #100, #101) and to the remaining Left Leg Assembly
(parts #104, #105), using four Hex Bolts (part #10), and four Self-Locking Hex
Nuts (part #21). (See Figure C.)
8. Attach a Short Crossbeam (part #98) to one Right Leg Assembly
(parts #100, #101) and to one Left Leg Assembly (parts #104, #105), using two
Carriage Bolts (part #99) and two Knurled Nuts (part #17). (See Figure C.)
9. Attach the remaining Short Crossbeam (part #98) to the remaining Right Leg
Assembly (parts #100, #101) and to the remaining Left Leg Assembly
(parts #104, #105), using two Carriage Bolts (part #99) and two Knurled Nuts
(part #17). (See Figure C.)
10. With assistance, place the Table Saw Assembly onto the Stand Assembly.
(See Figure D, next page.)
11. Align the four mounting holes located in each corner of the Table Top (part #11)
with the four mounting holes located at the top of each Leg of the Stand Assem-
bly. (See Figure D.)

SKU 04333 PAGE 8
LONG CROSSBEAM
(#102)
LEFT LEG
ASSEMBLY
(#104, #105)
RIGHT LEG
ASSEMBLY
(#100, #101)
LEFT LEG
ASSEMBLY
(#104, #105)
RIGHT LEG
ASSEMBLY
(#100, #101)
HEX BOLT
(#10)
HEX BOLT
(#10)
SHORT
CROSSBEAM
(#98)
CARRIAGE
BOLT
(#99)
KNURLED
NUT
(#17)
KNURLED
NUT
(#17)
FIGURE C
NUT
(#14)
FIGURE D
STAND
ASSEMBLY
12. Secure the Table Saw Assembly to the Stand Assembly, using sixteen Hex Bolts
(part #13) and sixteen Nuts (part #14). (See Figure D.)
TABLE SAW
ASSEMBLY
HEX BOLT
(#13)
TABLE TOP
(#11)

SKU 04333 PAGE 9
13. Position the Switch Bracket (part #90) on the inside of the Left Upper Leg
(part #104), and align the four mounting holes of the Switch Bracket with the four
mounting holes on the Left Upper Leg. (See Figure E.)
14. Position the Power Switch (part #91) on the outside of the Left Upper Leg
(part #104), and align the four mounting holes of the Power Switch with the four
mounting holes on the Left Upper Leg. (See Figure E.)
15. Insert the four Pan Head Screws (part #92) through the four mounting holes in
the Power Switch (part #91) and Left Upper Leg (part #104). Then, tighten the
four Pan Head Screws into the Switch Bracket (part #90) to secure the Power
Switch in place. (See Figure E.)
LEFT UPPER LEG
(#104)

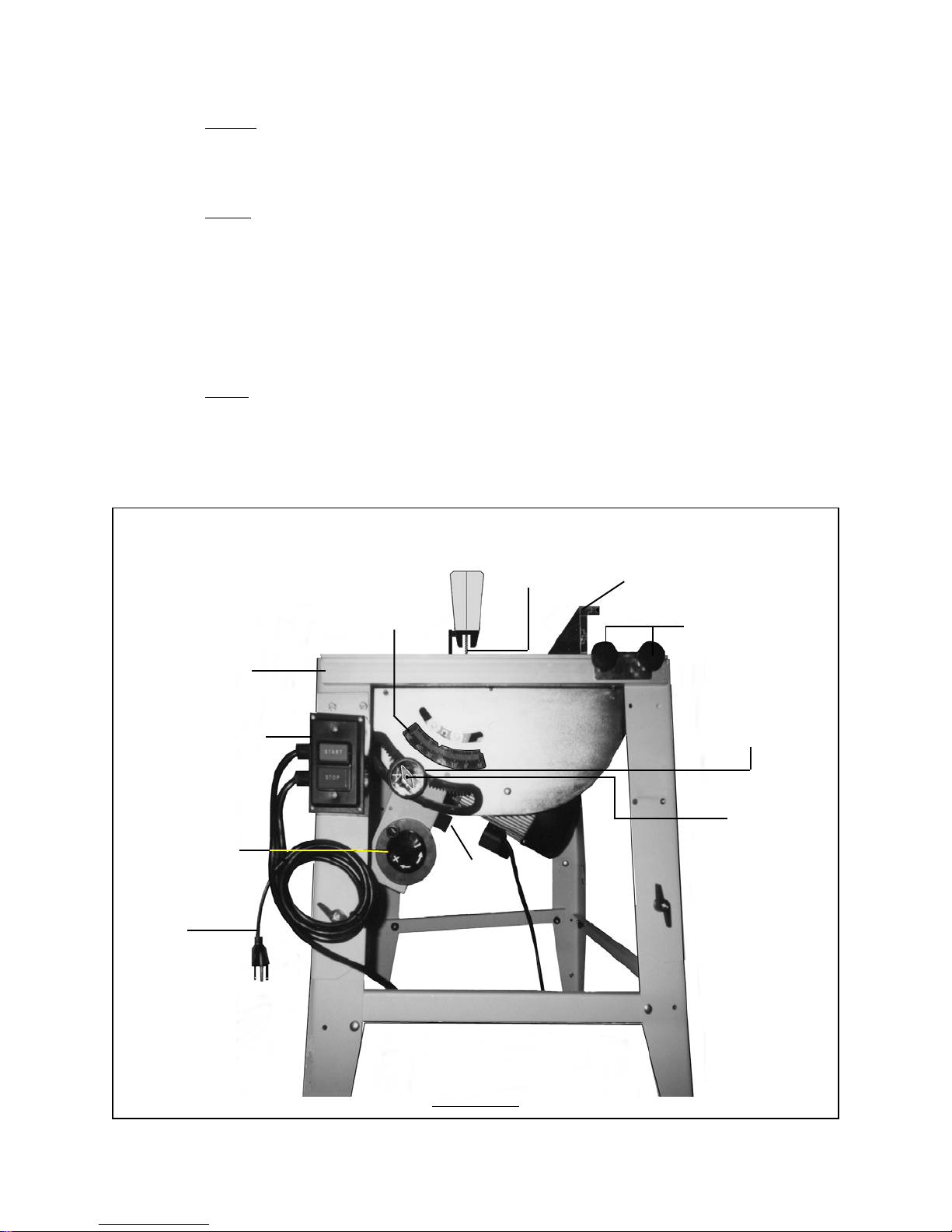

POWER SWITCH
(#91)
PAN HEAD
SCREW
(#92)
POWER
SWITCH
(#91)
LEFT
UPPER LEG
(SIDE VIEW)
(#104)
SWITCH BRACKET (#90)
FIGURE E
16. NOTE: For increased safety and cleanliness, it is recommended that the Dust
Port on the Table Saw be used at all times during operation. To utilize the Dust
Port, a 4” I.D. diameter Exhaust Hose (not included) must be attached to the
Dust Port. For instructions on attaching a 4” I.D. Exhause Hose to the Dust Port,
refer to the manufacturer’s manual for the Exhaust Hose you wish to use.
(See Figure F, next page.)
ADJUSTING INSTRUCTIONS
To AdjustThe Height, Angle,And Width Of A Cut:
1. CAUTION: Always turn the Power Switch (part #91) to its “STOP” position and
unplug the Power Cord from its 120 volt electrical outlet before performing the
following procedures. (See Figure F.)

2. The height of the Saw Blade (part #45) may be adjusted up to 3-1/2”. To raise
the height of the Saw Blade, turn the Hand Wheel (part #57) clockwise . To lower
the Saw Blade, turn the Hand Wheel counterclockwise. (See Figure F.)
3. The angle of the Saw Blade (part #45) may be adusted from 0 degrees to 45
degrees to the right, and from 0 degrees to 10 degrees to the left. To adjust the
angle of the Saw Blade, loosen the Lock Knob (part #41). Turn the Hand Wheel
(part #38) clockwise for a right-angle adjustment, or counterclockwise for a left-
angle adjustment. Once the desired angle is obtained as shown on the Angle
Indicator (part #39), retighten the Lock Knob to lock the adjustment in place.
(See Figure F.)
4. The width of a cut may be adjusted by loosening the two Knobs (part #43) and
moving the Fence (part #15) to the right or left until the desired width of cut is
obtained. Then, retighten the two Knobs to lock the adjustment in place.
(See Figure F.)
SKU 04333 PAGE 10
POWER SWITCH
(#91)
SAW BLADE
(#45) FENCE
(#15)
KNOB
(#43)
LOCK
KNOB
(#41)
HAND
WHEEL
(#38)
ANGLE
INDICATOR
(#39)
HAND
WHEEL
(#57)
FIGURE F
POWER
CORD
4” O.D.
DUST
PORT
TABLE TOP
(#11)

OPERATING INSTRUCTIONS
1. If necessary, make adjustments for the height, angle, and width of the cut to be
performed. (See “Adjusting Instructions” Section.)
SKU 04333 PAGE 11
2. Plug the Power Cord into a 120 volt, grounded, electrical outlet, and turn the
Power Switch (part #91) to its “START” position. (See Figure F.)
3. Allow sufficient time for the Saw Blade (part #45) to turn at full speed.
(SEE FIGURE F.)
4. CAUTION! Never pass fingers and hands directly over or under the Saw
Blade (part #45) when the Table Saw is on and when cutting a workpiece.
Whenever possible, use a Push Stick (not included) to push the workpiece into
the Saw Blade. (See Figure F.)
5. At the start of the cut, the left hand holds the workpiece firmly on the Table Top
(part #11). The right hand, with the aid of a Push Stick, pushes the workpiece
toward the rotating Saw Blade (part #45). (See Figure F.)
6. After the cut is underway, the right hand with the aid of a Push Stick continues
pushing the workpiece forward into the Saw Blade (part #45). Just before the cut
is near completion move the left hand safely away from the workpiece and the
Saw Blade. Then, continue pushing the workpiece into the Saw Blade with the
Push Stick until the cut is complete. (See Figure F.)
7. Once the cut is completed, remove the workpiece from the Table Saw. Turn the
Power Switch (part #91) to its “STOP” position, and unplug the Power Cord from
its electrical outlet. (See Figure F.)
INSPECTION, MAINTENANCE, AND CLEANING
1. CAUTION: Always turn the Power Switch (part #91) to its “STOP” position
and unplug the Power Cord from its 120 volt electrical outlet before per-
forming any inspection, adjustments, maintenance, or cleaning.
2. Before each use, inspect the general condition of the Table Saw. Check for loose
screws, misalignment or binding of moving parts, cracked or broken parts, dam-
aged electrical wiring, loose, bent, chipped, or cracked Saw Blade (part #45), and
any other condition that may affect its safe operation. If abnormal noise or vibra-
tion occurs, have the problem corrected before further use.
Do not use damaged equipment.

3. The Saw Blade (part #45) must be sharp and clean to perform properly. Depend-
ing on the hardness of wood stock that is cut and frequency of tool use, the Saw
Blade can become dull. A dull Saw Blade will rub the wood stock rather than
cut, which results in increased friction, higher temperatures, and burned wood
stock. As often as possible, check the condition of the Saw Blade and, if neces-
sary, replace a dull Saw Blade with a new, 12” diameter Saw Blade.
(See Figure G.)
4. To install a new 12” Saw Blade (part #45), raise the height of the Saw Blade all
the way by turning the Hand Wheel (part #57) clockwise until it stops.
(See Figure F.)
5. Unscrew and temporarily remove the Screw (part #12) located at the rear of the
Table Insert (part #9). Then, remove the Table Insert to expose the 12” Saw
Blade (part #45). (See Figure G.)
6. Reach into the Saw Blade opening and remove the Spindle Nut (part #85) and
Outer Flange (part #84). Then, remove the old Saw Blade (part #45) from the
Spindle. (See Figure G.)
7. Install a new 12” Saw Blade (part #45) onto the Spindle. NOTE: Make sure the
teeth of the Saw Blade point down toward the front of theTable Saw.
(See Figure G.)
SKU 04333 PAGE 12

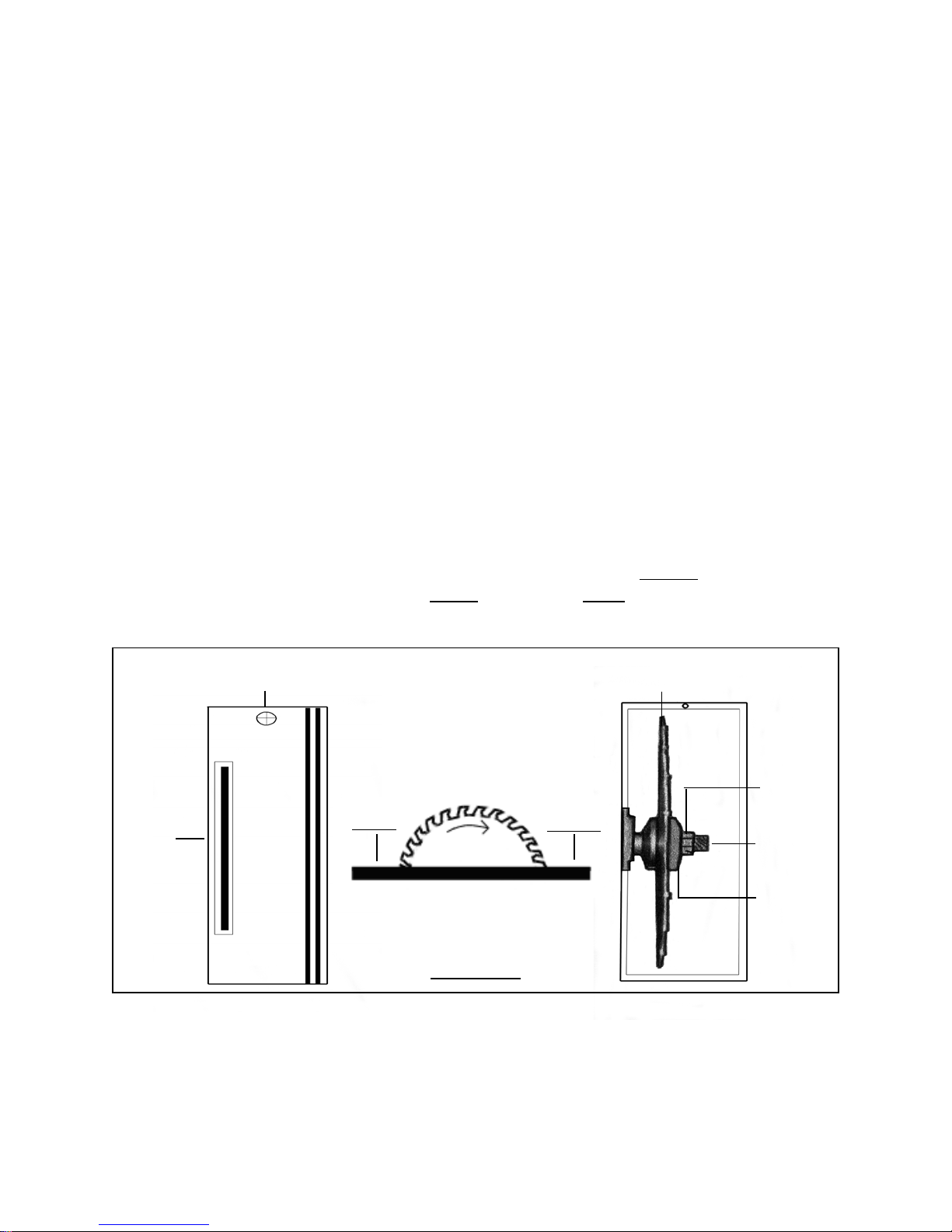

SAW BLADE
(#45)
SPINDLE
SPINDLE
NUT
(#85)
OUTER
FLANGE
(#84)
SCREW
(#12)
TABLE
INSERT
(#9)
FIGURE G
8. Replace the Outer Flange (part #84), and retighten the Spindle Nut (part #85)
onto the Spindle. Then, replace the Table Insert (part #9) and secure it in place
with the Screw (part #12). (See Figure G.)
TABLE
SAW
FRONT
TABLE
SAW
REAR

PLEASE READ THE FOLLOWING CAREFULLY
THEMANUFACTURER AND/ORDISTRIBUTOR HAS PROVIDEDTHEPARTS LIST AND ASSEMBLY
DIAGRAM INTHIS MANUAL AS A REFERENCETOOL ONLY. NEITHERTHE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER
THATHE OR SHE ISQUALIFIEDTOMAKEANYREPAIRSTOTHEPRODUCT,ORTHATHEORSHE
IS QUALIFIEDTOREPLACE ANY PARTS OFTHE PRODUCT. IN FACT,THE MANUFACTUER AND/
ORDISTRIBUTOREXPRESSLYSTATESTHATALLREPAIRSANDPARTSREPLACEMENTSSHOULD
BEUNDERTAKENBYCERTIFIEDAND LICENSEDTECHNICIANS,AND NOTBYTHEBUYER. THE
BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER
INSTALLATIONOF REPLACEMENTPARTSTHERETO.
9. When cleaning, use a brush, clean cloth, or vacuum, remove all sawdust and
debris from the Table Saw. Do not use solvents to clean the Table Saw, as dam-
age to the machine may occur.
10. Once clean, lubricate all moving parts with a lightweight machine oil.
11. When storing, keep the Table Saw covered with a cloth cover.
SKU 04333 PAGE 13

PARTS LIST
NOTE: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts.
SKU 04333 PAGE 14
Part # Description Part # Description Part # Description
1 Self Locking Hex Nut (M5) 36 Angle Gauge 71 Dust Collector
2 Washer (5mm) 37 Pinion Plate 72 Motor Carrier Unit
3 Right Blade Cover 38 Hand Wheel/Blade Tilt 73 Self-Plugging Rivet
4 Left Blade Cover 39 Angle Indicator 75 Thread Rod Seat
5 Sunk Head Tapping Screw 40 Adjusting Washer 76 Riving Knife Seat
6 Sunk Head Screw (M5 x 30) 41 Lock Knob 77 Carriage Bolt (M10 x 25)
7 Lateral Divider 42 Rip Fence Carrier Extrusion 78 Guide Plate
8 Hex Bolt (M5 x 50) 43 Knob 79 Lever
9 Table Insert 44 Rip Fence Carrier 80 Riving Knife
10 Hex Bolt (M6 x 12) 45 Saw Blade 81 “U” Plate
11 Table Top 46 Inner Flange 82 Thread Rod Support
12 Sunk Head Screw (M6 x 16) 47 Adjusting Washer 83 Hex Nut (M10)
13 Hex Bolt (M6 x 16) 48 Hex Socket Screw (M6 x 8) 84 Outer Flange
14 Nut (M6) 49 Hex Bolt (M6 x 20) 85 Spindle Nut
15 Fence 50 Washer (6mm) 86 Lower Chip Case Cover
16 Carriage Bolt (M6 x 16) 51 Turning Tang 87 Upper Chip Case Cover
17 Knurled Nut 52 Height Indicator 88 Hex Nut (M4)
18 Copper Tube 53 Setting Tang Bolt 89 Suction Hose
19 Steel Tube 54 Hex Bolt 90 Switch Bracket
20 Rear Chip Case Guide Panel 55 Washer (6mm) 91 Power Switch
21 Self Locking Hex Nut (M6) 56 Hex Nut (M6) 92 Pan Head Screw
22 Sunk Head Tapping Screw 57 Hand Wheel/Blade Height 93 Washer (8mm)
23 Washer (6mm) 58 Washer (10mm) 94 Wing Nut
24 Lock Washer 59 Thread Rod Support ------- -----------------------------
25 Lock Washer 60 Ring Retainer ------- -----------------------------
26 Washer (5mm) 61 Thread Rod 97 Rubber Feet
27 Pinion Shaft Support 62 Ring Retainer 98 Short Crossbeam
28 Pan Head Screw (M5 x 12) 63 Thread Rod Nut 99 Carriage Bolt (M4 x 60)
29 Setting Tube 64 Washer (6mm) 100 Right Upper Leg
30 Pinion Shaft 65 Guide Pan 101 Right Lower Leg
31 Front Chip Case Guide Panel 66 Spring Washer 102 Long Crossbeam
32 Hex Bolt (M5 x 12) 67 Chip Case 103 Carriage Bolt (M8 x 16)
33 Indicator 68 Motor 104 Left Upper Leg
34 Lock Washer 69 Pan Head Screw (M4 x 13) 105 Left Lower Leg
35 Pan Head Tapping Screw 70 Pan Head Tapping Screw
ASSEMBLY DIAGRAM
910
11 12 13
14
15
16
17 18
19
20
21
22
23
24
25
261
27
28
29
30
31 28
27
26
1
25
21
23
32 33
34
35
36
37
38
25
39
40
41
28
7
6
5
4
3
1
2
1

ASSEMBLY DIAGRAM (CONT.)
NOTE: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts.
SKU 04333 PAGE 15
64 54
50
21 5055
87 50
55
54
86 8584
45
46
47
83
60
81 80
79
78 7776 75
73 21 72
54
66
50
54
21
67
89
71 70 69
68
32
65
64
21
59
62
63
49
61
60
59
58
57
56
55
54
53
52
51
21
102
10
10
21
101
100
99
98
17
97
94
50
97
64
21
6454 21
9493
9291 90 88 105
58 103
104
10
100
101
102 98
21
93103
21
99
94
17
10
94 94
99 99
17
17
95*
96*
PARTS 95* “HANDLE” AND 96* “RUBBER HANDLE” ARE OPTIONAL ACCESSORIES AND
NOT INCLUDED. TO ORDER, REQUEST SKU 04362.
