Central Machinery 95112 Parts list manual

10” PROFESSIONAL
CABINET TABLE SAW
Model 95112
ASSEMBLY AND OPERATION INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND
ALL WARNINGS AND INSTRUCTIONS BEFORE USE.
Copyright©2006 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.

Page 2SKU 95112 For technical questions, please call 1-800-444-3353.
Contents
PRODUCT SPECIFICATIONS ............................................................................... 3
GENERAL SAFETY RULES.................................................................................. 3
SPECIFIC SAFETY RULES................................................................................... 6
UNPACKING ......................................................................................................... 12
ASSEMBLY INSTRUCTIONS ............................................................................... 12
To Attach The Crank Handles To The Hand Wheels:.................................... 12
To Install The Rip Fence: ............................................................................... 12
To Install A Saw Blade:.................................................................................. 13
To Check Rip Fence And Saw Blade Alignment:......................................... 15
To Install The Blade Guard Assembly: .........................................................16
To Adjust The Blade Guard Assembly:......................................................... 17
To Adjust The Miter Gauge:...........................................................................18
To Connect To The Dust Port:........................................................................ 18
The Work Location: ........................................................................................ 19
To Adjust The Saw Blade Height:.................................................................. 19
To Adjust The Saw Blade Tilt:........................................................................ 20
OPERATING INSTRUCTIONS.............................................................................. 21
Cutting Aids:................................................................................................... 21
Making A Cross Cut:......................................................................................21
Making A Rip Cut: .......................................................................................... 22
Making A Miter Cut:........................................................................................ 23
Making A Bevel Cross Cut: ........................................................................... 23
Making A Bevel Rip Cut:................................................................................ 24
Making A Compound (Bevel) Miter Cut:....................................................... 25
Making A Large Panel Cut:............................................................................ 26
Making A Dado Cut: ....................................................................................... 26
INSPECTION, MAINTENANCE, AND CLEANING............................................... 27
TROUBLESHOOTING .......................................................................................... 29
PARTS LISTS AND DIAGRAMS .......................................................................... 31
ELECTRICAL SCHEMATIC.................................................................................. 36

Page 3SKU 95112 For technical questions, please call 1-800-444-3353.
PRODUCT SPECIFICATIONS
Electrical Requirements 220 VAC / 60 Hz / 18 Amps
3 HP Motor / Single Phase / 3450 RPM
Power Switch Type: Push Button (Magnetic ON/OFF)
Required Power Plug Type: 3-Prong, 220 VAC, Polarized, Twist-Lock (Not
Included)
Required Saw Blade 10” Diameter with 5/8” Arbor Hole rated at 4150 RPM or greater (Not Included)
Maximum Blade Height 3”
Arbor Size 5/8” Diameter
Cutting Capacity 3” @ 90° / 2-1/8” @ 45°
Maximum Rip to Right 50” (Table Supported)
Maximum Rip to Left 10” (Table Supported)
Saw Blade Tilt Capacity 45° Maximum
Drive System Type Triple Belt Drive
Belt Type Standard V-Belts: A-27 (Included)
Fence Scale 0”<->50”
Miter Gauge Scale 0°/90° <->30° Left or Right
Dust Port Dimensions 4” Outside Diameter
Table Height 34-1/8” High
Fence Dimensions 37” Long x 3-3/8” Wide
Table Dimensions 36-1/8” Wide x 27-1/16” Long
Table Extension Dimensions 27” Long x 8” Wide
Net Weight 480 Lb.
Accessories Saw Blade Guard / Miter Gauge / Rip Fence / Saw Blade Removal Tools.
Save This Manual
You will need this manual for the safety warnings and precautions, assembly, oper-
ating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the front
cover. Write the product’s serial number in the back of the manual near the assembly dia-
gram, or write month and year of purchase if product has no number. Keep this manual
and invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
1.

Page 4SKU 95112 For technical questions, please call 1-800-444-3353.
Do not operate power tools in explosive atmospheres, such as in the pres-
ence of flammable liquids, gases, or dust. Power tools create sparks which may
ignite the dust or fumes.
Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Protect others in the work area from
debris such as chips and sparks. Provide barriers or shields as needed.
ELECTRICAL SAFETY
Grounded tools must be plugged into an outlet properly installed and grounded
in accordance with all codes and ordinances. Never remove the grounding
prong or modify the plug in any way. Do not use any adapter plugs. Check
with a qualified electrician if you are in doubt as to whether the outlet is prop-
erly grounded. If the tools should electrically malfunction or break down, grounding
provides a low resistance path to carry electricity away from the user.
Avoid body contact with grounded surfaces such as pipes, radiators, ranges,
and refrigerators. There is an increased risk of electric shock if your body is
grounded.
Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
Do not abuse the Power Cord. Never use the Power Cord to carry the tools or
pull the Plug from an outlet. Keep the Power Cord away from heat, oil, sharp
edges, or moving parts. Replace damaged Power Cords immedi-ately. Dam-
aged Power Cords increase the risk of electric shock.
When operating a power tool outside, use an outdoor extension cord marked
“W-A” or “W”. These extension cords are rated for outdoor use, and reduce the
risk of electric shock.
PERSONAL SAFETY
Stay alert. Watch what you are doing, and use common sense when oper-
ating a power tool. Do not use a power tool while tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts. Avoid accidental starting.
Be sure the Power Switch is off before plugging in. Carrying power tools with
your finger on the Power Switch, or plugging in power tools with the Power Switch
on, invites accidents.
2.
3.
4.
1.
2.
3.
4.
5.
1.
2.

Page 5SKU 95112 For technical questions, please call 1-800-444-3353.
Remove adjusting keys or wrenches before turning the power tool on. A
wrench or a key that is left attached to a rotating part of the power tool may result
in personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing
and balance enables better control of the power tool in unexpected situations.
Always wear eye, hearing, and breathing protection. Wear ANSI approved safety
impact goggles, ANSI approved hearing protectors, and ANSI approved dust mask
or respirator when using this product. Non-skid safety shoes, hard hat, or hearing
protection must be used for appropriate conditions.
TOOL USE AND CARE
Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
Do not use the power tool if the Power Switch does not turn it on or off. Any
tool that cannot be controlled with the Power Switch is dangerous and must be
replaced.
Disconnect the Power Cord Plug from the power source before making any
adjustments, changing accessories, or storing the tool. Such preventive safety
measures reduce the risk of starting the tool accidentally.
Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
Maintain tools with care. Keep cutting tools sharp and clean. Properly main-
tained tools with a sharp cutting edge are less likely to bind and are easier to control.
Do not use a damaged tool. Tag damaged tools “Do not use” until repaired.
Check for misalignment or binding of moving parts, breakage of parts, and any
other condition that may affect the tool’s operation. If damaged, have the tool
serviced before using. Many accidents are caused by poorly maintained tools.
This Table Saw is designed for indoor use only.
Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool.
SERVICE
Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instruc-
tions in the “Inspection, Maintenance, And Cleaning” section of this manual.
3.
4.
5.
1.
2.
3.
4.
5.
6.
7.
8.
1.
2.

Page 6SKU 95112 For technical questions, please call 1-800-444-3353.
Use of unauthorized parts or failure to follow maintenance instructions may create
a risk of electric shock or injury.
SPECIFIC SAFETY RULES
Ground this product. This Table Saw requires the attachment and use of a UL
approved, 220 volt, grounded, 3-prong, twist lock, electrical Power Cord Plug (not
included). Only a qualified electrician should install the Power Cord Plug. Never
remove the grounding prong or modify the Power Cord Plug in any way. Do not use
adapter plugs with this product. To comply with the National Electric Code, and to
provide additional protection from the risk of electrical shock, this product should
only be connected to a 220 volt, 3-hole outlet that is protected by a Ground Fault
Circuit Interrupter (GFCI). (See Figure A, page 11.)
Maintain labels and nameplates on the Table Saw. These carry important infor-
mation. If unreadable or missing, contact Harbor Freight Tools for a replacement.
Avoid unintentional starting. Make sure you are prepared to begin work before
turning on the Table Saw.
Do not force the Table Saw. This tool will do the work better and safer at the
speed and capacity for which it was designed. Do not force the Saw Blade into the
workpiece being cut.
WARNING! Keep hands and fingers away from cutting area and Saw Blade. Use
a “push stick” (not included) if necessary.
Never leave the Table Saw unattended when it is plugged into an electrical
outlet. Turn off the tool, and unplug it from its electrical outlet before leaving.
Always use Saw Blades with a 10” diameter, 5/8” round arbor hole, and rated
at 4150 RPM or greater. Saw Blades that do not match the mounting hardware of
the Table Saw or that are rated less than the required minimum RPM will run ec-
centrically causing loss of control or may fly off the Saw, resulting in severe personal
injury and/or property damage.
Make sure the Table Saw is located on a flat, level, sturdy surface capable of
supporting the weight of the Table Saw and workpieces.
Do not use the Table Saw for cutting metals or for cutting curves. This will
cause the Saw Blade to break and/or reduce its service life.
Make sure the Table of the Table Saw and surrounding area are clear with the
exception of the workpiece to be cut.
Before using the Table Saw, check to make sure the Saw Blade is prop-erly
mounted on the Saw Spindle. Make sure the Saw Blade is balanced, and is not
cracked or bent.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.

Page 7SKU 95112 For technical questions, please call 1-800-444-3353.
Industrial applications must follow OSHA guidelines.
Never stand on theTable Saw. Serious injury could result if the Table Saw is tipped
or if the rotating Saw Blade is accidently contacted.
Never attempt to cut more than one workpiece at a time.
Never attempt to cut freehand. Make sure the workpiece to be cut is pressed
firmly against the Table.
When cutting a large workpiece, make sure its entire length is properly sup-
ported. If necessary, use a roller stand (not included).
Always feed the workpiece against the rotation of the Saw Blade.
Allow the Saw Blade to spin up to full speed before feeding it into a workpiece.
When turning off the Table Saw, allow the Saw Blade to spin down and stop on its
own. Do not press against the Saw Blade to stop it.
To avoid accidental injury, always wear heavy duty work gloves when chang-
ing the Saw Blade.
The Saw Blade will become hot while cutting. Allow the Saw Blade to completely
cool before handling.
Do not force the workpiece into the Saw Blade when cutting. Apply moderate
pressure, allowing the Saw Blade to cut without being forced.
Turn off the Table Saw and allow the Saw Blade to completely stop if the Saw
Blade is to be backed out of an uncompleted cut.
Never attempt to remove material stuck in the moving parts of the Table Saw
while it is plugged in and running.
Make sure the woodstock to be cut off has sufficient room to move side-ways.
Failure to do so may result in off-cut binding against the Saw Blade.
Always unplug the Table Saw from its electrical outlet before perform-ing in-
spection, maintenance, cleaning procedures, or changing accessories.
Before trying new or complicated techniques practice with scrap wood.
Make sure the woodstock is free from loose knots, flaws, nails, and any other
foreign objects that could damage the Saw Blade or cause “kickback”.
Causes and operator prevention of “kickback”: Kickback is a sudden reac-
tion to a pinched, bound, or misaligned Saw Blade, causing an uncontrolled
woodstock to lift up and out from the Table Saw toward the operator. When
the Saw Blade is pinched or bound tightly by the kerf closing down, the Saw Blade
stalls and the motor reaction drives the woodstock rapidly back toward the operator.
If the Saw Blade becomes twisted or misaligned in the cut, the teeth at the back
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.

Page 8SKU 95112 For technical questions, please call 1-800-444-3353.
edge of the Saw Blade can raise the woodstock (walk up), and eject it toward the
operator. Kickback is a result of tool misuse and/or incorrect operating procedures
or conditions and can be avoided by taking proper precautions as given below:
Maintain control of the woodstock at all times. Never allow the woodstock to rest
on the moving Saw Blade without holding on to the woodstock.
When the Saw Blade is binding, or when interrupting a cut for any reason, turn off
the Power Switch and hold the woodstock motionless on the Table Saw until the
Saw Blade comes to a complete stop. Never attempt to remove the woodstock
from the Table Saw or pull the woodstock backward while the Saw Blade is in mo-
tion or kickback may occur. Investigate and take corrective actions to eliminate
the cause of Saw Blade binding.
When restarting a woodstock on the Table Saw, center the Saw Blade in the pre-
cut kerf and check that the Saw Teeth are not engaged into the woodstock. If the
Saw Blade is binding, the woodstock may walk up or kick- back as the Table Saw
is restarted.
Support large panels with roller stands (not included) to minimize the risk of Saw
Blade pinching and kickback. Large panels tend to sag under their own weight.
Supports must be placed under the panel and near the outer edge of the panel.
Do not use a dull or damaged Saw Blade. Unsharpened or improperly set Saw
Blades produce a narrow kerf causing excessive friction, Saw Blade binding and
kickback.
Never use the Fence assembly as a guide when crosscutting.
Never rip a woodstock that is twisted or warped, or does not have a straight edge
to guide along the Rip Fence.
Push the woodstock past the Saw Blade prior to release.
Check all guards for proper operation before each use. Never disable guards.
Do not operate the Table Saw if the guard assembly does not move freely and close
instantly. Before each use, raise the guard assembly and make sure it moves freely
and does not touch the Saw Blade or any other part, in all angles and depths of
cut.
Never perform layout, assembly, or setup work on the Table of the Table Saw
when the machine is running.
Always disconnect the Table Saw from its electrical outlet before performing
any services, maintenance, or cleaning such as leaving the work area, mov-
ing the machine from one location to another, changing Saw Blades, cleaning
sawdust from the machine, etc.
Make sure to remove all adjusting wrenches from the Table Saw before turn-
ing it on.
•
•
•
•
•
•
•
•
29.
30.
31.
32.

Page 9SKU 95112 For technical questions, please call 1-800-444-3353.
Use a “push stick” or “auxiliary handle” (neither included) only when ripping
widths under 2”. Use a “push block” and “auxiliary fence” (neither included)
when ripping widths of 2” to 6”.
Keep theTable of theTable Saw clean and clear of debris. Remove cut-off pieces
and scraps of wood from the Table before starting the Table Saw.
Use the right tool for the job. Do not attempt to force small equipment to do the
work of larger industrial equipment. There are certain applications for which this
Table Saw was designed. It will do the job better and more safely at the rate for
which it was intended. Do not modify this Table Saw, and do not use this Table Saw
for a purpose for which it was not intended.
WARNING! Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities, contain chemicals known (to the State of California) to
cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are: lead from lead-based paints, crystalline silica from bricks and ce-
ment or other masonry products, arsenic and chromium from chemically treated
lumber. Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles. (California Health & Safety
Code 25249.5, et seq.)
WARNING! People with pacemakers should consult their physician(s) before using
this product. Operation of electrical equipment in close proximity to a heart pace-
maker could cause interference or failure of the pacemaker.
WARNING! The warnings and cautions discussed in this manual cannot cover all
possible conditions and situations that may occur. It must be understood by the
operator that common sense and caution are factors which cannot be built into this
product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS
33.
34.
35.
36.
37.
38.

Page 10SKU 95112 For technical questions, please call 1-800-444-3353.
GROUNDING
WARNING!
Improperly connecting the grounding wire can result in the risk of electric shock.
Check with a qualified electrician if you are in doubt as to whether the outlet is
properly grounded. Do not modify the power cord plug provided with the tool.
Never remove the grounding prong from the plug. Do not use the tool if the
power cord or plug is damaged. If damaged, have it repaired by a service facil-
ity before use. If the plug will not fit the outlet, have a proper outlet installed by
a qualified electrician.
GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS
Tools marked with “Grounding Required” have a three wire cord and three prong
grounding plug. The plug must be connected to a properly grounded outlet. If the
tool should electrically malfunction or break down, grounding provides a low resis-
tance path to carry electricity away from the user, reducing the risk of electric shock.
(See Figure A, next page.)
The grounding prong in the plug is connected through the green wire inside the
cord to the grounding system in the tool. The green wire in the cord must be the
only wire connected to the tool’s grounding system and must never be attached to
an electrically “live” terminal. (See Figure A.)
Your tool must be plugged into an appropriate outlet, properly installed by a certi-
fied electrician and grounded in accordance with all codes and ordinances. The
plug and outlet should look like that in the following illustration. (See Figure A.)
1.
2.
3.
220 VOLT, GROUNDED,
ELECTRICAL OUTLET
THIS PRODUCT USES A
220 VOLT, GROUNDED, 3-PRONG,
TWIST LOCK, POWER CORD PLUG
(NOT INCLUDED)
FIGURE A
220 VOLT, GROUNDED,
ELECTRICAL OUTLET
THIS PRODUCT USES A
220 VOLT, GROUNDED, 3-PRONG,
TWIST LOCK, POWER CORD PLUG
(NOT INCLUDED)
FIGURE A

Page 11SKU 95112 For technical questions, please call 1-800-444-3353.
EXTENSION CORDS
Grounded tools require a three wire extension cord.
As the distance from the supply outlet increases, you must use a heavier gauge
extension cord. Using extension cords with inadequately sized wire causes a seri-
ous drop in voltage, resulting in loss of power and possible tool damage.
(See Figure B.)
The smaller the gauge number of the wire, the greater the capacity of the cord. For
example, a 14 gauge cord can carry a higher current than a 16 gauge cord.
When using more than one extension cord to make up the total length, make sure
each cord contains at least the minimum wire size required.
If you are using an extension cord outdoors, make sure it is marked with the suffix
“W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.
Make sure your extension cord is properly wired and in good electrical condition.
Always replace a damaged extension cord or have it repaired by a qualified electri-
cian before using it.
Protect your extension cords from sharp objects, excessive heat, and damp or wet areas.
RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*
(120 OR 240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD LENGTH
25 Feet 50 Feet 75 Feet 100 Feet 150 Feet
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
FIGURE B * Based on limiting the line voltage drop to five volts at 150% of the rated amperes.
SYMBOLOGY
Double Insulated V~ Volts Alternating Current
Canadian Standards Association AAmperes
Underwriters Laboratories, Inc. n0xxxx/min. No Load Revolutions per Minute (RPM)
1.
2.
3.
4.
5.
6.
7.

Page 12SKU 95112 For technical questions, please call 1-800-444-3353.
UNPACKING
When unpacking both boxes, check to make sure all the parts shown on the Parts
Lists and Assembly Diagrams at the end of this manual are included. If any parts are
missing or broken, please call Harbor Freight Tools at the number shown on the cover of
this manual as soon as possible.
ASSEMBLY INSTRUCTIONS
CAUTION! Always make sure the Power Switch (17E) of the Table Saw is in its “OFF”
position and the tool is unplugged from its electrical outlet prior to assembling the
tool, adding any accessories, or making adjustments to the tool.
To Attach The Crank Handles To The Hand Wheels:

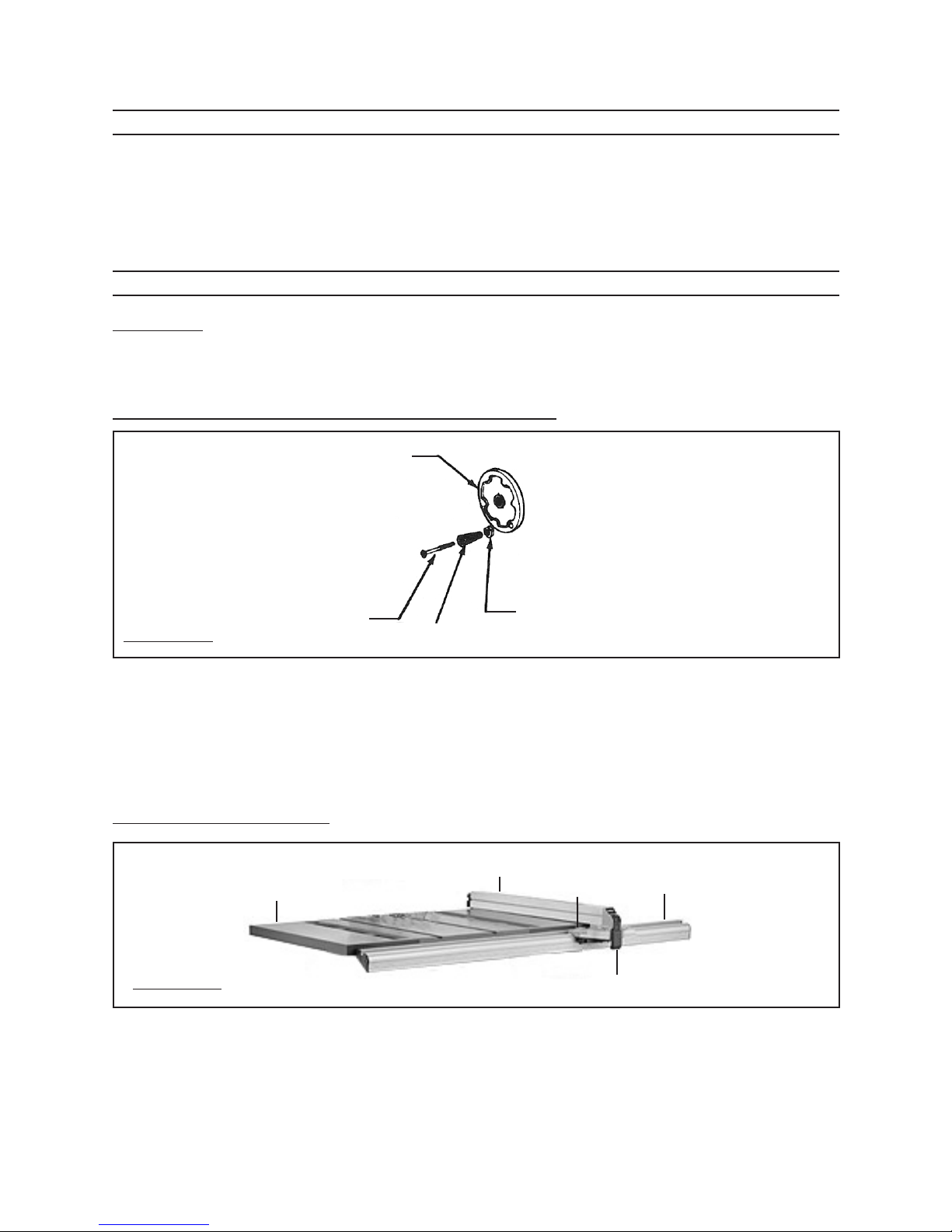

FIGURE D
SCREW (27E)
CRANK HANDLE
(28E)
HEX NUT (29E)
TILTING HAND WHEEL (30E)
AND
HEIGHT HAND WHEEL (36E)
To attach a Crank Handle (28E) to the Tilting Hand Wheel (30E) and Height Hand
Wheel (36E), insert a Screw (27E) through the Crank Handle. Loosely screw a Hex
Nut (29E) onto the threaded portion of the Screw. Screw the threaded portion of
the Screw into the Hand Wheel. Then secure the Crank Handle to the Hand Wheel
by tightening the Screw. (See Figure D.)
To Install The Rip Fence:
FENCE BRACKET BODY
(9C) FRONT RAIL
(1C)
LOCK KNOB
(18C)
SAW TABLE
(8E)
FIGURE E
LENS
(26C)
Raise the Lock Knob (18C) on the Fence Bracket Body (9C). (See Figure E.)
Hook the back of the Fence Bracket Body (9C) over the Rear Rail (2C). Then lower
the front of the Fence Bracket Body into the groove on the Front Rail (1C).
(See Figure E.)
1.
2.

Page 13SKU 95112 For technical questions, please call 1-800-444-3353.
Slide the Fence Bracket Body (9C) back and forth. The Fence Bracket Body should
move freely with about 1/16” clearance between the Fence Bracket Body and Saw
Table (8E) surface. (See Figure E.)
To lock the Fence Bracket Body (9C) in place, lower the Lock Knob (18C).
(See Figure E.)
NOTE: The Measure Scale Lens (26C) on the Fence Bracket Body (9C) should be
pointing on the “0” position. If not, loosen the two Round Hex Screws (28C) on the
Lens Bracket (27C). Then, move the Lens to indicate the “0” position and retighten
the Screws. (See Figure E.)

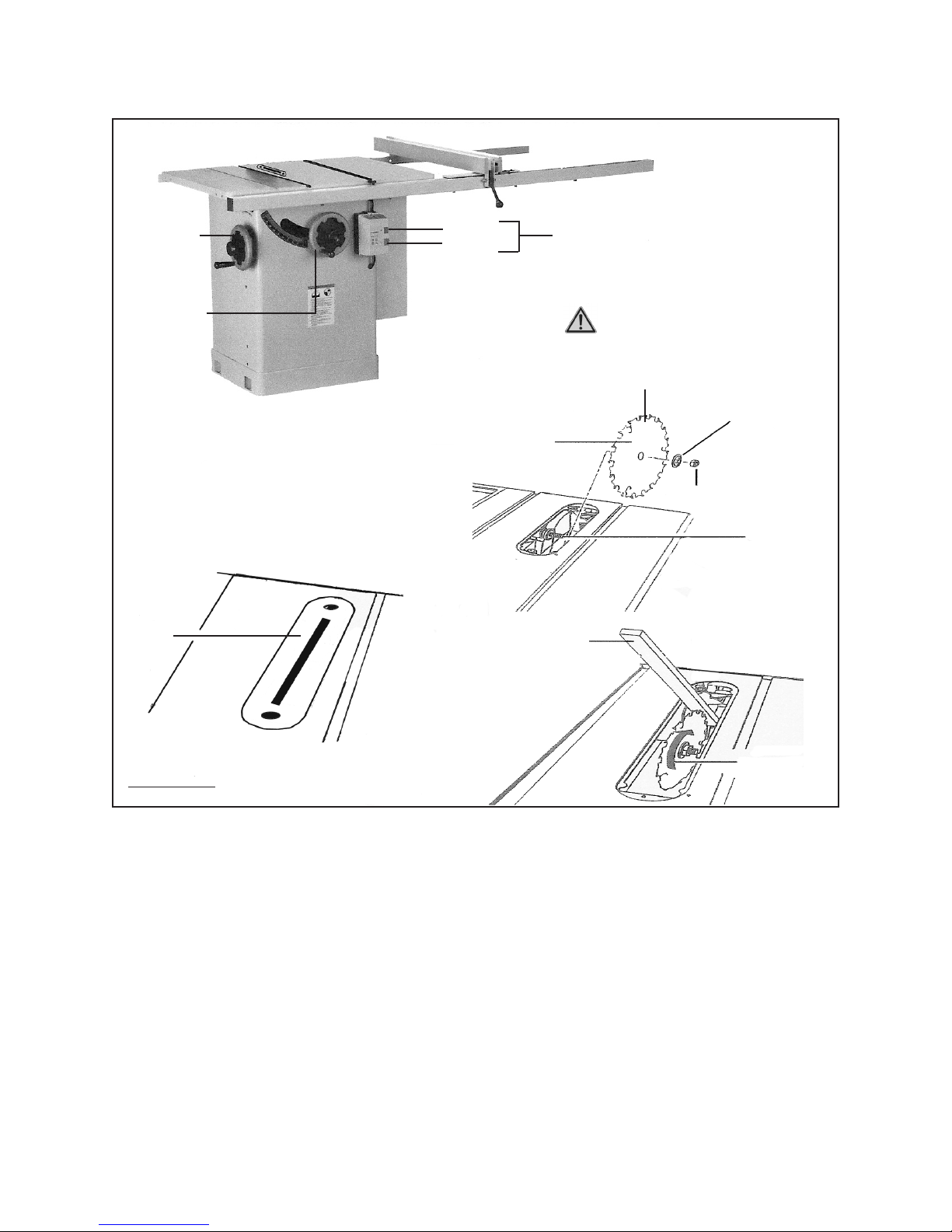

To Install A Saw Blade:
WARNING! Make sure the Power Switch (17E) is off and the Table Saw is unplugged
from its electrical outlet. Failure to do so could result in accidental starting, causing
serious injury. (See Figure F, next page.)
CAUTION! To avoid accidental cuts, make sure to wear heavy duty work gloves
when installing a Saw Blade (86D - not included).
Lift and remove the Blade Insert (6E) from the Saw Table (8E). (See Figure F.)
Raise the Arbor Extension (6D) to its highest position by turning the Height Hand
Wheel (36E) clockwise. Turn the Tilting Hand Wheel (30E) clockwise or counter-
clockwise to position the Arbor Extension horizontally. (See Figure F.)
Loosen and remove the Arbor Nut (4D) with the Spanner Wrench (85D) provided.
Then remove the Blade Flange (5D). (See Figure F.)
3.
4.
5.
1.
2.
3.
4.
5.

Page 14SKU 95112 For technical questions, please call 1-800-444-3353.
HEIGHT
HAND WHEEL
(36E)
TILTING
HAND WHEEL
(30E)
BLADE
INSERT
(6E)
POWER OFF
POWER ON POWER SWITCH
(17E)
WARNING!
Make sure to install Saw Blade
with its teeth facing down toward
the front of the Table Saw.
10” SAW BLADE
(86D)
(NOT INCLUDED)
BLADE
FLANGE
(5D
ARBOR NUT
(4D) ARBOR
EXTENSION
(6D)
SCRAP WOOD
TO
TIGHTEN
ARBOR NUT
(4D)
FIGURE F
To install a 10” diameter Saw Blade (86D), place the new Saw Blade on the Arbor
Extension (6D) with its teeth pointing downward toward the front of the Table Saw.
Then, wedge a piece of scrap wood at the back of the Saw Blade.
(See Figure F.)
WARNING! The teeth of the Saw Blade (86D) MUST point downward toward the
front of the Table Saw to work properly. If not, personal injury and/or property dam-
age can occur. (See Figure F.)
Place the Blade Flange (5D) and Arbor Nut (4D) on the Arbor Extension (6D). Make
sure the dome side of the Blade Flange faces out from the Saw Blade (86D). Then,
tighten the Arbor Nut securely. (See Figure F.)
6.
7.
8.

Page 15SKU 95112 For technical questions, please call 1-800-444-3353.
Remove the scrap wood, and rotate the Saw Blade (86D) by hand to make sure it
turns freely. (See Figure F.)
Lower the Saw Blade (86D) and slip the Blade Insert (6E) into the opening in the
Saw Table (8E). Check to make sure the Blade Insert is flush with the Saw Table.
Do not allow the Blade Insert to bow up above the Saw Table surface.
(See Figure F.)
To Check Rip Fence And Saw Blade Alignment:
WARNING! Make sure the Power Switch (17E) is off and the Table Saw is unplugged
from its electrical outlet. Failure to do so could result in accidental starting, causing
serious injury.
WARNING! Failure to align the Rip Fence to the Saw Blade (86D) can cause jams
and kickback, resulting in personal injury.
MITER GAUGE GROOVE
MITER GAUGE GROOVE
SAW BLADE
(86D)
SAW
BLADE
(86D)
PLASTIC
SCREW
(31C)
PLASTIC
SCREW
(31C)
MITER GAUGE
GROOVE
FRAMING SQUARE
FENCE
BRACKET
BODY
(9C)
FENCE
BRACKET
BODY (9C)
LOCK KNOB
(18C)
FIGURE G
Unlock the Rip Fence by raising its Lock Knob (18C). Then slide the Rip Fence to
the Miter Gauge groove, which is parallel to the Saw Blade (86D).
(See Figure G.)
Place a framing square (not included) against the Saw Blade (86D), with the long
end under the Fence Bracket Body (9C) at the front. Then, note the distance.
(See Figure G.)
9.
10.
1.
2.
3.
4.

Page 16SKU 95112 For technical questions, please call 1-800-444-3353.
Move the framing square to the back and measure the length from the other end of
the Fence Bracket Body (9C). (See Figure G.)
If the distances are different, adjust one of two Plastic Screws (30C) located on the
top/front of the Fence Bracket Body (9C) until the distances from the front and rear
of the Fence Bracket Body to the Miter Gauge groove. Then, lower the Lock Knob
(18C) to lock the Rip Fence in place. (See Figure G.)

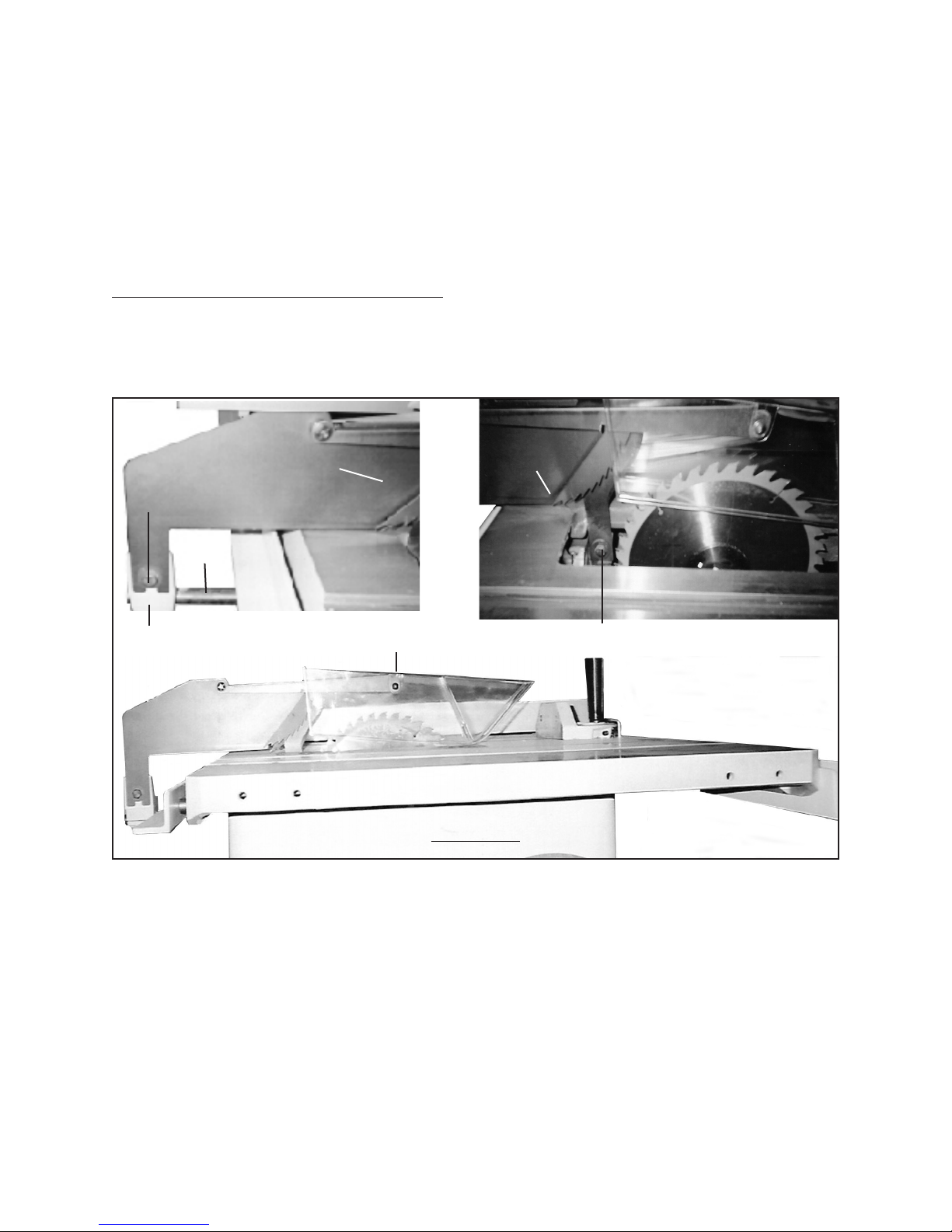

To Install The Blade Guard Assembly:
WARNING! Make sure the Power Switch (17E) is off and the Table Saw is unplugged
from its electrical outlet. Failure to do so could result in accidental starting, causing
serious injury. (See Figure F.)
CLEAR BLADE GUARD (2B)
REAR
SPREADER
SUPPORT
(40E)
GUARD SUPPORT ROD
(37E)
SPREADER
(6B)
8MM HEX BOLT (44E)
8MM WASHER (43E)
8MM HEX Bolt (50E)
8MM LOCK WASHER (51E)
SPREADER
(6B)
FIGURE H
Insert the threaded portion of the Guard Support Rod (37E) through the hole in
the Rear Trunnion Bracket (77D). Then secure the Guard Support Rod, using one
12mm Lock Washer (54D) and one 12mm Hex Nut (55D). (See Figure H.)
Align the rear mounting hole of the Spreader (6B) with the threaded mounting hole
of the Upper Rear Spreader Support (40E). Secure the rear of the Spreader in
place, using one 8mm Washer (43E) and one 8mm Hex Head Bolt (44E).
(See Figure H.)
Align the front mounting slot of the Spreader (6B) with the threaded mounting hole
of the Rear Trunnion Bracket (58D). Secure the front of the Spreader in place, using
one 8mm Hex Bolt (50E) and one 8mm Hex Nut (51E). (See Figure H.)
5.
6.
1.
2.
3.
4.

Page 17SKU 95112 For technical questions, please call 1-800-444-3353.
Lower the Clear Blade Guard (2B) over the Saw Blade (86D).
CAUTION! Check to make sure no part of the Blade Guard Assembly comes in
contact with the Saw Blade. (See Figure H.)
To Adjust The Blade Guard Assembly:
IMPORTANT: The Spreader (6B) must always be parallel to the Saw Blade (86D)
and in the middle of the cut (kerf) made by the Saw Blade. If the Spreader is not
parallel to the Saw Blade and not in line with the cut (kerf) made by the Saw Blade
the Spreader will interfere with the workpiece, causing poor and unsafe Guard As-
sembly operation. (See Figure H.)
To adjust the Spreader, raise the Saw Blade (86D) fully and to its 90 ° position.
When adjusting the Spreader (6B), use a straight edge ruler lengthwise along the
Saw Blade (86D) to make certain the Spreader is trailing in the middle of the cut
(kerf).
Also, use a 90 degree hand square to make certain the Spreader is perpendicular
to the Saw Table (8E) as is the Saw Blade.
If necessary, align the front of the Spreader (6B) with the Saw Blade (86D):
Note: For this Step you may have to lower the Saw Blade (86D).
Loosen the Socket Head Bolts (53D) on the Front Support Bracket (52D).
(See Assy. Diagram D.)
Align the front of the Front Support Bracket (52D) so that the Spreader (6B) is
parallel to the Saw Blade (86D) and in the middle of the cut (kerf) made by the
Saw Blade. (See Assy. Diagram D.)
When finished, retighten the Socket Head Bolts (53D) on the Front Support
Bracket (52D). (See Assy. Diagram D.)
To align the rear of the Spreader (6B) with the Saw Blade (86D):
Loosen the 12mm Lock Washer (54D) and 12mm Hex Nut (55D) where the
threaded portion of the Guard Support Rod (37E) connects to the Rear Trunnion
Bracket (77D). (See Assy. Diagram D and E.)
Turn the Guard Support Rod (37E) on its eccentric. Turning the Guard Support
Rod will move the Rear Trunnion Bracket (77D) left or right.
(See Assy. Diagrams D and E.)
After the Spreader (6B) is lined up in the middle of the cut (kerf), retighten the
12mm Lock Washer (54D) and 12mm Hex Nut (55D).
(See Assy. Diagrams B and D.)
To adjust the height of the front of the Spreader 6B):
Loosen the 8mm Washer (43E) and 8mm Hex Head Bolt (44E) on the front
mounting slot of the Spreader (6B) and move the front of the Spreader up or
down. (See Assy. Diagrams B and E.)
5.
1.
2.
3.
4.
a.
b.
c.
d.
5.
a.
b.
c.
6.
a.

Page 18SKU 95112 For technical questions, please call 1-800-444-3353.
The height of the Spreader (6B) should be adjusted so that the Clear Blade
Guard (2B) contacts the Saw Table (8E).
When finished, retighten the 8mm Washer (43E) and 8mm Hex Head Bolt (44E)
on the front mounting slot of the Spreader (6B).
(See Assy. Diagrams B and E.)
To Adjust The Miter Gauge:
The Miter Gauge (4A) features adjustable index stops at 90 degrees and 45 de-
grees, right and left. Adjustments to the index stops can be made by loosening the
Locking Nut (12A) and tightening or loosening the three Round Head Screws (5A).
Make sure to retighten the Locking Nut after the adjustment is made.
(See Assy. Diagram A.)
To operate the Miter Gauge (4A), loosen the Handle (1A) and move the Miter Gauge
Head to the desired angle. The miter gauge Head will stop at 90 degrees and 45
degrees, right and left. To position the Miter Gauge Head past these points, push
down the Miter Gauge Stop (7A). Position the Miter Gauge Head at the desired
angle and retighten the Handle (1A). (See Assy. Diagram.)

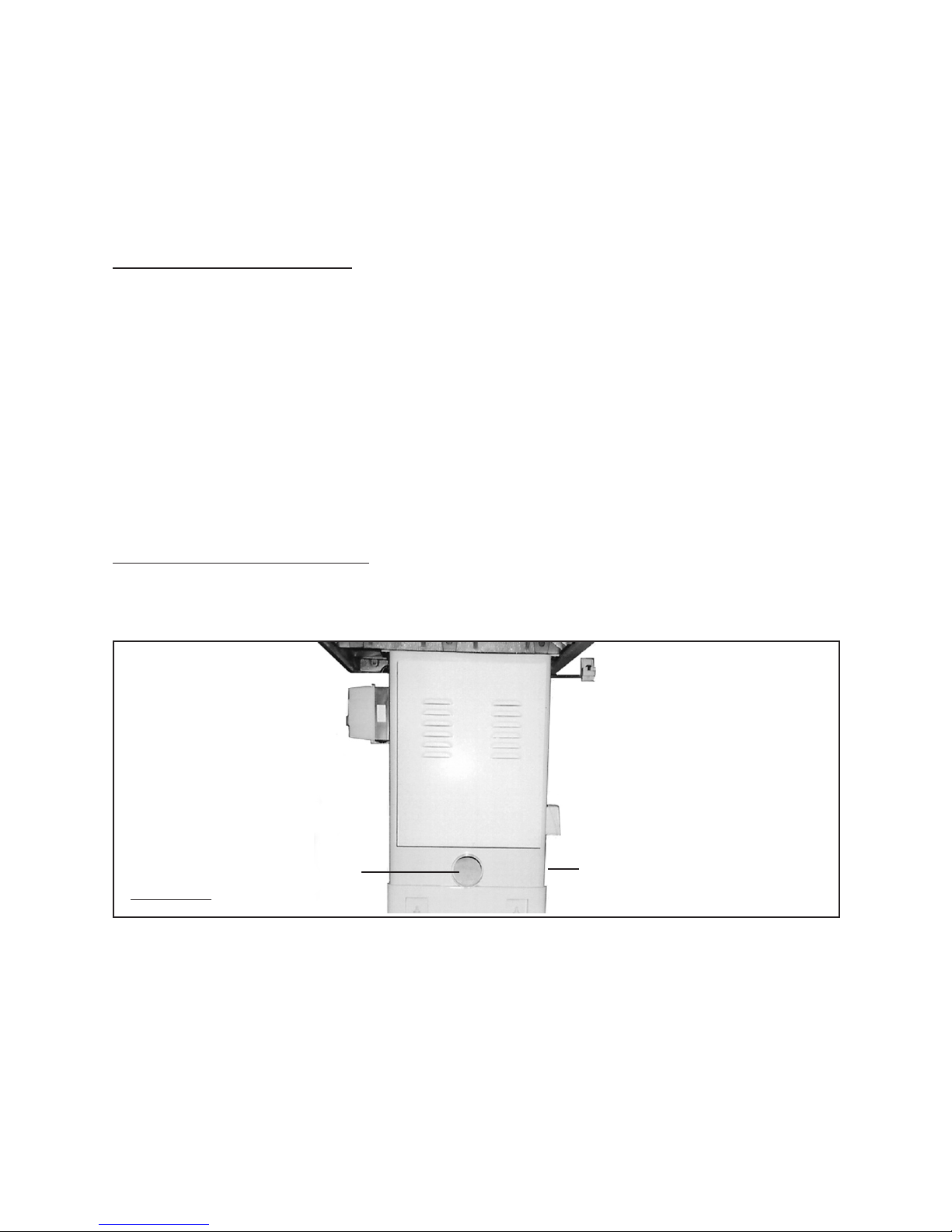

To Connect To The Dust Port:
The Base (9E) of the Table Saw features a Dust Port to which you can connect a
vacuum hose (not included) to collect the sawdust. (See Figure I.)
FIGURE I
BASE
(9E)
DUST PORT
To connect to the Dust Port, insert a hose clamp (not included) over the end of
the vacuum hose. Insert the end of the vacuum hose onto the Dust Port. Then,
secure the vacuum hose to the Dust Port by tightening the hose clamp. NOTE:
The vacuum hose must have an inside diameter of 4” to properly fit onto the Dust
Port. (See Figure I.)
b.
c.
1.
2.
1.
2.

Page 19SKU 95112 For technical questions, please call 1-800-444-3353.
The Work Location:
The location selected for the Table Saw must be level, dry, and well lighted. The
location must be capable of supporting the weight (approximately 480 pounds) of
the Table Saw and workpieces. There should also be room enough to allow move-
ment around the Saw with long pieces of woodstock.
Once located, set a carpenter’s level (not included) on the Saw Table (8E) and level
the Saw Table from front to back and side to side. If necessary, use shims (not
included) at one or more corners at the Base (9E) of the Saw. (See Figure I.)

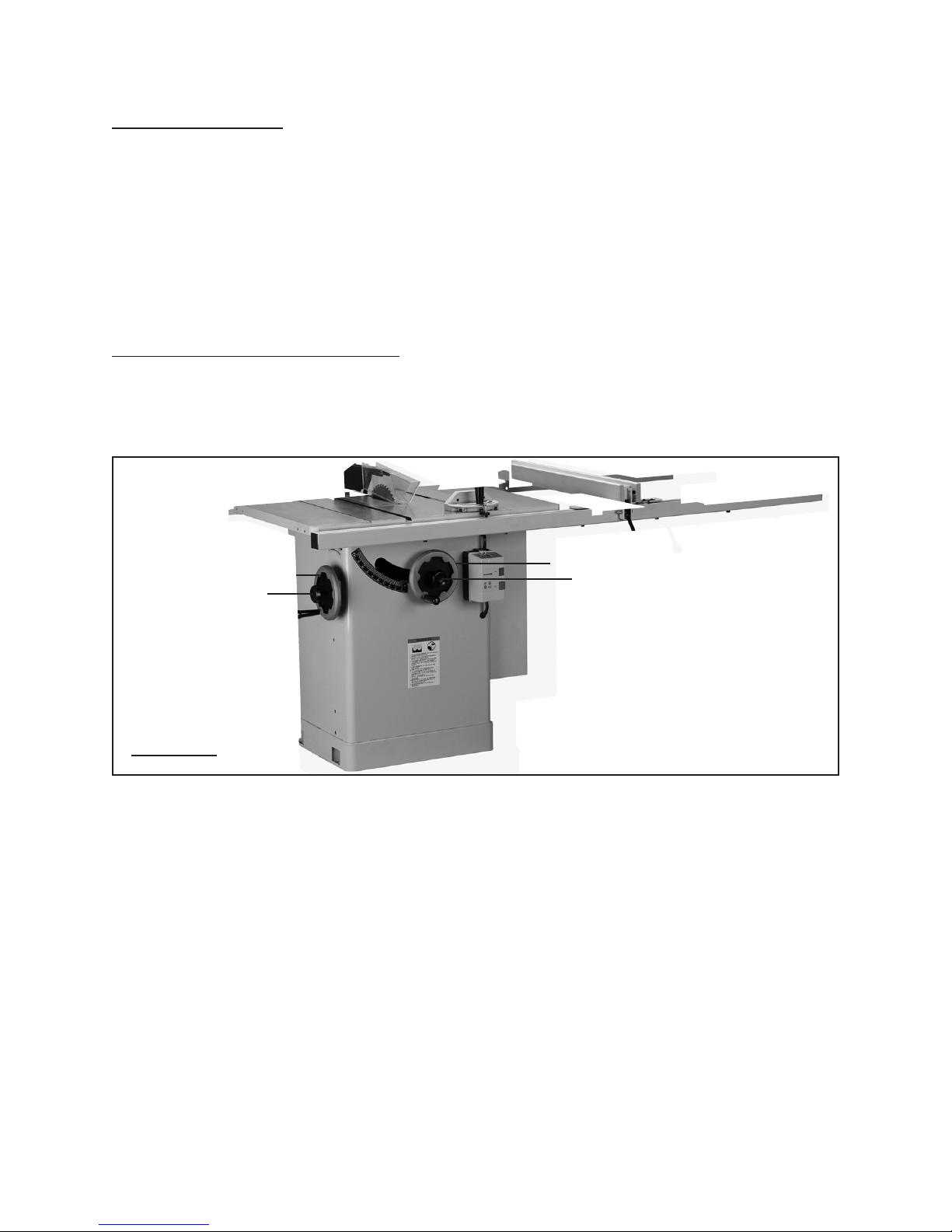

To Adjust The Saw Blade Height:
WARNING! Make sure the Power Switch (17E) is off and the Table Saw is unplugged
from its electrical outlet. Failure to do so could result in accidental starting, causing
serious injury.
LOCK KNOB (26E)
HEIGHT HAND WHEEL (36E)
TILTING HAND WHEEL (30E)
LOCK KNOB (26E)
FIGURE J
Loosen the Lock Knob (26E) by turning it counterclockwise about three turns. Then,
turn the Height Hand Wheel (36E) to the desired Saw Blade (86D) height.
(See Figure J.)
CAUTION! The Saw Blade (86D) should only be raised 1/8” above the surface of
the workpiece to be cut. However, if hollow ground Saw Blades are used, raise the
Saw Blade to its maximum height to allow for greater blade clearance.
Lock the Saw Blade (86D) height in position by turning the Lock Knob (26E) clock-
wise about three turns. IMPORTANT: Do not overtighten. Only a small amount of
pressure is necessary to lock the Height Hand Wheel (36E) securely.
(See Figure J.)
1.
2.
1.
2.
3.
4.

Page 20SKU 95112 For technical questions, please call 1-800-444-3353.
To Adjust The Saw Blade Tilt:
The Saw Blade (86D) can be set at any angle between 90 degrees and 45 degrees.
Blade tilt is controlled by the Tilting Hand Wheel (30E) located at the front of the
Table Saw. The Indicator Plate (10E) on the front of the Table Saw shows at what
angle the Saw Blade is tilted. (See Figure J.)
To adjust the tilt, loosen the Lock Knob (26E) about three turns counterclockwise.
(See Figure J.)
Turn the Tilting Hand Wheel (30E) to the desired Saw Blade (86D) angle.
Lock the Saw Blade (86D) angle in position by turning the Lock Knob (26E) clockwise
about three turns. IMPORTANT: Do not overtighten. Only a small amount of pres-
sure is necessary to lock the Tilting Hand Wheel (30E) securely. (See Figure J.)
1.
2.
3.
4.
