Central Machinery 66435 Installation manual

METAL CUTTING BANDSAW
66435
SET UP AND OPERATING INSTRUCTIONS
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2008 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.

SKU 66435 For technical questions, please call 1-800-444-3353. Page 2
CONTENTS
IMPORTANT SAFETY INFORMATION.............................................................................3
GROUNDING....................................................................................................................7
EXTENSION CORDS.......................................................................................................8
SYMBOLOGY...................................................................................................................9
SPECIFICATIONS............................................................................................................9
UNPACKING.....................................................................................................................9
ASSEMBLY INSTRUCTIONS...........................................................................................9
PRODUCT FEATURES...................................................................................................11
TOOL SET UP.................................................................................................................12
WORKPIECE AND WORK AREA SET UP......................................................................16
OPERATING INSTRUCTIONS.......................................................................................16
MAINTENANCE AND SERVICING.................................................................................20
REPLACING SAW BLADE.............................................................................................20
TROUBLESHOOTING....................................................................................................23
PARTS LIST....................................................................................................................25
PLEASE READ THE FOLLOWING CAREFULLY...........................................................26
ASSEMBLY DIAGRAMS.................................................................................................27
WARRANTY INFORMATION..........................................................................................29

SKU 66435 For technical questions, please call 1-800-444-3353. Page 3
SAVE THIS MANUAL
Keep this manual for the safety warn-
ings and precautions, assembly, operating,
inspection, maintenance and cleaning pro-
cedures. Write the product’s serial number
in the back of the manual (or month and
year of purchase if product has no num-
ber). Keep this manual and the receipt in
a safe and dry place for future reference.
IMPORTANT SAFETY
INFORMATION
In this manual, on the labeling,
and all other information provid-
ed with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
General Safety Warnings
WARNING Read all safety
warnings and instructions.
Failure to follow the warnings and
instructions may result in electric
shock, re and/or serious injury.
Save all warnings and
instructions for future reference.
The term ″power tool″ in the
warnings refers to your line-
operated (corded) Metal Cutting
Bandsaw.
Work area safety1.
Keep work area clean and well lit.a.
Cluttered or dark areas invite acci-
dents.
Do not operate power tools inb.
explosive atmospheres, such as in
the presence of ammable liquids,
gases or dust. Power tools create
sparks which may ignite the dust or
fumes.
Keep children and bystandersc.
away while operating a power tool.
Distractions can cause you to lose
control.
Electrical safety2.
Power tool plugs must match thea.
outlet. Never modify the plug in
any way. Do not use any adapter
plugs with grounded power tools.

SKU 66435 For technical questions, please call 1-800-444-3353. Page 4
Unmodied plugs and matching out-
lets will reduce risk of electric shock.
Avoid body contact with groundedb.
surfaces such as pipes, radiators,
ranges and refrigerators. There is
an increased risk of electric shock if
your body is grounded.
Do not expose power tools to rainc.
or wet conditions. Water entering
a power tool will increase the risk of
electric shock.
Do not abuse the cord. Never used.
the cord for carrying, pulling or
unplugging the power tool. Keep
cord away from heat, oil, sharp
edges or moving parts. Damaged
or entangled cords increase the risk
of electric shock.
When operating a power tool out-e.
doors, use an extension cord suit-
able for outdoor use. Use of a cord
suitable for outdoor use reduces the
risk of electric shock.
If operating a power tool in a dampf.
location is unavoidable, use a
Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of
a GFCI reduces the risk of electric
shock.
Personal safety3.
Stay alert, watch what you are do-a.
ing and use common sense when
operating a power tool. Do not use
a power tool while you are tired
or under the inuence of drugs,
alcohol or medication. A moment
of inattention while operating power
tools may result in serious personal
injury.
Use personal protective equip-b.
ment. Always wear eye protection.
Safety equipment such as dust mask,
non-skid safety shoes, hard hat, or
hearing protection used for appropri-
ate conditions will reduce personal
injuries.
Prevent unintentional starting.c.
Ensure the switch is in the off-po-
sition before connecting to power
source. Energizing power tools that
have the switch on invites accidents.
Remove any adjusting key ord.
wrench before turning the power
tool on. A wrench or a key left at-
tached to a rotating part of the power
tool may result in personal injury.
Do not overreach. Keep propere.
footing and balance at all times.
This enables better control of the
power tool in unexpected situations.
Dress properly. Do not wear loosef.
clothing or jewelry. Keep your
hair, clothing and gloves away
from moving parts. Loose clothes,
jewelry or long hair can be caught in
moving parts.
If devices are provided for the con-g.
nection of dust extraction and col-
lection facilities, ensure these are
connected and properly used. Use
of these devices can reduce dust-re-
lated hazards.
Only use safety equipment thath.
has been approved by an appropri-
ate standards agency. Unapproved
safety equipment may not provide
adequate protection. Eye protection
must be ANSI-approved and breath-
ing protection must be NIOSH-ap-
proved for the specic hazards in the
work area.
Power tool use and care4.
Do not force the power tool. Usea.
the correct power tool for your ap-

SKU 66435 For technical questions, please call 1-800-444-3353. Page 5
plication. The correct power tool will
do the job better and safer at the rate
for which it was designed.
Do not use the power tool if theb.
switch does not turn it on and off.
Any power tool that cannot be con-
trolled with the switch is dangerous
and must be repaired.
Disconnect the plug from thec.
power source before making any
adjustments, changing accesso-
ries, or storing power tools. Such
preventive safety measures reduce
the risk of starting the power tool ac-
cidentally.
Store idle power tools out of thed.
reach of children and do not allow
persons unfamiliar with the power
tool or these instructions to oper-
ate the power tool. Power tools are
dangerous in the hands of untrained
users.
Maintain power tools. Check fore.
misalignment or binding of moving
parts, breakage of parts and any
other condition that may affect the
power tool’s operation. If dam-
aged, have the power tool repaired
before use. Many accidents are
caused by poorly maintained power
tools.
Keep cutting blades sharp andf.
clean. Properly maintained cutting
blades with sharp cutting edges are
less likely to bind and are easier to
control.
Use the power tool and its acces-g.
sories in accordance with these
instructions, taking into account
the working conditions and the
work to be performed. Use of the
power tool for operations different
from those intended could result in a
hazardous situation.
Service5.
Have your power tool serviced bya.
a qualied repair person using
only identical replacement parts.
This will ensure that the safety of the
power tool is maintained.
Specic Safety Warnings
Always wear ANSI-approved1.
safety impact goggles when
using the Bandsaw.
WARNING! Keep hands and2.

area and Saw Blade.
CAUTION! Cut only3. FLAT workpiec-
es when the Bandsaw is in its verti-
cal position. NEVER attempt to cut
pipes or other round objects with the
Bandsaw in its vertical position.
Make sure the Bandsaw is located on4.
-
pable of supporting the weight of the
Bandsaw and workpieces. Always
“chock” the Wheels to prevent the
Bandsaw from accidently moving.
Before using the Bandsaw, check that5.
the Saw Blade is properly mounted
and is not cracked or bent.
Make sure the Table of the Bandsaw6.
and surrounding area are clear with
the exception of the workpiece to be
cut.
Never stand on the Bandsaw. Seri-7.
ous injury could result if the Bandsaw
is tipped or if the rotating Saw Blade
is accidently contacted.

SKU 66435 For technical questions, please call 1-800-444-3353. Page 6
Never attempt to cut more than one8.
workpiece at a time.
Do not attempt to cut freehand.9.
Make sure the workpiece to be cut is

or secured in the Vise.
When cutting a large workpiece, make10.
sure its entire length is properly sup-
ported. If necessary, use a roller
stand (not included).
Do not lean on the Bandsaw when the11.
tool is in its upright position.
When moving the Bandsaw, always12.
have its Head lowered to its horizontal
position and the Locking Pin inserted
in the Pivot.
Allow the Saw Blade to rotate to full13.
speed before feeding a workpiece
into the Blade. When turning off the
Bandsaw, allow the Saw Blade to spin
down and stop on its own. Do not
press against the Blade to stop it.
To avoid accidental injury, always14.
wear heavy duty work gloves when
changing the Saw Blade.
The Saw Blade will become hot while15.
cutting. Allow the Blade to completely
cool before handling.
Do not force the workpiece into the16.
Saw Blade when cutting. Apply mod-
erate pressure, allow the Saw Blade
to cut without being forced.
Turn off the Bandsaw and allow the17.
Saw Blade to completely stop if the
Blade is to be backed out of an un-
completed cut.
Never attempt to remove material18.
stuck in the moving parts of the Band-
saw while it is plugged in and running.
Make sure the workpiece to be cut19.
-
ways. Failure to do so may result
in off-cut binding against the Saw
Blade.
Keep all safety guards in place and in20.
proper working order.
CAUTION: If the teeth of the Saw21.
Blade are so far apart that they
straddle the workpiece, severe dam-

Blade will result.
Maintain labels and nameplates on22.
the Bandsaw. These carry important
safety information. If unreadable or
missing, contact Harbor Freight Tools
for a replacement.
Avoid unintentional starting. Prepare23.
to begin work before turning on the
Bandsaw.
Do not leave the Bandsaw unat-24.
tended when it is plugged into an
electrical outlet. Turn off the tool,
and unplug it from its electrical outlet
before leaving.
This product is not a toy. Keep it out25.
of reach of children.
Industrial applications must follow26.
OSHA guidelines.
People with pacemakers should27.
consult their physician(s) before use.
-
imity to heart pacemaker could cause
pacemaker interference or pacemak-
er failure. In addition, people with
pacemakers should:


locked on.


SKU 66435 For technical questions, please call 1-800-444-3353. Page 7
avoid electrical shock.

grounded. Ground Fault Circuit Inter-
rupter (GFCI) should also be imple-
mented – it prevents sustained elec-
trical shock.
Some dust created by power sand-28.
ing, sawing, grinding, drilling, and
other construction activities, contains
chemicals known [to the State of Cali-
fornia] to cause cancer, birth defects
or other reproductive harm. Some
examples of these chemicals are:

-
ment or other masonry products
-
cally treated lumber
Your risk from these exposures var-
ies, depending on how often you do
this type of work. To reduce your
exposure to these chemicals: work in
a well ventilated area, and work with
approved safety equipment, such as
those dust masks that are specially

particles. (California Health & Safety
Code § 25249.5, et seq.)
WARNING: Handling the cord on29.
this product will expose you to lead,
a chemical known to the State of
California to cause cancer, and birth
defects or other reproductive harm.
Wash hands after handling. (Califor-
nia Health & Safety Code § 25249.5,
et seq.)
The warnings, precautions, and in-30.
structions discussed in this instruction
manual cannot cover all possible con-
ditions and situations that may occur.
It must be understood by the operator
that common sense and caution are
factors which cannot be built into this
product, but must be supplied by the
operator.
SAVE THESE
INSTRUCTIONS.
GROUNDING
TO PREVENT
ELECTRIC SHOCK
AND DEATH FROM
INCORRECT GROUNDING
WIRE CONNECTION:
Check with a qualied
electrician if you are in doubt
as to whether the outlet is
properly grounded. Do not
modify the power cord plug
provided with the tool. Never
remove the grounding prong
from the plug. Do not use the
tool if the power cord or plug
is damaged. If damaged, have
it repaired by a service facility
before use. If the plug will not
t the outlet, have a proper
outlet installed by a qualied
electrician.
Grounded Tools: Tools with Three
Prong Plugs
Tools marked with “Grounding Re-1.
quired” have a three wire cord and
three prong grounding plug. The

SKU 66435 For technical questions, please call 1-800-444-3353. Page 8
plug must be connected to a properly
grounded outlet. If the tool should
electrically malfunction or break
down, grounding provides a low
resistance path to carry electricity
away from the user, reducing the risk
of electric shock. (See 3-Prong Plug
and Outlet.)
The grounding prong in the plug is2.
connected through the green wire in-
side the cord to the grounding system
in the tool. The green wire in the cord
must be the only wire connected to
the tool’s grounding system and must
never be attached to an electrically
“live” terminal. (See 3-Prong Plug
and Outlet.)
The tool must be plugged into an3.
appropriate outlet, properly installed
and grounded in accordance with all
codes and ordinances. The plug and
outlet should look like those in the
preceding illustration. (See 3-Prong
Plug and Outlet.)
Double Insulated Tools: Tools
with Two Prong Plugs
Tools marked “Double Insulated” do1.
not require grounding. They have
a special double insulation system

and complies with the applicable
standards of Underwriters Labora-
tories, Inc., the Canadian Standard
Association, and the National Electri-

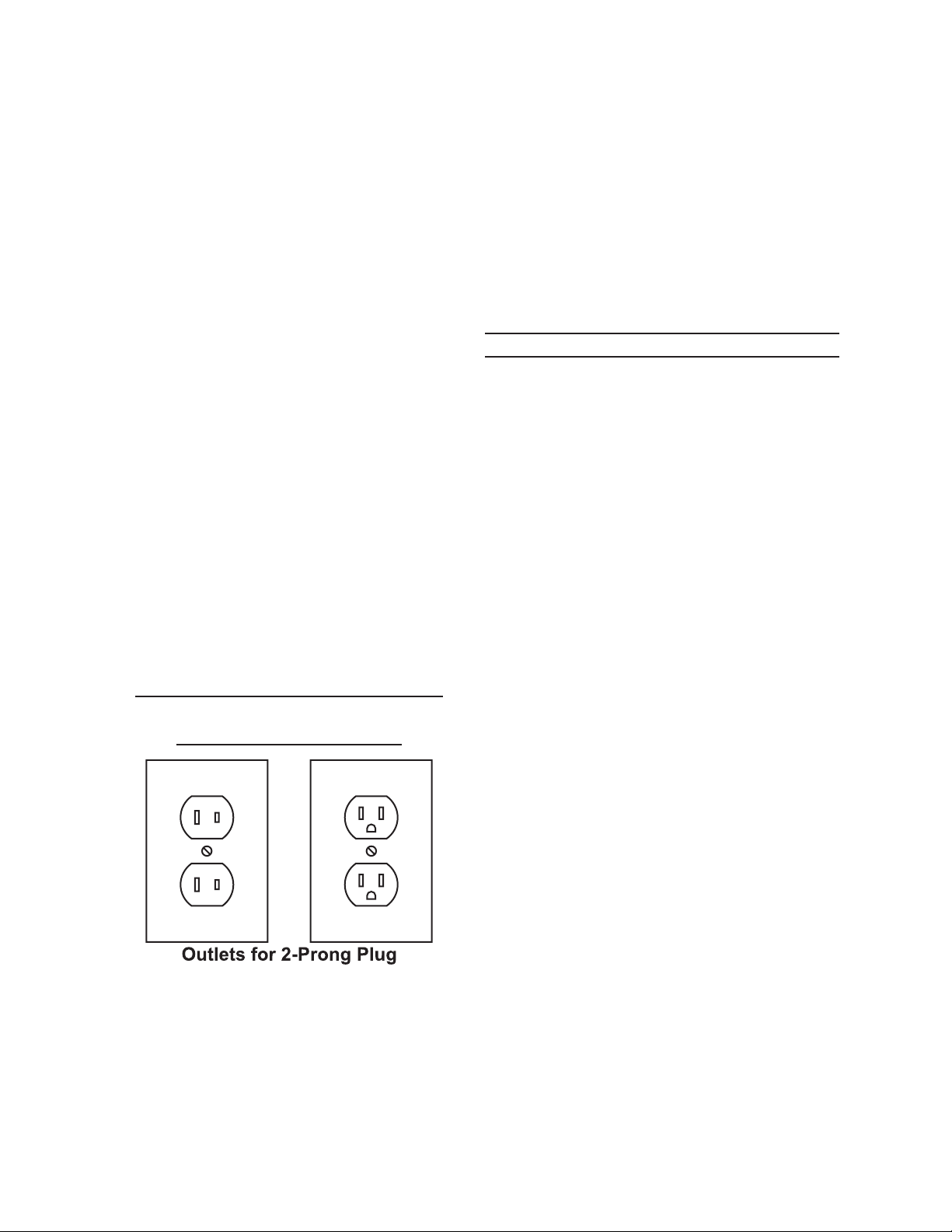

cal Code. (See Outlets for 2-Prong
Plug.)
Double insulated tools may be used2.
in either of the 120 volt outlets shown
in the preceding illustration. (See
Outlets for 2-Prong Plug.)
EXTENSION CORDS
Grounded tools require a three wire1.
extension cord. Double Insulated
tools can use either a two or three
wire extension cord.
As the distance from the supply outlet2.
increases, you must use a heavier
gauge extension cord. Using exten-
sion cords with inadequately sized
wire causes a serious drop in voltage,
resulting in loss of power and pos-
sible tool damage.
(See Table A.)
The smaller the gauge number of the3.
wire, the greater the capacity of the
cord. For example, a 14 gauge cord
can carry a higher current than a 16
gauge cord. (See Table A.)
When using more than one exten-4.
sion cord to make up the total length,
make sure each cord contains at
least the minimum wire size required.
(See Table A.)
If you are using one extension cord5.
for more than one tool, add the
nameplate amperes and use the sum
to determine the required minimum
cord size. (See Table A.)
If you are using an extension cord6.
outdoors, make sure it is marked with


SKU 66435 For technical questions, please call 1-800-444-3353. Page 9
indicate it is acceptable for outdoor
use.
Make sure the extension cord is prop-7.
erly wired and in good electrical con-
dition. Always replace a damaged
extension cord or have it repaired by

Protect the extension cords from8.
sharp objects, excessive heat, and
damp or wet areas.
RECOMMENDED MINIMUM WIRE
GAUGE FOR EXTENSION CORDS*
(120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25’ 50’ 75’
100’ 150’
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
TABLE A
* Based on limiting the line
voltage drop to ve volts at
150% of the rated amperes.
SYMBOLOGY
Double Insulated
Canadian Standards Association
Underwriters Laboratories, Inc.
V~ Volts Alternating Current
AAmperes
n0 No Load Revolutions per Minute
(RPM)
SPECIFICATIONS
Electrical
Requirements


Motor Type: Single Phase, Fan Cooled

Motor RPM: 1725
Power Switch Type: Toggle Switch
Power Cord: 18 AWG x 3C
Power Plug: 3-Prong, Grounded
Cutting
Capacity

4” x 6” Rectangular Stock
Variable Speed
Capacity
Position #1: 80 FPM
Position #2: 122 FPM
Position #3: 180 FPM
V-Belt Type 3V-270
Saw Blade Size 
UNPACKING
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at the number
shown on the cover of this manual as soon
as possible.
ASSEMBLY INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the
Bandsaw to its “OFF” position
and unplug the Bandsaw from
its electrical outlet before
assembling or making any
adjustments to the tool.

SKU 66435 For technical questions, please call 1-800-444-3353. Page 10
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.

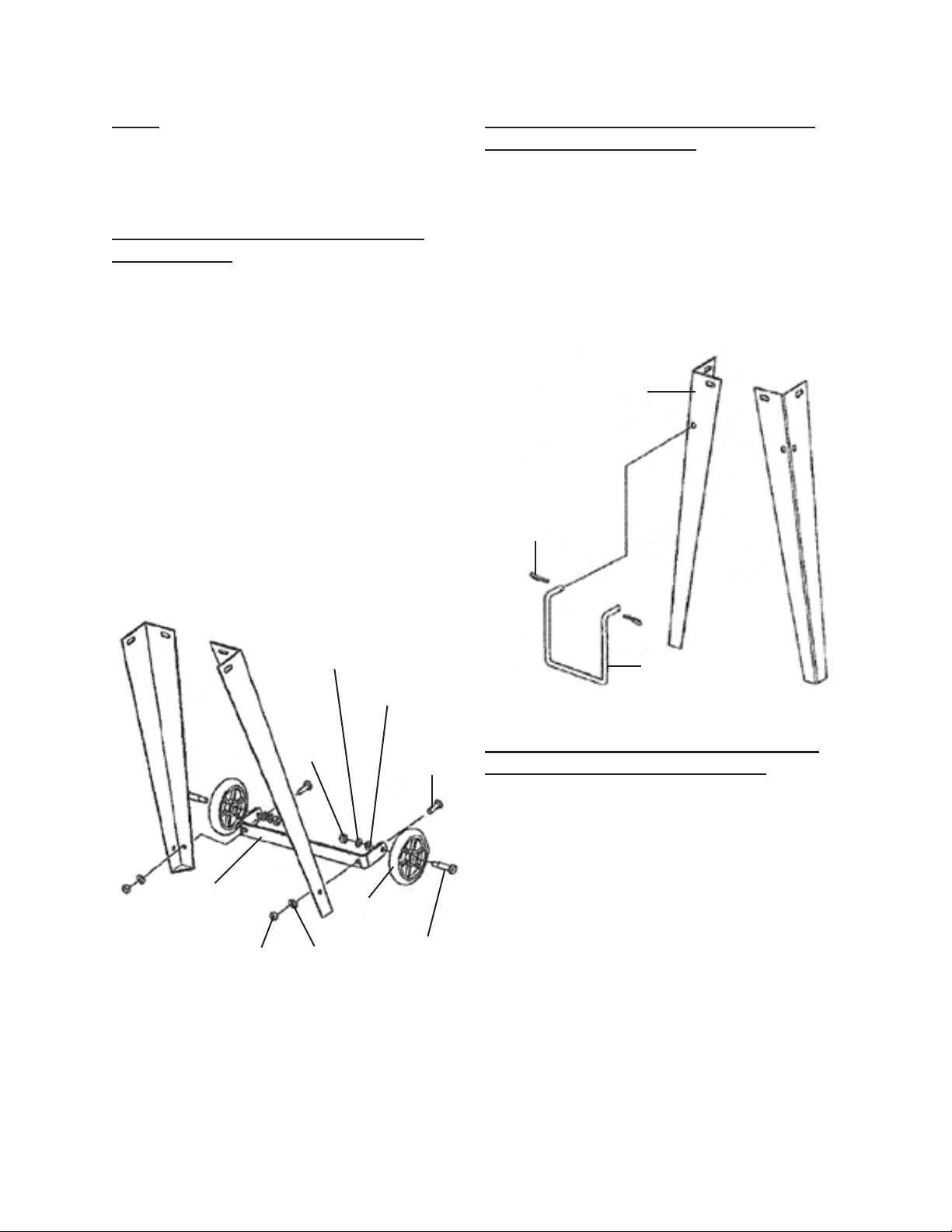

To Attach The Wheels To The Back
Floor Stands:
Attach the Wheel Frame (8) to the1.
two Back Floor Stands (6) using two
Hex Head Screws (3), two Washers
(4), and two Hex Nuts (7).
(See Figure A.)
Attach one Wheel (12) to the Wheel2.
Frame (8) using one Wheel Bolt
(127), one Washer (4), one Spring
Washer (11), and one Hex Nut (7).
Repeat this step for the remaining
Wheel. (See Figure A.)
FIGURE A
WHEEL
FRAME
(8)
HEX
HEAD
SCREW
(3)
WASHER
(4)
HEX NUT
(7)
WHEEL
(12)
WHEEL
BOLT
(127)
WASHER
(4)
SPRING
WASHER
(11)
HEX
NUT
(7)
To Attach The Floor Stand Handle To
The Front Floor Stands:
Insert the Floor Stand Handle (1) into1.
the two Front Floor Stands (5). Then
use two Cotter Pins (2) to secure the
Floor Stand Handle to the two Front
Floor Stands. Make sure to bend the
Cotter Pins to keep them in place.
(See Figure B.)
FIGURE B
FLOOR STAND HANDLE
(1)
COTTER
PIN
(2)
FRONT FLOOR STAND
(5)
To Attach The Bed To The Back Floor
Stands And Front Floor Stands:
Use a proper lifting device to raise the1.
Bed (55) of the Bandsaw just enough
to insert the tops of the Back Floor
Stands (6) and Front Floor Stands (5)
inside the corners of the Bed. Make
sure the Back Floor Stands are posi-
tioned at the motor end.
(See Figure C, next page.)
For2. each of the four Floor Stands (5,
6) use two Hex Head Screws (56),
two Washers (4), and one Hex Nut
(7) to secure the Floor Stand to the
Bed (55). (See Figure C, next page.)

SKU 66435 For technical questions, please call 1-800-444-3353. Page 11

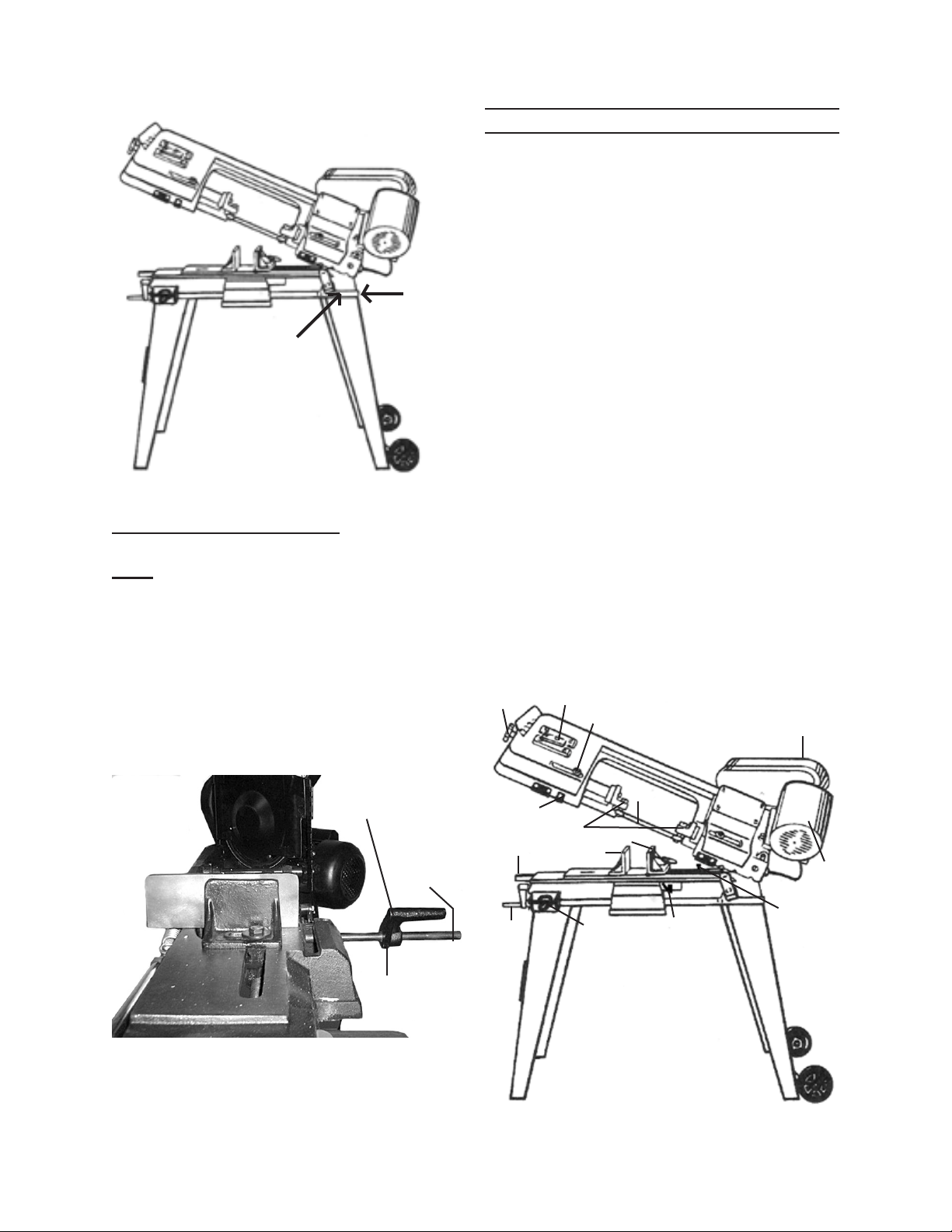

FIGURE C
HEX HEAD SCREW (56)
WASHERS (4)
HEX NUT (7)
To Install The Stock Stop:
Note: 
Rod (28) to the Bed (55) before attaching
the Stock Stop to the Rod.
Slide the Stock Stop (29) onto the1.
Stock Stop Rod (28) located at the
front of the Bed (55). Then lock the
Stock Stop in place by tightening the
Set Screw. (See Figure D.)
FIGURE D
STOCK STOP
(29)
STOCK
STOP
ROD
(28)
SET
SCREW
PRODUCT FEATURES
Motor (94)1.
Pulley Cover (92)2.
Saw Blade (86)3.
Blade Guide Adjustment Screw (67)4.
Blade Tracking Adjustment Screws (117)5.
Blade Tension Adjustment Knob (125)6.
Switch Cut-Off Screw (77)7.
Blade Guide Bearing Assemblies (71)8.
Feed Adjusting Rod (58)9.
Vise Handle (14)10.
Power Switch (20)11.
Moveable Vise Plate (34)12.
Mitering Vise Plate (36)13.
Stock Stop (29)14.
Horizontal Stop Hex Screw (46)15.
(See Figure E.)
FIGURE E
94
92
86
67
117125
77
71
58
14 20
34
36
29 46

SKU 66435 For technical questions, please call 1-800-444-3353. Page 12
TOOL SET UP
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the
tool to its “OFF” position and
unplug the tool from its
electrical outlet before
performing any adjustments
or maintenance procedures.

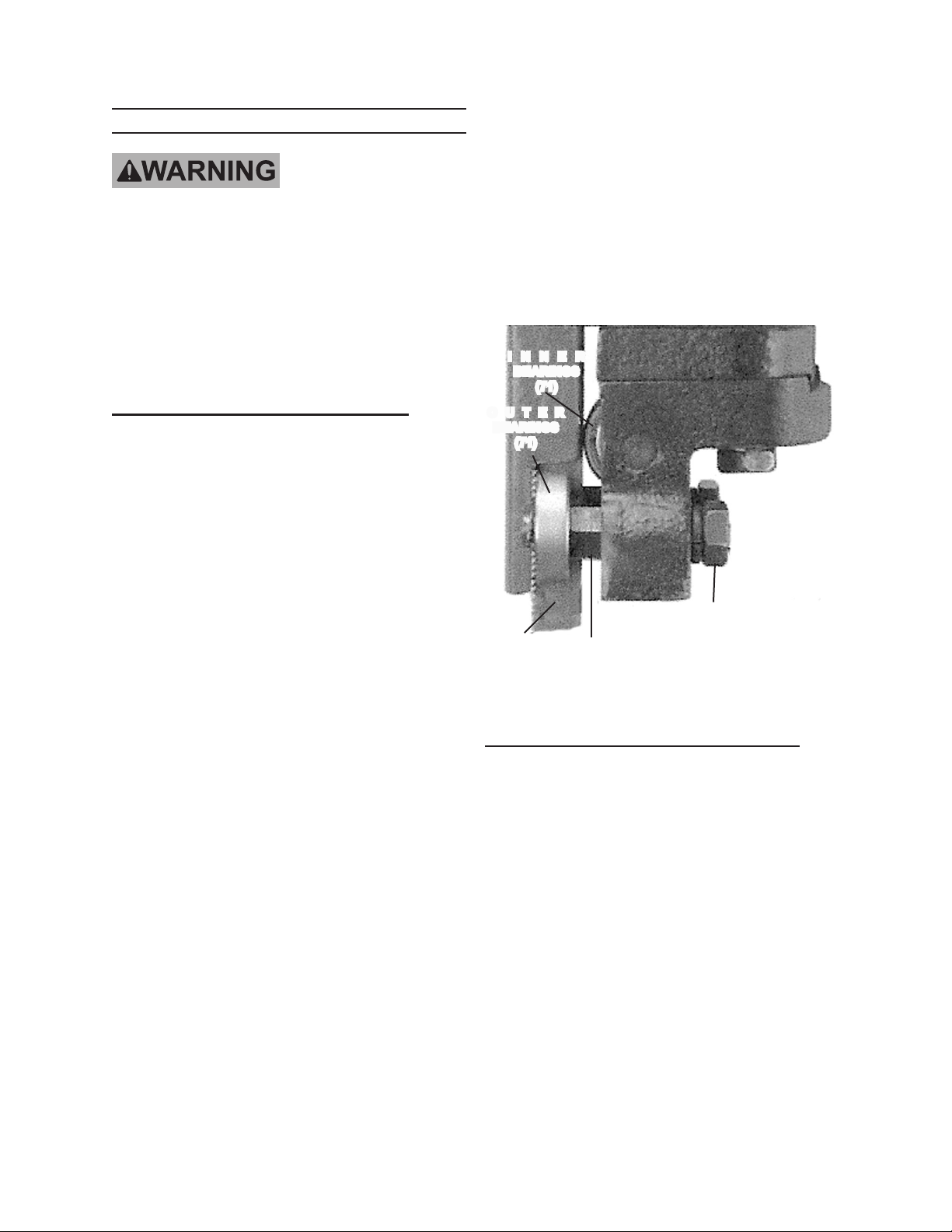

Blade Guide Bearing Adjustment:
The Blade Guide Bearings (71)1. must
be properly adjusted to make square
cuts. (See Figure F.)
The Blade Guide Bearings (71) are2.
adjusted and tested by the Bandsaw
manufacturer to ensure proper set-
ting. The need for adjustment should
rarely occur if the Bandsaw is oper-
ated properly. If the Blade Guide
Bearings do get out of adjustment, it
is important to readjust immediately.
There should be 0.001” clearance3.
between the Saw Blade (86) and the
Blade Guide Bearings (71). To obtain
this clearance:
The outer Blade Guide Bearings
(71) are mounted to a Guide Pivot
(72, 74) and can be adjusted. (The
inner Blade Guide Bearing is not
adjustable.(See Figure F.)
Loosen the Hex Nut (7) while hold-
ing the Guide Pivot (72, 74) with a
wrench. (See Figure F.)
Use a steel 0.001” feeler gauge.
Rotate Guide Pivot (72,74) to in-
crease or decrease the clearance
between Saw Blade and the Guide
Bearings. Then tighten the Hex Nut
(7). (See Figure F.)
Adjust the second Blade Guide
Bearing (71) in the same manner.
NOTE: The back edge of the Saw
Blade should just touch the lip of
the Blade Guide Bearing (71).
(See Figure F.)
I N N E R
BEARINGS
(71)
GUIDE
PIVOT
(72, 74)
HEX NUT
(7)
FIGURE F
SAW
BLADE
(86)
Blade Guide Assembly Adjustment:
The Blade Guide Adjustment Screw1.
(67) allows you to adjust the posi-
tion of the Blade Guide Bearings (71)
span for various workpiece widths.
(See Figure G, next page.)
To obtain the most accurate cut and2.
prolong the life of the Saw Blade (86),
the Blade Guide Assembly spread
should be adjusted for each job ap-
plication. To do so:
Place the workpiece in the Vise
(34, 36) of the Bandsaw and tightly
clamp.
O U T E R
BEARINGS
(71)

SKU 66435 For technical questions, please call 1-800-444-3353. Page 13
Raise or lower the Blade Guide
Assembly by loosening the Blade
Guide Adjustment Screw (67) and
positioning the Blade Guide Bear-
ings (71) as required. Then tighten
the Blade Guide Adjustment Screw
(67). (See Figure G.)
FIGURE G
BLADE
GUIDE
ADJUSTMENT
SCREW
(67)
Blade Tension Adjustment:
Turn the Blade Tension Adjusting1.
Knob (125) clockwise to increase
tension on the Saw Blade (86). Turn
the Blade Tension Adjusting Knob
counterclockwise to decrease tension
on the Saw Blade. Correct tension is
acquired when the Saw Blade is just
tight enough so that no slippage oc-
curs between the Saw Blade and the
Blade Wheels (64, 83).
(See Figure H.)
NOTE: When the Bandsaw is not in2.
use over long periods of time, release
the tension on the Saw Blade (86).
FIGURE H
BLADE
TENSION
ADJUSTING
KNOB
(125)
Blade Tracking Adjustment:
Raise the Saw Head to its full verti-1.
cal position, making sure it locks in
position by turning the Support Plate


right hand size). (See Figure I.)
FIGURE I
BODY
FRAME
(126)
SUPPORT PLATE
(31)

SKU 66435 For technical questions, please call 1-800-444-3353. Page 14
The Saw Blade (86) is tracking prop-2.
erly when the back of the Blade is
just touching the edge of the Blade

Blade should not be rubbing against
(See Figure J.)
BLADE WHEEL
FLANGE
(64) SAW
BLADE
(86)
FIGURE J
If adjustment is necessary, loosen the3.
upper Hex Head Bolt (56) to a point
where it is loose, but snug.
(See Figure K.)
With the Bandsaw running, turn the4.
lower Hex Head Screw (110) until the
Saw Blade (86) is tracking properly,
making sure Blade tension is main-
tained by turning the Blade Tension
Adjusting Knob (125).
(See Figure K.)
Make sure to retighten the upper Hex5.
Head Screw (56) when adjustment is
complete. (See Figure K.)
HEX HEAD
SCREW
(56)
HEX HEAD
SCREW
(110)
FIGURE K
BLADE
TENSION
ADJUSTING
KNOB
(125)
Changing Speed:
When using the Bandsaw, always1.
change the Saw Blade (86) speed to
best suit the material being cut. Refer
to the Chart to determine the proper

material being cut. (See Figure L.)
FIGURE L
MATERIAL SPEED (FPM) BELT GROOVE USED
WORM GEAR
PULLEY
MOTOR
PULLEY
80 FPM
120 FPM
180 FPM

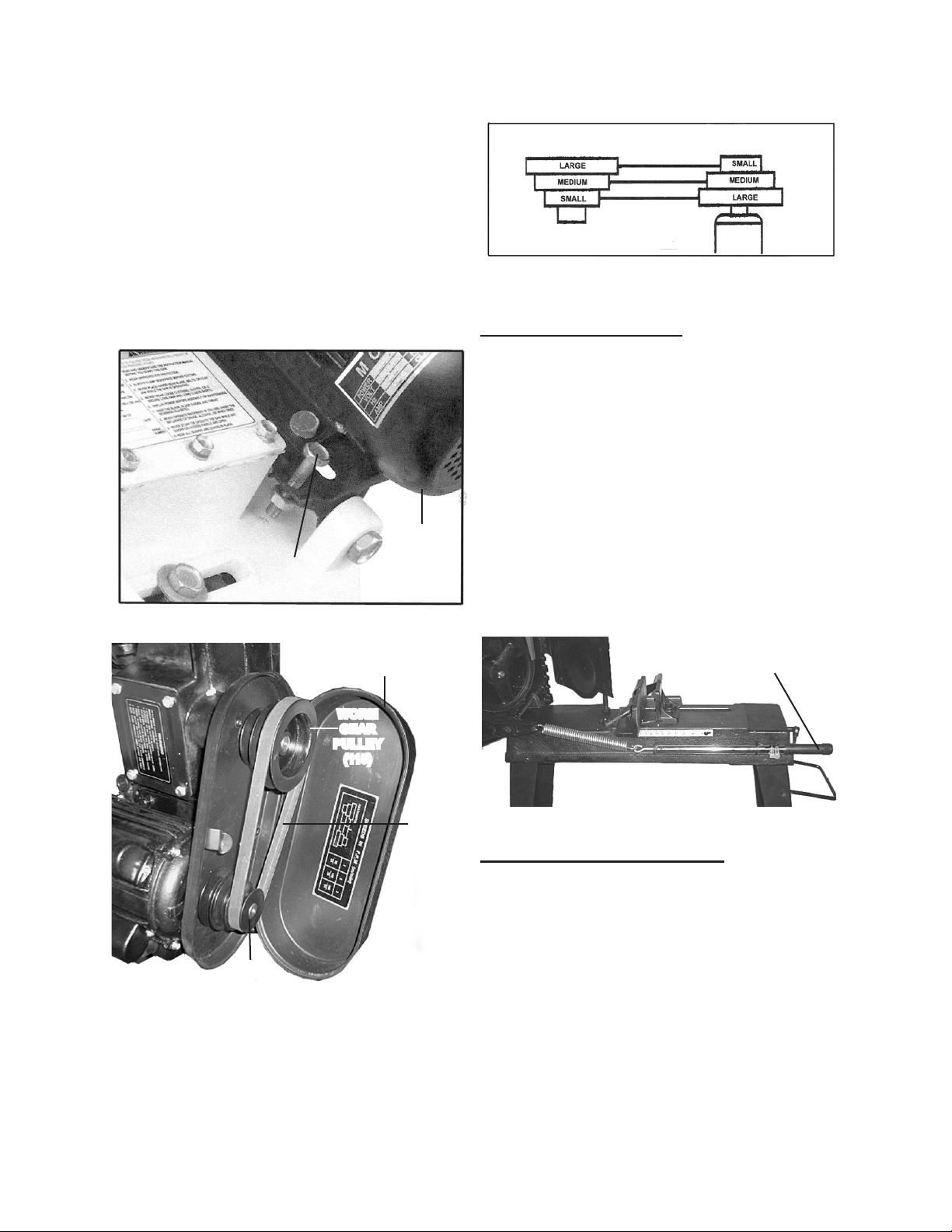

The cutting speed can be adjusted by2.
loosening the Screw (102) and mov-
ing the Motor (94) forward. Open the
Upper Pulley Cover (92). Place the V-
Belt (128) around the desired grooves
in the Worm Gear Pulley (115) and

SKU 66435 For technical questions, please call 1-800-444-3353. Page 15
Motor Pulley (93). Next, move the
Motor backwards to tighten the ten-
sion on the V-Belt. Then, retighten
the Screw to secure the Motor in
place. (See Figures M, N, and O.)
WARNING!3. Always securely close
the Upper Pulley Cover (92) after ad-
justing the cutting speed or replacing
the V-Belt (128). (See Figure N.)
FIGURE M
SCREW
(102)
MOTOR
(94)
FIGURE N
UPPER PULLEY COVER
(92)
V-BELT
(128)
MOTOR
PULLEY
(93)
WORM
GEAR
PULLEY
(115)
FIGURE O
WORM GEAR PULLEY
(115)
MOTOR PULLEY
(93)
Feed Rate Adjustment:
The feed rate of the Blade can be1.
adjusted by turning the Adjusting Rod
(58) clockwise to decrease the feed
rate or counterclockwise to increase
the feed rate.
Do not turn the Adjusting Rod more2.
than one turn at a time. Excessive
feed pressure can break the Saw

dulls the Saw Blade rapidly.
(See Figure P.)
FIGURE P
ADJUSTING ROD
(58)
Vise Angle Cut Adjustment:
Loosen the Lock Handle (38), and1.
move the Mitering Vise Plate (36) to
the desired angle as indicated by the
Angle Scale (53). Then retighten the
Lock Handle.
(See Figure Q, next page.
Loosen the Hex Head Screw (40), and2.
adjust the Moveable Vise Plate (34) to
parallel the Mitering Vise Plate. Then

SKU 66435 For technical questions, please call 1-800-444-3353. Page 16
retighten the Hex Head Screw.
(See Figure Q.)
LOCK
HANDLE
(38)
HEX HEAD SCREW
(40)
SCALE
(53)
MOVEABLE
VISE PLATE
(34)
MITERING
VISE PLATE
(36) FIGURE Q
Stock Stop Adjustment:
When mounted to the Bandsaw, the1.
Stock Stop (29) assembly is used
to make repetitive cuts of the same
length. (See Figure R.)
To adjust the Stock Stop (29), loosen2.
the Set Screw (130) and adjust it to
the desired length position. Then
retighten the Set Screw. (See Figure
R.)
WORKPIECE AND WORK
AREA SET UP
Designate a work area that is clean1.
and well-lit. The work area must not
allow access by children or pets to
prevent injury and distraction.
Route the Power Supply Cord (97)2.
along a safe route to reach the work
area without creating a tripping hazard
or exposing the Cord to possible dam-
age. The Cord must reach the work
area with enough extra length to allow
free movement while working.
Secure loose work pieces using the3.
Vise (34, 36) assembly to prevent
movement while working.
There must not be hazardous objects,4.
such as utility lines or foreign objects,
nearby that will present a hazard while
working.
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Basic Operation - Vertical Position:
WARNING!1. Do not plug the Power
Supply Cord (97) into a 120 volt,
grounded, electrical outlet until all
necessary adjustments have been
made (as previously discussed in this
manual).
CAUTION!2. Cut only SOLID workpiec-
es when the Bandsaw is in its verti-
FIGURE R
SET
SCREW
(130)
STOCK
STOP
(29)
STOCK
STOP
ROD
(28)

SKU 66435 For technical questions, please call 1-800-444-3353. Page 17
cal position. NEVER attempt to cut
pipes or hollow round objects with the
Bandsaw in its vertical position.
Raise the Body Frame (126) to its full3.
vertical position, making sure it locks
into place by turning the Support

locks into the Body Frame.
(See Figure S.)
FIGURE S
BODY
FRAME
(126)
SUPPORT PLATE
(31)
Remove the two Cross Head Screws4.
(87) from the Lower Blade Guard (9).
(See Figure T.)
FIGURE T
CROSS HEAD SCREWS
(87)
Attach the Vertical Cutting Support5.
Plate (98) to the Vertical Cutting Plate
(99) using one Cross Head Screw
(87), one Washer (63), and one Hex
Nut (100). (See Figure U.)
FIGURE U
VERTICAL
CUTTING
SUPPORT
PLATE
(98)
HEX NUT
(100)
WASHER
(63)
CROSS
HEAD
SCREW
(87)
VERTICAL
CUTTING
PLATE
(99)
Guide the Saw Blade (86) through the6.
slot in the Vertical Cutting Plate (99),

SKU 66435 For technical questions, please call 1-800-444-3353. Page 18
and secure the plate in place with the
two previously removed Cross Head
Screws (87). (See Figures T and V.)
VERTICAL
CUTTING
PLATE
(99)
FIGURE V
CROSS HEAD SCREWS
(87)
Attach the lower end of the Verti-7.
cal Cutting Support Plate (98) to the
Body Frame (126) using one Hex
Head Screw (110) and one Washer
(62). (See Figure W.)
HEX HEAD SCREW
(110)
WASHER
(62)
FIGURE W
Make sure the Power Switch (20) is8.
down in its “OFF” position. Then
plug the Power Supply Cord (97) into
the nearest 120 volt, grounded, elec-
trical outlet. (See Figure X.)
Turn the Power Switch (20) up to its9.
“ON” position. (See Figure X.)
Before cutting, turn on the Bandsaw10.
and check for excessively loose Saw
Blade (86) tension or machine vibra-
tion. If this is found, turn off the Band-
saw and correct the problem before
using.
Set the workpiece on the Vertical Cut-11.
ting Plate (99), making sure to keep
downward pressure on the workpiece
throughout the cutting process.
When cutting a large workpiece, make12.
sure its entire length is properly sup-
ported. If necessary, use a roller
stand (not included) with a larger
workpiece.
Allow the Saw Blade (86) to turn up13.
to full speed before feeding the work-
piece into the Blade.
WARNING!14. Always keep hands and

area.
Feed the workpiece into the Saw15.
Blade (86) gradually. Do not force the
FIGURE X
POWER
SWITCH
(20)

SKU 66435 For technical questions, please call 1-800-444-3353. Page 19
Bandsaw to remove material faster
than it is designed to cut.
Never attempt to remove mate-16.
rial stuck in the moving parts of the
Bandsaw while it is plugged in and
running. Turn off the Bandsaw if the
workpiece is to be backed out of an
uncompleted cut.
Once the cut is made, turn the Power17.
Switch (20) to its “OFF” position.
Then unplug the Power Supply Cord
(97) from its electrical outlet.
Wait until the Saw Blade (86) comes18.
to a complete stop. Then remove the
workpiece and scrap material from
the Vertical Cutting Plate (99).
Basic Operation - Horizontal Position:
WARNING!1. Do not plug the Power
Supply Cord (97) into a 120 volt,
grounded, electrical outlet until all
necessary adjustments have been
made (as previously discussed in this
manual).
Prior to operating the Bandsaw in its2.
horizontal cutting position, remove
the Vertical Cutting Plate (99) and
re-install the two Cross Head Screws
(87) in the lower Lower Blade Guard
(9). (See Figure T.)
Raise the Body Frame (126) to its3.
full vertical position.
Secure the workpiece in the Vise4.
(34, 36) assembly. When cutting a
large workpiece, make sure its en-
tire length is properly supported. If
necessary, use a roller stand (not
included) with a larger workpiece.
If cutting several workpieces at the5.
same length, you may wish to adjust
the Stock Stop (29) to the desired
position.
Once all necessary adjustments to6.
the Bandsaw have been made, plug
the Power Supply Cord (97) into the
nearest 120 volt, grounded, electrical
outlet.
Turn the Power Switch (20) to its “ON”7.
position.
Before cutting, check for loose Saw8.
Blade (86) tension or machine vibra-
tion. If this is found, turn off the Band-
saw and correct the problem before
operating.
Allow the Saw Blade (86) to turn up to9.
full speed. Then slowly lower the Body
Frame (126) until the Saw Blade is just
above the workpiece cut line.
WARNING!10. ALWAYS keep hands and

area.
Slowly lower the Body Frame (126)11.
while it gradually feeds the Saw Blade
(86) into the workpiece. Do not force
the Bandsaw to remove material faster
than it is designed to cut.
Never attempt to remove material12.
stuck in the moving parts of the Band-
saw while it is plugged in and running.
Turn off the Bandsaw if the workpiece
is to be backed out of an uncompleted
cut.
IMPORTANT:13. When in the horizontal
cutting mode only, the Switch Cut-Off
Screw (77) will automatically turn the
Power Switch (20) to its “OFF” posi-
tion and shut off the Bandsaw’s Motor

SKU 66435 For technical questions, please call 1-800-444-3353. Page 20
when the cut has been completed.
(See Figure Y, next page.)

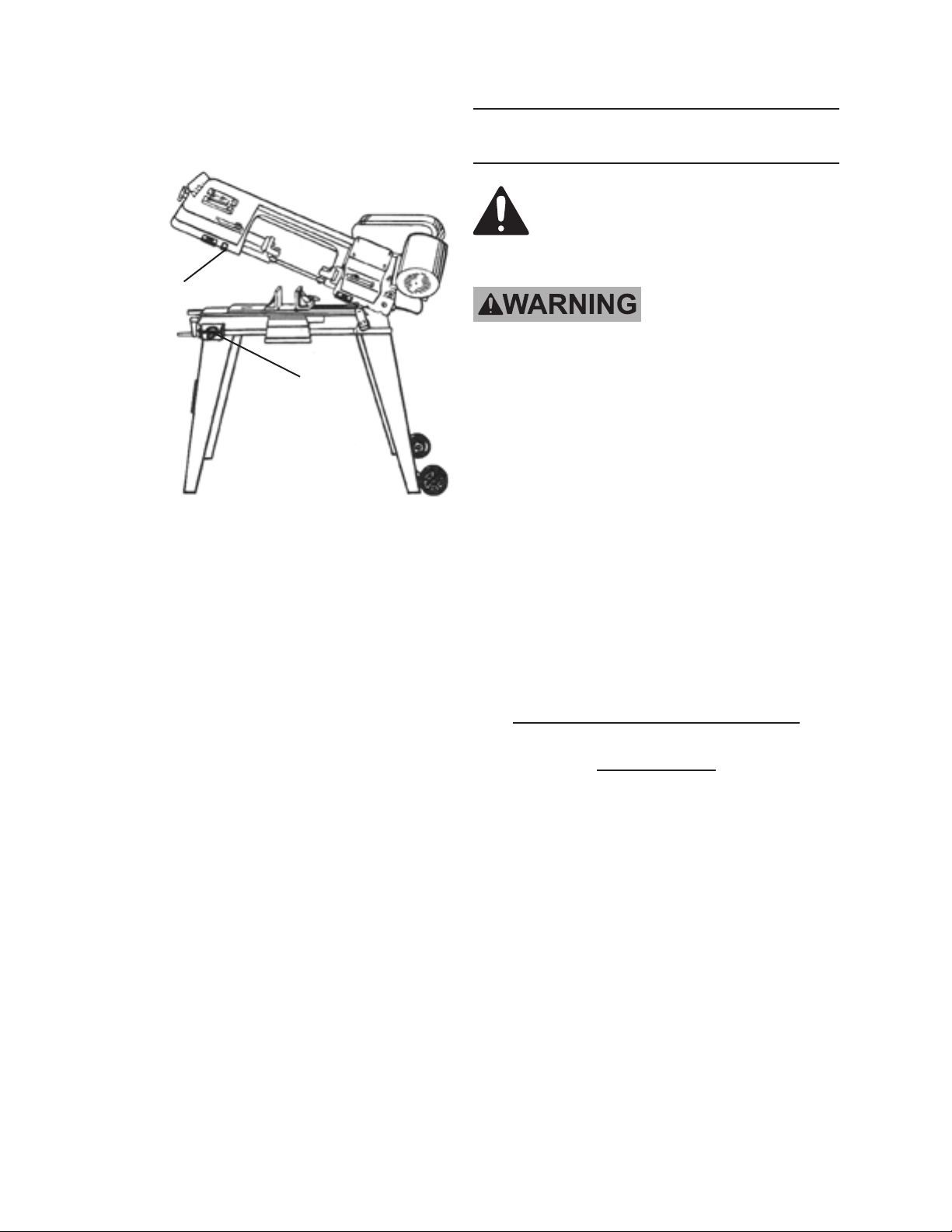

FIGURE Y
POWER SWITCH
(20)
SWITCH
CUT-OFF
SCREW
(77)
14. Once the cut is made, turn the Power
Switch (20) to its “OFF” position.
Then unplug the Power Supply Cord
(97) from its electrical outlet.
Wait until the Bandsaw has come to a15.
complete stop. Then raise the Body
Frame (126) to its full vertical position
and lock the Frame in place with the
Support Plate (31).
Remove the workpiece from the Vise16.
(34, 36) assembly and scrap material
from the Bed (55) of the Bandsaw.
Then unlock the Support Plate (31)
and slowly lower the Body Frame
(126) to its horizontal position.
MAINTENANCE AND
SERVICING
Procedures not specically
explained in this manual must
be performed only by a qualied
technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch (20) of
the Bandsaw to its “OFF”
position and unplug the
machine from its electrical
outlet before performing any
inspection, maintenance, or
cleaning procedures.
TO PREVENT SERIOUS INJURY
FROM TOOL FAILURE:
Do not use damaged
equipment. If abnormal noise
or vibration occurs, have the
problem corrected before
further use.
Cleaning, Maintenance, and
Lubrication
BEFORE EACH USE, inspect the gen-1.
eral condition of the Bandsaw. Check
for loose screws, misalignment or bind-
ing of moving parts, cracked or broken
parts, damaged electrical wiring, and
any other condition that may affect its
safe operation.
SAW BLADE MAINTENANCE: Inspect2.
the Saw Blade (86). Using a dull Saw
Blade will cause excessive wear on
the Motor of the Bandsaw and will not
produce a satisfactory cut. Replace
with a new Saw Blade when needed.
To replace a Saw Blade:
