Central Pneumatic 68739 User manual

5″ High Speed Air Sander
Item 68739
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
When unpacking, make sure that the product is intact and undamaged.
If any parts are missing or broken, please call 1-800-444-3353 as soon as possible.
Visit our website at: http://www.harborfreight.com
Copyright©2011 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.

Page 2 For technical questions, please call 1-800-444-3353. SKU 68739
Save This Manual
Keep this manual for the safety warnings and
precautions, assembly, operating, inspection,
maintenance and cleaning procedures. Write the
product’s serial number in the back of the manual near
the assembly diagram (or month and year of purchase
if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference.
Safety Alert Symbol
and Signal Words
In this manual, on the labeling, and all other
information provided with this product:
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
DANGER indicates a hazardous situation which, if
not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION, used with the safety alert symbol,
indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices
not related to personal injury.
CAUTION, without the safety alert symbol, is used
to address practices not related to personal injury.
IMPORTANT SAFETY
INSTRUCTIONS
INSTRUCTIONS PERTAINING
TO A RISK OF FIRE,
ELECTRIC SHOCK, OR
INJURY TO PERSONS
WARNING – When using tools, basic precautions
should always be followed, including the following:
General
a. To reduce the risks of electric shock,
re, and injury to persons, read all the
instructions before using the tool.
Work Area
a. Keep the work area clean and well lighted.
Cluttered benches and dark areas increase the
risks of electric shock, re, and injury to persons.
b. Do not operate the tool in explosive atmospheres,
such as in the presence of ammable liquids,
gases, or dust. The tool is able to create sparks
resulting in the ignition of the dust or fumes.
c. Keep bystanders, children, and visitors away
while operating the tool. Distractions are able
to result in the loss of control of the tool.
Personal Safety
a. Stay alert. Watch what you are doing and
use common sense when operating the tool.
Do not use the tool while tired or under the
inuence of drugs, alcohol, or medication.
A moment of inattention while operating the
tool increases the risk of injury to persons.
b. Dress properly. Do not wear loose
clothing or jewelry. Contain long hair.
Keep hair, clothing, and gloves away
from moving parts. Loose clothes, jewelry, or
long hair increases the risk of injury to persons
as a result of being caught in moving parts.
c. Avoid unintentional starting. Be sure the switch
is off before connecting to the air supply.
Do not carry the tool with your nger on the switch or
connect the tool to the air supply with the switch on.
d. Remove adjusting keys and wrenches
before turning the tool on. A wrench or a
key that is left attached to a rotating part of the
tool increases the risk of personal injury.

Page 3For technical questions, please call 1-800-444-3353.SKU 68739
e. Do not overreach. Keep proper
footing and balance at all times.
Proper footing and balance enables better
control of the tool in unexpected situations.
f. Use safety equipment. A dust mask,
non-skid safety shoes and a hard hat
must be used for the applicable
conditions. Wear heavy-duty work
gloves during use.
g. Always wear eye protection.
Wear ANSI-approved safety goggles.
h. Always wear hearing protection when
using the tool. Prolonged exposure to
high intensity noise is able to cause
hearing loss.
Tool Use and Care
a. Use clamps or another practical way to secure
and support the workpiece to a stable platform.
Holding the work by hand or against the body is
unstable and is able to lead to loss of control.
b. Do not force the tool. Use the correct tool for the
application. The correct tool will do the job better
and safer at the rate for which the tool is designed.
c. Do not use the tool if the switch does not turn the
tool on or off. Any tool that cannot be controlled
with the switch is dangerous and must be repaired.
d. Disconnect the tool from the air source before
making any adjustments, changing accessories,
or storing the tool. Such preventive safety
measures reduce the risk of starting the tool
unintentionally. Turn off and detach the air supply,
safely discharge any residual air pressure, and
release the trigger before leaving the work area.
e. Store the tool when it is idle out of reach
of children and other untrained persons.
A tool is dangerous in the hands of untrained users.
f. Maintain the tool with care. Keep a cutting
tool sharp and clean. A properly maintained
tool, with sharp cutting edges reduces the
risk of binding and is easier to control.
g. Check for misalignment or binding of moving
parts, breakage of parts, and any other condition
that affects the tool’s operation. If damaged,
have the tool serviced before using. Many accidents
are caused by poorly maintained tools.
There is a risk of bursting if the tool is damaged.
h. Use only accessories that are identied by the
manufacturer for the specic tool model. Use of
an accessory not intended for use with the specic
tool model, increases the risk of injury to persons.
Service
a. Tool service must be performed only
by qualied repair personnel.
b. When servicing a tool, use only identical
replacement parts. Use only authorized parts.
c. Use only the lubricants supplied with the
tool or specied by the manufacturer.
Air Source
a. Never connect to an air source that is
capable of exceeding 200 psi.
Over pressurizing the tool may cause
bursting, abnormal operation, breakage
of the tool or serious injury to persons.
Use only clean, dry, regulated compressed air at the
rated pressure or within the rated pressure range as
marked on the tool. Always verify prior to using the
tool that the air source has been adjusted to the rated
air pressure or within the rated air-pressure range.
b. Never use oxygen, carbon dioxide, combustible
gases or any bottled gas as an air source
for the tool. Such gases are capable of
explosion and serious injury to persons.
SAVE THESE
INSTRUCTIONS.

Page 4 For technical questions, please call 1-800-444-3353. SKU 68739
Symbols and Specic
Safety Instructions
Symbol Denitions
Symbol Property or statement
noNo-load speed
.../min Revolutions or reciprocation per minute
PSI Pounds per square inch of pressure
ft-lb Foot-pounds of torque
BPM Blows per minute
CFM Cubic Feet per Minute ow
SCFM Cubic Feet per Minute ow
at standard conditions
NPT National pipe thread, tapered
NPS National pipe thread, straight
WARNING marking
concerning Risk of Eye Injury.
Wear ANSI-approved eye protection.
WARNING marking concerning Risk of
Hearing Loss. Wear hearing protection.
WARNING marking concerning
Risk of Respiratory Injury. Wear
NIOSH-approved dust mask/respirator.
WARNING marking concerning
Risk of Explosion.
Specic Safety Instructions
1. The warnings and precautions discussed in this
manual cannot cover all possible conditions and
situations that may occur. It must be understood
by the operator that common sense and caution
are factors which cannot be built into this
product, but must be supplied by the operator.
2. WARNING: Some dust created by power
sanding, sawing, grinding, drilling, and other
construction activities, contains chemicals
known [to the State of California] to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement or
other masonry products
• Arsenic and chromium from
chemically treated lumber
Your risk from these exposures varies,
depending on how often you do this type of work.
To reduce your exposure to these chemicals:
work in a well ventilated area, and
work with approved safety equipment,
such as those dust masks that are specially
designed to lter out microscopic particles.
(California Health & Safety Code § 25249.5, et seq.)
3. WARNING: The brass components of
this product contain lead, a chemical
known to the State of California to cause
birth defects (or other reproductive harm).
(California Health & Safety code § 25249.5, et seq.)
4. Only use with accessories rated to handle the
forces exerted by this tool during operation.
Other accessories not designed for the forces
generated may break and forcefully launch pieces.
5. Attach all accessories properly to the tool before
connecting the air supply. A loose accessory
may detach or break during operation.
6. Obey the manual for the air compressor
used to power this tool.
7. Install an in-line shutoff valve to allow
immediate control over the air supply in an
emergency, even if a hose is ruptured.
8. Use this tool with both hands only. Using tools
with only one hand can result in loss of control.
9. Do not lay the tool down until it has come to
a complete stop. Moving parts can grab the
surface and pull the tool out of your control.

Page 5For technical questions, please call 1-800-444-3353.SKU 68739
Vibration Precautions
This tool vibrates during use. Repeated or long-term
exposure to vibration may cause temporary or permanent
physical injury, particularly to the hands, arms and
shoulders. To reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for an
extended period should rst be examined by a
doctor and then have regular medical check-ups to
ensure medical problems are not being caused or
worsened from use. Pregnant women or people
who have impaired blood circulation to the hand,
past hand injuries, nervous system disorders,
diabetes, or Raynaud’s Disease should not use this
tool. If you feel any symptoms related to vibration
(such as tingling, numbness, and white or blue
ngers), seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and ngers,
increasing the risk of vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration
when there is a choice.
5. Include vibration-free periods each day of work.
6. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
7. To reduce vibration, maintain tool as
explained in this manual. If abnormal
vibration occurs, stop immediately.
SAVE THESE
INSTRUCTIONS.

Page 6 For technical questions, please call 1-800-444-3353. SKU 68739
Functional Description
Specications
Operating Air Pressure 90 PSI
Air Inlet 1/4″ -18 NPT
Maximum Speed* 18,000 RPM
Average Air
Consumption 4 CFM @ 90 PSI
Pad Capacity 7/8″ arbor x 5″
* Maximum speed at stated maximum air pressure. Excess air pressure is hazardous
and may cause the tool to exceed stated maximum speed.
Air Inlet (7) Air Regulator (6)
Pad
(22a/b/c)
Arbor
Nut (23)
Trigger (12)

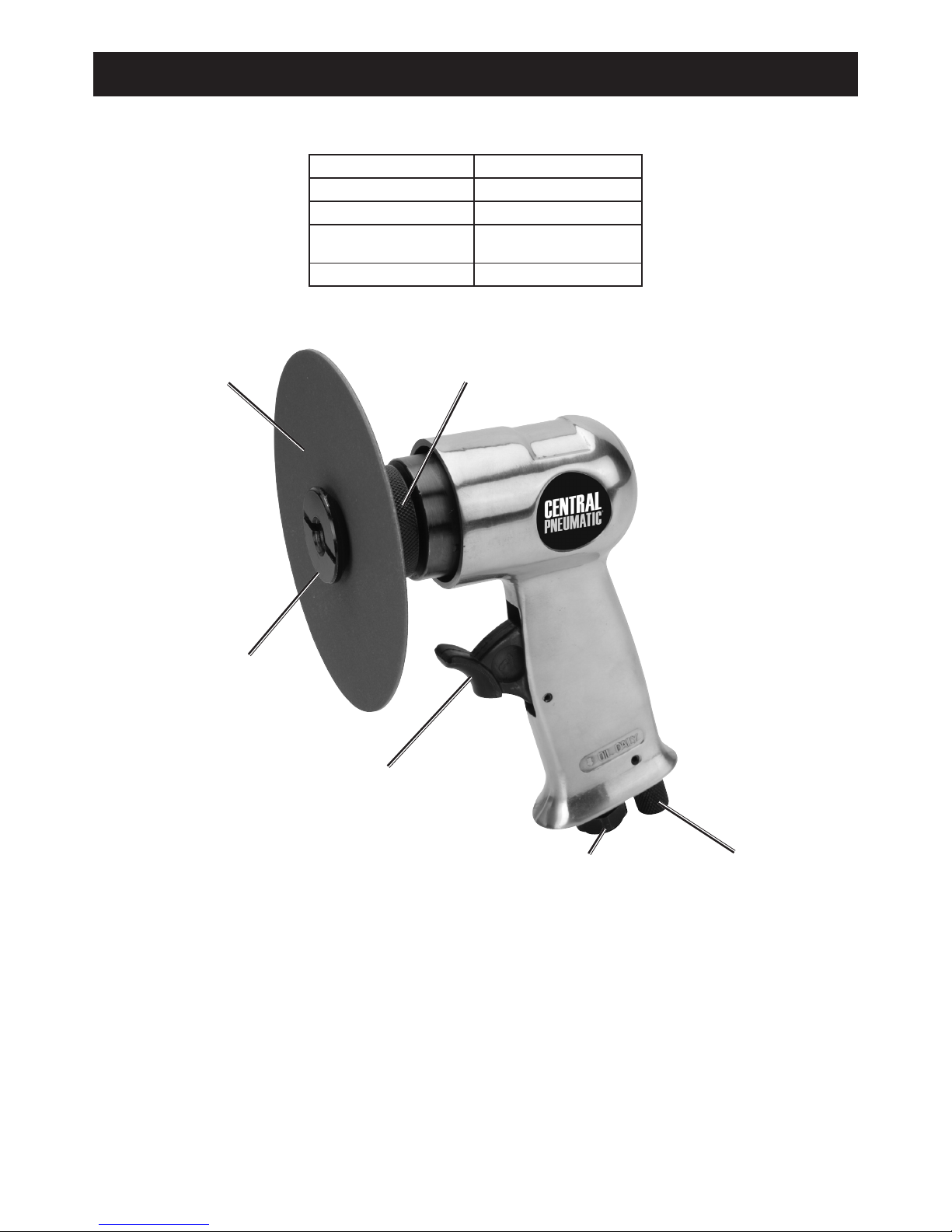

Figure A: Components and Controls
Spindle
Ring (21)

Page 7For technical questions, please call 1-800-444-3353.SKU 68739
Initial Tool Set Up/Assembly
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.
Note: For additional information regarding the
parts listed in the following pages, refer to the
Assembly Diagram near the end of this manual.
Note: This air tool may be shipped with a protective plug
covering the air inlet. Remove this plug before set up.
Air Supply
TO PREVENT SERIOUS INJURY
FROM EXPLOSION:
Use only clean, dry, regulated, compressed
air to power this tool. Do not use oxygen,
carbon dioxide, combustible gases, or any other
bottled gas as a power source for this tool.
1. Incorporate a lter, regulator with pressure gauge,
oiler, in-line shutoff valve, and quick coupler for
best service, as shown on Figure B on page 8
and Figure C on page 9. An in-line shutoff
ball valve is an important safety device because
it controls the air supply even if the air hose
is ruptured. The shutoff valve should be a
ball valve because it can be closed quickly.
Note: If an automatic oiler system is not used,
add a few drops of Pneumatic Tool Oil to the
airline connection before operation. Add a few
more drops after each hour of continual use.
2. Attach an air hose to the compressor’s air outlet.
Connect the air hose to the air inlet of the tool.
Other components, such as a quick connect
plug and quick connect coupler, will make
operation more efcient, but are not required.
WARNING! TO PREVENT SERIOUS INJURY
FROM ACCIDENTAL OPERATION:
Do not install a female quick coupler on the tool.
Such a coupler contains an air valve that will
allow the air tool to retain pressure and operate
accidentally after the air supply is disconnected.
Note: Air ow, and therefore tool performance, can
be hindered by undersized air supply components.
The air hose must be long enough to reach
the work area with enough extra length to
allow free movement while working.
3. Release the Trigger.
4. Turn on the air compressor according to
the manufacturer’s directions and allow it
to build up pressure until it cycles off.
5. Adjust the air compressor’s output regulator so
that the air output is enough to properly power
the tool, but the output will not exceed the tool’s
maximum air pressure at any time. Adjust
the pressure gradually, while checking the air
output gauge to set the right pressure range.
6. Inspect the air connections for leaks.
Repair any leaks found.
7. If the tool will not be used at this time, turn off
and detach the air supply, safely discharge
any residual air pressure, and release the
trigger to prevent accidental operation.
Note: Residual air pressure should not be present
after the tool is disconnected from the air supply.
However, it is a good safety measure to attempt to
discharge the tool in a safe fashion after disconnecting
to ensure that the tool is disconnected and unpowered.

Page 8 For technical questions, please call 1-800-444-3353. SKU 68739
Figure B: Portable Air Supply Setup
G
A
E
E H
F
B
Non-lubricated Tools Lubricated Tools
A
B
C
C
DA
Description Function
A Air Hose Connects air to tool
B Filter Prevents dirt and condensation from damaging tool or work piece
C Regulator Adjusts air pressure to tool D Lubricator (optional) For air tool lubrication
E Coupler and Plug Provides quick connection and release
F Leader Hose (optional) Increases coupler life
G Air Cleaner / Dryer (optional) Prevents water vapor from damaging work piece
HAir Adjusting Valve (optional) For ne tuning airow at tool

Page 9For technical questions, please call 1-800-444-3353.SKU 68739

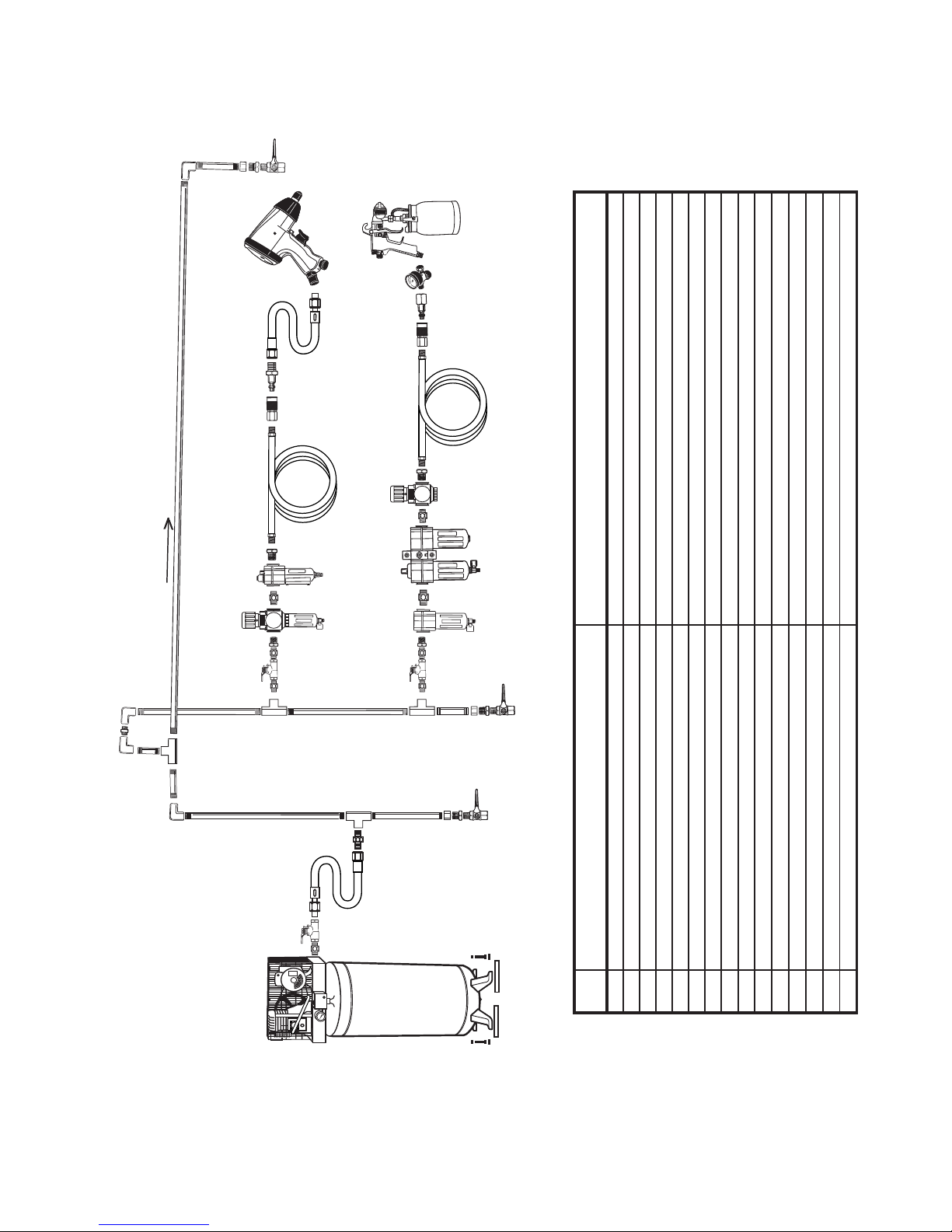

Figure C: Stationary Air Supply Setup
N
L
L O
M
C C
Non-lubricated Tools Lubricated Tools
H
I
I
J
JKH
F
G
E
Slope
F
F
B B
A A
CD
Description Function
AVibration Pads For noise and vibration reduction
B Anchor Bolts Secures air compressor in place
CBall Valve Isolates sections of system for maintenance D Isolation Hose For vibration reduction
E Main Air Line - 3/4” minimum recommended Distributes air to branch lines
FBall Valve To drain moisture from system
G Branch Air Line -1/2” minimum recommended Brings air to point of use
H Air Hose Connects air to tool
I Filter Prevents dirt and condensation from damaging tool or work piece
J Regulator Adjusts air pressure to tool
K Lubricator (optional) For air tool lubrication
L Coupler and Plug Provides quick connection and release
M Leader Hose (optional) Increases coupler life
N Air Cleaner / Dryer (optional) Prevents water vapor from damaging work piece
OAir Adjusting Valve (optional) For ne tuning airow at tool

Page 10 For technical questions, please call 1-800-444-3353. SKU 68739
Operating Instructions
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.
Inspect tool before use, looking
for damaged, loose, and missing
parts. If any problems are found,
do not use tool until repaired.
Tool Set Up
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION:
Turn off the tool, detach the air supply, safely
discharge any residual air pressure in the tool,
and release the trigger before performing any
inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY:
Do not adjust or tamper with any control or
component in a way not specically explained
within this manual. Improper adjustment can
result in tool failure or other serious hazards.
TO PREVENT SERIOUS INJURY:
DO NOT USE GRINDING DISCS, GRINDING WHEELS,
OR CUT-OFF WHEELS WITH THIS TOOL.
This tool has no safety shield.
TO PREVENT SERIOUS INJURY:
All accessories must be rated at
or above 18,000 RPM.
1. Insert the Spindle Lock Pin (24) into the hole
on the Spindle Ring (21). See Figure D.
Spindle Lock Pin (24)
Spindle Ring (21)
Figure D: Installing the Pad
Pad (22a/b/c)
Arbor Nut (23)
2. Place the desired Pad (22a/b/c) onto the Spindle
Ring. Apply a sandpaper disc of the same size to the
Pad with the rough side facing away from the Pad.
3. Secure Pad in place with the Arbor Nut (23).
4. Remove the Spindle Lock Pin before use.
Work Piece and
Work Area Set Up
1. Designate a work area that is clean and well-lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Route the air hose along a safe route to reach
the work area without creating a tripping hazard
or exposing the air hose to possible damage.
The air hose must be long enough to reach
the work area with enough extra length to
allow free movement while working.
3. Secure loose workpieces using a vise or clamps
(not included) to prevent movement while working.
4. There must not be hazardous objects
(such as utility lines or foreign objects) nearby
that will present a hazard while working.

Page 11For technical questions, please call 1-800-444-3353.SKU 68739
General Operating Instructions
Note: Remove the Spindle Lock Pin before use.
1. If an automatic oiler is not used, add a few
drops of Pneumatic Tool Oil to the airline
connection before use. Add a few drops
more after each hour of continual use.
2. Squeeze the Trigger and allow the
tool to come up to full speed.
3. The tool′s speed can be adjusted
by turning the Air Regulator.
4. Apply the sandpaper disc to the workpiece lightly
and at a slight angle to prevent the Arbor Nut
from gouging the workpiece. Keep the disc
moving cross the surface for best results.
5. If the tool requires more force to accomplish
the task, verify that the tool receives sufcient,
unobstructed airow (CFM) and increase the
pressure (PSI) output of the regulator up to the
maximum air pressure rating of this tool.
CAUTION! TO PREVENT INJURY FROM TOOL
OR ACCESSORY FAILURE:
Do not exceed the tool’s
maximum air pressure rating.
If the tool still does not have sufcient force
at maximum pressure and sufcient airow,
then a larger tool may be required.
6. To prevent accidents, turn off the tool, detach the air
supply, safely discharge any residual air pressure
in the tool, and release the trigger after use.
Clean external surfaces of the tool with clean,
dry cloth, and apply a thin coat of tool oil.
Then store the tool indoors out of children’s reach.

Page 12 For technical questions, please call 1-800-444-3353. SKU 68739
User-Maintenance Instructions
Procedures not specically explained
in this manual must be performed
only by a qualied technician.
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION:
Turn off the tool, detach the air supply, safely
discharge any residual air pressure in the tool,
and release the trigger before performing any
inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY
FROM TOOL FAILURE:
Do not use damaged equipment.
If abnormal noise, vibration, or leaking air occurs,
have the problem corrected before further use.
TO PREVENT SEROUS INJURY
FROM EXPLOSION:
Lubricate the tool only with
specied lubricants. Lubricate the air inlet
using only pneumatic tool oil.
Other lubricants may damage the mechanism and
may be highly ammable, causing an explosion.
Cleaning, Maintenance,
and Lubrication
Note: These procedures are in addition to the regular
checks and maintenance explained as part of the regular
operation of the air-operated tool.
Daily - Air Supply Maintenance:
Every day, perform maintenance on the air supply
according to the component manufacturers’ instructions.
The lubricator’s oil level needs to be maintained and the
moisture lter must be regularly drained. Performing
routine maintenance on the air supply will allow the tool to
operate more safely and will also reduce wear on the tool.

Page 13For technical questions, please call 1-800-444-3353.SKU 68739
Troubleshooting
Problem Possible Causes Likely Solutions
Decreased output. 1. Not enough air pressure and/
or air ow.
2. Obstructed trigger.
3. Incorrect lubrication or
not enough lubrication.
4. Blocked air inlet screen
(if equipped).
5. Air leaking from loose housing.
6. Mechanism contaminated.
1. Check for loose connections and make sure that
air supply is providing enough air ow (CFM)
at required pressure (PSI) to the tool’s air inlet.
Do not exceed maximum air pressure.
2. Clean around trigger to ensure free movement.
3. Lubricate using air tool oil according to directions.
4. Clean air inlet screen of buildup.
5. Make sure housing is properly assembled and tight.
6. Have qualied technician clean and lubricate
mechanism. Install in-line lter in air supply
as stated in Initial Set Up: Air Supply.
Housing heats
during use.
1. Incorrect lubrication or
not enough lubrication.
2. Worn parts.
1. Lubricate using air tool oil according to directions.
2. Have qualied technician inspect internal
mechanism and replace parts as needed.
Severe air leakage.
(Slight air leakage
is normal,
especially on
older tools.)
1. Cross-threaded housing
components.
2. Loose housing.
3. Damaged valve or housing.
4. Dirty, worn or damaged valve.
1. Check for incorrect alignment and uneven gaps.
If cross-threaded, disassemble and
replace damaged parts before use.
2. Tighten housing assembly. If housing cannot tighten
properly, internal parts may be misaligned.
3. Replace damaged components.
4. Clean or replace valve assembly.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect air supply before service.

Page 14 For technical questions, please call 1-800-444-3353. SKU 68739
Part Description Q’ty
1 Housing 1
2 Roll Pin 1
3 Roll Pin 1
4Valve Seat 1
5 O-Ring 2
6 Air Regulator 1
7 Air Inlet 1
8 Spring 1
9Throttle Valve 1
10 Valve Stem 1
11 O-Ring 1
12 Trigger 1
13 Bearing 2
Part Description Q’ty
14 End Plate 1
15 Vane 4
16 Rotor 1
17 Rotor Collar 1
18 Cylinder 1
19 Front Plate 1
20 Clamp Nut 1
21 Spindle Ring 1
22a 3″ Pad 1
22b 4″ Pad 1
22c 5″ Pad 1
23 Arbor Nut 1
24 Spindle Lock Pin 1
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.

Page 15For technical questions, please call 1-800-444-3353.SKU 68739
Assembly Diagram

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure
that its products meet high quality and durability
standards, and warrants to the original purchaser
that this product is free from defects in materials and
workmanship for the period of 90 days from the date
of purchase. This warranty does not apply to damage
due directly or indirectly, to misuse, abuse, negligence
or accidents, repairs or alterations outside our facilities,
criminal activity, improper installation, normal wear and
tear, or to lack of maintenance. We shall in no event
be liable for death, injuries to persons or property, or
for incidental, contingent, special or consequential
damages arising from the use of our product. Some
states do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation of
exclusion may not apply to you. THIS WARRANTY IS
EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part
must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation
of the complaint must accompany the merchandise. If
our inspection veries the defect, we will either repair
or replace the product at our election or we may elect
to refund the purchase price if we cannot readily and
quickly provide you with a replacement. We will return
repaired products at our expense, but if we determine
there is no defect, or that the defect resulted from
causes not within the scope of our warranty, then
you must bear the cost of returning the product.
This warranty gives you specic legal rights and you may
also have other rights which vary from state to state.
