Cerio FPOE-MPD80 User manual

v1.5
FPOE-MPD80
4Pair Multi Gigabit PoE+ Splitter
User’s Guide
FCC Certifications
This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received; including
interference that may cause undesired operation.
CE Mark Warning
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class A for ITE,
the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the
Member States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be possible that information in this document
is not up-to-date. Please check with your local distributors for the latest information. No part of this document can be
copied or reproduced in any form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2016, All Rights Reserved.
Unpacking Information
Thank you for purchasing our PoE series products. Before installation,
please check that your package contains the following items.
Open the shipping cartons of the splitter and carefully unpack its
contents. The carton should contain the following items:
1.FPOE-MPD80 Main Unit x 1
2.Inside diameter 2.1 (PHY) mm DC to DC cable x 1
3.Warranty Card x 1
4.Quick Installation Guide x 1
Hardware Overview
Introduction
FPOE-MPD80 4Pair Multi Gigabit PoE+ Splitter provides 1 / 2.5 /
5Gbps Multi Gigabit RJ45 Ethernet connection ability and delivers
Power over Ethernet to remote devices. Supports IEEE 802.3at /
802.3af Active POE+ and Passive POE+ Power over Ethernet design.
It provides PoE 44-57V Ethernet power + data input to separate to
only DC/Power and only Ethernet/Data output. It allows a non-
compliant device to upgrade to PoE, it is used to deploy remote
non-PoE device with no nearby AC outlets such as supper-speed
Multi-Giga WiFi AP, Multi-Giga Switch...etc.
Product Application
Highlight Features
Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2500/5000BASE-T, IEEE
802.3at PoE+ / 802.3af PoE.
Supports 1 / 2.5 / 5Gbps Multi Giga RJ45 Ethernet Connection
It can use to connect non-PoE compliant devices to an PoE
injector or PoE switch
Supports Output Voltage hot switching for 12VDC / 19VDC /
24VDC three range adjustable
In the case of IEEE 802.3af/at active POE configuration, the
maximum power output up to 27Watts and in the case of
passive POE configuration, the maximum power output up to
80Watt (24V), 75Watt (19V) and 50Watt (12V) after split
power and data.
Supports Ethernet PoE to Separate to only DC/Power and only
Ethernet/Data.
Bundle accessories for inside diameter 2.1 mm(PHY) to 2.1
(PHY) mm DC cable
LED indicators for DC output voltage display of 12V/19V/24V
Supports desktop or wall mounting installation and multiple
units combination for easy to bundles organize the Ethernet
cables

v1.5
Installation
Before Installation
If the device is generally DC-receiving and does not support the POE
function, the FPOE-MPD80 can easily be used to accept POE source
power and apply it separately from DC output power.
The FPOE-MPD80 separates the power out and provides three kinds of
DC power output through its DIP switch and its voltage and current
shown as below:
DIP Switch :
•
12 VDC / 4.17A (Max)
•
19 VDC / 3.94A (Max)
•
24 VDC / 3.33A (Max)
Caution: Please ensure the output voltage is correct for remote
device. Otherwise it will damage your remote device.
Cables Installation
FPOE-MPD80 provides a POE-powered solution for non-PoE devices.
The setup of the splitter can be performed using the following steps:
Connect from "DATA OUT" of FPOE-MPD80 to the RJ-45 port of
the remote device.
Make sure first power source that the POWER+DATA in Port of
the splitter is fully connected to the PoE source-powered PoE
Injector or PoE Switch.
Connect the correct DC plug from "DC OUT" of FPOE-MPD80 to
the DC port of remote device. (Use a DC cable to connect
devices that are to be powered by DC)
Power on the remote device and the LED for voltage status
indicator on FPOE-MPD80 will remains on.

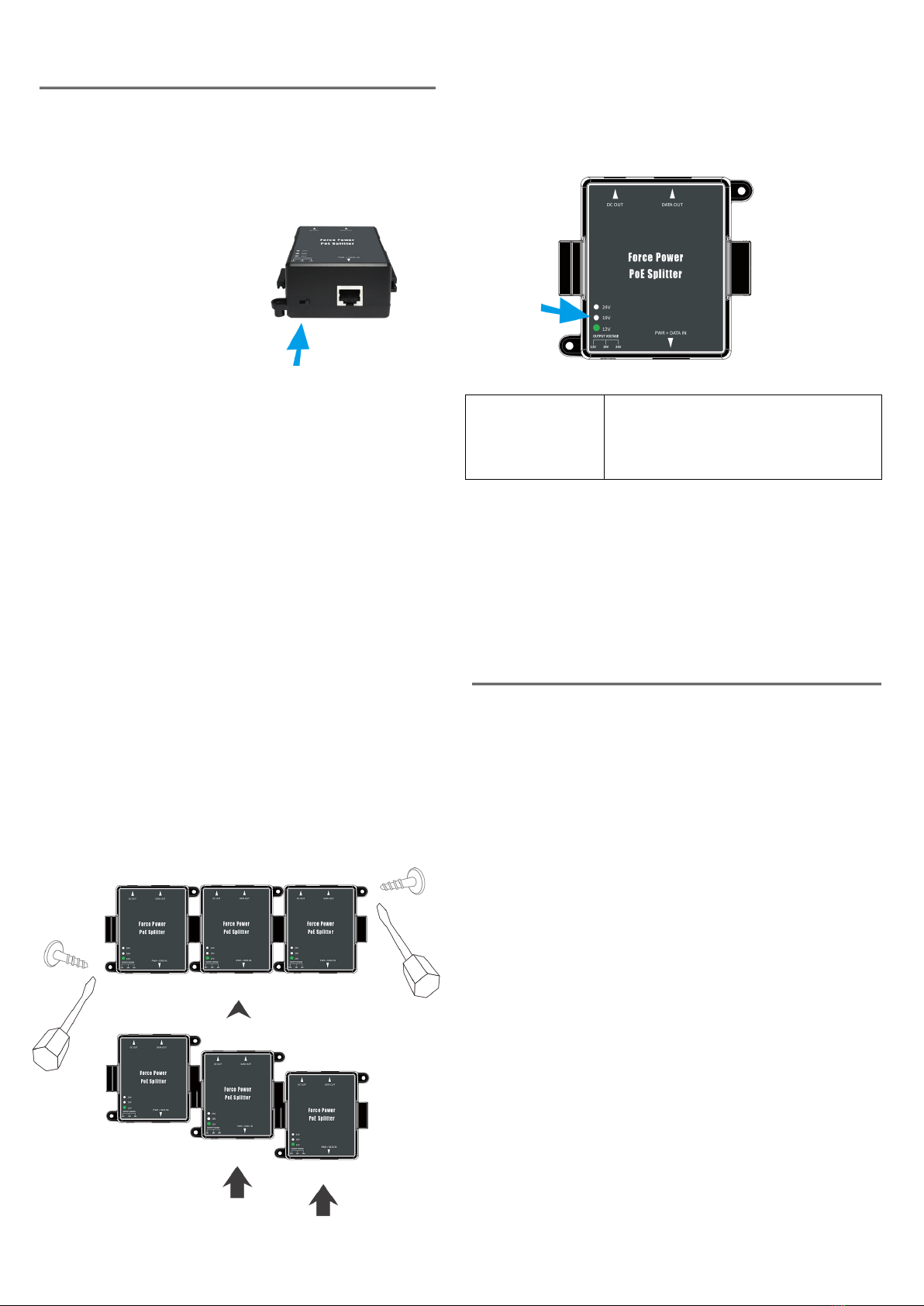

Units Combination
This device can be locked on the wall, (Does not have screw
attachment , you must prepare it yourself) or it can be
combined with multiple units for easy to bundles organize the
Ethernet cables.
LED Indicator :
Output power switching (12VDC / 19VDC / 24VDC)
LED indicators for Power function enable
LED Definition
DC 12V output: 12V Light on
DC 19V output: 19V Light on
DC 24V output: 24V Light on
Notice: Cable and Current-Resistance Loss
DC 24V @ 100Meter : 12.50% with Cat.6 Cable
DC 19V @ 100Meter : 13.33% with Cat.6 Cable
DC 12V @ 100Meter : 14.00% with Cat.6 Cable
Product Specifications
Standards & Hardware Specifications
Standard
IEEE802.3/3u 10BASE-T/100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2500/5000BASE-T
IEEE802.3af Power over Ethernet (PoE)
IEEE802.3at Power over Ethernet (PoE+)
Network Media
100BASE-TX: UTP Cat.5 or up
1G/2.5G/5GBASE-T : UTP Cat.5e or up
Data Transfer Rate
100M/1G/2.5G/5G (Half-duplex),
200M/2G/5G/10G (Full-duplex)
Data PIN PIN 1/2, 3/6 & 4/5, 7/8
Power PIN
End-span (Type-A): PIN 1/2,3/6 ;
Mid-span (Type-B): PIN 4/5,7/8
Ethernet Connector
RJ-45 x1 for Power + Data input
RJ-45 x1 for Data output
ESD Protection
Over Voltage protection &Short Circuit Protection
Environmental & Mechanical Characteristics
Max Power
Output
Active POE 802.3at : Up to 27Watts
Passive POE : Up to 80Watts
Power
Interface(Output)
DC-Jack : Output to any none PoE 12V or 19V or
24V DC in device
Power Requirement
Standard Active 802.3af/at PoE Power Source or
Non-
standard Passive Max to 90W PoE Power
Source
PoE Input Voltage 44V~57V
DC Output
Control Range
12V/19V/24V three range adjustable by DIP
switch
DC Output Current
Max 12V/4.17A , 19V/3.94A, 24V/3.33A
LED Indicators DC Output LED x3 : 12V or 19V or 24V
Operating
Temperature
0° to 55° C
Storage Temperature -40° to 70° C
Operating Humidity
10% to 90% non-condensing
Storage Humidity 5% to 90% non-condensing
Dimension 84.5 x 80 x 39.5mm ( W x D x H )
Unit Weight 100.2g
Case of Materials
ABS
Production Location TW
Certification
FCC, CE, RoHS compatible
