Cerio POE-PD04S-12V User manual

v1.0
POE-PD04S-12V
10/100/1000M/Multi Gigabit 802.3at Class4 to
DC12V Protective Isolation PoE Splitter
User’s Guide
FCC Certifications
This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received; including
interference that may cause undesired operation.
CE Mark Warning
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class A for ITE,
the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the
Member States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be possible that information in this document
is not up-to-date. Please check with your local distributors for the latest information. No part of this document can be
copied or reproduced in any form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2016, All Rights Reserved.
Unpacking Information
Thank you for purchasing our PoE series products. Before installation,
please check that your package contains the following items.
Open the shipping cartons of the splitter and carefully unpack its
contents. The carton should contain the following items:
1. POE-PD04S-12V Main Unit x 1
2. Inside diameter 2.1mm(PHY) to 2.1mm DC Cable x 1
3. Warranty Card x 1
4. Quick Installation Guide x 1
Hardware Overview
Introduction
POE-PD04S-12V is designed to run Multi Gigabit speed PoE
cables over long distances. This device splits the PoE signal into
separate data and power sources and relays them into non-PoE
devices. Supports DC output voltage 12V with isolation protection.
Using the PoE Splitter, you can take Wireless AP / IP Cameras / VoIP
Phone where power outlets are not readily available. It delivers
Power over Ethernet to remote devices. The PoE Splitter can be used
to complement any 802.3at PoE+ / 802.3af PoE switch, Proprietary
injector unit to provide small to medium-sized businesses with a
complete end-to-end PoE solution.

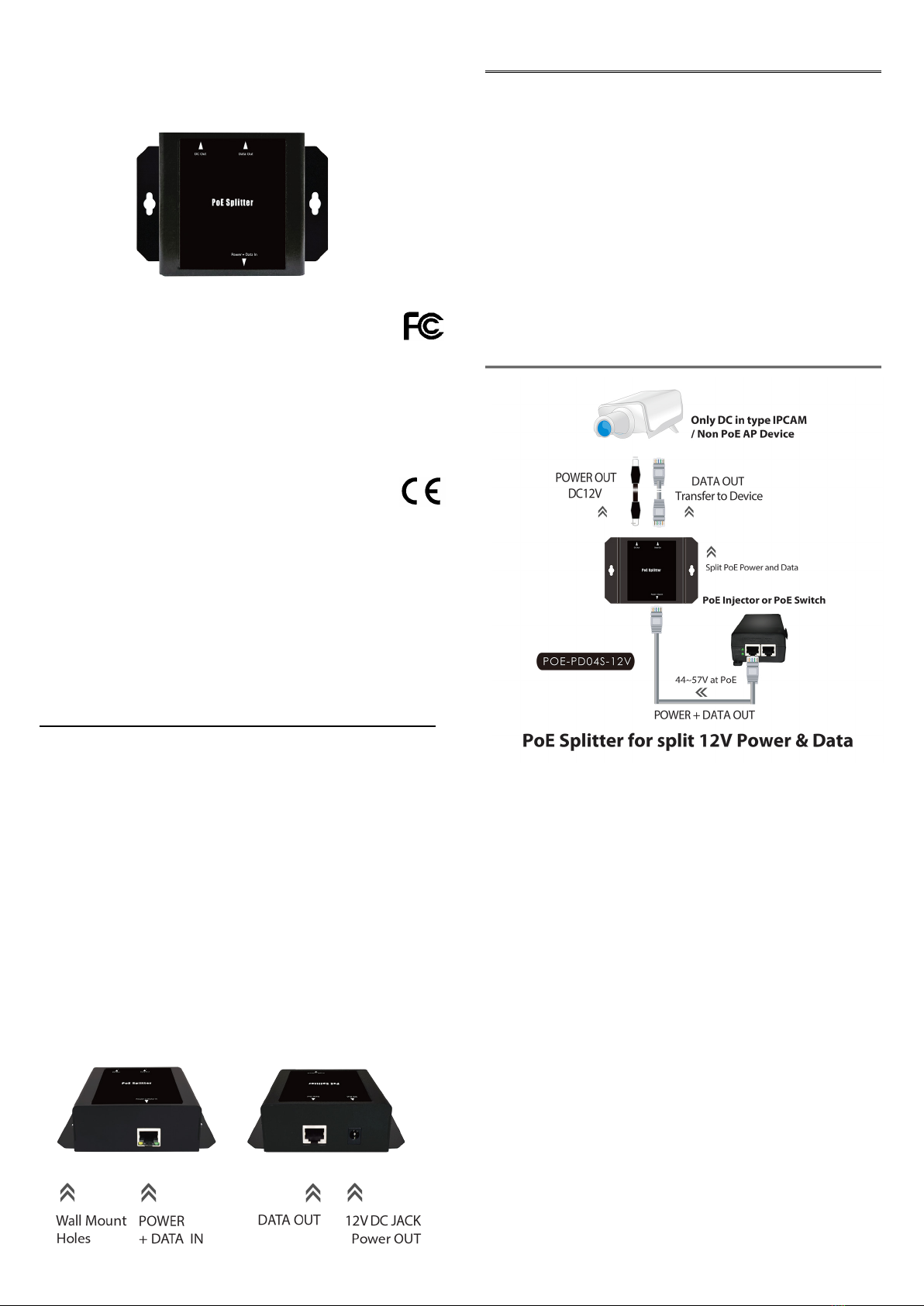

Product Application
Highlight Features
Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2500 /5000 BASE-T,
IEEE 802.3at/af PoE standards.
Supports 1 / 2.5 / 5Gbps Multi Gigabit Ethernet.
The PoE splitter can use to connect non-PoE 802.3af /at
compliant devices to PoE injector or PoE switch.
Supports Output Voltage 12VDC with isolation protection.
The maximum power output up to 27Watts.
Supports Ethernet PoE to separate to only DC/Power and only
Ethernet/Data.
Supports power reverse acute protection design, and auto
restarts to protect possible short circuit, which can reduce the
damage caused by the short circuit.
Bundle accessories for inside diameter 2.1 mm (PHY) to 2.1
(PHY) mm DC cable.
Durable metal case design supports desktop and wall
mounting installation.

v1.0
Installation
Before Installation
If the device is generally DC receiving and does not support POE
function, you can easily use POE-PD04S-12V to accept POE source
power and apply it separately from the DC output power. Using the DC
to DC cable which bundle in the package.
Cables Installation
POE-PD04S-12V provides a POE-powered solution for non-IEEE
802.3af/at devices.
The setup of the splitter can be performed using the following steps:
Connect from "DATA OUT" of POE-PD04S-12V to the RJ-45 port
of the remote device.
Make sure first power source that the POWER+DATA in Port of
the splitter is fully connected to the 802.3at source-powered
PoE Injector or PoE Switch.
Connect the correct DC plug from "DC OUT" of POE-PD04S-12V
to the DC port of remote device. (Use a DC cable to connect
devices that are to be powered by DC)
Caution: Please ensure the output voltage is correct for
remote device. Otherwise it will damage your remote
device.
Power on the remote device and the LED for voltage status
indicator on POE-PD04S-12V will remains on.
Installation
This device can be locked on the wall, (You can use the screw
set which pack with product) or it can be put on desktop.
LED Indicator :
Power Yellow
PoE
Green (802.3at)
Off (802.3af)
Product Specifications
Standards & Hardware Specifications
Standard
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2500/5000BASE-T
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
Network Media
10BASE –T: UTP Cat. 3 or up
100BASE-TX: UTP Cat. 5 or up
1G/2.5G/5GBASE-T: UTP Cat.5e or up
Data Transfer Rate
10M/100M/1G/2.5G/5G (Half-duplex),
20M/200M/2G/5G/10G (Full-duplex)
Data PIN
PIN 1/2, 3/6 & 4/5, 7/8
Power PIN End-span (Type-A): PIN 1/2,3/6 ;
Mid-span (Type-B): PIN 4/5,7/8
Data In
Connects PC/HUB/Switch
Ethernet Connector
RJ-45 x1 for Power + Data input
RJ-45 x1 for Data output
ESD Protection
ESD electrostatic discharge protection and
load discharge anti-surge design
Environmental & Mechanical Characteristics
Max Power
Output
27Watts
Power Interface
DC-Jack : Output to any none PoE 12V DC in
device
Power Requirement
802.3af/at PoE Power Source
PoE Input Voltage
44V~57V
DC Output
12V
DC Output Current
Max 2.25A
LED Indicators Power: Yellow
PoE: Green (802.3at) , Off (802.3af)
Operating
Temperature
0° to 55° C
Storage
Temperature
-40° to 70° C
Operating Humidity
10% to 90% non-condensing
Storage Humidity
5% to 90% non-condensing
Dimension
111 x 79 x 35.5mm ( W x D x H )
Unit Weight
203g
Case of Materials
Metal
Production Location
TW
Certification
FCC, CE, RoHS compatible
