Cerio POE-PD04S+ User manual

POE-PD04S+
10/100/1000M Multi Gigabit 802.3at PoE Splitter
User’s Guide
FCC Certifications
This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received; including
interference that may cause undesired operation.
CE Mark Warning
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class A for ITE,
the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the
Member States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be possible that information in this document
is not up-to-date. Please check with your local distributors for the latest information. No part of this document can be
copied or reproduced in any form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2016, All Rights Reserved.
Unpacking Information
Thank you for purchasing our PoE series products. Before installation,
please check that your package contains the following items.
Open the shipping cartons of the splitter and carefully unpack its
contents. The carton should contain the following items:
1.POE-PD04S+ Main Unit x 1
2.Inside diameter 2.1mm(PHY) to 2.1mm DC Cable x 1
3.Warranty Card x 1
4.Quick Installation Guide x 1
Hardware Overview
Introduction
POE-PD04S+ is designed to run Multi Gigabit speed PoE cables
over long distances. This device splits the PoE signal into separate
data and power sources and relays them into non-PoE devices.
Supports DC output voltage 12V, 19V and 24V via DIP switch three
range adjustable. Using the PoE Splitter, you can take Wireless AP / IP
Cameras / VoIP Phone where power outlets are not readily available.
It delivers Power over Ethernet to remote devices.
The PoE Splitter can be used to compatible any 802.3at PoE+/
802.3af PoE switch, Proprietary injector unit to provide small to
medium-sized businesses with a complete end-to-end PoE solution.

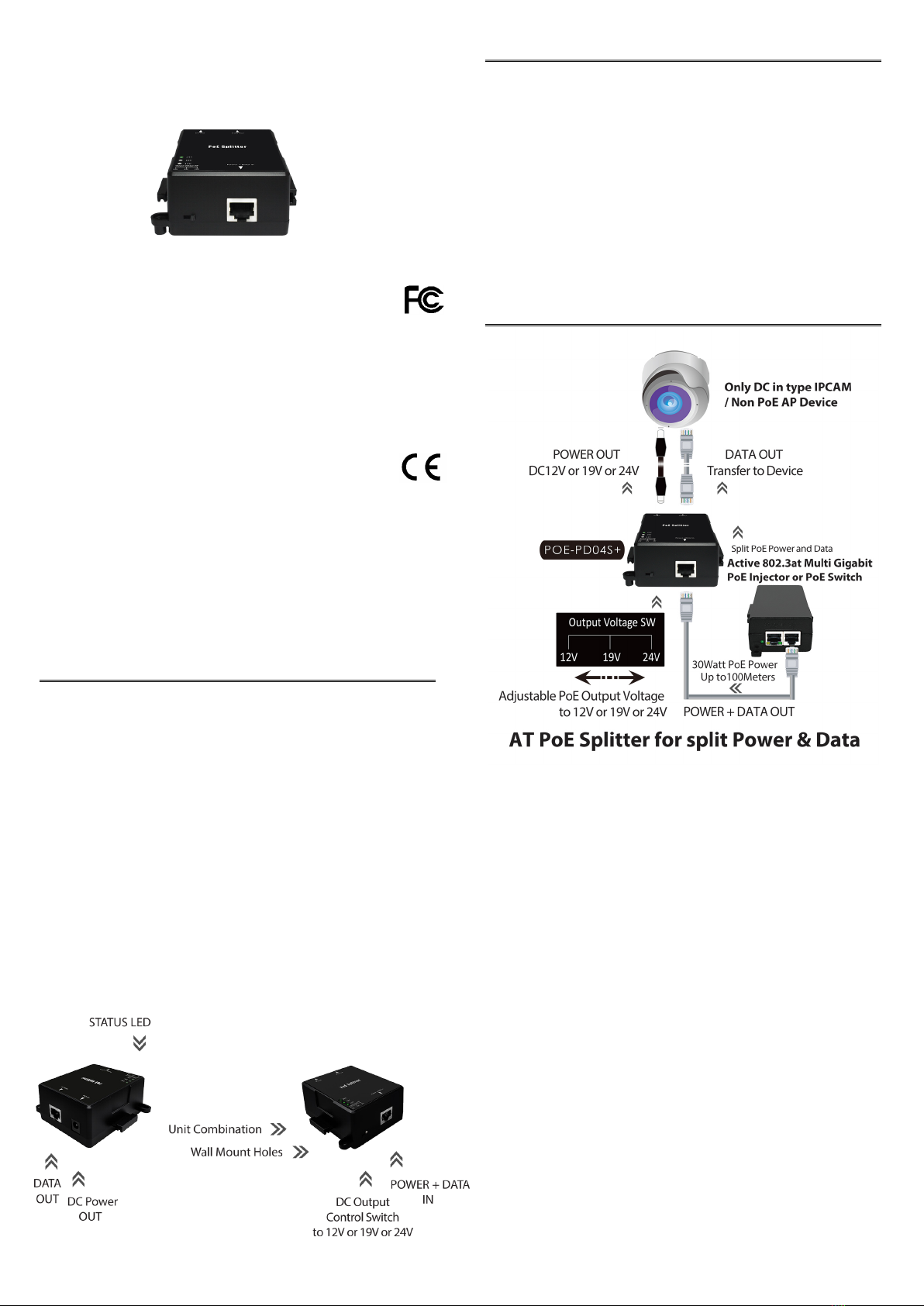

Product Application
Highlight Features
Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2500/5000 BASE-T and
IEEE 802.3at PoE+ / 802.3af PoE standards.
The POE-PD04S+ PoE splitter can use to connect non-PoE IEEE
802.3at /802.3af compliant devices to an PoE injector or
PoE switch.
Supports Output Voltage hot switching for 12VDC / 19VDC /
24VDC three range adjustable.
In the case of 802.3af/at active PoE configuration, the
maximum power output up to 27Watts and in the case of
passive PoE configuration, the maximum power output up to
80Watt.
Supports Ethernet PoE to Separate to only DC/Power and only
Ethernet/Data.
Bundle accessories for inside diameter 2.1 mm (PHY) to 2.1
(PHY) mm DC cable.
LED indicators for Power function enable and DC output
voltage display of 12V/19V/24V.
Supports desktop or wall mounting installation and multiple
units combination.

Installation
Before Installation
If the device is generally DC-receiving and does not support the POE
function, the POE-PD04S+ can easily be used to accept POE source
power and apply it separately from DC output power.
The POE-PD04S+ separates the power out and provides three kinds of
DC power output through its DIP switch and its voltage and current
shown as below:
DIP Switch :
•
12 VDC / 2.25A (Max)
•
19 VDC / 1.42A (Max)
•
24 VDC / 1.125A (Max)
Cables Installation
POE-PD04S+ provides a POE-powered solution for non-IEEE
802.3af/at devices.
The setup of the splitter can be performed using the following steps:
Connect from "DATA OUT" of POE-PD04S+ to the RJ-45 port of
the remote device.
Make sure first power source that the POWER+DATA in Port of
the splitter is fully connected to the 802.3at source-powered
PoE Injector or PoE Switch.
Connect the correct DC plug from "DC OUT" of POE-PD04S+ to
the DC port of remote device. (Use a DC cable to connect
devices that are to be powered by DC)
Caution: Please ensure the output voltage is correct for
remote device. Otherwise it will damage your remote
device.
Power on the remote device and the LED for voltage status
indicator on POE-PD04S+ will remains on.
Units Combination
This device can be locked on the wall, (Does not have screw
attachment, you must prepare it yourself) or it can be
combined with multiple units for easy to bundles organize the
Ethernet cables.
LED Indicator :
Output power switching (12VDC / 19VDC / 24VDC)
LED indicators for Power function enable
LED Definition
DC 12V output: 12V Light on
DC 19V output: 19V Light on
DC 24V output: 24V Light on
Product Specifications
Standards & Hardware Specifications
Standard
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2500/5000BASE-T
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3af Power over Ethernet (PoE)
Network Media
10BASE –T: UTP Cat. 3 or up
100BASE-TX : UTP Cat. 5 or up
1G/2.5G/5GBASE-T : UTP Cat.5e or up
Data Transfer Rate
10M/100M/1G/2.5G/5G (Half-duplex),
20M/200M/2G/5G/10G (Full-duplex)
Data PIN PIN 1/2, 3/6 & 4/5, 7/8
Power PIN
End-span (Type-A): PIN 1/2,3/6 ;
Mid-span (Type-B): PIN 4/5,7/8
Data In Connects PC/HUB/Switch
Ethernet Connector
RJ-45 x1 for Power + Data input
RJ-45 x1 for Data output
ESD Protection Over Voltage protection &Short Circuit Protection
Environmental & Mechanical Characteristics
Max Power
Output
Active POE 802.3at : Up to 27Watts
Passive POE : Up to 80Watts
Power Interface
DC-Jack : Output to any none PoE 12V or 19V or
24V DC in device
Power Requirement
Active PoE 802.3af/at Power Source or
Passive PoE Max to 90W Power Source
PoE Input Voltage 44V~57V
DC Output
Control Range
12V/19V/24V three range adjustable by DIP
switch
DC Output Current
When PSE is Active POE :
Max 12V/2.25A , 19V/1.42A, 24V/1.125A
When PSE is Passive POE :
Max 12V/4.17A , 19V/3.94A, 24V/3.33A
LED Indicators
DC Output LED x3 : 12V or 19V or 24V
Operating
Temperature
0° to 55° C
Storage Temperature -40° to 70° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity
5% to 90% non-condensing
Dimension 80.5 x 80 x 39.5mm ( W x D x H )
Unit Weight 100.2g
Case of Materials
Production Location
ABS
TW
Certification FCC, CE, RoHS-compliant
