Cerio CS-2424G User manual

User’s Manual
CERIO Corporation
CS-2424G
24 Port 10/100/1000M Gigabit Web Managed Switch with 4
SFP Ports

FCC Warning
This device has been tested and found to comply with limits for a Class A digital device, pursuant
to Part 2 and 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses and can radiates radio frequency energy and, if not installed
and used in accordance with the user’s manual, may cause interference in which case user will
be required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference
in which case the user many be required to take adequate measures.

1. Introduction .........................................................................................................................................6
1.1 Feature ........................................................................................................................................6
1.2 Package Contents ....................................................................................................................8
1.3 Front Panel.................................................................................................................................8
1.4 Rear Panel Layout....................................................................................................................9
2. Software Configuration ..................................................................................................................10
2.1 Example of Segment: (Windows 7)....................................................................................10
2.2 System login username and password information.....................................................14
3. System Status...................................................................................................................................15
3.1 Device Information.................................................................................................................15

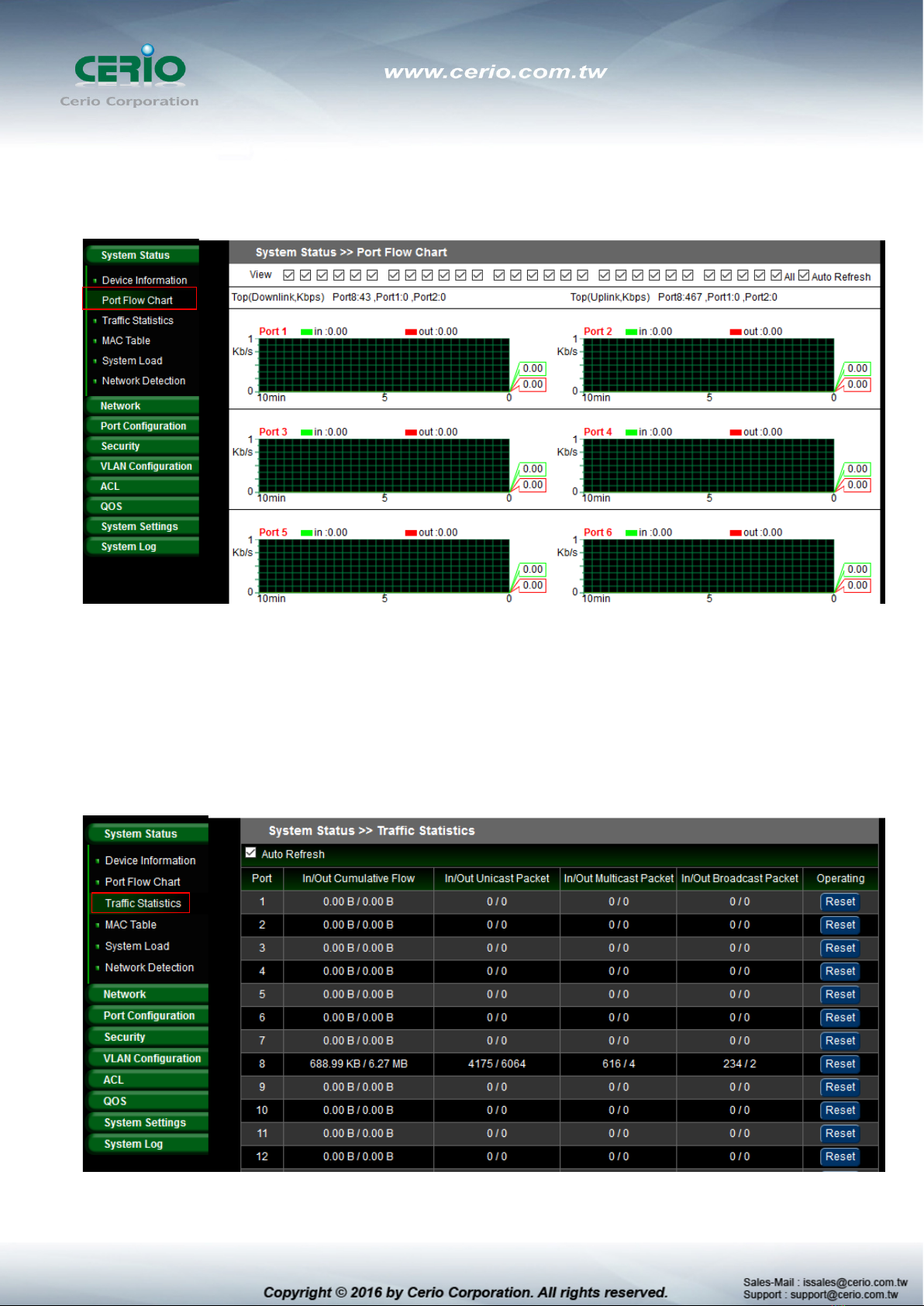

3.2 Port Flow Chart .......................................................................................................................16
3.3 Traffic Statistics......................................................................................................................16

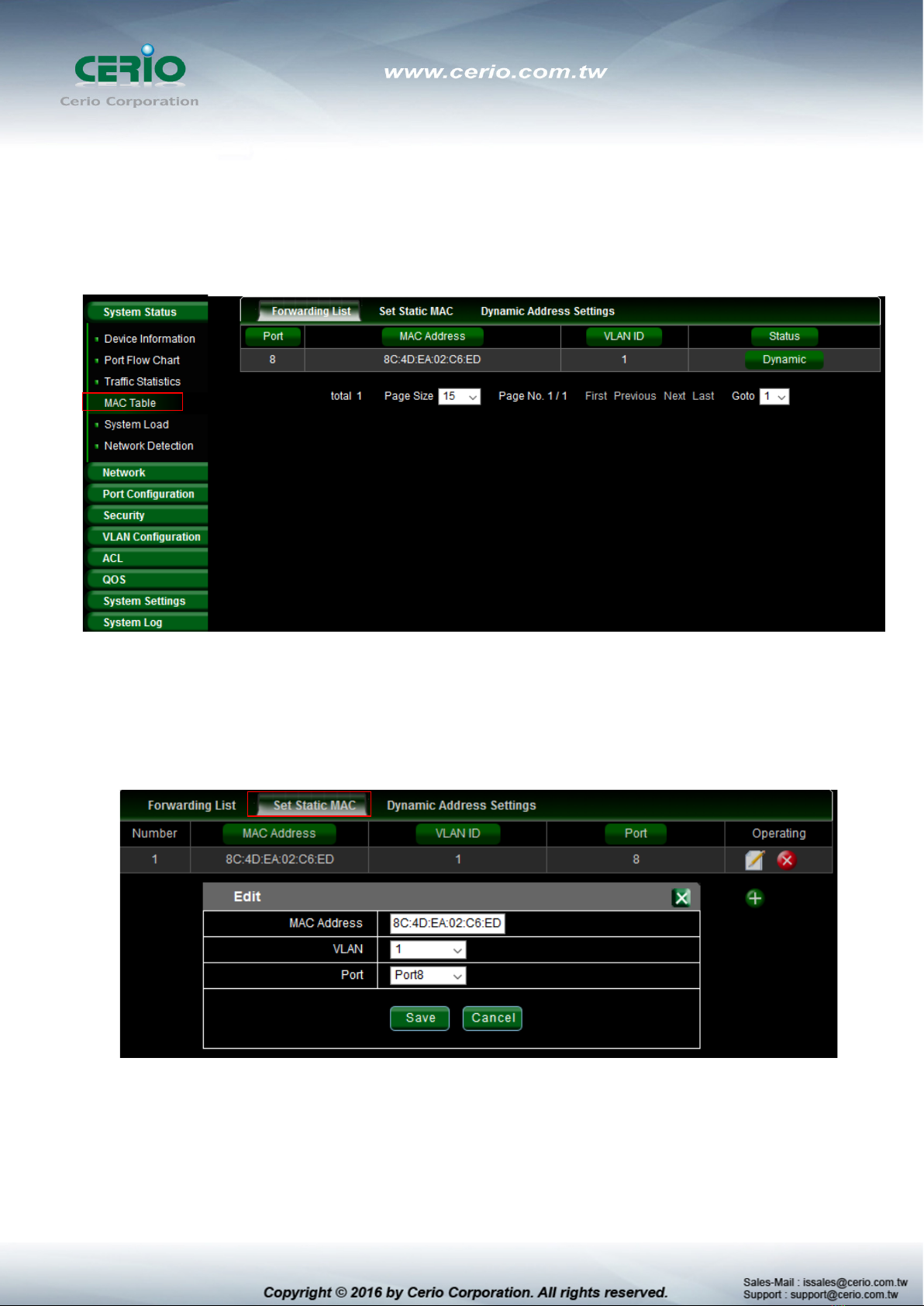

3.4 MAC Table ................................................................................................................................17
3.5 System Load............................................................................................................................18
3.6 Network Detection..................................................................................................................19
4. Network ..............................................................................................................................................20

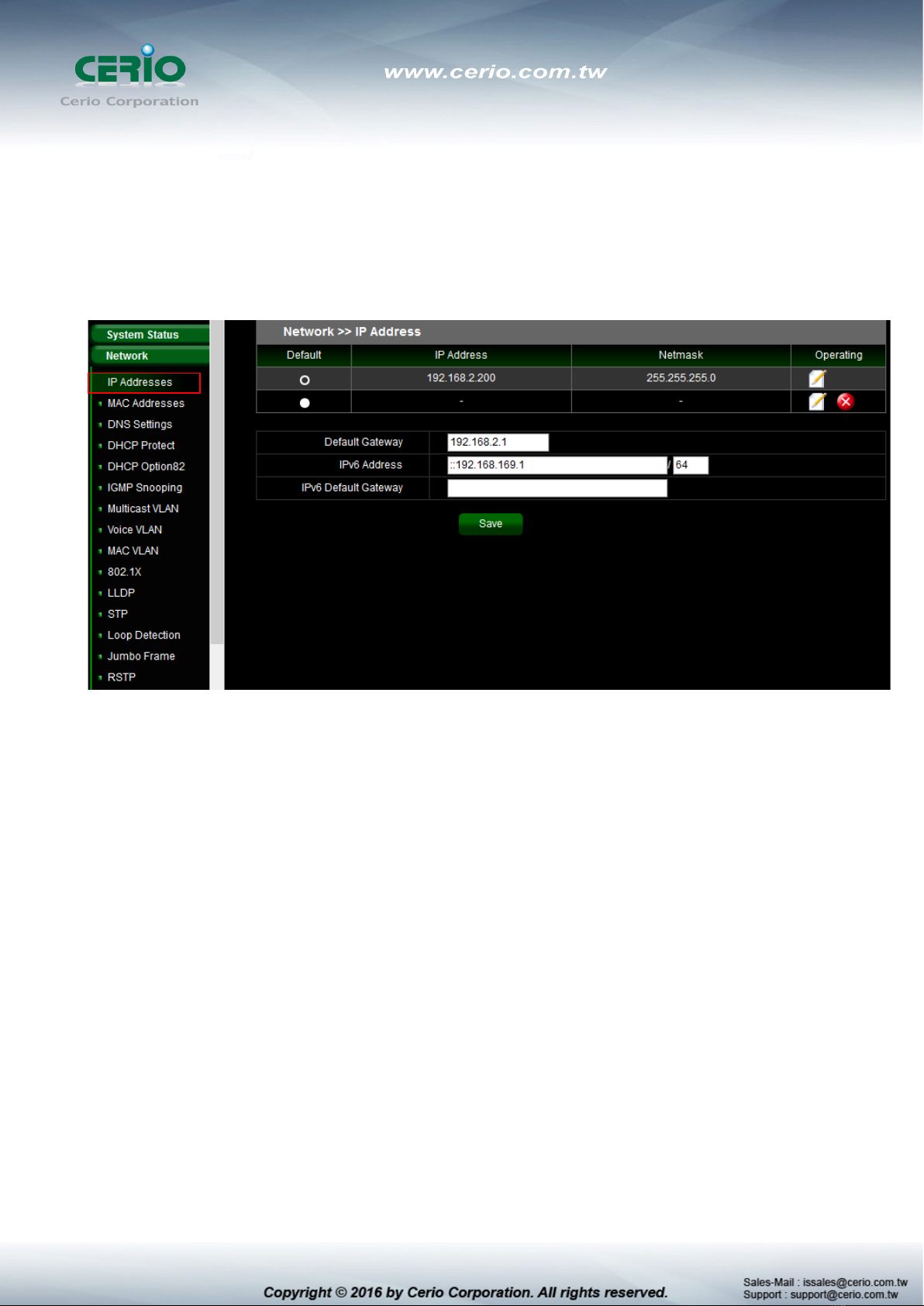

4.1 IP Address ................................................................................................................................20
4.2 MAC Address...........................................................................................................................21
4.3 DNS Settings............................................................................................................................21
4.4 DHCP Protect (snooping).....................................................................................................22
4.5 DHCP Option82 .......................................................................................................................23
4.6 IGMP Snooping .......................................................................................................................24
4.7 Multicast VLAN........................................................................................................................26
4.8 Voice VLAN ..............................................................................................................................26
4.9 MAC VLAN................................................................................................................................28
4.10 802.1x.........................................................................................................................................28
4.11 LLDP ..........................................................................................................................................31
4.12 STP .............................................................................................................................................32
4.13 Loop Detection........................................................................................................................34
4.14 Jumbo Frame...........................................................................................................................35
4.15 RSTP ..........................................................................................................................................35
4.16 SNMP .........................................................................................................................................36
5. Port Configuration ...........................................................................................................................37

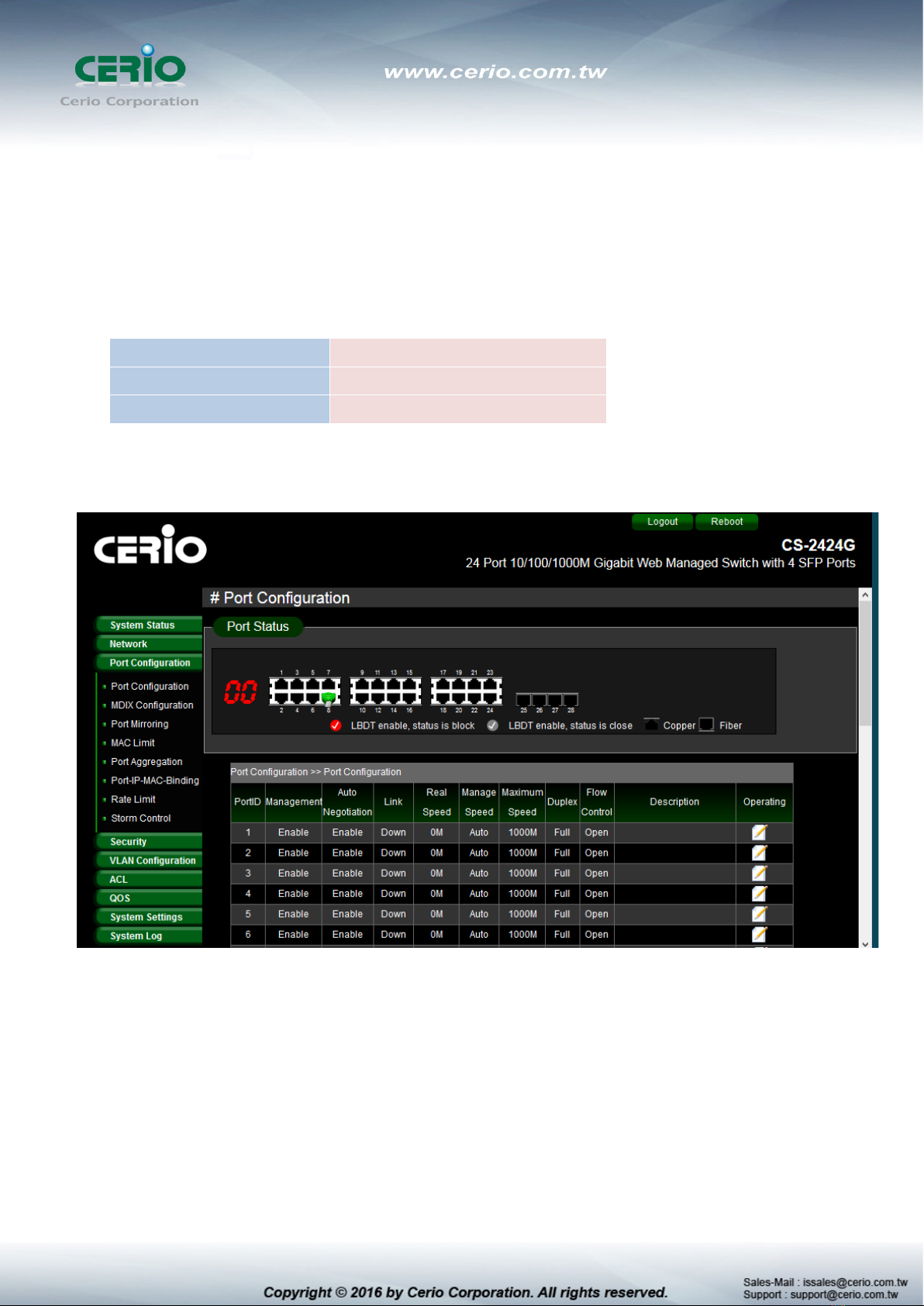

5.1 Port Configuration..................................................................................................................37
5.2 MDIX Configuration................................................................................................................38
5.3 Port Mirroring ..........................................................................................................................38

5.4 MAC Limit .................................................................................................................................39
5.5 Port Aggregation ....................................................................................................................40
5.6 Port-IP-MAC-Binding .............................................................................................................42
5.7 Rate Limit..................................................................................................................................43
5.8 Storm Control ..........................................................................................................................44
6. Security ..............................................................................................................................................45
6.1 Port Grouping..........................................................................................................................45
6.2 Port Isolation ...........................................................................................................................46
6.3 MAC filter..................................................................................................................................46
6.4 DOS Defense ...........................................................................................................................47
7. VLAN Configuration ........................................................................................................................49
7.1 802.1Q VLAN............................................................................................................................49
7.2 PVID............................................................................................................................................50
8. ACL ......................................................................................................................................................50
8.1 MAC ACL...................................................................................................................................50
8.2 IP ACL ........................................................................................................................................51
9. QoS ......................................................................................................................................................53
9.1 Global Setting..........................................................................................................................53
9.2 Queue Weight ..........................................................................................................................53
9.3 Queue Algorithm.....................................................................................................................54
9.4 Default Priority ........................................................................................................................55
9.5 Priority Mapping .....................................................................................................................55
9.6 QOS Trust .................................................................................................................................56
10. System Setting .................................................................................................................................57
10.1 Quick Settings.........................................................................................................................57
10.2 Web Management...................................................................................................................57
10.3 Internal No................................................................................................................................58
10.4 Administrator...........................................................................................................................58
10.5 System Config.........................................................................................................................59
10.6 Firmware Upgrade..................................................................................................................60
10.7 System Time ............................................................................................................................60
10.8 Reboot .......................................................................................................................................62
11. System Log........................................................................................................................................63
11.1 Event Log..................................................................................................................................63
11.2 Alarm Log .................................................................................................................................64
11.3 Security Log.............................................................................................................................64
11.4 Network Log.............................................................................................................................65

Specifications...............................................................................................................................................66

1. Introduction
CERIO CS-2000 Series Model: CS-2424G is a powerful high-performance 4 SFP Gigabit 24
port 10/100/1000Mbps web managed switch and supports Remote control and management
through a web-based User Interface. This Layer 2 Web Managed switch supports Spanning
Tree / Rapid Spanning Tree protocol, Port base IEEE802.1Q VLAN Tagging, IGMP snooping,
IEEE802.1p port-based QoS, and Bandwidth control / Loop Detection. CS-2424G’s high
performance gigabit design provides reliable performance and allows for easy management of
auto-negotiation speeds.
The CERIO CS-2000 Series CS-2424G Web Managed Switch is ideal for minimizing network
downtime, connecting subnets for improved performance, and enabling the bandwidth
demanded for multimedia and imaging applications. CS-2424G effectively reduces operational
costs by allowing network administrators to remotely access and monitor their network,
ultimately eliminating the need for constant on-site maintenance staff. CS-2424G’s layer 2 web
managed design also increases network security by providing enhanced network control
through port management and visible MAC table addresses/clients. This device’s high feature
and high performance design, paired with an easy to use web interface, effectively improves
both network management and efficiency for medium and large sized applications
1.1 Feature
Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab
1000Base-T, IEEE 802.3z 1000Base-SX/LX,IEEE 802.3az EEE
24port 10/100/1000Mbps TX Auto-Negotiation Ethernet Switch ,
Supports 4 Gigabit SFP uplink ports and MinIGBic1000Base-SX/LX
Full/Half-Duplex capability on each TX port , Auto-learning networking configurations
Supports store & forward operation
Supporting the flow control: back pressure for Half-duplex and IEEE 802.3x for Full-duplex
mode
Non-blocking & Non-head-of-line blocking full-wire speed forwarding
Supports network interface Auto MDIX function for auto TX/RX swap
Automatic Source MAC Address Learning and Aging
Provides 9K Jumbo frames to improve network utilization of a large file transfers

Supports up to 8K MAC addresses
Up to 4Mb Packet Buffer size
VLAN and IEEE802.1Q tag-base VLAN based on ports & VIDs; add/remove/modify tag
IEEE802.3ad Link Aggregation LACP
Provides IGMP v1/v2/v3 snooping function
Supports Bandwidth Control with KB/s size control
Supports 802.1x protocol to support CHAP, EAP mode and port/MAC based network
access control
Supports DoS (Denial of Service) Defense for enhanced network security
Link Layer Discovery Protocol (LLDP) and LLDP-MED
Supports DHCP Snooping function to prevent access by unauthorized hosts and DHCP
servers
Each port supports limiting the number of MAC Addresses with IP and MAC address
Binding
Supports Access Control List (ACL) for MAC and IP Address filtering
Supports QoS Quality of Service, Port-based QoS bandwidth management, 802.1q priority
Tag based with 8 priority Queues and 8 Weights
Supports bandwidth control to set control traffic limits (inflow and outflow) for each port
Supports Port Mirroring function
Supports Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP)
Supports proxy DNS Server and NTP network time synchronization function
Supports Event Log, Alarm Log, Security Log, Network Log, and Protocol Log
Supports web-based HTTP web management user interface and supports SNMP v1/v2c
Supports GUI display for monitoring network data status by port, traffic analysis by port,
and device CPU and Memory loading for convenient administrative network analysis and
management

1.2 Package Contents
Before you start to install this switch, please verify your package contains the following items:
CS-2424G Main Unit
x1
D Manual
x1
Power Cord
x1
19” Mount Brackets
x1
Warranty Card
x1
1.3 Front Panel
Status LED lights for 24 Port 10/100/1000Mps with 4 SFP Port
Status Explanation
1) Hardware Reset button, press and hold for approximately 10 seconds. Once all the LED
lights begin to flash, release the button to reset to default
2) System operational LED light
3) Power LED light.
4) 24 10/100/1000Mbps Port Link/ACT LED status light.
1
2
3
4

1) 24 10/100/1000Mbps Ethernet Ports
2) 4 SFP LED Status lights
3) 4 Fiber Ports
1.4 Rear Panel Layout
1) AC input (100-240V/AC, 50-60Hz) UL Safety
1 2 3
1

2. Software Configuration
CS-2424G supports web-based configuration. Upon the completion of hardware installation,
CS-2424G can be configured through a PC/NB by using its web browser such as Internet Explorer
6.0 or later.
Set the IP segment of the administrator's computer to be in the same range as CS-2424G for
accessing the system. Do not duplicate the IP Address used here with IP Address of CS-2424G or
any other device within the network. Please refer to the following steps
2.1 Example of Segment: (Windows 7)

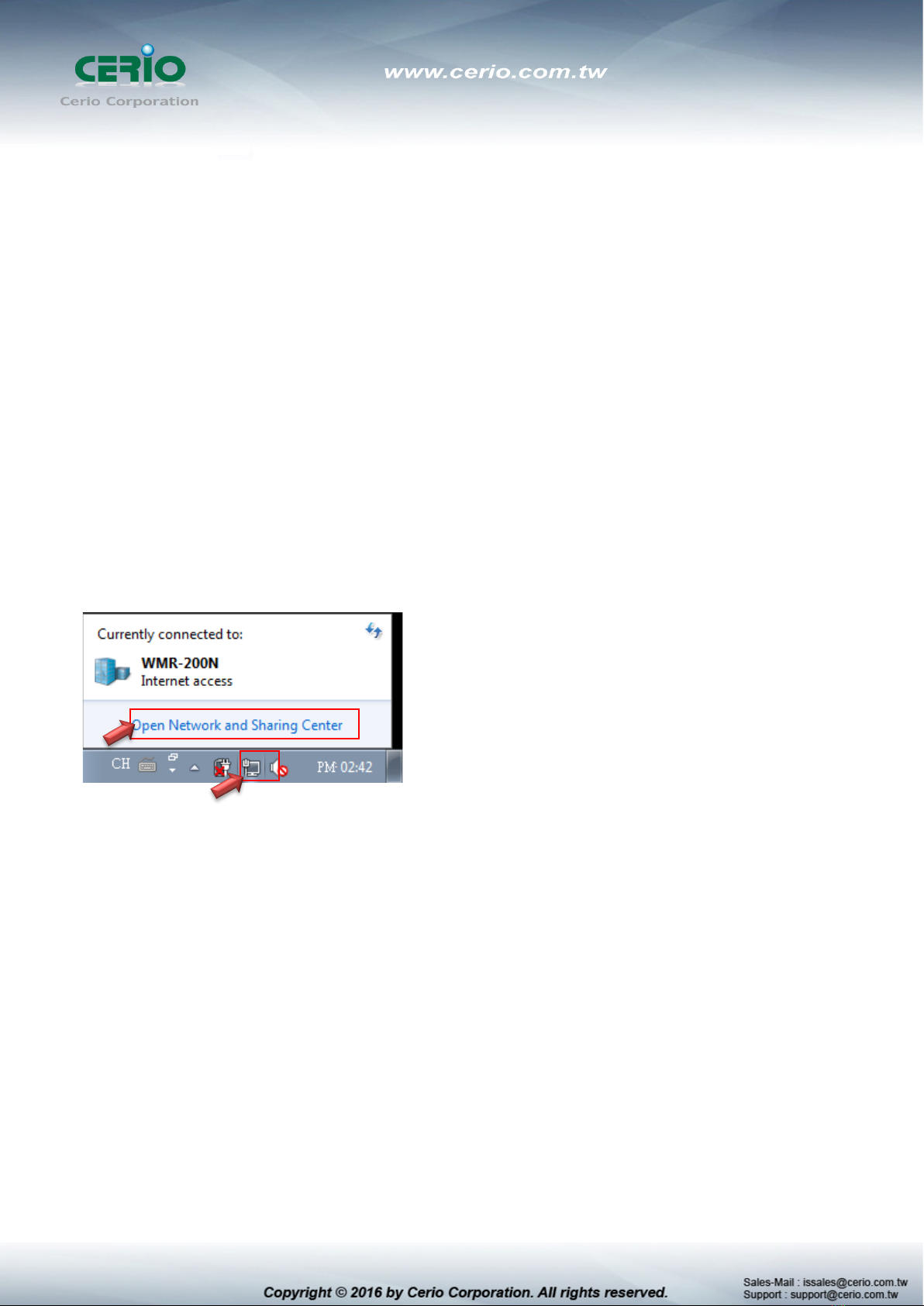

Step 1 :
Please click on the computer icon in the bottom right window, and click “Open Network and
Sharing Center”

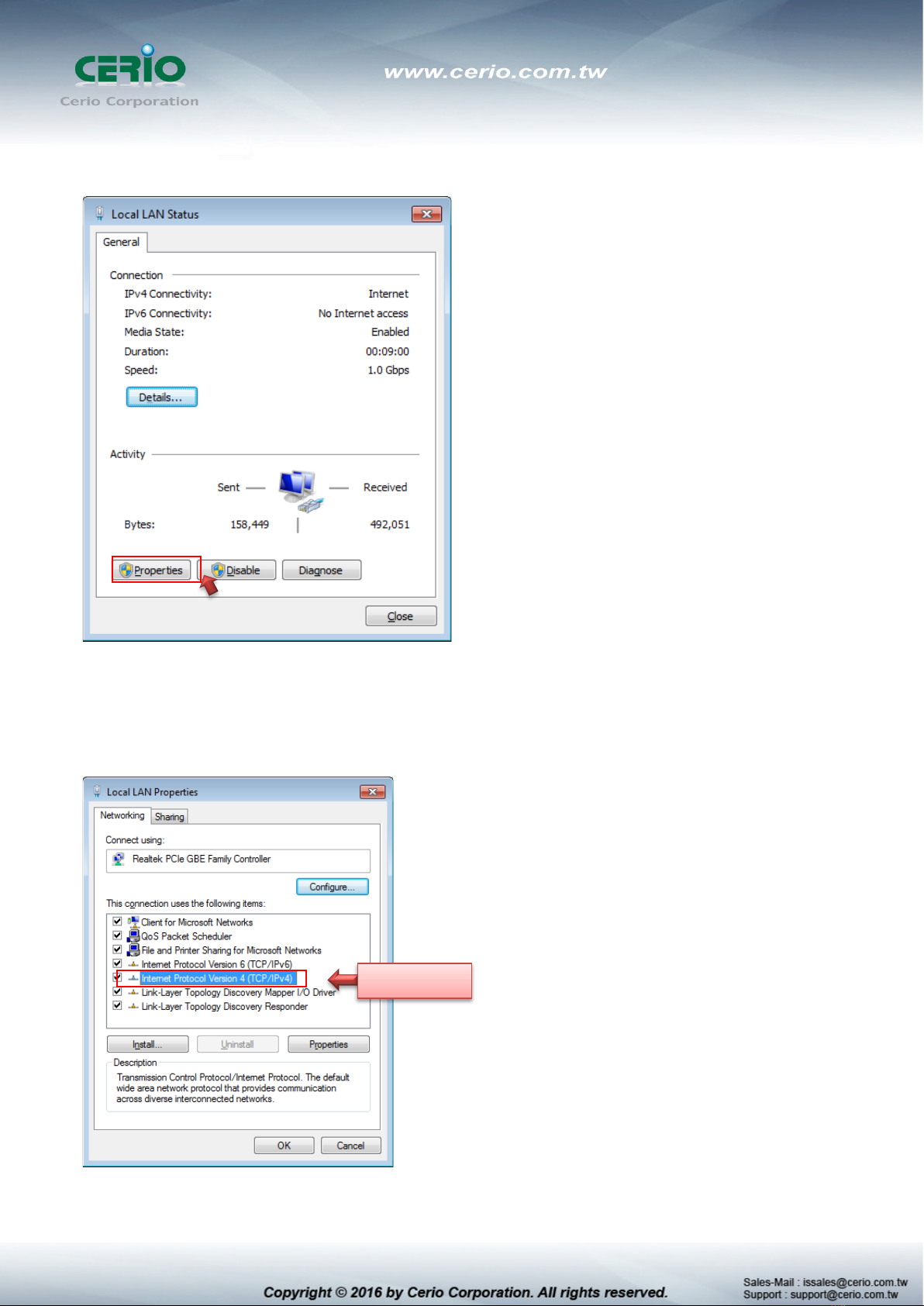

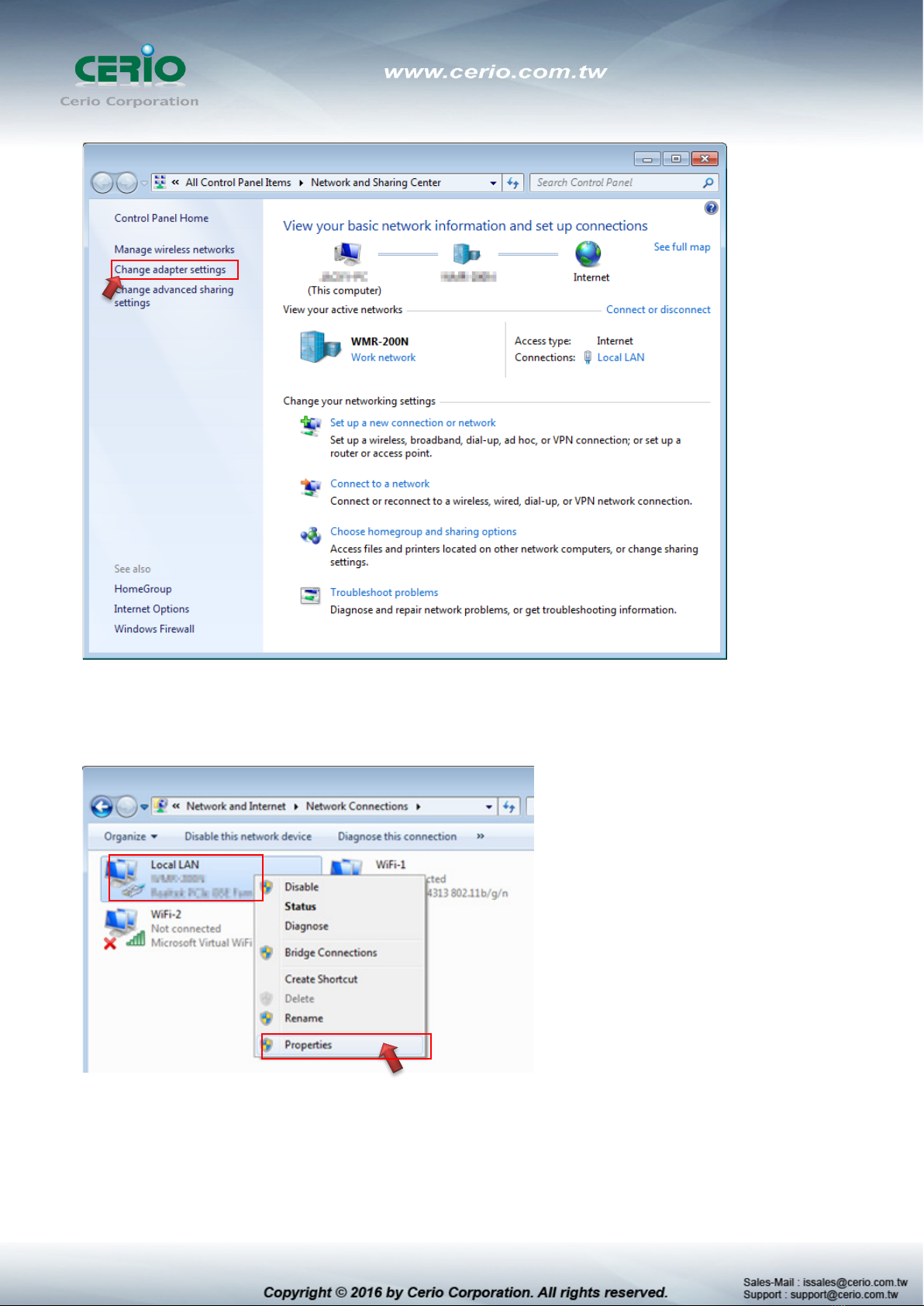

Step 2 :
In the Network and Sharing Center page, click on the left side of “Change adapter setting”
button
