Horseshoe Room Seating
Conference Room Seating
Classroom Seating
Auditorium Seating
Magentically Shielded Drivers:
One 2” custom full range, 2 ohm
One 2.5” passive radiator
Frequency Response:
100 Hz - 18 kHz @ -10 dB
150 Hz - 17 kHz @ -3 dB
Amplifier Power:
40 Watts p-p @ 10% THD
32 Watts p-p @ 1% THD
Input Impediance:
20K ohms
Input Level:
2.5V Max.
Input Jacks:
Three 3.5mm mono/stereo
line inputs (stereo mixed down to
surround sound)
Signal to Noise Ratio:
>93 dB
Power Requirements:
12VDC, 25-40 watts
International Switching
Power Supply:
Voltage Input: 100 to 240 volt, AC
50/60 Hz
Voltage Output: 12VDC,
40 watt max,
25 watt min
Power Cord Length:
9’ (3 m)
Weight and Dimensions:
Speaker Only:
Dimensions - 4.1” diameter x 3.9”
Weight - 14 ounces
Carry Case:
Dimensions - 10” x 7.5” x 4.5”
Weight - 1.25 lbs.
OPTIONS:
Hand-Held Microphone
Headset Microphone
Dimensions for Transmitter and Receiver:
110 mm long, 65 mm wide, 25 mm high
Oscillation Type
PLL synthesized control OSC
Carrier frequency range
UHF 740 ~ 865 MHz
Adjustable frequencies
Pre-programmed 16 auto tracking or
switchable frequencies
Switching bandwidth
Max. 12 MHz
Ambient temperature
-10oC ~ 50oC
Maximum deviation
30 kHz, with level limiting
Compander system
Compander and ALC
Dynamic range
>80 dB
T.H.D.
Less then 2%
Pre/De- emphasis
50 µs
Squelch
Tone key and noise lock dual-squelch
AF Frequency response
100Hz~12kHz @ STEREO IN/OUT
150Hz~5kHz @ EAR PHONE
AF Level Sensitivity
Adjustable
Antenna
Built-in loop antenna
Battery
1.2 V ( Ni-MH.1300 mAH ) x 2 AA
rechargeable battery or 1.5 V x 2 AA
Alkaline disposable
DC-IN (receiver only)
Optional AC adaptor on receiver
5V(with 2.5 mm jack)
Operating range
50~80 M (165~264 ft.)(open field)
PAL16 SPECIFICATIONS ENS-90-3 SPECIFICATIONS

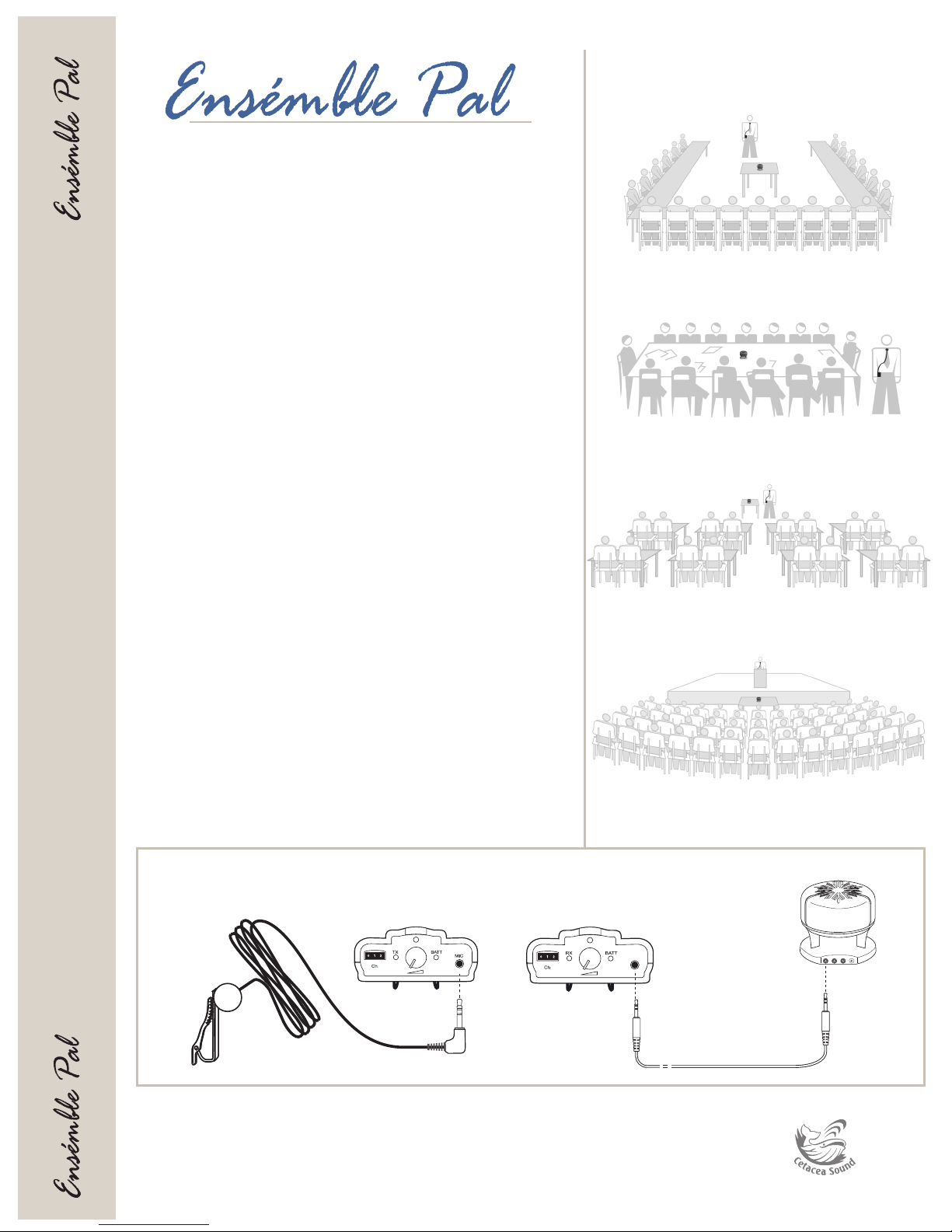

Ensémble Pal System - Hookup Drawing
Order# ENS-90-3-CVS16UK
