CF MOTO 6AQV-801300-1000 Manual

ACCESSORY SETUP INSTRUCTION
REAR SEAT, RACE LOOK_NEBULA WHITE, NEBULA BLACK
REAR SEAT, RACE LOOK_ZIRCON BLACK, VELOCITY GREY
PN 6AQV-801300-1000，6AQV-801400-1000
VALID FOR: CF 450SS
!
MEANING OF SYMBOLS
- Indicates information with more details or tips.
- Indicates information of warning or danger.
ITEM PART NAME REMARK
1 PHILLIPS SCREWDIVER
Recommended Tools2 M5 INNER HEX WRENCH
3 PROTECTIVE GLOVES
TOOL LIST:

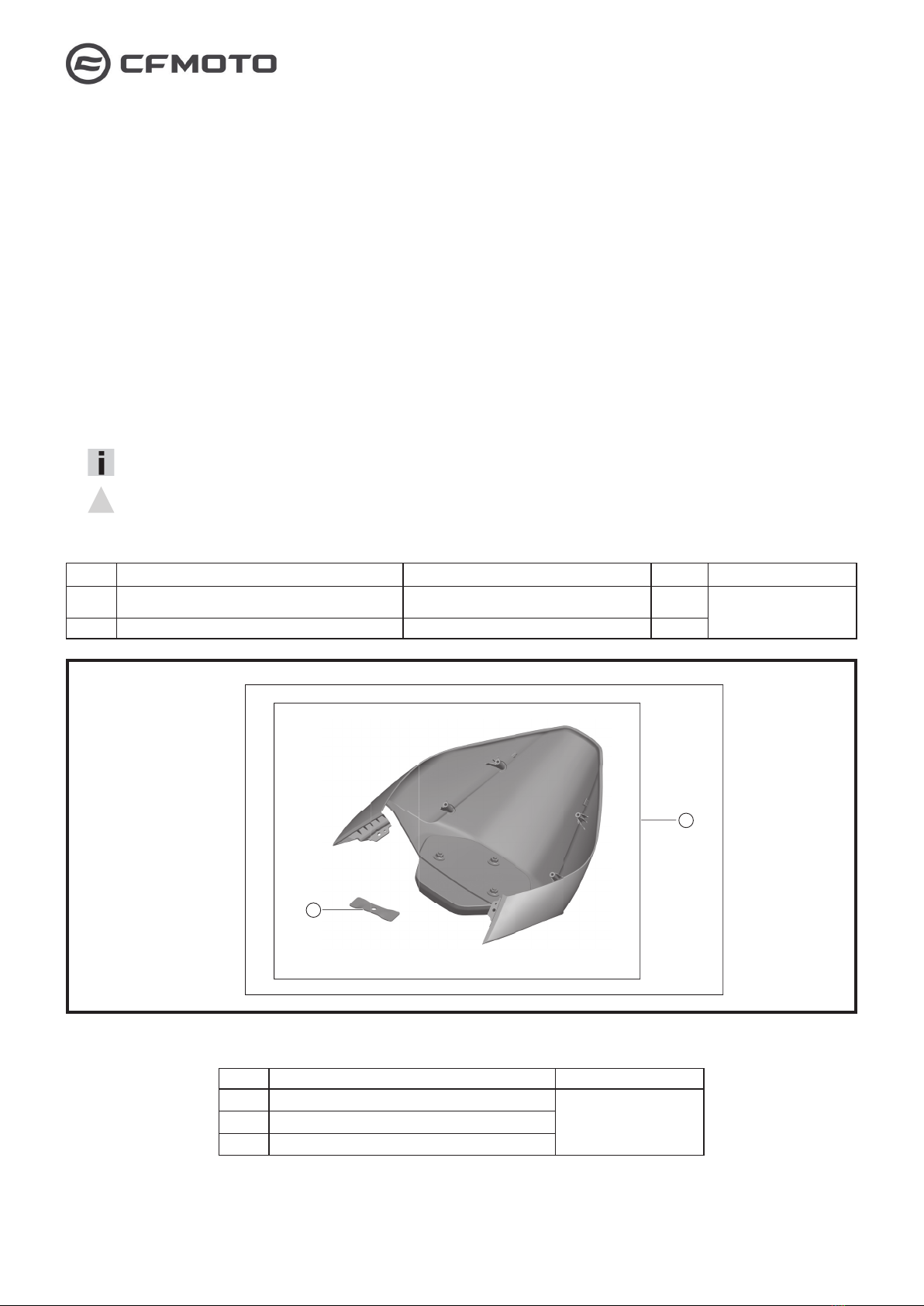

PART LIST:
ITEM PART NAME PART NUMBER QTY. DISCRIPTION
1REAR SEAT, RACE LOOK_NEBULA WHITE,
NEBULA BLACK 6AQV-801300-1000 1 For structure reference
only.
2 LOCK PLATE 6AQV-801101-1000 1
1
1
2
BEFORE YOU BEGIN: Read and understand the instructions before starting any work. Make sure that all parts are
ready and that you have all the tools required for assembly.
NOTE: CFMOTO shall not be liable for any damage caused by incorrect assembly. CFMOTO recommends that all
original accessories be assembled by an authorized CFMOTO dealer.
Before assembly, park the vehicle on a at surface, put the transmission gear into Park (P) and turn o󰀨 the key
switch.
Zhejiang CFMOTO Power Co., Ltd. All rights reserved. Reproduction of this document, even in part, as well as copying of all kinds, is
permitted only with the express written permission of the copyright owner.

2
ASSEMBLY and INSTALLATION
A
A
B
B
B
B
D
D
D
D
C
B
B
- Remove the front seat screws (A) and front seat.
- Insert the vehicle key into the seat lock and rotate the key
to remove the rear seat of the vehicle.
- Remove the self-tapping screw (B) and xing screw (C),
(D). And take o󰀨 the race rear seat.
- Remove the self-tapping screws (B) of the connecting
plate of the race rear seat, and remove the two handholds.
1
2
3
4

3
B
B
2
E
B
B
D
D
D
D
A
A
- Remove the xing screws (E), in󰀬all the xing plate (2),
and tighten with the xing screws (E).
- In󰀬all the race rear seat into the vehicle and tighten with
the self-tapping screws (B) and screws (D).
- In󰀬all the front seat and tighten with the screws (A).
© Zhejiang CFMOTO Power Co., Ltd. All rights reserved.
Reproduction of this document, even in part, as well as copying of all kinds, is permitted only with the express writ-
ten permission of the copyright owner.
- Assemble the connecting plate of the race rear seat and
tighten the self-tapping screws (B).
ASSEMBLY and INSTALLATION
5
6
7
8
