Chamberlain HD920EV User manual

CONTENTS
Preparation . . . . . . . . . . . . . . . .1-4
Assembly . . . . . . . . . . . . . . . . .5-9
Installation . . . . . . . . . . . . . . 10-19
Install the Door Control. . . . . . 20-21
Install the Protector System®. . 22-25
Power. . . . . . . . . . . . . . . . . . 26-28
Adjustments . . . . . . . . . . . . . 29-31
Battery Backup. . . . . . . . . . . . 32-33
Operation . . . . . . . . . . . . . . . . . 34
Features . . . . . . . . . . . . . . . . . . 35
Door Control . . . . . . . . . . . . . 36-38
Remote Control . . . . . . . . . . . 39-40
To Erase the Memory . . . . . . . . . 40
To Open the Door Manually . . . . . 40
Maintenance . . . . . . . . . . . . . . . 41
Troubleshooting. . . . . . . . . . . 42-43
Accessories. . . . . . . . . . . . . . . . 44
Warranty. . . . . . . . . . . . . . . . . . 45
Repair Parts . . . . . . . . . . . . . 46-47
Belt Drive Battery Backup
Garage Door Opener
The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
■ Please read this manual and the enclosed safety materials carefully!
■ Fasten the manual near the garage door after installation.
■The door WILL NOT CLOSE unless the Protector System®is connected and
properly aligned.
■ Periodic checks of the garage door opener are required to ensure safe operation.
■The model number label is located on the left side panel of your garage door
opener.
■This garage door opener is compatible with MyQ®and Security✚2.0™
accessories.
■DO NOT enable the Timer-to-Close feature if you are installing the garage
door opener on a one-piece door. The Timer-to-Close is to be used ONLY with
sectional doors.
www.chamberlain.com
Model Number:
Serial Number:
Date of Purchase:
Models
• HD920EV
• HD930EV
• LW5000EV
• WD962KEV
• WD962KPEV
• WD962MLEV
• 349544
FOR RESIDENTIAL USE ONLY Write down the following information for
future reference:
.
.

1
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided itis installed,
operated,maintained and tested in strictaccordance with the instructions and warnings contained in this
manual.
When you see these Safety Symbols and Signal Words on the following pages,they will alert you to the
possibility of serious injury or death if you do notcomply with the warnings that accompanythem. The
hazard may come from something mechanical or from electric shock.Read the warnings carefully.
Mechanical
Electrical
When you see this Signal Word on the following pages,itwill alert you to the possibility ofdamage to
your garage door and/or the garage door opener ifyou do not complywith the cautionary statements that
accompany it. Read them carefully.
Check the Door
To prevent possible SERIOUSINJURYor DEATH:
• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance.
An unbalanced garage door may NOT reverse when required.
• NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their
hardware, ALLof which are under EXTREMEtension.
• Disable ALLlocksand remove ALLropes connected to garage door BEFORE installation and
operating garage door opener to avoid entanglement.
To preventdamage to garage door and opener:
• ALWAYS disable locks BEFORE installing and operating the opener.
• ONLY operate garage door opener at120 V,60 Hz to avoid malfunction and damage.
1. Disable locks and remove any ropes connected to the garage door.
2. Lift the door halfway up. Release the door. If balanced, it should stay in
place, supported entirely by its springs.
3. Raise and lower the door to checkfor binding or sticking.If your door
binds, sticks, or is out of balance, call a trained door systems
technician.
4. Check the seal on the bottom ofthe door. Any gap between the floor
and the bottomof the door must not exceed 1/4 inch (6 mm).
Otherwise, the safety reversal system may not work properly.
5. The opener should be installed above the center ofthe door. Ifthere is
a torsion spring or center bearing plate in the wayof the header
bracket, it may be installed within 4 feet (1.2 m) to the leftor rightof the
door center.See page 12.
Torsion
Spring
Extension
Spring
OR
Preparation

2
Additional Items You May Need:
Surveyyour garage area to see ifyou will need any of the following items:
n(2) 2X4 PIECES OF WOOD
Maybe used to fasten the header bracket to the structural supports. Also used to position the
garage door opener during installation and for testing the safety reversing sensors.
nSUPPORT BRACKET AND FASTENING HARDWARE
Must be used if you have a finished ceiling in your garage.
nEXTENSION BRACKETS (MODEL 41A5281) OR WOOD BLOCKS
Depending upon garage construction,extension bracketsor wood blocksmaybe needed to
install the safety reversing sensor.
nFASTENING HARDWARE
Alternate floor mounting of the safety reversing sensor will require hardware not provided.
nOUTSIDEQUICKRELEASE (MODEL 7702CB)
Required for a garage with NO accessdoor.
nDOOR REINFORCEMENT
Required if you have a lightweight steel, aluminum, fiberglass or glass panel door.
nRAIL EXTENSION KIT
Required ifyour garage door is more than 7 feet (2.13 m) high.
Tools Needed
2
1
3/16
7/16
1/2
5/32
5/16
5/8
9/16
1/4
7/16
Preparation

3
Carton Inventory
Your garage door opener ispackaged in one carton which contains the motor unit and all parts
illustrated below.Accessories vary depending on the garage door opener model purchased. Depending
on your model, other accessoriesmaybe included with your garage door opener. Instructions for these
accessorieswill be attached to the accessoryand are not included in this manual. Ifanything is missing,
carefully check the packing material. Hardware for assembly and installation is shown on the nextpage.
Save the carton and packing material until the installation and adjustment is complete. The images
throughout this manual are for reference only and your product may look different.
A. Header bracket
B. Pulley
C. Door bracket
D. Curved door arm
E. Straight door arm
(Packaged inside front rail section)
F. Trolley
NOTE: Be sure to assemble the trolley before sliding onto rail.
G. Emergency release rope and handle
H. Rail (1 front and 4 center sections)
I. Hanging brackets (2)
(Packaged inside the front rail section)
J. Garage door opener (motor unit)
K. Sprocket cover and screws
L. “U” bracket
M. Belt
N. Door control (Motion-Detecting Control Panel or Smart Control Panel®)
O. Remote control
P. The Protector System®
Safety reversing sensors with 2 conductor white and white/black wire attached: Sending Sensor (1),
Receiving Sensor (1), and Safety Sensor Brackets (2)
NOTSHOWN
White and red/white wire
Owner's manual
N
A
B
C
H
K
J
O
I
D
E
F
G
L
M
P
OR
Preparation

4
Hardware Inventory
Hex Screw
#8x3/8" (3)
(packed with the
sprocket cover)
Bolt
1/4"-20x1-3/4"
Lock Nut
1/4"-20
Bolt
Nut 3/8"
Lock Washer 3/8"
Clevis Pin 5/16"x1-1/2"
Ring Fastener (3)
Hex Bolt 5/16"-18x7/8" (4)
Lock Washer
5/16"-18 (5)
Nut
5/16"-18 (6)
Self-Threading Screw
1/4"-14x5/8" (2)
Clevis Pin 5/16"x1"
Clevis Pin 5/16"x1-1/4"
Carriage Bolt
1/4"-20x1/2" (2)
Wing Nut 1/4"-20 (2)
ASSEMBLY HARDWARE INSTALLATION HARDWARE
Screw 6ABx1" (2)
Drywall Anchors (2)
Screw 6-32x1" (2)
DOOR CONTROL HARDWARE
Insulated
Staples
(Not Shown)
Lag Screw 5/16"-9x1-5/8" (4)
Preparation

5
Assembly
STEP 1 Assemble the rail and trolley
To prevent INJURY from pinching, keep handsand fingersaway from the jointswhile assembling the
rail.
To avoid installation difficulties, do not run the garage door opener until instructed to do so.
The front rail has a cut out“window” at the door end (see illustration). The hole above thiswindow is
larger on the top of the rail than on the bottom.A smaller hole 3-1/2" (8.9 cm) away isclose to the rail
edge. Rotate the backrail so ithas a similar hole close to the opposite edge, about 4-3/4" (12 cm) from
the far end.
1. Remove the straight door arm and hanging bracket packaged inside the front rail and set
aside for Installation Step 5 and 9. NOTE: To prevent INJURY while unpacking the rail
carefully remove the straight door arm stored within the rail section.

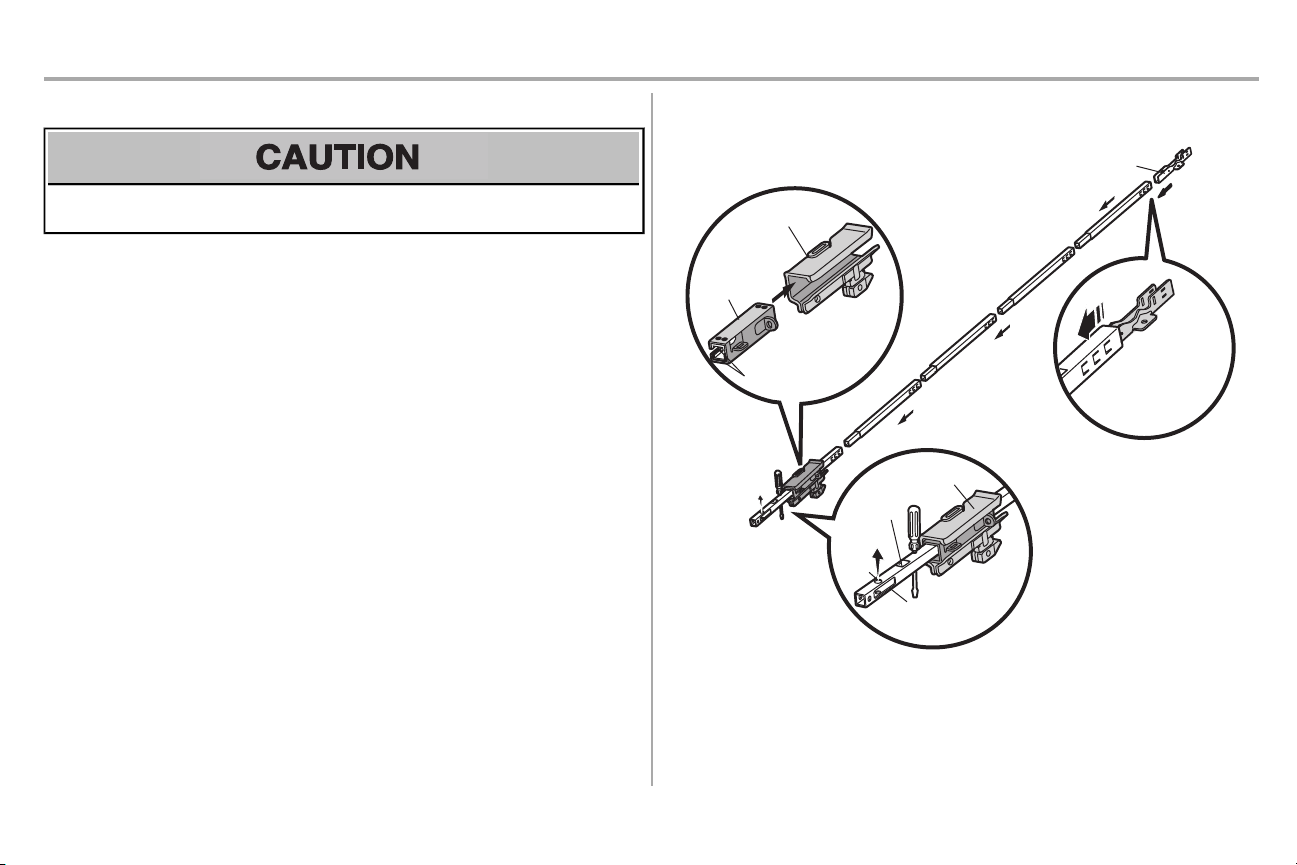

2. Align the rail sections on a flatsurface as shown and slide the tapered ends into the larger
ones. Tabsalong the side will lock into place.
3. Place the motor unit on packing material to protect the cover, and restthe backend of the rail
on top. For convenience,put a support under the front end of the rail.
4. As a temporarystop, insert a screwdriver into the hole 10" (25 cm) from the front end of the rail,
as shown.
5. Check to be sure there are 4 plasticwear padsinside the inner trolley. Iftheybecame loose
during shipping, check all packing material. Snap them back into position as shown.
6. Slide the trolley assembly toward the screwdriver asshown.
7. Slide the rail onto the “U” bracket, until it reaches all the stops on the top and sides ofthe “U”
bracket.
To garage
door opener
(TO MOTOR UNIT)
Front Rail
Section
(TO DOOR)
“U” Bracket
Outer Trolley
Inner Trolley
Wear Pads
Rail
Tab
Trolley
Window
Cut-Out
SLIDE TO STOPS
ON TOP AND
SIDES OF
“U” BRACKET
Idler
Pulley
Hole

6
Assembly
STEP 2 Fasten the rail to the motor unit

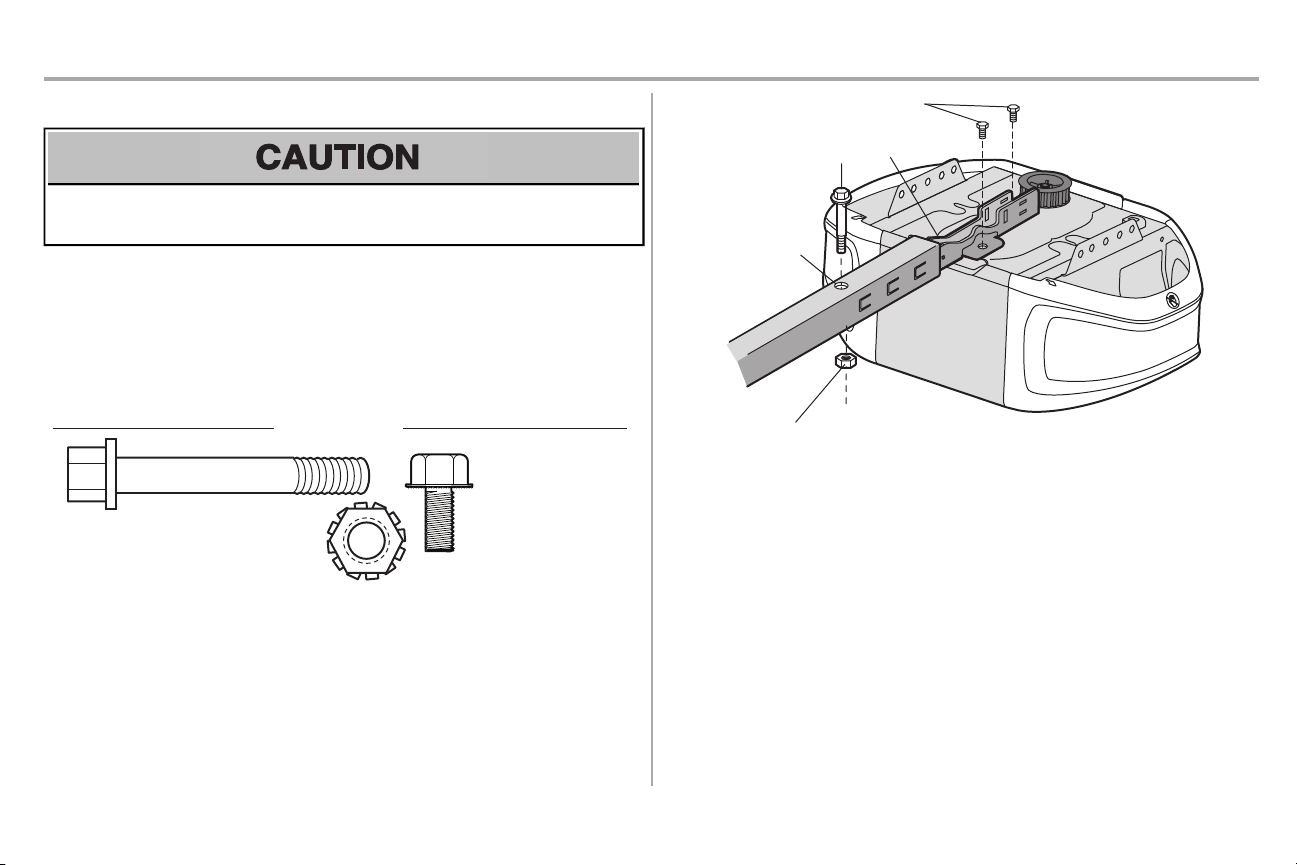

To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fastenersmounted in the
top of the opener.
1. Insert a 1/4"-20x1-3/4" boltinto the cover protection bolthole on the backend of the rail as
shown.Tighten securely with a 1/4"-20 locknut.Do NOT overtighten.
2. Remove the two bolts from the top of the motor unit.
3. Use the carton to supportthe front end of the rail.
4. Place the “U” bracket,flat side down onto the motor unit and align the bracketholeswith the
bolt holes.
5. Fasten the “U” bracket with the previouslyremoved bolts; DO NOTuse any power tools. The
use of power toolsmay permanentlydamage the garage door opener.
(Mounted in the
Bolts
garage door opener)
HARDWARE
Bolt 1/4"-20x1-3/4"
Lock Nut 1/4"-20
“U” Bracket
Bolts
Cover Protection
Bolt Hole
Bolt 1/4"-20x1-3/4"
Lock Nut 1/4"-20

7
Assembly
STEP 3 Install the idler pulley
1. Lay the belt beside the rail, asshown. Grasp the end with the hooked trolley connector and
passapproximately12" (30 cm) of belt through the window. Keep the ribbed side toward the
rail,and allow it to hang until Assembly Step 4.
2. Remove the tape from the idler pulley. The inside center should be pre-greased. Ifdry,
regrease to ensure proper operation.
3. Place the idler pulley into the window asshown.
4. Insert the idler boltfrom the top through the rail and pulley. Tighten with a 3/8" lock washer and
nut underneath the rail until the lock washer is compressed.
5. Rotate the pulleyto be sure it spins freely.
6. Locate the rail tab.The rail tab is between the idler bolt and the trolley in the frontrail section.
Use a flathead screwdriver and liftthe rail tab until the tab is vertical (90º).
HARDWARE
Bolt Nut 3/8"
Lock Washer 3/8"
Screwdriver
Rail
Trolley Connector
Bolt
Lock Washer 3/8"
Nut 3/8"
Rail
Tab
CORRECT
INCORRECT
Rail Tab
Idler Pulley
Grease Inside Pulley

8
Assembly
STEP 4 Install the belt
1. Pull the belt around the idler pulley and toward the trolley.The ribbed side must contact the
pulley.
2. Hook the trolley connector into the retaining slot on the trolley. (a)
3. With the trolley againstthe screwdriver, dispense the remainder of the belt along the rail
toward the motor unitaround the sprocket. The sprocket teeth mustengage the belt. (b)
4. Thread the inner nut and lockwasher onto the trolleythread shaft(c). Checkto make sure the
belt is not twisted.
5. Insert the trolley threaded shaft through the hole in the trolley.Be sure the beltis not
twisted. (c)
6. Loosely thread the outer nut onto the trolley threaded shaft.
7. Remove the screwdriver.
Trolley Connector
Retaining Slot
c.
Threaded
Shaft
Outer
Nut
Front Rail
Section
(TO DOOR)
Inner
Nut
Lock
Washer
b.
a.
Sprocket
Idler
Pulley

9
Assembly
STEP 5 Tighten the belt and install the sprocket cover

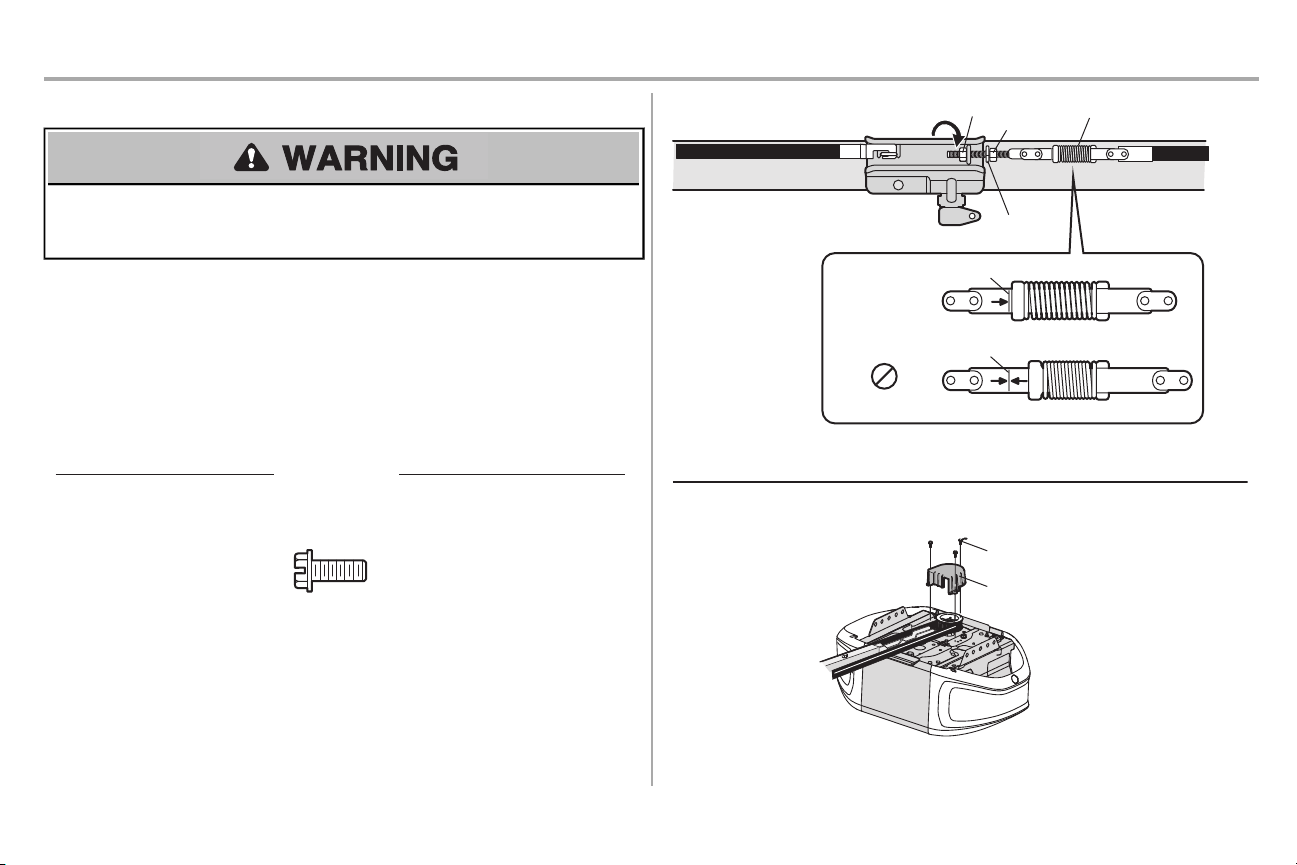

To avoid possible SERIOUS INJURY to finger from moving garage door opener:
• ALWAYS keep hand clear of sprocketwhile operating opener.
• Securely attach sprocket cover BEFORE operating.
1. Spin the inner nutand lock washer down the trolley threaded shaft, awayfrom the trolley
2. To tighten the belt, turn outer nut in the direction shown until the line on the spring retainer
plate is visible. Be sure the beltis not twisted,and the ribbed side faces the rail.
3. Tighten the inner nutto secure the adjustment.Thissets the spring to optimum belttension.
4. Position the sprocket cover over the sprocketas shown and fasten to the mounting plate with
8x3/8" hex screws provided.
You have now finished assembling your garage door opener. Please read the following warnings
before proceeding to the installation section.
Hex Screw #8x3/8"
(Packed with the
sprocket cover)
HARDWARE
Hex Screw #8x3/8"
Sprocket Cover
INCORRECT
CORRECT
Line
Lock Washer
Inner Nut
Spring RetainerOuter Nut
Line

10
Installation
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2. Install garage door opener ONLY on properlybalanced and lubricated garage door. An
improperly balanced door mayNOT reverse when required and could resultin SEVERE
INJURY or DEATH.
3. ALL repairsto cables, spring assemblies and other hardware MUST be made by a trained
door systemstechnician BEFORE installing opener.
4. Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing
opener to avoid entanglement.
5. Install garage door opener 7 feet (2.13 m) or more above floor.
6. Mount the emergency release within reach, butat least6 feet(1.83 m) above the floor and
avoiding contact with vehiclesto avoid accidental release.
7. NEVER connectgarage door opener to power source until instructed to do so.
8. NEVERwear watches,ringsor loose clothing while installing or servicing opener. They could
be caught in garage door or opener mechanisms.
9. Install wall-mounted garage door control:
• within sight ofthe garage door.
• out of reach of children at minimum height of 5 feet (1.5 m).
• away from ALL moving parts of the door.
10. Place entrapment warning label on wall next to garage door control.
11. Place manual release/safetyreverse testlabel in plain view on inside ofgarage door.
12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact
with a 1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the floor.
13. To avoid SERIOUS PERSONAL INJURY or DEATH from electrocution,disconnectALL
electric and battery power BEFORE performing any service or maintenance.
14. DO NOT enable the Timer-to-Close functionality if operating either one-piece or swinging
garage doors. To be enabled ONLY when operating a sectional door.

11
Installation

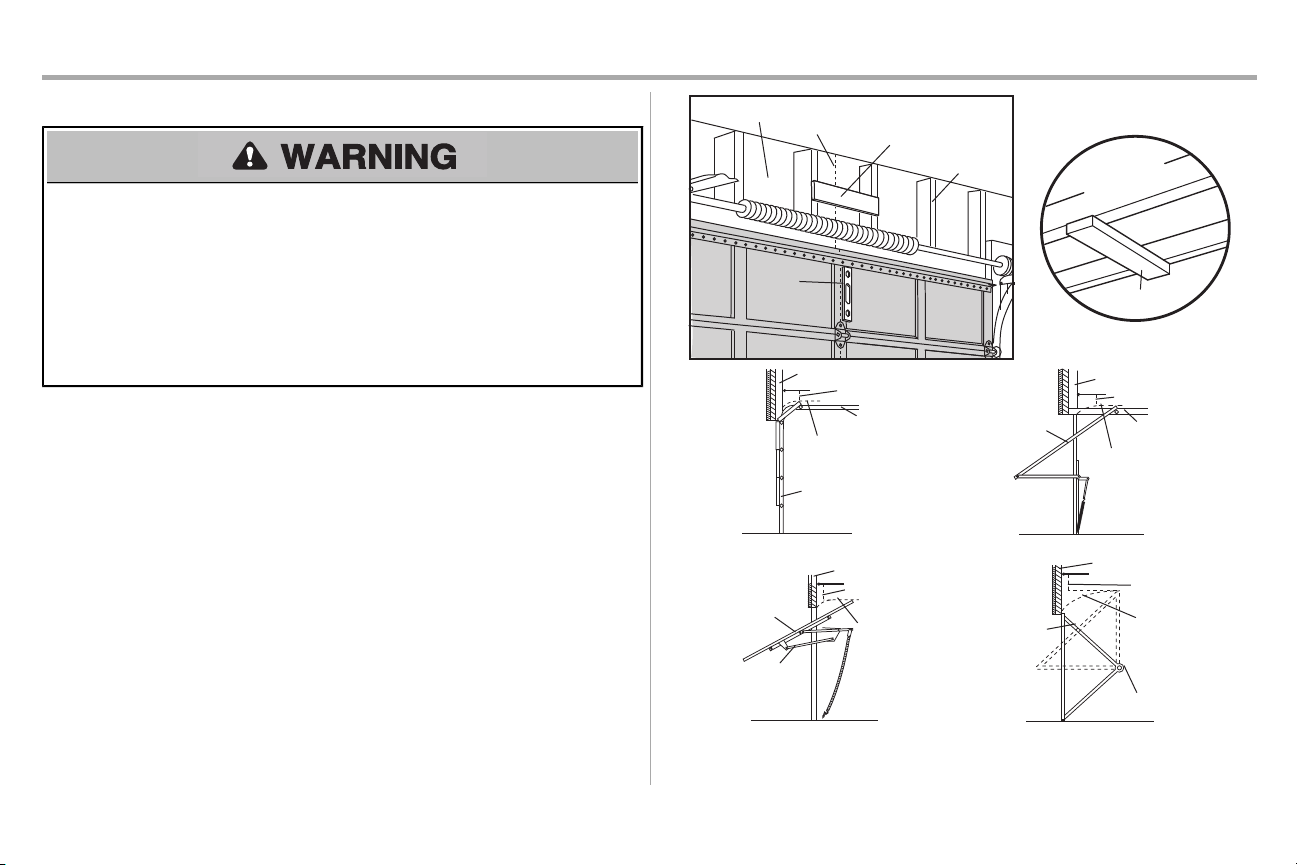

STEP 1 Determine the header bracket location
To prevent possible SERIOUS INJURY or DEATH:
• Header bracket MUST be RIGIDLY fastened to structural supporton header wall or ceiling,
otherwise garage door might NOT reverse when required. DO NOT install header bracket over
drywall.
• Concrete anchors MUST be used if mounting header bracketor 2x4 into masonry.
• NEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their
hardware,ALL ofwhich are under EXTREME tension.
• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance.
An unbalanced garage door might NOT reverse when required.
Installation procedures vary according to garage door types. Follow the instructionswhich applyto your
door.
1. Close the door and mark the inside vertical centerline of the garage door.
2. Extend the line onto the header wall above the door.
You can fasten the header bracket within 4 feet (1.22 m) of the left or right of the door
center only if a torsion spring or center bearing plate is in the way; or you can attach it to
the ceiling when clearance is minimal. (It may be mounted on the wall upside down if
necessary, to gain approximately 1/2" (1 cm).
If you need to install the header bracket on a 2x4 (on wall or ceiling),use lag screws (not
provided) to securely fasten the 2x4 to structural supports.
3. Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on
the header wall 2" (5 cm) above the high point:
l2" (5 cm) above the high pointfor sectional door and one-piece door with track.
l8" (20 cm) above the high pointfor one-piece door without track.
This heightwill provide travel clearance for the top edge ofthe door.NOTE:If the total number of inches
exceeds the height available in your garage, use the maximum height possible, or refer to page 12 for
ceiling installation.
Header Wall Vertical Centerline of Garage Door
2x4 Structural
Supports
Level
(Optional)
Unfinished
Ceiling
2x4
OPTIONAL CEILING MOUNT
FOR HEADER BRACKET
Sectional door with curved track
Header Wall
Track
2" (5 cm)
Highest Point
of Travel
Door
One-piece door with horizontal track
Header Wall
Track
2" (5 cm)
Highest
Point
of Travel
Door
One-piece door without track:
jamb hardware
Header Wall
8" (20 cm)
Highest
Point of
Travel
Door
Jamb
Hardware
One-piece door without track:
pivot hardware
Header Wall
8" (20 cm)
Highest
Point of
Travel
Door
Pivot

12
Installation

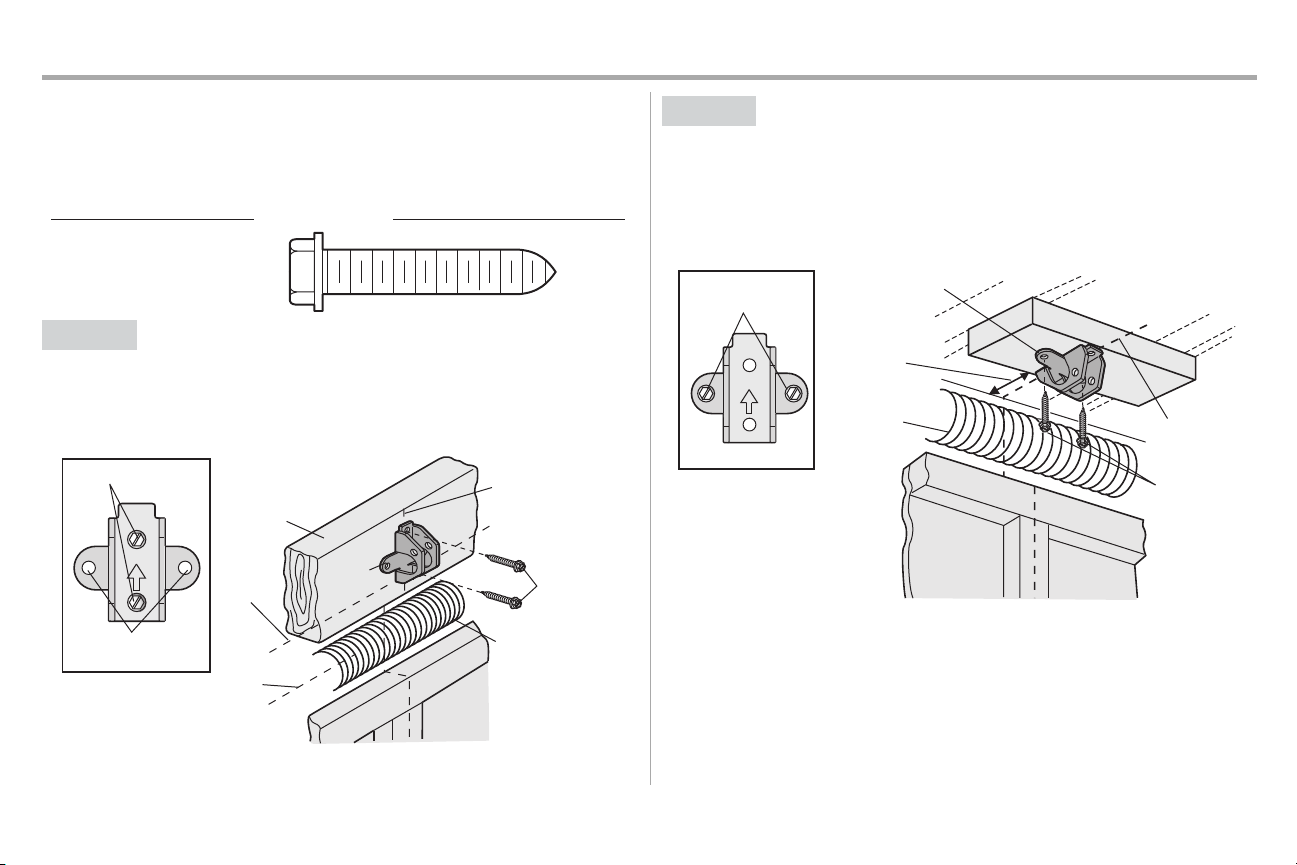

STEP 2 Install the header bracket
You can attach the header bracketeither to the wall above the garage door,or to the ceiling.Follow the
instructions which will work best for your particular requirements. Do not install the header bracket over
drywall. If installing into masonry, use concrete anchors (not provided).
HARDWARE
Lag Screw 5/16"-9x1-5/8"
OPTION A WALL INSTALLATION
1. Center the bracketon the vertical centerline with the bottomedge of the bracketon the
horizontal line as shown.
2. Mark the vertical set ofbracket holes.Drill 3/16" pilotholesand fasten the bracketsecurely to a
structural support with the hardware provided.
UP
Wall Mount
Optional Mounting
Holes
Vertical
Centerline of
Garage Door
(Header Wall)
Header
Bracket
2x4 Structural
Support
Door Spring
(Garage Door)
Highest Point
of Garage
Door Travel
Horizontal
Line
Lag Screw
5/16"-9x1-5/8"
OPTION B CEILING INSTALLATION
1. Extend the vertical centerline onto the ceiling as shown.
2. Center the bracketon the vertical mark, no more than 6" (15 cm) from the wall.Make sure the
arrow is pointing awayfrom the wall. The bracket can be mounted flush against the ceiling
when clearance is minimal.
3. Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support
with the hardware provided.
UP
(Header Wall)
Ceiling Mounting
Holes (Finished Ceiling)
Vertical
Centerline of
Garage Door
Header
Bracket
6" (15 cm)
Maximum
Door Spring
(Garage Door)
Lag Screw
5/16"-9x1-5/8"

13
Installation
STEP3 Attach the rail to the header bracket
1. Align the rail with the header bracket.Insert the clevis pin through the holes in the header
bracket and rail. Secure with the ring fastener.
NOTE: Use the packing material as a protective base for the garage door opener.
HARDWARE
Clevis Pin 5/16"x1-1/2" Ring Fastener
Clevis Pin
5/16"x1-1/2"
Ring Fastener
STEP 4 Position the garage door opener
To preventdamage to garage door, rest garage door opener rail on 2x4 placed on top section of
door.
1. Remove the packing material and liftthe garage door opener onto a ladder.
2. Fullyopen the door and place a 2x4 (laid flat) under the rail. For one-piece doors without
tracks,lay the 2x4 on it's side.
NOTE: A 2x4 is ideal for setting the distance between the rail and the door. If the ladder is not tall
enough you will need help at this point. If the door hits the trolley when it is raised, pull the trolley release
arm down to disconnect the inner and outer trolley. Slide the outer trolley toward the garage door
opener. The trolley can remain disconnected until instructed.
Connected
One-piece
door without
tracks
All other door types
Disconnected
Connected Disconnected

14
Installation
STEP 5 Hang the garage door opener
To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to
structural supports of the garage. Concrete anchors MUST be used if installing ANY brackets into
masonry.
Hanging the garage door opener will vary depending on your garage.Beloware three example
installations. Your installation maybe different.For ALL installationsthe garage door opener MUST be
connected to structural supports. The instructionsillustrate one of the examplesbelow.
Finished Ceiling Unfinished Ceiling
HARDWARE
Hex Bolt 5/16"- 18x7/8"
Nut 5/16"-18
Lock Washer
5/16"-18
Lag Screw 5/16"-9x1-5/8"
1. On finished ceilings,use the lag screwsto attach a supportbracket(notprovided) to the
structural supportsbefore installing the garage door opener.
2. Make sure the garage door opener isaligned with the header bracket. Measure the distance
from each side ofthe garage door opener to the supportbracket.
3. Cutboth piecesof the hanging bracket to required lengths.
4. Attach the end of each hanging bracketto the support bracket with appropriate hardware (not
provided).
5. Attach the garage door opener to the hanging brackets with the hex bolts,lock washers,and
nuts.
6. Remove the 2x4 and manuallyclose the door.If the door hits the rail, raise the header bracket.
Finished
Ceiling (not provided)
Lag Screw
5/16"-
9x1-5/8"
Lag Screw
5/16"-
9x1-5/8"
123
(not
provided)
Hex Bolt
5/16"- 18x7/8"
Nut 5/16"-18
Lock Washer
5/16"-18
456

15
Installation

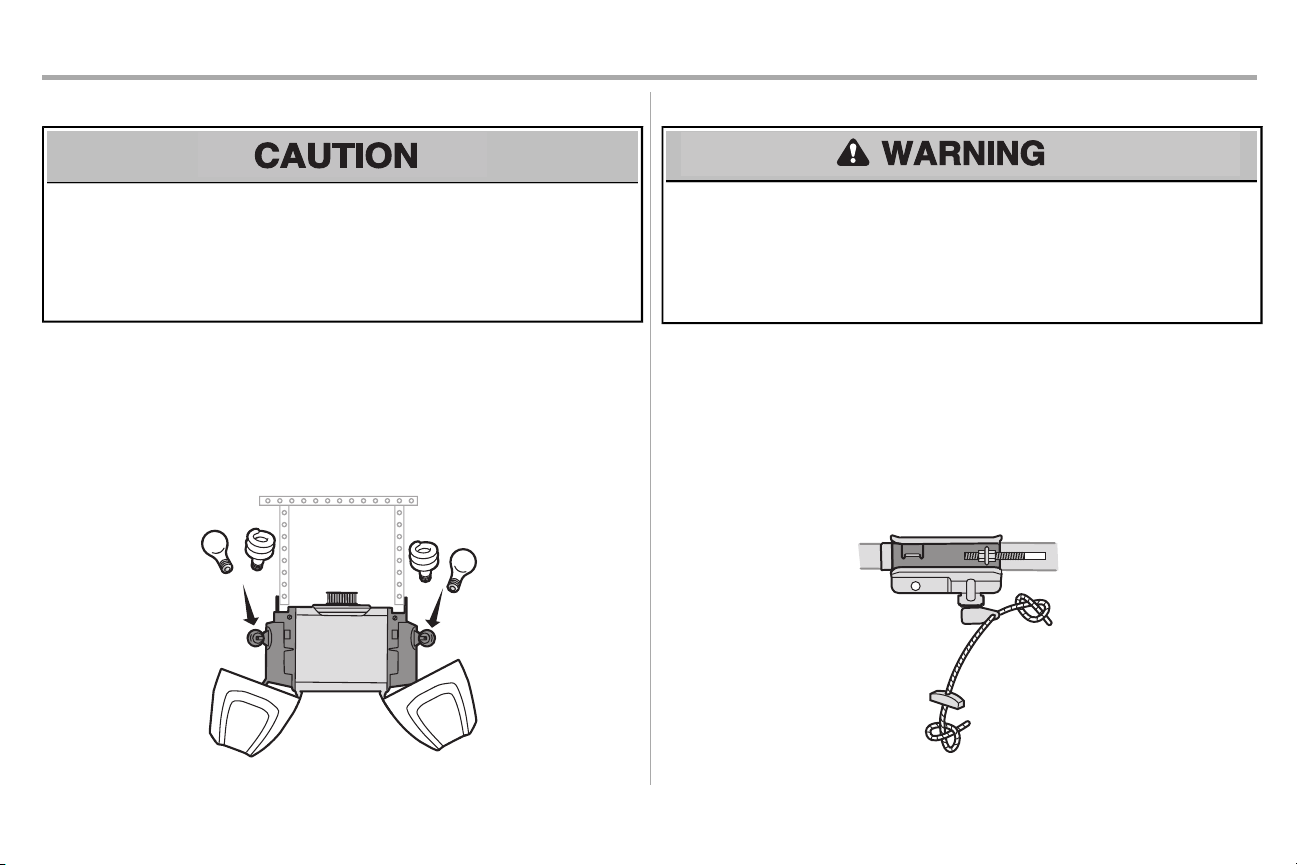

STEP 6 Install the light bulbs
To prevent possible OVERHEATING ofthe end panel or lightsocket:
• Use ONLY A19 incandescent (100W maximum) or compactfluorescent (26W maximum) light
bulbs.
• DO NOTuse incandescentbulbslarger than 100W.
• DO NOT use compact fluorescent light bulbs larger than 26W (100W) equivalent.
• DO NOT use halogen bulbs.
• DO NOT use short neck or specialty light bulbs.
1. Pull on the top sides ofthe light lensand rotate the light lens down.
2. Insert an A19 incandescent (100W maximum) or compact fluorescent (26W, 100W equivalent)
lightbulb into the lightsocket.
3. Rotate the lens up to close.
NOTE: Do not use halogen, short neck, or specialty light bulbs as these may overheat the end panel or
light socket. Do not use LED bulbs as they may reduce the range or performance of your remote controls.
or
or
STEP 7 Attach the emergency release rope and handle
To prevent possible SERIOUS INJURY or DEATHfrom a falling garage door:
• If possible, use emergencyrelease handle to disengage trolley ONLY when garage door is
CLOSED. Weak or broken springsor unbalanced door could resultin an open door falling rapidly
and/or unexpectedly.
• NEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.
• NEVER use handle to pull door open or closed.If rope knotbecomesuntied, you could fall.
1. Insert one end of the emergencyrelease rope through the handle. Make sure that “NOTICE” is
rightside up.Tie a knotat least1 inch (2.5 cm) from the end ofthe emergency release rope.
2. Insert the other end of the emergency release rope through the hole in the trolley release arm.
Mount the emergency release within reach, but at least 6 feet (1.83 m) above floor, avoiding
contactwith vehicles to prevent accidental release and secure with a knot.
NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match or lighter to
prevent unraveling. Ensure the emergency release rope and handle are above the top of all vehicles to
avoid entanglement.
NOTICE

16
Installation

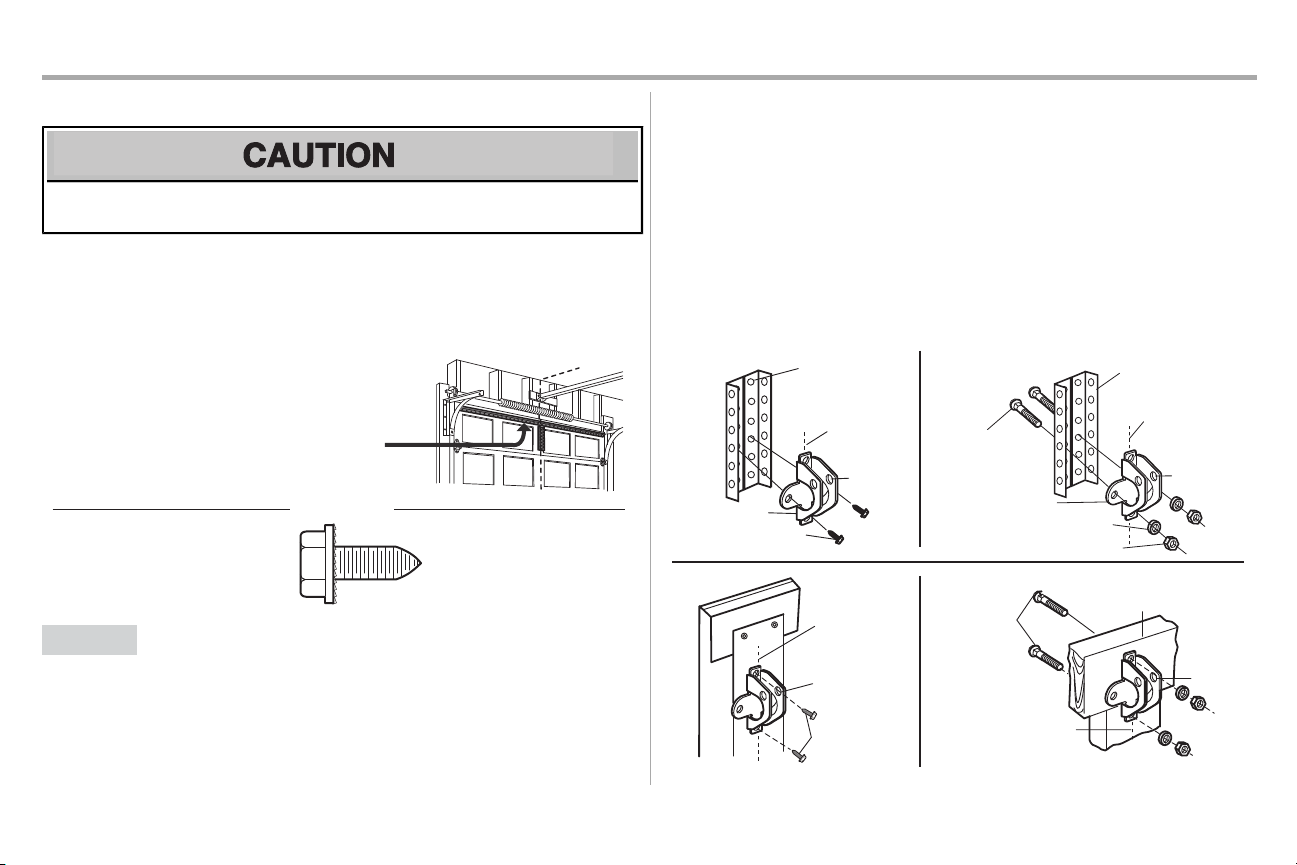

STEP 8 Install the door bracket
Fiberglass, aluminum or lightweight steel garage doors WILLREQUIRE reinforcement BEFORE
installation ofdoor bracket. Contact your door manufacturer for reinforcement kit.
Figure 1 shows one piece of angle iron asthe horizontal brace.For the vertical brace,2 pieces ofangle
iron are used to create a U-shaped support. The bestsolution isto check with your garage door
manufacturer for an opener installation door reinforcement kit.
NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this
case you will not need the door bracket; proceed to the next step.
A horizontal and vertical reinforcementis needed for
lightweight garage doors (fi berglass, aluminum, steel,
doors with glass panel, etc.) (not provided).
A horizontal reinforcement brace should be long
enough to be secured to two or three vertical supports.
A vertical reinforcement brace should cover the height
of the top panel.
FIGURE 1
Self-Threading Screw
1/4"-14x5/8"
HARDWARE
OPTION A SECTIONALDOORS
1. Center the door bracket on the previouslymarked vertical centerline used for the header
bracket installation. Note correct UP placement, as stamped inside the bracket.
2. Position the top edge ofthe bracket2"-4" (5-10 cm) below the top edge ofthe door,OR
directly below any structural support across the top of the door.
3. Mark, drill holes and install as follows, depending on your door’s construction:
Metal or light weight doors using a vertical angle iron brace between the door panel support
and the door bracket:
• Drill 3/16" fastening holes.Secure the door bracket using the two selfthreading screws.
(Figure 2)
• Alternately, use two 5/16" bolts, lock washers and nuts (not provided). (Figure 3)
Metal, insulated or light weight factory reinforced doors:
• Drill 3/16" fastening holes.Secure the door bracket using the self-threading screws.
(Figure 4)
Wood Doors:
• Use top and bottom or side to side door bracketholes. Drill 5/16" holes through the door and
secure bracket with 5/16"x2" carriage bolts, lock washers and nuts (not provided). (Figure 5)
NOTE: The 1/4"-14x5/8" self-threading screws are not intended for use on wood doors.
FIGURE 2
FIGURE 4 FIGURE 5
FIGURE 3
Vertical
Reinforcement
Vertical Centerline
of Garage Door
UP
Door Bracket
Vertical Reinforcement
Vertical Centerline
of Garage Door
Bolt 5/16"-18x2"
(not provided)
Lock Washer 5/16"
Nut 5/16"-18
Door Bracket
UP
Vertical
Centerline
of Garage
Door
UP
Vertical Centerline of
Garage Door
Bolt 5/16"-18x2"
(not provided)
UP
Inside Edge of Door or
Reinforcement Board
Self-Threading Screw
1/4"-14x5/8"
Self-Threading
Screw
1/4"-14x5/8"

17
Installation
STEP 8 Install the door bracket (continued)
OPTION B ONE-PIECEDOORS
1. Center the door bracket on the top ofthe door, in line with the header bracketas shown.
2. Mark either the left and right,or the top and bottom holes.
Metal Doors:
• Drill 3/16" pilotholesand fasten the bracketwith the self-threading screws provided.
Wood Doors:
• Drill 5/16" holes and use 5/16"x2" carriage bolts, lock washers and nuts (not provided) or 5/16"x1-
1/2" lag screws (not provided) depending on your installation needs.
NOTE: The door bracket may be installed on the top edge of the door if required for your installation.
(Refer to the dotted line optional placement drawing.)
For a door with no exposed
framing, or for the optional
installation, use lag screws
5/16"x1-1/2" (not provided)
to fasten the door bracket.
Vertical
Centerline
of Garage
Door
Optional
Placement
of Door
Bracket
Door Bracket
Header Bracket
Header Wall
2x4 Support (Finished Ceiling)
Door
Bracket
Top of Door
(Inside Garage)
Top Edge of
Door
Optional
Placement
Optional
Placement
Top Edge
of Door
Top of Door
(Inside Garage)
Door
Bracket
Carriage Bolt 5/16"x2"
(not provided)
Nut 5/16"-18
Lock Washer 5/16"
Metal Door Wood Door
Self-Threading
Screw 1/4"-14x5/8"

18
Installation
STEP 9 Connect the door arm to the trolley
Installation will vary according to the garage door type. Follow the instructionswhich apply to your door.
OPTION A SECTIONAL DOORS
IMPORTANT: The groove on the straightdoor arm MUSTface away from the curved door arm.
1. Close the door.Disconnect the trolley bypulling the emergency release handle.
2. Attach the straightdoor arm to the outer trolley using the clevis pin. Secure with the ring
fastener.
3. Attach the curved door arm to the door bracket using the clevispin. Secure with the ring
fastener.
4. Bring arm sections together. Find two pairs ofholesthat line up and join sections.Select holes
as far apartas possible to increase door arm rigidityand attach using the bolts, nuts, and lock
washers.
5. Pull the emergencyrelease handle toward the garage door opener until the trolley release
arm ishorizontal. The trolley will re-engage automaticallywhen the garage door opener is
activated.
NOTE: If the holes in the curved door arm and the straight door arm do not align, reverse the straight
door arm,select two holes (as far apart as possible) and attach using bolts , nuts, and lock washers . If the
straight door arm is hanging down too far, you may cut 6 inches (15 cm) from the solid end.
HARDWARE
Hex Bolt 5/16"-18x7/8"
Nut 5/16"-18
Lock Washer
5/16" -18
Clevis Pin 5/16"x1"
Clevis Pin 5/16"x1-1/4"
Ring Fastener
Straight
Door Arm Curved
Door
Arm
(Groove
facing
out)
CORRECT
Straight
Door
Arm Curved
Door
Arm
INCORRECT
Lock Washer
5/16" -18
Nut
5/16"-18
Hex Bolt 5/16"-18x7/8"
Clevis Pin 5/16"x1-1/4"
Ring Fastener Clevis Pin
5/16"x1"

19
Installation
STEP 9 Connect the door arm to the trolley (continued)
OPTION B ONE-PIECE DOORS
IMPORTANT: The groove on the straightdoor arm MUSTface away from the curved door arm.
1. Close the door.Disconnect the trolley bypulling the emergency release handle.
2. Fasten the straight door arm and the curved door arm together to the longestpossible length
(with a 2 or 3 hole overlap) using the bolts, nuts, and lockwashers.
3. Attach the straightdoor arm to the door bracket using the clevispin. Secure with the ring
fastener.
4. Attach the curved door arm to the trolley using the clevis pin. Secure with the ring fastener.
5. Pull the emergencyrelease handle toward the garage door opener until the trolley release
arm is horizontal.
HARDWARE
Hex Bolt 5/16"-18x7/8"
Nut 5/16"-18
Lock Washer
5/16" -18
Clevis Pin 5/16"x1"
Clevis Pin 5/16"x1-1/4"
Ring Fastener
One-Piece Door without Track
One-Piece Door with Track
Straight
Door Arm
Curved
Door
Arm
(Groove
facing out)
CORRECT INCORRECT
Straight
Door
Arm
Curved
Door
Arm
Ring
Fastener Ring Fastener
Nut 5/16"-18
Nut 5/16"-18
Ring
Fastener
Ring Fastener
Lock Washer 5/16" -18
Lock Washer 5/16" -18
Clevis Pin 5/16"x1-1/4"
Clevis Pin
5/16"x1-1/4"
Hex Bolt 5/16"-18x7/8"
Hex Bolt 5/16"-18x7/8"
Clevis Pin
5/16"x1"
Clevis Pin
5/16"x1"
