Chamberlain LiftMaster LM800A-2 Instruction manual
As the world‘s largest manufacturer of garage door openers, we supply with an enor-
mous wealth of experience. We have a wide range of solutions for a variety of garages
We place great emphasis on not only to
meet the expectations of our customers but to exceed them as well.
Garage door openers are equipped with automatic power detection, easy to program limit switches, rolling
code technology, an energy-saving transformer, quick-connect wire terminals, control with diagnostics, 1 light
230V/40W with 2.5 minutes light delay (other settings available), antenna, connectors for door-in-door switch
and indicator light.
The majority of LiftMaster garage door drives can be combined with different rails, so you choose the appro-
priate solution from a wide range, whether chain or belt, whether standard length or up to 5 m. All rails are
made of steel in a C-prole and are 30 mm high.
We’ll be glad to answer your queries and consider your suggestions any time.
Call phone no. or send an E-mail to
The service team in Saarwellingen looks forward to your call.
Chamberlain GmbH
Alfred-Nobel-Straße 4
D-66793 Saarwellingen
www.liftmaster.eu
HomeLink
®
COMPATIBLE
Emergency quick release, Automatic trolley reconnect, Trolley disconnect mode setting
Ventilation/pet opening, Safety stop and full reverse, Up: Safety stop, Automatic close (dependent on model),
Flashing light connection (dependent on model), Door-in-door switch (dependent on model)
Door Linkage: Adjustable door arm (dependent on model),
Logic Type: Solid-state microprocessor with built-in surge suppressor, Solid-state light delay (dependent on model)
Force Adjustment: Segmented - Automatic learn, Length of line cord: 1.2 m (dependent on model)
Temperature: -30 °C to +65 °C
Logic boards feature the exclusive Smart Button for programming transmitter codes to receiver memory.
RF Module: 433.92 MHz – AM Superheterodyne
Rolling Code or Billion Code decoding
Battery (Remote Control): 2 x 3 V or 1 x 3 V (94335E)
Remote control may be programmed from operator or control panel.
Remote control may be programmed to control the opener light.
Remote control may be programmed to an open/close/stop function.
2.5 minutes light timing adjustable to 1.5, 2.5, 3.5, 4.5 minutes.
Operator light may be programmed to turn on when IR beam is broken.
In order to gurantee a smooth operation, we help you to diagnose in case of a failure.
Through simple ashing signals you will know what to do quickly.
The Protector System™ open, misaligned or an object has broken IR beam for more than 4 seconds.
The Protector System™ wire shorted or connected backwards.
Door or wall control button wire shorted.
IR sensor slightly misaligned (dim or ashing sensor LED) or partially blocked.
No RPM in the rst second of travel. Motor has stalled or the electronics did not see the
RPM signal. The unit will stop or reverse in 1 second.
RPM caused a reversal (low force setting).
Bad logic board (Unplug and reconnect operator).
No passpoint detected during travel.
Transmitter code being received.
(Operator not necessarily programmed to respond)
Install all operators to EN12453 and/or EN60335-95-2.
All trolley operator impact forces, force sensing, door, weight, and size ratings have been tested and veried by
TÜV-Rheinland. LiftMaster™ operators carry TÜV approval and CE marking.
All operators are HomeLink compatible.

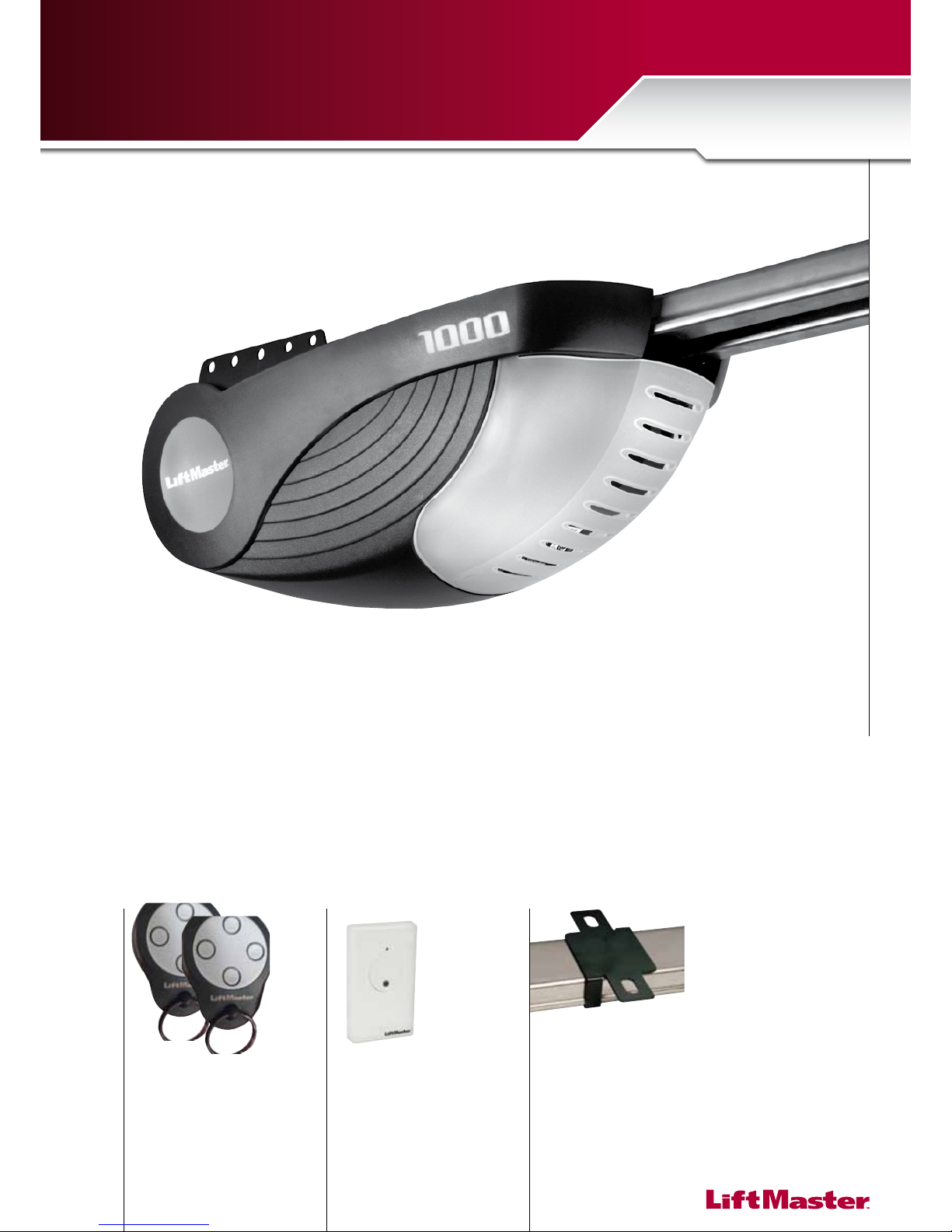

Low headroom bracket
TÜV-tested to meet EN12453. For doors up to 130 kg/13.5 m2
Wireless wall control4-channel mini remote
control
230–240 V AC, 50 Hz
1,000 N
190 W
3.0 W
24 V DC gearmotor permanent lubrication
Chain/belt with two-piece trolley on steel rail
adjustable up to 2.3 m or up to 5 m with appropriate extension
127–178 mm per second
turns on when the drive is activated; turns off 2.5 minutes after closing
adjustable, trolley unlocking device
by pressing a button during forward or backward run and obstacle detection
automatic
Transformer overload protection and low voltage cabling for accessories
electronic, semi and fully automatic; optical detection of speed and
door position
3.2 m
30 mm
14.5 kg
64
433.92 MHz
Soft-start and soft-stop, automatic close
Chamberlain strongly recommends to install
the protector system on all garage door openers!
9A5102

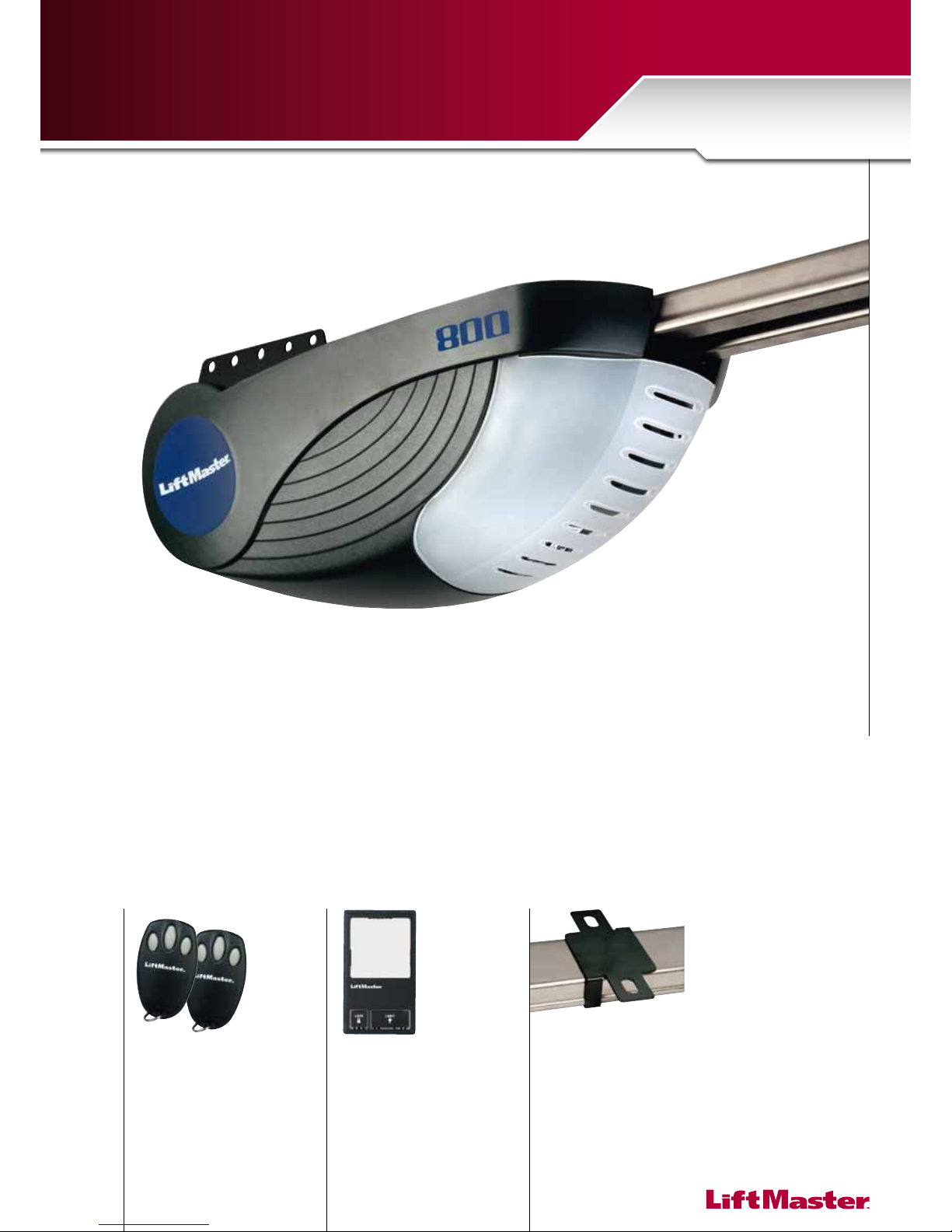

Low headroom bracket
TÜV-tested to meet EN12453. For doors up to 110 kg/13.5 m2
Multi-function wall control3-channel mini remote
control
9A5202
230–240 V AC, 50 Hz
800 N
165 W
2.7 W
24 V DC gearmotor permanent lubrication
Chain/belt with two-piece trolley on steel rail
adjustable up to 2.3 m or up to 5 m with appropriate extension
127–178 mm per second
turns on when the drive is activated; turns off 2.5 minutes after closing
adjustable, trolley unlocking device
by pressing a button during forward or backward run and obstacle detection
automatic
Transformer overload protection and low voltage cabling for accessories
electronic, semi and fully automatic; optical detection of speed and
door position
3.2 m
30 mm
14.5 kg
32
433.92 MHz
Soft-start and soft-stop, automatic close
Chamberlain strongly recommends to install
the protector system on all garage door openers!

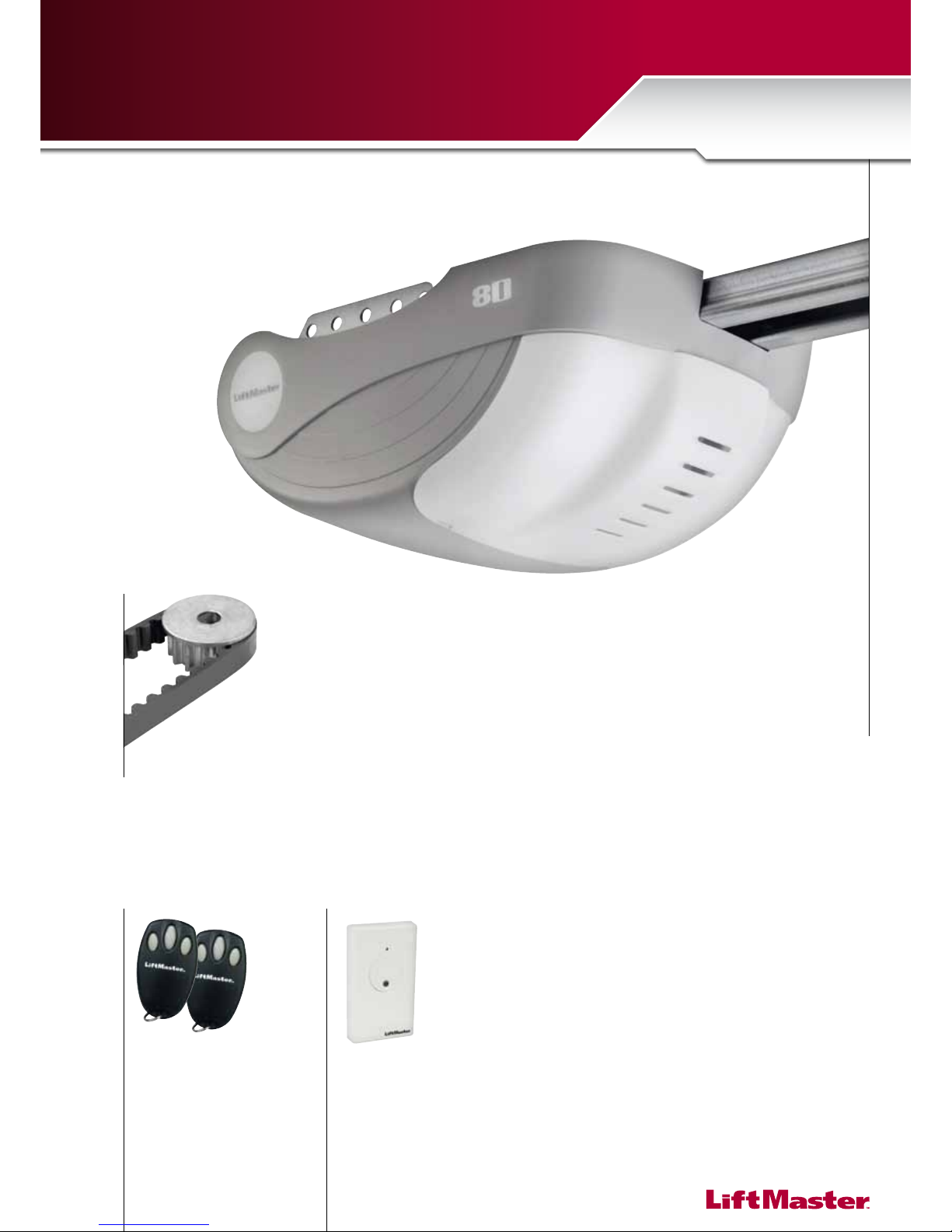

TÜV-tested to meet EN12453.
For doors up to 110 kg/13.5 m2
3-channel mini remote
control
Belt
Wireless wall control
9A5302
230–240 V AC, 50 Hz
800 N
125 W
2.8 W
24 V DC gearmotor permanent lubrication
Belt with two-piece trolley on steel rail
adjustable up to 2.3 m or up to 5 m with appropriate extension
127–178 mm per second
turns on when the drive is activated; turns off 2.5 minutes after closing
adjustable, trolley unlocking device
by pressing a button during forward or backward run and obstacle detection
automatic
Transformer overload protection and low voltage cabling for accessories
electronic, semi and fully automatic; optical detection of speed and
door position
3.2 m
30 mm
14.5 kg
12
433.92 MHz
Soft-start and soft-stop
Chamberlain strongly recommends to install
the protector system on all garage door openers!
In combination with the Multi-function control panel 78LM or 98LM the “PET & PED”
function will be available for your convenience. With this function you can open your

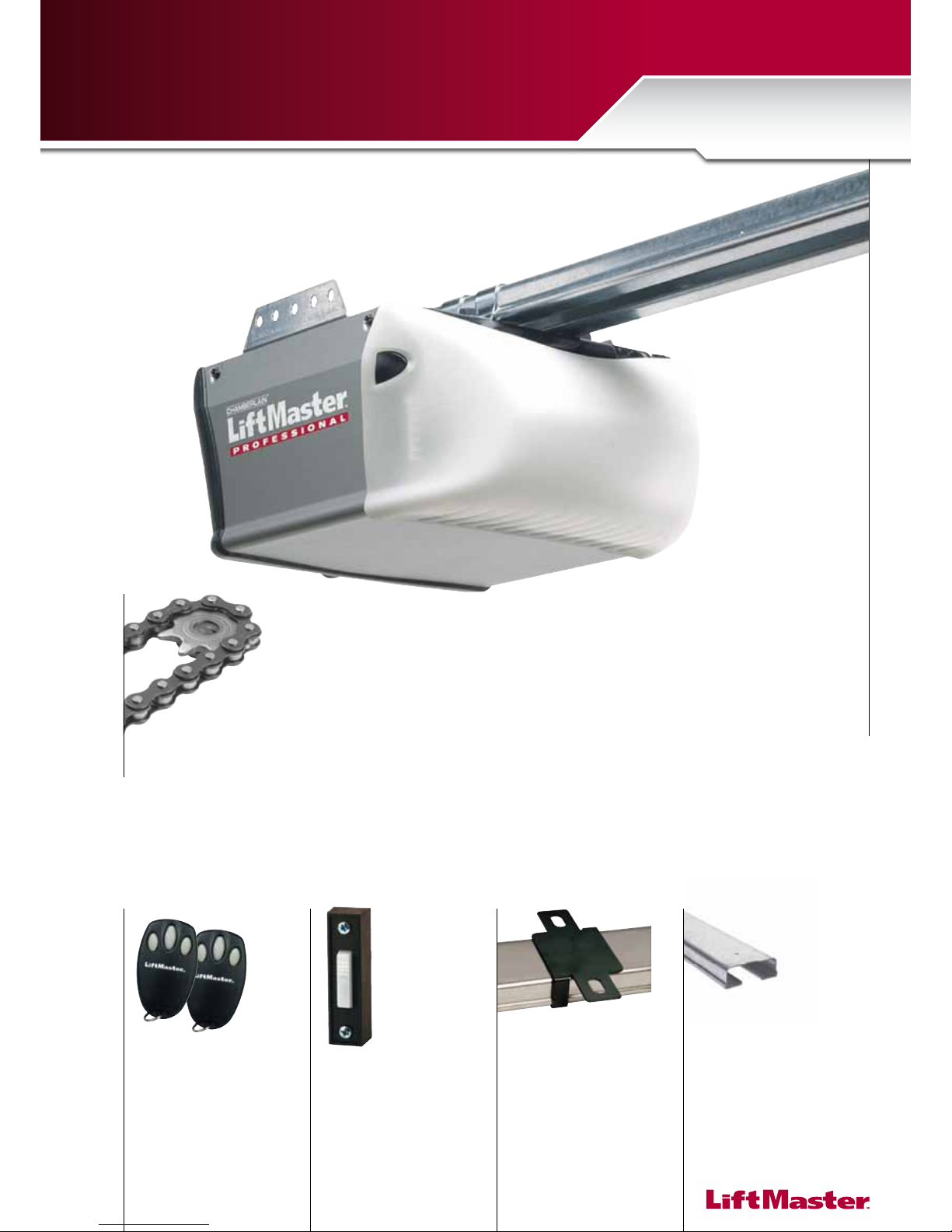

garage door as necessary – pet-function, pedestrian-function and automatic close.
TÜV-tested to meet EN12453.
For doors up to 90 kg/10.7 m2
3-channel mini remote
control
Chain
Illuminated push button
9A5402
230–240 V AC, 50 Hz
600 N
100 W
2.6 W
24 V DC gearmotor permanent lubrication
Chain with two-piece trolley on steel rail
adjustable up to 2.3 m or up to 5 m with appropriate extension
127–178 mm per second
turns on when the drive is activated; turns off 2.5 minutes after closing
adjustable, trolley unlocking device
by pressing a button during forward or backward run and obstacle detection
automatic
Transformer overload protection and low voltage cabling for accessories
electronic, semi and fully automatic; optical detection of speed and
door position
3.2 m
30 mm
14.5 kg
12
433.92 MHz
Soft-start and soft-stop
Chamberlain strongly recommends to install
the protector system on all garage door openers!
In combination with the Multi-function control panel 78LM or 98LM the “PET & PED”
function will be available for your convenience. With this function you can open your
garage door as necessary – pet-function, pedestrian-function and automatic close.
TÜV-tested to meet EN12453.
For doors up to 90 kg/10.7 m2
3-channel mini remote
control
Chain
Illuminated push button Rail
9A5502
230–240 V AC, 50 Hz
600 N
100 W
2.6 W
5 Nm
24 V DC gearmotor permanent lubrication
Chain with two-piece trolley on steel rail
adjustable up to 2.3 m or up to 5 m with appropriate extension
127–178 mm per second
turns on when the drive is activated; turns off 2.5 minutes after closing
adjustable, trolley unlocking device
by pressing a button during forward or backward run and obstacle detection
automatic
Transformer overload protection and low voltage cabling for accessories
electronic, semi and fully automatic; optical detection of speed and
door position
3.2 m
30 mm
14.5 kg
12
433.92 MHz
Soft-start and soft-stop
Chamberlain strongly recommends to install
the protector system on all garage door openers!
In combination with the Multi-function control panel 78LM or 98LM the “PET & PED”
function will be available for your convenience. With this function you can open your
garage door as necessary – pet-function, pedestrian-function and automatic close.
TÜV-tested to meet EN12453.
For doors up to 90 kg/10.7 m2
3-channel mini remote
control
Rail
Belt
Wireless wall control
9A5602
230–240 V AC, 50 Hz
600 N
100 W
2.6 W
5 Nm
24 V DC gearmotor permanent lubrication
Belt with two-piece trolley on steel rail
adjustable up to 2.3 m or up to 5 m with appropriate extension
127–178 mm per second
turns on when the drive is activated; turns off 2.5 minutes after closing
adjustable, trolley unlocking device
by pressing a button during forward or backward run and obstacle detection
automatic
Transformer overload protection and low voltage cabling for accessories
electronic, semi and fully automatic; optical detection of speed and
door position
3.2 m
30 mm
14.5 kg
12
433.92 MHz
Soft-start and soft-stop
Chamberlain strongly recommends to install
the protector system on all garage door openers!
In combination with the Multi-function control panel 78LM or 98LM the “PET & PED”
function will be available for your convenience. With this function you can open your
garage door as necessary – pet-function, pedestrian-function and automatic close.
TÜV-tested to meet EN12453.
For doors up to 110 kg/13.5 m2
Chain
Rail
(5580K)
Low headroom bracket
(5580-2)
(5580K)
Illuminated push button
(5580-2)
(5580K)
3-channel mini remote
control
(5580-2)
(5580K)
230–240 V AC, 50 Hz
800 N
400 W
2.6 W
Motor with capacitor for start and operation
Chain with two-piece trolley on steel rail
adjustable up to 2.3 m or up to 5 m with appropriate extension
100 mm per second
turns on when the drive is activated; turns off 2.5 minutes after closing
adjustable, trolley unlocking device
by pressing a button during forward or backward run and obstacle detection
automatic
Transformer overload protection and low voltage cabling for accessories
electronic, semi and fully automatic; optical detection of speed and
door position
3.1 m
30 mm
14.5 kg
8
1 – keypad code memory
433.92 MHz
Chamberlain strongly recommends to install
the protector system on all garage door openers!

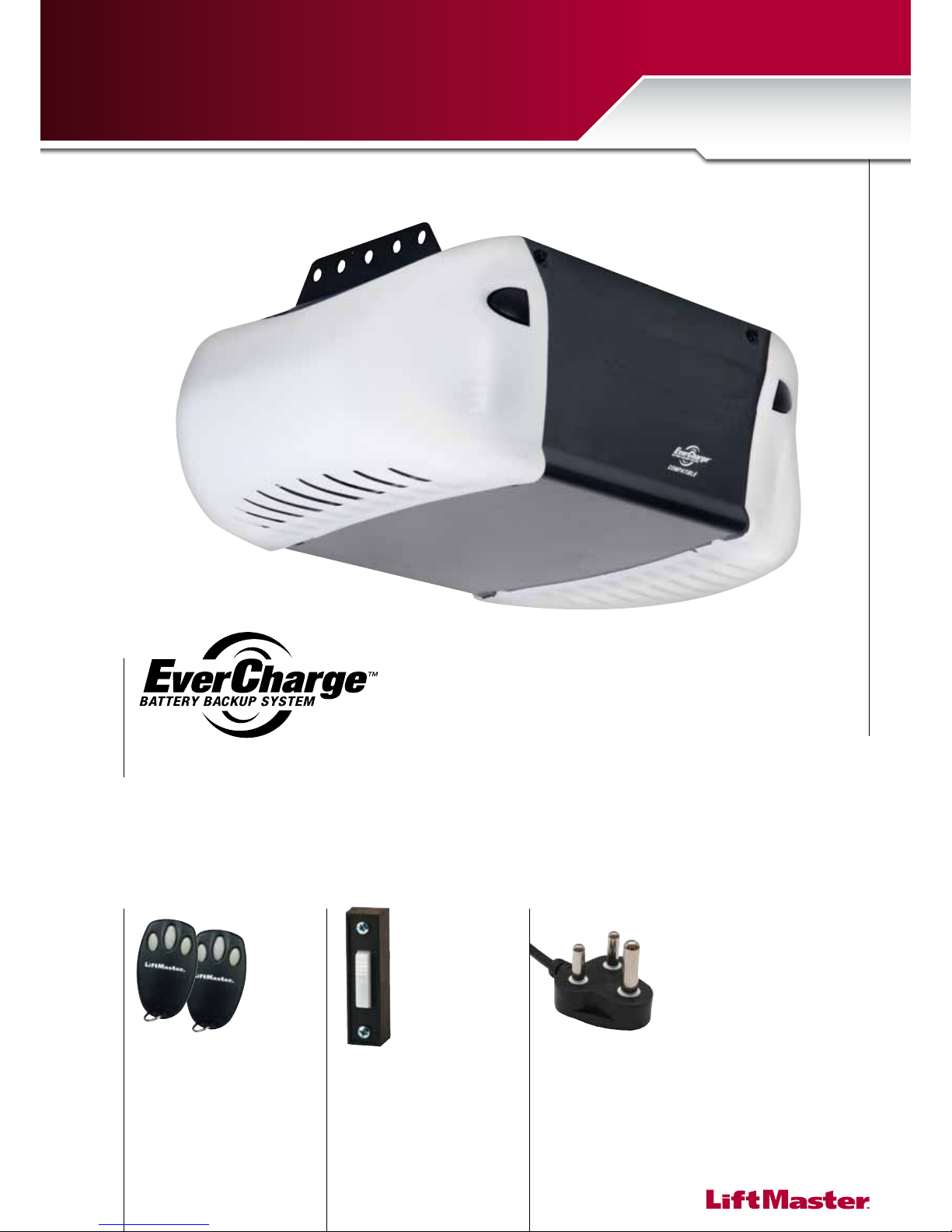

9A5932
GS-tested and TÜV-tested to meet EN12453.
For doors up to 130 kg/13.5 m2
E-lock
Battery operation possible
Collar3-channel mini remote
control
9A5702
230–240 V AC, 50 Hz
10 Nm
40 Nm
min. 80 mm, max. 178 mm
145 W
5.0 W
36 rpm
24 rpm
DC gearmotor
Direct drive “Jackshaft”
adjustable up to 4.5 m
Clutch, unlatch for manual operation
by pressing a button during forward or backward run and obstacle detection
automatic
Transformer overload protection and low voltage cabling for accessories
electronic, semi and fully automatic; optical detection of speed and door position
min. 230 mm
4.5 m
64
433.92 MHz
Soft-start and soft-stop, automatic close, door-in-door switch, ashing light
Chamberlain strongly recommends to install
the protector system on all garage door openers!
* No CE certication. Field of application outside of Europe
Power plug | South Africa
Battery operation possible
3-channel mini remote
control
Illuminated push button
This manual suits for next models
11
Table of contents
Other Chamberlain Garage Door Opener manuals
Chamberlain
Chamberlain 87504-267 User manual
Chamberlain
Chamberlain 1345C 1/3HP User manual
Chamberlain
Chamberlain Whisper Drive Security+ 257858 User manual
Chamberlain
Chamberlain 2580 1/2 HP User manual
Chamberlain
Chamberlain K72-16421 User manual
Chamberlain
Chamberlain 8550W User manual
Chamberlain
Chamberlain AccessMaster M885 User manual
Chamberlain
Chamberlain 2585 3 HP User manual
Chamberlain
Chamberlain LM60EVS User manual
Chamberlain
Chamberlain PREMIUM series User manual
Chamberlain
Chamberlain WD832KD User manual
Chamberlain
Chamberlain Elite 3585CS User manual
Chamberlain
Chamberlain MyQ 819LMB User manual
Chamberlain
Chamberlain myQ C2405C User manual
Chamberlain
Chamberlain Security+ 3290 User manual
Chamberlain
Chamberlain LiftMaster CSW24V User manual
Chamberlain
Chamberlain LiftMaster LM3800A User manual
Chamberlain
Chamberlain 9602 User manual
Chamberlain
Chamberlain 8587W User manual
Chamberlain
Chamberlain Security+ 1215EM FS2 User manual
Popular Garage Door Opener manuals by other brands
Genie
Genie Excelerator manual
Overhead door
Overhead door 450A Installation instructions and owner's manual
Raynor
Raynor Navigator 2245RGD owner's manual
eclisse
eclisse E-MOTION Operating, use and maintenance manual
Vertical Express
Vertical Express LD-16 manual
Gliderol
Gliderol Glidermatic GRD installation instructions
Aprimatic
Aprimatic SLIDE 230 Electrical installation, Use and Maintenance instructions
Linear
Linear LDC0801 Homeowner's instructions
B&D
B&D Econolift ML500 installation instructions
ATA
ATA HiRO GDO-12 instruction manual
Homentry
Homentry HERDO1 Installation and operating guide
Wayne-Dalton
Wayne-Dalton Torquemaster Plus Installation instructions and owner's manual
