Champion Global Power Equipment 200987 User manual

OPERATOR'S MANUAL
MODEL #200987
4500W WIRELESS REMOTE
START INVERTER GENERATOR
Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
This product meets the requirements of the PGMA (Portable Generator Manufacturers’ Association) standard ANSI/PGMA G300-2015 (Safety and Performance of
Portable Generators).
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
REV 20201019

www.TakeYourGeneratorOutside.com
As the only safe way to use a portable generator, taking your generator
outside is absolutely mandatory to keep your family safe from carbon
monoxide. But there’s even more you can do. By educating yourself
about all carbon monoxide risks, you’ll be better prepared to protect
your family from this colorless, oderless threat.
CARBON MONOXIDE SAFETY: THE BIG PICTURE
KNOW THE SYMPTOMS
• Headache
• Nausea
• Shortness of breath
• Dizziness
• Fatigue
STAY ALERT WITH CARBON
MONOXIDE DETECTORS
POINT FUMES AWAY FROM
NEARBY PEOPLE
KEEP IT OUTSIDE AND AWAY FROM
DOORS, WINDOWS, AND GARAGES
ALWAYS READ
THE OPERATOR’S
MANUAL FIRST
MANUAL
IF YOU FEEL SYMPTOMS,
LEAVE RIGHT AWAY

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR TABLE OF CONTENTS
3
TABLE OF CONTENTS
Introduction...................................................4
Safety Definitions ..........................................4
Important Safety Instructions.......................5
Fuel Safety ........................................................ 7
Lithium-ion Battery Safety........................................ 8
Safety and Dataplate Labels...................................... 9
Safety Symbols................................................... 10
Operation Symbols ............................................... 12
Quick Start Label Symbols....................................... 13
Controls and Features ................................. 14
Generator ......................................................... 14
Control Panel ..................................................... 15
Intelligauge with Power Meter ................................... 16
Wireless Remote Control......................................... 17
FCC Statement for Remote Control Device...................... 17
Parts Included .................................................... 18
Assembly..................................................... 19
Unpacking ........................................................ 19
Remove Shipping Support Hardware............................ 19
Connect the Battery.............................................. 19
Add Engine Oil.................................................... 19
Add Fuel .......................................................... 20
Grounding ........................................................ 22
Operation.....................................................22
Generator Location............................................... 22
Surge Protection ................................................. 23
Wireless Set Button .............................................. 23
Starting the Engine............................................... 24
Manual Choke Start.............................................. 26
Connecting Electrical Loads ..................................... 27
Do Not Overload Generator ...................................... 27
Eco (Economy) Mode............................................. 28
12V DC Automotive Style Outlet ................................. 28
Parallel Operation ................................................ 29
Stopping the Engine.............................................. 29
Moving the Generator ............................................ 30
Operation at High Altitude ....................................... 30
Maintenance................................................ 31
Cleaning the Generator .......................................... 31
Changing the Engine Oil ......................................... 31
Cleaning and Adjusting the Spark Plug.......................... 32
Cleaning the Air Filter ............................................ 32
Cleaning the Spark Arrestor ..................................... 32
Generator Battery ................................................ 33
Remote Key Fob Battery ......................................... 33
Adjusting the Governor........................................... 34
Maintenance Schedule........................................... 34
Storage ........................................................34
Short Term Storage (up to 30 days) ............................. 34
Mid Term Storage (30 days – 1 year) ...........................34
Long Term Storage (more than 1 year).......................... 35
Removing from Storage.......................................... 35
Specifications..............................................36
Generator Specifications......................................... 36
Engine Specifications ............................................ 36
Oil Specifications................................................. 36
Fuel Specifications ............................................... 36
Battery Specifications............................................ 36
Temperature Specifications...................................... 36
Troubleshooting...........................................37
Warranty* ....................................................39
Warranty Qualifications .......................................... 39
Repair/Replacement Warranty................................... 39
Do Not Return The Unit To The Place Of Purchase ............. 39
Warranty Exclusions ............................................. 39
Other Exclusions ................................................. 39
Limits of Implied Warranty and Consequential Damage........ 39
Contact Information .............................................. 39

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR INTRODUCTION
4
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
CPE highly values how our products are designed, manufactured,
operated, and serviced as well as providing safety to the operator
and those around the generator. Therefore, it is IMPORTANT to
review this product manual and other product materials thoroughly
and be fully aware and knowledgeable of the assembly, operation,
dangers and maintenance of the product before use. Fully
familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always exercise
common sense and always err on the side of caution when
operating the product to ensure no accident, property damage,
or injury occurs. We want you to continue to use and be satisfied
with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
200987
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov

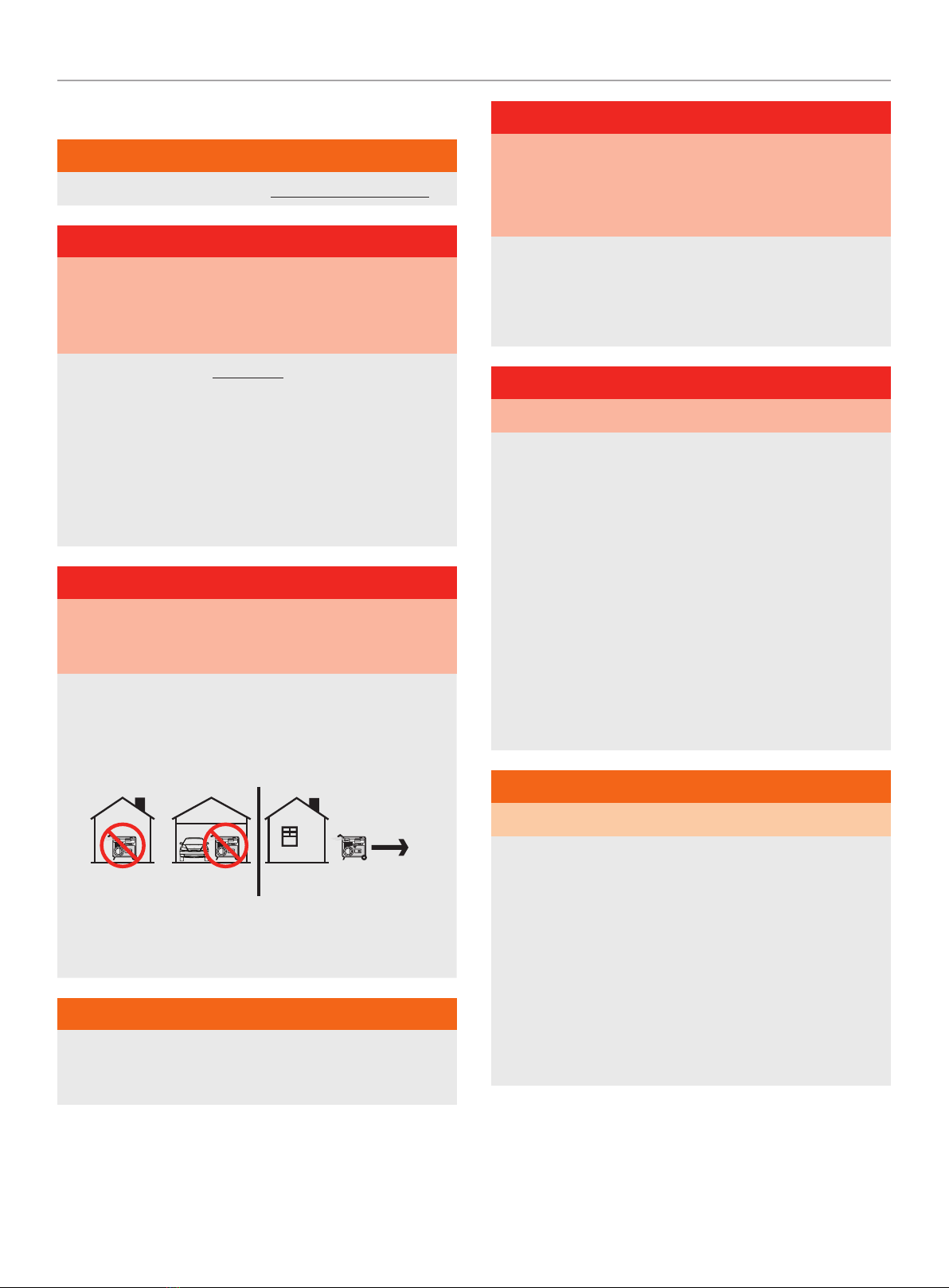

DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poisonous gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to feel
dizzy or weak, get to fresh air immediately.
OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY.
DO NOT operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a poison
you cannot see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
WARNING
Although the generator contains a spark arrester, maintain
a minimum distance of 5 ft. (1.5 m) from dry vegetation to
prevent fires.
DANGER
Operate equipment with guards in place.
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories. Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or frayed.
Use only Champion electrical cords for proper application.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to operate or
service the generator.
Use a ground fault circuit interrupter (GFCI) in damp areas and
areas containing conductive material such as metal decking.
Connection to your home’s electrical system requires a
listed 30A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical codes.
WARNING
Do not use generator for medical and life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
NEVER use this product to power medical devices or medical
appliances.
Inform your electricity provider immediately if you or anyone in
your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience a
medical emergency.

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
6
WARNING
Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Rapid retraction of the recoil cord will pull hand and arm
towards the engine faster than you can let go. Broken bones,
fractures, bruises or sprains could result. Unintentional
startup can result in entanglement, traumatic amputation or
laceration.
When starting engine, pull the recoil cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Improper treatment or use of the generator can damage it,
shorten its life or void the warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
–Electrical output is lost
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively
WARNING
This product contains a button battery within the remote key
fob. If swallowed, it could cause severe injury or death in just 2
hours. Seek medical attention immediately.

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
7
Fuel Safety
DANGER
GASOLINE AND GASOLINE VAPORS ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
–Gasoline is highly flammable and explosive.
–Gasoline can cause a fire or explosion if ignited.
–Gasoline is a liquid fuel but it’s vapors can ignite.
–Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
–Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline needs
room to expand when temperatures rise.
–In the case of any petroleum gasoline fire, flames should never
be extinguished unless the fuel supply valve can be turned
OFF. By not doing so, if a fire is extinguished and the supply
of fuel is not turned OFF, an explosion hazard could be created.
When adding or removing gasoline:
DO NOT light or smoke cigarettes.
Turn the generator off and let cool for at least two minutes before
removing the gasoline cap. Always loosen the cap slowly to relieve
pressure in the tank.
Only fill or drain gasoline outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator at the gas
station. Always use an approved container to transfer the fuel to
the generator.
DO NOT overfill the gasoline tank.
Always keep gasoline away from sparks, open flames, pilot lights,
heat and other sources of ignition.
When starting the generator:
DO NOT attempt to start a damaged generator.
Always check that the gasoline cap, air filter, spark plug, fuel lines
and exhaust system are properly in place.
Always allow spilled gasoline to evaporate fully before attempting
to start the engine.
Always be certain that the generator is resting firmly on level
ground.
When operating the generator:
DO NOT move or tip the generator during operation.
When transporting or servicing the generator:
Always check that the fuel valve is in the OFF position and the
gasoline tank is empty.
For LPG compatible models, check that the LPG cylinder is
disconnected and stored securely away from the generator.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat and other
sources of ignition.
Do not store generator, gasoline or LPG cylinders near furnaces,
water heaters, or any other appliances that produce heat or have
automatic ignitions.
DANGER
NEVER place a gasoline container, gasoline tank, LPG cylinder
or any combustible material in the path of the exhaust stream
during operation of the engine.
WARNING
Never use a gasoline container, gasoline tank, or any other fuel
item that is broken, cut, torn or damaged.

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
8
Lithium-ion Battery Safety
Electrolyte inside the battery is harmful to skin and eyes. If the
battery leaks and electrolyte gets in your eyes, do not rub them.
Instead, rinse them with clean running water and immediately
seek medical attention. If left untreated, electrolyte can cause
permanent eye injury.
When using the generator:
–Do not use the battery near sources of high heat or fire.
–Do not reverse or short-circuit the positive (+) or negative (-)
terminals.
–Do not use the battery in parallel or in series.
–Do not discharge battery in temperatures below 14°F (-10°C)
or above 104°F (40°C).
When charging the battery:
–Do not charge the battery with voltage over 15.0V and current
over 1.6A.
–Do not charge the battery below 32°F (0°C) or above 113°F
(45°C).
–Always remove from the battery cradle before charging
separately.
–After charging, leave the battery sitting for 0.5 to 1 hour
before checking the voltage. If the voltage is less than 12.8V,
additional charging is necessary.
–If the battery becomes hot to the touch, stop charging. Allow
battery to cool before resuming.
When storing the generator/battery:
–Always check that the battery connectors between the inverter
and the battery are unplugged and placed away from the
battery terminals.
–Always inspect the battery case for obvious signs of physical
damage or warpage.
–Do not store the battery near sources of high heat or fire.
–Store the battery in a dry, well ventilated area between
-4°F (-20°C) and 104°F (40°C).
–Do not store the battery when discharged to 20% or less state
of charge (SOC).
–The battery should be charged for 10~30 mins every 180 days
when in storage, to keep the battery in good condition.
In case of battery damage:
–If damaged, battery may emit hazardous fumes. If fumes are
present, move battery to a well-ventilated area.
–Do not try to repair the battery.
–Dispose of battery in a clear plastic bag and take to your local
municipal household hazardous waste (HHW) recycling center.
Do not place it the trash for any reason.

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
9

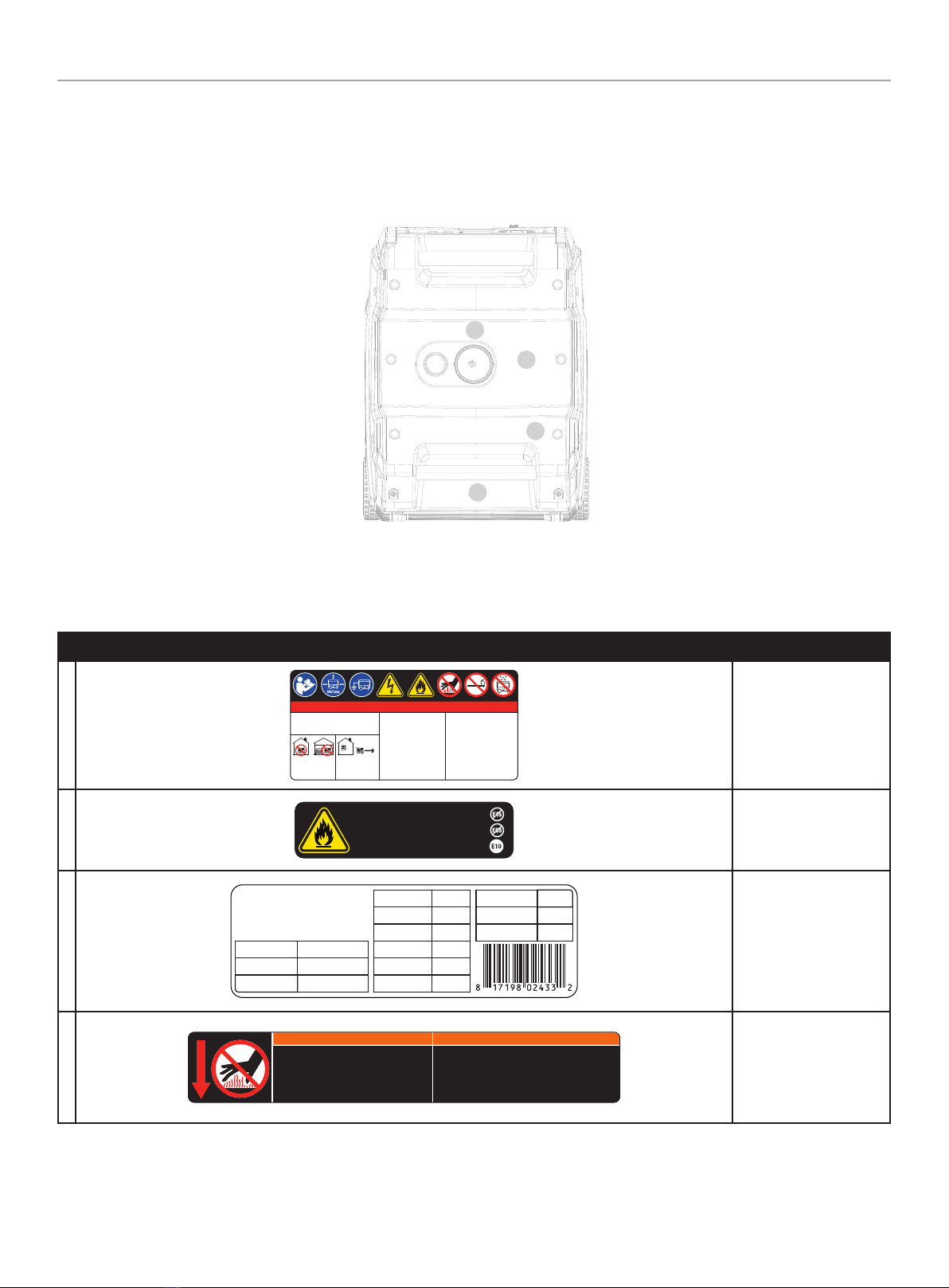

Safety and Dataplate Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
LABEL DESCRIPTION
A
PELIGRO
El uso de un generador en
interiores PUEDE MATARLO
EN MINUTOS. El escape del
generador contiene monóxido
de carbono. Éste es un veneno
que no se puede ver ni oler.
NUNCA lo use dentro del hogar
ni el garaje, INCLUSO SI las
puertas y ventanas están
abiertas. Úselo SÓLO a la
INTEMPERIE lejos de
ventanas, puertas, y orificios
de ventilación.
DANGER
Utiliser une génératrice à
l’intérieur PEUT VOUS TUER EN
QUELQUES MINUTES.
L’échappement de la génératrice
contient du monoxyde de
carbone. Il s’agit d’un poison que
vous ne pouvez ni voir ni sentir.
Ne l’utilisez JAMAIS dans la
maison ou le garage MÊME SI les
portes et les fenêtres sont
ouvertes. Utilisez-la UNIQUEMENT
À L’EX TÉR IEUR, loin des fenêtres,
portes et trappes de ventilation.
ONLY use OUTSIDE
and far away from
windows, doors,
and vents.
NEVER use inside a
home or garage,
EVEN IF doors and
windows are open.
DANGER
Using a generator indoors CAN KILL YOU
IN MINUTES. Generator exhaust contains
carbon monoxide. This is a poison you
cannot see or smell.
1385-L-SF-B
--- --- --- --- ---
ColorsLPN 1385 -L-SF
Rev B
Size 155 x 75 mm
Artwork Notes
2mm safe margin; white to b e printed sh own in 50%
process magenta
Revision Changes
B: corrected some words on FR translation
This art work belongs to Champ ion Power Equipment. T he contents are con fidential and privile ged and shall not be discl osed to or used by or for
outside pa rties without t he explicit consen t of Champion Power Equ ipment.
Safety Symbols/
CO Danger
B
UNLEADED FUEL ONLY. Minimum octane rating
of 87. Maximum 10% ethanol.
GASOLINA REGULAR SOLAMENTE. 87 octanos
como mínimo. Máximo de etanol de 10%.
ESSENCE SANS PLOMB SEULEMENT. Indice
d’octane minimal de 87. Maximum 10 % d'éthanol.
1032-L-OP-B
K109 --- --- ---
ColorsLPN 1032-L-OP
Rev B
Size 78 x 20 mm
Artwork Notes
3mm corner radius; 2mm safe margin
Revision Changes
B: -Changed Octane rating from 85 to 87 (20200421)
This ar twork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Fuel
C
CHAMPION POWER EQUIPMENT, INC.
12039 SMITH AVENUE
SANTA FE SPRINGS, CA 90670
USA / É.-U.
1-877-338-0999
WWW.CHAMPIONPOWEREQUIPMENT.COM
MADE IN CHINA / FABRIQUÉ EN CHINE
AC AMPS
AMPÈRES C.A.
FREQUENCY (Hz)
FRÉQUENCE (Hz)
RPM
TR / MIN
PHASE
PHASE
POWER FACTOR
FACTEUR DE
PUISSANCE
AC VOLTS
VOLTS C.A.
MANUFACTURE DATE
DATE DE FABRICATION
SERIAL NO.
N° DE SÉRIE
MODEL
MODÈLE
INSULATION CLASS
CLASSE D’ISOLATION
MAX AMBIENT TEMP.
TEMP. AMBIANTE MAX.
2400-L-PR-A
GASOLINE WATTS
WATTS D'ESSENCE
200987
29.2
60
3600
1
1.0
120
F
3500
104°F
40°C
XXXXXXXXXXXX
XXXX
K--- --- --- ---
ColorsLPN 2400-L-PR
Rev A
Size 123 x 40 mm
Artwork Notes
3mm corner radius; 2mm safe margin
Revision Changes
---
This ar twork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Dataplate
D
WARNING
DO NOT TOUCH!
Exhaust gases, muffler
and engine components
are extremely HOT and
cause burns.
Operation of this equipment may create
sparks that can start fires around dry
vegetation. A spark arrestor may be required.
The operator should contact local fire
agencies for laws and regulations relating to
fire prevention requirements. If installed,
clean every 100 hours or every season.
1953-L-SF-A ADVERTENCIA
¡NO TOCAR! Los gases de
escape, el silenciador y los
componentes del motor están
extremadamente CALIENTES y
causan quemaduras.
La operación de este equipo puede producir chispas
que pueden provocar incendios alrededor de la
vegetación seca. Un supresor de chispas puede que
sea necesario. El operadaor debe comunicarse con
las agencias locales de bomberos para las leyes y
reglamentos relativos a los requisitos de prevención
de incendios. Si está instalado, limpie cada 100
horas o cada temporada.
K485 152 --- ---
ColorsLPN 1953-L-SF
Rev A
Size 218 x 36 mm
Artwork Notes
3mm corner radius; 2mm safe margin; to be printed
on
white substrate.
Revision Changes
---
This ar twork belong s to Champion Power E quipment. The c ontents are con fidential and p rivileged and sha ll not be disclose d to or used by or for
outsid e parties without the explicit c onsent of Champi on Power Equipmen t.
Hot Surface
Top
A
B
C
D

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
10
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Clearance. Keep all objects at least 5 feet (1.5m) from generator. Heat from the muffler and exhaust gas
can ignite combustible objects.
Ground. Consult with local electrician to determine grounding requirements before operation.
Electric Shock. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire/Explosion. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause
severe burns or death. Keep generator at least 5 feet (1.5m) from all objects to prevent combustion.
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface.
Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from
smoking, open flames, sparks, pilot lights, heat, and other ignition sources.
Wet Conditions Alert. Do not expose to rain or use in damp locations except as follows:
If you must operate in rain or damp locations, DO NOT operate without proper protection of the electrical
components.
Use of a safety canopy that is fire retardant and will provide proper air ventilation for the engines exhaust
stream can be used. Keep all objects a minimum of 5 feet (1.5m) away from the generator at all times.
Heat from the muffler surface and exhaust stream can ignite combustible materials.

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
11
SYMBOL MEANING
This product uses lithium-ion (Li-ion) batteries. Local, state, or federal laws may prohibit disposal of
batteries in ordinary trash. Consult your local waste authority for information regarding available recycling
and/or disposal options.
Blindness or severe burns. Electrolyte solution can cause blindness or severe burns.
Shield eyes. Explosive gases can cause blindness or injury.
If damaged, battery may emit hazardous fumes. If fumes present, move battery to a well-ventilated area.
Eye protection. Always wear eye protection with side shields marked to comply with ANSI Z87.1.

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
12
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Start
On
Stop or Off
Choke
Run
12V Direct Current
Battery On
Battery Off
Neutral Floating. Neutral circuit IS
NOT electrically connected to the frame/
ground of the generator.
Circuit Breaker Reset: Push
SYMBOL MEANING
RV Ready Receptacle
Ground Terminal
Parallel Connection(s)
ECO
Economy Mode Button
Overload Reset Button
Low Oil
Wireless Pair
Gasoline Tank: Full
Gasoline Tank: Empty
Power Output. Percentage of available
power from generator being used.

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
13
Quick Start Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
2405-L-OP-B
10W-30

1

2 6 18
5 73 3
42
ColorsLPN 2405-L-OP
Rev B
Size 200 x 25 mm
Artwork Notes
2mm safe margin; to be printed on white substrate
Revision Changes
Changed the order of steps 4 and 5
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
K376 186 152 CG1 300
Starting the Engine
DANGER
Move generator outside and far away from windows,
doors and intake ventilation covers.
1. Check oil level.
Recommended oil is 10W-30.
2. Check gasoline level.
When adding gasoline, use a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
3. Turn battery switch to the “ON” position.
4. Turn the EZ Start dial to the “ON” position.
5. Press the choke button. Note: If battery is dead, charge
battery or remove the non recoil side maintenance cover and
move choke lever to choke position to start.
6. Pull the recoil cord.
7. Press the choke button.
8. Plug in desired device.
Stopping the Engine
1. Turn off and unplug all connected electrical loads.
2. Turn the EZ Start dial to the “STOP” position.
3. Turn battery switch to the “OFF” position.
Wireless and Electric Start
See page 21 in “Operation” section.

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR CONTROLS AND FEATURES
14
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Generator
1. Folding Handle –Used to move unit by lifting and rolling on
wheels. Do not use to lift or carry the unit.
2. Fuel Cap – Remove to add fuel.
3. Fuel Gauge
4. Battery Access Cover
5. Control Panel –See Control Panel section.
6. Recoil Starter – Used to manually start the engine.
7. Never Flat Wheels – 5 in. (12.7 cm)
8. Oil Fill Access Cover
9. Carrying Handle(s) –Used to lift or carry the unit.
10. Muffler
11. Maintenance Cover
8
2
3
7
6
5
4
10 11
1
9

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR CONTROLS AND FEATURES
15

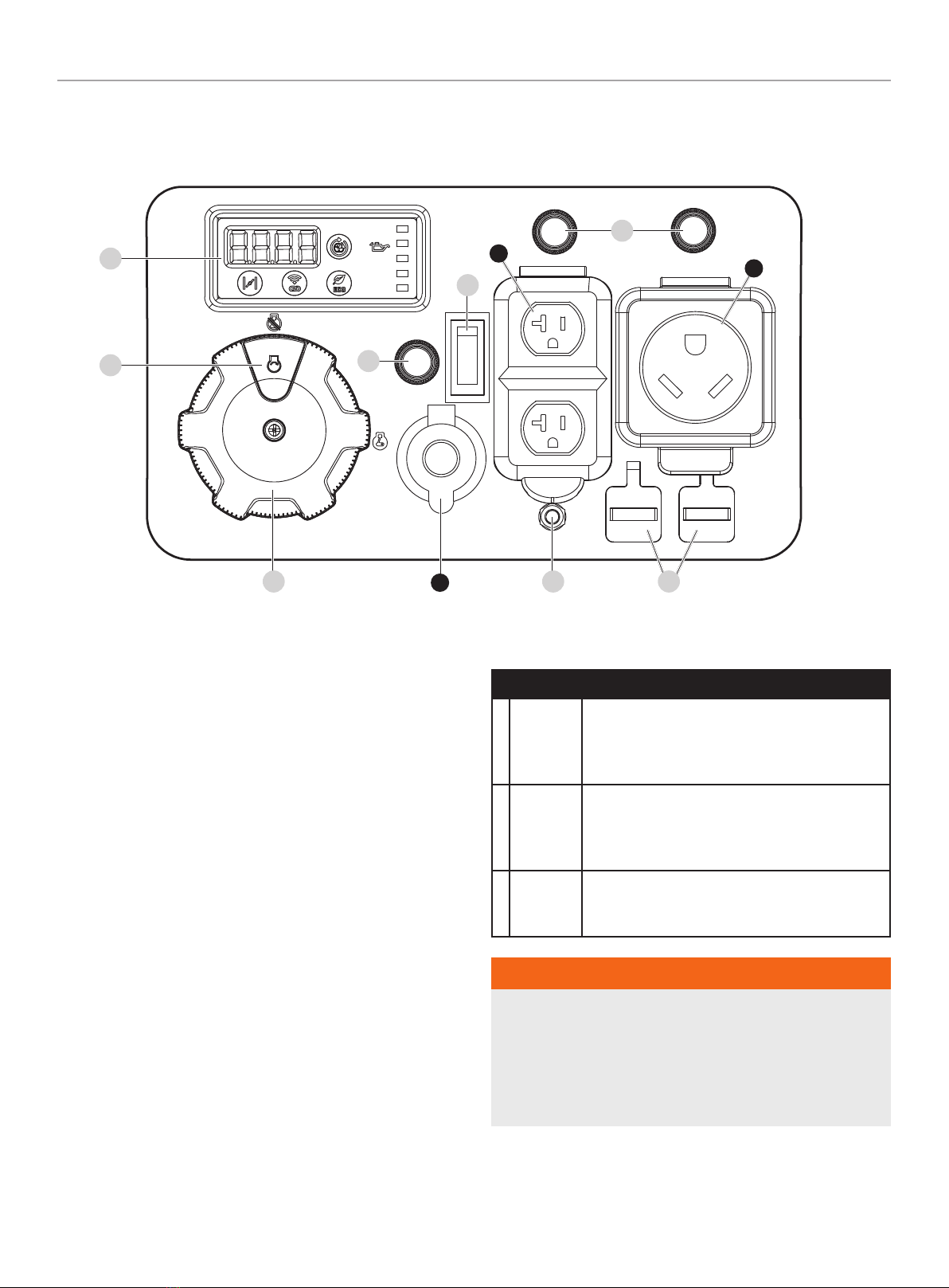

Control Panel
1. Intelligauge with Power Meter – See Intelligauge with
Power Meter section.
2. Ignition Switch – Used to START the generator.
3. EZ Start Dial – Used to start and stop.
4. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
5. Battery Switch – Enables/disables power supply from
battery for remote and electric start.
6. Ground Terminal – Consult an electrician for local grounding
regulations.
7. Parallel Outlets – Used to parallel two inverters together for
increased power output. (parallel kit sold separately).
RECEPTACLES
AA
(2×) 120V AC, 20A (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single phase,
60 Hz electrical loads.
Bt
120V AC, 30A RV (NEMA TT-30R)
May be used to supply electrical power for
operation of 120 Volt AC, 30 Amp, single phase,
60 Hz electrical loads.
Cz12V DC, 8A (Automotive) May be used to supply electrical power for
operation of 12 Volt DC, 8 Amp electrical loads.
WARNING
Do not operate a device while it is plugged into the 12V DC
outlet. When charging a device, do not place on the exhaust
side of the generator. Extreme heat caused by exhaust
can damage the device and cause a potential fire hazard.
Prolonged exposure to engine exhaust can cause serious injury
or death.
1
24
5
63
4
B
A
7
C

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR CONTROLS AND FEATURES
16
MODE DESCRIPTION
Voltage (V)
Output voltage of the generator.
Example: 120 volts
Frequency (H)
Output frequency in hertz.
Example: 60.0 hertz
Run Time (R)
Run time of the generator for the current session.
Example: 6 hours
Total Run Time
Total run time of the generator since first operation.
Example: 16 hours
Power Meter
Power Output percentage.
Example: 100% Output
Intelligauge with Power Meter
The meter is divided into two seperate displays.
The LCD displays each mode for several seconds and then
automatically cycles through.
The Power Meter LED displays output in percent (%) with 100% at
the top.

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR CONTROLS AND FEATURES
17
Wireless Remote Control
This generator is equipped with a wireless remote control system
for starting and stopping. The system consists of (5) main
components:
1. Receiver Control Module (RCM)
2. Remote Control
3. Battery Switch
4. EZ Start Dial
5. Auto-Choke
The Remote Control functions are enabled when:
1. The EZ Start Dial is in the “ON” position, AND
2. The Battery Switch is in the “ON” position.
The Remote Control functions are disabled if either of the above
conditions is not met.
To start the generator wirelessly, press the “START” button on
the Remote Control one time. The engine will attempt to start (6)
times. The RCM controls the Auto-Choke during each attempt
to start. If the generator does not start, call Champion Customer
Care team for assistance at 1-877-338-0999.
To stop the generator wirelessly, press the “STOP” button on the
Remote Control one time.
Remote Control Power Consumption
While the EZ Start Dial is in the “ON” position, the RCM is active
and waiting for a remote signal. This function requires electrical
current from the battery. If the EZ Start Dial is left in the “ON”
position for extended periods (several weeks), the battery can be
completely drained.
Moving the EZ Start Dial to the “OFF” position disables the
Remote functions, but the RCM still consumes approximately
2 mA from the battery.
To prevent battery drain, press the Battery Switch to the “OFF”
position. This disconnects power to the RCM so there is no current
draw on the battery.
FCC Statement for Remote Control Device
1. This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1a. This device may not cause harmful interference.
1b. This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
NOTICE
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and
receiver.
–Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult dealer or an experienced radio/TV technician for help.

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR CONTROLS AND FEATURES
18
Parts Included
Accessories
Engine Oil...................................... 16.9 fl. oz. (500 ml)
Oil Funnel ...........................................................1
Remote Key Fob ....................................................1
Dual Port USB Adapter (5v/2.4A) ..................................1
Tools Included
8/10 mm Wrench...................................................1
Spark Plug Socket..................................................1
Reversible Phillips/Flathead Screwdriver..........................1

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR ASSEMBLY
19
ASSEMBLY
Your generator requires some assembly. It must be properly
serviced with fuel and oil before operation.
If you have any questions regarding the assembly of your
generator, call our Technical Support Team at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. By lifting up on the carrying handles, carefully remove the
generator from the box (two people lifting is recommended).
Remove Shipping Support Hardware
To protect the generator during shipping, support hardware has
been installed between the engine and frame. This hardware
MUST BE REMOVED BEFORE adding oil or gasoline to the
generator.
NOTICE
DO NOT attempt to run generator without first removing the
shipping support hardware. Damage to the generator as a result
of not removing the hardware will void the warranty.
1. BEFORE filling the engine with oil or gasoline, tip the
generator onto the muffler side. Tip onto the flattened
cardboard box the generator came in or other protective
surface so as to not scratch the enclosure.
2. Remove the four nuts and mounting plates from the bottom
side of the generator using the included 8/10 mm wrench.
Nuts and spacers can be discarded.
3. Tip the generator upright.
Connect the Battery
1. Remove the non recoil side maintenance cover by removing
the two screws with a phillips head screw driver
(not included).
2. Push two halves of battery connector together tightly.
Add Engine Oil
CAUTION
DO NOT attempt to crank or start the engine before it has been
properly filled with the recommended type and amount of oil.
Damage to the generator as a result of failing to follow these
instructions will void your warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 10W-30
automotive oil. However, using the listed conventional oils
shown in the “Recommended Engine Oil Type” chart may be
used for typical use including the first 5 hours of the break-in
run time period of the engine.
If running generator in extreme temperatures, refer to the
“Recommended Engine Oil Type” chart.
-20 020 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30

200987 - 4500W WIRELESS REMOTE START INVERTER GENERATOR ASSEMBLY
20
1. Place the generator on a flat, level surface.
2. Turn the oil access cover fastener to the unlocked position
and remove the cover.
3. Remove oil fill cap/dipstick to add oil.
4. Using a funnel, add up to 16.9 fl. oz. (500 ml) of oil (included).
DO NOT OVERFILL. Replace oil fill cap/dipstick and secure
maintenance cover.
5. Check engine oil level before each use and add as needed.
MAX
OIL DIP STICK
MAX
NOTICE
Once oil has been added, a visual check should show oil about
1-2 threads from running out of the fill hole.
When using the dipstick to check oil level, DO NOT screw in
the dipstick while checking.
NOTICE
Check oil level often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary slightly and help seat piston rings.
After the 5 hour break-in period, change the oil.
NOTICE
Synthetic oil may be used after the 5 hour initial break-in
period. Using synthetic oil does not decrease the recommended
oil change interval. Full synthetic 5W-30 oil will aid in starting
in cold ambient < 41º F (5º C) temperatures.
Add Fuel
DANGER
Gasoline vapors are highly flammable and extremely explosive.
DO NOT light or smoke cigarettes. Fire or explosion can cause
severe burns or death.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator. Use an
approved container to transfer the fuel to the generator.
Never use a gasoline container, gasoline tank, or any
other fuel item that is broken, cut, torn or damaged.
DO NOT overfill the gasoline tank. Always keep fuel away from
sparks, open flames, pilot lights, heat and other sources of
ignition.
