Champion Power Equipment 92500 System manual

OWNER’S MANUAL & OPERATING INSTRUCTIONS
25 Ton
LOG SPLITTER
SAVE THESE INSTRUCTIONS
Important Safety Instructions
are included in this manual.
MADE IN CHINA
REV 92500-20140519
92500
MODEL NUMBER
12039 Smith Ave.
Santa Fe Springs CA 90670
USA / 1-877-338-0999
www.championpowerequipment.com

Have questions or need assistance?
Do not return this product to the store!
WE ARE HERE TO HELP!
Visit our website:
www.championpowerequipment.com
for more info:
• Product Info & Updates
• Frequently Asked Questions
• Tech Bulletins
• Product Registration
– or –
Call our Customer Care Team Toll-Free at:
1-877-338-0999
*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.
WARNING:
The Engine Exhaust from this product contains chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm.
AN IMPORTANT MESSAGE ABOUT TEMPERATURE:
Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to
40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to
50°C (122°F) for short periods. If the product is exposed to temperatures outside this range during storage, it should be
brought back within this range before operation. In any event, the product must always be operated outdoors, in a
well-ventilated area and away from doors, windows and other vents.

92500

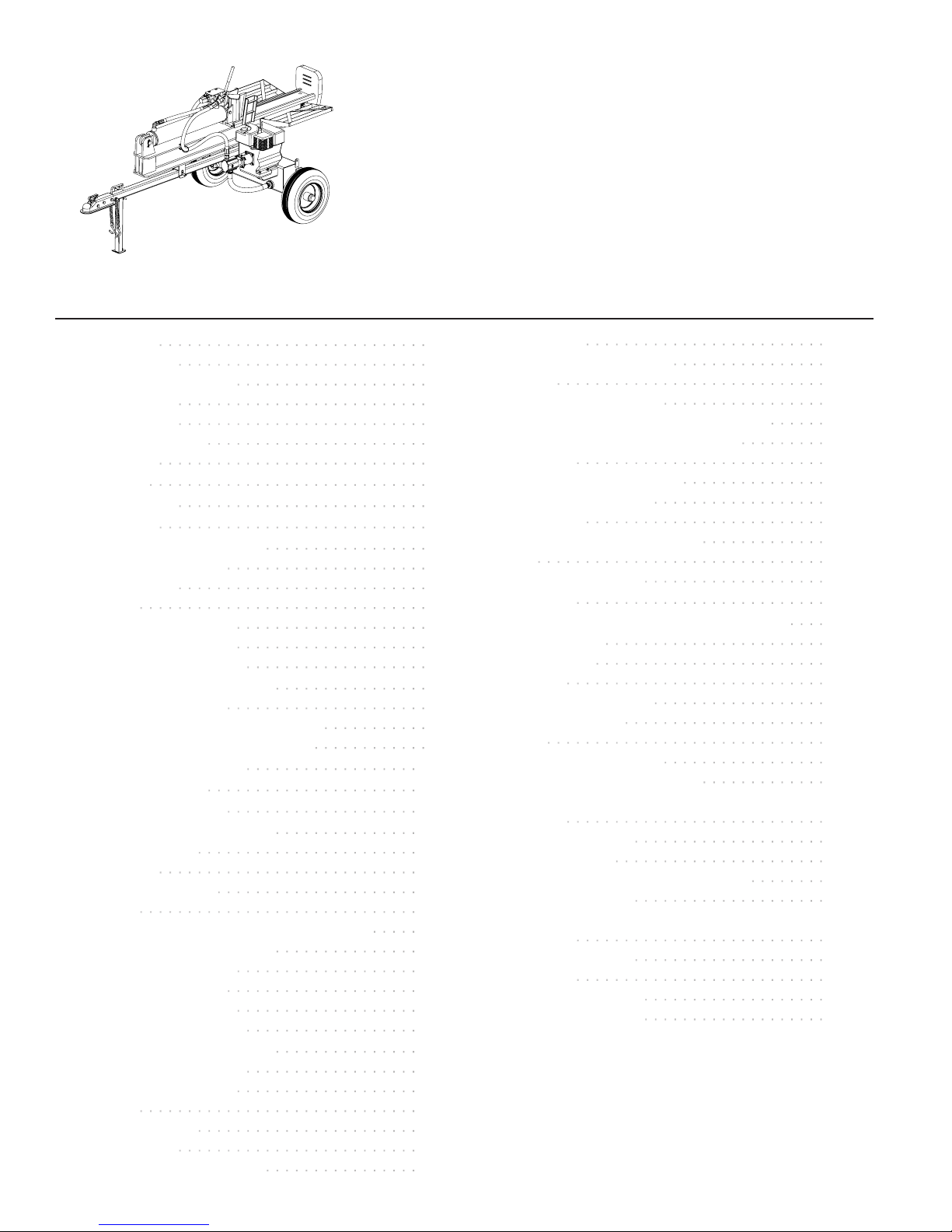

TABLE OF CONTENTS
Introduction ............................ 1
Introduction .......................... 1
Portable Log Splitter .................... 1
Accessories .......................... 1
This Booklet .......................... 1
Manual Conventions....................... 2
Safety Rules ............................ 3
Training ............................. 5
Preparation .......................... 5
Operation ............................ 6
Maintenance and Storage ................. 6
Controls and Features ..................... 7
Log Splitter .......................... 7
Assembly .............................. 8
Open Shipping Crate .................... 8
1) Install the Wheels .................... 8
2) Install the Tow Bar ................... 8
3) Install the Support Leg ................ 8
4) Install the Beam ..................... 9
5) Install the Cylinder and Wedge ........... 9
6) Install the Engine and Hoses ............ 9
High Pressure Hose.................. 10
Suction Hose ...................... 10
Oil Return Hose .................... 10
Install the Log Catchers............... 10
Add Engine Oil ....................... 11
Add Fuel ........................... 11
Add Hydraulic Oil ..................... 12
Operation ............................. 13
Before Each Use Inspect the Log Splitter ..... 13
Towing Log Splitter Safety ............... 13
Log Splitter Location ................... 13
Starting the Engine .................... 14
Stopping the Engine ................... 14
Log Splitter Operation .................. 15
Operation at High Altitude ............... 16
Maintenance and Storage .................. 17
Engine Maintenance ................... 17
Oil ............................. 17
Spark Plugs ....................... 17
Air Filter ......................... 17
Log Splitter Maintenance ................ 17
Cleaning ......................... 18
Maintenance Schedule................ 18
Storage ............................ 18
Log Splitter Storage ................. 18
Engine stored for Less than 30 Days ...... 18
Engines Stored for Over 30 Days......... 18
Specifications .......................... 19
Log Splitter Specifications ............... 19
Engine Specifications .................. 19
Spark Plugs ......................... 19
Maintenance Valve Clearance ............. 19
Fuel .............................. 19
Hydraulic Oil System ................... 19
Engine Oil .......................... 19
An Important Message About Temperature .... 19
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . 20
Parts Diagram........................ 21
Parts List ........................... 22
Engine Parts Diagram .................. 23
Engine Parts List ..................... 24
Warranty ............................. 25
Warranty Qualifications ................. 25
Repair/Replacement Warranty ............. 25
Do Not Return The Unit To The Place Of
Purchase ........................... 25
Warranty Exclusions. . . . . . . . . . . . . . . . . . . . 25
Normal Wear ...................... 25
Installation, Use and Maintenance........ 25
Other Exclusions.................... 25
Limits of Implied Warranty and Consequential
Damage.......................... 25
Contact Information.................... 25
Address .......................... 25
Customer Service ................... 25
Technical Service ................... 25
25 Ton
LOG SPLITTER

1REV 92500-20140519
ENGLISH 92500
INTRODUCTION
Introduction
Congratulations on your purchase of a Champion
Power Equipment log splitter. CPE designs and builds
log splitters to strict specifications. With proper use
and maintenance, this log splitter will bring years of
satisfying service.
Portable Log Splitter
This unit is a gasoline engine driven hydraulic log splitter.
It is designed to split wood logs for use as fire wood for
a stove or fire place. This log splitter will only split logs
lengthwise, with the grain only.
Record the model and serial numbers as well as date and place of purchase for future reference. Have this information
available when ordering parts and when making technical or warranty inquiries.
Accessories
Champion Power Equipment manufactures and sells
accessories designed to help you get the most from your
purchase. To find out more please visit our website at:
www.championpowerequipment.com
This Booklet
Every effort has been made to ensure the accuracy and
completeness of the information in this manual. We reserve
the right to change, alter and/or improve the product and
this document at any time without prior notice.
Champion Power Equipment Support
Model Number
Serial Number
Date of Purchase
Purchase Location
1-877-338-0999
92500
For Oil Type see “Add Engine Oil” section. For Fuel Type see “Add Fuel” section.

REV 92500-20140519 2
92500 ENGLISH
MANUAL CONVENTIONS
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
CAUTION
This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol
is used with a key word to alert you to potential hazards in operating and owning power equipment.
Follow all safety messages to avoid or reduce the risk of serious injury or death.
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
DANGER
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
WARNING
If you have questions regarding your log splitter, we can
help. Please call our help line at 1-877-338-0999
NOTE

3REV 92500-20140519
ENGLISH 92500
SAFETY RULES
Log Splitter engine exhaust contains carbon
monoxide, a colorless, odorless, poison gas.
Breathing carbon monoxide will cause nausea,
dizziness, fainting or death. If you start to feel dizzy
or weak, get to fresh air immediately.
Rotating parts can entangle hands, feet, hair,
clothing and/or accessories. Traumatic amputation or
severe laceration can result.
DANGER
DANGER
Operate log splitter outdoors only in a well
ventilated area. DO NOT operate the log splitter
inside any building, enclosure or compartment.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other
openings. DANGER CARBON MONOXIDE, using a
log splitter indoors CAN KILL YOU IN MINUTES.
Keep hands and feet away from rotating parts. Tie up
long hair and remove jewelry. Operate equipment with
guards in place. DO NOT wear loose-fitting clothing,
dangling drawstrings or items that could become
caught.
The engine exhaust from this product contains
chemicals known to the state of California to cause
cancer, birth defects, or other reproductive harm.
Read this manual thoroughly before operating your
log splitter. Failure to follow instructions could result
in serious injury or death.
WARNING
WARNING
Sparks can result in fire or electrical shock.
DANGER
When servicing the engine:
Disconnect the spark plug wire and place it where
it cannot contact the plug. DO NOT check for spark
with the plug removed. Use only approved spark
plug testers.
Running engines produce heat. Severe burns can
occur on contact. Combustible material can catch
fire on contact.
DO NOT touch hot surfaces. Avoid contact with
hot exhaust gases. Allow equipment to cool before
touching. Maintain at least 3 in. (91.4 cm) of
clearance on all sides to ensure adequate cooling.
Maintain at least 5 in. (1.5 m) of clearance from
combustible materials.
Crush Hazard
Wedge can cut through skin and break bones. Keep
all limbs away from wedge and endplate.
WARNING
WARNING
Projectile Hazard
Pieces of log may be ejected from the splitter while
operating. Wear ANSI approved safety glasses when
operating. Be alert.
WARNING
Keep Operator Work Zone Clear
Keep work zone clear of debris while working to
ensure safe footing.
WARNING
Operation of this equipment may create sparks that
can start fires around dry vegetation.
A spark arrestor may be required. The operator
should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
WARNING

REV 92500-20140519 4
92500 ENGLISH
SAFETY RULES
Fuel and fuel vapors are highly flammable and
extremely explosive.
Fire or explosion can cause severe burns or death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
DANGER
When adding or removing fuel:
Turn the engine off and let it cool for at least two
minutes before removing the fuel cap. Loosen the
cap slowly to relieve pressure in the tank.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gas directly into the engine at the
gas station. Use an approved container to transfer
the fuel to the engine.
DO NOT overfill the fuel tank.
Always keep fuel away from sparks, open flames,
pilot lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.
When starting the engine:
DO NOT attempt to start a damaged engine. Make
certain that the gas cap, air filter, spark plug,
fuel lines and exhaust system are properly in
place. Allow spilled fuel to evaporate fully before
attempting to start the engine.
Make certain that the log splitter is resting firmly on
level ground.
When operating the log splitter:
DO NOT move or tip the log splitter during
operation.
DO NOT tip the log splitter or allow fuel or oil to
spill from the engine. Block the wheels to prevent
unintended movement.
When transporting or servicing the log splitter:
Make certain that the fuel shutoff valve is in the off
position and the fuel tank is empty.
Disconnect the spark plug wire.
When storing the log splitter:
Store away from sparks, open flames, pilot lights,
heat and other sources of ignition.
In most states towing on public streets is either
prohibited or would require further licensing
or modifications. Please check with your local
authorities or DMV regarding regulations, restrictions
and registration.
WARNING
Skin Injection Hazard. High pressure hydraulic oil
can inject under your skin.
DANGER
Make sure all fittings are tightly secure before
applying pressure. Relieve system of pressure
before servicing.
Towing Hazard
ALWAYS check all local and state regulations
regarding towing, licensing and lights before towing
your log splitter. Review towing safety warnings in
your towing vehicle manual.
Drive safely. Be aware of the added length of the
log splitter. NEVER ride or transport cargo on the
log splitter. Choose a level surface to operate the
log splitter.
NEVER EXCEED MAX. Towing Speed 45 MPH (72
KPH)
WARNING
Rapid retraction of the starter cord will pull hand and
arm towards the engine faster than you can let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to avoid
kickback.
WARNING
Improper treatment or use of the log splitter can
damage it, shorten its life and void your warranty.
Use the log splitter only for intended uses. Operate
only on level surfaces. DO NOT expose log splitter
to excessive moisture, dust, or dirt.
DO NOT allow any material to block the cooling
slots. DO NOT use the engine if:
– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively
CAUTION
Parts of the hydraulic circuit (cylinder, pump, valve-
body, hoses) can become very hot during operation.
CAUTION

5REV 92500-20140519
ENGLISH 92500
Training
1. Read the Operator’s Manual completely before
attempting to use this log splitter.
2. Do not allow anyone to operate your log splitter who
has not read the Operator’s Manual or has not been
instructed on the safe use of the log splitter.
3. Never allow children or untrained adults to operate
this machine.
4. Many accidents occur when more than one (1)
person operates the log splitter. If a helper is
assisting in loading logs to be split, never actuate
controls until helper is clear of the area.
5. Never allow anyone to ride on the machine.
6. Never transport cargo on the log splitter.
7. High fluid pressures are developed in hydraulic
log splitters. Pressurized hydraulic fluid escaping
through a pin hole opening can puncture skin
and cause sever blood poisoning. Therefore, the
following instructions should be heeded at all times.
a. Do not operate the unit with frayed, kinked,
cracked or damaged hoses, fittings, or tubing.
b. Stop the engine and relieve hydraulic system
pressure before changing or adjusting fittings,
hoses, tubing, or other system components.
c. Do not adjust the pressure settings of the pump
or valve.
d. Do not check for leaks with your hand. Leaks
can be detected by passing cardboard or wood
over the suspected area. Look for discoloration.
If injured by escaping fluid, see a doctor at
once. Serious infection or reaction can develop
if proper medical treatment is not administered
immediately.
8. Keep the operator zone and adjacent area clear for
safe, secure footing.
9. If your log splitter is equipped with an internal-
combustion engine and intended for use near any
unimproved forest, brush, or grass covered land,
the engine exhaust should be equipped with a spark
arrestor. Make sure you comply with local, state,
and federal codes. Take appropriate fire-fighting
equipment with you.
10. Log splitters should be used only for splitting
wood. Do not use for other purposes unless the
manufacturer provides attachments and instructions.
SAFETY RULES
Preparation
1. Be thoroughly familiar with all controls and with
proper use of the equipment.
2. Safety Gear:
a. Always wear safety shoes or heavy boots when
operating the machine.
b. Always wear safety glasses or goggles when
operating the machine.
c. Never wear jewelry or loose-fitting clothing that
might become entangled in moving or rotating
parts of the machine.
3. Make sure the splitter is on a level surface. Block
tires and ensure support leg is secure to prevent
unintended movement of the log splitter during
operation.
a. Always operate the splitter from the
manufacturer’s indicated operator zone.
4. Logs to be split on ram-type units should be cut as
squarely as possible.
5. Fuel:
a. Use an approved fuel container.
b. Never add fuel to a running or hot engine.
c. Fill fuel tank outdoors with extreme care. Never
fill fuel tank indoors.
d. Replace gasoline cap securely and clean up any
spilled fuel.

REV 92500-20140519 6
92500 ENGLISH
SAFETY RULES
Maintenance and Storage
1. Always shut off the power source while repairing or
adjusting the splitter except as recommended by the
manufacturer.
2. Clean debris and chaff from the engine cylinder,
cylinder head fins, recoil starter cover, and muffler
areas. If the engine is equipped with a spark
arrestor muffler, clean and inspect it regularly
(follow manufacturer’s service instructions).
Replace, if damaged.
3. Never store the unit indoors with fuel in the tank.
Fumes might reach an open flame spark. Allow the
engine to cool before storing in any enclosure.
4. Clear debris from moveable parts, but only when the
power source is shut off.
5. Check to be sure all nuts and bolts are tight to
assure the equipment is in safe working condition.
Operation
1. Before starting this log splitter, review all safety
rules. Failure to follow these rules may result in
serious injury to the operator or bystanders.
2. Be sure to confirm all hose connections and hose
clamps are tight before each use. It is possible for
connections to vibrate loose over time.
3. Never leave the machine unattended with the power
source operating.
4. Never operate the machine when under the
influence of alcohol, drugs or medication.
5. The machine owner should instruct all operators in
safe log splitter operation.
6. Always operate the log splitter with all safety
equipment in place and all controls properly
adjusted for safe operation.
7. Always operate the log splitter at manufacturer’s
recommended speed.
8. Always keep hands and feet clear of moving parts.
9. When loading a ram-type log splitter, place your
hands on the sides of the log, not the ends. Never
place your hands or any part of your body between a
log and any part of the log splitter.
10. On ram-type log splitters, never attempt to split
more than one (1) log at a time unless the ram has
been fully extended and a second log is needed to
complete the separation of the first log.
11. On ram-type log splitters on which the logs are not
cut square, the longest portion of the log should be
rotated down and the most square end placed against
the ram.
12. Use only your hand to operate the log splitter
controls.
13. Do not refuel the engine until it has cooled for several
minutes.

7REV 92500-20140519
ENGLISH 92500
CONTROLS AND FEATURES
Read this owner’s manual before operating your log splitter. Familiarize yourself with the location and function of the
controls and features. Save this manual for future reference.
(1) 2 in. (5.1 cm) Ball Coupler – For towing the log
splitter behind your vehicle.
(2) Mounting Plates – Holds hydraulic cylinder in
place.
(3) Hydraulic Cylinder – 4 in. bore (10.2 cm) x 22.6
in. (57.5 cm) stroke. Rated to 3900 psi.
(4) Control Valve Handle – Controls the movement of
the cutting wedge.
(5) Wedge
(6) Splitting Beam
(7) Engine – 224cc, OHV.
(8) Tires – Maximum travel speed is 45 MPH (72 KPH).
(9) Hydraulic Pump – Pumps hydraulic oil through the
system.
(10) Beam Lock Pin – Secures in either horizontal or
vertical position.
(11) Beam Bracket – Holds splitting beam in place.
(12) Support Leg – Supports log splitter while
operating. Raise leg for towing.
(13) Safety Chains – For use while towing.
(14) Log Cradle – Prevents logs from rolling off beam.
(15) Log Catchers
Log Splitter
1
3
5
6
9
10
11
7
12
8
13
4
2
14
15

REV 92500-20140519 8
92500 ENGLISH
28
21
22
20
62
4
5
64
12.5
其余
ASSEMBLY
Your log splitter requires some assembly.
If you have any questions regarding the assembly of your
log splitter, call our help line at 1-877-338-0999. Please
have your serial number and model number available.
Open Shipping Crate
1. Set the shipping crate on a solid, flat surface
2. Carefully cut the shipping bands and remove lid of
shipping crate.
3. Locate all hardware before beginning assembly.

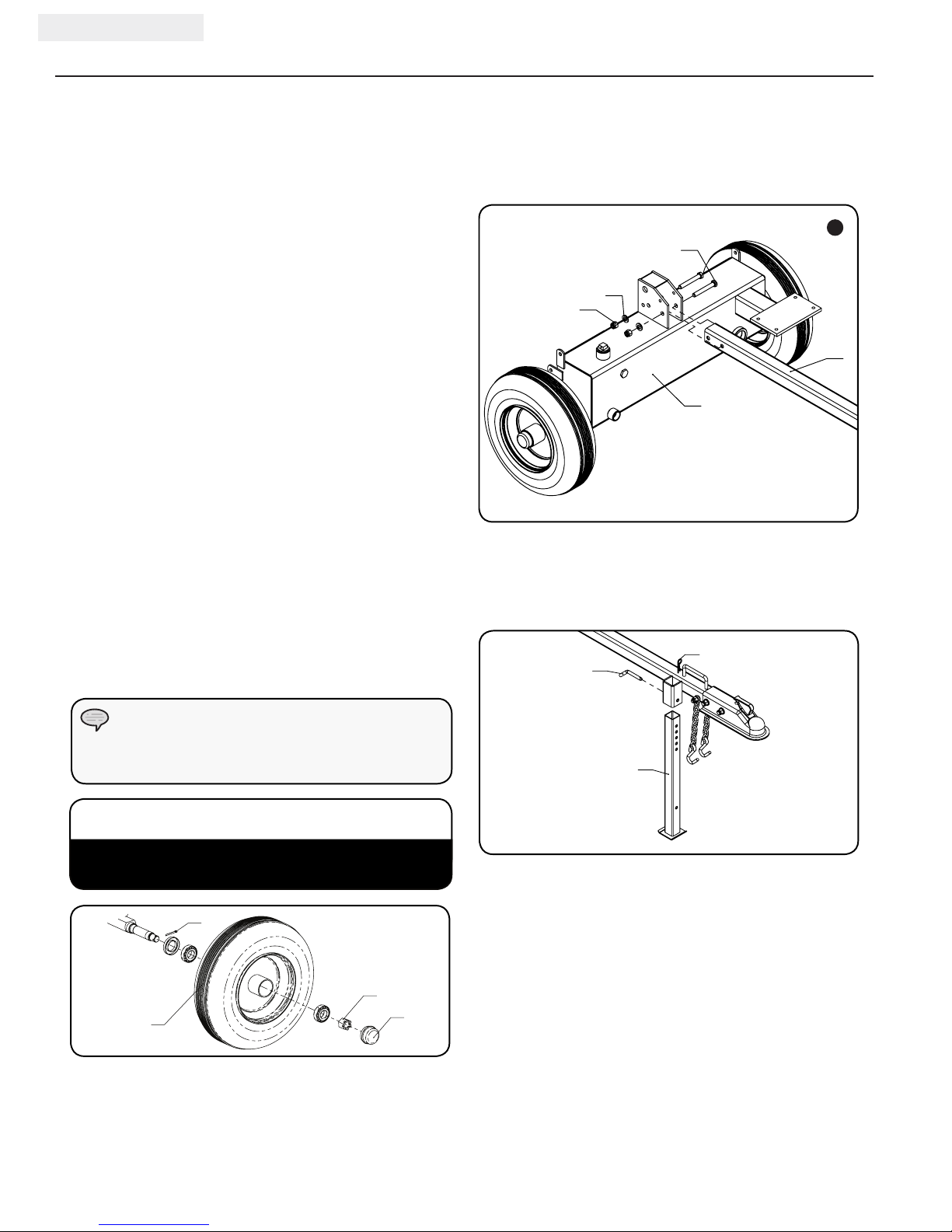

2) Install the Tow Bar
1. Attach the tow bar (20) to the bracket on top of the
hydraulic oil tank (62) with two M12x85 bolts (64),
M12 washers (4) and M12 lock nuts (5). (A)
1) Install the Wheels
1. Remove the two plastic shipping caps from the wheel
hubs.
2. Slide the wheel (59) onto the axle.
a. Be sure the tire valve stem is facing out.
3. Thread the castle nut (57) on the axle and tighten by
hand. Use a wrench to tighten another ¼ turn.
4. Spin the wheel (59) to distribute the bearing grease.
5. Loosen the castle nut (57) and re-tighten by hand.
6. Install the cotter pin (61) through the axle and castle
nut. (57)
7. Check to be sure the wheel (59) spins freely.
8. Install the axle cap (56) using a soft face mallet or
hammer and wood block.
9. Repeat for the other wheel.
3) Install the Support Leg
1. Insert the support leg (28) into the leg holder on the
tow bar and secure with pin (21) and R-pin (22).
Keep dirt and debris away from the wheel bearings
during assembly.
NOTE
28
21
22
20
62
4
5
64
12.5
其余
A
Over-tightening the castle nut will cause the
bearings to run hot and fail prematurely.
CAUTION
59
61
57
56

9REV 92500-20140519
ENGLISH 92500

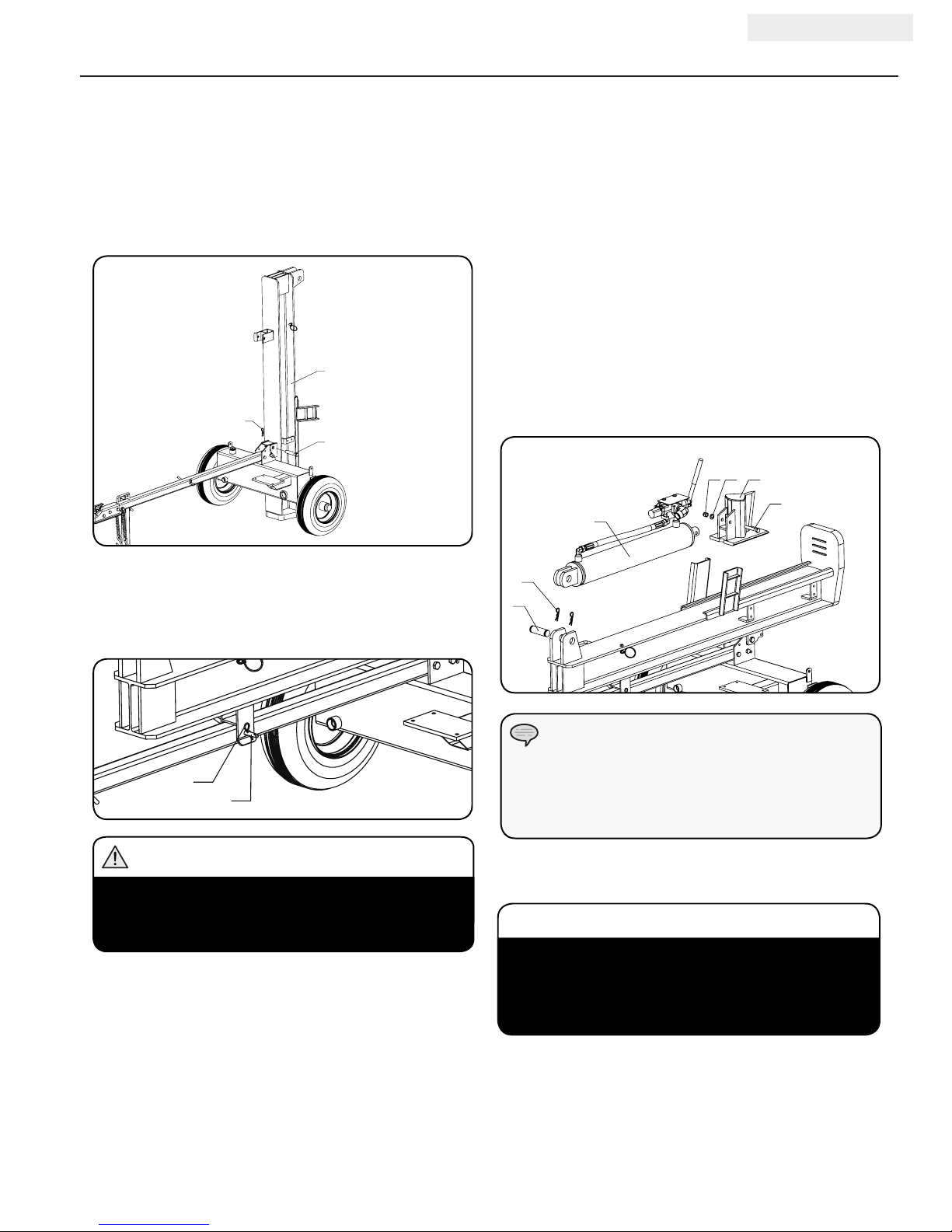

5) Install the Cylinder and Wedge
1. Slide the wedge (3) under the beam rails. Push
it toward the foot plate to make room for the
cylinder (16).
2. Position the cylinder clevis between the mounting
plates at the end of the beam.
3. Align the holes in the cylinder clevis to the holes on
the mounting channels on the beam.
4. Slide the cylinder pin (17) through the mounting
channel and cylinder clevis holes and secure with
the two R-clips (18).
5. Align the holes in the cylinder rod end with the
holes in the wedge.
6. Secure the cylinder rod end to the wedge with the
bolt (2), washer (4) and lock nut (5). Tighten, but
DO NOT over tighten.
ASSEMBLY
63
18
1
12.5
其余
3
16
22
67
2
5 4
3
16
17
18
2
5 4
12.5
其余
1. Attach the engine/pump to the engine mounting plate on
the hydraulic oil tank. (A) Secure with hardware provided.
2. Place O-ring into the outlet fitting on the top of the
pump. (A)
3. Connect hose to control valve first, then connect
the other end to the pump. Connect one end of the
4. Block the wheels to prevent the frame from rolling.
5. Pivot the beam to the horizontal position and secure
it with the lock pin (67) and R-clip (22) through the
tow bar.
The cylinder rod may need to be rotated slightly
in order to properly align the wedge. Insert a
screwdriver into the bolt hole in the cylinder rod
and slowly rotate as needed.
NOTE
4) Install the Beam
1. Stand the beam (1) vertical on the foot plate.
2. Roll the tank into position so the pivot holes of the
tank and beam are aligned.
3. Insert the pivot pin (63) and secure it with the
R-clip (18).
The beam is extremely heavy and should only be
handled with 2 or more people. DO NOT try and lift
or handle the beam without assistance.
WARNING 6) Install the Engine and Hoses
The red shipping plug on the hydraulic pump needs
to be removed before installing the clear pump inlet
hose to the pump.
Failure to remove the red shipping plug may result
in pump damage, property damage or injury.
CAUTION

REV 92500-20140519 10
92500 ENGLISH
ASSEMBLY
6) Install the Engine and Hoses Cont’d. 6) Install the Engine and Hoses Cont’d.
high pressure hose to the pump outlet fitting and the
other end to the inlet on the control valve. (B)
The swivel nut end of the high pressure hose
connects to the pump outlet.
NOTE
C
B
A
High Pressure Hose
– This is the only hose with steel connectors crimped on
both ends.
– One end connects to the control valve (sealed with
teflon tape).
– Other end connects to the top of the pump (sealed by
O-Ring).
– Because of the male/female ends, this hose only fits
the correct way.
Suction Hose
– This is the clear hose that connects the hydraulic tank
to the pump inlet.
– Both ends of the hose are secured with hose clamps.
Oil Return Hose
– This hose returns the oil exiting the cylinder to the tank
– It has no connectors crimped onto it.
– The hose ends push over barbed fittings on the control
valve and the oil filter.
– Both ends are secured with hose clamps.
– Notice how the hose is placed through the retainer
ring on the beam. This holds the hose close to the
frame so it does not flop out beyond the wheels (and
catch on things while towing).
4. Connect one end of the clear oil hose to the hydraulic
oil tank just beneath the engine and the other end to
the pump inlet on the bottom of the pump. (C)
D
E
The pump outlet connection does NOT require teflon
tape. The o-ring seals against the face of the fittings on
the pump and hose. Tighten to approximately 12 ft-lb.
Over-tightening can damage the pump.
NOTE
1. Attach log catcher (71) to side of beam with four
M10x15 bolts (74), four M10 lock washers (73), and
four M10 washers (72).
2. Repeat step 1 for the other side.
7) Install the Log Catchers
72
74
73
71
5. Install the hose retaining ring to the side of the
splitting beam. (D)
6. Place the oil return hose through the retaining ring
and connect it to the barb fitting on the control valve.
Connect the other end of the hose to the barb fitting
on the oil filter. (E)

11 REV 92500-20140519
ENGLISH 92500
ASSEMBLY
The recommended oil type is 10W-30 automotive
oil.
NOTE
Weather will affect engine oil and engine
performance. Change the type of engine oil used
based on weather conditions to suit the engine
needs.
NOTE
The engine is equipped with a low oil shut-off and
will stop when the oil level in the crankcase falls
below the threshold level.
CAUTION
Add Engine Oil
1. Make sure the log splitter is on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Add upto 0.6 qt. (0.6 L) of oil (SAE 10W-30) - oil
should cover all but 2 threads of filler hole. Replace
oil fill cap/dipstick. DO NOT OVERFILL.
4. Check engine oil level daily and add as needed.
DO NOT attempt to crank or start the engine before
it has been properly filled with the recommended
type and amount of oil. Damage to the log splitter
as a result of failure to follow these instructions will
void your warranty.
CAUTION
Check oil often during the break-in period. Refer to
the Maintenance section for recommended service
intervals.
NOTE
Add Fuel
1. Use clean, fresh, regular unleaded fuel with a
minimum octane rating of 85 and an ethanol
content of less than 10% by volume.
2. DO NOT mix oil with fuel.
3. Clean the area around the fuel cap.
4. Remove the fuel cap.
5. Slowly add fuel to the tank. DO NOT OVERFILL.
Fuel can expand after filling. A minimum of ¼
in. (6.4 mm) of space left in the tank is required
for fuel expansion, more than ¼ in. (6.4 mm) is
recommended. Fuel can be forced out of the tank
as a result of expansion if it is overfilled, and can
affect the stable running condition of the product.
When filling the tank, it is recommended to leave
enough space for the fuel to expand.
Pouring fuel too fast through the fuel screen may
result in blow back of fuel at the operator while
filling.
WARNING
6. Screw on the fuel cap and wipe away any spilled
fuel.

REV 92500-20140519 12
92500 ENGLISH
ASSEMBLY
When temperature is below 32º F (0ºC) Automatic
Transmission Fluid (Dexron-III or similar).
NOTE
DO NOT remove the hydraulic oil fill cap when the
engine is running or hot. Hot oil can escape causing
severe burns. Always allow the log splitter to cool
completely before removing the hydraulic oil cap.
High fluid pressure and temperatures are created
in the hydraulic log splitters. Hydraulic fluid will
escape through a pin-size hole opening and can
puncture skin and cause severe blood poisoning.
Inspect hydraulic system regularly for possible
leaks. Never check for leaks with your hand while
the system is pressurized. Seek medical attention
immediately if injured by escaping fluid.
WARNING
Add Fuel Cont’d.
Our engines work well with 10% or less ethanol
blend fuels. When using blended fuels there are
some issues worth noting:
– Ethanol-gasoline blends can absorb more water
than gasoline alone.
– These blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor.
– With gravity-fed fuel supplies, this compromised
fuel can be drawn into the carburetor and cause
damage to the engine and/or potential hazards.
– There are only a few suppliers of fuel stabilizer
that are formulated to work with ethanol blend
fuels.
– Any damages or hazards caused by using
improper fuel, improperly stored fuel, and/
or improperly formulated stabilizers, are not
covered by manufacture’s warranty.
It is advisable to always shut off the fuel supply,
run the engine to fuel starvation and drain the tank
when the equipment is not in use for more than 30
days.
NOTE
Use regular unleaded gasoline with a minimum
octane rating of 85.
Do not mix oil and gasoline.
Fill tank to approximately ¼ in. (6.4 mm) below the
top of the tank to allow for fuel expansion.
DO NOT pump gas directly into the tank at the gas
station. Use an approved container to transfer the
fuel to the tank.
DO NOT fill fuel tank indoors.
DO NOT fill fuel tank when the engine is running or hot.
DO NOT overfill the fuel tank.
DO NOT light cigarettes or smoke when filling the
fuel tank.
CAUTION
Add Hydraulic Oil
A
B
1. Make sure the log splitter is on a flat, level surface.
2. Remove the oil plug from the oil tank. (A)
3. Add 4 gal. (15.1 L) of hydraulic oil - see
specification section for types of acceptable oil.
4. Check the hydraulic oil level using the oil sight glass.
Oil level should visibly fill the glass sight. (B)
5. Replace and tighten the oil plug and orient the vent
hole away from the operator zone.
6. Start Engine. Extend and retract the wedge to purge
air from the hydraulic system. When the wedge
motion is smooth, the system is properly purged.
7. Check the hydraulic oil tank sight glass. Add
approximately 1 gallon of hydraulic oil to bring the
level back up to the sight glass.
8. Check oil level daily and add as needed.

13 REV 92500-20140519
ENGLISH 92500
OPERATION
Before Each Use Inspect the Log Splitter
1. Check the hydraulic oil level and visually inspect all
hoses, attachments and cylinder for loose fittings,
leaks, cracks, fraying or other damage.
2. DO NOT operate the log splitter if there is any
indication of damage.
3. Inspect the engine and make sure the oil level is
correct before operating. If the engine is equipped
with a spark arrestor, clean and inspect it regularly
(follow spark arrestor maintenance schedule).
4. The tires need to be fully inflated and in good repair.
Reference the tire sidewall for recommended tire
pressure.
Towing Log Splitter Safety
1. Always check local and state regulations regarding the
requirements for towing, licensing and lights.
2. Before towing make sure the log splitter is correctly
and securely attached to the vehicle and the safety
chains attached with enough slack to allow for turning.
3. Support leg must be pinned in the “UP” position for
towing.
4. Never exceed the max. travel speed of 45 mph (72
kph). Towing the log splitter at speeds greater than 45
mph (72 kph) could result in serious injury or death.
Always adjust your towing speed according to the
terrain and conditions.
5. Always disconnect the log splitter from the towing
vehicle before operating.
Log Splitter Location
This log splitter must have at least seven feet of
clearance from combustible material. Leave at least
three feet of clearance on all sides of the log splitter to
allow for adequate cooling, maintenance and servicing.
DO NOT place the log splitter near vents or intakes
where engine exhaust fumes could be drawn into
occupied or confined spaces. ONLY operate the log
splitter outdoors.
DO NOT over inflate tires. Serious injury can result
if tires explode.
DO NOT tow the log splitter if the tires are worn or
will not hold air.
DO NOT exceed the maximum 45 MPH (72 KPH)
towing speed.
WARNING
Vertical Operating
Position
W
o
r
k
Z
o
n
e
Horizontal Operating
Position
W
o
r
k
Z
o
n
e
Log Splitter Location Cont’d.
For Vertical Operation:
– Remove the beam lock-pin from the beam
bracket
– Use handle on cylinder to rotate beam to vertical
position
– Insert beam lock-pin in the pivot bracket
NOTE
The log splitter needs to be on a dry level surface with
good footing. DO NOT work on mud, ice, tall grass,
brush or snow.
Only operate log splitter from work zone shown below.

REV 92500-20140519 14
92500 ENGLISH
OPERATION
ALWAYS use the log splitter for its intended use. The
log splitter should only be used to split wood logs,
length wise with the grain.
NEVER modify, alter or change the log splitter in
anyway. Modifications will void the warranty.
NEVER attach a rope, cable or other device to the
control lever on the log splitter.
DO NOT modify or change the engine and operating
speeds or pressure settings. These changes can
cause safety issues.
ONLY operate the log splitter in daylight.
NEVER operate, or let anyone else operate, the log
splitter while under the influence of alcohol, drugs,
or medication.
NEVER leave the log splitter unattended while the
engine is running.
DO NOT change the splitting position with the engine
running. Contact with the muffler can cause serious
burns.
Always make sure the beam is in the locked position.
DO NOT let the beam drop as it could crush fingers
or cause damage to the log splitter.
WARNING
Log Splitter Location Cont’d. Starting the Engine Cont’d.
Starting the Engine
1. Make certain the log splitter is on a flat, level
surface.
2. Flip engine switch to “ON” position (Item A).
3. Rotate the fuel valve to the “ON” position (Item B).
4. Move the throttle lever (Item C) to the “Fast”
position.
5. Move the choke lever (Item D) to the “Choke”
position.
6. Pull the starter cord slowly until resistance is felt and
then pull rapidly. SEE NOTE BELOW.
7. As engine warms up, move the choke lever (Item D)
to “Run.”
If the engine starts but does not run make certain
that the log splitter is on a flat, level surface. The
engine is equipped with a low oil sensor that will
prevent the engine from running when the oil level
falls below a critical threshold.
NOTE
A
B
C
D
Keep choke lever in “Choke” position for 2 pulls
of the recoil starter. After second pull, move choke
lever to the “Run” position for up to the next 3
pulls of the recoil starter. Too much choke leads to
spark plug fouling/engine flooding due to the lack of
incoming air. This will cause the engine not to start.
NOTE
Stopping the Engine
1. Turn the fuel knob to the “Off” position. (B)
2. Let the engine run until fuel starvation has stopped
the engine. This usually takes a few minutes.
3. Turn the engine switch to the “Off” position. (A)
Important: Always ensure that the Fuel Valve and the
Engine Switch are in the “OFF” position when the
engine is not in use.
If the engine will not be used for a period of two (2)
weeks or longer, please see the Storage section for
proper engine and fuel storage.
NOTE

15 REV 92500-20140519
ENGLISH 92500
OPERATION
Log Splitter Operation
1. ALWAYS wear ear and eye protection, protective clothing
and safety gear.
Log Splitter Operation Cont’d.
HORIZONTAL position is used for lighter logs that
can easily be loaded onto the beam.
VERTICAL position is used for light logs as well as
heavy logs that are difficult to load onto the beam.
Back injury can result from lifting logs onto the log
splitter if proper lifting techniques are not used.
NOTE
It is normal for the hydraulic fluid to appear foamy/
frothy during operation. This can be caused by
agitated oil in the tank collecting air.
NOTE
If a log gets stuck, embedded or will not split
completely, push the control handle in the reverse
direction and allow the splitter to strip the log from
the wedge.
ALWAYS keep hands clear of the log and wedge
while it is retracting.
NOTE
2. Block tires and ensure support leg is secure to
prevent unintended movement of the log splitter
during operation.
3. Set log splitter in either the horizontal or vertical
position.
4. Load a log onto the beam against the end plate
(MAX LOG LENGTH – 23.8 in. [60.3 cm]).
5. Make sure all limbs are clear of crush zones.
6. Push the control valve handle forward (towards the
end plate) to split the log.
7. Push the auto control valve handle backward to
return the wedge to its original position.
8. Clear the split wood from the work zone.
The cylinder stroke is designed so the wedge stops
approximately 1.5 in. (3.8 cm) from the end plate.
NOTE

REV 92500-20140519 16
92500 ENGLISH
OPERATION
Operation at High Altitude
The density of air at high altitude is lower than at sea
level. Engine power is reduced as the air mass and
air-fuel ratio decrease. Engine power and output will
be reduced approximately 3½% for every 1000 feet of
elevation above sea level. This is a natural trend and
cannot be changed by adjusting the engine. At high
altitudes increased exhaust emissions can also result
due to the increased enrichment of the air fuel ratio.
Other high altitude issues can include hard starting,
increased fuel consumption and spark plug fouling.
To alleviate high altitude issues other than the natural
power loss, Champion Power Equipment can provide a
high altitude carburetor main jet. The alternative main
jet and installation instructions can be obtained by
contacting Customer Support. Installation instructions
are also available in the Technical Bulletin area of the
Champion Power Equipment internet site.
The part number and recommended minimum altitude
for the application of the high altitude carburetor main
jet is listed in the table below.
In order to select the correct high altitude main jet
it is necessary to identify the carburetor model. For
this purpose, a code is stamped on the side of the
carburetor. Select the correct main jet part number
corresponding to the carburetor code found on your
particular carburetor.
Operation using the alternative main jet at
elevations lower than the recommended minimum
altitude can damage the engine. For operation at
lower elevations, the standard main jet must be
used. Operating the engine with the wrong engine
configuration at a given altitude may increase
its emissions and decrease fuel efficiency and
performance.
WARNING
Carburetor
Code Main Jet Part Number Altitude
P19-1-Z
Standard 2 6 .1 310 17. 0 0 . Z
3500 Feet
(1067 Meters)
Altitude 26.131017.00.01.Z
P19-1-Y
Standard 2 6.1 31017. 0 0.Y
Altitude 26.131017.00.01.Y
P19-1-H
Standard 2 6.1 31017. 0 0. H
Altitude 26.131017.00.01.H

17 REV 92500-20140519
ENGLISH 92500
MAINTENANCE AND STORAGE
The owner/operator is responsible for all periodic
maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the log splitter.
Improper maintenance will void your warranty.
For service or parts assistance, contact our help line
at 1-877-338-0999.
NOTE
Never operate a damaged or defective log splitter.
WARNING
WARNING
Engine Maintenance
To prevent accidental starting, remove and ground spark
plug wire before performing any service.
Oil
Change oil when the engine is warm. Refer to the oil
specification to select the proper grade of oil for your
operating environment.
1. Remove the oil drain plug with a 12 mm socket and
extension.
2. Allow the oil to drain completely.
3. Replace the drain plug.
4. Remove oil fill cap/dipstick to add oil.
5. Add up to 0.6 qt. (0.6 L) of oil and replace oil fill
cap/dipstick. DO NOT OVERFILL.
6. Dispose of used oil at an approved waste
management facility.
Spark Plugs
1. Remove the spark plug cable from the spark plug.
2. Inspect the electrode on the plug. It must be clean
and not worn to produce the spark required for
ignition.
3. Make certain the spark plug gap is 0.7 - 0.8 mm
(0.028 - 0.031 in.).
Log Splitter Maintenance
Make certain that the log splitter is kept clean and stored
properly. Only operate the unit on a flat, level surface in
a clean, dry operating environment. DO NOT expose the
unit to extreme conditions, excessive dust, dirt, moisture
or corrosive vapors.
Inspect all air vents and cooling slots to ensure that they
are clean and unobstructed.
Check and tighten all bolts and nuts before operating the
log splitter.
Be sure to confirm all hose connections and hose clamps
are tight before each use. It is possible for connections
to vibrate loose over time.
Air Filter
1. Using your fingers, unscrew the thumb screws of
the top holes of the air filter cover.
2. Remove the plastic outer casing.
3. Remove the foam element.
4. Wash in liquid detergent and water. Squeeze
thoroughly dry in a clean cloth.
5. Saturate in clean engine oil.
6. Squeeze in a clean, absorbent cloth to remove all
excess oil.
7. Place the filter in the assembly.
8. Reattach the air filter cover and using your fingers,
insert the thumb screws into the top and bottom
holes of the air filter cover. Screw until tight. Be sure
not to over tighten.
4. Refer to the spark plug recommendation chart when
replacing the plug.
5. Carefully thread the plug into the engine.
6. Use the spark plug tool to firmly install the plug.
7. Attach the spark plug wire to the plug.
0.7 - 0.8 mm
0.028 - 0.031 in.
Once oil has been added, a visual check should show
oil about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw
in the dipstick while checking.
NOTE
