OPERATOR'S MANUAL
MODEL #100787
3500 PSI PRESSURE WASHER
Made in China - REV 20200316 Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com

100787 - 3500 PSI PRESSURE WASHER TABLE OF CONTENTS
2
TABLE OF CONTENTS
Introduction...................................................3
Safety Definitions ..........................................3
Important Safety Instructions.......................4
Fuel Safety ........................................................ 6
Safety and Dataplate Labels...................................... 7
Safety Symbols.................................................... 8
Operation Symbols ................................................ 9
Quickstart Label Symbols......................................... 9
Controls and Features ................................. 10
Pressure Washer ................................................. 10
Engine ............................................................ 10
Parts Included .................................................... 11
Assembly ..................................................... 12
Remove the Pressure Washer from the Shipping Carton ....... 12
Install Wheels, Support Legs, Detergent Tank,
Trigger Gun Holder, Handle, and Nozzles........................ 12
High Pressure Hose Strap ....................................... 13
Attach the Trigger Gun Assembly................................ 14
Connect the High Pressure Hose ................................ 14
Connect the Garden Hose........................................ 14
Install the Vented Oil Cap ........................................ 15
Add Engine Oil.................................................... 15
Add Fuel .......................................................... 15
Operation..................................................... 15
Pressure Washer Location ....................................... 15
Before Starting the Engine....................................... 15
Starting the Engine............................................... 15
Distance from Cleaning Surface................................. 16
High Pressure Wash.............................................. 17
Low Pressure Wash .............................................. 17
System Flush ..................................................... 18
Depressurize System ............................................ 18
Operating Tips.................................................... 18
Stopping the Engine.............................................. 19
Operation at High Altitude ....................................... 19
Maintenance ................................................ 19
Cleaning the Pressure Washer................................... 19
Cleaning Spray Nozzle ........................................... 19
Changing the Engine Oil ......................................... 19
Cleaning and Adjusting the Spark Plug(s) ....................... 19
Cleaning the Air Filter ............................................ 19
Cleaning the Spark Arrester ..................................... 19
Maintenance Schedule........................................... 19
Storage ........................................................20
Pressure Washer Storage........................................ 20
Engine Storage ................................................... 20
Winter Storage ................................................... 20
Specifications..............................................20
Pressure Washer Specifications ................................. 20
Engine Specifications ............................................ 20
Oil Specifications................................................. 20
Fuel Specifications ............................................... 20
Temperature Specifications...................................... 20
Parts Diagram .................................................... 21
Parts List ......................................................... 22
Troubleshooting...........................................23
WARRANTY*.................................................24
Warranty Qualifications .......................................... 24
Repair/Replacement Warranty................................... 24
Do Not Return The Unit To The Place Of Purchase ............. 24
Warranty Exclusions ............................................. 24
Other Exclusions ................................................. 24
Limits of Implied Warranty and Consequential Damage........ 24
Contact Information .............................................. 24

100787 - 3500 PSI PRESSURE WASHER INTRODUCTION
3
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
CPE highly values how our products are designed, manufactured,
operated, and serviced as well as providing safety to the
operator and those around the pressure washer. Therefore, it is
IMPORTANT to review this product manual and other product
materials thoroughly and be fully aware and knowledgeable of
the assembly, operation, dangers and maintenance of the product
before use. Fully familiarize yourself, and make sure others who
plan on operating the product fully familiarize themselves too,
with the proper safety and operation procedures before each use.
Please always exercise common sense and always err on the
side of caution when operating the product to ensure no accident,
property damage, or injury occurs. We want you to continue to use
and be satisfied with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
100787
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION

100787 - 3500 PSI PRESSURE WASHER IMPORTANT SAFETY INSTRUCTIONS
4
IMPORTANT SAFETY INSTRUCTIONS

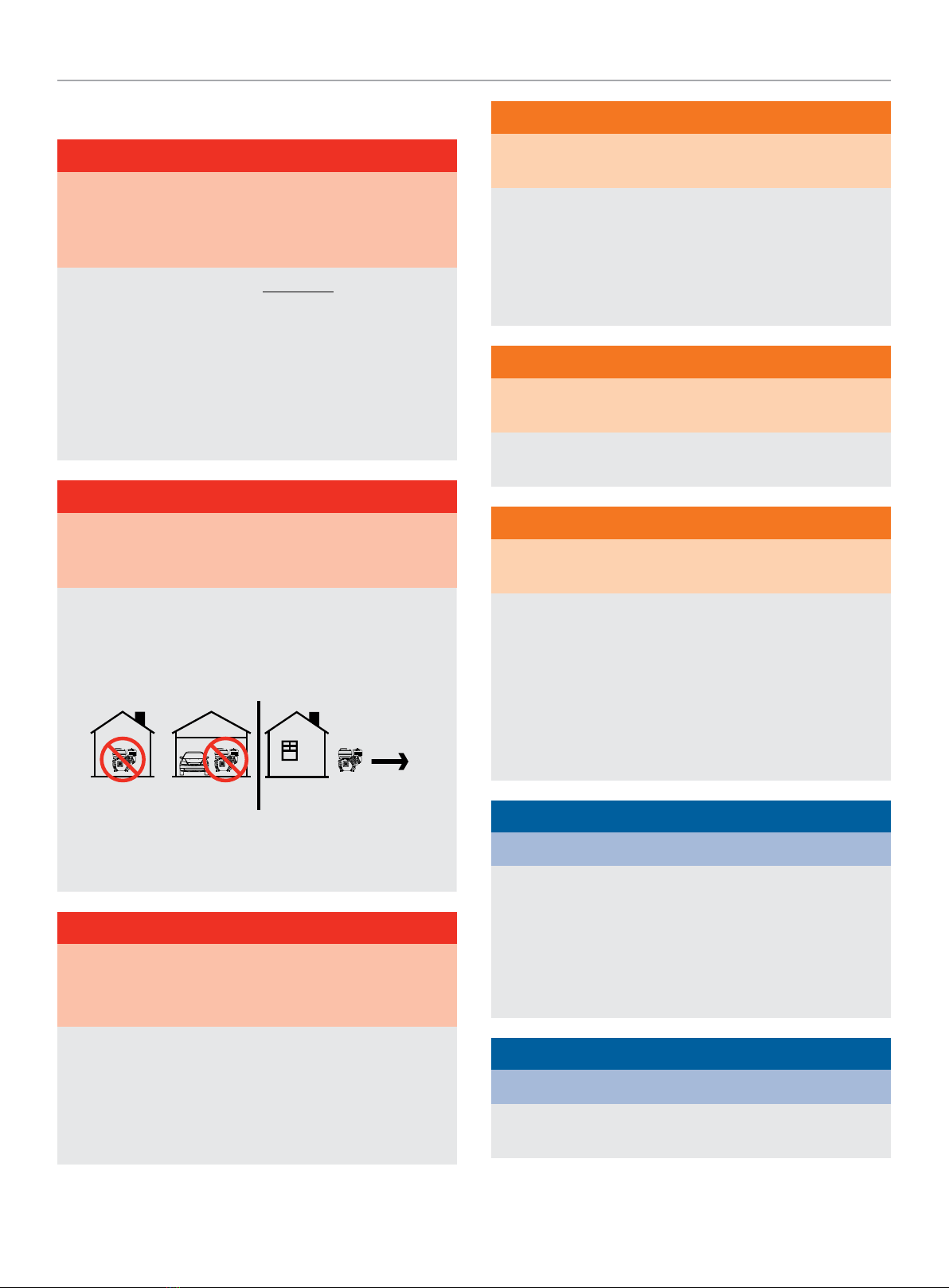

DANGER
Pressure washer exhaust contains carbon monoxide, a
colorless, odorless, poisonous gas. Breathing carbon monoxide
will cause nausea, dizziness, fainting or death. If you start to
feel dizzy or weak, get to fresh air immediately.
OPERATE PRESSURE WASHER OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY.
DO NOT operate the pressure washer inside any building,
including garages, basements, crawlspaces and sheds,
enclosure or compartment, including the pressure washer
compartment of a recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.
DANGER
Using an engine indoors CAN KILL YOU IN MINUTES. Engine
exhaust contains carbon monoxide. This is a poison you cannot
see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
DANGER
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories.
Traumatic amputation or severe laceration can result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
WARNING
Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the pressure washer:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Contact with electrical power source can cause electric shock
or burn.
NEVER spray in the direction of or near a power source/
electrical outlet.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
NOTICE
DO NOT let water in the pump freeze.
See Storage section in the manual for instructions regarding
winter storage.
If water has frozen in the pressure washer, thaw the pressure
washer in a warm room before starting.
DO NOT pour hot water on or into the pump; internal parts will
be damaged and your warranty will be voided.
NOTICE
NEVER run the unit dry.
Be sure the water supply is completely turned on before
operating the unit.

100787 - 3500 PSI PRESSURE WASHER IMPORTANT SAFETY INSTRUCTIONS
5
WARNING
NEVER spray flammable liquids or use pressure washer in
areas containing combustible dust, liquids, or vapor.
NEVER operate this machine in a closed building or in or near
an explosive environment.
–DO NOT remove fuel tank cap or fill fuel tank while engine
is hot or running (allow engine to cool two minutes before
refueling). Always fill the tank slowly.
–NEVER disconnect the high pressure discharge hose from
the machine while the system is pressurized.
WARNING
Rapid retraction of the recoil cord will pull hand and arm
towards the engine faster than you can let go. Unintentional
startup can result in entanglement, traumatic amputation or
laceration. Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the recoil cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
DANGER
Keep clear of nozzle.
DO NOT point the spray wand at a person, an animal or
yourself.
Always wear safety glasses or goggles and protective
equipment (hearing protection, gloves, rubber boots, protective
clothing) when operating or performing maintenance.
–NEVER put hand or fingers over the spray tip while
operating the unit.
–NEVER try to stop or deflect leaks with any body part.
–ALWAYS engage the trigger safety latch in the safe position
when spraying is stopped even if only for a few moments.
WARNING
Always wear eye protection with side shields marked to
comply with ANSI Z87.1.
Following this rule will reduce the risk of serious personal
injury.
NOTICE
Improper treatment or use of the pressure washer can damage
it, shorten its life and void your warranty.
Use the pressure washer only for intended uses.
Operate only on level surfaces.
DO NOT expose pressure washer to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
DO NOT use the pressure washer if:
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively
DANGER
Risk of injection or injury. High pressure jets can be dangerous
if subject to misuse.
–DO NOT direct discharge stream at persons, animals,
electrical devices, or the machine itself.
–ALWAYS point spray gun in safe direction. Every time you
stop the engine, squeeze trigger of spray gun to relieve any
trapped pressure.
NOTICE
ONLY use cold water.
NOTICE
Water under high pressure can damage fragile surfaces.
–ALWAYS: practice on a inconspicuous test area to
understand when damage may occur.
–DO NOT: Point spray gun at glass.
–NEVER: Point the spray nozzle at persons, animals,
electrical devices, plants or the machine itself.
WARNING
Use of pressure washers can create wet walking surfaces.
While using a pressure washer, forces from the gun can cause
you to loose footing and fall.
–Use only on a level surface.
–Make sure there is proper drainage to dissipate water.
–DO NOT: use on elevated surface where kickback could
result in a serious fall.
–ALWAYS grasp the gun with two hands to prevent potential
injury do to high pressure from gun.
