Champion 76503-N User manual

OPERATOR'S MANUAL
MODEL #76503-N
3100 PSI PRESSURE WASHER
Made in China - REV 20210407
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.

76503-N - 3100 PSI PRESSURE WASHER TABLE OF CONTENTS
2
TABLE OF CONTENTS
Introduction...................................................3
Safety Definitions ..........................................3
Important Safety Instructions.......................4
Fuel Safety ........................................................ 6
Safety and Dataplate Labels...................................... 7
Safety Symbols.................................................... 8
Operation Symbols ................................................ 9
Quickstart Label Symbols......................................... 9
Controls and Features ................................. 10
Pressure Washer ................................................. 10
Engine ............................................................ 10
Parts Included .................................................... 11
Assembly ..................................................... 12
Remove the Pressure Washer from the Shipping Carton ....... 12
Install Trigger Gun Holder, Handle, and Nozzles................ 12
Attach the Trigger Gun Assembly................................ 12
Connect the High Pressure Hose ................................ 13
Connect the Garden Hose........................................ 13
Add Engine Oil.................................................... 14
Add Fuel .......................................................... 15
Operation..................................................... 15
Pressure Washer Location ....................................... 15
Before Starting the Engine....................................... 15
Starting the Engine............................................... 16
Distance from Cleaning Surface................................. 16
High Pressure Wash.............................................. 18
Low Pressure Wash .............................................. 18
System Flush ..................................................... 18
Depressurize System ............................................ 19
Operating Tips.................................................... 19
Stopping the Engine.............................................. 19
Operation at High Altitude ....................................... 19
Maintenance ................................................20
Cleaning the Pressure Washer................................... 20
Cleaning Spray Nozzle ........................................... 20
Changing the Engine Oil ......................................... 20
Cleaning and Adjusting the Spark Plug(s) ....................... 21
Cleaning the Air Filter ............................................ 21
Cleaning the Spark Arrester ..................................... 21
Adjusting the Governor........................................... 22
Maintenance Schedule........................................... 22
Storage ........................................................22
Pressure Washer Storage........................................ 22
Engine Stored for Less than 30 Days ........................... 22
Engine Stored for Over 30 Days ................................. 22
Winter Storage ................................................... 23
Specifications..............................................24
Pressure Washer Specifications ................................. 24
Engine Specifications ............................................ 24
Oil Specifications................................................. 24
Fuel Specifications ............................................... 24
Temperature Specifications...................................... 24
Parts Diagram .................................................... 25
Parts List ......................................................... 26
Engine Parts Diagram............................................ 27
Engine Parts List ................................................. 28
Troubleshooting...........................................30

76503-N - 3100 PSI PRESSURE WASHER INTRODUCTION
3
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
CPE highly values how our products are designed, manufactured,
operated, and serviced as well as providing safety to the
operator and those around the pressure washer. Therefore, it is
IMPORTANT to review this product manual and other product
materials thoroughly and be fully aware and knowledgeable of
the assembly, operation, dangers and maintenance of the product
before use. Fully familiarize yourself, and make sure others who
plan on operating the product fully familiarize themselves too,
with the proper safety and operation procedures before each use.
Please always exercise common sense and always err on the
side of caution when operating the product to ensure no accident,
property damage, or injury occurs. We want you to continue to use
and be satisfied with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
MODEL NUMBER
76503-N
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION

76503-N - 3100 PSI PRESSURE WASHER IMPORTANT SAFETY INSTRUCTIONS
4
IMPORTANT SAFETY INSTRUCTIONS
DANGER
Pressure washer exhaust contains carbon monoxide, a
colorless, odorless, poisonous gas. Breathing carbon monoxide
will cause nausea, dizziness, fainting or death. If you start to
feel dizzy or weak, get to fresh air immediately.
OPERATE PRESSURE WASHER OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY.
DO NOT operate the pressure washer inside any building,
including garages, basements, crawlspaces and sheds,
enclosure or compartment, including the pressure washer
compartment of a recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.
DANGER
Using an engine indoors CAN KILL YOU IN MINUTES. Engine
exhaust contains carbon monoxide. This is a poison you cannot
see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
DANGER
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories.
Traumatic amputation or severe laceration can result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
WARNING
Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the pressure washer:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Contact with electrical power source can cause electric shock
or burn.
NEVER spray in the direction of or near a power source/
electrical outlet.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
NOTICE
DO NOT let water in the pump freeze.
See Storage section in the manual for instructions regarding
winter storage.
If water has frozen in the pressure washer, thaw the pressure
washer in a warm room before starting.
DO NOT pour hot water on or into the pump; internal parts will
be damaged and your warranty will be voided.
NOTICE
NEVER run the unit dry.
Be sure the water supply is completely turned on before
operating the unit.

76503-N - 3100 PSI PRESSURE WASHER IMPORTANT SAFETY INSTRUCTIONS
5
WARNING
NEVER spray flammable liquids or use pressure washer in
areas containing combustible dust, liquids, or vapor.
NEVER operate this machine in a closed building or in or near
an explosive environment.
–DO NOT remove fuel tank cap or fill fuel tank while engine
is hot or running (allow engine to cool two minutes before
refueling). Always fill the tank slowly.
–NEVER disconnect the high pressure discharge hose from
the machine while the system is pressurized.
WARNING
Rapid retraction of the recoil cord will pull hand and arm
towards the engine faster than you can let go. Unintentional
startup can result in entanglement, traumatic amputation or
laceration. Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the recoil cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
DANGER
Keep clear of nozzle.
DO NOT point the spray wand at a person, an animal or
yourself.
Always wear safety glasses or goggles and protective
equipment (hearing protection, gloves, rubber boots, protective
clothing) when operating or performing maintenance.
–NEVER put hand or fingers over the spray tip while
operating the unit.
–NEVER try to stop or deflect leaks with any body part.
–ALWAYS engage the trigger safety latch in the safe position
when spraying is stopped even if only for a few moments.
WARNING
Always wear eye protection with side shields marked to
comply with ANSI Z87.1.
Following this rule will reduce the risk of serious personal
injury.
NOTICE
Improper treatment or use of the pressure washer can damage
it, shorten its life and void your warranty.
Use the pressure washer only for intended uses.
Operate only on level surfaces.
DO NOT expose pressure washer to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
DO NOT use the pressure washer if:
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively
DANGER
Risk of injection or injury. High pressure jets can be dangerous
if subject to misuse.
–DO NOT direct discharge stream at persons, animals,
electrical devices, or the machine itself.
–ALWAYS point spray gun in safe direction. Every time you
stop the engine, squeeze trigger of spray gun to relieve any
trapped pressure.
NOTICE
ONLY use cold water.
NOTICE
Water under high pressure can damage fragile surfaces.
–ALWAYS: practice on a inconspicuous test area to
understand when damage may occur.
–DO NOT: Point spray gun at glass.
–NEVER: Point the spray nozzle at persons, animals,
electrical devices, plants or the machine itself.
WARNING
Use of pressure washers can create wet walking surfaces.
While using a pressure washer, forces from the gun can cause
you to loose footing and fall.
–Use only on a level surface.
–Make sure there is proper drainage to dissipate water.
–DO NOT: use on elevated surface where kickback could
result in a serious fall.
–ALWAYS grasp the gun with two hands to prevent potential
injury do to high pressure from gun.

76503-N - 3100 PSI PRESSURE WASHER IMPORTANT SAFETY INSTRUCTIONS
6
WARNING
High pressure spray can splash back at operator or propel
objects.
NEVER: allow children to operate any pressure washer or play
nearby.
NEVER: leave spray gun unattended while machine is running
or until after engine has been turned off and pressure has
been relieved from the spray gun.
NEVER: repair high pressure hose, replace it.
NEVER: repair leaking connections with sealant, replace
damaged O-rings.
NEVER: use spray gun with a damaged or altered trigger lock.
NEVER: secure the trigger in the open / spray position.
ALWAYS: keep high pressure hose connected to spray gun and
pump while in use.
ALWAYS: be certain that spray gun nozzles and accessories
are properly attached to the lance.
ALWAYS: wear safety goggles when operating this equipment.
NOTE: Safety goggles cover the sides, top and bottom of the
eyes. Don't confuse safety glasses for goggles.
Fuel Safety
DANGER
GASOLINE AND GASOLINE VAPORS ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
–Gasoline is highly flammable and explosive.
–Gasoline can cause a fire or explosion if ignited.
–Gasoline is a liquid fuel but it’s vapors can ignite.
–Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
–Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline needs
room to expand when temperatures rise.
–In the case of any petroleum gasoline fire, flames should never
be extinguished unless the fuel supply valve can be turned
OFF. By not doing so, if a fire is extinguished and the supply
of fuel is not turned OFF, an explosion hazard could be created.
When adding or removing gasoline:
–DO NOT light or smoke cigarettes.
–Always turn the pressure washer off and let cool for a
minimum of two minutes before removing the gasoline cap.
Afterwards, loosen gasoline cap to relieve pressure from the
gasoline tank.
–Only fill or drain gasoline outdoors in a well-ventilated area.
–DO NOT pump gasoline directly into the pressure washer at the
gas station. Always use an approved fuel container to transfer
the gasoline to the pressure washer.
–DO NOT overfill the gasoline tank.
–Always keep gasoline away from sparks, open flames, pilot
lights, heat and other sources of ignition.
When starting the pressure washer:
–DO NOT attempt to start a damaged pressure washer.
–Always make certain that the gasoline cap, air filter, spark
plug, fuel lines and exhaust system are properly secured,
connected and in place.
–Always allow spilled gasoline to evaporate fully before
attempting to start the engine.
–Make certain that the pressure washer is resting firmly on
level ground.
When operating the pressure washer:
–DO NOT move or tip the pressure washer during operation.
–DO NOT tip the pressure washer or allow fuel or oil to spill.
When transporting or servicing the pressure washer:
–Make certain that the fuel valve is in the OFF position and the
gasoline tank is empty.
–Disconnect the spark plug wire.
When storing the pressure washer:
–Store away from sparks, open flames, pilot lights, heat and
other sources of ignition.
–Do not store pressure washer or gasoline near furnaces, water
heaters, or any other appliances that produce heat or have
automatic ignitions.
WARNING
Never use a gasoline container, gasoline tank, or any other fuel
item that is broken, cut, torn or damaged.

76503-N - 3100 PSI PRESSURE WASHER IMPORTANT SAFETY INSTRUCTIONS
7
Safety and Dataplate Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
LABEL DESCRIPTION
ASafety Symbols
BFuel
CWarning
A
B
C
91
91

76503-N - 3100 PSI PRESSURE WASHER IMPORTANT SAFETY INSTRUCTIONS
8
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Electric Shock. Failure to use in dry conditions and to observe safe practices can result in electric
shock.
Toxic Fumes. The engine exhaust from this product contains chemicals known to the state of California
to cause cancer and birth defects and other reproductive harm.
Risk of Asphyxiation. This engine emits carbon monoxide, an oderless, colorless poison gas. Breathing
carbon monoxide can cause nausea, fainting or death. Use only in a well ventilated area.
Risk of Injections. To reduce the risk of injection or injury, never direct a water stream towards people
or pets or place any body part in the stream. Leaking hoses and fittings are also capable of causing
injection injury. Do not hold hoses or fittings.
Eye and Ear Protection. Always wear safety goggles or safety glasses with side shields, and as
necessary a full face shield as well as full ear protection when operating this product.
Kickback. To reduce the risk of injury from kickback, hold the trigger gun securely with both hands
when the machine is on.
Risk of Fire. Fuel and its vapors are extremely flammable and explosive. Fire can cause severe burns or
death. Do not add fuel while the product is operating or still hot. Do not spray flammable liquids. Operate
only where open flame is permitted.
Risk of Explosion. Do not spray flammable liquids. Flammable liquids, fuel, and their vapors are
explosive and can cause severe burns or death.

76503-N - 3100 PSI PRESSURE WASHER IMPORTANT SAFETY INSTRUCTIONS
9
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
15° Nozzle
25° Nozzle
40° Nozzle
Soap Nozzle
SYMBOL MEANING
Choke/Run
Fuel valve OFF/ON
Quickstart Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
2019-L-OP-A
1
4
5
6
30 s
7
2
3
K
ColorsLPN
Rev
Size 22 x 126 mm
Artwork Notes
3mm corner radius; 2mm safe margin; to be printed
on
WHITE substrate.
Revision Changes
---
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
50% 152 2945 376
Set Up

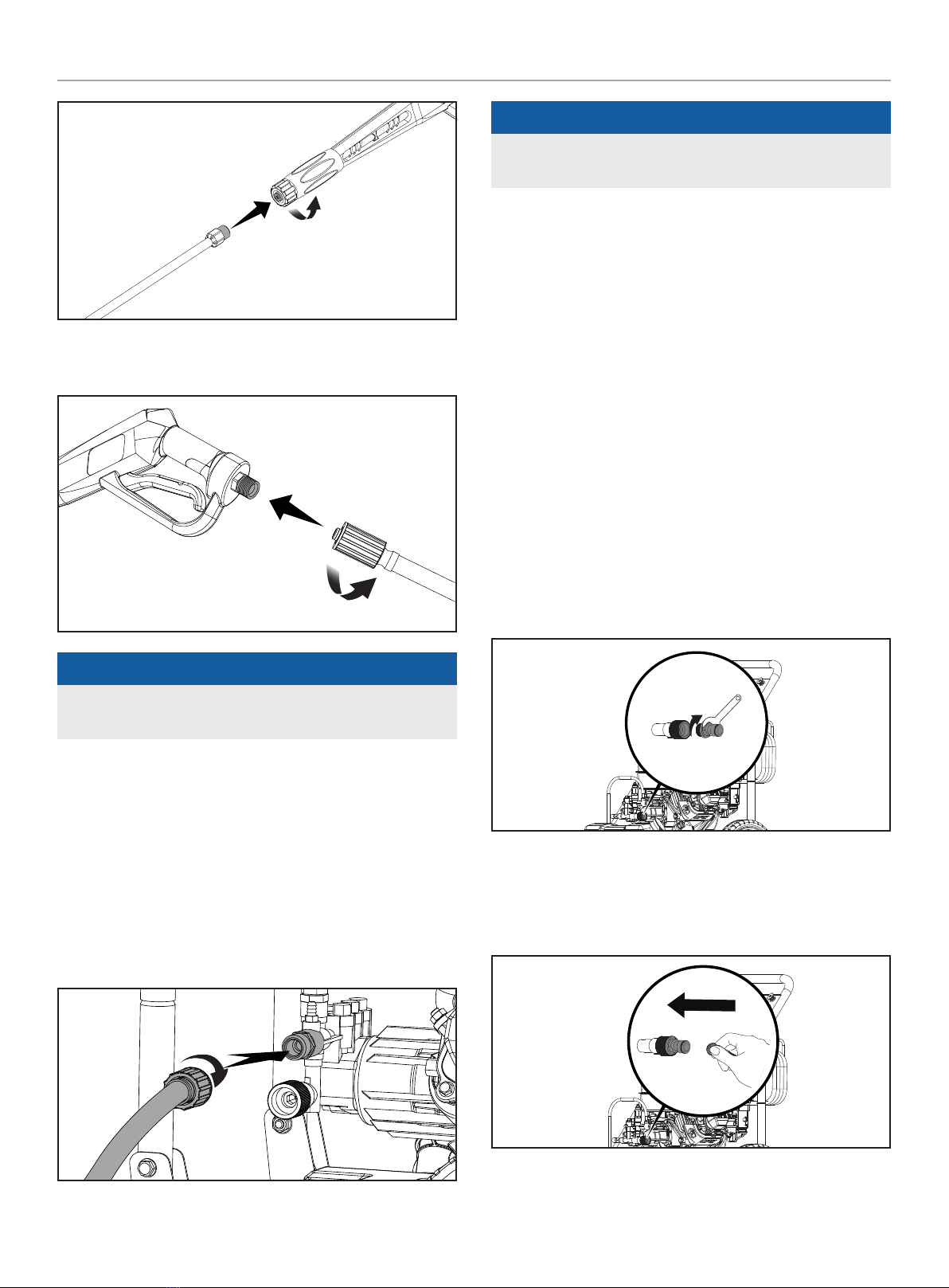

1. Attach wand to trigger gun.
2. Attach high pressure hose to trigger gun.
3. Attach high pressure hose to pump.
4. Attach garden hose.
5. Attach nozzle to spray wand.
6. Turn on water supply.
7. Press the trigger for 30 seconds.
Starting the Engine
8. Check oil level.
Recommended oil is 10W-30.
9. Add Fuel
10. Turn engine switch to “ON”position
11. Move the fuel valve to the “ON” position.
12. Move the throttle lever to the “FAST” position.
13. Move the choke lever to the “CHOKE” position.
14. Pull the recoil cord.
15. Move the choke lever to “RUN” position.
Stopping the Engine
1. Move the fuel valve to the “OFF” position.
2. Press the engine switch to the “OFF” position.
K376 485 152 CG1
ColorsLPN
Rev
Size 135 x 40 mm
Artwork Notes
3mm corner radius; 2mm safe margin; to be printed
on
WHITE substrate.
Revision Changes
---
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.

76503-N - 3100 PSI PRESSURE WASHER CONTROLS AND FEATURES
10
CONTROLS AND FEATURES
Read this operator’s manual before operating your pressure washer. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.

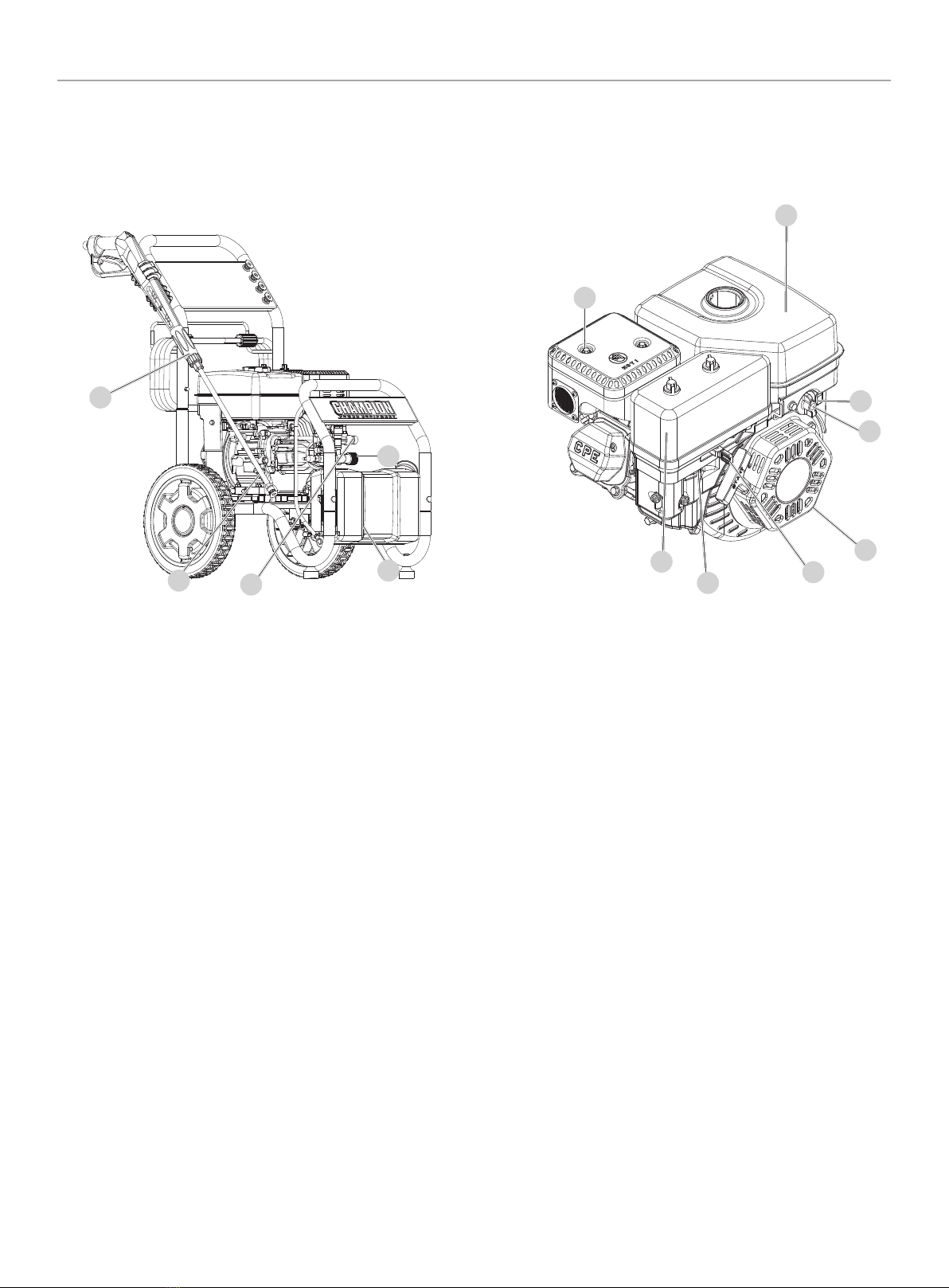

Pressure Washer
13
11
10
12
1
5
4
9
8
7
6
3
2
1. Gun Assembly
2. Oil Filler Cap
3. High Presssure Hose Connection
4. Detergent Tank
5. Garden Hose Connection
Engine
6. Air Cleaner
7. Choke Lever
8. Throttle
9. Recoil starter
10. Fuel Valve Knob
11. Engine Switch
12. Fuel tank
13. Muffler

76503-N - 3100 PSI PRESSURE WASHER CONTROLS AND FEATURES
11
Parts Included
Gun Assembly
Spray Wand ..............................................................................1
Trigger Gun ..............................................................................1
Quick Connect Nozzles ..............................................................5
Hoses
30 ft. (9.2 m) High Pressure Hose .............................................1
Other
Oil Funnel .................................................................................1
Gun holder ................................................................................1
Screw .......................................................................................2
Nut............................................................................................2
Garden hose adapter .................................................................1

76503-N - 3100 PSI PRESSURE WASHER CONTROLS AND FEATURES
12
ASSEMBLY
Your pressure washer requires some assembly. This unit ships
from our factory without oil. It must be properly serviced with fuel
and oil before operation. If you have any questions regarding the
assembly of your pressure washer, call our help line at . Please
have your serial number and model number available.
Remove the Pressure Washer from the
Shipping Carton
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the pressure
washer.
3. Carefully cut each corner of the box from top to bottom.

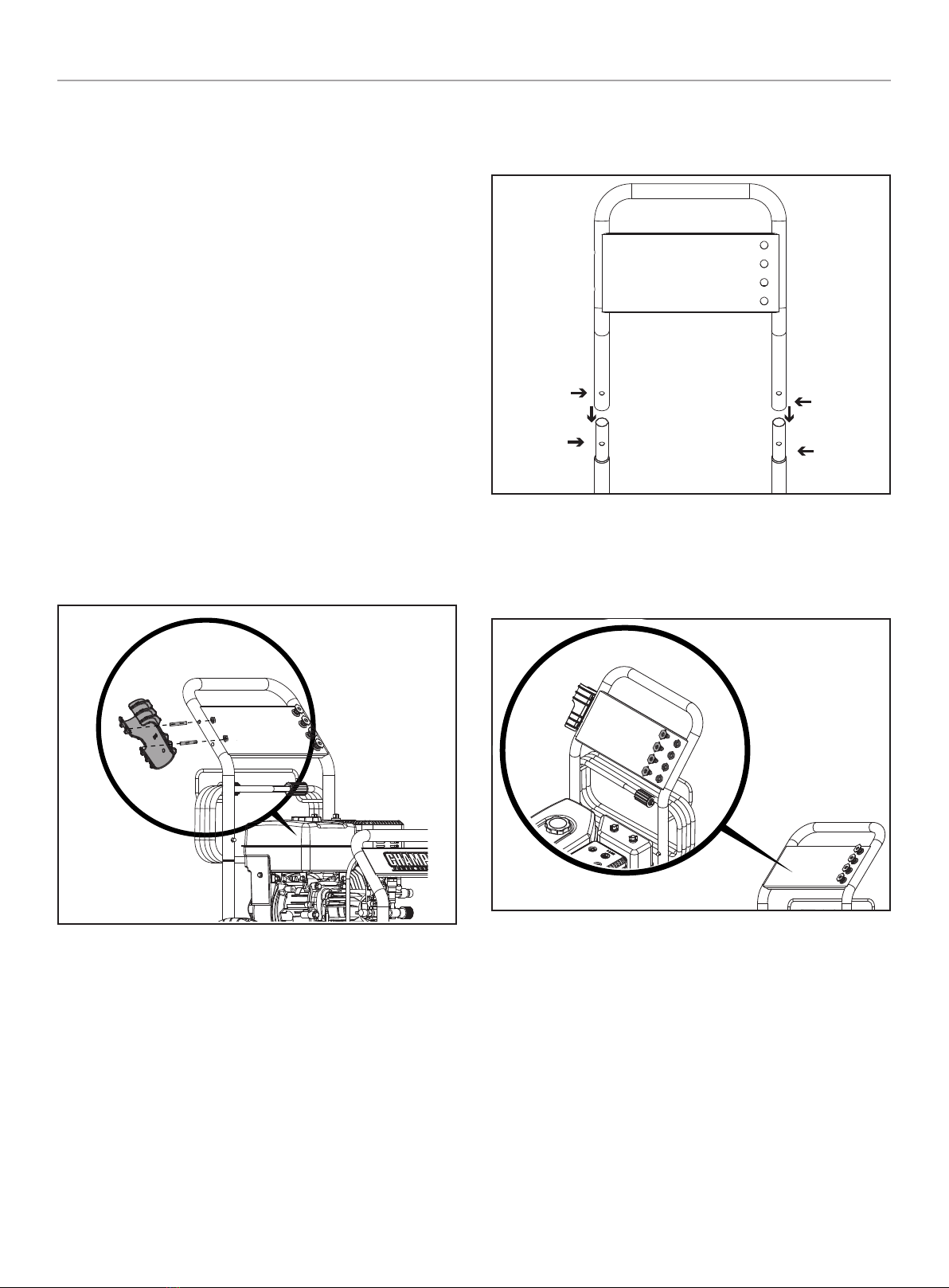

Install Trigger Gun Holder, Handle, and
Nozzles
Trigger Gun Holder
1. Align the trigger gun holder to the frame.
2. Attach to the frame with 2 bolts and nuts. Do not
overtighten.
Handle
1. Line up the handle with the bottom frame.
2. Make sure the handle holes are lined up with the bottom
frame spring button.
3. Slide the handle downward on the bottom frame, until the
spring buttons have popped through the holes on the handle
frame. A “click” may sound.
4. Gently pull up on the handle to make sure that two frames
have made a solid connection and that the handle cannot be
pulled off without pressing on the spring buttons to release it.
Nozzles
1. Nozzles are stored in the top panel. To store the nozzle, press
it into the corresponding opening. To remove the nozzle, just
pull the nozzle out.
Attach the Trigger Gun Assembly
1. Attach the spray wand to the trigger gun.
2. Rotate (clockwise) the M22 coupler on the trigger gun until
the spray wand is secure. Do not overtighten.

76503-N - 3100 PSI PRESSURE WASHER CONTROLS AND FEATURES
13
3. Connect the end of the high pressure hose to the gun inlet.
Tighten connection clockwise. Do not overtighten.
NOTICE
Be careful to avoid cross-threading, which can cause the
trigger gun to leak during use.
Connect the High Pressure Hose
1. Completely uncoil and straighten the high pressure hose to
prevent kinks.
2. Align the collar on the hose to the threaded outlet on the
pump.
3. Insert the high pressure hose collar onto the threaded outlet.
4. Turn the collar clockwise to tighten the hose securely to the
pump.
NOTICE
Be careful to avoid cross-threading, which can cause the hose
to leak during use.
5. Gently pull on the hose to be certain it is properly secured.
Connect the Garden Hose
The water supply must come from a pressurized water spicket.
NEVER use hot water or water from pools, lakes, etc. Before
connecting the garden hose to the pressure washer:
1. Run water through the hose for 30 seconds to clean any
debris from the hose.
2. Inspect the screen and gasket in the water intake.
3. If the screen and gasket is damaged, do not use the machine
until the screen has been replaced.
4. If the screen is dirty, clean it before connecting the garden
hose to the machine.
Connect the garden hose adapter to the machine:
1. Attach the garden hose adapter to the machine.
2. Use a wrench tool (not included) to fasten securely, DO NOT
over tighten.
To connect the garden hose to the machine:
After the faucet of the hose is completely closed, insert the garden
hose to the adapter by sliding the metal collar on the female
connector back.

76503-N - 3100 PSI PRESSURE WASHER CONTROLS AND FEATURES
14
NOTICE
There must be a minimum of 10 ft. (3 m) of unrestricted hose
between the pressure washer intake and the hose faucet or
shut off valve (such as a “Y” shut off connector).
NOTICE
Do not run the pressure washer without water supply
connected and turned on, as this may damage the high
pressure seals and decrease pump life. Completely unwind the
hose from its reel or coil and make sure the hose is not being
restricted by tires, rocks, or any other objects that may lessen
or prevent water flow to the pressure washer.
Add Engine Oil
CAUTION
DO NOT attempt to crank or start the engine before it has been
properly filled with the recommended type and amount of oil.
Damage to the engine as a result of failing to follow these
instructions will void your warranty.
NOTICE
The engine rotor has a sealed, pre-lubricated ball bearing that
requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 10W-30
automotive oil.
If running engine in extreme temperatures, refer to the
following chart for recommended oil type.
-20 020 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37. 8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
1. Place the pressure washer on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Using a funnel, add up to 20.3 fl. oz. (600 ml) of oil and
replace oil fill cap/dipstick. DO NOT OVERFILL.
4. Check engine oil level at every use and add as needed.
MAX
OIL DIP STICK
NOTICE
Once oil has been added, a visual check should show oil about
1-2 threads from running out of the fill hole.
When using the dipstick to check oil level, DO NOT screw in
the dipstick while checking.
NOTICE
Check oil level often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
NOTICE
We consider the first 5 hours of run time to be the break-
in period for the engine. During the break in period we
recommend using standard automotive non-synthetic blended
oils. After the break in period synthetic lubricant can be used
but is not required. Adjusting throttle setting will increase/
decrease engine speed helping to seat piston rings. Avoid
bogging or lugging the engine down and avoid prolonged
running at constant RPM. After the 5 hour break-in period,
change the oil. Using synthetic lubricants does not increase
the recommended oil change interval.

76503-N - 3100 PSI PRESSURE WASHER OPERATION
15
NOTICE
Synthetic oil may be used after the 5 hour initial break-in
period. Using synthetic oil does not increase the recommended
oil change interval. Full synthetic 5W-30 oil will aid in starting
in cold ambient < 41º F (5º C) temperatures.
Add Fuel
Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 91 and an ethanol content of 10% or less by
volume. ybc
DO NOT mix oil with gasoline.
1. Remove the gasoline cap.
2. Slowly add gasoline to the tank. Tank is full when gasoline
reaches red circle on screen. DO NOT OVERFILL. Gasoline
can expand after filling. A minimum of ¼ in. (6.4 mm) of
space left in the tank is required for gasoline expansion,
although more than ¼ in. (6.4 mm) is recommended. Gasoline
can be forced out of the tank as a result of expansion if
overfilled, and can affect the stable running condition of the
pressure washer.
CAUTION
Use unleaded gasoline with a minimum octane rating of 91
and an ethanol content of 10% or less by volume.
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and gasoline.
DO NOT overfill the tank. Fill tank to approximately ¼ in.
(6.4 mm) below the top of the tank to allow for gasoline
expansion.
DO NOT pump gasoline directly into the pressure washer at the
pump. Use an approved fuel container to transfer the gasoline
to the pressure washer.
DO NOT fill tank indoors.
DO NOT fill tank when the engine is running or hot.
WARNING
Pouring gasoline too fast through the fuel screen may result in
gasoline splashing over the operator while filling.
NOTICE
The engine works well with 10% or less ethanol blend
gasoline. When using ethanol-gasoline blends there are some
issues worth noting:
–Ethanol-gasoline blends can absorb more water than
gasoline alone.
–These blends can eventually separate, leaving water or
a watery goo in the tank, fuel valve and carburetor. The
compromised gasoline can be drawn into the carburetor
and cause damage to the engine and/or potential hazards.
–If a fuel stabilizer is used, confirm that it is formulated to
work with ethanol-gasoline blends.
–Any damages or hazards caused by using improper
gasoline, improperly stored gasoline, and/or improperly
formulated stabilizers, are not covered by manufacturer’s
warranty.
It is advisable to always shut off the gasoline supply and
run the engine to starvation after each use. See Storage
instructions for extended non-use.
OPERATION
Pressure Washer Location
This pressure washer must have at least 5 ft. (1.5 m) of clearance
from combustible material. Leave at least 3 ft.
(91.4 cm) of clearance on all sides of the pressure washer to
allow for adequate cooling, maintenance and servicing. Place
the pressure washer in a well ventilated area. DO NOT place the
pressure washer near vents or intakes where exhaust fumes could
be drawn into occupied or confined spaces. Carefully consider
wind and air currents when positioning pressure washer.
Before Starting the Engine
1. Turn the water supply ON.
2. Pull the trigger on the trigger gun to purge all air from the
pump and hose. This may take several minutes.
3. Do not start the engine until a steady stream of water is
flowing from the nozzle.
CAUTION
Never operate your pressure washer without water.

76503-N - 3100 PSI PRESSURE WASHER OPERATION
16

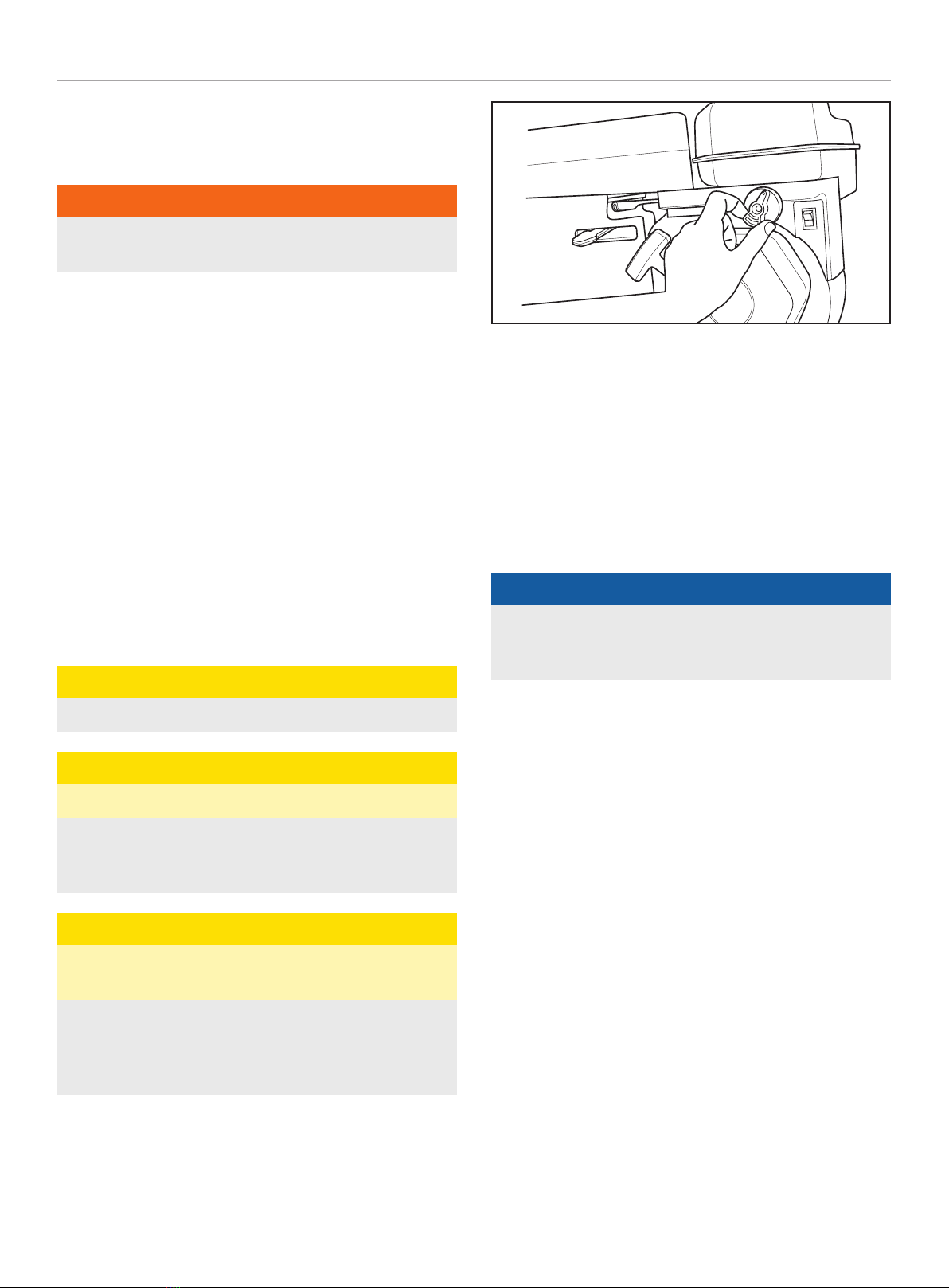

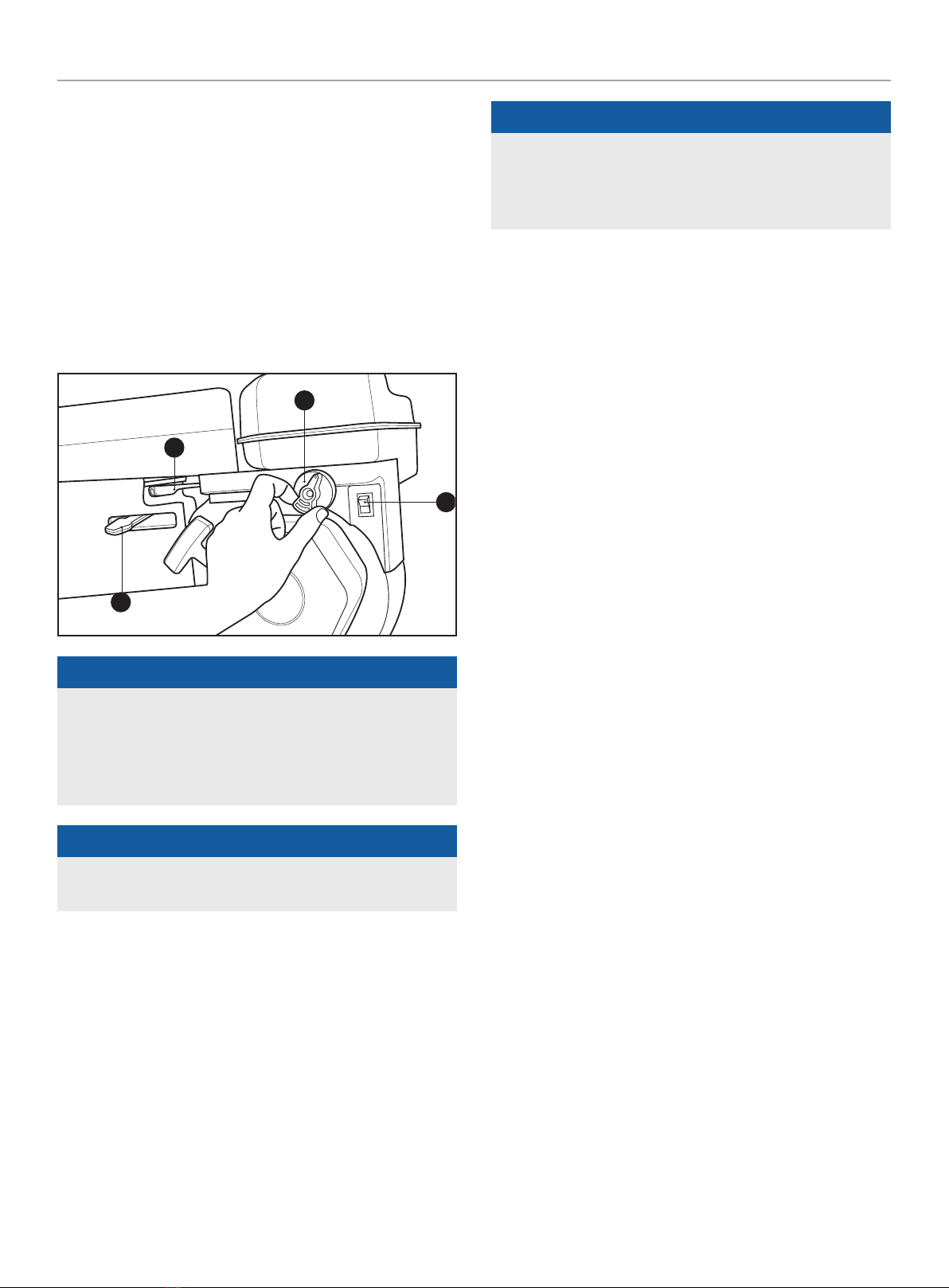

Starting the Engine
1. Make certain the pressure washer is on a flat, level surface.
2. Turn engine switch to “ON” position (A).
3. Rotate the fuel valve to the “ON” position (B).
4. Move the throttle lever (C) to the “FAST” position.
5. Move the choke lever (D) to the “CHOKE” position.
6. Pull the starter cord slowly until resistance is felt and then
pull rapidly. SEE NOTE.
7. As engine warms up, move the choke lever (D) to “RUN” and
adjust the throttle (C) as needed.
C
D
B
A
NOTICE
Keep choke lever in “CHOKE” position for 2 pulls of the recoil
starter. After second pull, move choke lever to the “RUN”
position for up to the next 3 pulls of the recoil starter. To much
choke leads to spark plug fouling/engine flooding due to the
lack of incoming air. This will cause the engine not to start.
NOTICE
If the engine does not start after 2 pulls, relieve pump pressure
by pulling the trigger on the trigger gun.
NOTICE
If the engine starts but does not run make certain that the
pressure washer is on a flat, level surface. The engine is
equipped with a low oil sensor that will prevent the engine
from running when the oil level falls below a critical threshold.
Distance from Cleaning Surface
The distance between the spray nozzle and the cleaning surface is
another factor that affects the impact force of the water.
The impact force of the water increases as the nozzle is moved
closer to the surface. You can vary the impact force by controlling
–The nozzle’s fan pattern.
–The nozzle’s angle to the cleaning surface.
–The nozzle’s distance from the cleaning surface.
Never use a narrow high impact stream on a surface that is
susceptible to damage. Avoid spraying windows with a narrow
high impact stream or turbo nozzle. Doing so may break the glass.
1. Before triggering the gun, select a nozzle with a wide fan
pattern.
2. Place the nozzle approximately 4-5 ft. (1.2 m - 1.5 m) away
from the cleaning surface. Then hold the nozzle at a 45
degree angle to the cleaning surface. Trigger the gun.
3. Vary the fan pattern spray angle and the distance to the
cleaning surface until optimum cleaning efficiency is achieved
without damaging the surface.

76503-N - 3100 PSI PRESSURE WASHER OPERATION
17
Use the following table to determine which nozzle to use.
NOZZLE SELECTION GUIDE
25°15° 40° Soap
GentleAbrasive
HIGH PRESSURE WASH
LOW
PRESSURE
WASH
15° 25° 40° Soap
Concrete, Brick, Masonry
Siding, Gutters, Home
Fencing, Deck, Patio
Lawn and Garden Equipment,
Boats, RVs
Recommended nozzle Use with caution

76503-N - 3100 PSI PRESSURE WASHER OPERATION
18
High Pressure Wash
CAUTION
Always engage the trigger safety latch when the unit is not in
use.
The trigger safety latch prevents the gun from being triggered
accidentally. Push the latch fully down to engage it.
WARNING
Injection hazard.
Fully unwrap and straighten high pressure hose prior to and
during each use and do not allow it to become kinked. The
high pressure hose features an outer covering that provides
strength to the hose. If the outer covering becomes damaged,
stop using the hose and replace it immediately. A kinked or
damaged hose can develop a high pressure leak and result in a
possible injection or other serious personal injury.
NOTICE
If the starter grip and rope becomes difficult to pull, squeeze
the trigger to relieve water pressure before attempting to start
the engine again.
For high pressure cleaning, refer to the Nozzle Selection Guide for
more information about which quick connect nozzle to choose.
CAUTION
The narrow high impact spray can damage some surfaces.
A wide fan pattern distributes the impact of the water over a larger
area resulting in excellent cleaning action with reduced risk of
surface damage. Clean large surface areas quickly using a wide
fan pattern.
Low Pressure Wash
Detergent Use
The use of detergents can dramatically reduce cleaning time
and assist in the removal of difficult stains. Many detergents are
customized for pressure washer use on specific cleaning tasks.
Pressure washer detergents are as thick as water.
Using thicker detergents – like dish soap – will clog the chemical
injection system.
NOTICE
Use only detergents designed for pressure washers.
Do not use household detergents, acids, alkalines, bleaches,
solvents, flammable material, or industrial grade solutions,
which can damage the pump or cause property damage. Many
detergents may require mixing prior to use. Prepare cleaning
solution as instructed on the solution bottle. Always test in an
inconspicuous area before beginning.
You can effectively clean surfaces by combining the chemical
action of detergents with high pressure rinses. On vertical
surfaces, apply the detergent starting at the bottom and work
your way upward. This method prevents the detergent from sliding
down and causing streaks. Begin high pressure rinsing at the
bottom and work your way upward. On particularly tough stains,
use a brush in combination with detergents and high pressure
rinsing.
1. Fill the detergent tank with cleaning solution.
NOTICE
The trigger gun will only draw detergent from the tank when
the black quick connect nozzle is installed in the wand.
NOTICE
When spraying detergent, the detergent will be diluted 1:12.
Approximately 20.3 oz. (0.6 L) of detergent will be consumed
from the tank for every minute sprayed.
System Flush
After using detergents, flush the suction system by placing the
detergent suction tube into a bucket of clean water.
WARNING
NEVER turn the water supply off before turning the engine off.

76503-N - 3100 PSI PRESSURE WASHER OPERATION
19
Depressurize System
To depressurize, turn engine off, turn water supply off and squeeze
gun trigger for at least 15 seconds after engine is turned off.
WARNING
NEVER disconnect the high pressure discharge hose from the
machine while the system is pressurized.
To reduce the risk of bodily injury or property damage, always
follow this procedure whenever spraying is stopped, when work
is completed, and before checking or repairing any part of the
system.
1. Engage the trigger gun lock out.
2. Turn the unit off.
3. Shut off the water supply.
4. Disengage the trigger safety latch and trigger the gun to
relieve pressure.
5. Re-engage the trigger safety latch.
6. Before overnight storage, long term storage, or transporting
unit, disconnect the water supply and turn off the fuel supply
valve.
Operating Tips
CAUTION
Never operate your pressure washer without water.
CAUTION
Never connect your pressure washer to a hot water supply.
Connecting your pressure washer to a hot water source will
significantly reduce the life of the pump and will void the
warranty.
CAUTION
Running the unit for more than one minute without spraying
water causes heat to build up in the pump.
In the event that the pump gets too hot, a thermal relief valve
will open to release the hot water. Running the unit without
spraying water can damage pump components and will void
the warranty.
Stopping the Engine
1. Turn the fuel valve to the “OFF” position.
2. Let the engine run until fuel starvation has stopped the
engine. This usually takes a few minutes.
3. Press the engine switch to the “OFF” position.
4. Depressurize system.
5. Turn off water supply and unplug all hoses. Never start or
stop the pressure washer unless the water supply is turned
on.
Important: Always ensure that the fuel valve and the engine
switch are in the “OFF” position when the engine is not in use.
NOTICE
If the engine will not be used for a period of two (2) weeks or
longer, please see the Storage section for proper engine and
fuel storage.
Operation at High Altitude
The density of air at high altitudes is lower than at sea level.
Engine power is reduced as the air mass and air-fuel ratio
decrease. Engine power and output will be reduced approximately
3½% for every 1000 ft. of elevation above sea level. At high
altitudes increased exhaust emissions can also result due to the
increased enrichment of the air fuel ratio. Other high altitude
issues can include hard starting, increased fuel consumption and
spark plug fouling.
To alleviate high altitude issues other than the natural power
loss, CPE can provide a high altitude carburetor main jet. The
alternative main jet and installation instructions can be obtained
by contacting our Technical Support Team. Installation instructions
are also available in the Technical Bulletin area of the CPE website.
The part number and recommended minimum altitude for the
application of the high altitude carburetor main jet is listed in the
following table.
In order to select the correct high altitude main jet it is necessary
to identify the carburetor model. For this purpose, a code is
stamped on the side of the carburetor. Select the correct high

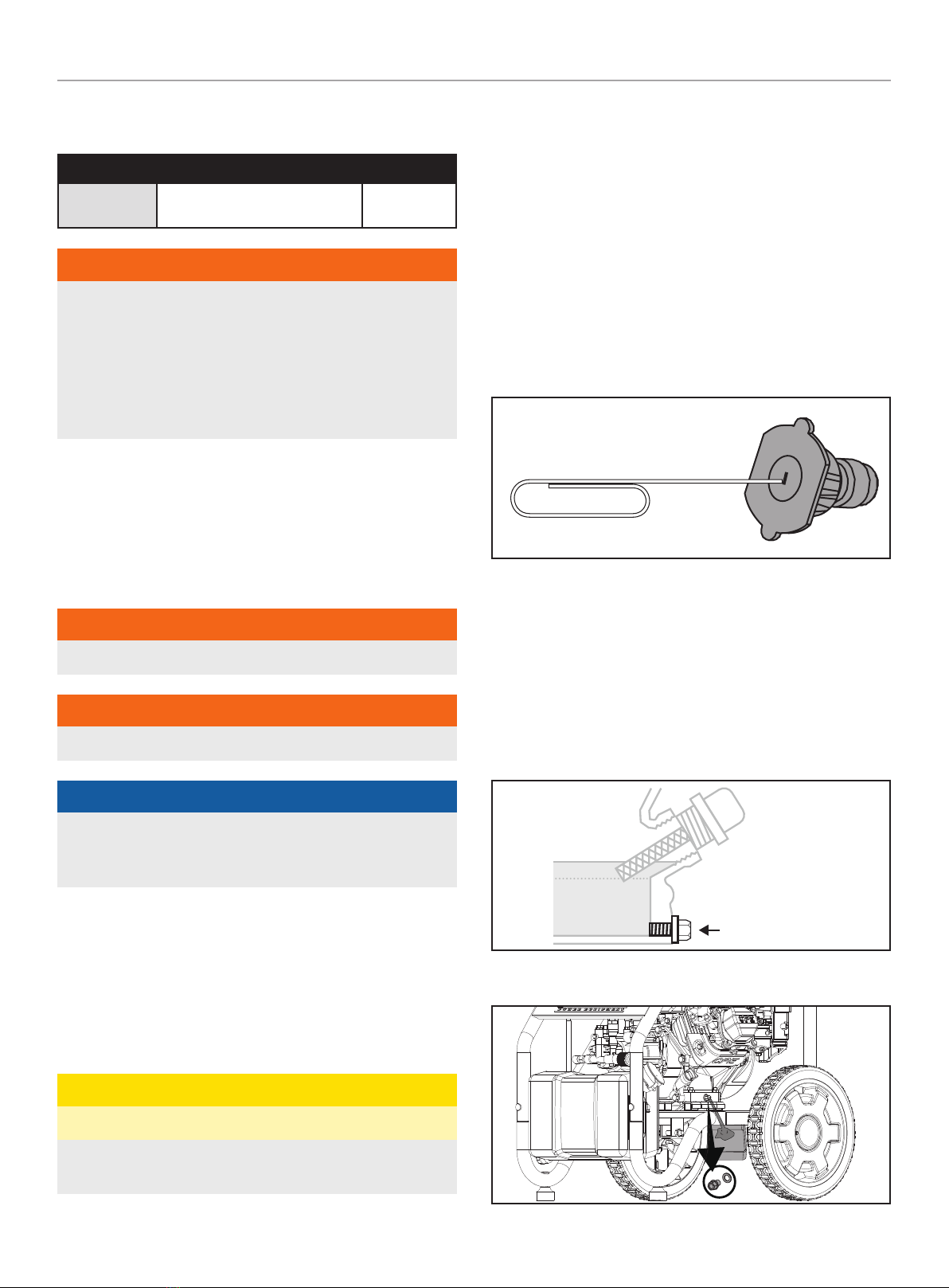

76503-N - 3100 PSI PRESSURE WASHER MAINTENANCE
20
altitude jet part number corresponding to the carburetor code
found on your particular carburetor.
Carb. Code High Alt. Jet Part Number Min. Altitude
P19-1-H 26.131017.00.01.H 3,500 ft.
(1,067 m)
WARNING
Operation using the alternative main jet at elevations lower
than the recommended minimum altitude can damage the
engine. For operation at lower elevations, the originally
supplied standard main jet must be used. Operating the
engine with the wrong engine configuration at a given altitude
may increase its emissions and decrease fuel efficiency and
performance.
MAINTENANCE
Make certain that the pressure washer is kept clean and stored
properly. Only operate the unit on a flat, level surface in a clean,
dry operating environment. DO NOT expose the unit to extreme
conditions, excessive dust, dirt, moisture or corrosive vapors.
WARNING
Never operate a damaged or defective pressure washer.
WARNING
Improper maintenance will void your warranty.
NOTICE
For Emission control devices and systems, read and
understand your responsibilities for service as stated in the
Emission Control Warranty Statement of this manual.
The owner/operator is responsible for all periodic maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the pressure washer.
For service or parts assistance, contact our help line at .
Cleaning the Pressure Washer
CAUTION
DO NOT spray the pressure washer with water.
Water can contaminate the fuel system and can enter the
engine through the cooling slots and damage the engine.
1. Use a damp cloth to clean exterior surfaces of the pressure
washer.
2. Use a soft bristle brush to remove dirt and oil.
3. Use an air compressor (25 PSI) to clear dirt and debris from
the pressure washer.
4. Inspect all air vents and cooling slots to ensure that they are
clean and unobstructed.
Cleaning Spray Nozzle
Detach the quick connect nozzle from the wand. Use a small wire
rod (paper clip) to loosen up any particles in the quick connect
nozzle and flush with water.
To prevent accidental starting, remove and ground spark plug wire
before performing any service.
Changing the Engine Oil
Change oil when the engine is warm. Refer to the oil specification
to select the proper grade for your operating environment.
1. Remove the oil drain bolt with a 12 mm socket
(not included) and extension.
DRAIN BOLT
2. Allow the oil to drain completely into an appropriate container.
