Channel Vision DS3-XXXX User manual

DS3-XXXX
DS3-XXXXC
DS3-XXXXP
Telephone Entry Door Intercom
1
1
123
456
789
*0#

2

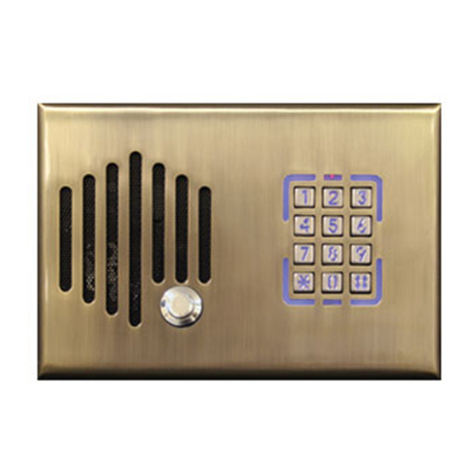

Channel Vision’s DS3-Series door stations can interface with
a variety of telephone entry control products to provide
communication with the front door. They are available in a
variety of configurations including options for a hidden
camera and compatibility with Panasonic’s popular KSU
phone systems. These door stations also feature an
integrated access control keypad which can be used to open
an entrance gate or an electric door lock. The DS3-Series
door stations install in a standard 3-gang junction box,
making it a simple and affordable addition to any home.
Dimensions:
7.25”
5.0”
0.38”
1.25”
Depth
Behind Plate
Plate
Depth
Only
F e a t u r e s :
h
h
h
h
h
Rust-proof faceplate
Discrete speaker and microphone
Hidden camera option available
Fits a 3-gang box
Available in many different finishes
123
456
789
*0#

33
Understanding the model number:
Understanding the compatibility options
(DS3-0212C shown for example only)
Part numbering: DP door plates
DS3-0212C
Blank P-0920, P-0921, & TE110/C-0920 compatible
C P-0930 compatible
222 Polished Brass
232 Antique Brass
252 Oil Rubbed Bronze
302 Satin Nickel
0 No camera
6 Color camera (Note: camera option is not
available on IU-xxxxP8 models.)
There are three different types of systems that DS3 door stations can
be used with. The compatibility for these different types of systems is
indicated by the suffix of the model number which follows the 4-digit
numerical code.
If there is not a letter suffix on the model number, such as DS3-0212,
that door station is compatible with Channel Vision’s telephone entry
products including models P-0920, P-0921, C-0920, and TE110.
If the suffix is the letter “C”, such as DS3-0212C, then the door plate
is compatible with Channel Vision’s Whole-House CAT5 Intercom
Hub, model P-0930.
Please double check to be sure that you have purchased the correct
model number for your application.

This door intercom product consists of two sub assemblies which must be
attached to each other before the final assembly can be installed. In this
guide the electronic sub assembly will be referred to as the “Companion
Board” and the mechanical assembly will be referred to as the “Door Plate.”
Review the following diagrams and assemble as shown.
Attaching the Companion Board
Companion Board Connection Details
To Button
To Speaker
Microphone
Connect Telephone Entry Controller here
(see following pages for details)
Remove the plastic cap that covers the microphone compartment on the
door plate. Place the microphone in the compartment and replace the plastic
cap over the microphone. Note that the plastic cap will form a friction fit over
the top of the microphone wires holding them snug against the outer
compartment wall until they exit at the base as shown. Remove the mounting
screws which are already attached to the bracket and use them to attach the
companion board. The companion board should mount on the front side of
the bracket so that the screws pass through the companion board before
threading into the bracket.
4
Place microphone here and
cover with cap.
Microphone cap
Companion board
Place 2 washers on each side
between companion board
and mounting bracket.

5
This door intercom product consists of two sub assemblies which must be
attached to each other before the final assembly can be installed. In this
guide the electronic sub assembly will be referred to as the “Companion
Board” and the mechanical assembly will be referred to as the “Door Plate.”
Review the following diagrams and assemble as shown.
Attaching the Companion Board
(DS3-XXXXC)
Companion Board Connection Details
To Speaker
Microphone
(attached to back side) Use D1 for Door1 chime sound
Use D2 for Door2 chime sound
Volume Adjustment
Position the companion board onto the three mounting tabs as shown below.
The microphone attached to the back side of the companion board should
line up with the microphone tube on the bracket. Bend the mounting tabs to
secure the companion board. Connect the speaker and button wires by
sliding the small connector over the exposed pins on the companion board
as shown.
To Button
Companion Board
Connect Button Here
Connect Speaker Here
Microphone
Tube
Align holes with
mounting tabs
Bend mounting
tabs over to
secure the
Companion Board
Connect Intercom Hub here
(see following pages for details)
Completed Sub-assembly

#
0
*
9
8
7
6
5
4
123
6
The DS3-6xxx, DS3-6xxxC, & DS3-6xxxP come with a mini color camera that
can be attached to the integrated mount that allows the camera to see
through the opening in the plate. The illustrations bellow show how to mount
the camera.
Attaching & Installing the Camera
Mini Camera
Mounting
Hole
Cone
Lens
Connect Intercom Hub here
(see following pages for details)
Break away the section of perforated metal screen that
covers the camera opening by pushing a screwdriver
through the slot on the front of the door plate. Press
near the top or bottom of the section and the tabs that
hold it in place will break free. Attach the camera to the
mount so that the cone of the camera points through
the opening. Adjust the camera to the desired position
and secure it in place by tightening the screw on the
mount.
Remove this
section of screen
material
Front View
Rear View
Attach camera to mount
using the screw provided
Attach pigtail
to rear of
camera
Camera Power
To Monitor or
Video Distribution
Coax Extension
(not included)
BNC Video
Connector
2-Conductor Power
Supply Extension
(not included)
Installation:
If necessary, attach the camera’s video output to a coax extension that is long
enough to reach your monitor or video distribution equipment.
If necessary, cut the connector off of the end of the power supply and splice in
an extension using crimp-on connectors.

7
The DS3-0xxx and DS3-6xxx both interface with the Channel Vision’s
telephone entry controllers: TE110, C-0920, P-0920 and P-0921 to provide
audio and video communication with the front door. Using a 2-conductor
wire, connect the Telephone Entry Controller to the empty screw terminal
block on the door station (see diagram).
Channel Vision Compatible (DS3-xxxx)
Panasonic Compatible (DS3-xxxxP)
Strike
Active
Ring
Intercom
Active
12VAC
#
or
*
No CO
Strike
Time
3/5 rng
1
2
3
PowerIntercomUnlock
Door
ChimeCO Input Phones
TELEPHONE ENTRY CONTROLLER
CO Input Telephones
Model
P-0920
PRO
CH A NN EL
TM
VIS I O N
Connect to the
terminals marked
“ TO SYS”
From Telephone
Service Provider
House
Telephones
12VAC
500mA
Using a 2-conductor wire, connect the door
phone output of your Panasonic KSU to the
empty screw terminal block on the door station
Channel Vision's Panasonic models are a compatible replacement for the
Panasonic KXT30865. They are an attractive alternative to the standard
plastic door station sold by Panasonic. This product interfaces with
Panasonic’s KSU phone systems to provide communication with the front
door.
Connect to the
terminals marked
“ TO SYS”
From Telephone
Service Provider
System Phones
Panasonic
KSU

Using the Access Keypad
500ft.
max
The diagram below shows how to connect the DS3-xxxxC to Channel
Vision’s CAT5 Whole-House Intercom system. When the button is pressed
on the DS-xxxxC the ST-2000 Intercom Stations will generate a door chime.
Pressing Answer/End will open communication with the DS3-xxxxC. Model
DS3-6xxxC includes a color camera and DS3-0xxxC includes no camera.
Channel Vision Compatible
( -xxxx )
CAT5 Intercom
DS3 C
P-0930
PRO
CHANNEL
TM
VISI O N
Model
P-0930 Whole-House Intercom
Page Out
Page Trigger
IR
Emitters +15VDC
Power
Link
In
Link
Out
Hub
A
B
C
DRoom 1 Room 2 Room 3 Room 4 Room 5 Room 6
ST-2000
Press here to
answer door
These terminals can be
used to connect a ST-C5IDS
Door Strike Relay Module Roo m 1
Room 2
Room 3
Room 4
Room 5
Room 6
Monitor
DND Answer/End
Page
Using CAT5 wire, connect the
P-0930 to the 110 connector
on the door station
Power Light: Standby (Red)
Active (Green)
IMPORTANT: if power light
does not illuminate,
immediately disconnect
power supply and check
for correct polarity.
#
0
*
9
8
7
6
5
4
123
8
DS3-xxxxC
External Indicator Light (Orange)
Luminous keypad - 10 entry buttons
2 function keys
Features
Anti-tamper design and alarm will activate if unit is moved
Door opening setting adjuments 01-99 seconds
Stores up to 8 different door opening passwords
Power supply : DC 12V. 80 mA (standby), 110mA (active)

Programming the Keypad
System password (default is 4567) is required to enter system setting modes.
The reader will send a beep sound to indicate entering system setting modes.
If there isn’t any action within 20 seconds, the system will escape from the
setting mode. When programming, the “#” key is used as the Confirmation or
“Enter” key. In most cases “*” is used to clear an entry or exit a process.
Default system password : 4567
Change the 8 user passwords
Press: * # [system password] #
System Reaction: One beep
Press: 3 Then enter 1-8 (example:”1” for the first password, “2” for the
second, “3” for the third, etc.)
Press: [enter the 4-digit password]
System Reaction: One beep (Password changed successfully)
9
Gray
Yellow
Purple
Black
Red
AP-55 2” X 1” X 3/4” (Included)
NC
COM
ALARM
NO
PS
NC
OD OR
COM
NO
GR
Y
P
B
R
VIN
GND
GND
+12VDC
White : Wiring of orange LED
Blue :Anti-tamper switch COM
Orange : Anti-tamper switch N.C.
Door control relay. Dry contact N.O.
Door control relay. Dry contact COM
Door control relay. Dry contact N.C.
Alarm output relay. Dry contact N.O.
Alarm output relay. Dry contact COM
Alarm output relay. Dry contact N.C.
Exit push button
Keypad connections
Tamper spring installs on the
switch before mounting. Make
sure the tamper spring touches
the inner surface of the case.
Green : Door detection

Changing the System Password
Press: * # [system password] #
System Reaction: One beep
Press: 8 [enter new 4-digit system password] #
System Reaction: One beep
Press: [re-enter new 4-digit system password for confirmation]
Note: If confirmation password didn’t match, you’ll hear repeated beeps,
and the system will exit the process. If no beeps are heard, then
continue.
Change Anti-Tamper Switch Setting: 0=ON 1=OFF
Press: * # [system password] #
System Reaction: One beep
Press: 7 [enter the desired anti-tamper mode, 0=On, 1=Off]
System Reaction: One beep (Anti-Tamper mode has been set)
10
Opening the Door Lock with a System Password
Press: * # [system password] # 0 0
System Reaction: One beep, power light turns green and door is
Opening the Door Lock with a User Password
Press: [user password]
System Reaction: One beep, power light turns green and door is
Setting Activation Mode
NOTE : Set the activation mode before attempting to use the user
passwords.
To set activation:
Press: * # [system password] #
System Reaction: One beep
Press: 5, 1
Set Door Strike Time Duration
Press: * # [system password] #
System Reaction: One beep
Press: 4 [enter the 2-digit time duration in seconds (01-99)]
System Reaction: One beep (Time duration set successfully)
Change Reader Alarm Setting: 0=ON 1=OFF
Press: * # [system password] #
System Reaction: One beep
Press: 0 3
System Reaction: One beep
Press: [Enter the desired alarm setting 0=On, 1=Off]
System Reaction: One beep (Alarm mode has been set)

Controlling Electric Locks
The DS-Keypad contains both Normally Open and Normally Closed relay
contacts allowing it be used for either “fail-safe” or “fail-secure” lock
mechanisms. Fail-secure locks remain locked when the power is off and
unlock when power is applied to the mechanism. Of course it is still
possible to manually open the lock from the inside of the building. Most
electric locks are fail-secure. Fail-safe locks require constant power to
remain locked. They are unlocked in the absence of power.
Fail-Secure: Use this diagram for any lock that requires a Normally Open
control contact.
Note: the simple push button shown below is optional and can be omitted.
11
Fail-Secure
Lock (N.O.) Strike
Power
Supply
Keypad
Power
Suppy
–
+
+
Simple
push button
–
NO
COM DOOR
PS
(Optional)
NC
COM
ALARM
NO
SP
NC
OD OR
COM
NO
GR
Y
P
B
R
INV
GND
Fail-Safe: Use this diagram for any lock that requires a Normally Closed
control contact, such as electromagnetic locks.
Fail-Safe
Lock (N.C.) Strike
Power
Supply
Simple
push button
–
NC
COM DOOR
PS
(Optional)
NC
COM
ALARM
NO
SP
NC
OO
D R
O
C M
NO
GR
Y
P
B
R
VIN
GND
Keypad
Power
Suppy
+
–
+

12
Integrating the TE110DS
Telephone
Company
Connect “NO” and
“COM DOOR” from
keypad to the
“Unlock Door”
terminals. Triggering
the keypad will
cause the P-0920
to activate the
TE110DS and allow
the door to open.
TE110DS
(Sold Separately)
12VAC
500mA
Strike
Active
Ring
Intercom
Active
12VAC
#
or
*
No CO
Strike
Time
3/5 rng
1
2
3
PowerIntercomUnlock
Door
ChimeCO Input Phones
TELEPHONE ENTRY CONTROLLER
CO Input Telephones
Model
P-0920
PRO
CHA N NEL
TM
VISION
House
Telephones
P-0920
Fail-Secure
Lock (N.O.) Strike
Power
Supply
–
+
#
0
*
9
8
7
6
5
4
123
Keypad
Power
Suppy
NC
COM
A ARM
L
NO
PS
NC
ODO R
COM
NO
GR
Y
P
B
R
I
V N
GND
oInterc m
Hou es
Strike
Example using a P-0920 and normally open lock type.

Integrating the ST-C5IDS
#
0
*
9
8
7
6
5
4
123
ST-C5ID
(Sold Separately)
(Rear View)
S G P
P-0930
PRO
CH A NN E L
TM
VISIO N
Model
P-0930 Whole-House Intercom
Page Out
Page Trigger
IR
Emitters +15VDC
Power
Link
In
Link
Out
Hub
A
B
C
DRoom 1 Room 2 Room 3 Room 4 Room 5 Room 6
Press and hold
door station number
to activate ST-C5IDS
ST-2000
Room 1
Room 2
Room 3
Room 4
Room 5
Room 6
Monitor
DND Answer/End
Page
PS
–
Press here to
answer door
Fail-Secure
Lock (N.O.)
+
13
NC
COM
L RA A M
NO
PS
NC
DOOR
COM
NO
GR
Y
P
B
R
VIN
GND
Keypad
Power
Suppy
–
+
Contact
Connect PS and ground
to “contact” terminal on
ST-C5ID. Example
shown is for normally
open lock.
Strike
Power
Supply

Example alarm wiring with normally open circuit:
NC
M
CO
M
ALAR
NO
PS
NC
D OO R
OC M
NO
GR
Y
P
B
R
VIN
GND
12V DC
+
_
+
_
Wiring of orange LED indicator
:
White
Black
Orange LED lit upon
white - black (ground) contact
Door detection wiring:
Green
Black N.O. Or N.C. Reed Switch
Alarm relay is activated upon Green - Black (ground) contact.
#
0
*
9
8
7
6
5
4
123
Orange
Blue
Tamper switch - If using
the tamper switch feature,
this must remain pressed
when the keypad is installed
Use included tamper spring
make sure it contacts back of case.
Anti-tamper switch:
N.C.
Contact between orange and blue is
normally closed. Close when tamper switch
pressed (installed) and opens when
switch is released.
14
Optional Keypad Functionalities

Precautions
1. Make sure of the voltage and the polarity of the current to avoid damage
to the unit.
2. Do not share electric current of electric locks’ and the DS keypad to
avoid inteferences.
DS Keypad Troubleshooting
1. Unable to enter into vairous functions of setting mode when system
password is entered.
Solution : Incomplete system password
*# XXXX# represents complete system password, or press “*” button
and then enter valid system password.
2. Wiring problem caused the key buttons to enter incorrectly. Please
check all wires to be placed behind the space of the display panel
to avoid short circuit or interference.
3. Terminate anti-tamper output by entering system code or user code.
Please refer to P-0920 or P-0930 instruction manual for troubleshooting
information on the system installed.
15

500-275 rev D
www.channelvision.com
234 Fischer Avenue, Costa Mesa, California 92626 USA
[phone] [phone] [phone] fax
email: [email protected]
Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal
use of this product with new or rebuilt parts, free of charge in the USA, for one year from the date of original purchase.
This is a no hassle warranty with no mail in warranty card needed. This warranty does not cover damages in shipment,
failures caused by other products not supplied by Channel Vision Technology, or failures due to accident, misuse,
abuse, or alteration of the equipment. This warranty is extended only to the original purchaser, and a purchase receipt,
invoice, or other proof of original purchase date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling [phone] toll free.AReturnAuthorization
number must be obtained in advance and can be marked on the outside of the shipping carton.
This warranty gives you specific legal rights and you may have other rights (which vary from state to state). If a
problem with this product develops during or after the warranty period, please contact Channel Vision Technology,
your dealer or any factory-authorized service center.
Channel Vision products are not intended for use in medical, lifesaving, life sustaining or critical environment
applications. Channel Vision customers using or selling Channel Vision products for use in such applications do so at
their own risk and agree to fully indemnify Channel Vision for any damages resulting from such improper use or sale.
1
Specifications:
Speaker Size (mm): 50
Speaker Impedance: 8 Ohms
Speaker Power Peak (W): 0.2
Speaker Frequency Range: 500 Hz - 3.5 kHz
Power Supply: 12VDC, 500mA
Power Consumption: 80mA (idle), 110mA (active)
Cable Requirements: 8-conductor wire, 24AWG or larger
External Relay Type: Normally Open or Normally Closed
Relay Specifications: 1Amp@30VDC or 3Amp@24VDC
Color Camera: (DS3-6xxx, DS3-6xxxC, & DS3-6xxxP only)
Camera Lens: 5.5mm
Resolution: 550 lines
S/N Ratio: More than 48 dB
Min Illumination: 0.2 LUX @ F2.0
Power Consumption: 12VDC, 65mA
Electronic Shutter: 1/60s - 1/100,000s
Iris Control: Automatic
White Balance: Automatic
Video Output: 1 Vp-p @ 75 ohms
Operating Temp: -10°C to 50°C (14°F to 122°F)
Specifications subject to change without notice.
Note: wire carrying current to electric
locks will need to be much thicker.
Consult the electric lock documentation
for its specific wiring requirements.
