Char-Griller Smokin' Pro 1224 User manual

Smokin’Pro™
Keep your receipt with this manual for
Warranty.
CUSTOMER SERVICE
1-912-638-4724
[e-mail]
Model #1224
Contents of this manual are Trademarked and Copyrighted by Char-Griller | A&J Manufacturing.
Using the information contained in this manual without consent of Char-Griller and/or A&J
Manufacturing is strictly prohibited.
OM_1224_ED_ B.5
OWNER’S MANUAL

TABLE OF CONTENTS
Safety Warnings & Warranty...............................A-1
Assembly Instructions ..................................... B-1
Product Usage .................................................. C-1
Recipes .............................................................. D-1
Accessories ....................................................... E-1

A-1
IMPORTANT SAFETY WARNINGS
READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE
ASSEMBLING AND OPERATING YOUR GRILL
Read the following instructions carefully and be sure your appliance is properly assembled, installed,
and maintained. Failure to follow these instructions may result in serious bodily injury and/or property
damage. If you have any questions concerning assembly or operation, call 912-638-4724.
• Grill is for use outdoors and in well-ventilated areas, only.
• Use caution when assembling and operating your grill to avoid scrapes or cuts from sharp edges.
• Do not use gasoline, kerosene, or alcohol to light charcoal. Use of any of these or similar products
could cause an explosion possibly leading to severe bodily injury.
• Do not leave a lit grill unattended. Keep children and pets away from grill at all times.
• Use caution when moving grill to prevent strains.
• Keep grill at least 15 feet from any combustible material (decks, buildings, fences, trees, bushes,
etc).
• When adding charcoal and/or wood, use extreme caution.
• Never move grill when it is in use or when it contains hot coals or ashes.
• Do not place grill near flammable liquids, gases, or where flammable vapors may be present.
• Use caution since flames can flare-up when fresh air suddenly comes in contact with fire.
• When opening the lid, keep hands, face, and body safe from hot steam and flame flare-ups.
• WARNING: To avoid injuries gloves or other protective articles should be used when touching the
ash pan hangers.
• Do not exceed a temperature of 400°F.
• Do not allow charcoal and/ or wood to rest on the walls of grill. Doing so will greatly reduce the life of
the grill.
• Always wear oven mitts to protect hands from burns. Avoid touching hot surfaces.
• CAUTION: Exposed metal dampers on air vents and and/or metal handles are hot during usage.
Again, always wear oven mitts when adjusting air flow to protect hands from burns.
WARNING: FUELS USED IN WOOD OR CHARCOAL BURNING APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS, CAN EXPOSE
YOU TO CHEMICALS INCLUDING CARBON BLACK, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, AND CARBON MONOXIDE,
WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. For more information go to:
www.P65Warnings.ca.gov.
ADVERTENCIA: LOS COMBUSTIBLES USADOS EN EQUIPOS PARA QUEMAR MADERA O CARBÓN, ASÍ COMO LOS PRODUCTOS DE TAL COMBUSTIÓN,
PUEDEN EXPONERTE A SUSTANCIAS QUÍMICAS, ENTRE ELLAS EL NEGRO DE HUMO Y EL MONÓXIDO DE CARBONO, QUE EL ESTADO DE CALIFORNIA
RECONOCE COMO CAUSA, RESPECTIVAMENTE, DE CÁNCER Y DE MALFORMACIONES CONGÉNITAS Y OTROS DAÑOS AL SISTEMA REPRODUCTOR.
Para más información, visite www.P65Warnings.ca.gov

A-2
• When opening lid, make sure it is pushed all the way back so it rests against the lid support
brackets. Use extreme caution as hood could fall back to a closed position and cause bodily injury.
• Close lid and all dampers to help suffocate flame.
• Always hold an open lid from the handle to prevent it from closing unexpectedly.
• Never leave coals and ashes unattended. Before grill can be left unattended, coals and ashes must
be removed. Use caution to protect yourself and property.
• Carefully place remaining coals and ashes in a noncombustible metal container and saturate
completely with water.Allow coals and water to remain in metal container 24 hours prior to
disposing.
• To protect against bacteria that could cause illness, keep all meats refrigerated and thaw in
refrigerator or microwave. Keep raw meats separate from other foods, and wash everything that
comes in contact with raw meat.
• Cook meat thoroughly, and refrigerate leftovers immediately.
• Use a calibrated food thermometer and the USDA guidelines to ensure that meat, poultry, seafood,
and other cooked foods reach a safe minimum internal temperature.
• Always have a fire extinguisher near at all times. Maintain and check your fire extinguisher regularly.
THESE WARNINGS ALSO APPLY TO THE SIDE FIRE BOX.
REGISTERYOUR GRILL:
To take full advantage of the Char-Griller warranty be sure to register your grill by visiting
www.CharGriller.com/Register or calling Customer Service at 1-912-638-4724.
Registration provides important protections:
1. In the extremely unlikely event of a product recall Char-Griller can easily contact you and rectify the
issue.
2. If a warrantied part is broken or missing we can send you the needed parts promptly.
NOTE: You will need your model #, serial number, and a copy of the original sales receipt when
registering.
IMPORTANT SAFETY WARNINGS
(Continued)

A-3
STOP! CALL FIRST!
Do NOT Return Product to Store.
This grill has been made according to the highest of quality standards. If you have any questions that
are not addressed in this manual or if you need parts please call our Customer Service Department at
1-912-638-4724 (USA) or email Char-Griller at: [e-mail] and have your serial number
handy.
Document Your Grill Model and Serial Numbers HERE:
(Model and Serial number are located on the back of the grill body or on the leg.)
________________________ _______________________
(MODEL #) (SERIAL #)
(example)

A-4
WARRANTY INFORMATION
A COPY OF THE DATED PROOF OF PURCHASE (RECEIPT) IS REQUIRED WHEN REGISTERING OR SUB-
MITTING A WARRANTY* CLAIM. PLEASE RETAIN A COPY OF THE RECEIPT FOR YOUR RECORDS.
Char-Griller will replace any defective part of its grillers/smokers, under warranty, as outlined below.
PLEASE READ THIS INFORMATION IN DETAIL AND IF YOU HAVE ANY QUESTIONS CONTACT CUSTOMER
SERVICE AT 912-638-4724 OR [email protected].
SURFACE RUST IS NOT CONSIDERED A MANUFACTURING OR MATERIALS DEFECT
Char-Griller grills are made of steel and if exposed to the elements rust will occur naturally. Please refer to the
section entitled, “Usage” to review how to care for your grill properly.
Surface issues such as scratches, dents, corrosion or discoloring by heat, abrasive and chemical clearers, surface
rust or the discoloration of steel surfaces are NOT covered under these warranties.
Warranties are for the replacement of defective parts only. Char-Griller is not responsible for damage resulting
from accident, alteration, misuse, abuse, hostile environments, improper installation, and installation not in accor-
dance with local codes of service of unit.
Excluded Under ALL Warranties
Paint; Surface Rust; Heat Damage; Incorrect Parts ordered by customer, including shipping; Worn Parts; Missing
or damaged parts not reported within two (2) months of purchase date; Defective parts not reported within one (1)
year of purchase date; Fading grill cover.
*NOTE: For warranty claims, photos and prepaid return of the item in question may be required. Misuse, abuse or
commercial use nullifies all warranties.
Charcoal / Pellet / Kamado Grills
Grill - Hood AND Bottom
(excludes removable Ash Pan) 5 years from date of purchase for rust
through / burn through
Ash Pan AND Defective Parts 1 year from date of purchase
Gas Grills
Grill Hood (TOP half) AND Main Burner Tubes
(exckudes Side Burner) 5 years from date of purchase for rust through / burn through
Grill Body (BOTTOM half)AND Side Burner
AND Defective Parts 1 year from date of purchase
Dual Fuel Grills (Gas & Charcoal)
Charcoal Grill - Hood AND Bottom AND Gas
Grill Hood (TOP half) AND Main Burner Tubes
(excludes Ash Pan and Side Burner)
5 years from date of purchase for rust
through / burn through
Ash Pan AND Defective Parts AND Gas Grill
Body (BOTTOM half)AND Side Burner 1 year from date of purchase
Parts, Accessories, and Grill Covers 1 year from date of purchase
(seam tears only for covers)

1224_OM_B.5
1
PARTS LIST
B-1

1224_OM_B.5
2
PARTS LIST
B-2
LINE ITEM QTY DESCRIPTION PART NO.
1 1 HOOD 20-0047
2 1 GRILL BODY 20.0049
3 1 HEAT GAUGE 55-0010
4 2 HOOD HANDLE 55-0014
5 1 WIRE SHELF 20-0050
62 LONG LEG 10-0055
7 2 SHORT LEG 10-0056
8 1 ASH PAN 20-0048
9 4 COOKING GRATE 10-0049
10 2 WHEEL 55-0003
11 2 LEG BRACE 10-0051
12 1 AXLE 10-0057
13 2 ASH PAN HANGERS 20-0024
14 3 UTENSIL HOOK 50-0003
15 1 DAMPER CIRCLE 10-0036
16 1 SIDE SHELF 30-0016
17 2 HUB CAP 55-0007
18 2 FRONT SHELF SLAT 10-0050
19 2 FRONT SHELF SUPPORTS 10-0053
20 2 FRONT SHELF BRACKETS 10-0052
21 1 SMOKESTACK 30-0015
22 2 SFB COOKING GRATES 10-0025
23 1 SFB DRAWER 20-0100
24 1 SFB DRAWER HANDLE 55-0015
25 1 SFB LARGE HANDLE 55-0016
26 1 FIRE GRATE 20-0028
27 1 SFB BODY 20-0101
28 2 LEG CAP 55-0013

1224_OM_B.5
3
HARDWARE AND TOOLS NEEDED
Assembly: Requires 2 people. Get another person to help. Tools Needed: Pliers,
Phillips Head Screwdriver and a 7/16” Nut Driver.
NOTE: Do Not tighten any bolts unless instructed to do so. Tightening too soon may
prohibit parts from tting together. All Hex Nuts should be on the inside of the grill
unless stated otherwise. Unpack all contents in a well cleared and padded area.
Estimated Assembly Time: 45 minutes
STOP! Do Not Return to Store. If you are missing parts or need assistance please
email us at [e-mail] or call 912-638-4724.
Do not attempt to assemble or use if you are missing parts.
Hardware Pack:
B-3
LINE ITEM QTY DESCRIPTION PART NO.
11 HOOD 20-0047
2 1 GRILL BODY 20.0049
3 1 HEAT GAUGE 55-0010
4 2 HOOD HANDLE 55-0014
5 1 WIRE SHELF 20-0050
6 2 LONG LEG 10-0055
7 2 SHORT LEG 10-0056
8 1 ASH PAN 20-0048
9 4 COOKING GRATE 10-0049
10 2 WHEEL 55-0003
11 2 LEG BRACE 10-0051
12 1 AXLE 10-0057
13 2 ASH PAN HANGERS 20-0024
14 3 UTENSIL HOOK 50-0003
15 1 DAMPER CIRCLE 10-0036
16 1 SIDE SHELF 30-0016
17 2 HUB CAP 55-0007
18 2 FRONT SHELF SLAT 10-0050
19 2 FRONT SHELF SUPPORTS 10-0053
20 2 FRONT SHELF BRACKETS 10-0052
21 1 SMOKESTACK 30-0015
22 2 SFB COOKING GRATES 10-0025
23 1 SFB DRAWER 20-0100
24 1 SFB DRAWER HANDLE 55-0015
25 1 SFB LARGE HANDLE 55-0016
26 1 FIRE GRATE 20-0028
27 1 SFB BODY 20-0101
28 2 LEG CAP 55-0013

1224_OM_B.5
4
Step 2
Install Bottom Wire Shelf by placing the four corner hooks inside the hole on each leg then rotate the
leg assemblies up and secure the Leg Braces to the other side of the Long Leg and Short Leg set.
ASSEMBLY
Step 1
Assemble Long Legs, Short Legs, and Leg Braces as show below then secure the Leg Braces to one
set of Long Leg and Short Leg with four 1 3/4” Hex Bolts and four Hex Nuts.
B-4
Short Legs
Leg Braces
Hex Nuts
Hex Bolts Hex Bolts
Hex Bolts
Bottom Wire Shelf Hex Bolts
Leg Braces
Hex Bolts

1224_OM_B.5
5
B-5
Step 3
Lay the cart assembly down with the Long Legs on the oor then install the Wheels and Wheel Axle.
On one end of the Axle insert the Cotter Pin into the hole on the Axle and snap in the Hub Cap. Slide
one Flat Washer and one Wheel onto the Axle then slide the Axle through the holes on the Short Legs
and Bottom Shelf. Complete the assembly by sliding the other Wheel and Flat Washer onto Axle then
insert the Cotter Pin and snap on the Hub Cap.
Axle
Wheel
Washer
Hub Cap
Wheel Axle
Wheels
Cotter Pin
Hub Cap
Hub Cap

1224_OM_B.5
6
Step 4
Attach the Grill Body to the previous assembly cart using four 1 3/4” Hex Bolts and four Hex Nuts.
The Bolts must go through the leg, Grill Body then tighten with the Hex Nuts inside the Grill body.
B-6
Hex Bolts
Hex Bolts
Hex Nuts
NOTE: SFB
OPENING
MUST BE ON
OPPOSITE
SIDE OF
WHEELS SIDE.
SFB Opening
Step 5
Install SFB to the Grill Body using six 1/2” Hex Bolts, two 2” Hex Bolts, and eight Hex Nuts. Bolts
should go through the holes from the inside of the SFB Body.
1/2” Hex Bolts
2” Hex Bolts
Spacer
Tubes
Hex Nuts
SFB

1224_OM_B.5
7
B-7
Step 6
Attach the Grill Hood to the Grill Body using the two Hinge Pins and two Cotter Pins provided.
Hinge Pin
Hinge Pin
Grill Hood
Grill Body
Cotter Pins
After Installation

1224_OM_B.5
8
B-8

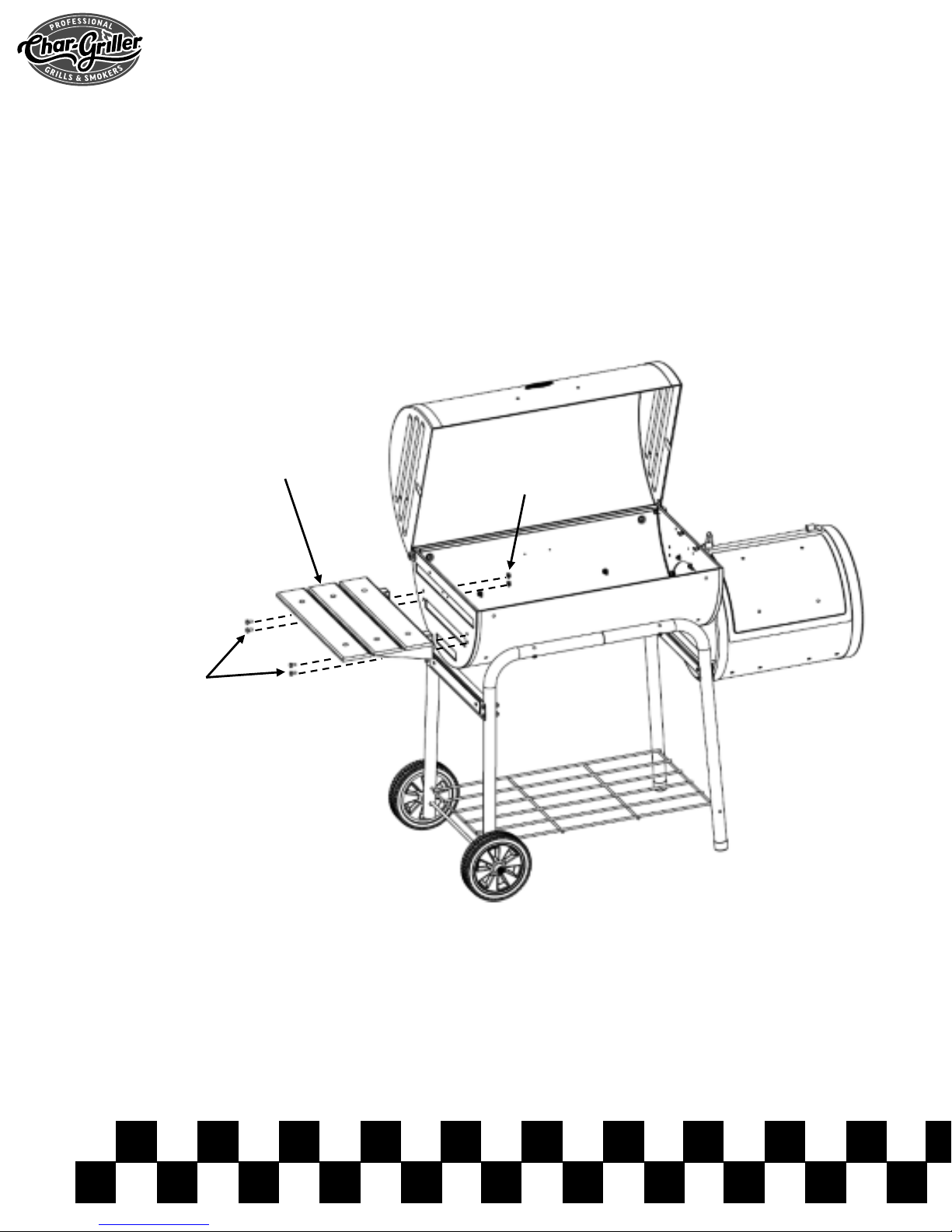

Step 7
Attach Side Shelf to Grill Body with four 1/2” Hex Bolts and four Hex Nuts.
Hex Bolts
Hex Nuts
Side Shelf

1224_OM_B.5
9
B-9
Step 8
Attach Front Shelf to Grill Body with four Hex Bolts and four Hex Nuts. First Assembly the side shelf
using four 1” Carriage Bolts and four Hex Nuts.
Front Shelf
Support Brace
Front Shelf
Bracket
Carriage Bolt
Hex Nut
Wood Slat
Front Shelf
Assembly
Hex Bolt
Hex Nut

1224_OM_B.5
10
Step 9
Insert the THERMOMETER through the THERMOMETER BEZEL then through the hole in GRILL HOOD (from
outside) then secure with a WINGNUT. Then attach the HOOD HANDLE to the HOOD with two (2) 3/4” HEX
BOLTS, two (2) LOCK WASHERS, and two (2) HEX NUTS, see below.
B-10
Thermometer
Thermometer Bezel
Grill Hood
Thermometer
Wingnut
3/4” Hex Bolt
Hood Handle
Lock Washer
Hex Nut
Grill Body

1224_OM_B.5
11
Step 10
Insert Smokestack Assembly through the hole on the Grill Hood from the inside of the Grill Hood then
secure it with two Hex Bolts and two Hex Nuts.
B-11
Hex Bolt
Smokestack
Hex Nut
Grill Hood

1224_OM_B.5
12
B-12
Step 11
Install SFB Handle using two 3/4” Hex Bolts and two Hex Nuts. Then install SFB side Handle using
two 1/2” Hex Bolts and two Hex Nuts.
Hex Bolt—1/2”
Hex Nut
Handle
SFB Side
Handle
Hex Bolt—3/4”

1224_OM_B.5
13
Step 13
Place Charcoal Grate and Cooking Grate onto the SFB Body.
B-13
Step 12
Attach the Damper Circle to the inside of the Ash Drawer using one 1/2” Hex Bolt, two Flat Wash-
ers, one Lock Washer, and one Hex Nut. Attach the Drawer Handel to the Ash Drawer using two Hex
Nuts. Then slide the Ash Drawer into the SFB.
Hex Nut
Ash Drawer
Drawer Handle
Flat Washer
Lock Washer
Damper
Circle
Cooking Grate
Charcoal Grate

1224_OM_B.5
14
B-14
Ash Pan Hanger
Ash Pan
Step 14
Place Ash Pan and Ash Pan Hangers onto Grill Body.
