Char-Griller Grillin' Pro 3001 User manual

OM3001D.3 ™ & © Char-Griller / A&J Mfg.
Grillin’ Pro
Model # 3001
!
OWNER’S MANUAL
LP Gas Grill
WARNING
For Outdoor Use Only
(outside any enclosure)
DANGER:
DO NOT use gas grill for indoor cook-
ing or heating. TOXIC fumes can accu-
mulate and cause asphyxiation. Do
not use in or on boats or recreational
vehicles.
PROP 65 WARNING:
Chemicals known to the state of Cali-
fornia to cause cancer, birth defects
or other reproductive harm are creat-
ed by the combustion of propane.
SAVE THESE INSTRUCTIONS FOR FU-
TURE REFERENCE. IF YOU ARE ASSEM-
BLING THIS UNIT FOR SOMEONE ELSE,
GIVE THIS MANUAL TO HIM OR HER TO
SAVE FOR FUTURE REFERENCE.
FOR CUSTOMER SERVICE, CALL 912-
638-4724
WARNING:
Improper installation, adjustment, al-
teration, service or maintenance could
cause injury or property damage. Read
the installation, operation and mainte-
nance instructions thoroughly before
assembling or servicing this equip-
ment.
A propane gas cylinder is required for
operation. This gas grill is not intended
for commercial use.
Keep your receipt with this manual
for Warranty.

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 2
! Danger
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open Lid.
4. If odor continues, keep away from the appliance and
immediately call your gas supplier or your fire depart-
ment.
! Warning
Do not store or use gasoline or other flammable liquids or va-
pors in the vicinity of this or any other appliance.
An LP cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
For Your Safety
Stop! Call us first! Do Not return product to store. This grill has
been made to high quality standards. If you have any questions
not addressed in this manual or if you need parts please call our
customer service department at 1-912-638-4724 (USA), Mon-
day-Friday 8:30am-5pm (EST).
Have your grills serial number (located on the back of the grill
body or on the leg) when calling.

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 3
Important Safety Information .…………………page 4 - 5
Illustrated Parts List ……………………………..…page 6 – 7
Tools, Assembly Tips and Hardware List ….page 8
Assembly Instructions ……………………………..page 9 – 17
Operating Grill
Connecting Gas Cylinder…………………………..page 18
Cleaning and Care……………………………………page 19-20
Checking for Leaks………………………………..…page 21
Lighting Grill…...…………………………………….....page 22-24
Trouble Shooting……………………………………....page 25-26
Grill Preparation………………………………………..page 27
Recipes……………………………………………..…...…page 28 - 29
Accessories……………………………………………….page 30 - 31
Table of Contents

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 4
WARNING
FOR YOUR SAFETY
1. DO NOT store or use gasoline or any other flammable vapors and liquids within 25
feet (8m) of this or any other appliance.
2. When cooking with oil/grease, do not allow the oil/grease to exceed 350°F (177°C).
Do not store or use extra cooking oil in the vicinity of this or any other appliance.
3. An LP Cylinder not connected for use should be stored a minimum of 10 feet (3m)
away from this or any other appliance. Never fill the cylinder beyond 80 percent
full. If the above information not followed exactly, a fire causing death or serious
injury may occur.
4. If you smell gas:
- Shut Off gas to the grill.
- Extinguish any open flame.
- Open Lid
For Your Safety
Stop! Call us first! Do Not return product to store. This grill has been made to high
quality standards. If you have any questions not addressed in this manual or if you
need parts please call our customer service department at 1-912-638-4724
(USA), Monday-Friday 9am-5pm (EST).
NOTE: The use and installation of this product must conform to local codes. In absence
of local codes, use the National Fuel Gas Code, ANSI Z223.1/NFPA54.
IMPORTANT NOTICE: read all instructions prior to assembly and use.
Read and understand all warnings and precautions prior to operating your grill.
CAUTION
1. This grill is for use with propane gas only (propane gas cylinder not included).
2. Never attempt to attach this grill to the self-contained propane system of a camper
trailer, motor home or house.
3. Never use charcoal or lighter fluid with the gas grill.
4. Do not use gasoline, kerosene or alcohol for lighting. The LP-gas supply cylinder must
be constructed and marked in accordance with the specifications for propane gas
cylinders of the U.S. Department of Transportation (DOT) CFR 49. This grill is not
intended to be used in or installed on recreation vehicles and/or boats.
5. Do not attempt to move the grill while it is lit.
6. Do not use the grill unless it is completely assembled and all parts are securely fas-
tened and tightened.
7. Keep all combustible items and surfaces at least 36 inches (91.4cm) away from grill
at all times.
8. DO NOT use this grill or any gas product near unprotected combustible constructions.
9. Do not use in an explosive atmosphere. Keep grill area clear and free from combus-
tible materials, gasoline and other flammable vapors and liquids.

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 5
10. Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to
avoid burns, unless you are wearing protective gear (BBQ mittens, pot holders, etc.)
11. Do not alter this grill in any manner
12. Clean and inspect the hose before each use. If there is evidence of abrasion, wear,
cuts, or leaks, the hose must be replaced prior to operating the appliance. The re-
placement hose assembly will be that which is specified by the manufacturer.
13. Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
14. Never keep a filled container in a hot car or car trunk. Heat will cause the gas pres-
sure to increase, which may open the relief valve and allow gas to escape.
15. Keep the grill’s valve compartment, burners and circulating air passages clean. In-
spect the grill before each use.
WARNING
1. This grill is for outside use only, and should not be used in a building, garage or any
other enclosed area.
2. The use of alcohol, prescription or non-prescription drugs may impair the operator’s
ability to properly assemble or safely operate the grill.
3. Always open grill lid slowly and carefully as heat and steam trapped within the grill
can burn you severely.
4. Always place your grill on a hard, level surface far away from combustibles. An as-
phalt or blacktop surface may not be acceptable for this purpose.
5. Do not leave a lit grill unattended. Keep children and pets away form the grill at all
times.
6. Do not place this grill on any type of tabletop surface.
7. Do not use the grill in high winds.
8. Disconnect the propane tank (LP tank) by first turning off valve on top of propane
tank, turn off burner valves, then disconnect regulator from valve on propane tank
by turning plastic connector counter clockwise. Unscrew wing-bolt in bottom shelf to
release the tank for removal.
DANGER
Liquid propane (LP) gas is flammable and hazardous if handled improperly. Know its
characteristics before using any propane product.
1. Propane Characteristics; Flammable, explosive under pressure, heavier that air and
settles in pools and low areas
2. In its natural state, propane has no odor. For your safety, an odorant has been add-
ed.
3. Contact with propane can cause freeze burns to skin.
4. This grill is shipped from the factory for propane gas use only.
5. Never use a propane cylinder with a damaged body, valve, collar or footing.
6. Dented or rusted propane cylinders may be hazardous and should be checked by
your propane gas supplier.

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 6
1
2
3
4
5
67
8
9
11
10
12
14
15
16
16
17
18
19
20
22
21
23
24
26
21 13
25
28
27
29
30

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 7
LINE ITEM QTY PART NAME PART NUMBER
1 1 HOOD 30-0009
2 1 GRILL BODY 30-0010
3 1 THERMOMETER 55-0008
4 1 HOOD HANDLE 55-0009
5 1 WARMING RACK 20-0001
6 2 BURNER (short wire) 80-0005
7 1 BURNER (long wire) 80-0006
8 1 BASE 20-0029
9 3 FLARE-UP SHIELD 10-0001
10 2 SHORT LEG 10-0022
11 2 LONG LEG 10-0023
12 1 BEZEL 10-0016
13 2 LEG CROSS BAR 10-0024
14 3 COOKING GRATE 10-0006
15 2 WHEEL 55-0003
16 2 LEG BRACE 10-0025
17 1 AXLE 10-0026
18 1 FRONT PANEL 10-0027
19 1 SIDE BURNER/ CONTROL PANEL 80-0013
20 3 UTENSIL HOOK 50-0002
21 1 GREASE TRAY 10-0028
22 1 CATCH PAN, REMOVABLE 20-1025
23 1 SIDE SHELF 20-0033
24 1 POT STAND 20-0005
25 2 STACK 20-0034
26 2 HUB CAP 55-0007
27 1 STOPPER BRACKET 10-0360
28 2 SLIDER BRACKET 10-0359
29 1 TANK BLOCK BAR 10-0283
30 1 GRATE LIFTER 10-0045

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 8
Assembly: Requires 2 people. Get another person to help.
Tools Needed: Pliers, Phillips Head Screwdriver and a 7/16” Nut Driver.
NOTE: Do Not tighten any bolts unless instructed to do so. Tightening too soon may
prohibit parts from fitting together. All Hex Nuts should be on the inside of the grill
unless stated otherwise. Unpack all contents in a well cleared and padded area.
STOP! Do Not Return to Store. If you are missing parts or need assistance please
email us at [e-mail] or call 912-638-4724. Do not attempt assembly if
you are missing parts.
Hardware:
¼-20x 1 ½” BOLT……..………..4 PCS
¼-20x 1/2” BOLT……...........37 PCS
2/5” FLAT WASHER……..........2 PCS
¼” FLAT WASHER………...…….5 PCS
¼-20 HEX NUT…………..........10 PCS
¼” LOCK WASHER……..……..33 PCS
HINGE PINS……………….........2 PCS
LARGE HAIR COTTER PIN…….2 PCS
SMALL HAIR COTTER PIN…….2 PCS
SCREW…………………..………….3 PCS
#10-24 x 0.40” BOLT……….6 PCS
1/4-20 x 31/4” Wing Bolt….…1 PC

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 9
Step 3
Insert the AXLE through the SHORT LEGS and through the BASE. Install one WASH-
ER, COTTER PIN and HUB CAP onto the AXLE then slide the AXLE through WHEELS
and legs as shown. Finish by attaching 2nd WASHER, COTTER PIN and HUB CAP.
Assembly Instructions
Step 1

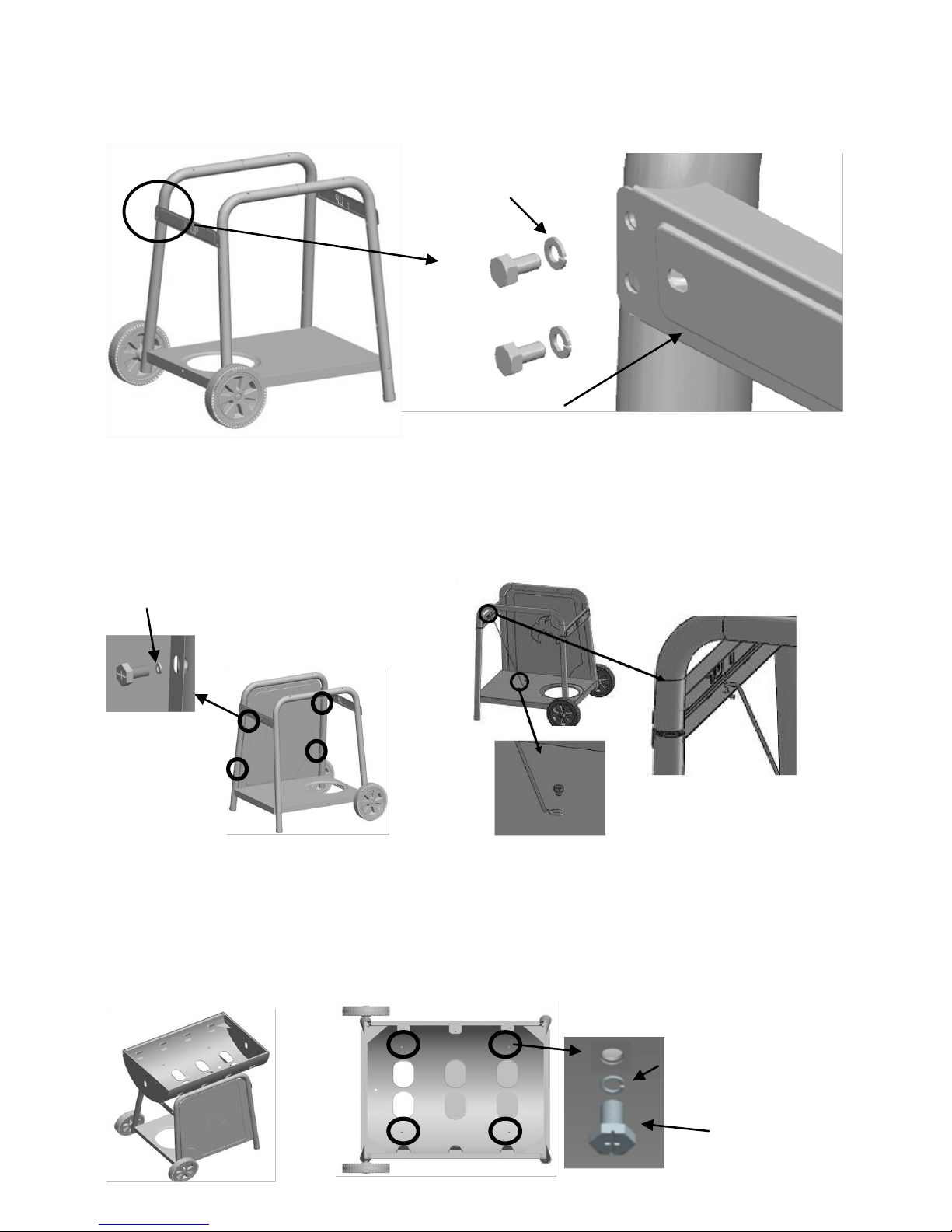

Attach the LONG LEGS and SHORT LEGS to the base, opposite the tank well/hole
with two (2) lock washers ½” Bolts as shown below.
Long Legs
Lock Washer
Step 2
Insert the LEGS into the LEG CROSS BARS as shown below.
Axle
Wheel
Washer
Cotter Pin
Hub Cap

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 10
Step 4
Install the two (2) LEG BRACES to the LEGS using eight (8) LOCK WASHERS and
eight (8) ½” BOLTS as shown. Remember to NOT tighten the bolts until the grill is
completely assembled.
Lock Washer
Leg Brace
Step 5
Attach the FRONT PANEL to the inside of the front LEGS using four (4) LOCK WASH-
ERS and ½” BOLTS as shown below. Then install the CYLINDER BLOCK BAR as
shown using (1) 1/2” long BOLT, LOCK WASHER and FLAT WASHER as shown in
step 6 also...
Lock Washer
Step 6
Attach the GRILL BODY to the LEGS using four (4) LOCK WASHERS, four (4) ½”
BOLTS and four (4) FLAT WASHERS. Make sure to insert the bolt first through the
lock washer then the flat washer then through the grill body. You may need to loos-
en other bolts and move the GRILL BODY slightly to get the holes in the GRILL BODY
to line up with the holes in the LEGS.
Lock Washer
Bolt

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 11
Step 7
Attach (2)SLIDER BRACKETS and (1)STOPPER BRACKET to Bottom of GRILL BODY as
shown on Figure 2 and Figure 3 using (6) #10-24 x 0.40” bolts. NOTE: Oriented
Brackets as shown in Figure 1. Install CATCH PAN by placing CATCH PAN support
brackets on top of SLIDER BRACKETS underneath GRILL BODY, see Figure 4, and
then slide it forward until you can hang the CATCH PAN side bracket onto the STOP-
PER BRACKET. From the rear of the grill, slide the GREASE TRAY into the guides/
rails under the CATCH PAN.
CATCH PAN
Support Bracket
CATCH PAN
CATCH PAN
Side Bracket
Stopper Bracket
Figure 4
(6)#10-24x0.40”
Bolt (2) Slider Bracket (1) Stopper Bracket
Slider Bracket
Stopper Bracket
Figure 1
#10-24 x 0.40” Bolt
Slider Bracket
Figure 2 Figure 3
GRILL BODY
Slider Bracket

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 12
Step 8
Install the SIDE BURNER and the CONTROL PANEL into the firebox. Attach with eight
(8) 1/2” BOLTS and eight (8) LOCK WASHERS from inside the GAS GRILL BODY. The
BOLTS will first go through the GRILL BODY and then screw into the SIDE BURNER
and CONTROL PANEL. See Figures below. Then remove and re-install bolt in LEG
BRACE to hold HOSE GUIDE in place as shown.

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 13
Step 10

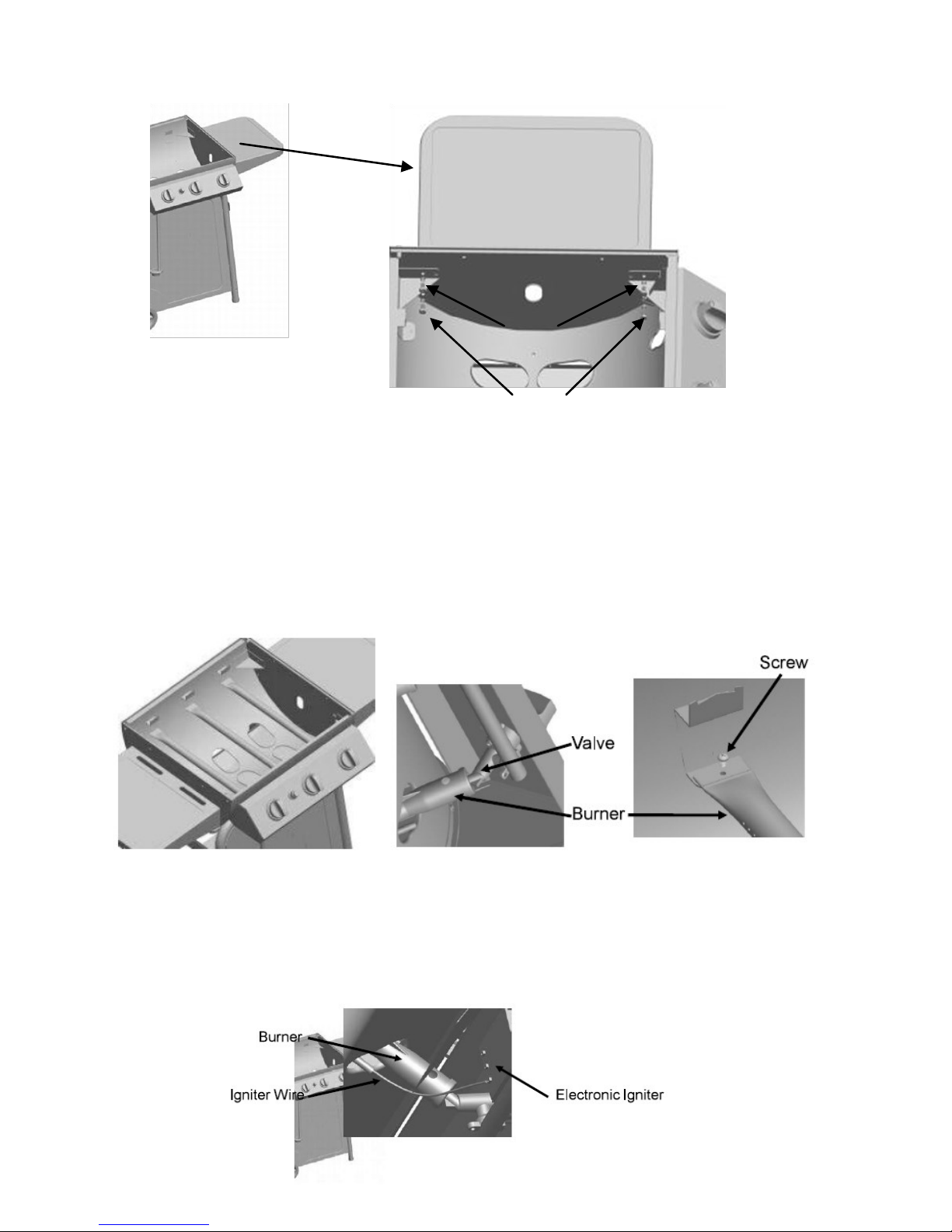

Install the BURNERS into the GAS GRILL BODY by first inserting the open end of the
BURNERS through the holes directly behind the CONTROL PANEL and then onto the
VALVE tip. Make sure the valve tip is completely inside the hole on the end of the
BURNER. The BURNER with the long wire is installed on the right side of the GAS
GRILL BODY. Secure the other end of the BURNER to the GAS GRILL BODY with the
SCREW provided. Again, make sure the VALVE tip is completely inside the hole on
Step 11
Insert the IGNITER WIRES, which are attached to the underside of each BURNER,
through the small hole in the GRILL BODY that the BURNER goes through then at-
tach the wire to the back side of the ELECTRONIC IGNITER, which is attached to the
Step 9
Attach the SIDE SHELF with four (4) 1/2” BOLTS and Lock washers as shown below.
Lock Washers
Bolt

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 14
Step 12
Attach the HOOD HANDLE to the HOOD with two (2) LOCK WASHERS and two (2)
WING NUTS as shown above. Attach THERMOMETER through BEZEL as shown.
Step 14
Attach the HOOD to the GRILL BODY using the HINGE PINS as shown. First place the
HOOD onto the GRILL BODY then screw the HINGE PINS into place and then insert
COTTER PINS through the holes in the HINGE PINS on the inside of the GRILL BODY.
Hinge Pin
Hinge Pin
Step 13
Install the two (2) GAS CHIMNEYS to the GAS GRILL HOOD and the CHARCOAL
CHIMNEY to the CHARCOAL GRILL HOOD. Insert the CHIMNEYS through each hole
from inside the HOOD and secure with two (2) HEX NUTS and two (2) 1/2” BOLTS
for each CHIMNEY, see below.

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 15
Step 15
Before attaching WARMING RACK you must attach the warming rack BOLTS to the
GRILL HOOD and BODY. Insert the 1½” BOLTS through the holes in the sides of the
HOOD from the outside and tighten the HEX NUTS on the inside of the HOOD. Insert
the 1½” BOLTS through the holes in the sides of the GRILL BODY from the outside
and tighten the HEX NUTS on the inside of the GRILL BODY. Now, you can attach the
warming rack to these bolts as shown above and secure with HEX NUTS only finger
tight.
Step 16
Set the POT STAND in place over the SIDE BURNER. Next install the FLARE-UP
SHIELD over the BURNER TUBES. Then set the COOKING GRATES in place and in-
sert UTENSILS HOOKS into the SIDE SHELF.
POTS STAND

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 16
Step 18
Install Igniter battery by turning the Igniter push button cap counter-clockwise until
the igniter button detaches, then install a AA battery making sure the positive(+)
end is toward the push button. Then re-attach the igniter button by turning it clock-
wise.
Step 17

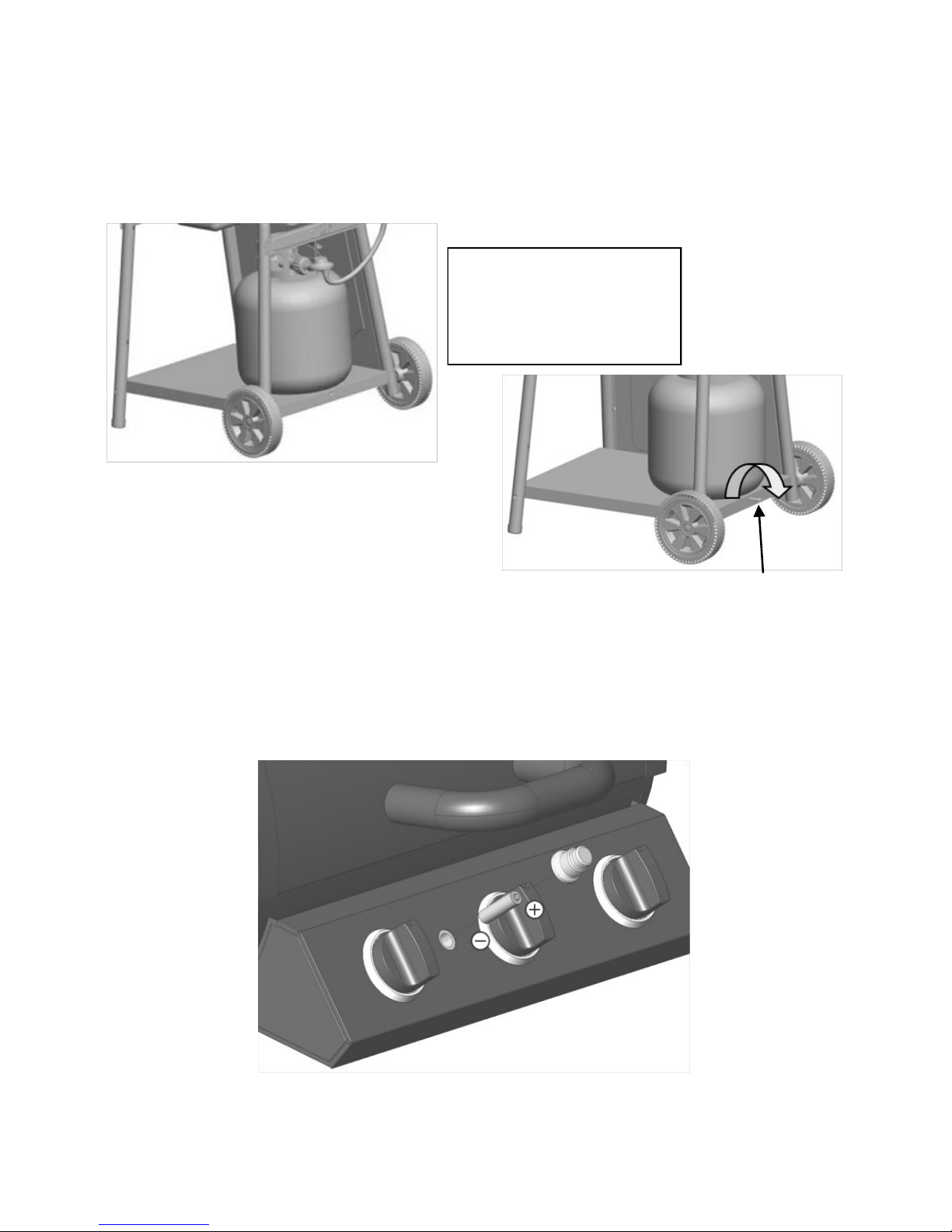

1. Place a standard 20 lb. LP gas cylinder (not included) into the cart assembly and
connect the cylinder with the gas hose/regulator as shown. (See “Operating Grill” on
page for further instructions).
2. Turn the Screw on the left side of the base panel clockwise to secure the standard
20 lb. LP gas cylinder.
NOTE: Hoses must go
under and to the out-
side of the leg brace.
Screw

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 17
Step 19
Tighten all NUTS and BOLTS.

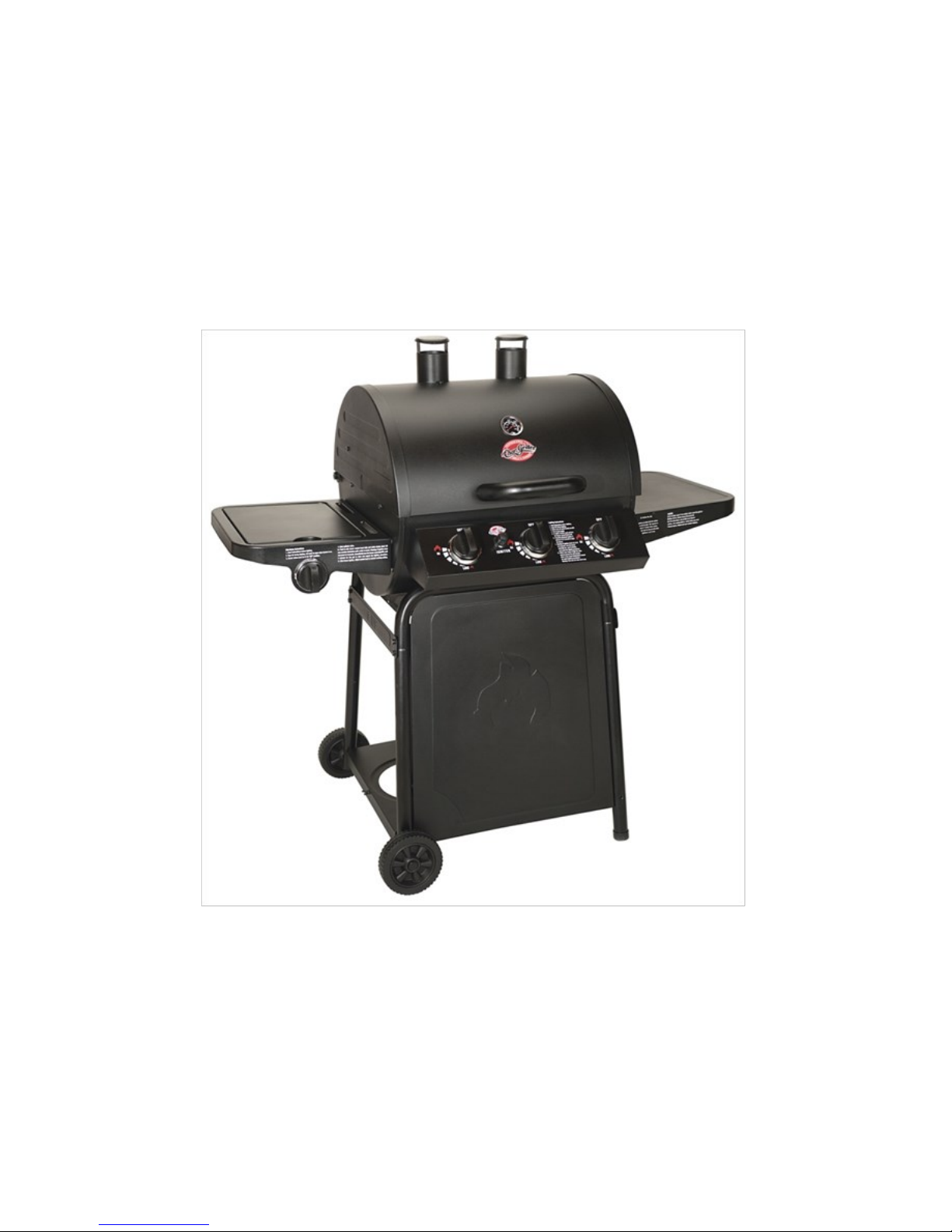

Fully Assembled
Caution: Use only the regulator provided!
If a replacement is necessary, please call our customer service department, 912-
638-4724. Do NOT use replacement parts that are not intended for this grill.
Hint: The paper label that is affixed to the hood is more easily removed when the
hood is warm. Any remaining glue residue can be cleaned off with a spray lubri-
cant like WD-40 . Do NOT use any other type of solvent or cleaner because this will
damage the finish/paint/coating on the grill.

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 18
Connecting Gas Cylinder:
The propane gas supply cylinder to be used must be constructed and marked in
accordance with the Specifications for propane gas Cylinders of the U.S. Depart-
ment of Transportation (DOT), or the National Standard of Canada, CAN/CSA
B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and
Commission, as applicable. Only cylinders with a listed overfill prevention device
(OPD) and marked “propane” may be used. Cylinders with an OPD will have valve
handles with three “lobes” (prongs). Only use 20-pound cylinders equipped with a
Type 1 cylinder connection device for outdoor cooking appliances. The cylinder
must include a collar to protect the cylinder valve. The gas cylinder should not be
dropped or handled roughly! If the appliance is not in use, the gas cylinder must
be disconnected. Storage of an appliance indoors is permissible ONLY if the cylin-
der is disconnected and removed from the appliance. Cylinders must be stored
outdoors out of the reach of children and must not be stored in a building, garage
or any other enclosed area. Your cylinder must never be stored where tempera-
tures can reach over 125 F. Before connection, be sure that there is no debris
caught in the head of the gas cylinder, head of the regulator valve or in the head of
the burner and burner ports. Connect regulator valve and hand-tighten firmly. Dis-
connect the propane cylinder from the regulator valve when the grill is not in use.
DO NOT obstruct the flow of combustion air and ventilation air to the grill. The pro-
pane cylinder must be arranged for vapor withdrawal and equipped with a listed

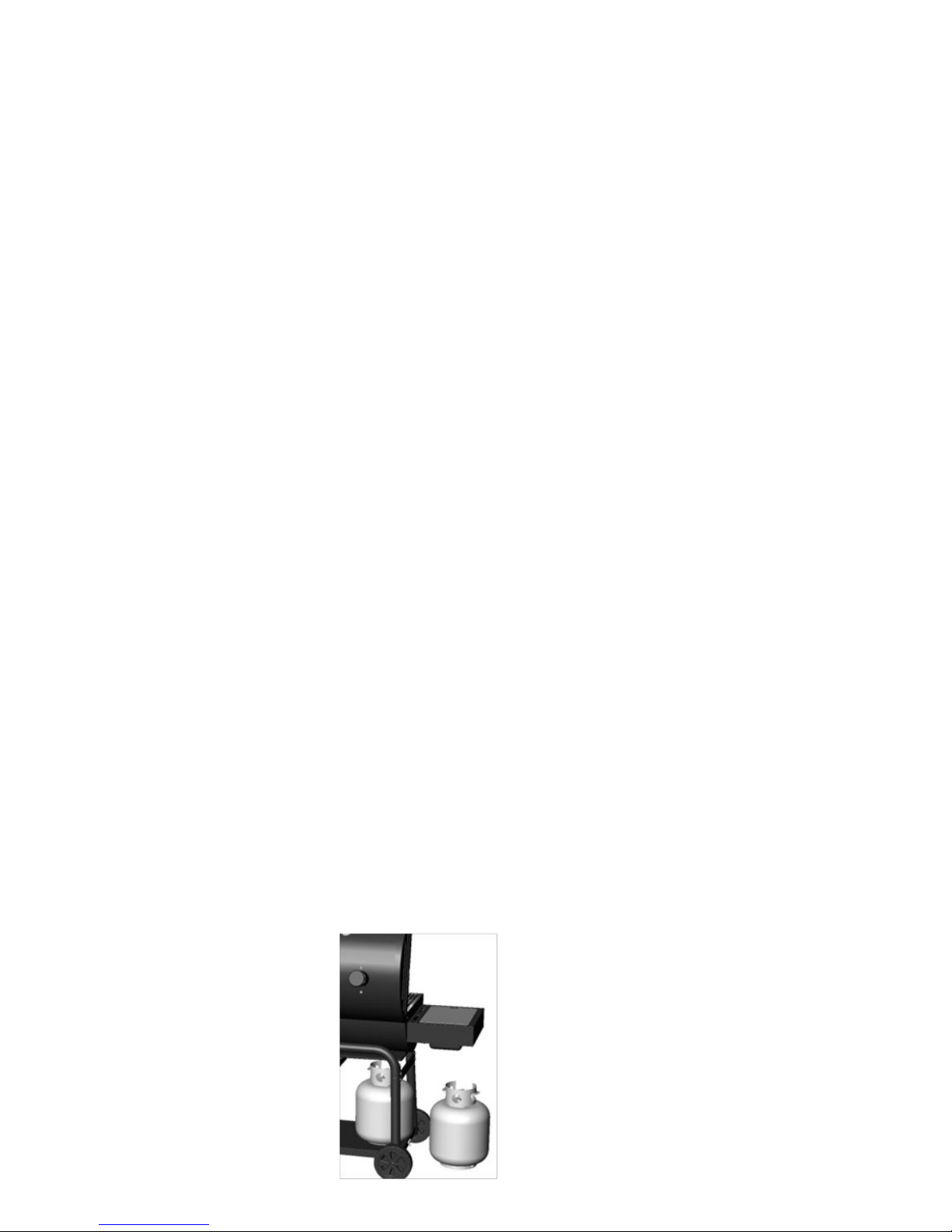

overfilling prevention device. For proper vapor withdrawal, the cylinder should be
used in the proper upright position (refer to illustration under step 22 of page 17).
DANGER:
Never store a spare propane cylinder near this grill.
A fire causing death or serious injury may occur if the above is not followed
exactly.
X

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 19
Cleaning and Care
Caution:
All cleaning and maintenance should be done when grill is cool and with the gas
supply turned off at the propane cylinder.
DO NOT clean any grill part in a self cleaning oven. The extreme heat will damage
the finish.
Cleaning
Burning-off the grill after every use (approx. 15 minutes) will keep excessive food
residue from building up. Clean grease tray and cup after EVERY use.
Recommended cleaning materials:
- Mild dishwashing liquid detergent - Hot water
- Nylon cleaning pad - Brass wire brush (brush lightly)
DO NOT use cleaners that contain acid, mineral spirits or xylene.
Outside surfaces –
Use a mild dishwashing detergent and hot water solution to clean, then rinse with
water.
If the inside surface of the grill lid has the appearance of peeling paint, baked on
grease buildup has turned to carbon and is flaking off. Clean thoroughly with
strong solution of detergent and hot water.
Rinse with water and allow to completely dry.
Interior of grill bottom –Remove residue using brush, scraper and/or cleaning pad,
then wash with dishwashing detergent and hot water solution. Rinse with water
and let thoroughly dry.
Cooking Grids –The porcelain grates have a glass-like composition that
should be handled with care not to chip. Use mild dishwashing de-
tergent or baking soda and hot water solution. Non abrasive scour-
ing powder can be used on stubborn stains, then rinse with water.
Heat Shield –Clean residue with wire brush and wash with soapy water.
Then rinse with water.

OM3001D.3 ™ & © Char-Griller / A&J Mfg. 20
•Remove grease collector.
•Remove cooking grates and heat shield.
•Remove burner by unscrewing nut from beneath burner “foot” using a screwdriver and
pliers.
•Lift burner up and away from gas valve orifice.
•Clean inlet (venturi) of burner with small bottle brush or compressed air.
•Remove all food residue and dirt on outside of burner surface.
•Clean any clogged ports with a stiff wire (such as an opened paper clip)
•Inspect burner for any damage (cracks or holes). If damage is found, replace
with new burner. Reinstall burner; check to insure that gas valve orifices are cor-
rectly positioned inside burner inlet (venturi). Also check position of spark elec-
trode.

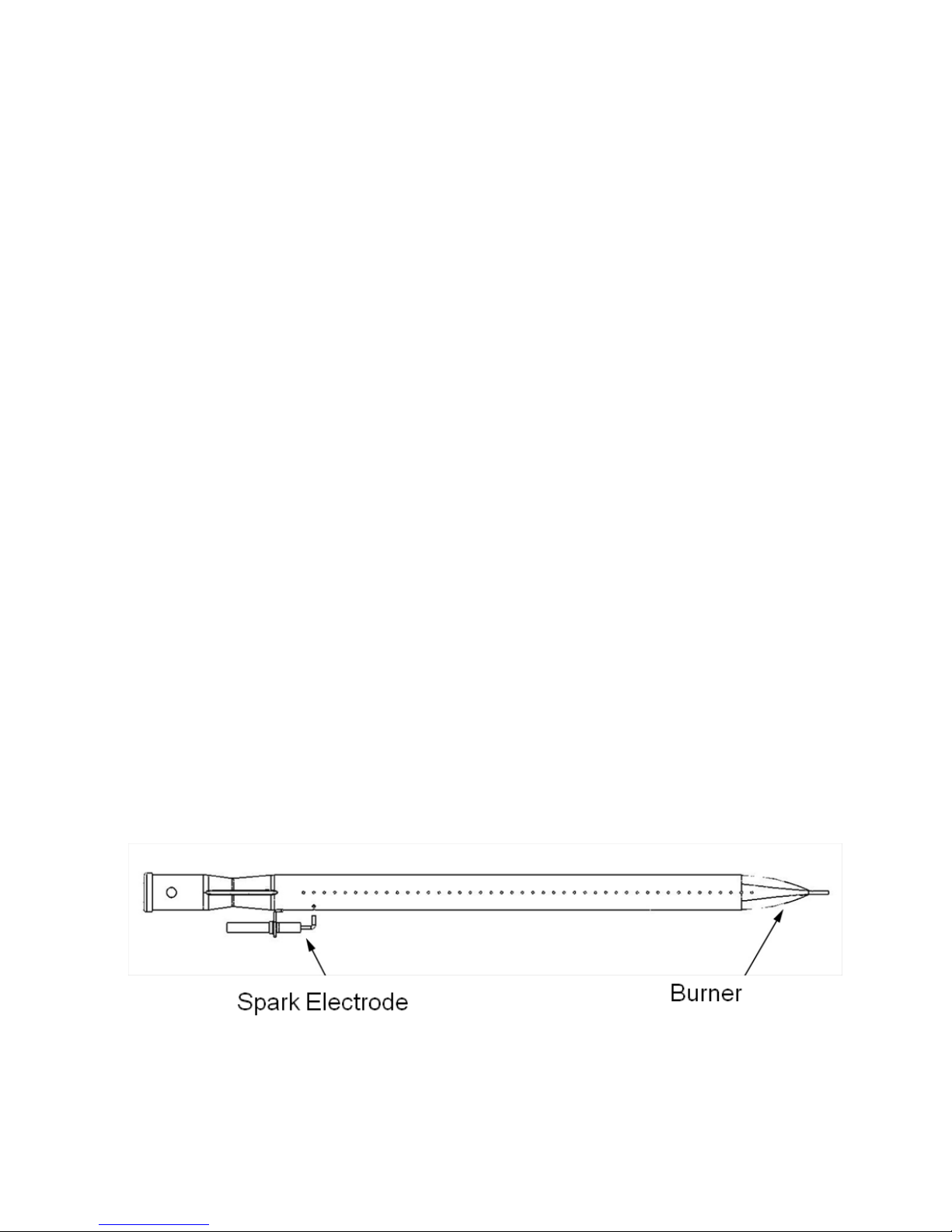

Cleaning the Burner Assembly
