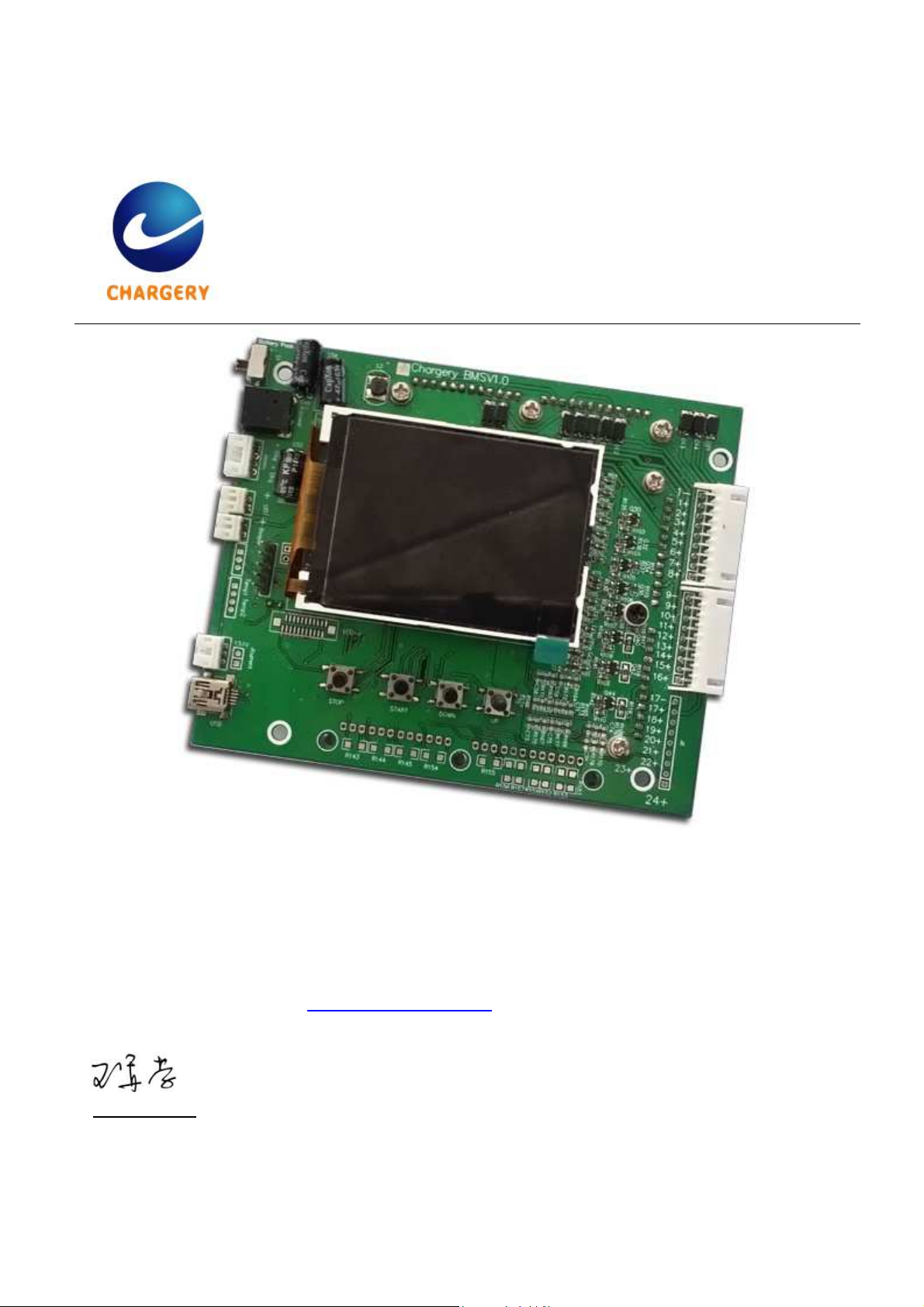

Chargery BMS16Pro Series User manual

BMS16Pro
for 2S-16S LiPo & LiFe
Low power consumption
High accuracy
2.8” TFT LCD display
Programmable
T
hanks for your purchasing the BMS16Pro for your vehicle.
R
ead the ENTI E instruction manual to become familiar with the features/functions of the device
before operating.
F
any questions and suggestions.
Jason Wang

LiPo LiFe Battery Management System BMS16Pro V1.0
www.chargery.com
page 2 total 13
Chargery BMS16Pro is designed special for LiPo LiFe battery pack applied to storage energy system and
Electrical Vehicle including E-Motorcycle, E-Scooter and so on. The unit can measure or detect the battery voltage,
cell voltage, charge discharge current, battery temperature, and battery SOC (State of Charge) , displayed with
TFT color LCD.
Safety Notes
Please read the entire manual completely before using, to make sure you can use this device better and more
safely.
1. Ensure the BMS program and settings match the battery pack, otherwise the battery will be damaged and a
dangerous situation may arise, especially for Lithium batteries, which may cause fire.
2. For storage energy system application and for Electrical vehicle application will have many differences,
please adjust those key parameters carefully, or contact us for more details.
3. Do not allow water, moisture, metal wires or other conductive material into the device.
4. Never charge or discharge any battery having evidence of leaking, expansion/swelling, damaged outer cover
or case, color-change or distortion.
5. Do not try to charge “non-rechargeable” dry cells.
6. Do not mix batteries of different types, different capacities or from different manufacturers.
7. Do not exceed the battery manufacturer’s suggested maximum charge and discharge rates.
8. Carefully follow the battery pack manufacturer’s recommendations and safety advice.
Copyright
Copyright@ Chargery Power Co. Ltd. All rights reserved.
Without prior written consent by Shenzhen Chargery Power Co., Ltd, any units or individual extract and copy
parts or entire contents of this manual, and transmission in any form is illegal and strictly prohibited.
The product described in this manual, may include copyright software ownership belonged to Shenzhen Chargery
Power Co., Ltd and its licensee, except getting the permission from relevant rights holders, otherwise any copy,
distribute, modify, excerpt, decompile, disassemble, decrypt, reverse engineering, lease, transfer, sub-license,
as well as other acts of infringement of software copyright is strictly prohibited, but apart from the restrictions
prohibited by applicable law.
Special Features
1. The BMS16Pro uses advanced ADC measurement technology, high accuracy, high voltage and high current
detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 16S LiPo battery
69V)
2. Charge/discharge current up to 300A. Bigger current can be customized.
3. 1.2A per cell balance current is very useful for large capacity battery pack, the feature can resume all cell
voltage balance status at the shortest time. over temperature protection make sure the system safety
during balance.
4. BMS16Pro calculate and display the charge and discharge power (Wh), generally the battery rated power is
rated voltage multiply rated battery capacity.
5. TFT LCD screen provides rich information including current, voltage, power, capacity, battery status, SOC
and temperature and so on.
6. BMS16Pro features a maximal safety protection, within the range parameters can be setup, BMS16Pro will
alarm and cutoff charge or discharge according to users’ setup, out of range of parameters, and trigged
absolute maximum ratings BMS16Pro will force to cutoff charge or discharge to prevent the battery from fire.
7. Minimize the power consumption by draw current from all cells or external power supply.

LiPo LiFe Battery Management System BMS16Pro V1.0
www.chargery.com
page 3 total 13
8. Dual power design, the unit can be powered by all cells or external power supply.
9. Detect cell count at any time, and compare with the count detected when switch on first time. If it is not
uniformity, the device will alarm and cutoff charge or discharge according to users’ setup, the feature can
prevent any cell connection from loosing.
10. Sound alarm and LED alarm will be triggered when any warning events happened, and then wait several
seconds cut off or NOT charge or discharge. The delay time can be programmed.
11. Charge relay and discharge relay are controlled independently.
12. Two temperature sensors monitor battery temperature on different location.
13. Supports upgrading the firmware program by USB port.
14. BMS16Pro provide users the maximal flexibility, key parameters can be programmed.
15. BMS16Pro display battery SOC or called battery gauge similar with car dashboard. Cell count, battery pack
voltage and battery gauge (%) is displayed simultaneously.
16. In case that the battery pack need not be charged and discharged, Press STOP button enter into sleep mode
to save energy consumption. Charge and Discharge is cut off, LCD back light is off. Press any key to resume
normal work mode.
17. LCD back light ON time can be programmed to save energy, when it is OFF, press any key to resume “ON”.
Protection functions
1. Cell count error protection
2. Over charge protection
3. Under voltage protection
4. Over current protection when charge or discharge
5. Over temperature
6. Over differential cell voltage
7. Over differential battery temperature
8. Under SOC protection
Interface
STOP SET/START DOWN UP
STOP
Power Selector
External power
Bat
tery Pack
External Power
Current Sense
USB
LED
Beeper
Socket
Socket 1
C
ell
1
-
Cell 1+
Cell +
Cell 3+
Cell 4+
Cell 5+
Cell 6+
Cell 7+
C
ell
8
+
C
ell
9
-
Cell 9+
Cell 10+
Cell 11+
Cell 1 +
Cell 13+
Cell 14+
Cell 15+
C
ell 16+
COM
Discharge Controller
Charge Controller
Temperature Sensor 1
Temperature Sensor

LiPo LiFe Battery Management System BMS16Pro V1.0
www.chargery.com
page 4 total 13
Power Selector
Alternate External or battery pack to power BMS16Pro. If select all cells power the unit, the
battery pack must be 8S to 16S LiFe or LiPo. But if power by external power supply,
BMS16Pro can do 2S-16S LiPo or LiFe battery pack. The main input supply Vin voltage range
is 15V to 60V
External power
port
External power input, the voltage should be 15V to 60V, 1A maximal, the current depends
on the external load, the connector is 5.5*2.1 DC jack
Charge controller
Charge controller, turn on or turn off charge circuit, generally connect to relay or DC
contactor. When any cell voltage is over setup, it will not power the coil of relay and turn off
the charger, otherwise BMS16Pro will output Vin power the coil to close the relay. The relay
must be form OPEN.
Discharge
controller
Discharge controller, turn on or turn off discharge circuit, generally connect to relay or DC
contactor. When any cell voltage is under setup, it will not power the coil of relay to turn off
the motor or other load, otherwise BMS16Pro will output Vin power the coil to close the relay.
The relay must be form OPEN.
COM The COM port is connected to external device such as Charger. if connect to Chargery
charger, BMS16Pro can control charge current to shorten charge time
Temperature
sensor
Two temperature sensor monitor the battery temperature, the sensor must tie to battery
surface or gap of cells where the temperature should be the highest during charge or
discharge. The temperature range is 0-150℃
LED Connect to high light LED, the LED will flash when any warning event happened
Beeper Connect to beeper or others to alarm. It will output 12V 25mA max.
Current sense Connect to current measurement module that is designed special for BMS16Pro. Charge
current and discharge current can be measured by one module.
USB Connect to PC update the firmware by Chargery UpdateTool.exe
Socket 1 Connect to 2S to 8S battery,
Socket 2 Connect to 9S to 16S battery. for over 8S battery, please connect 8S battery to socket 1 and
then connect to socket 2, such as 8S + 2S for 10S and 8S +5S for 13S
Absolute maximum or Minimum ratings
Maximal cell voltage LiPo 4.35V Larger than the absolute maximum voltage,
BMS16Pro will force to cut off charge
LiFe 3.90V
Minimum cell voltage LiPo 2.50V Less than the absolute minimum voltage, BMS16Pro
will force to cut off discharge
LiFe 2.00V
Battery temperature LiPo
LiFe 100℃ Over the temperature, BMS16Pro will force to cutoff
the charge and discharge
Program Setup

LiPo LiFe Battery Management System BMS16Pro V1.0
www.chargery.com
page 5 total 13
1. Press SET button for 3 seconds enter into Program Setup interface.
2. Press UP or DOWN button select the item, press SET shortly make the value flash, and press UP or DOWN
change the value. Press SET button shortly confirm the change. After finish all setup, press SET for 3
seconds quit the setup menu.
3. When quit setup mode, BMS16Pro Will remember all parameters till next change.
NOTE: Please keep the default setup unless for special purpose.
Parameters Min. Type Max. Step
unit
Charge Protection
Over Charge Protection(P) Voltage LiPo 3.90 4.20 4.35 0.01
V
LiFe 3.40 3.65 3.90 0.01
V
Over Charge Release(R) Voltage LiPo 3.80 4.10 4.25 0.01
V
LiFe 3.30 3.55 3.80 0.01
V
Over Charge current 0 50 100 1 A
Discharge Protection
Over Discharge Protection(P) Voltage LiPo 2.75 3.00 4.00 0.01
V
LiFe 2.00 3.00 3.50 0.01
V
Over discharge Release(R) Voltage LiPo 2.75 3.20 4.00 0.01
V
LiFe 2.00 3.10 3.50 0.01
V
Over Discharge current 0 100 300 1 A
SOC--- Battery gauge 5 20 90 1 %
Temperature Protection
Battery Temperature 30 50 80 1 ℃
Difference(Diff) of battery Temperature(Temp) 5 10 30 1 ℃
Voltage balance Protection
Difference(Diff) of cell voltage 5 30 300 1 mV
Others
Temperature Unit ℃ ℉
Key Beeper ON OFF
LCD Back-Light time
(1)
1 10 999 1 min
Cut-Off Delay Time
(
2)
0 10 60 1 Second
Current Calibration
(3)
0 0 255 5 A
Default settings Press SET restore all parameters to default
value
Balance Parameter SET Press SET to setup and press for 3 seconds quit setup
Balance Start Voltage LiPo 3.3 3.6 4.1 0.01
V
LiFe 3.0 3.2 3.4 0.01
V
Balance Stop Diff Voltage
(4)
5 10 200 mV
Balance in Charge ON means Balance start during charge, OFF disable.
Balance in Discharge ON means Balance start during discharge, OFF disable.
Balance
(5)
ON enable Balance, and OFF forbid balance
NOTES:
1. Always on means the LCD back-light will be ON forever.
2. NO means BMS16Pro will not cut off charge or discharge but
alarm by LED flash and Beeper Sound.
3. Current Calibration is not recommended, voltage and
current is calibrated before delivery.
4. When difference of cell voltage under setup, balance stop
automatically
5. Balance current: 1.2A per cell

LiPo LiFe Battery Management System BMS16Pro V1.0
www.chargery.com
page 6 total 13
Warning
Cut-Off Delay Time is very important and difference for different battery capacity and application, please
carefully test and make a correct decision, for EV, you can select NO to control the EV car by manual NOT
controlled by BMS16Pro, but when cell voltage and temperature trigger the absolute maximum or minimum
ratings, the BMS16Pro will force to cut off charge or discharge to make sure the battery safety, and prevent
battery pack from explode or fire.
Operating guideline
1. Connect Beeper, LED, and Current Sensor to BMS16Pro, and then
connect relay Controller and temperature sensor too.
2. Connect the battery to BMS16Pro keep the cell polarity correct.
The detailed connection diagram is as the following typical
connection drawings. move the power selector power on the
device.
3. BMS16Pro Will initialize the beeper and LED, beeper sounds once
time, after display BMS16Pro and version, the battery type and
cell count interface is displayed. Two battery type LiPo and LiFe can be selected. Cell count range is 2S to 16S,
the cell count will be identified when the battery pack connect to the BMS16Pro. Press DOWN or UP button
choose the item and press SET blink, then press DOWN or UP button changed, finally press START button to
run the BMS16Pro. After started, battery type and cell count will not be changed unless power off BMS16Pro.

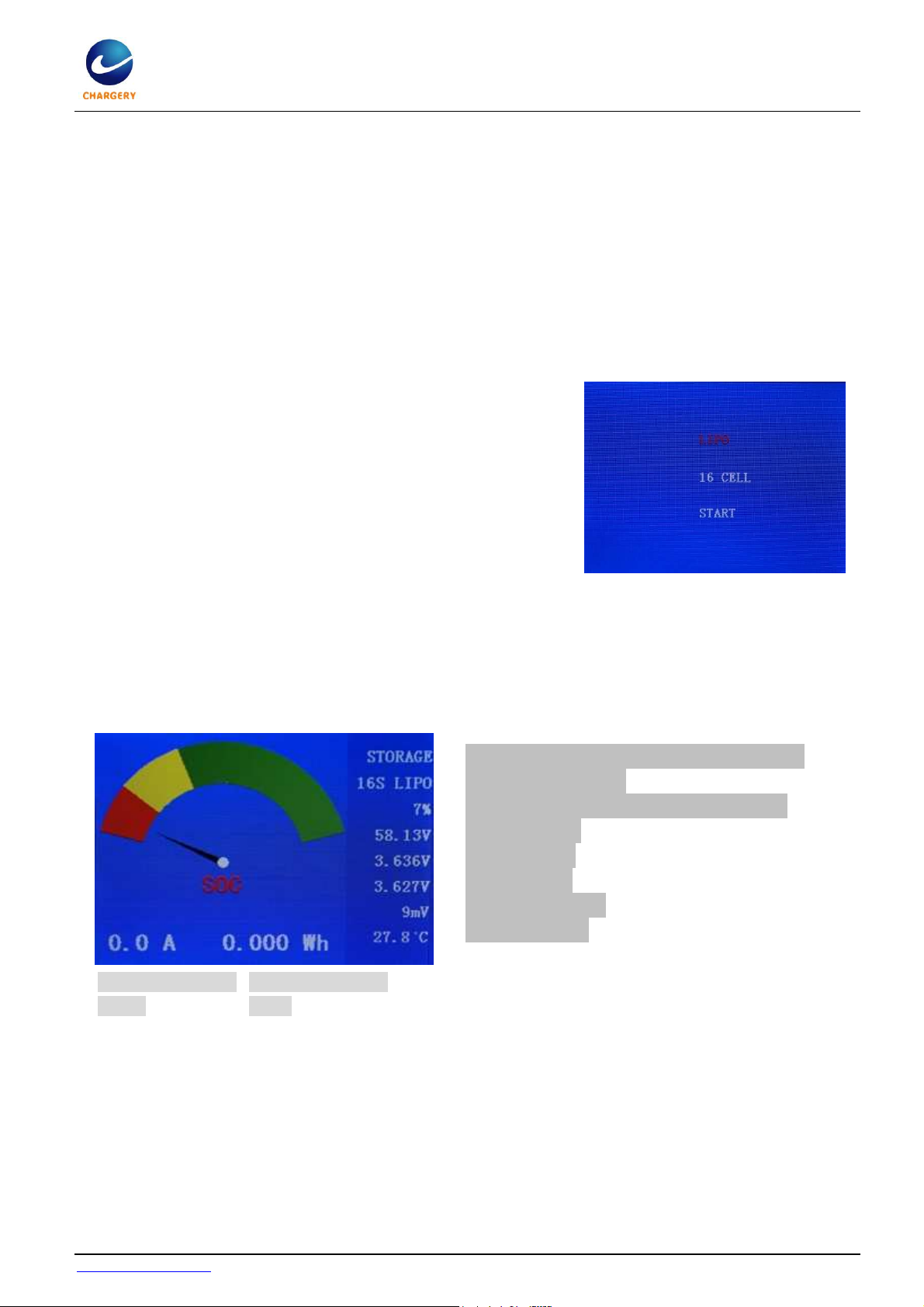

4. SOC—battery gauge dashboard will be displayed first, as following. Press UP/DOWN button alter other
interface.
Notes
1) When charge or discharge current less than 0.5A battery status will be STORAGE.
5. The following interface is cell voltage column, the highest and the lowest cell voltage is displayed in RED
column.
STORAGE is battery status, maybe CHARGE or DISCHARGE
(1)
Cell count and battery type
SOC—battery gauge, display 0% lose temperature sensor
Battery pack voltage
Highest cell voltage
Lowest cell voltage
Difference of cell voltage
Battery temperature
Charge or discharge
current
Charge or discharge
power

LiPo LiFe Battery Management System BMS16Pro V1.0
www.chargery.com
page 7 total 13
6. The third interface display all information including all cell voltage. The highest and the lowest cell voltage is
displayed in RED text. Difference of cell voltage and difference of battery temperature is displayed.
When any warning events triggered, BMS16Pro will go to the interface and display error information. Such
as if the battery connection bread down, the cell count and ERROR will be displayed in turn. if the cell voltage
over the setup value, the cell voltage and HIGH will be displayed in turn.
Specifications
1. Battery range: 2S-16S LiPo LiFe battery pack
2. Accurate scope of the cell voltage: -5mV/+5mV
3. Cell Voltage display range: 0.10~4.99V
4. The voltage of external power:15-60V
5. Balance current:1.2A per cell
6. Temperature display range:0.0℃~150℃,
Display 0.0 when under 0.0℃
7. SOC indicator:
RED area @ 0~15% of SOC
YELLOW area @ 16~35% of SOC
GREEN area @ 36~100% of SOC
8. Size:124*103*20 ( L*W*T, mm) without case, 128*114*33 ( L*W*T, mm) with case,
9. Weight: 200g without case or 440g with case
10. Warning LED: 11000mCd, @ 2.0V, 20mA
11. Warning beeper: 85dB @ 12V, 25mA
12. Package: with or without AL alloy case
Balancer
BMS16Pro can resume cell voltage balanced status at the shortest time, it is based on 1.2A balance current per
cell, balance accuracy is 5mV. Balance can be operated in charge or in discharge or in both, the feature can be
setup on program setup manual.
Current Sensor Specifications
1. Charge current:100A max.
2. Discharge current: 100A continuous and 300A max. Bigger current can be customized.
3. Size:60*45*18.5 ( L*W*T, mm)
4. Wire Length:100mm, one 10AWG for 100A charge, and three 14AWG wire for 100A discharge

LiPo LiFe Battery Management System BMS16Pro V1.0
www.chargery.com
page 8 total 13
5. Weight:100g
Firmware Upgrades via USB Port
1. Go to http://www.chargery.com/uploadFiles/ChargeryupdateTool.zip to download the
ChargeryupdateTool.zip, the zip file include Chargery
USB driver, and Chargery Update Tool, extract to any
disk on the PC.
2. To install the USB driver, run the program
X:\ChargeryupdateTool\ChargeryUSBdriver.exe
(where X is the drive letter designator for your
CD-ROM drive.)
3. In the same directory, double click to run the update
tool and enter program interface.
4. Connect BMS16Pro to the PC by the USB data cable.
When the port number (such as com5) appears, this
shows the update tool identified the BMS16Pro. Click OPEN button lock the port please.
5. Click Open file button open the firmware file. If there is no firmware file on the PC, you can download the file
on http://www.chargery.com/uploadFiles/firmwareFiles/ to the PC.
6. Click the Update button, then the update progress bar will appear on the bottom, update complete will be
displayed on PC after finish update. BMS16Pro display the progress bar simultaneously and enter into cell
count setup interface after update is completed.
Current Calibration
Press SET 3 buttons enter into Program Setup and find the Current Calibration, you can calibrate the current to
improve the measure accuracy.
1. Shortly press SET make the 0A blink
2. Turn off charge and discharge, and short press SET button.
3. Press SET again and increase it to any current value (up to 255) and charge or discharge at the current.
4. Press SET save calibration data.
5. Press SET for 3 seconds quit Program Setup.

LiPo LiFe Battery Management System BMS16Pro V1.0
www.chargery.com
page 9 total 13
Typical Connection
There are 2 sockets connecting to battery pack, socket 1 is for 2S-8S and socket 2 for 9S~16S battery.
1. 6S battery connect to the socket 1 directly, it is as following.
2. For over 8S battery pack, connect 8S to socket 1 and then socket 2 separately. Take 12S battery sample as
following:
STOP SET/START DOWN UP
STOP
Cell
1
Cell
Cell
3
Socket
1
Cell
4
Cell
5
Cell
6
SET/START DOWN UP
STOP
Cell
9
Cell
10
Cell
11
Cell
1
Cell
1
Cell
Cell
3
Socket
1
Cell
4
Cell
5
Cell
6
Cell
7
Cell
8
Socket

LiPo LiFe Battery Management System BMS16Pro V1.0
www.chargery.com
page 10 total 13
Accessory
USB data cable Battery connection XHR-9PIN 600mm
Temperature sensor 600mm Relay controller wire 600mm
Warning LED 300mm Warning Beeper 300mm
Current Measurement Module Current sensor wire 300mm

LiPo LiFe Battery Management System BMS16Pro V1.0
www.chargery.com
page 11 total 13
Current Sensor and Relay Connection
WARNING
Before connect the relay to charge or discharge controller, please confirm the coil voltage,
the controller will output Vin to power the coil, if the BMS16PRO will be powered by external
power supply, Vin is external power supply output voltage, if powered by battery pack, Vin
will be battery pack voltage, so need voltage regulator to power coil.
Heavy RED wires are positive of battery pack (B+/B16+), charger and load such as motor, and
heavy black wire is negative of battery pack(B-/B1-), charger and load. one heavy wire is for
50A maximal charge current, and 3 wires for 100A continue to discharge.
BATTERY pack
CHARGER
LOAD
BMS16
PRO
Charge
controller
Discharge
controller
Current
Sense
RELAY
RELAY
Current
Sensor

LiPo LiFe Battery Management System BMS16Pro V1.0
www.chargery.com
page 12 total 13
Related parts
The following device is related with BMS16Pro
MODEL
DESCRIPTION COMMENTS
BMS16 For S-16S, balance is not available.
BMS 4 For S- 4S, 1. A balance current per cell
Version History
Version description

LiPo LiFe Battery Management System BMS16Pro V1.0
www.chargery.com
page 13 total 13
Warranty and Service
Chargery Power Co., Ltd. as manufacture of power system warrants its BMS16Pro and current Sensor to be free
of defects in material and workmanship. This warranty is effective for 12 months from date of purchase. If within
the warranty period the customer is not satisfied with the products performance resulting from a manufacturing
defect, the accessory will be replaced or repaired.
Your selling dealer is your first point of contact for warranty issues. Return postage costs are the responsibility of
the user in all cases. Please submit copy of original receipt with the return.
Damage due to physical shock (dropping on the floor, etc.), inappropriate power supply (unstable output voltage
and insufficient power, etc.), water, moisture, and humidity are specifically NOT covered by warranty.
Chargery Power Co. LTD.
Chuangye Road, Nanshan Shenzhen, 518054, China.
Tel: 86 (0)755 26436165, fax: 86 (0) 755 26412865
Email: jasonwang3a@163.com
Homepage: www.chargery.com
Charging Expert
Table of contents
