Chattanooga Group INTELECT LEGEND Series User manual

User Manual
COMBO
INTELECT
®
LEGEND
SERIES
Models 2C & 4C
ISO 13485 CERTIFIED

Table of Contents
Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Precautionary Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Indications, Contraindications and Adverse Effects for Electrical Stim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
User Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Technical Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

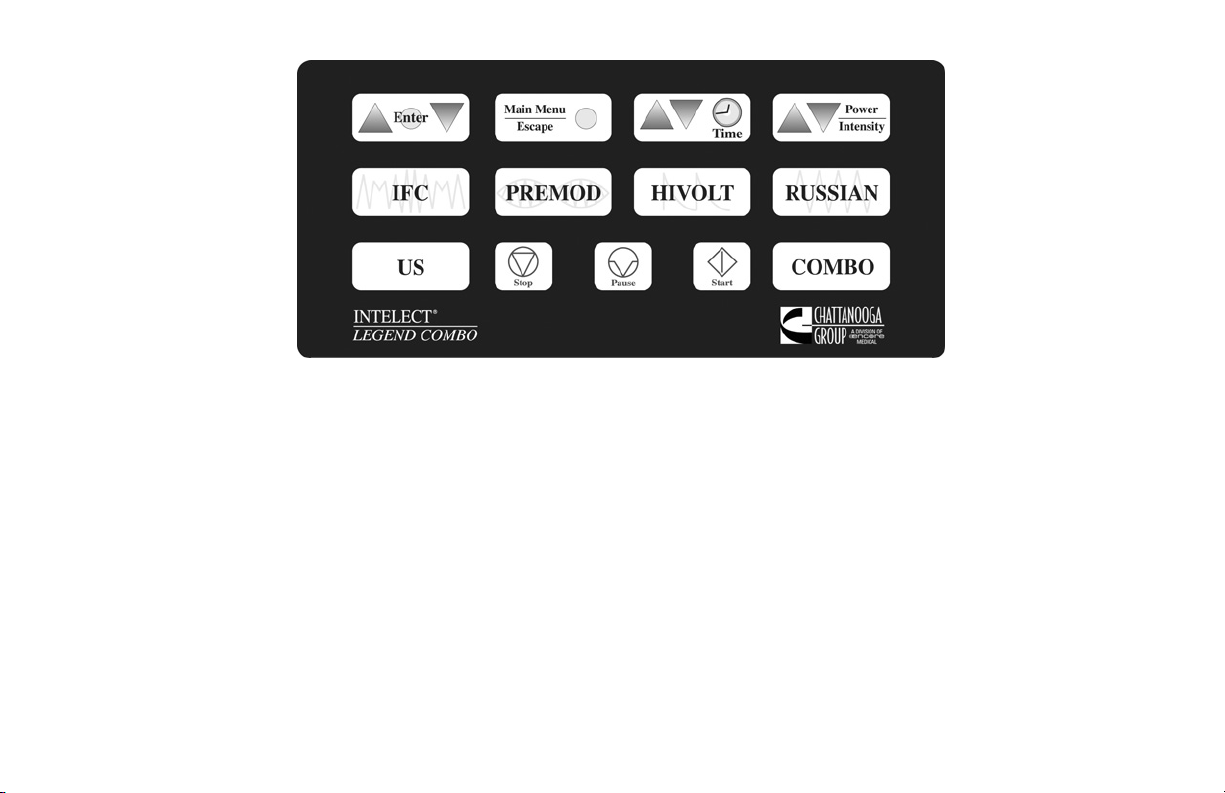

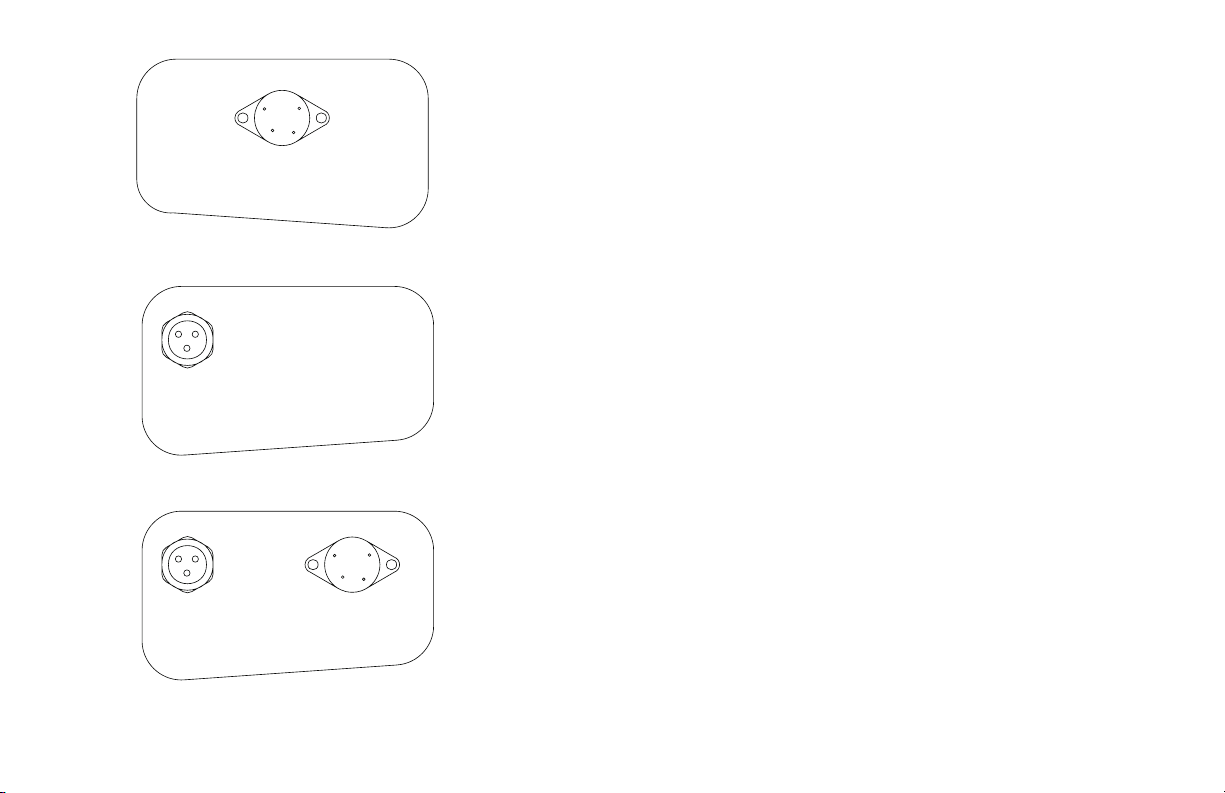

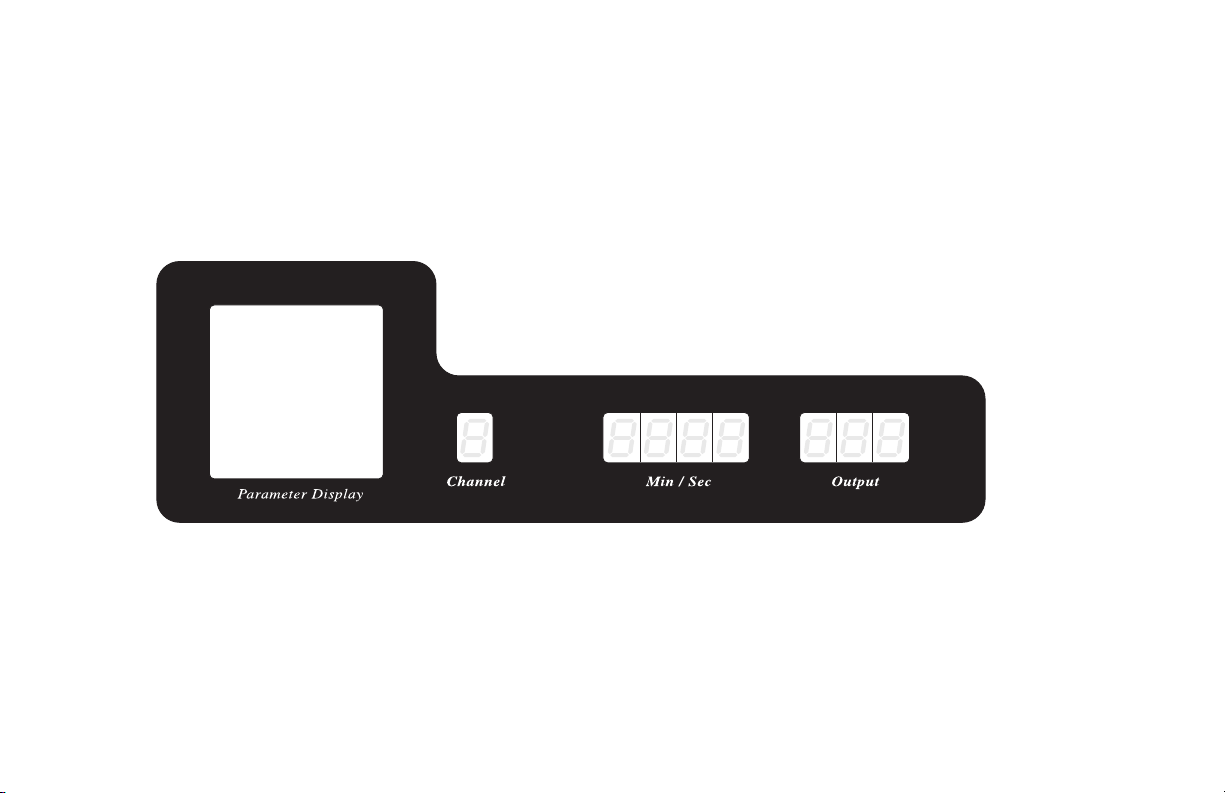

Unit Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-14
Pain Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

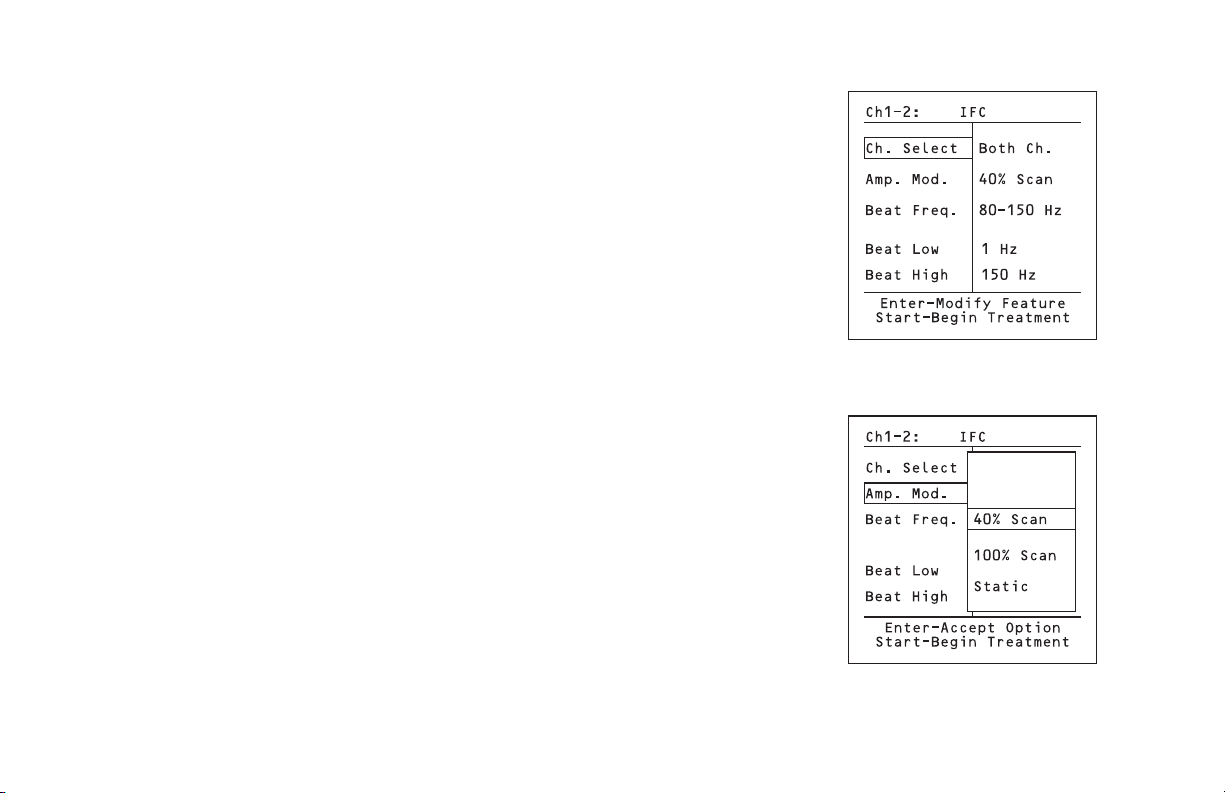

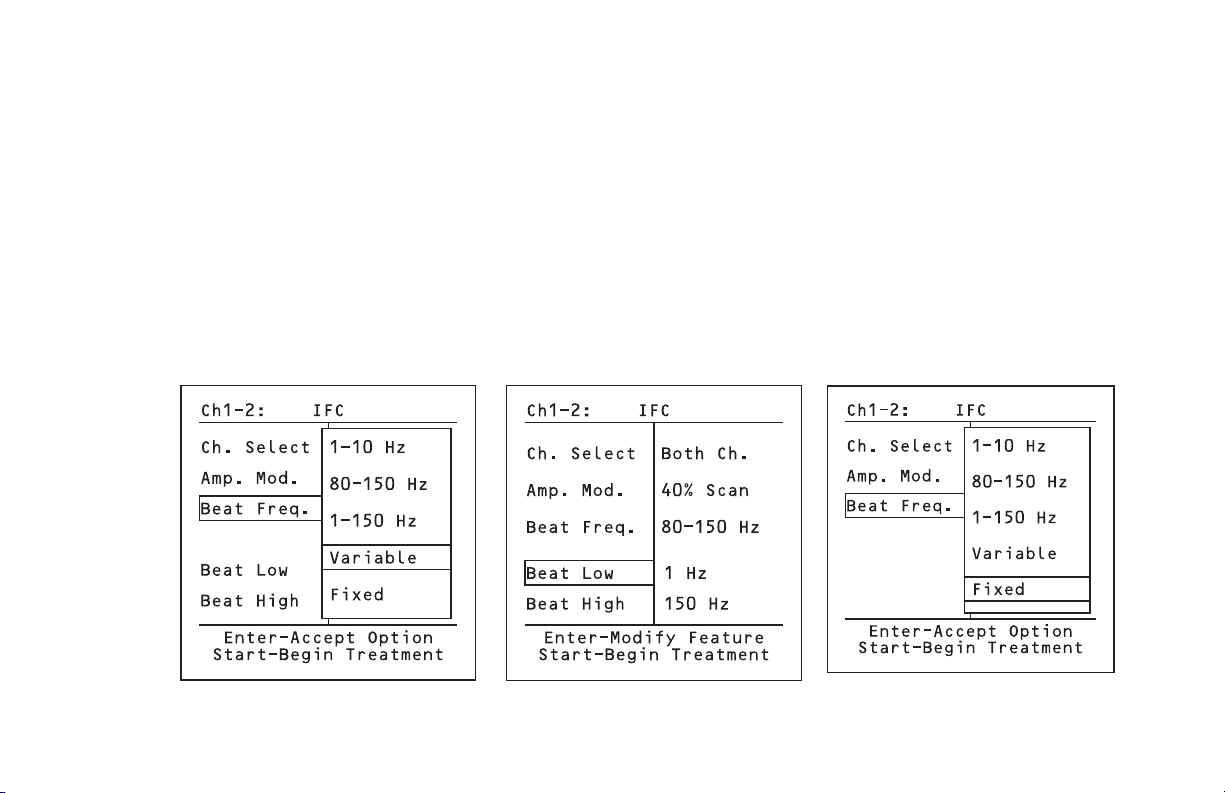

Interferential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Premodulated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Muscle Contraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

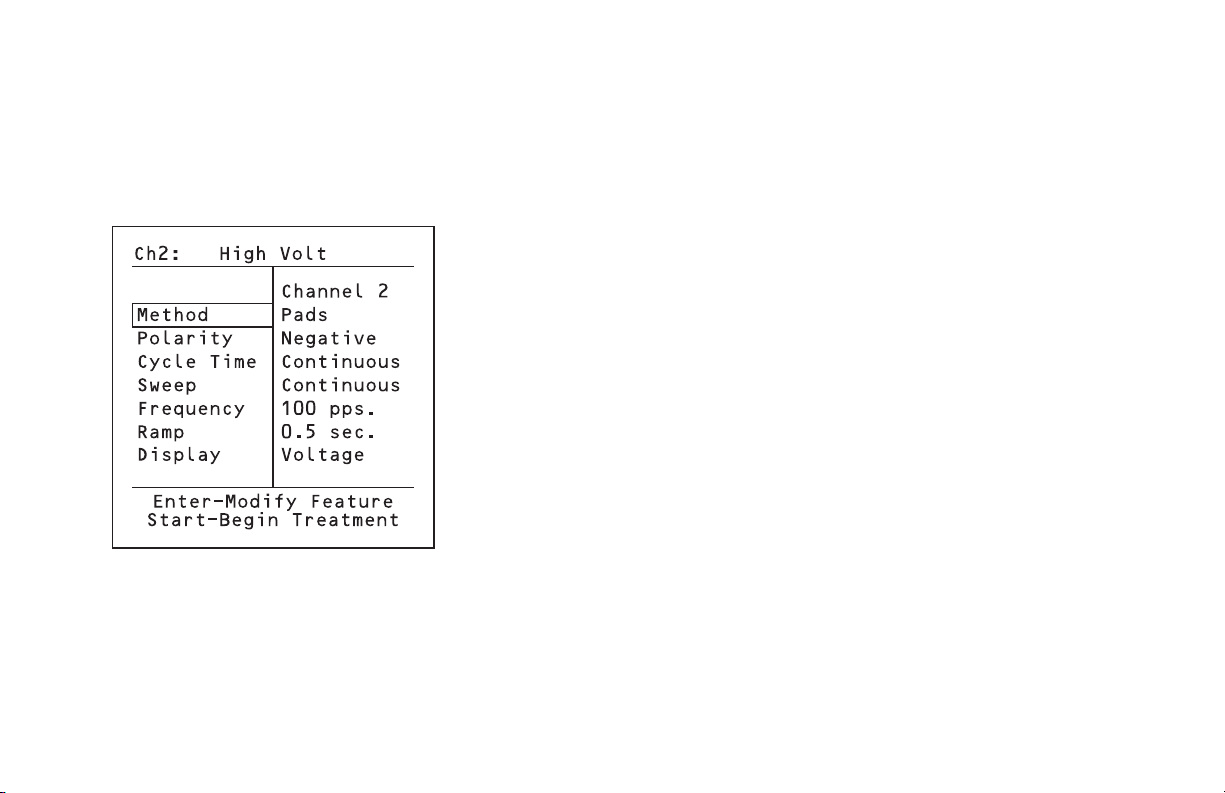

High Volt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Russian . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Ultrasound Indications and Contraindications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Ultrasound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Combination Therapy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Technical Spec ifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-28

INTLECT LEGEND COMBO
3
Foreword
This manual has been written for the owners and operators of the Intelect®Legend Combo, models 2C and 4C. It
contains general instructions on operation, precautionary practices, maintenance and parts information. In order to
maximize use, efficiency and the life of your unit, please read this manual thoroughly and become familiar with the
controls as well as the accessories before operating the unit.
Specifications put forth in this manual were in effect at the time of publication. However, owing to Chattanooga Group's
policy of continual improvement, changes to these specifications may be made at any time without obligation on the part
of Chattanooga Group.
Product Description
With the same legendary performance, quality and value that has made the Intelect®name respected world-wide, the
Intelect®Legend Combo offers the convenience of a full-featured stimulator and ultrasound in one device. Easy to use
1-2-Go software makes this unit a pleasure to operate.
Features include Interferential, Premodulated, High Volt and Russian waveforms. Dual frequency ultrasound features a
5 cm2soundhead, which delivers 1 or 3.3 MHz frequencies, 10%, 20%, 50% and continuous duty cycle selections, and
head warming. Unique Electronic Signature™ control allows all available ultrasound applicators to be interchangeable.
Ultrasound operation is independent or in combination with Interferential, Premodulated and High Volt waveforms.
Models 2C and 4C of the Intelect Legend Combo are prescription devices used under the supervision or by the order of
a physician or other licensed healthcare provider.
©2004 Encore Medical Corporation or its affiliates, Austin, Texas, USA. Any use of editorial, pictorial or layout composition of this publication without
expressed written consent from the Chattanooga Group of Encore Medical, L.P. is strictly prohibited. This publication was written, illustrated and
prepared for print by the Chattanooga Group of Encore Medical, L.P.

4
INTELECT LEGEND COMBO
Precautionary Instructions
1. CAUTION: Read, understand and practice the precautionary and operating instructions. Know the limitations and hazards
associated with using any electrical stimulation or ultrasound device. Observe the precautionary and operational
decals placed on the unit.
2. CAUTION: Do not operate the Intelect®Legend Combo when connected to any unit other than Chattanooga Group devices. Do
not operate the unit in an environment of short-wave diathermy use.
3. WARNING: Federal law restricts this device to sale by, or on the order of, a physician or licensed practitioner. This device should
be used only under the continued supervision of a physician or licensed practitioner.
4. CAUTION: This unit generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to other devices in the vicinity. However, there is no guarantee that
interference will not occur in a particular installation. Harmful interference to other devices can be determined by
turning this unit on and off or trying to correct the interference using one or more of the following: Reorient or
relocate the receiving device, increase the separation between the equipment, connect the unit to an outlet on a
different circuit from that to which the other device(s) are connected and/or consult the factory field service
technician for help.
5. CAUTION: The Ultrasound generator should be routinely checked before each use to determine that all controls
function normally; especially that the intensity control does properly adjust the intensity of the ultrasonic power
output in a stable manner. Also, determine that the treatment time control does actually terminate ultrasonic power
output when the timer reaches zero.
6. CAUTION: Use of controls or adjustments or performance of proce dures other than those specified herein may result in
hazardous exposure to ultrasonic energy.
7. CAUTION: This unit is not designed to prevent the ingress of water or liquids. Ingress of water or liquids could cause
malfunction of internal components of the system and therefore create a risk of injury to the patient.
8. CAUTION: DO NOT use sharp objects such as a pencil point or ballpoint pen to operate the buttons on the control panel as
damage may result.
9. WARNING: Equipment not suitable for use in the presence of flammable anesthetics mixture with air, oxygen, or nitrous oxide.
The warning symbol for this hazard is prominently displayed on the cabinet.

5
INTELECT LEGEND COMBO
10. WARNING: Keep electrodes separated during treatment. Electrodes in contact with each other could result in improper
stimulation or skin burns.
11. WARNING: For continued protection against fire hazard, replace fuses only with ones of the same type and rating.
12. WARNING:
Make certain that the unit is electrically grounded by connecting only to a grounded electrical service receptacle
conforming to the applicable national and local electrical codes.
13. WARNING: This device should be kept out of the reach of children.
14. WARNING: Care must be taken when operating this equipment around other equipment. Potential electromagnetic or other
interference could occur to this or to the other equipment. Try to minimize this interference by not using other
equipment in conjunction with it.
15. CAUTION: This unit should be operated, transported and stored in temperatures between 59° F and 104° F (15° C and 40° C),
with Relative Humidity ranging from 30%- 60%.
16. CAUTION: Handle ultrasound applicator with care. Inappropriate handling
of the ultrasound applicator may adversely affect its
characteristics.
17. CAUTION:
Inspect treatment head for cracks, which may allow the ingress of conductive fluid before each use.
18. CAUTION: Inspect treatment head cables and associated connectors before each use.
19. WARNING: Use caution when operating in “Interferential” (IFC) mode. It is recommended to always use new electrode pads
when IFC modality is administered. Unseen residues on repeatedly used electrodes could possibly create an electrical
shock or burn sensation to the patient.
20. CAUTION: DO NOT raise intensity after treatment has been started.
21. DANGER: Patients with an implanted neurostimulation device must not be treated with or be in close proximity to any shortwave
diathermy, microwave diathermy, therapeutic ultrasound diathermy or laser diathermy anywhere on their body. Energy
from diathermy (shortwave, microwave, ultrasound and laser) can be transferred through the implanted
neurostimulation system, can cause tissue damage and can result in severe injury or death. Injury, damage or death
can occur during diathermy therapy even if the implanted neurostimulation system is turned "off."
Before administering any treatment to a patient you should become acquainted with the operating procedures for each mode of
treatment available, as well as the indications, contraindications, warnings and precautions. Consult other resources for additional
information regarding the application of electrotherapy.

6
INTELECT LEGEND COMBO
Installation
Initial Setup Instructions
Remove the Intelect®Legend Combo unit and any additional items ordered from the carton and inspect for damage that
may have
occurred during shipment. Check the voltage rating on the serial decal located on the bottom of the unit. Plug the
system power supply in to a 100 Volt to 220-240 Volt AC outlet, as required.
CAUTION
•DONOTattempttouseDirectCurrent(DC).
•DONOTplaceunitinalocationwherethepowercordcouldbetrippedoverorpulledoutduringtreatment.
•DONOTattempttousetheunitifitisnotproperlygrounded.
Package Contents
Standard Accessories
The following accessories are included with your Intelect®Legend Combo:
78047 Applicator, Ultrasound 5 cm2
4248 Conductor™Gel
12213 Lead, 120", Red/Black Channels 1 and 2
12214 Lead, 120", Channels 3 and 4 (Model 4C only)
72853 Electrodes, Carbonflex, 3" Round, Red
72852 Electrodes, Carbonflex, 3" Round, Black
10648 Nylatex, 2-1/2" x 24", Sewn
79079 Operator's Manual

7
INTELECT LEGEND COMBO
Optional Accessories
The following is a list of optional accessories available for the Intelect®Legend Combo:
78046 Applicator, Ultrasound 10 cm2
78048 Applicator, Ultrasound 2 cm2
79977 High Volt Probe Kit
10832 Strap, Nylatex, Long 2-1/2"x 48"
10648 Strap, Nylatex, Medium, 2-1/2"x 24"
10828 Strap, Nylatex, Short, 2-1/2"x 18"
78022 Patient Control Center
Indications/Contraindications Adverse Effects
for Electrical Stimulation
Interferential and Premodulated
Indications
•Symptomaticreliefofchronic,intractablepain.
•Managementofpainassociatedwithpost-traumaticorpostoperativeconditions.
Contraindications
•Thisdeviceshouldnotbeusedforsymptomaticpainreliefunlessetiologyisestablishedorunlessapainsyndromehas
been diagnosed. This device should not be used on patients with demand type cardiac pacemakers. This device should
not be used over cancerous lesions.
•Electrodeplacementsmustbeavoidedthatapplycurrenttothecarotidsinusregion(anteriorneck)ortranscereberally
(through the head).

8
INTELECT LEGEND COMBO
Warnings
•Thelongtermeffectsofchronicelectricalstimulationareunknown.Safetyhasnotbeenestablishedfortheuseof
therapeutic electrical stimulation during pregnancy.
•Adequateprecautionsshouldbetakenwhentreatingindividualswithsuspectedordiagnosedheartproblems,orepilepsy.
•BenefitsofInterferentialstimulationhavenotbeenestablishedforpainofcentralorigin.
•Thisdeviceistobeusedasasymptomatictreatmentforpainandhasnocurativevalue.Patientsshouldbecautioned
and their activities regulated if pain is suppressed that would otherwise serve as a protective mechanism.
•Electronicmonitoringequipment(suchasECGmonitorsandECGalarms)maynotoperateproperlywhenelectrical
stimulation is being utilized.
Precautions
•Isolatedcasesofskinrashmayoccuratthesiteofelectrodeplacementfollowinglongtermapplications.Theirritation
may be reduced by use of an alternate conductive medium or an alternative electrode placement.
•Effectivenessofthistreatmentisdependentuponpatientselection.
Adverse Effects
•Skinirritationandburnsbeneaththeelectrodeshavebeenreportedwiththeuseoftherapeuticelectricalstimulation.
Russian and High Volt
Indications
•Relaxationofmusclespasms.
•Preventionorretardationofdisuseatrophy.
•Increasinglocalbloodcirculation.
•Musclere-education.

9
INTELECT LEGEND COMBO
•Maintainingorincreasingrangeofmotion.
•Immediatepostsurgicalstimulationofcalfmusclestopreventvenousthrombosis.
Contraindications
•Thisdeviceshouldnotbeusedonpatientswithdemandtypecardiacpacemakers.
•Thisdeviceshouldnotbeusedoncancerpatients.
Warnings
•Thelongtermeffectsofchronicelectricalstimulationareunknown.
•Safetyhasnotbeenestablishedfortheuseoftherapeuticelectricalstimulationduringpregnancy.
•Adequateprecautionsshouldbetakenwhentreatingindividualswithsuspectedordiagnosedheartproblems.
•Adequateprecautionsshouldbetakeninthecasesofpersonswithsuspectedordiagnosedepilepsy.
•Donotstimulateoverthecarotidsinusnerve,especiallyinpersonswithaknownsensitivitytothecarotidsinusreflex.
•Severespasmofthelaryngealandpharyngealmusclesmayoccuriftheelectrodesareplacedovertheneckormouth.
The contractions may be strong enough to cause breathing difficulty or even close the airway.
•Donotperformtherapeuticelectricalstimulationtranscerebrally(throughthehead).
•Therapeuticelectricalstimulationshouldnotbeappliedoverswollen,
infected or inflamed areas of skin eruptions,
(e.g., phlebitis, thrombophlebitis and varicose veins).
•Useextremecautionintransthoracicapplicationoftherapeuticelectricalstimulation,introductionofelectricalcurrent
into the heart may cause arrhythmia.
•Thisdeviceshouldonlybeusedundermedicalsupervisionforadjunctivetherapyforthetreatmentofmedicaldiseases
and conditions.
•Thisdeviceshouldbekeptoutofthereachofchildren.

10
INTELECT LEGEND COMBO
Precautions should be observed in the presence of the following:
•Followingrecentsurgicalproceduresespeciallywhenmusclecontractionscoulddisruptthehealingprocess.
• Where sensory nerve damage is present by a loss of normal skin sensation.
• When there is a tendency to hemorrhage following acute trauma or fracture.
•Overthemenstruatinguterus.
•Somepatients may experience skin irritation or hypersensitivityduetothe electrical stimulation or the electrical
conductive medium. The irritations can usually be reduced by the use of an alternate conductive medium or alternative
electrode placement.
Adverse Effects
•Skinirritationandburnsbeneaththeelectrodeshavebeenreportedwiththeuseoftherapeuticelectricalstimulation.
HAND HELD PROBE (Optional)
HIGH VOLT Probe
The High Volt probe is used to deliver stimulation manually. Select the High Volt waveform then simply plug the Black lead
wire into the connector of the Probe. The Red lead wire from the same channel should be attached to an electrode and
placed near the treatment site. The default polarity for High Volt is positive. When using this setting, the Red lead is
positive and the Black lead is negative.
•Selecttheparametersyouwishtochangethenpressthestartbuttontobegintreatment.
NNoottee: Place the ground electrode as close to the treatment site as possible
where it will not interfere with placement of
the active electrode; for example, do not place the ground electrode on the leg if you are treating the arm.

11
INTELECT LEGEND COMBO
User Maintenance
To clean, turn unit off and unplug the power supply. Clean the unit with a damp cloth. Do not use abrasive cleaners. A
small amount of mild household detergent may be used, if desired.
Between patient uses, patient applied parts should be wiped clean with a clean damp cloth, then use another clean
cloth to clean with a hospital grade germicide. Follow germicide manufacturer directions. Some highly concentrated
germicide mixtures could damage the product if not diluted in accordance with directions of the germicide
manufacturer.
Technical Maintenance
No attempt should be made to disassemble the unit. Maintenance and all repairs should be made by authorized
personnel only. The manufacturer will not be held responsible for the results of maintenance or repairs by unauthorized
persons.
To fully maintain compliance with Federal Regulation Title 21 (21 CFR), this unit must be recalibrated annually. It is
recommended that all Chattanooga Group ultrasound products be returned to the factory or an authorized servicing
dealer for repairs or recalibration. It is also recommended after the replacement or repair of any major component.
The following items should be checked at least monthly to ensure proper operation of this unit:
1.
Power cord and plug: Check to make sure the cord is not frayed, kinked or does not have torn or cut insulation.
2. Sound head cable: Check to make sure the cable is flexible, free of kinks, not frayed and the insulation is intact.
3. Sound head face: Check to see that there is no build-up of gel or foreign material on the aluminum face.
4. Lead Wires: Check that the cables are not frayed, kinked or do not have torn or cut insulation.

12
INTELECT LEGEND COMBO
Unit Orientation
Operator Interface – The operator interface consists of a Liquid Crystal Display (LCD) and three Light Emitting Diodes
(LEDs). The operator is able to view Channel designation, Treatment time and Output on the LEDs and Parameter options
on the LCD.

13
INTELECT LEGEND COMBO
The software control of the Legend Combo has been designed to be extremely user friendly. First press the treatment
mode button of your choice, increase intensity and press start. The software also allows great flexibility should you desire
to change parameters.
Changing Parameters – To change parameters, use the UP/DOWN arrows to select the parameter, then press ENTER. If there are
two options, pressing ENTER will toggle between those choices. If there are three or more options, pressing ENTER will
display a pop-up window with the choices listed. Use the UP/DOWN arrows to choose an option and then press ENTER to
accept.
Enter – The UP/DOWN arrows control the Select Highlight box and the ENTER button confirms the change.
Main Menu – This button will return you to Main Menu or allow you to escape from a pop-up menu.

14
INTELECT LEGEND COMBO
Time – The UP/DOWN arrows increase or decrease the default treatment time.
Power/Intensity – The UP/DOWN arrows increase or decrease the intensity/power.
Treatment Selection– There are four waveform selections, plus Ultrasound and
Combo.
Start – This button will start the treatment on the selected channel.
Stop – This button will stop the treatment on the selected channel.
Pause – This button will pause the treatment on the selected channel.
Operating Channels
– Model 2C of the Intelect®Legend Combo provides two
channels of electrical stimulation and one channel of ultrasound. Model 4C
provides four channels of electrical stimulation and one channel of ultrasound.
Stimulation Output Channels – The lead wires connect to these ports.
Ultrasound Port – The Intelect Legend Combo includes a 5 cm2ultrasound
applicator, which connects to the port marked Ultrasound. The advanced
electronics of the Legend Combo transmits stored data from the applicator
to the unit each time the device is powered on and ultrasound is accessed.
This sophisticated Electronic Signature™assures accurate calibration with any
of the interchangeable applicators.
Left Side Panel of Models 2C and 4C
Right Side Panel of Model 2C
Right Side Panel of Model 4C
Operating Channels
3/4
Operating Channels
1/2
Ultrasound
Port
Ultrasound
Port

15
INTELECT LEGEND COMBO
Pain Management
The management of post-traumatic, post-operative or chronic intractable pain associated
with many areas of the body can be a difficult task. The Intelect®Legend Combo provides
multiple waveforms and many parameter settings to manage pain.
Two waveforms ar e available for Pain Management therapy: In terferential and Premodulate d.
Interferential
The Interferential waveform consists of two channels, each with a sinusoidal waveform;
one of fixed frequency and one of variable frequency.
When the four electrodes are positioned so that the two channels cross each other, the
two waveforms mix within the tissue to produce a train of pulses whose frequencies and
amplitude are dependent on the sweep mode, beat frequency and amplitude settings,
respectively. Press the Interferential button to select this waveform.
Ch. Select controls the method for setting amplitude. The Both Channels mode changes
intensity equally. The Channel 1 option changes ONLY channel one and the Channel 2
option ONLY changes channel two. This is helpful when you need to balance the output
between channels.
When you highlight Amplitude Modulation and press the ENTER button, 3 options are displayed.
They are 40% Scan (default), 100% Scan and Static (no scan).
Scan Percentage is the percentage of decrease from the maximum amplitude. Scan is
amplitude modulation, expressed as a percentage of the amplitude. The rhythmical varying
of the amplitude of each channel produces the perceived
movement of the Interferential field.
Ch. Select
Amplitude Modulation/Scan Percentage

16
INTELECT LEGEND COMBO
When you highlight Beat Frequency and press the ENTER button, 5 options are displayed. They are 1-10 Hz, 80-150 Hz (default),
1-150 Hz, Variable and Fixed.
The Variable option allows you to select a Low Beat frequency from 1-200 Hz and a High Beat frequency from 1-200 Hz. To make
changes in the Variable frequency, highlight VARIABLE and press the ENTER button. To change the Beat Low frequency, use the DOWN
arrow to highlight Beat Low and press ENTER. Use the UP/DOWN arrows to adjust the frequency. Press ENTER to accept.
Beat Low describes the lowest frequency in the range of a sweep mode. For example when using a sweep of 80-150 Hz, 80 Hz
is the lowest frequency.
Beat High describes the highest frequency in the range of a sweep mode. For
example when using a sweep of 80-150 Hz, 150 Hz
is the highest frequency.
The Fixed Option, allows you to select a fixed frequency from 1-200 Hz. To make changes to the Fixed frequency, highlight FIXED
and press ENTER. Use the UP/DOWN arrows to adjust frequency. Press ENTER to accept.
Beat Frequency Beat Low Fixed Option

17
INTELECT LEGEND COMBO
Premodulated
Premodulated is an amplitude modulated sine wave. This waveform is similar to the
beat frequency created by Interferential current. In some cases, Premodulated therapy
provides a good alternative for Interferential treatment especially when treating areas
of the body where four electrodes can not be utilized.
Cycle Time parameter controls the on/off cycle time of the current. There are 2 available
options, Continuous (default) and 5/5.
When you highlight Beat Frequency and press the ENTER button, 5 options are displayed.
They are 1-10 Hz, 80-150 Hz (default), 1-150 Hz, Variable and Fixed.
The Variable option allows you to select a Low Beat frequency from 1-200 Hz and a
High Beat frequency from 1-200 Hz. To make changes in the Variable frequency,
highlight VARIABLE and press the ENTER button. To change the Beat Low frequency, use
the DOWN arrow to highlight Beat Low and press ENTER. Use the UP/DOWN arrows to adjust
the frequency. Press ENTER to accept.
Beat Low describes the lowest frequency in the range of a sweep mode. For example
when using a sweep of 80-150 Hz, 80 Hz is the lowest frequency.
Beat High describes the highest frequency in the range of a sweep mode. For
example
when using a sweep of 80-150 Hz, 150 Hz is the highest frequency.
The Fixed Option, allows you to select a fixed frequency from 1-200 Hz. To make
changes to the Fixed frequency, highlight FIXED and press ENTER. Use the UP/DOWN arrows
to adjust frequency. Press ENTER to accept.
Cycle Time
Fixed Option

18
INTELECT LEGEND COMBO
Muscle Contraction
Two waveforms are available for muscle contraction therapy; Twin-Peak High Volt and Russian. The appropriate selection
of a waveform for relaxing muscle spasms, increasing local circulation, re-educating muscles that have atrophied from
disuse or injury, or to maintain or improve joint range of motion can be difficult. The Intelect®Legend Combo provides
multiple waveforms to address these clinical problems.
High Volt
High Volt stimulation has output ranges between 300 and 500 volts. True
Twin-Peak High Volt is designed to deliver very short-duration pulses, which are
very low in pulse charge. High Volt is available through channel 2 and 4 on the
model 4C and channel 2 on the model 2C.
Method gives you the option of delivering High Volt to the patient either by Pads
(default) or Probe application.
Polarity of the active electrode can be changed from Positive (default) to Negative
by selecting POLARITY and pressing the ENTER button. When Positive (default)
polarity is selected, the Red leadwire is positive polarity and the Black leadwire is
negative polarity. IF YOU SELECT NEGATIVE POLARITY, the Red leadwire
becomes negative polarity and the Black leadwire becomes positive polarity.
Cycle Time parameter controls the on/off cycle time of the current. There are 7
available options: 5/5, 10/10, 10/20, 4/12, 10/30, 10/50 and Continuous (default).
Sweep is frequency modulation of the High Volt current. When you select SWEEP and press the ENTER button, 4 options are
displayed. They are Continuous (default at 100 pps), 1-10 Hz, 80-150 Hz and 1-150 Hz. The Continuous option allows you
to select a continuous fixed frequency from 1-120 pps.
Method

19
INTELECT LEGEND COMBO
Frequency is the number of pulses per second of the waveform. To change the Frequency select
FREQUENCY and press ENTER, then use the UP or DOWN arrows to change the frequency, from 1-120 pps.
Ramp controls the amount of time required to bring the stimulation up to the selected amplitude.
When you select RAMP and press ENTER, 4 options are displayed. They are 0.5 seconds, 1 second,
2 seconds (default) and 5 seconds.
Display provides two options of viewing output. The options are Voltage (default) and Peak
Current. The ability to assess peak current can help determine tissue response, and an
indication of impedance to current at the electrode skin interface.
Russian
The Russian current is a 2,500 Hz sinusoidal carrier wave, interrupted to create pulse trains
or "bursts." The number of bursts per second is determined by the burst frequency and the
length of the bursts is determined by the duty cycle.
Mode provides three methods of treatment including Single channel application, Reciprocal
application where stimulation alternates between agonists and antagonists and Co-Contract
where the timing of stimulation can be coordinated through two channels to simultaneously
co-contract agonist and antagonist or differing sections of a larger muscle group.
Cycle Time parameter controls the on/off cycle time of the current. There are 7 available options:
5/5, 10/10, 10/20, 4/12, 10/30, 10/50 (default) and Continuous.
The Burst Frequency is the number of bursts per second (bps) and the available range is 20 bps to 100 bps.
Ramp controls the amount of time required to bring the stimulation up to the selected amplitude.
When you press the Ramp button it will toggle between .5 seconds, 1 second, 2 seconds
(default) and 5 seconds.
Duty Cycle is the ratio of on time to total time of the burst and is expressed as a percentage.
The options are 10%, 20%, 30%, 40% and 50% (default).
Ramp
Mode
