COLORado™ 1-Quad IP QRG EN
2

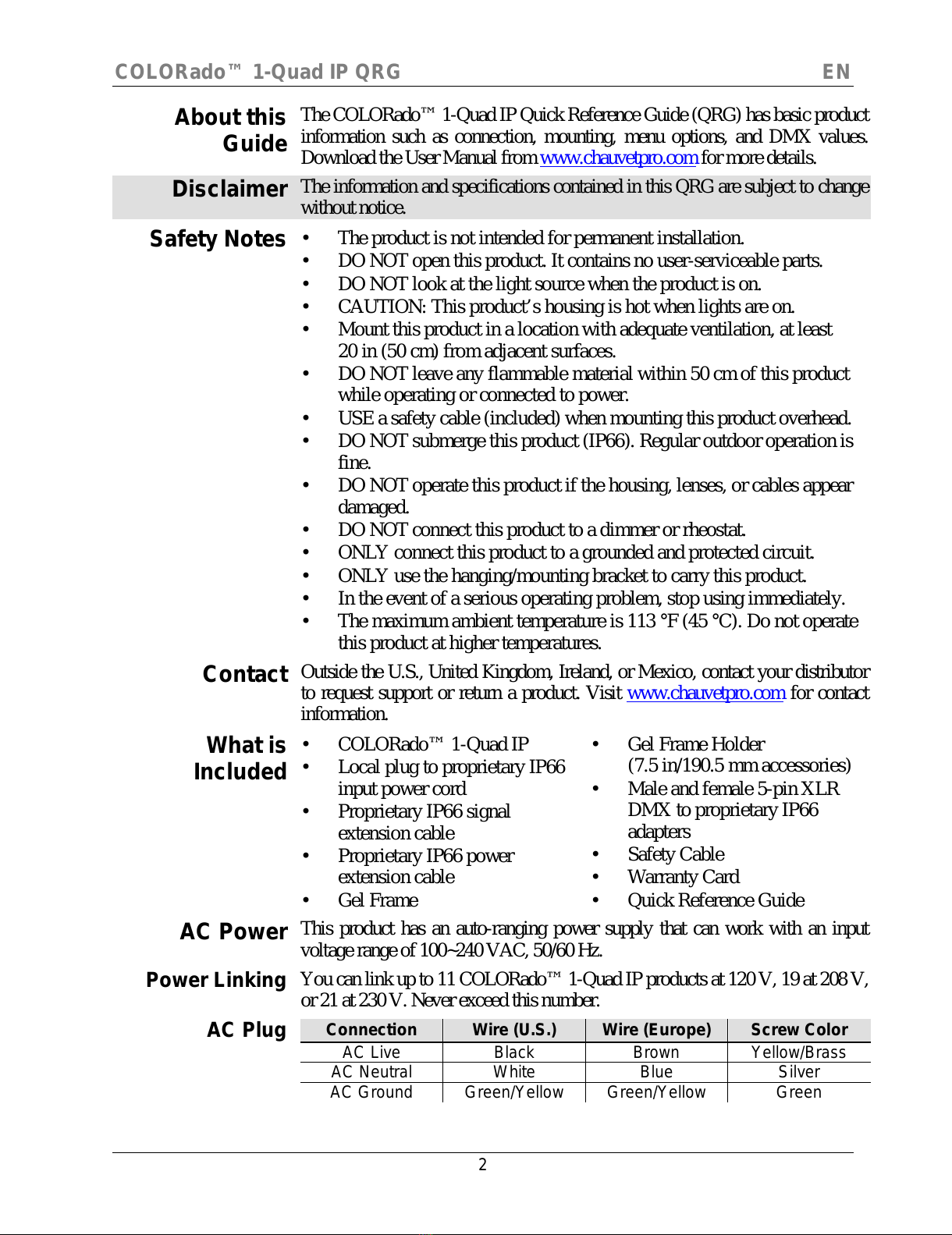

About this
Guide
The COLORado™ 1-Quad IP Quick Reference Guide (QRG) has basic product
information such as connection, mounting, menu options, and DMX values.
Download the User Manual from www.chauvetpro.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change
without notice.
Safety Notes
•The product is not intended for permanent installation.
•DO NOT open this product. It contains no user-serviceable parts.
•DO NOT look at the light source when the product is on.
•CAUTION: This product’s housing is hot when lights are on.
•Mount this product in a location with adequate ventilation, at least
20 in (50 cm) from adjacent surfaces.
•DO NOT leave any flammable material within 50 cm of this product
while operating or connected to power.
•USE a safety cable (included) when mounting this product overhead.
•DO NOT submerge this product (IP66). Regular outdoor operation is
fine.
•DO NOT operate this product if the housing, lenses, or cables appear
damaged.
•DO NOT connect this product to a dimmer or rheostat.
•ONLY connect this product to a grounded and protected circuit.
•ONLY use the hanging/mounting bracket to carry this product.
•In the event of a serious operating problem, stop using immediately.
•The maximum ambient temperature is 113 °F (45 °C). Do not operate
this product at higher temperatures.
Contact
Outside the U.S., United Kingdom, Ireland, or Mexico, contact your distributor
to request support or return a product. Visit www.chauvetpro.com
for contact
information.
What is
Included
•COLORado™ 1-Quad IP
•Local plug to proprietary IP66
input power cord
•Proprietary IP66 signal
extension cable
•Proprietary IP66 power
extension cable
•Gel Frame
•Gel Frame Holder
(7.5 in/190.5 mm accessories)
•Male and female 5-pin XLR
DMX to proprietary IP66
adapters
•Safety Cable
•Warranty Card
•Quick Reference Guide

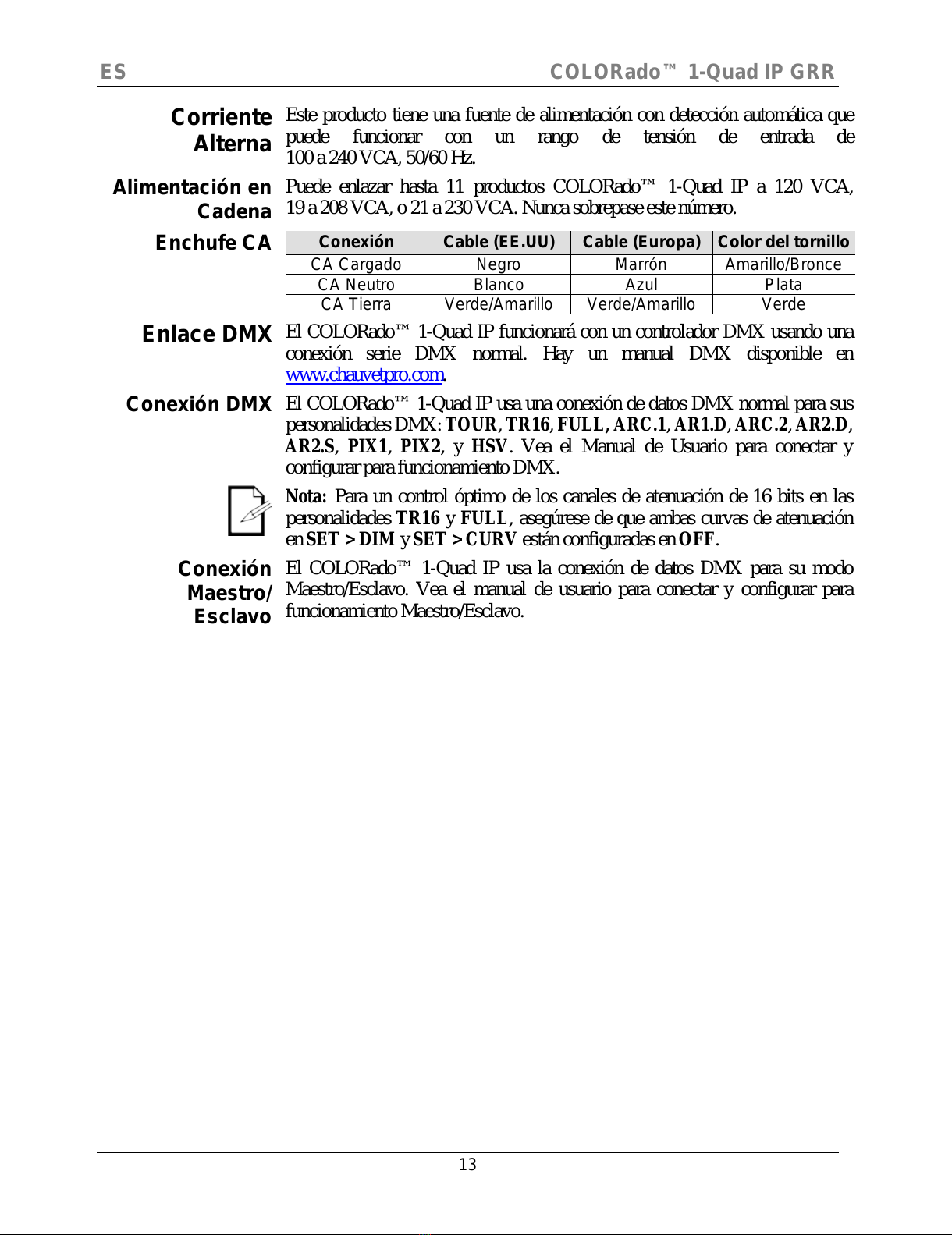

AC Power
This product has an auto-ranging power supply that can work with an input
voltage range of 100~240 VAC, 50/60 Hz.
Power Linking
You can link up to 11 COLORado™ 1-Quad IP products at 120 V, 19 at 208 V,
or 21 at 230 V. Never exceed this number.
AC Plug
Connection
Wire (U.S.)
Wire (Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
All manuals and user guides at all-guides.com

EN COLORado™ 1-Quad IP QRG
3

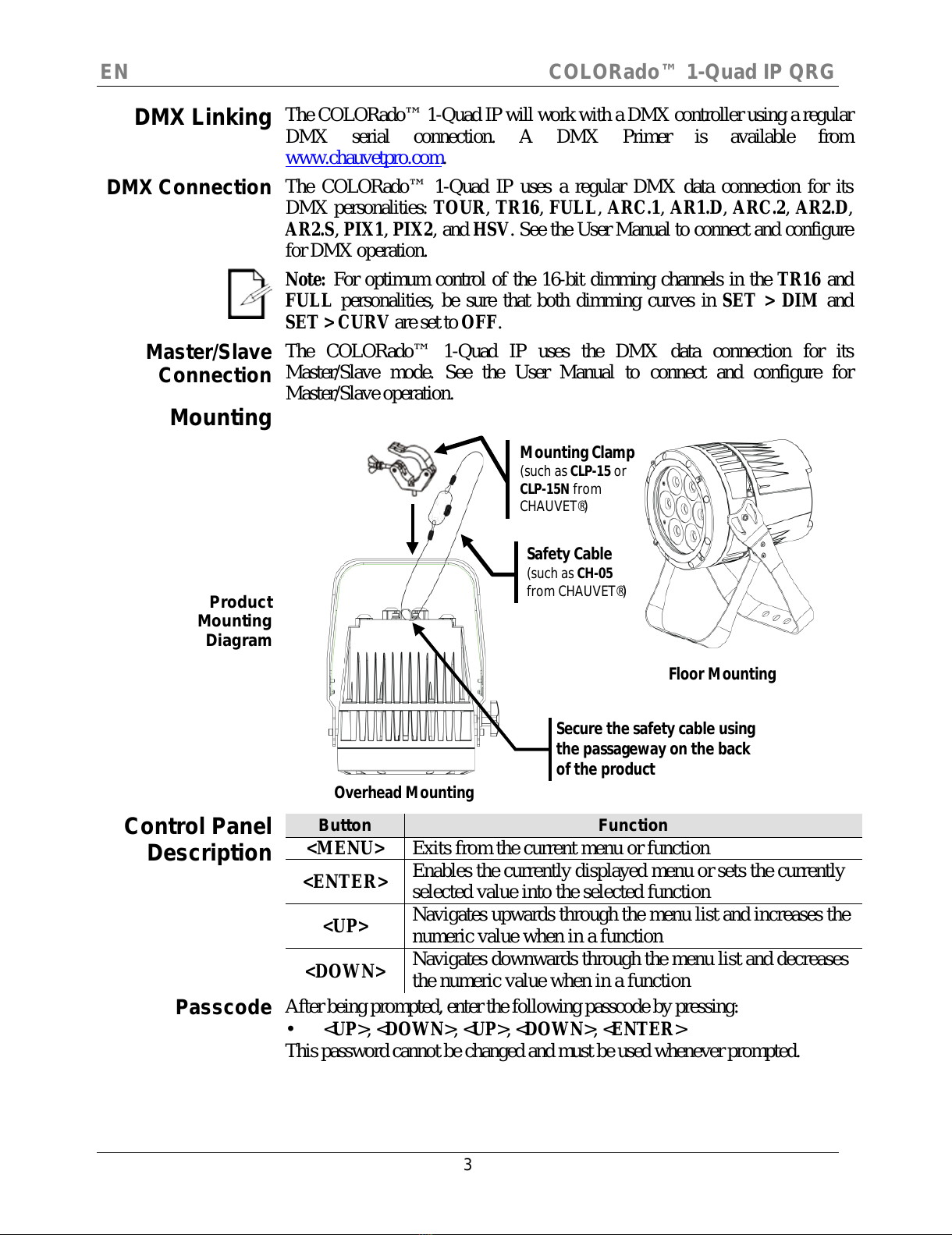

DMX Linking
The COLORado™ 1-Quad IP will work with a DMX controller using a regular
DMX serial connection. A DMX Primer is available from
www.chauvetpro.com.
DMX Connection
The COLORado™ 1-Quad IP uses a regular DMX data connection for its
DMX personalities: TOUR, TR16,FULL,ARC.1, AR1.D, ARC.2, AR2.D
,
AR2.S, PIX1, PIX2, and HSV
. See the User Manual to connect and configure
for DMX operation.
Note: For optimum control of the 16-bit dimming channels in the TR16 and
FULL personalities, be sure that both dimming curves in SET > DIM
and
SET > CURV are set to OFF.
Master/Slave
Connection
The COLORado™ 1-Quad IP uses the DMX data connection for its
Master/Slave mode. See the User Manual to connect and configure for
Master/Slave operation.
Mounting
Product
Mounting
Diagram
Control Panel
Description
Button
Function
<MENU>
Exits from the current menu or function
<ENTER>
Enables the currently displayed menu or sets the currently
selected value into the selected function
<UP>
Navigates upwards through the menu list and increases the
numeric value when in a function
<DOWN>
Navigates downwards through the menu list and decreases
the numeric value when in a function
Passcode
After being prompted, enter the following passcode by pressing:
•<UP>, <DOWN>, <UP>, <DOWN>, <ENTER>
This password cannot be changed and must be used whenever prompted.
Secure the safety cable using
the passageway on the back
of the product
Overhead Mounting
Floor Mounting
Mounting Clamp
(such as
CLP-15 or
CLP
-15N from
CHAUVET®)
Safety Cable
(such as
CH-05
from CHAUVET®)
All manuals and user guides at all-guides.com

COLORado™ 1-Quad IP QRG EN
4

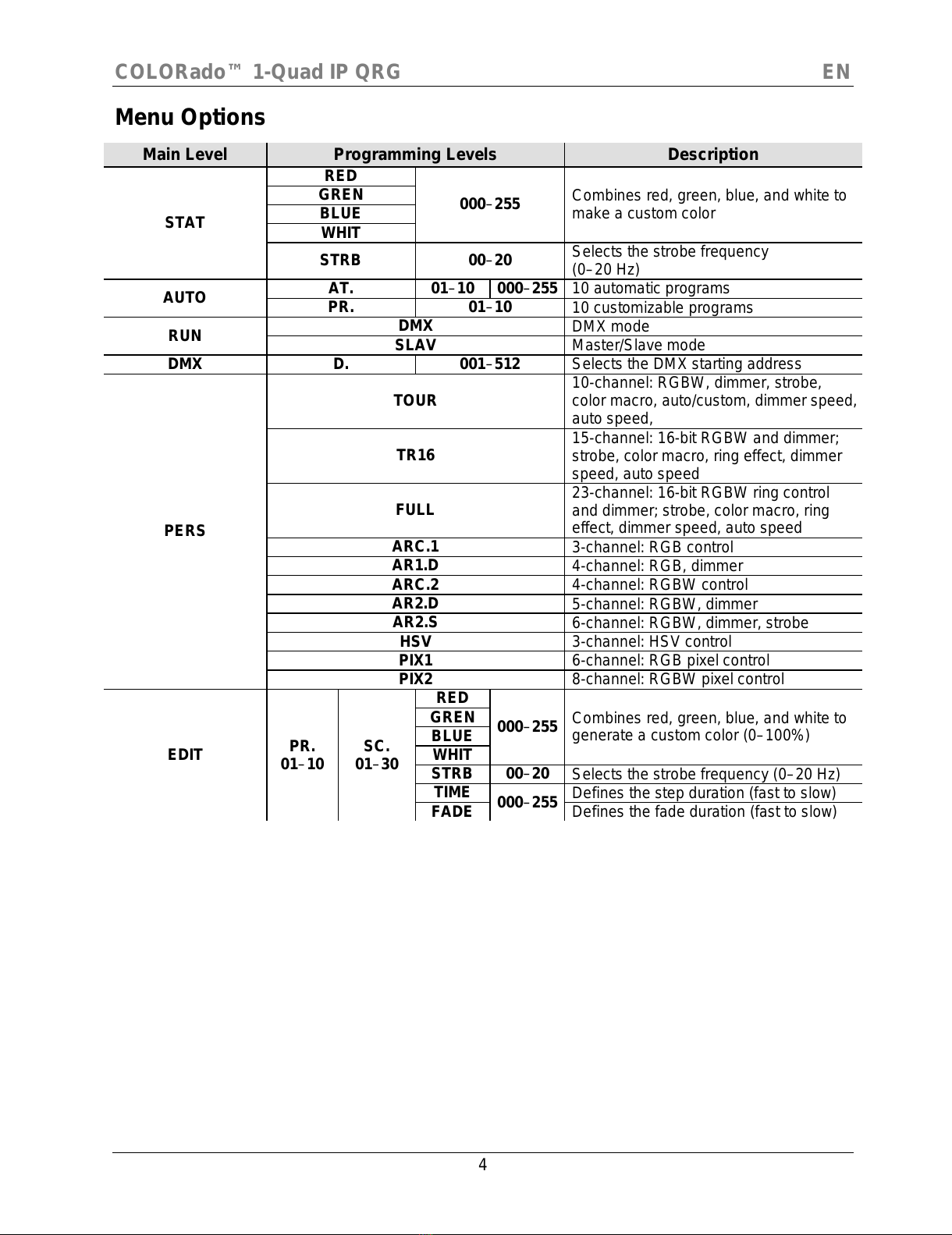

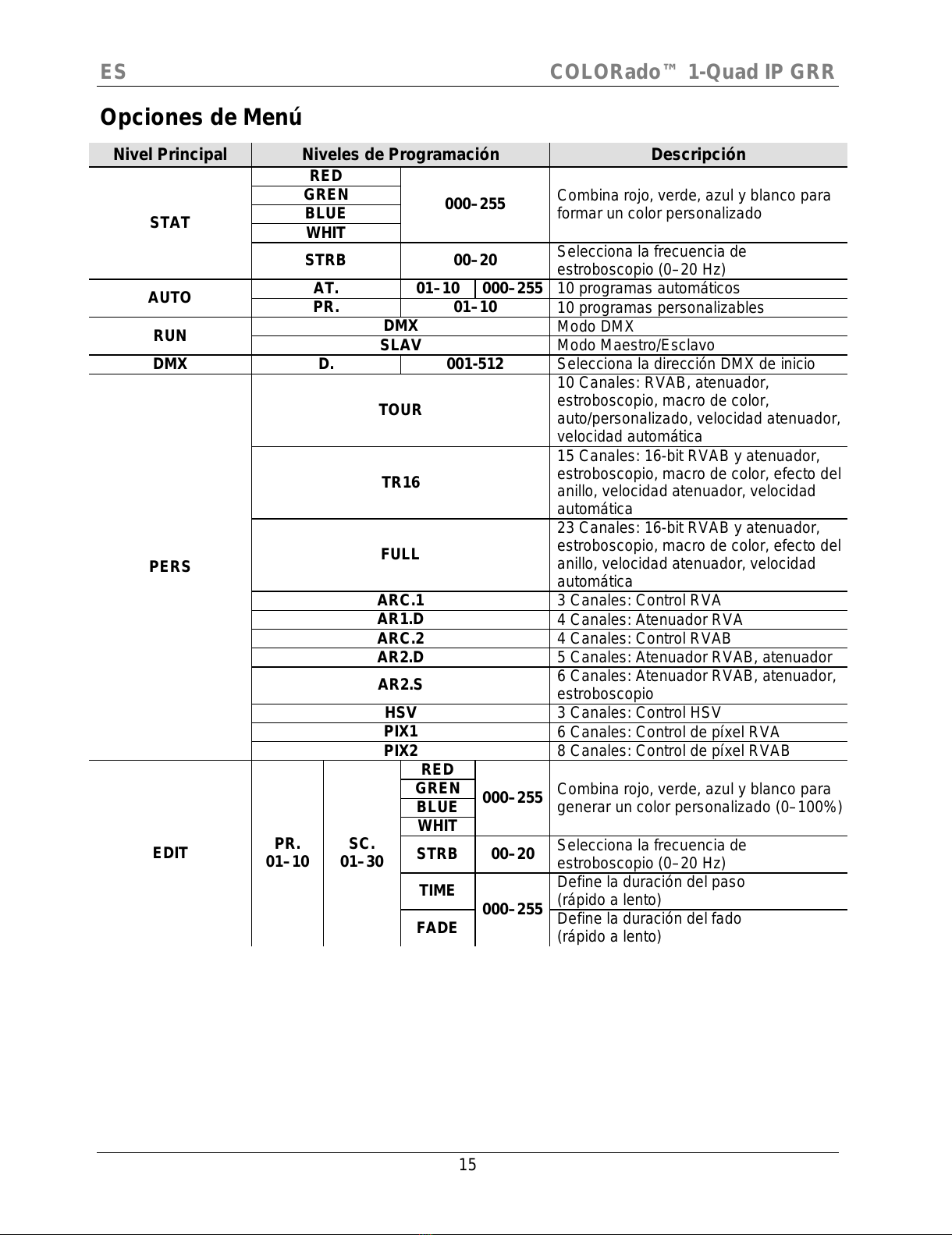

Menu Options
Main Level
Programming Levels
Description
STAT
RED
000–255 Combines red, green, blue, and white to
make a custom color
GREN
BLUE
WHIT
STRB 00–20
Selects the strobe frequency
(0–20 Hz)
AUTO
AT.
01–10
000–255
10 automatic programs
PR.
01–10
10 customizable programs
RUN
DMX
DMX mode
SLAV
Master/Slave mode
DMX
D.
001–512
Selects the DMX starting address
PERS
TOUR
10-channel: RGBW, dimmer, strobe,
color macro, auto/custom, dimmer speed,
auto speed,
TR16
15-channel: 16-bit RGBW and dimmer;
strobe, color macro, ring effect, dimmer
speed, auto speed
FULL
23-channel: 16-bit RGBW ring control
and dimmer; strobe, color macro, ring
effect, dimmer speed, auto speed
ARC.1
3-channel: RGB control
AR1.D
4-channel: RGB, dimmer
ARC.2
4-channel: RGBW control
AR2.D
5-channel: RGBW, dimmer
AR2.S
6-channel: RGBW, dimmer, strobe
HSV
3-channel: HSV control
PIX1
6-channel: RGB pixel control
PIX2
8-channel: RGBW pixel control
EDIT PR.
01–10 SC. 01–30
RED
000–255 Combines red, green, blue, and white to
generate a custom color (0–100%)
GREN
BLUE
WHIT
STRB
00–20
Selects the strobe frequency (0–20 Hz)
TIME
000–255
Defines the step duration (fast to slow)
FADE
Defines the fade duration (fast to slow)
All manuals and user guides at all-guides.com

EN COLORado™ 1-Quad IP QRG
5

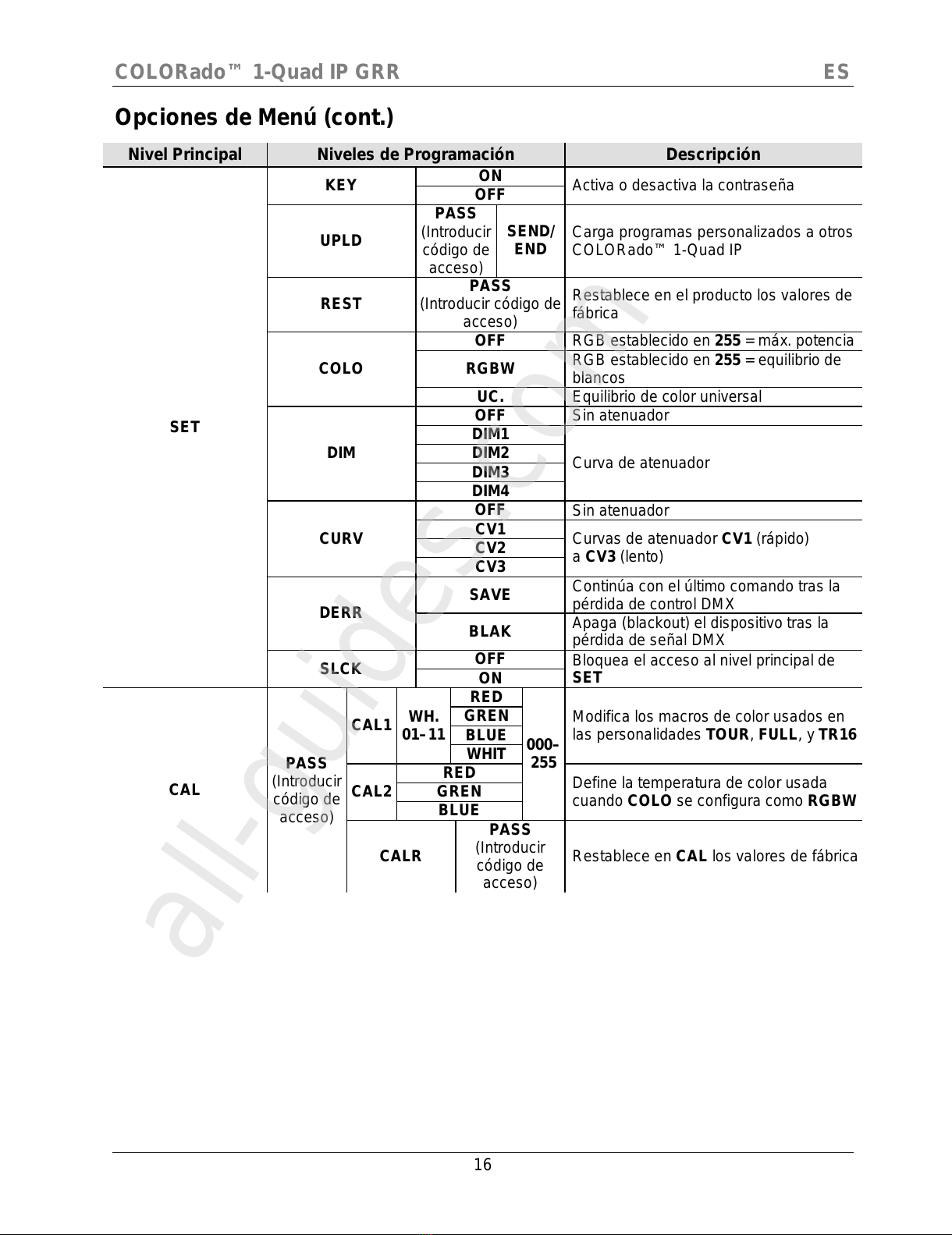

Menu Options (cont.)
Main Level
Programming Levels
Description
SET
KEY
ON
Turns the passcode on or off
OFF
UPLD
PASS
(Enter
Passcode)
SEND/
END Uploads custom programs to other
COLORado™ 1-Quad IP products
REST
PASS
(Enter Passcode)
Defaults product to factory settings
COLO
OFF
RGB set to 255 = max. output
RGBW
RGB set to 255 = balanced white
UC.
Universal color balance
DIM
OFF
No dimmer
DIM1
Dimmer curves
DIM2
DIM3
DIM4
CURV
OFF
No dimmer
CV1
CV1(fast) to CV3(slow) dimmer curves
CV2
CV3
DERR SAVE
Continues with last command upon loss
of DMX control
BLAK
Blacks out fixture upon loss of DMX
SLCK
OFF
SET main level access lock
ON
CAL PASS
(Enter
Passcode)
CAL1
WH.
01–11
RED
000–
255
Modifies the color macros used in the
TOUR, FULL, and TR16 personalities
GREN
BLUE
WHIT
CAL2
RED
Defines the color temperature used when
COLO is set to RGBW
GREN
BLUE
CALR
PASS
(Enter
Passcode)
Defaults CAL to factory settings
All manuals and user guides at all-guides.com

COLORado™ 1-Quad IP QRG EN
6

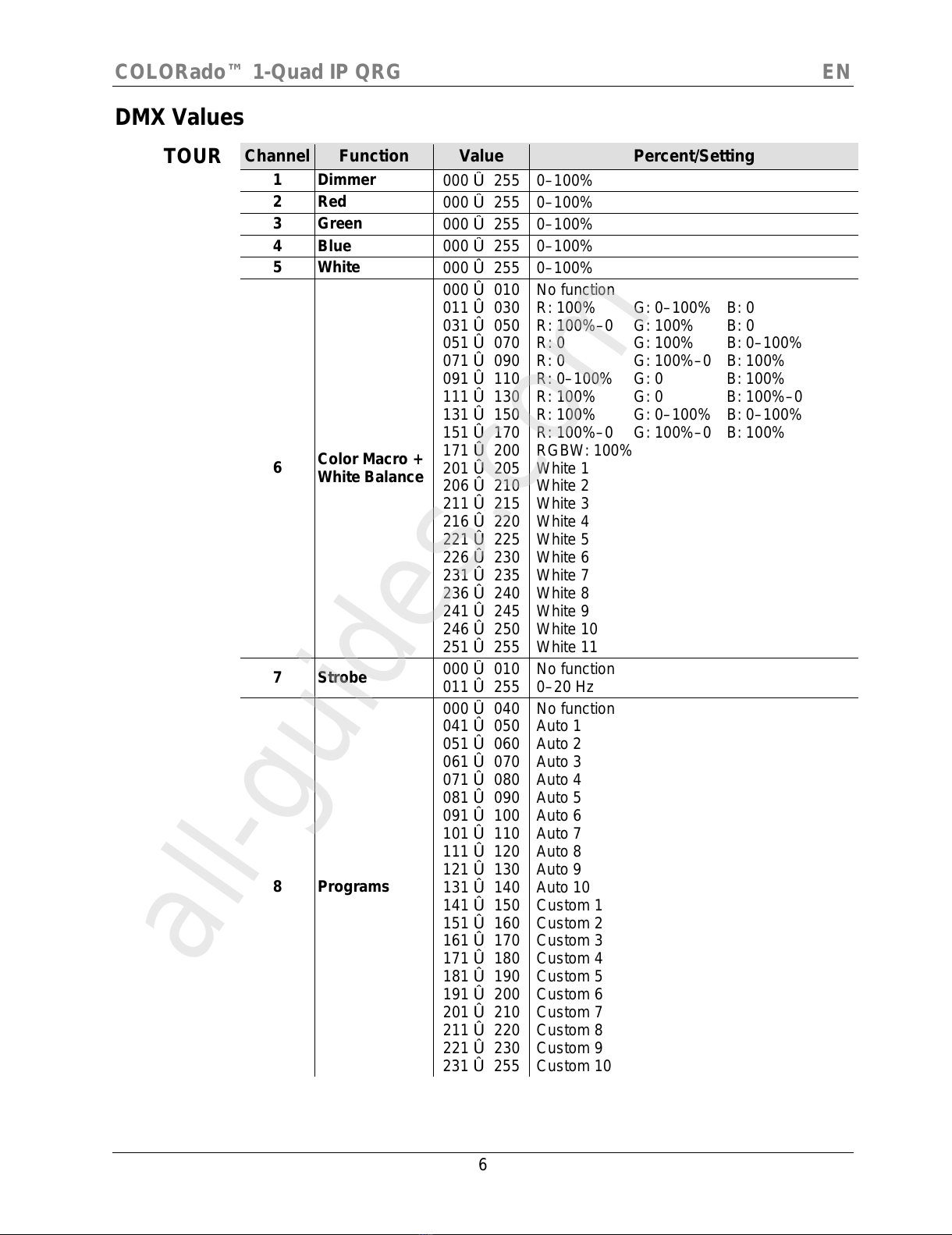

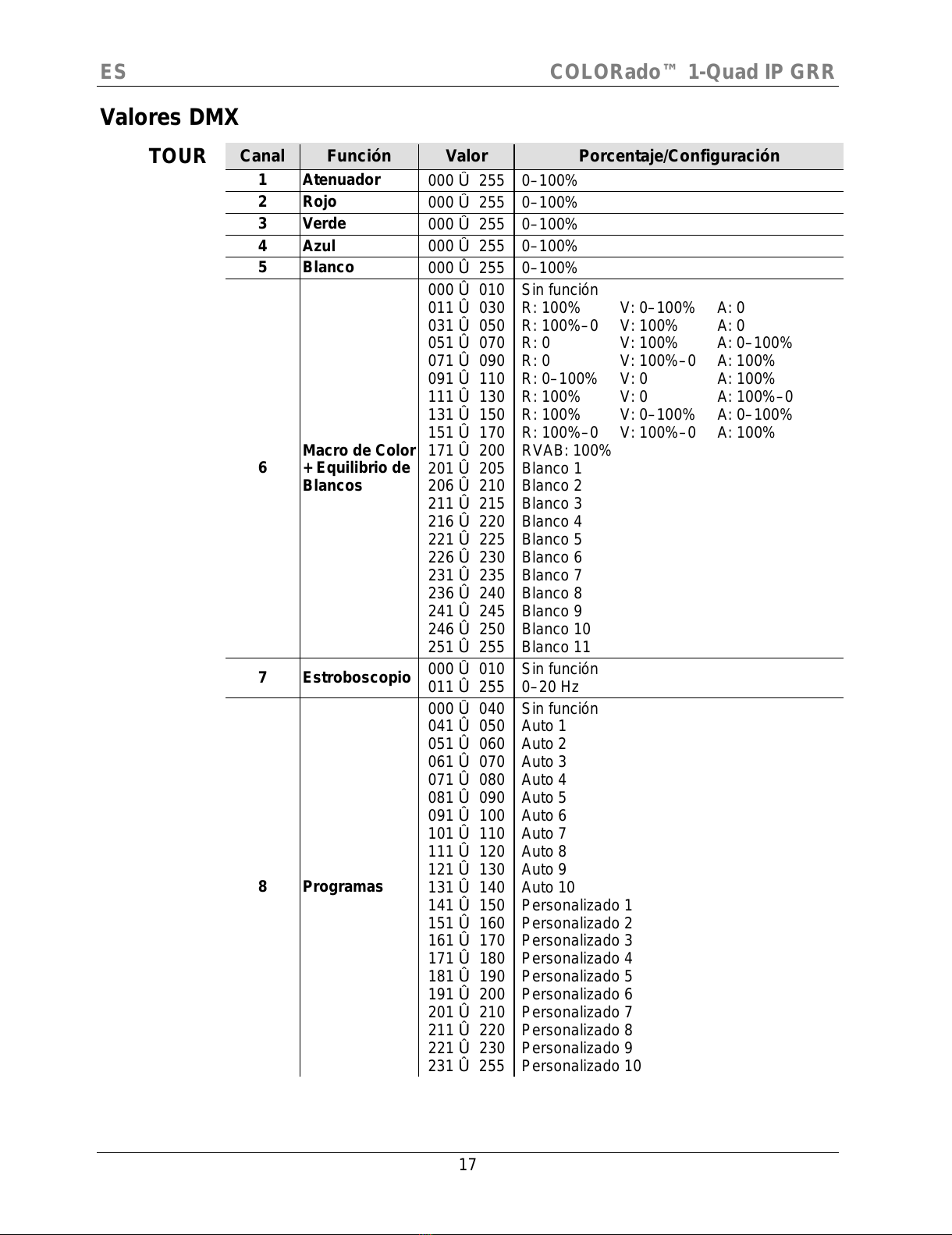

DMX Values
TOUR
Channel
Function
Value
Percent/Setting
1
Dimmer
000 ó255
0–100%
2
Red
000 ó255
0–100%
3
Green
000 ó255
0–100%
4
Blue
000 ó255
0–100%
5
White
000 ó255
0–100%
6 Color Macro +
White Balance
000 ó010
011 ó030
031 ó050
051 ó070
071 ó090
091 ó110
111 ó130
131 ó150
151 ó170
171 ó200
201 ó205
206 ó210
211 ó215
216 ó220
221 ó225
226 ó230
231 ó235
236 ó240
241 ó245
246 ó250
251
ó
255
No function
R: 100% G: 0–100% B: 0
R: 100%–0 G: 100% B: 0
R: 0 G: 100% B: 0–100%
R: 0 G: 100%–0 B: 100%
R: 0–100% G: 0 B: 100%
R: 100% G: 0 B: 100%–0
R: 100% G: 0–100% B: 0–100%
R: 100%–0 G: 100%–0 B: 100%
RGBW: 100%
White 1
White 2
White 3
White 4
White 5
White 6
White 7
White 8
White 9
White 10
White 11
7 Strobe
000 ó010
011 ó255
No function
0–20 Hz
8 Programs
000 ó040
041 ó050
051 ó060
061 ó070
071 ó080
081 ó090
091 ó100
101 ó110
111 ó120
121 ó130
131 ó140
141 ó150
151 ó160
161 ó170
171 ó180
181 ó190
191 ó200
201 ó210
211 ó220
221 ó230
231 ó255
No function
Auto 1
Auto 2
Auto 3
Auto 4
Auto 5
Auto 6
Auto 7
Auto 8
Auto 9
Auto 10
Custom 1
Custom 2
Custom 3
Custom 4
Custom 5
Custom 6
Custom 7
Custom 8
Custom 9
Custom 10
All manuals and user guides at all-guides.com
all-guides.com

EN COLORado™ 1-Quad IP QRG
7

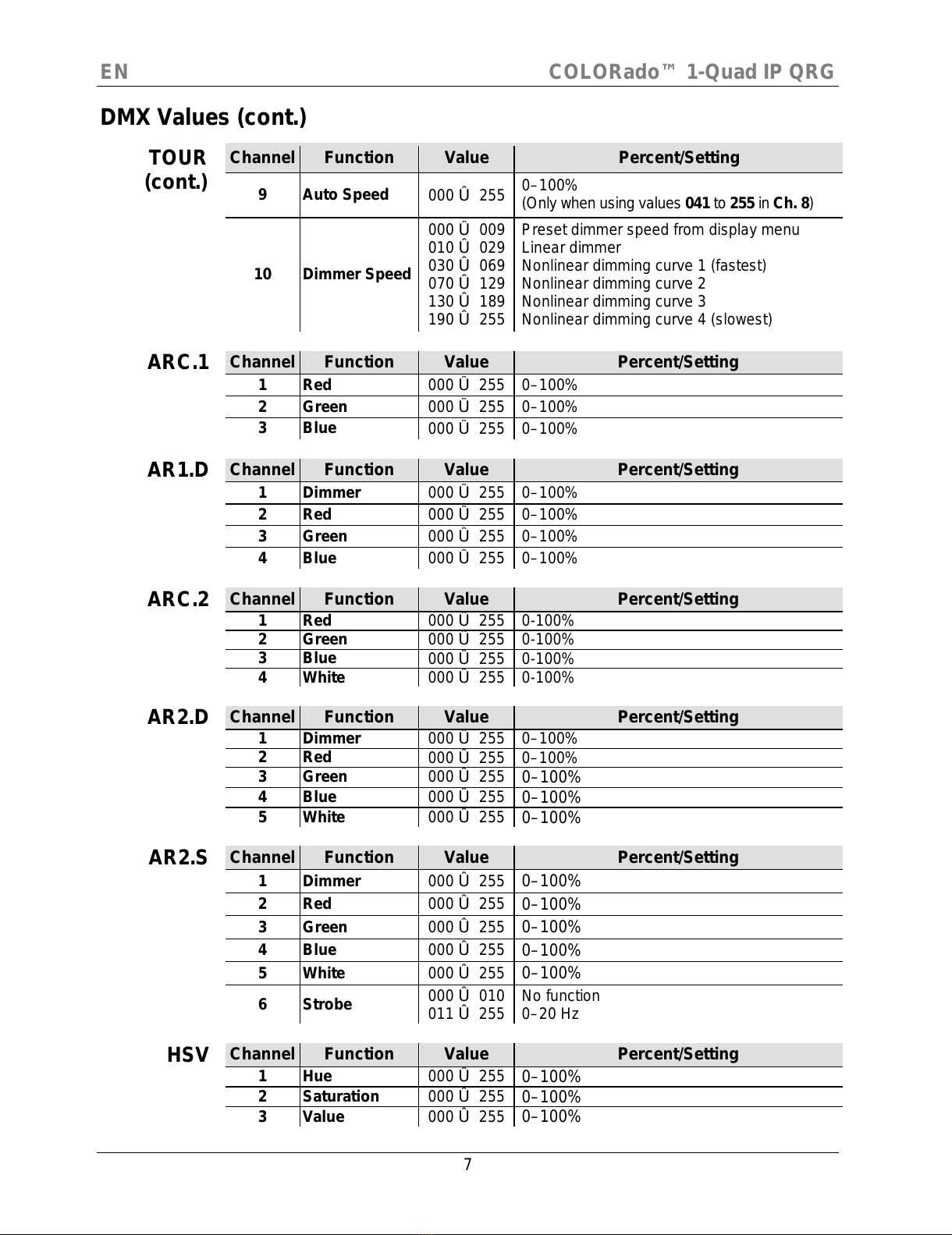

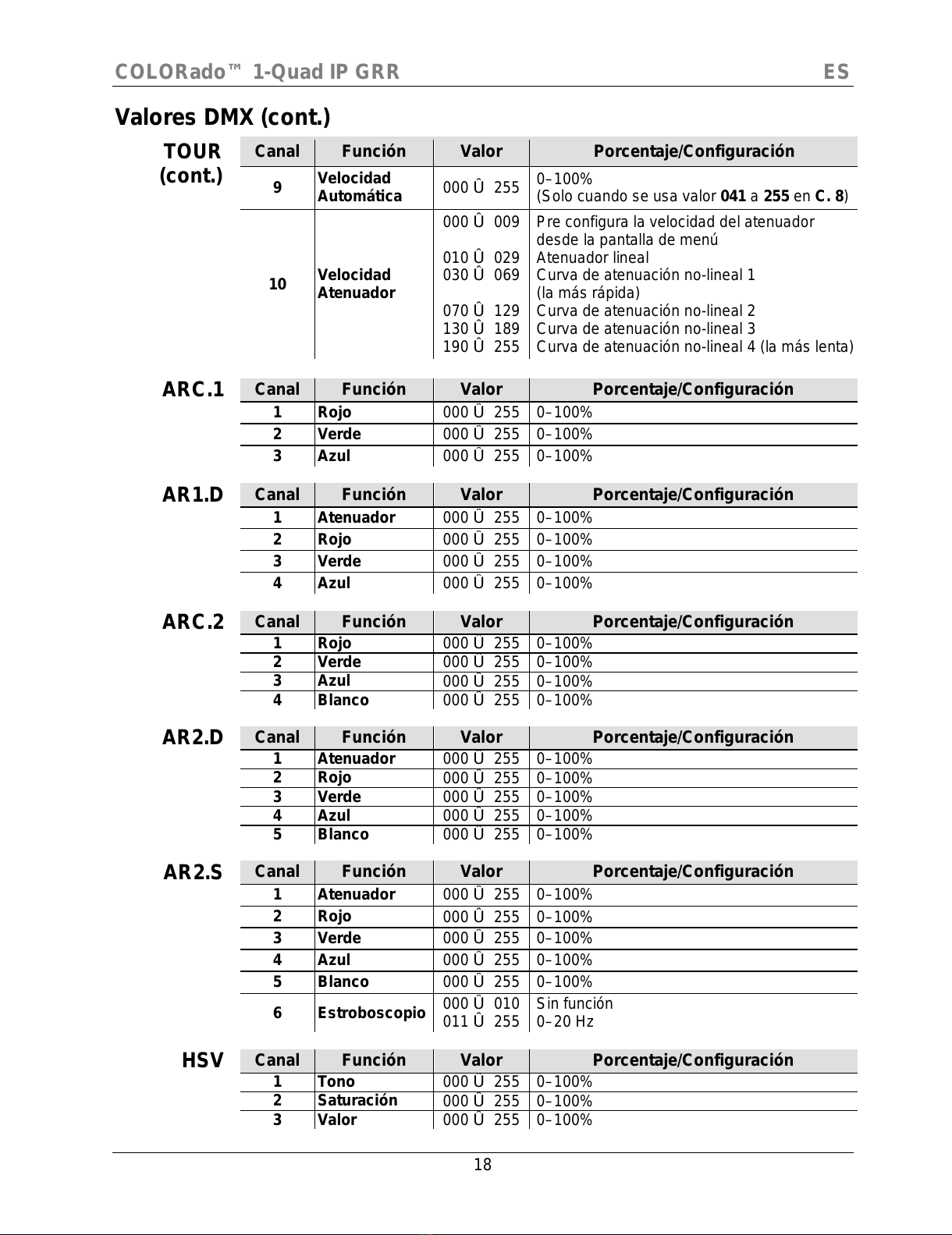

DMX Values (cont.)
TOUR
(cont.)
Channel
Function
Value
Percent/Setting
9 Auto Speed 000 ó255
0–100%
(Only when using values 041 to 255 in Ch. 8)
10 Dimmer Speed
000 ó009
010 ó029
030 ó069
070 ó129
130 ó189
190
ó
255
Preset dimmer speed from display menu
Linear dimmer
Nonlinear dimming curve 1 (fastest)
Nonlinear dimming curve 2
Nonlinear dimming curve 3
Nonlinear dimming curve 4 (slowest)
ARC.1
Channel
Function
Value
Percent/Setting
1
Red
000 ó255
0–100%
2
Green
000 ó255
0–100%
3
Blue
000 ó255
0–100%
AR1.D
Channel
Function
Value
Percent/Setting
1
Dimmer
000 ó255
0–100%
2
Red
000 ó255
0–100%
3
Green
000 ó255
0–100%
4
Blue
000 ó255
0–100%
ARC.2
Channel
Function
Value
Percent/Setting
1
Red
000 ó255
0-100%
2
Green
000 ó255
0-100%
3
Blue
000 ó255
0-100%
4
White
000 ó255
0-100%
AR2.D
Channel
Function
Value
Percent/Setting
1
Dimmer
000 ó255
0–100%
2
Red
000 ó255
0–100%
3
Green
000 ó255
0–100%
4
Blue
000 ó255
0–100%
5
White
000 ó255
0–100%
AR2.S
Channel
Function
Value
Percent/Setting
1
Dimmer
000 ó255
0–100%
2
Red
000 ó255
0–100%
3
Green
000 ó255
0–100%
4
Blue
000 ó255
0–100%
5
White
000 ó255
0–100%
6 Strobe
000 ó010
011
ó
255
No function
0–20 Hz
HSV
Channel
Function
Value
Percent/Setting
1
Hue
000 ó255
0–100%
2
Saturation
000 ó255
0–100%
3
Value
000
ó
255
0–100%
All manuals and user guides at all-guides.com

COLORado™ 1-Quad IP QRG EN
8

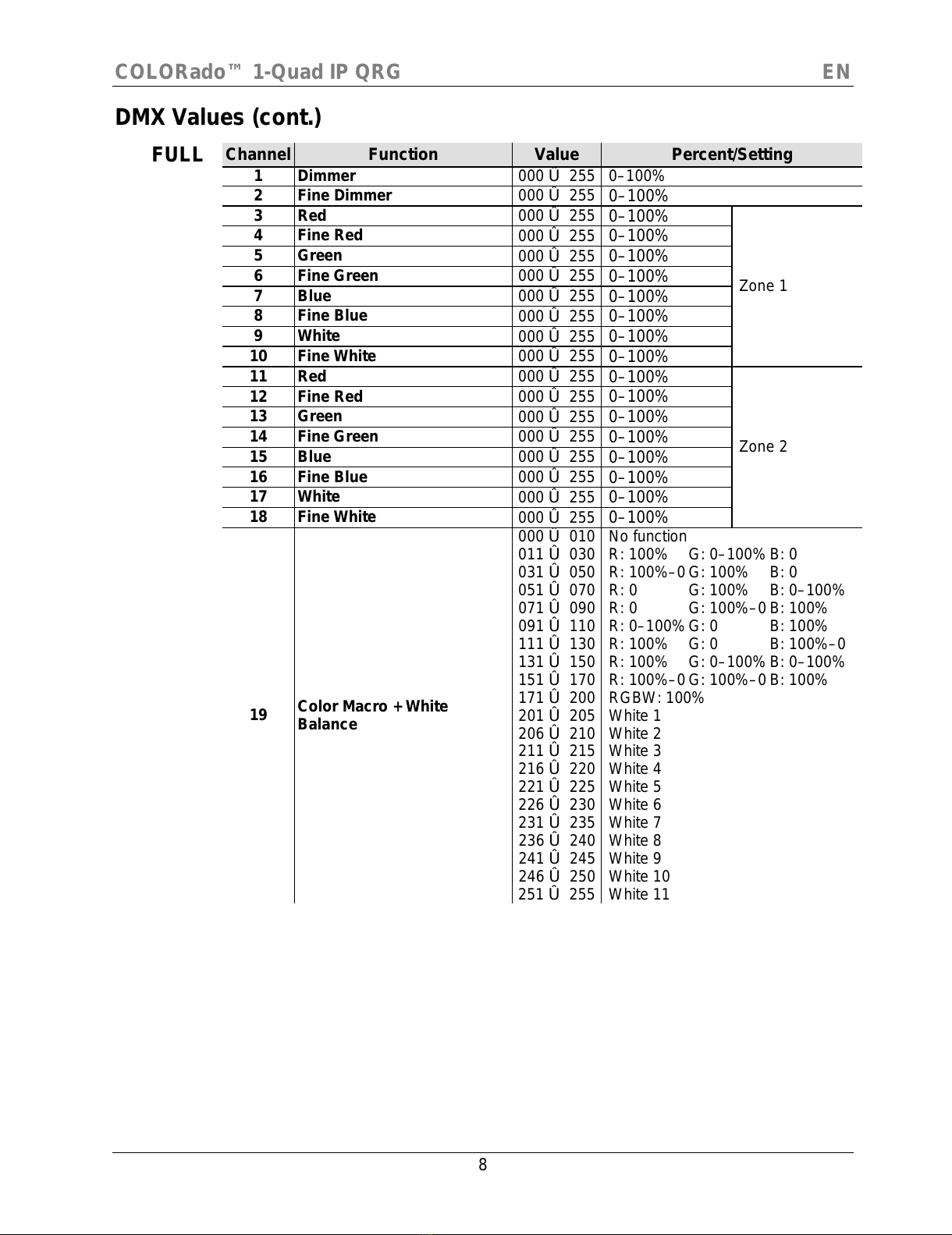

DMX Values (cont.)
FULL
Channel
Function
Value
Percent/Setting
1
Dimmer
000 ó255
0–100%
2
Fine Dimmer
000 ó255
0–100%
3
Red
000 ó255
0–100%
Zone 1
4
Fine Red
000 ó255
0–100%
5
Green
000 ó255
0–100%
6
Fine Green
000 ó255
0–100%
7
Blue
000
ó
255
0–100%
8
Fine Blue
000 ó255
0–100%
9
White
000 ó255
0–100%
10
Fine White
000 ó255
0–100%
11
Red
000 ó255
0–100%
Zone 2
12
Fine Red
000 ó255
0–100%
13
Green
000 ó255
0–100%
14
Fine Green
000
ó
255
0–100%
15
Blue
000 ó255
0–100%
16
Fine Blue
000 ó255
0–100%
17
White
000
ó
255
0–100%
18
Fine White
000 ó255
0–100%
19 Color Macro + White
Balance
000 ó010
011 ó030
031 ó050
051 ó070
071 ó090
091 ó110
111 ó130
131 ó150
151 ó170
171 ó200
201 ó205
206 ó210
211 ó215
216 ó220
221 ó225
226 ó230
231 ó235
236 ó240
241 ó245
246 ó250
251 ó255
No function
R: 100% G: 0–100%B: 0
R: 100%–0G: 100% B: 0
R: 0 G: 100% B: 0–100%
R: 0 G: 100%–0B: 100%
R: 0–100%G: 0 B: 100%
R: 100% G: 0 B: 100%–0
R: 100% G: 0–100%B: 0–100%
R: 100%–0G: 100%–0B: 100%
RGBW: 100%
White 1
White 2
White 3
White 4
White 5
White 6
White 7
White 8
White 9
White 10
White 11
All manuals and user guides at all-guides.com

EN COLORado™ 1-Quad IP QRG
9

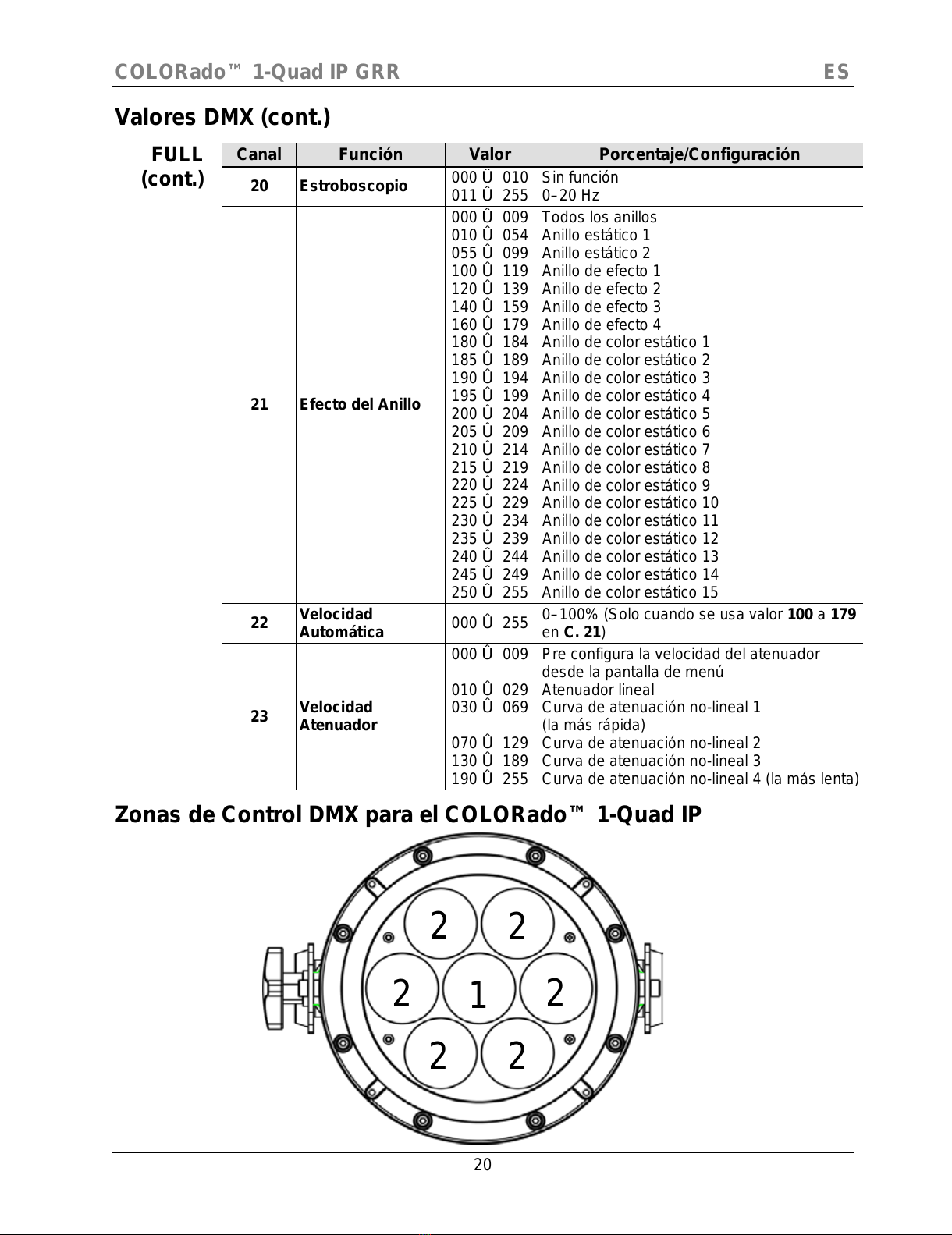

DMX Values (cont.)
FULL
(cont.)
Channel
Function
Value
Percent/Setting
20 Strobe
000 ó010
011 ó255
No function
0–20 Hz
21 Ring Effect
000 ó009
010 ó054
055 ó099
100 ó119
120 ó139
140 ó159
160 ó179
180 ó184
185 ó189
190 ó194
195 ó199
200 ó204
205 ó209
210 ó214
215 ó219
220 ó224
225 ó229
230 ó234
235 ó239
240 ó244
245 ó249
250 ó255
All rings
Static ring 1
Static ring 2
Effect ring 1
Effect ring 2
Effect ring 3
Effect ring 4
Static ring color 1
Static ring color 2
Static ring color 3
Static ring color 4
Static ring color 5
Static ring color 6
Static ring color 7
Static ring color 8
Static ring color 9
Static ring color 10
Static ring color 11
Static ring color 12
Static ring color 13
Static ring color 14
Static ring color 15
22 Auto Speed 000 ó255
0–100%
(Only when using values 100 to 179 in Ch. 21)
23 Dimmer Speed
000
ó
009
010 ó029
030 ó069
070 ó129
130 ó189
190 ó255
Preset dimmer speed from display menu
Linear dimmer
Nonlinear dimming curve 1 (fastest)
Nonlinear dimming curve 2
Nonlinear dimming curve 3
Nonlinear dimming curve 4 (slowest)
COLORado™ 1-Quad IP Zones for DMX Control
1
2
2
2
2
2
2
All manuals and user guides at all-guides.com

COLORado™ 1-Quad IP QRG EN
10

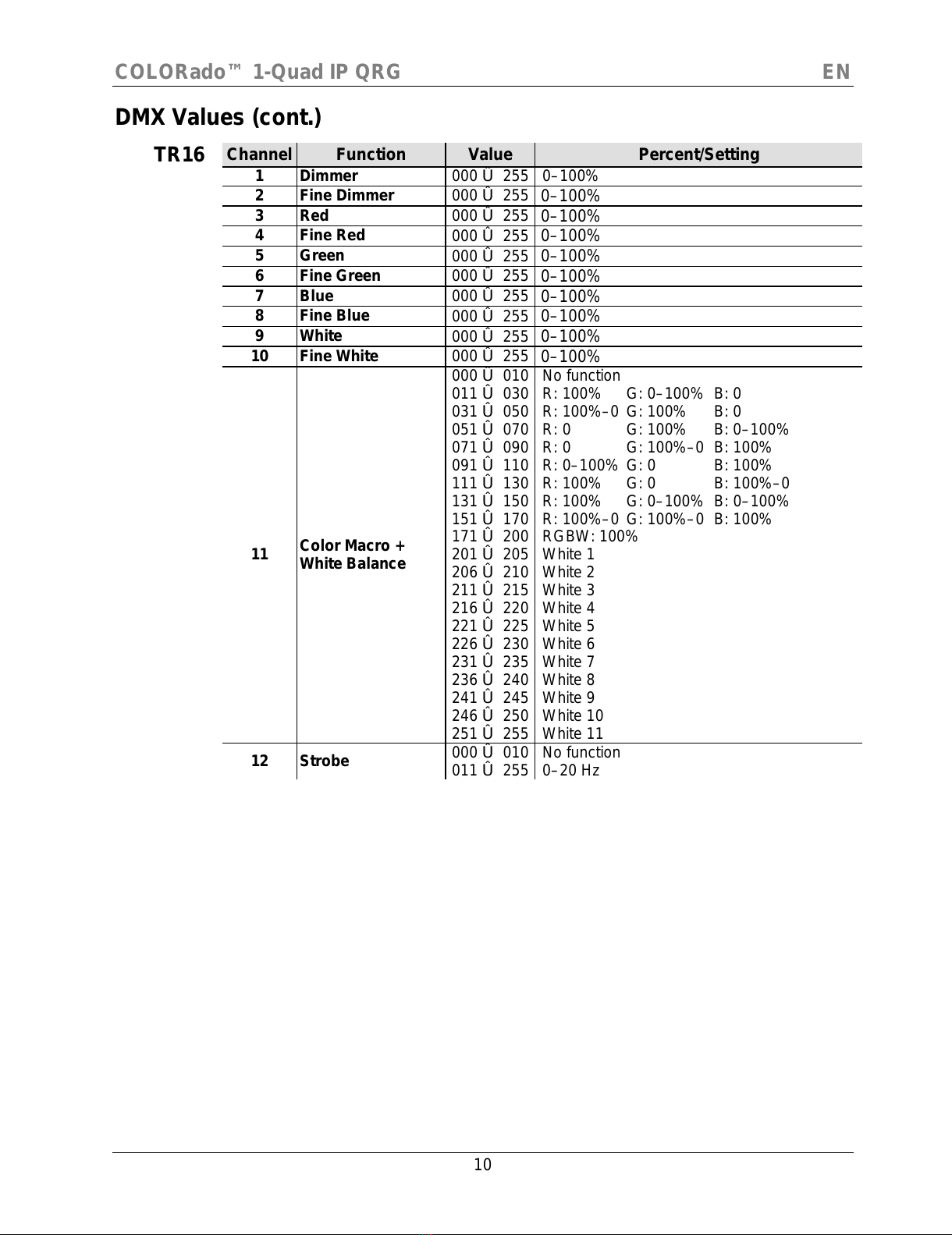

DMX Values (cont.)

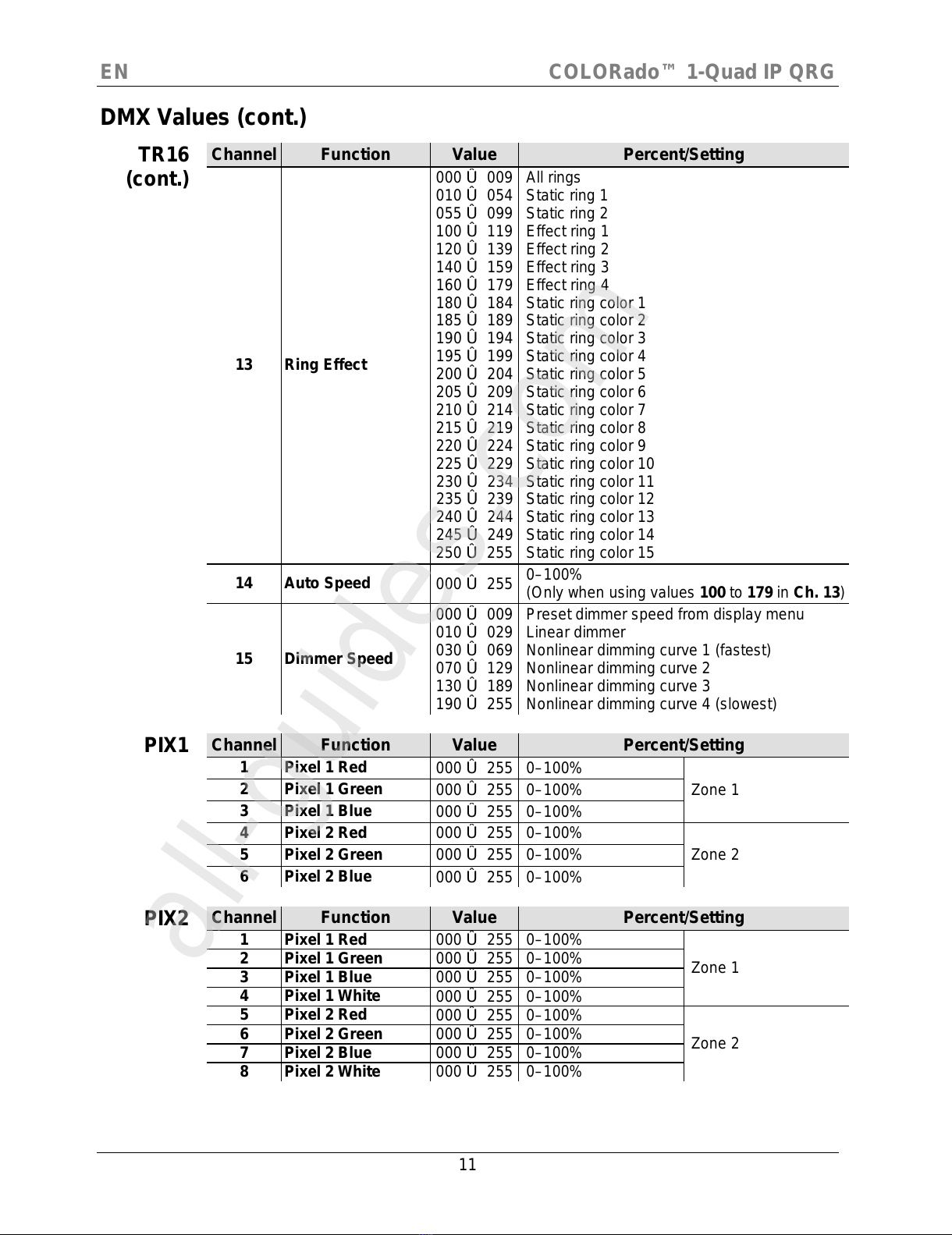

TR16
Channel
Function
Value
Percent/Setting
1
Dimmer
000 ó255
0–100%
2
Fine Dimmer
000 ó255
0–100%
3
Red
000 ó255
0–100%
4
Fine Red
000 ó255
0–100%
5
Green
000 ó255
0–100%
6
Fine Green
000 ó255
0–100%
7
Blue
000
ó
255
0–100%
8
Fine Blue
000 ó255
0–100%
9
White
000 ó255
0–100%
10
Fine White
000 ó255
0–100%
11 Color Macro +
White Balance
000 ó010
011 ó030
031 ó050
051 ó070
071 ó090
091 ó110
111 ó130
131 ó150
151 ó170
171 ó200
201 ó205
206 ó210
211 ó215
216 ó220
221 ó225
226 ó230
231 ó235
236 ó240
241 ó245
246 ó250
251 ó255
No function
R: 100% G: 0–100% B: 0
R: 100%–0 G: 100% B: 0
R: 0 G: 100% B: 0–100%
R: 0 G: 100%–0 B: 100%
R: 0–100% G: 0 B: 100%
R: 100% G: 0 B: 100%–0
R: 100% G: 0–100% B: 0–100%
R: 100%–0 G: 100%–0 B: 100%
RGBW: 100%
White 1
White 2
White 3
White 4
White 5
White 6
White 7
White 8
White 9
White 10
White 11
12 Strobe
000 ó010
011 ó255
No function
0–20 Hz
All manuals and user guides at all-guides.com
