Chauvet Professional Ovation E-2FC User manual

Model ID: OVATIONE2FC
User Manual

Ovation E-2 FC User Manual Rev. 1
Edition Notes
The Ovation E-2 FC User Manual includes a description, safety precautions, installation, programming,
operation and maintenance instructions for the Ovation E-2 FC as of the release date of this edition.
Trademarks
Chauvet, Chauvet Professional, the Chauvet logo, Rogue, Outcast, and Rogue Outcast are registered
trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United
States and other countries. Other company and product names and logos referred to herein may be
trademarks of their respective companies.
Copyright Notice
The works of authorship contained in this manual, including, but not limited to, all design, text and images
are owned by Chauvet.
© Copyright 2023 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
Manual Use
Chauvet authorizes its customers to download and print this manual for professional information purposes
only. Chauvet expressly prohibits the usage, copy, storage, distribution, modification, or printing of this
manual or its content for any other purpose without written consent from Chauvet.
Document Printing
For best results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If using A4
paper (210 x 297 mm), configure the printer to scale the content accordingly.
Intended Audience
Any person installing, operating, and/or maintaining this product should completely read through the guide
that shipped with the product, as well as this manual, before installing, operating, or maintaining this
product.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However,
Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,
damage or disruption caused by any errors or omissions in this document, whether such errors or
omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the
content of this document without any obligation to notify any person or company of such revision, however,
Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest
version from www.chauvetprofessional.com.
Document Revision
This Ovation E-2 FC User Manual is the 1st edition of this document. Go to www.chauvetprofessional.com
for the latest version.

Ovation E-2 FC User Manual Rev. 1
Table of Contents
i
TABLE OF CONTENTS
1. Before You Begin ....................................................................... 1
What Is Included ........................................................................................... 1
Claims ........................................................................................................... 1
Text Conventions .......................................................................................... 1
Symbols ........................................................................................................ 1
FCC Compliance........................................................................................... 1
Safety Notes.................................................................................................. 2
Expected LED Lifespan................................................................................. 2
2. Introduction ................................................................................ 3
Description .................................................................................................... 3
Features........................................................................................................ 3
Product Overview.......................................................................................... 3

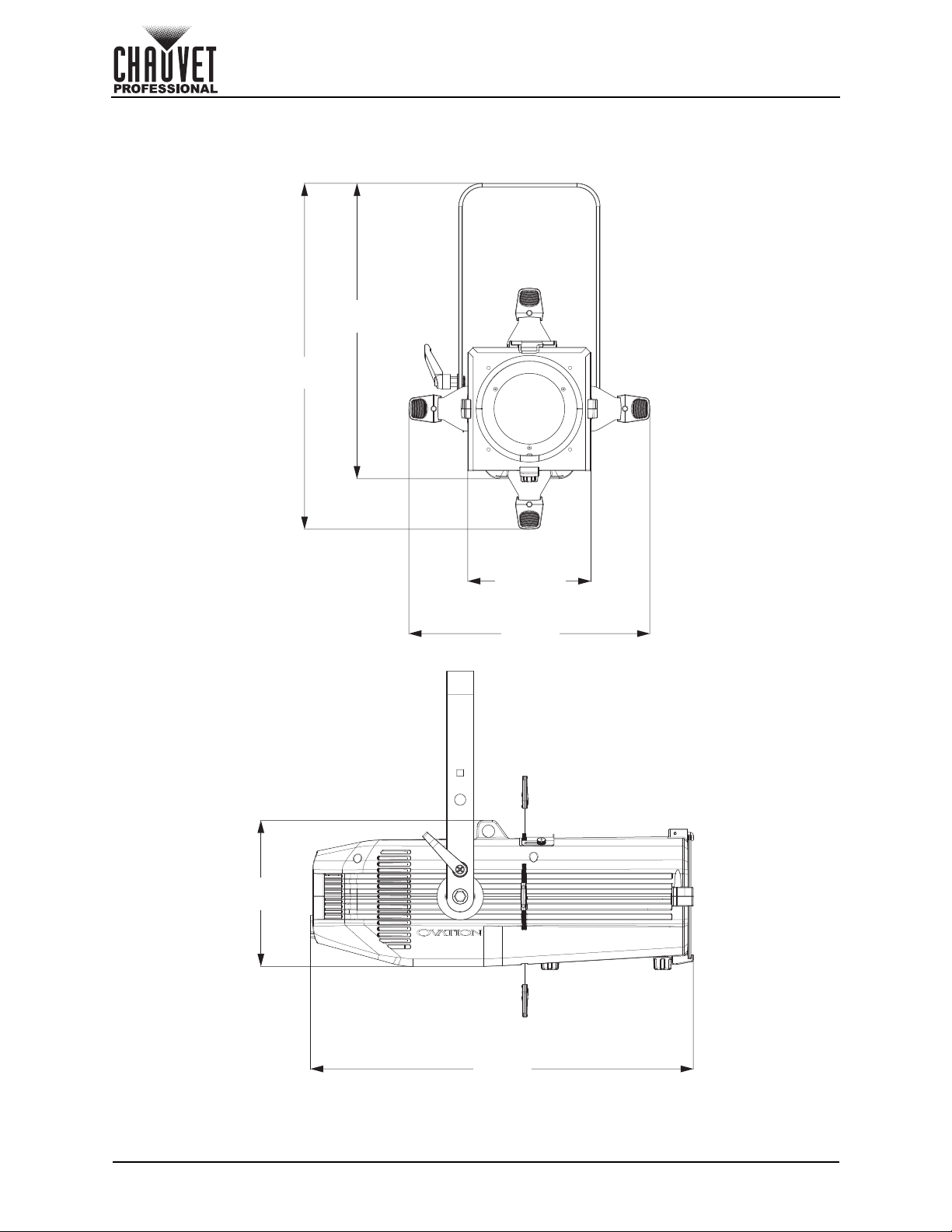

Product Dimensions ...................................................................................... 4
3. Setup ........................................................................................... 5
AC Power...................................................................................................... 5
AC Plug .............................................................................................................. 5
Fuse Replacement ............................................................................................. 5
Power Linking..................................................................................................... 5
DMX Linking.................................................................................................. 5
DMX Personalities.............................................................................................. 5
Remote Device Management (RDM) ................................................................. 5
Master/Slave Connectivity............................................................................. 6
USB Software Update ................................................................................... 6
Soft Focus Filter............................................................................................ 6
Manual Zoom Control.................................................................................... 6
Mounting ....................................................................................................... 7
Orientation.......................................................................................................... 7
Rigging ............................................................................................................... 7
Procedure........................................................................................................... 7
Adjustable Yoke ................................................................................................. 7
Accessory Slot .............................................................................................. 8
Gobo Dimensions............................................................................................... 8
4. Operation .................................................................................... 9
Control Panel Description ............................................................................. 9
Menu Map ..................................................................................................... 9
Configuration (DMX) ..................................................................................... 12
Control Personalities .......................................................................................... 12
Starting Address................................................................................................. 12
Virtual Color Wheel ....................................................................................... 13
Virtual Color Wheel Chart .................................................................................. 13
Color Temperature Chart ................................................................................... 14
DMX Channel Assignments and Values ....................................................... 15
17 Ch / 13 Ch2 / 13 Ch1 / 11 Ch / 7 Ch / 5 Ch / 4 Ch ........................................ 15
HSV.................................................................................................................... 16
1 Ch.................................................................................................................... 16

Table of Contents
Ovation E-2 FC User Manual Rev. 1
ii
Configuration (Standalone) ........................................................................... 17
Static Mode ........................................................................................................ 17
Virtual Color Wheel ......................................................................................................... 17
Color Temperature.......................................................................................................... 17
Manual Color Mixer......................................................................................................... 17
Auto Show.......................................................................................................... 17
Configuration (Settings) ................................................................................ 17
Red Shift ............................................................................................................ 17
Master/Slave ...................................................................................................... 17
Dimmer Curve .................................................................................................... 17
Dimmer Profile ................................................................................................... 18
Color Calibration ................................................................................................ 18
Pulse Width Modulation ..................................................................................... 18
Fan Mode ........................................................................................................... 18
Display Backlight Timer...................................................................................... 18
Information ......................................................................................................... 18
Factory Reset..................................................................................................... 18
5. Maintenance................................................................................ 19
Product Maintenance .................................................................................... 19
6. Technical Specifications ........................................................... 20
Contact Us ...................................................................................... 21
Warranty & Returns....................................................................................... 21

1
Ovation E-2 FC User Manual Rev. 1
Before You Begin
1. Before You Begin
What Is Included
Claims
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate a claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions
Symbols
FCC Compliance
This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
• Ovation E-2 FC
• Seetronic Powerkon power cable
• Ovation metal gobo holder (“M” size)
• Soft focus filter
• Quick Reference Guide
Convention Meaning
1–512 A range of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified
<ENTER> A key to be pressed on the product’s control panel
Symbol Meaning
Critical installation, configuration, or operation information. Not following these
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function correctly
if this information is not used.
Useful information.
The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data
transmission protocol.

2
Before You Begin
Ovation E-2 FC User Manual Rev. 1
Safety Notes
Read all the following safety notes before working with this product. These notes contain important
information about the installation, usage, and maintenance of this product.
• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer
than 18.4 ft (5.6 m) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special
cord or cord exclusively available from the manufacturer or its service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or its service
agent or a similar qualified person.
• The luminaire is intended for professional use only.
• CAUTION:
• This product’s housing may be hot when operating. Mount this product in a location with
adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• When transferring the product from extreme temperature environments, (e.g., cold truck to
warm humid ballroom) condensation may form on the internal electronics of the product. To
avoid causing a failure, allow the product to fully acclimate to the surrounding environment
before connecting it to power.
• Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding
notification of strobe use.
• ALWAYS:
• Disconnect from power before cleaning the product or replacing the fuse.
• Replace the fuse with the same type and rating.
• Use a safety cable when mounting this product overhead.
• Connect this product to a grounded and protected circuit.
•DONOT:
• Open this product. It contains no user-serviceable parts.
• Look at the light source when the product is on.
• Leave any flammable material within 50 cm of this product while operating or connected to
power.
• Connect this product to a dimmer or rheostat.
• Operate this product if the housing, lenses, or cables appear damaged.
• Operate this product outdoors or in any location where dust, excessive heat, water, or humidity
may affect it. (IP20)
• ONLY use the hanging/mounting bracket to carry this product.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher
temperatures.
• The minimum startup temperature is -4°F (-20°C). Do not start the product at lower temperatures.
• The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower
temperatures.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
• In the event of a serious operating problem, stop using immediately.
Expected LED Lifespan
Over time, use and heat will gradually reduce LED brightness. Clustered LEDs produce more heat than
single LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is
40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit
the overall intensity.
This product contains no user-serviceable parts. Any reference to servicing in this User
Manual will only apply to properly trained, certified technicians. Do not open the housing
or attempt any repairs.
All applicable local codes and regulations apply to proper installation of this product.
If a Chauvet product requires service, contact Chauvet Technical Support.

3
Ovation E-2 FC User Manual Rev. 1
Introduction
2. Introduction
Description
The Ovation E-2 FC is a compact LED ellipsoidal spotlight that delivers high quality of light and convenient
features in a quiet durable design optimized for smaller venues. Its advanced full spectrum Ovation RGBA-
Lime color mixing system produces exceptionally high CRI output that can be smoothly sized with an
integrated manual Zoom and focusing made easier with a dedicated Focus Mode button.
Features
• Full-spectrum LED ERS-style lighting fixture for small theaters and studios
• Integrated 25-50deg Zoom lens.
• Color temperature presets from 2800 K to 8000 K with high CRI and CQS
• +/- Green adjustment and emulated red-shift via DMX or on-board control
• Dedicated focus mode button for one-touch activation for focusing without a board-op.
• USB port for fixture software updates
Product Overview
Menu
buttons
LCD
display
DMX
in/out
Safety
loop
Power
in
Fuse
holder
USB C
port
Manual zoom and focus knobsFraming shutters (x4)
Power
out

4
Introduction
Ovation E-2 FC User Manual Rev. 1
Product Dimensions
12.2 in
310 mm
14.96 in
380 mm
17.5 in
445 mm
18.1 in
461 mm
6.24 in
158.5 mm
7.4 in
188 mm

5
Ovation E-2 FC User Manual Rev. 1
Setup
3. Setup
AC Power
The Ovation E-2 FC has an auto-ranging power supply and it can work with an input voltage range of 100
to 240 VAC, 50/60 Hz.
To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current
value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
The listed current rating indicates the product’s average current draw under normal conditions.
AC Plug
The Ovation E-2 FC comes with a power input cable terminated with a Seetronic Powerkon A connector on
one end and an Edison plug on the other end (U.S. market). If the power cable which came with the
product has no plug, or if the plug needs to be changed, use the table below to wire a plug.
Fuse Replacement
1. Disconnect this product from the power outlet.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with another fuse of the same type and rating (T 3.15 A, 250 V).
4. Screw the fuse holder cap back in place and reconnect power.
Power Linking
The product supports power linking. It is possible to link up to 6 Ovation E-2 FC products at 100 V, 7
products at 120 V, 10 products at 208 V, or 12 products at 230/240 V. This product comes with a power
input cord. Power-linking cables are available for purchase from Chauvet.
DMX Linking
The Ovation E-2 FC can be linked to a DMX controller using a 5-pin DMX connection. If using other DMX-
compatible products with this product, it’s possible to control each individually with a single DMX controller.
DMX Personalities
The Ovation E-2 FC uses a 5-pin DMX data connection for the 1 Ch, 4 Ch, 5 Ch, 7 Ch, 11 Ch, 13 Ch1, 13
Ch2, 17 Ch, and HSV DMX personalities.
• Refer to the Introduction for a brief description of each DMX personality.
• Refer to the Operation chapter to learn how to configure the Ovation E-2 FC to work in these
personalities.
•TheDMX Channel Assignments and Values section provides detailed information regarding the
DMX personalities.
Remote Device Management (RDM)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate
bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the
manufacturer as not all DMX controllers have this capability. The Ovation E-2 FC supports RDM protocol
that allows feedback to make changes to menu map options.
• Always connect the product to a protected circuit (a circuit breaker or fuse). Ensure the
product has an appropriate electrical ground to avoid the risk of electrocution or fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the
rheostat or dimmer channel serves only as a 0 to 100% switch.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow or Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
For information about DMX standards, Master/Slave connectivity, or the DMX cables
needed to link this product to a DMX controller, download the DMX Primer from the
Chauvet website: www.chauvetprofessional.com.

6
Setup
Ovation E-2 FC User Manual Rev. 1
Master/Slave Connectivity
The Master/Slave mode allows an Ovation E-2 FC (the master) to control one or more Ovation E-2 FC
products (the slaves) without a DMX controller. Once Ovation E-2 FC becomes the master when running
an auto or custom program, or in Static mode.
Each slave’s control panel must be configured to operate in Slave mode. During Master/Slave operation,
the slaves will operate in unison with the master.
USB Software Update
The Ovation E-2 FC allows for software update through USB using the built-in USB port. To update the
software using a USB flash drive, do the following:
1. Power on the product and plug the flash drive into the USB port.
2. Once the flash drive has been detected, the message “Upgrade Firmware” will be displayed. Press
<ENTER>. If a different message appears on the display, search for the updated software in the
menu (Updated Firmware) and select from Only This Fixture, Multiple Fixture, or Other
Fixture Type.. A list of the updated software files will be displayed.
3. Select the file that needs to be uploaded. The message “Are you sure?” will be displayed. Press
<ENTER>.
4. If the selected file is correct, the update will be completed. Restart the product.
If the selected file is incorrect, the update will fail, and the display will go back to the main interface.
Repeat steps 1–3 using the correct file.
Soft Focus Filter
The Ovation E-2 FC comes with a soft focus filter. To keep the soft focus filter in good condition:
• Ensure that no fingerprints are left on the filter, as this may cause the filter to heat unevenly and
eventually warp.
• When placing the filter in the holder, follow the orientation direction printed on the filter.
• When inserting shutter blades into the light path, note that the heat is reflected back at the filter. The
deeper the blades are inserted, and the longer the fixture runs, the more heat gets reflected on to
the filter, causing it to warp and potentially adhere to the shutter blades.
Manual Zoom Control
The Ovation E-2 FC has a manual zoom and focus, which is adjusted as follows:
1. Locate the zoom and focus knobs at the bottom of the product.
2. Loosen the knobs by turning them counterclockwise.
3. Slide the lenses forward or backward until the desired zoom and focus/beam edge is achieved.
4. Tighten the knobs by turning them clockwise, which locks the lenses in position.
DO NOT connect a DMX controller to products operating in Master/Slave mode. The DMX
controller signals may interfere with the signals from the master.
•TheOperation section of this manual provides detailed instructions on how to
configure the master and slaves.
•For more information about DMX standards or the DMX cables needed to link this product
to a DMX controller, download the DMX primer from the Chauvet website:
www.chauvetprofessional.com.
The “Other Fixture Type” option can only be selected for connected products compatible
with the Upload 03 (the first 2 digits of the item code must be 03).
The product's USB port supports up to 32GB capacity and only works with FAT32 file
format.
If there is a protective film on the soft-focus filter, it must be removed before use. The filter
is in a holder in the metal gobo slot.
To avoid changing menu settings while focusing the Ovation E-2 FC, press and hold the
<FOCUS MODE> button for 3 seconds. This will put the product in Focus Mode, by
increasing the intensity to 100%. To exit out of Focus Mode, press <MENU>.

7
Ovation E-2 FC User Manual Rev. 1
Setup
Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products/.
Orientation
Always mount this product in a safe position, making sure there is adequate room for ventilation,
configuration, and maintenance.
Rigging
Chauvet recommends using the following general guidelines when mounting this product.
• Before deciding on a location for the product, make sure there is easy access to the product for
maintenance and programming purposes.
• Make sure that the structure onto which the product is being mounted can support the product’s
weight. See the Technical Specifications for weight information.
• When mounting the product overhead, always use a safety cable. Mount the product securely to a
rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
Procedure
The Ovation E-2 FC comes with an adjustable yoke to which a mounting clamp can be attached for
hanging. Make sure the clamp is capable of supporting the weight of this product. For the CHAUVET
Professional line of mounting clamps, go to http://www.trusst.com/products.
Mounting Diagram
Adjustable Yoke
The Ovation E-2 FC comes with an adjustable yoke for mounting in low-clearance areas. To modify the
height of the yoke, do the following:
1. Loosen the yoke adjustment knob.
2. On each side of the product remove the bolt attaching the plate to the yoke.
3. Adjust the position of the yoke to one of the two mounting points.
4. Put the bolts back in place, and tighten them and the yoke adjustment knobs.
Safety cable
Mounting clamp (x2)
Yoke adjustment knob
Alternate yoke
mounting point

8
Setup
Ovation E-2 FC User Manual Rev. 1
Accessory Slot
The Ovation E-2 FC has an accessory slot which holds the included “M” size metal gobo holder, the
included soft focus filter, a drop-in iris, or various other optional accessories (sold separately).
1. Loosen the thumbscrews on the slot cover. (Note: Do not remove the thumbscrews).
2. Slide the cover forward.
3. Insert an accessory. (Note: Make sure to insert the accessory correctly. i.e., the iris handle
extends upward from the slot.
4. Slide the cover back. Make sure any handles or adjustment tools that stick out the top are able to
function correctly.
5. Tighten the thumbscrews to secure the cover.
Gobo Dimensions
• When not using the accessory slot, replace and secure the slot cover to prevent light
leakage during operation.
• When obtaining any optional accessories, be sure the items are compatible with the
Ovation E-2 FC.
Accessory slot
thumbscrews
66 mm
48 mm

9
Ovation E-2 FC User Manual Rev. 1
Operation
4. Operation
Control Panel Description
Menu Map
Refer to the Ovation E-2 FC product page on www.chauvetprofessional.com for the latest menu map.
Button Function
<MENU> Exits from the current menu or function
<ENTER> Enables the currently displayed menu or sets the selected value into the function
<UP> Navigates upwards through the menu list or increases the value when in a function
<DOWN> Navigates downwards through the menu list or decreases the value when in a function
<FOCUS MODE> Activates focus mode
Main Level Programming Levels Description
DMX
Address 001–512* Selects DMX address (*highest channel restricted to personality chosen)
DMX
Channel
1 Ch
Virtual Color Wheel
1-channel: dimmerColor Temperature
Manual Color Mixer
4 Ch 4-channel: dimmer, virtual color wheel,
color temperature, hue
5 Ch 5-channel: RGBAL
7 Ch 7-channel: dimmer, RGBAL, strobe
11 Ch
11-channel: 16-bit dimmer, RGBAL,
strobe, virtual color wheel, color
temperature, hue
13 Ch1
13-channel: dimmer, RGBAL, strobe,
virtual color wheel, color temperature, hue,
auto program, auto speed, control
13 Ch2
13-channel: 16-bit dimmer, 16-bit
RGBAL, strobe
17 Ch
17-channel: 16-bit dimmer, 16-bit
RGBAL, strobe, virtual color wheel, color
temperature, hue, control
HSV 3-channel: hue, saturation, value
Virtual
Color
Wheel
Virtual
Color
Wheel
C3050 - Md Yellow
Dimmer
0–255
Virtual Color Wheel simulates the output
of each gel color. Refer to the Virtual
Color Wheel Chart for specific values.
C3040 - Lt Yellow
C3240 - Amb Yellow
C2340 - VLt Amber
C2040 - Lt Amber
C2050 - Md Amber
C2060 - Dk Amber
C1050 - Lt Red
C1080 - Md Red
C1020 - NC Pink
C1030 - Md Pink
C1630 - Dk Pink
C1250 - Md Red Amber
C1060 - Dk Red Amber
C1650 - Magenta
C6170 - Dk Magenta
C6020 - Lt Lavender
C5030 - Lt Blue

10
Operation
Ovation E-2 FC User Manual Rev. 1
Virtual
Color
Wheel
(cont.)
Virtual
Color
Wheel
(cont.)
C5020 - VLt Blue
Dimmer
0–255
Virtual Color Wheel simulates the output
of each gel color. Refer to the Virtual
Color Wheel Chart for specific values.
C5430 - Lt Blue 2
C5070 - Blue
C5050 - Md Blue
C5060 - Dk Blue
C5690 - Indigo
C5080 - VDk Blue
C5081 - VDk Blue 2
C4370 - Yel Green
C4070 - Green
C4550 - Turquoise
C4560 - Aqua
C4570 - Blue Green
Color
Temperature
2800K
Dimmer
0–255
Hue
-25–25
Preset white color temperatures.
Emulates a tungsten lamp at the
specified color temperature. Refer to the
Color Temperature Chart for specific
values.
2900K
3000K
3100K
3200K
3300K
3400K
3500K
3600K
3700K
3800K
3900K
4000K
4100K
4200K
4300K
4400K
4500K
4600K
4700K
4800K
4900K
5000K
5100K
5200K
5300K
5400K
5500K
5600K
5700K
6000K
6500K
7000K
7500K
8000K
Main Level Programming Levels Description

11
Ovation E-2 FC User Manual Rev. 1
Operation
Virtual
Color
Wheel
(cont.)
Manual
Color
Mixer
Red
0–255 Combines red, green, blue, amber, and
lime to make a custom color (0–100%)
Green
Blue
Amber
Lime
Auto Show Auto 1–5 Speed 1–100 Selects automatic programs and auto
program speed
Red Shift On Mimics halogen lamp dimming
Off
Master/
Slave
Master
Receives DMX signal from the DMX
controller (master)
Slave Receives DMX signal from the master unit
Dimmer
Curve
SCurve
Sets the dimmer curve
Linear
Square
Inverse Square
Dimmer
Mode
Off Linear dimmer
Dimmer 1–3 Dimming curves, from fast (Dimmer 1)
to slow (Dimmer 3)
Color
Calibration
Off Uses factory default white setting
User
Calibration
Red
125–255
Sets red LED maximum value
Green Sets green LED maximum value
Blue Sets blue LED maximum value
Amber Sets amber LED maximum value
Lime Sets lime LED maximum value
LED
Frequency
600Hz
Sets the PWM frequency
1200Hz
2000Hz
4000Hz
6000Hz
25KHz
Fan Mode
Auto Sets the fan to auto mode
On Sets the fan to always on
Off Sets the fan to always off
Silent Sets the fan to silent
Back Light
10S
Turns off display backlight after 10
seconds
30S
Turns off display backlight after 30
seconds
2Min Turns off display backlight after 2 minutes
Always On Display backlight remains on
Information
Fixture Hours _ _ _ _H
Shows total hours the product has been
powered on
LED Hours _ _ _ _H
Shows total hours the LEDs have been
powered on
Version V_._ Shows current firmware version
UID _ _ _ _ _ _ _ _ _ _ _ _ Shows product UID
Main Level Programming Levels Description

12
Operation
Ovation E-2 FC User Manual Rev. 1
Configuration (DMX)
Use control configurations to operate the product with a DMX controller.
Control Personalities
To set the control personality:
1. Go to the DMX Channel main level.
2. Select the desired personality, from 1 Ch, 4 Ch, 5 Ch, 7 Ch, 11 Ch, 13 Ch1, 13 Ch2, 17 Ch, or
HSV.
Starting Address
Each product will respond to a unique starting address from the controller. All products with the same
starting address will respond in unison. To set the starting address:
1. Go to the DMX Address main level.
2. Select the starting address (001–512).
The highest recommended starting address for each DMX mode is as follows:
Upgrade
Firmware
Only This Fixture _ _ _ _ _ _.CHL Selects an update file for this product, or
shows “No such file!”
...
Multiple Fixture
_ _ _ _ _ _.CHL
Selects an update file for this and
connected Ovation Rêve E-3 products, or
shows “
No such file! ”
...
Other Fixture Type
_ _ _ _ _ _.CHL Selects an update file for other
connected products, or shows “No such
file!”
...
Factory
Reset
No Resets settings to factory default
Yes
When operating in Fan Mode: Off and Fan Mode: Silent, the fixture will become hotter to
the touch than when using other fan modes. Use proper protective equipment to prevent
burns. Keep a safe distance from flammable objects.
When operating in Fan Mode: Off and Fan Mode: Silent, output of the fixture will be
reduced and will not reach the same levels as when using other fan modes.
•SeetheStarting Address section for the highest selectable starting address for each
personality.
• Make sure that the starting addresses on the various products do not overlap due to the new
personality setting.
Personality Address
1 Ch 512
4 Ch 509
5 Ch 508
7 Ch 506
11 Ch 502
13 Ch1 500
13 Ch2 500
17 Ch 496
HSV 510
Main Level Programming Levels Description

13
Ovation E-2 FC User Manual Rev. 1
Operation
Virtual Color Wheel
The Ovation E-2 FC includes a feature called the Virtual Color Wheel (VCW). This feature is available as a
standalone control mode for manual use and as a control channel in select DMX personalities. More than
30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier
programming.
The DMX values used to mix these colors are provided below. The overall intensity of the Ovation fixture
can be adjusted to more closely replicate familiar industry-standard colors. A chart is available at
www.chauvetprofessional.com to compare Chauvet’s premixed colors with popular gel colors. This chart is
for comparison purposes only and is not an assertion that Chauvet’s premixed colors match any of the gel
colors listed.
Virtual Color Wheel Chart
DMX Value Display Readout Red Green Blue Amber Lime
000 005 -- -- -- -- -- --
006 013 C3050 - Md Yellow 255 225 000 255 037
014 021 C3040 - Lt Yellow 255 177 003 255 037
022 028 C3240 - Amb Yellow 255 220 000 255 000
029 035 C2340 - VLt Amber 195 000 015 255 057
036 043 C2040 - Lt Amber 255 000 011 255 061
044 051 C2050 - Md Amber 255 053 000 255 017
052 059 C2060 - Dk Amber 255 008 000 255 017
060 067 C1050 - Lt Red 255 000 003 014 000
068 075 C1080 - Md Red 255 000 002 000 000
076 083 C1020 - NC Pink 255 075 062 255 073
084 091 C1030 - Md Pink 255 075 057 255 041
092 099 C1630 - Dk Pink 218 077 057 255 061
100 107 C1250 - Md Red Amber 255 000 009 168 000
108 115 C1060 - Dk Red Amber 255 005 009 036 000
116 121 C1650 - Magenta 255 003 062 255 012
122 130 C6170 - Dk Magenta 255 000 055 000 000
131 138 C6020 - Lt Lavender 255 220 093 255 044
139 146 C5030 - Lt Blue 000 255 159 112 078
147 154 C5020 - VLt Blue 000 215 145 196 065
155 162 C5430 - Lt Blue2 000 215 132 52 092
163 170 C5070 - Blue 000 195 188 000 019
171 178 C5050 - Md Blue 000 163 190 000 068
179 186 C5060 - Dk Blue 000 128 193 000 038
187 194 C5690 - Indigo 053 009 255 000 000
195 202 C5080 - VDk Blue 007 084 116 000 000
203 210 C5081 - VDk Blue2 011 082 139 000 000
211 218 C4370 - Yel Green 000 255 002 025 000
219 226 C4070 - Green 000 255 009 000 175
227 234 C4550 - Turquoise 000 255 087 096 255
235 242 C4560 - Aqua 000 255 098 044 255
243 250 C4570 - Blue Green 000 255 026 008 000
251 255 -- -- -- -- -- --
The colors above are simulated renditions of the color output produced compared with
other similar incandescent products. Chauvet makes no guarantee of the color output
accuracy.

14
Operation
Ovation E-2 FC User Manual Rev. 1
Color Temperature Chart
DMX Value Color Temperature Red Green Blue Amber Lime
000 005 No function
006 2800K 253 000 025 255 145
007 012 2801–2899K
013 2900K 253 003 028 255 153
014 019 2901–2999K
020 3000K 251 005 033 255 161
021 026 3001–3099K
027 3100K 248 007 036 255 169
028 033 3101–3199K
034 3200K 245 009 045 255 173
035 040 3201–3299K
041 3300K 242 013 047 255 182
042 047 3301–3399K
048 3400K 237 022 053 255 185
049 054 3401–3499K
055 3500K 230 030 058 255 185
056 061 3501–3599K
062 3600K 225 040 064 255 185
063 068 3601–3699K
069 3700K 221 048 070 255 185
070 075 3701–3799K
076 3800K 220 048 074 255 197
077 082 3801–3899K
083 3900K 220 050 079 255 203
084 089 3901–3999K
090 4000K 210 058 084 255 203
091 096 4001–4099K
097 4100K 205 063 088 255 203
098 103 4101–4199K
104 4200K 199 068 095 255 204
105 110 4201–4299K
111 4300K 189 069 098 255 204
112 117 4301–4399K
118 4400K 183 071 103 255 204
119 124 4401–4499K
125 4500K 174 078 107 255 204
126 131 4501–4599K
132 4600K 170 080 112 255 204
133 138 4601–4699K
139 4700K 166 089 119 255 204
140 145 4701–4799K
146 4800K 164 098 123 255 203
147 152 4801–4899K
153 4900K 163 100 129 255 205
154 159 4901–4999K
160 5000K 163 103 137 255 206

15
Ovation E-2 FC User Manual Rev. 1
Operation
DMX Channel Assignments and Values
17 Ch / 13 Ch2 / 13 Ch1 / 11 Ch / 7 Ch / 5 Ch / 4 Ch
161 166 5001–5099K
167 5100K 163 108 142 255 208
168 173 5101–5199K
174 5200K 163 116 147 255 208
175 180 5201–5299K
181 5300K 163 118 156 255 210
182 187 5301–5399K
188 5400K 162 122 162 255 216
189 194 5401–5499K
195 5500K 162 124 166 255 224
196 201 5501–5599K
202 5600K 162 127 172 255 229
203 208 5601–5699K
209 5700K 159 127 177 255 231
210 215 5701–5999
216 6000K 158 134 192 241 231
217 222 6001–6499K
223 6500K 152 152 206 225 231
224 229 6501–6999K
230 7000K 144 157 224 218 231
231 236 7001–7499K
237 7500K 127 172 238 218 231
238 243 7501–7999K
244 255 8000K 122 175 255 200 231
The color temperatures above are simulated renditions of the color output produced
compared with a tungsten lamp at the specified color temperature. Chauvet makes no
guarantee of the color output accuracy.
457 11 13-1 13-2 17 Function Value Percent/Setting
1–111 11Dimmer 000 255 0–100%
–––2– 22Dimmerfine 000 255 0–100%
–1232 33Red 000 255 0–100%
––––– 44Redfine 000 255 0–100%
–2343 55Green 000 255 0–100%
––––– 66Greenfine 000 255 0–100%
–3454 77Blue 000 255 0–100%
––––– 88Bluefine 000 255 0–100%
–4565 99Amber 000 255 0–100%
–––––1010Amberfine 000 255 0–100%
–56761111Lime 000 255 0–100%
–––––1212Limefine 000 255 0–100%
––7871313Strobe 000 010 No function
011 255 Strobe, slow to fast
2––98 –14Virtualcolorwheel000 255 See Virtual Color Wheel Chart
DMX Value Color Temperature Red Green Blue Amber Lime

16
Operation
Ovation E-2 FC User Manual Rev. 1
HSV
1 Ch
3 – – 10 9 – 15 Color temperature 000 255 See Color Temperature Chart
4––1110–16Hue 000 0
001 255 -25–25
––––11––Autoprograms
000 010 No function
011 060 Auto program 1
061 110 Auto program 2
111 160 Auto program 3
161 210 Auto program 4
211 255 Auto program 5
––––12––Autospeed 000 255 Auto speed, slow to fast
––––13–17
Control
(hold for 3 seconds)
000 007 No function
008 015 Dimmer reset
016 023 Red shift on
024 031 Red shift off
032 039 S-curve dimmer
040 047 Linear dimmer
048 055 Square dimmer curve
056 063 Inverse square dimmer curve
064 071 Dimmer speed mode: OFF
072 079 Dimmer speed 1 (fastest)
080 087 Dimmer speed 2
088 095 Dimmer speed 3 (slowest)
096 103 Fan auto
104 111 Fan on
112 119 Fan off
120 127 Fan silent
128 255 Reserved for future use
Channel Function Value Percent/Setting
1 Dimmer 000 255 0–100%
2 Saturation 000 255 0–100%
3Value 000 255 0–100%
Channel Function Value Percent/Setting
1 Dimmer 000 255 0–100% (color set through display menu)
457 11 13-1 13-2 17 Function Value Percent/Setting
