Chauvet Gobo Shot 50W IRC User manual

User Manual

Page 2 of 18 Gobo Shot™ 50W IRC User Manual
TABLE OF CONTENTS
1. Before You Begin...........................................................................................................3
What Is Included .........................................................................................................................3
Unpacking Instructions................................................................................................................3
Claims.................................................................................................................................................3
Text Conventions ........................................................................................................................3
Symbols......................................................................................................................................3
Disclaimer...................................................................................................................................3
Product at a Glance.....................................................................................................................4
Safety Notes ...............................................................................................................................4
2. Introduction....................................................................................................................5
Overview.....................................................................................................................................5
Dimensions.................................................................................................................................6
3. Setup...............................................................................................................................7
AC Power....................................................................................................................................7
Fuse Replacement...............................................................................................................................7
Power Linking......................................................................................................................................8
Mounting.....................................................................................................................................9
Orientation...........................................................................................................................................9
Rigging................................................................................................................................................9
4. Operation......................................................................................................................10
Control Panel Operation............................................................................................................10
Menu Map.................................................................................................................................10
Configuration (DMX)..................................................................................................................10
Starting Address ................................................................................................................................10
DMX Channel Modes, Assignments, and Values.......................................................................11
4-Channel..........................................................................................................................................11
Configuration (Standalone)........................................................................................................12
Manual Mode.....................................................................................................................................12
Display..............................................................................................................................................12
Reset Software ..................................................................................................................................12
Load Factory Defaults........................................................................................................................12

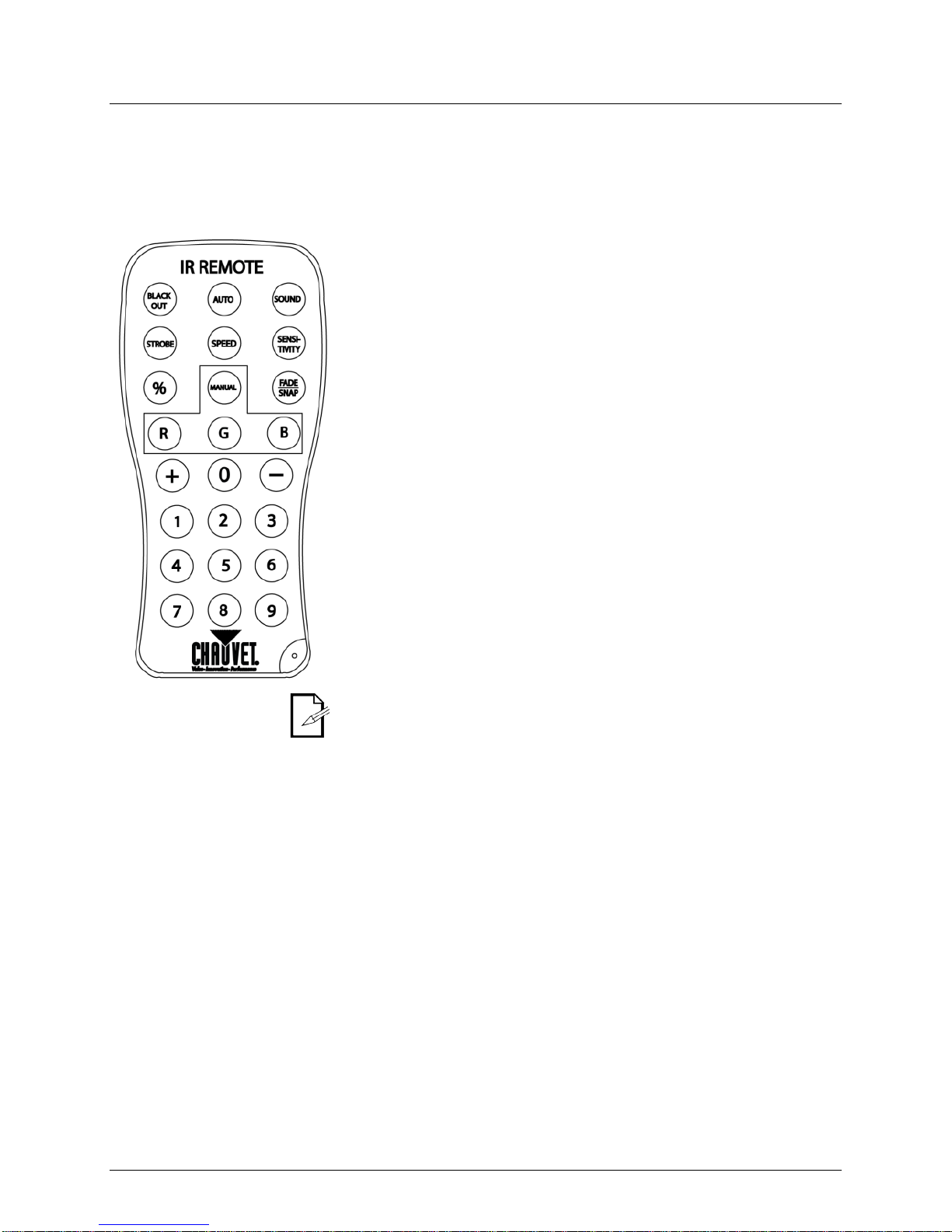

Infrared Remote Control.....................................................................................................................13
IRC Operation....................................................................................................................................13
Wired Remote....................................................................................................................................14
Included Gobos.........................................................................................................................15
Changing Gobos.......................................................................................................................15
5. Technical Information ..................................................................................................16
Product Maintenance ................................................................................................................16
6. Technical Specifications..............................................................................................17
Returns.....................................................................................................................................18
Contact Us................................................................................................................................18

Gobo Shot™ 50W IRC User Manual Page 3 of 18
1.BEFORE YOU BEGIN
What Is
Included
•Gobo Shot™ 50W IRC
•10 Gobos
•Hanging bracket with mounting
hardware
•Power cord
•Wired remote with RJ45 cable
•Warranty card
•Quick Reference Guide
Unpacking
Instructions
Carefully unpack the product immediately
and check the container to make sure all the
parts are in the package and are in good condition.
Claims
If the box or the contents (the product and
included accessories) appear damaged from
shipping, or show signs of mishandling, notify the carrier immediately, not CHAUVET®.
Failure to report damage to the carrier immediately may invalidate your claim. In
addition, keep the box and contents for inspection.
For other issues, such as missing co
mponents or parts, damage not related to shipping,
or concealed damage, file a claim with CHAUVET® within 7 days of delivery.
Text
Conventions
Convention
Meaning
1—512
A range of values
50/60
A set of values of which only one can be chosen
Settings
A menu option not to be modified
Menu > Settings
A sequence of menu options to be followed
<ENTER>
A key to be pressed on the product’s control panel
ON
A value to be entered or selected
Symbols
Symbol Meaning
Critical installation, configuration, or operation information. Not
following these instructions may make the product not work, cause
damage to the product, or cause harm to the operator.
Important installation or configuration information. The product
may not function correctly if this information is not used.
Useful information.
Disclaimer
The information and specifications contained in this User Manual
are subject to change
without notice. CHAUVET® assumes no responsibility or liabil
ity for any errors or
omissions,
and reserves the right to revise or recreate this manual at any time.
Download the latest version from www.chauvetlighting.com.
© Copyright 2013 CHAUVET®. All rights reserved.
Electronically published by CHAUVET® in the United States of America.
Author Date Editor Date
A. Leon 07/19/13 T. Yeago 07/22/13

Page 4 of 18 Gobo Shot™ 50W IRC User Manual
Product at a
Glance
Use on Dimmer
x
Auto Programs
P
Outdoor Use
x
Auto-ranging Power Supply
P
Sound-Activated
P
Replaceable Fuse
P
DMX
P
User-Serviceable
x
Master/Slave
P
Safety Notes
These notes include important information about the mounting, usage, and maintenance
of this product; read before using the product.
•Always connect the product to a grounded circuit to avoid the risk of electrocution.
•Always disconnect the product from the power source before cleaning or replacing
the fuse.
•Avoid direct eye exposure to the light source while the product is on.
•Make sure the power cord is not crimped or damaged.
•Never disconnect the product from power by pulling or tugging on the cord.
•If mounting the product overhead, always secure to a fastening device using a
safety cable.
•Make sure there are no flammable materials close to the product when operating.
•
Do not touch the product’s housing when operating because it may be very hot.
•Always make sure that the voltage of the outlet to which you are connecting the
product is within the range stated on the decal or rear panel of the product.
•The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not
expose the product to rain or moisture.
•Always install the product in a location with adequate ventilation, at least 20 in
(50 cm) from adjacent surfaces.
•Be sure that no ventilation slots on the product’s housing are blocked.
•Never connect the product to a dimmer.
•Make sure to replace the fuse with another of the same type and rating.
•Never carry the product from the power cord or any moving part. Always use the
hanging/mounting bracket.
•The maximum ambient temperature (Ta) is 104 °F (40 °C). Do not operate the
product at higher temperatures.
•In the event of a serious operating problem, stop using the product immediately.
•Never try to repair the product. Repairs carried out by unskilled people can lead to
damage or malfunction. Contact the nearest authorized technical assistance center.
•This product is not intended for permanent installation.
•Keep this User Manual for future use. If you sell the product to another user, be
sure to give this document to the next owner.

Gobo Shot™ 50W IRC User Manual Page 5 of 18
2.INTRODUCTION

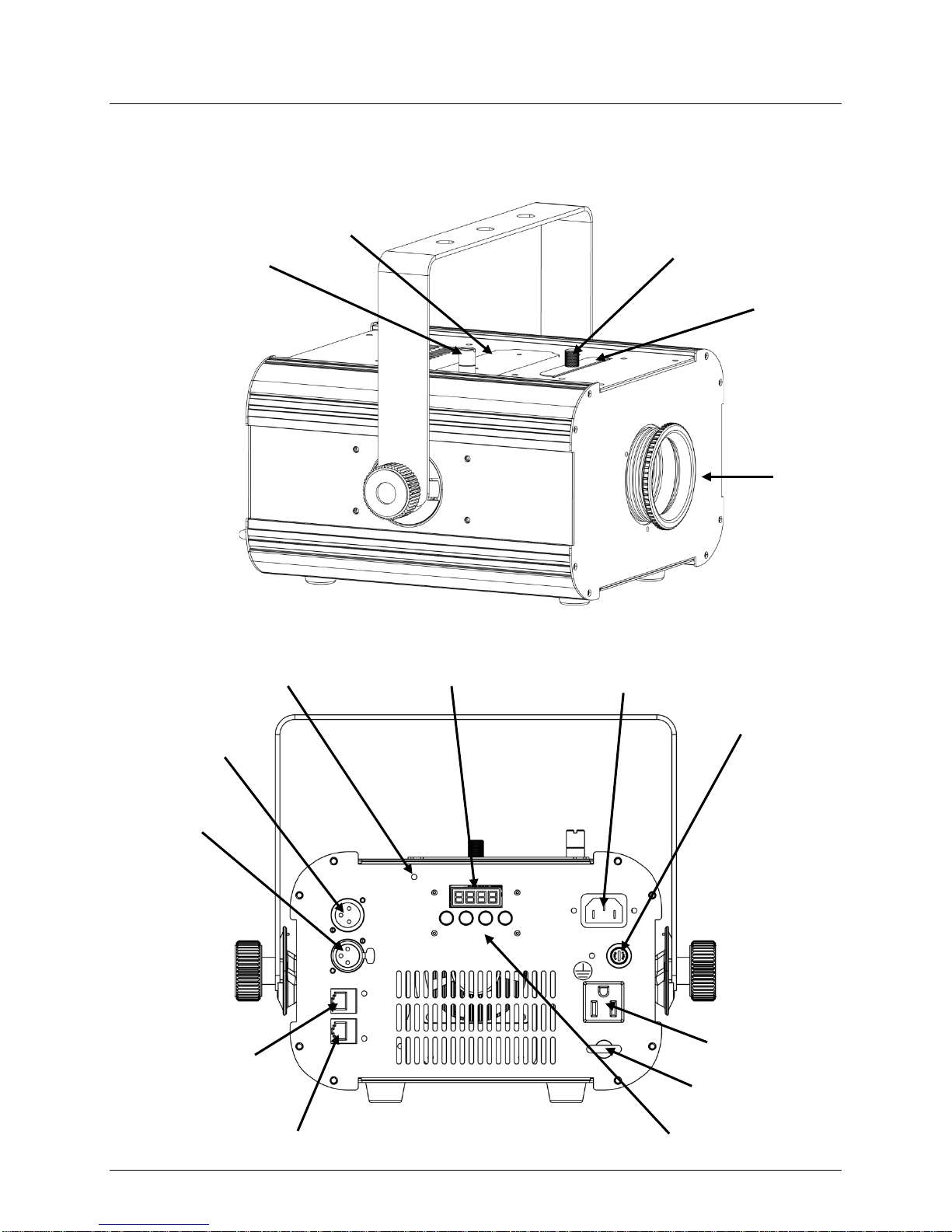

Overview
Gobo Door
Thumbscrew
Gobo Door Gel Frame Holder
Thumbscrew
Gel Frame
Holder
Focus
DMX Out
DMX In
IRC Sensor LED Display
Power In
Fuse Holder
Wired Remote In
Wired Remote Out
Control Buttons
Safety Loop
Power Out
Back Panel View

Page 6 of 18 Gobo Shot™ 50W IRC User Manual
Dimensions
12.6 in
320 mm
10.2 in
258 mm
12 in
306 mm

Gobo Shot™ 50W IRC User Manual Page 7 of 18
3.SETUP
AC Power
The Gobo Shot™ 50W IRC has an auto-
ranging power supply and it can work with an
input voltage range of 100~240 VAC, 50/60 Hz.
To determine the product’s power requirements (circuit breaker, power outlet, and
wiring), use the current value listed on the label affixed to the product’s back panel, or
refer to the product
’s specifications chart. The listed current rating indicates the
product’s average current draw under normal conditions.
Always connect the product to a protected circuit
(circuit breaker or fuse). Make
sure the product has
an appropriate electrical ground to avoid the risk of
electrocution or fire.
Never connect the product to
a rheostat (variable resistor) or dimmer circuit, even
if the rheostat or dimmer channel serves only as a 0 to 100% switch.
Fuse
Replacement
Disconnect the product from power before replacing the fuse.
1. Disconnect the product from power.
2. With a flat-head screwdriver, unscrew the fuse holder cap
from the housing.
3. Remove the blown fuse.
4. Replace with a fuse of the same type and rating.
5. Screw the fuse holder cap back in place and reconnect
power.
Always replace a blown fuse with another of the same type and rating.

Page 8 of 18 Gobo Shot™ 50W IRC User Manual
Power Linking
The product
provides power linking via the Edison/IEC outlet located in the back of the
unit.
Power Linking
Diagram
You can power link up to 9 Gobo Shot™ 50W IRC units on 120 VAC or up to 17
Gobo Shot™ 50W IRC units on 230 VAC.
The power linking diagram shown above corresponds to the North American
version of the product ONLY! If using the product
in other markets, you must
consult with the local CHAUVET® distributor as power linking connectors and
requirements may differ in your country or region.
1st Product
2nd Product
3rd Product
Additional Products

Gobo Shot™ 50W IRC User Manual Page 9 of 18
Mounting
Before mounting the product
, read and follow the safety recommendations indicated in
the Safety Notes.
Orientation
The Gobo Shot™ 50W IRC
may be mounted in any position; however, make sure
adequate ventilation is provided around the product.
Rigging
•Before deciding on a location, always make sure there is easy access to the product
for maintenance and programming.
•Make sure that the structure or surface onto which you are mounting the product
can support the product’s weight (see the Technical Specifications).
•When mounting the product overhead, always use a safety cable.
Mount the
product securely to a rigging point, such as an elevated platform or a truss.
•When rigging the product onto a truss, you should use a mounting clamp of
appropriate weight capacity. The bracket has 13-mm holes, which are
appropriate
for this purpose.
•When power linking multiple products, you must always consider the length of the
power linking cable and mount the products close enough for the cable to reach.
•The bracket adjustment knobs allow for directional adjustment when aiming the
product to the desired angle. Only loosen or tighten the bracket knobs manually.
Using tools could damage the knobs.
•The rubber feet also serve as floor supports. When mounting the product
on the
floor, make sure that the product and cables are away from people and vehicles.

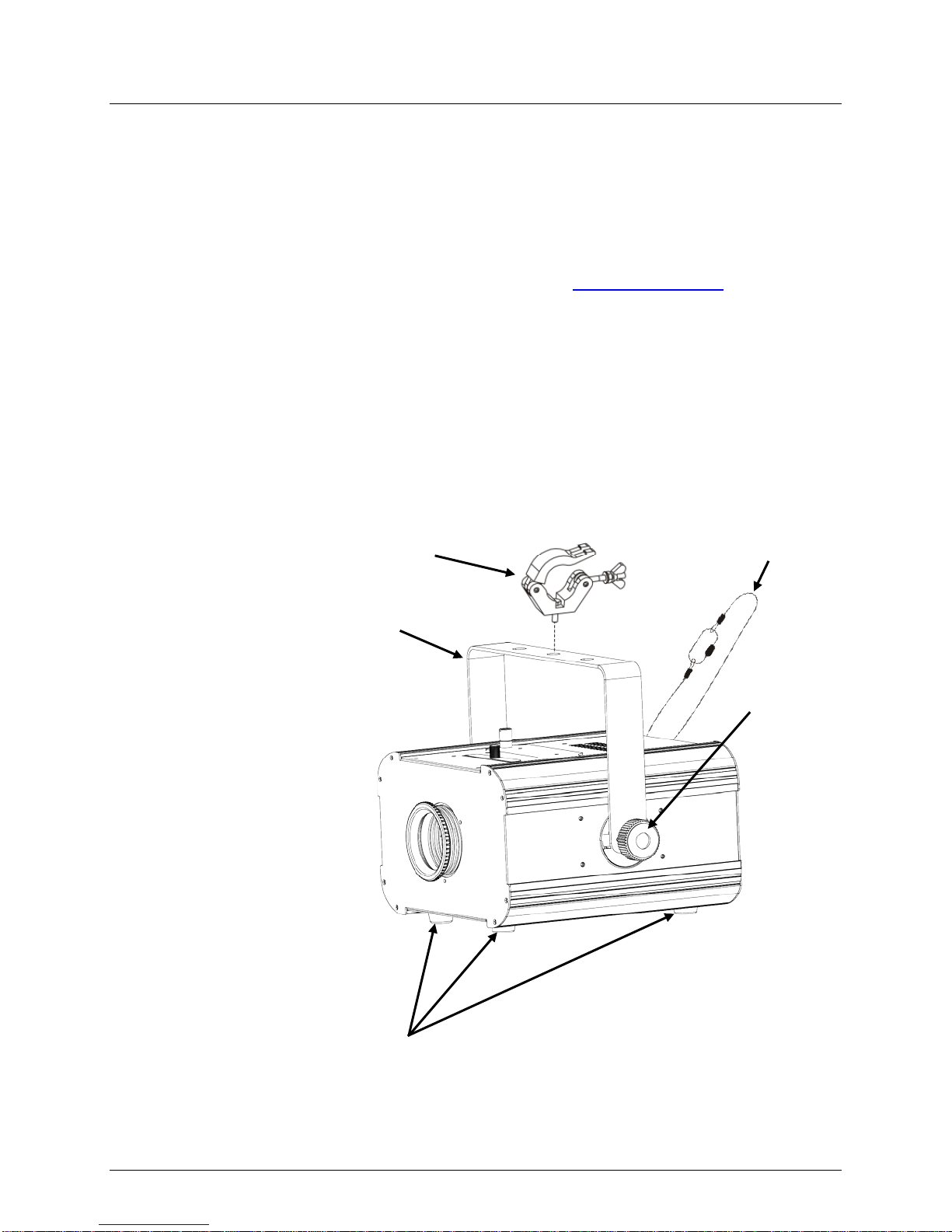

Mounting Diagram
Mounting Clamp
Safety Cable
Rubber Feet
Hanging/Mounting
Bracket
Bracket
Adjustment
Knobs (2x)

Page 10 of 18 Gobo Shot™ 50W IRC User Manual
4.OPERATION
Control Panel
Operation
To access the control panel functions, use the four buttons located
underneath the
display.
Button Function
<MENU> Selects an operation mode or backs out of the current menu option
<UP> Scrolls up the list of options or selects a higher value
<DOWN>
Scrolls down the list of options or selects a lower value
<ENTER> Activates a menu option or a selected value
Menu Map
Main Function
Programming Levels
Description
DMX Address d001—d512 Selects the DMX starting address
Manual Mode nAn
Gobo
StoP Gobo rotation, stop
CU Gobo rotation, rainbow effect
CCU Gobo rotation, reverse rainbow effect
GoSP 000—255 Gobo rotation speed
diNN
L000—L255
Dimmer (0—100%)
SHut
S000—S100
Shutter (0—20 Hz)
Display diS diS Normal display
rdiS Reverse display
Reset rESt Resets fixture
Load
LoAd
Loads factory defaults
Configuration
(DMX)
Set the product in DMX mode to control with a DMX controller.
1. Connect the product to a suitable power outlet.
2. Connect a DMX cable from the DMX output of the DMX controller to the DMX input
socket on the product.
Starting Address
When selecting a starting DMX address, always consider the number of DMX channels
the selected DMX mode uses. If you
choose a starting address that is too high, you could
restrict the access to some of the product’s channels.
The Gobo Shot™ 50W IRC uses up to 4 DMX channels in its 4-channel
DMX mode,
which defines the highest configurable address to 509.
If unfamiliar with DMX, download the DMX Primer from www.chauvetlighting.com.
To select the starting address, do the following:
1. Press <MENU>repeatedly until d001—d512 shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select the starting address.
4. Press <ENTER>.
