Chauvet LG-3355 User manual

LG-3355
Scorpion™ LGX
USER MANUAL
CHAUVET, 3000 N 29th Ct, Hollywood, FL 33020 U.S.A
[phone] – [phone]
FAX [phone]
www.chauvetlighting.com

TABLE OF CONTENT
BEFORE YOU BEGIN.................................................................................................................................... 3
WHAT IS INCLUDED......................................................................................................................................... 3
UNPACKING INSTRUCTIONS............................................................................................................................. 3
AC POWER ................................................................................................................................................... 3
SAFETY INSTRUCTIONS................................................................................................................................... 4
INTRODUCTION ............................................................................................................................................ 5
FEATURES..................................................................................................................................................... 5
PRODUCT OVERVIEW ..................................................................................................................................... 5
GENERAL INSTRUCTIONS ................................................................................................................................5
REAR PANEL CONTROL DETAILS ..................................................................................................................... 6
MASTER/SLAVE OPERATION ........................................................................................................................... 6
Wireless Controller.................................................................................................................................. 7
COMPLIANCE STATEMENT......................................................................................................................... 8
LASER SAFETY AND COMPLIANCE INFORMATION ............................................................................................... 8
PROPER USAGE ............................................................................................................................................ 9
APPENDIX.....................................................................................................................................................10
GENERAL MAINTENANCE ...............................................................................................................................10
RETURNS PROCEDURE..................................................................................................................................10
CLAIMS........................................................................................................................................................10

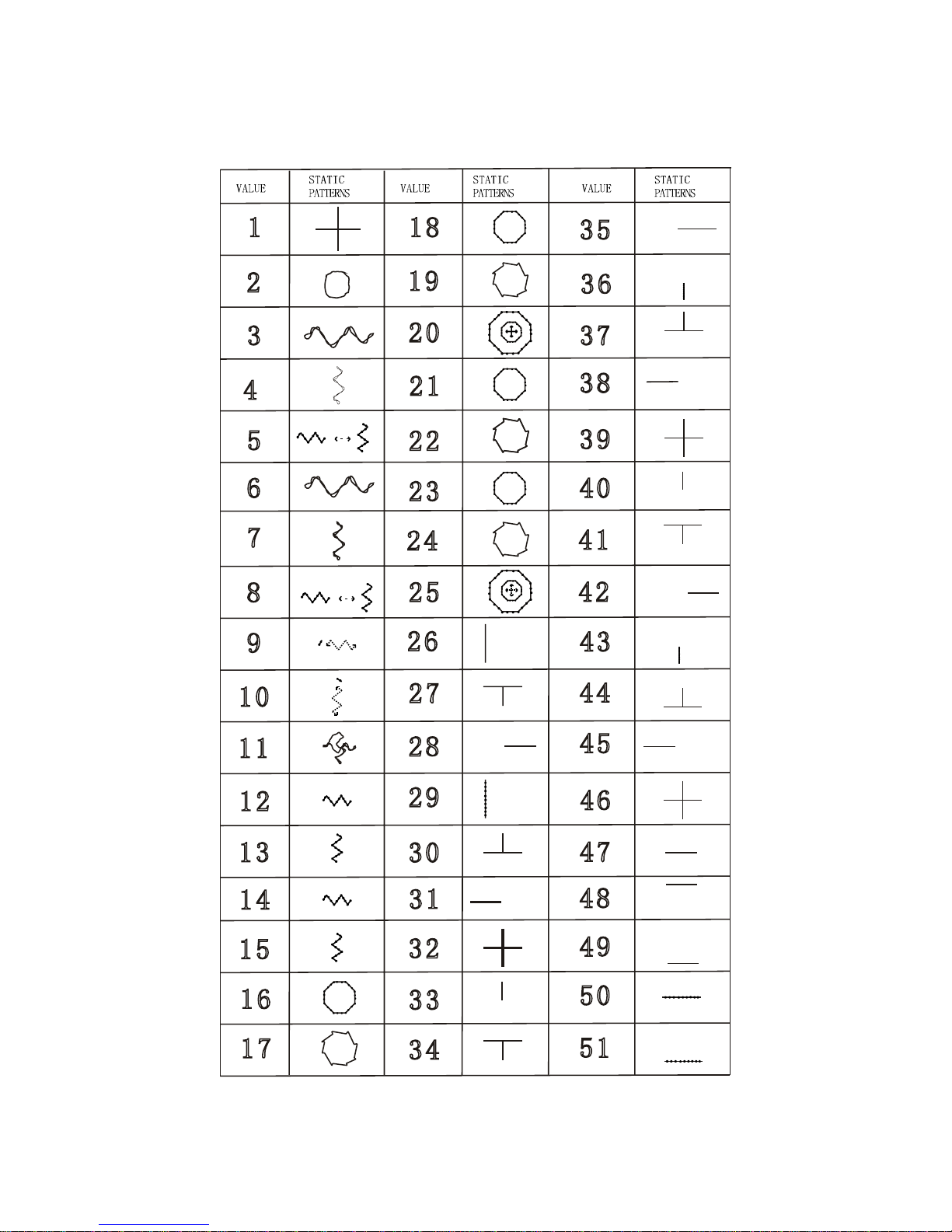

PATTERNS CHART (1~51 )..........................................................................................................................11
PATTERNS CHART (52 ~103 )......................................................................................................................12
PATTERNS CHART (104 ~154 )....................................................................................................................13
PATTERNS CHART (155 ~206 )....................................................................................................................14

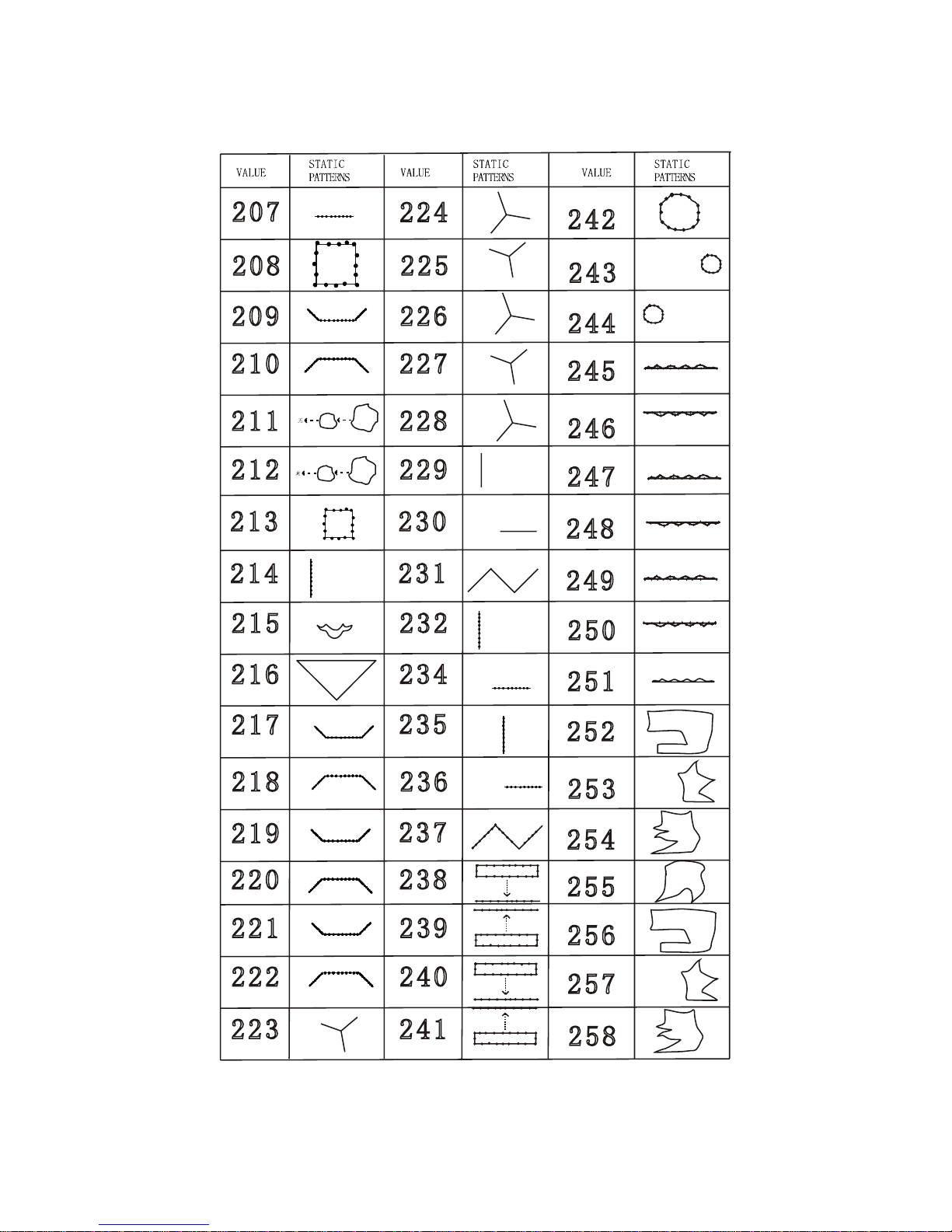

PATTERNS CHART (207 ~258 )....................................................................................................................15

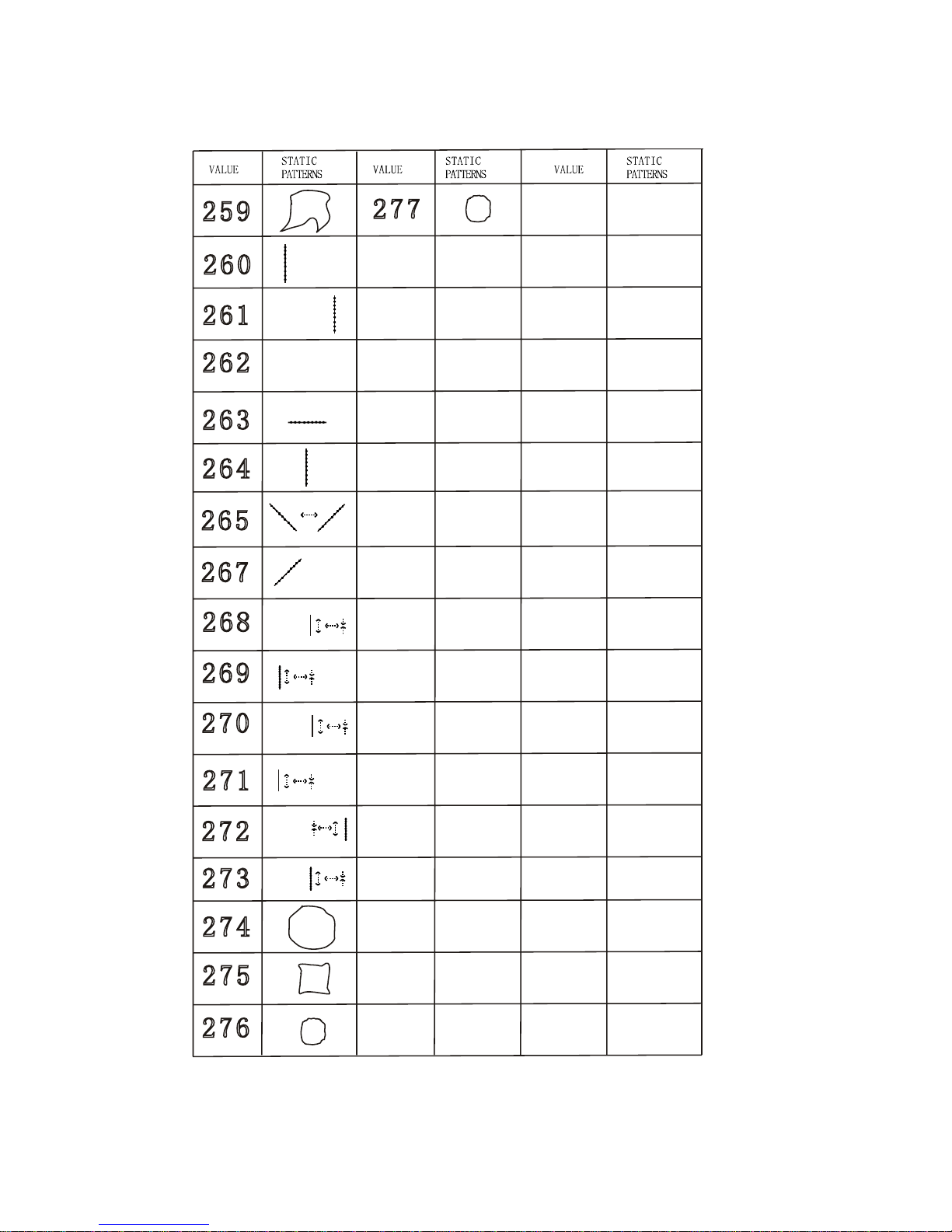

PATTERNS CHART (259 ~277 )....................................................................................................................16
PATTERNS FOR REMOTE CONTROLLER ...........................................................................................................17
TECHNICAL SPECIFICATIONS ..........................................................................................................................17
TECHNICAL SUPPORT....................................................................................................................................17
LG-3355 User Manual 2 11/14/2007/18:12

BEFORE YOU BEGIN
What is included
¾1 x Scorpion™ LGX
¾1 x LC-10 Wireless Remote
Controller
¾Linking cable
¾Warranty Card
¾User Manual
Unpacking Instructions
Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that
all parts are present, and have been received in good condition. Notify the shipper immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture
must be returned to the factory, it is important that the fixture be returned in the original factory box
and packing.
AC Power
To determine the power requirements for a particular fixture, see the label affixed to the back plate of
the fixture or refer to the fixture’s specifications chart. A fixture’s listed current rating is its average
current draw under normal conditions. All fixtures must be powered directly off a switched circuit and
cannot be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch. Before applying power to a
fixture, check that the source voltage matches the fixture’s requirement.
Check the fixture or device carefully to make sure that if a voltage selection
switch exists that it is set to the correct line voltage you will use.
Warning! Verify that the power select switch on your unit matches the
line voltage applied. All fixtures must be connected to circuits
with a suitable Earth Ground.
Figure 1 - AC Voltage Switch
Not all fixtures have a voltage
select switch. Please be sure to
connect to the proper voltage.
LG-3355 User Manual 3 11/14/2007/18:12

Introduction
Safety Instructions
Please read these instructions carefully, which
includes important information about the installation,
usa
g
e and maintenance?
•Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
•Always make sure that you are connecting to the proper voltage and that the line voltage you are
connecting to is not higher than that stated on decal or rear panel of the fixture.
•This product is intended for indoor use only!
•To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no
flammable materials close to the unit while operating.
•The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
•Always disconnect from power source before servicing or replacing lamp or fuse and be sure to
replace with same lamp source.
•Secure fixture to fastening device using a safety chain. Never carry the fixture solely by its head. Use
its carrying handles.
•Maximum ambient temperature is Ta: 40°. Do not operate fixture at temperatures higher than this.
•In the event of serious operating problem, stop using the unit immediately. Never try to repair the unit
by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type spare parts.
•Don’t connect the device to a dimmer pack.
•Make sure power cord is never crimped or damaged.
•Never disconnect power cord by pulling or tugging on the cord.
•Avoid direct eye exposure to lamp while it is on.
Caution! There are no user serviceable parts inside the unit. Do not open the housing or
attempt any repairs yourself. In the unlikely event your unit may require service,
please contact CHAUVET.
LG-3355 User Manual 4 11/14/2007/18:12

INTRODUCTION
Your LG-3355 is very unique! You may notice that the beams coming out of the projector are larger
than the 4.95mW projectors. There is a very distinct reason for this. Unlike 4.95mW projectors the
output of the CHAUVET laser projectors with Fatbeam™ technology inside outputs <20mW for each
beam. Normally outputs greater than 4.95mW require a variance from the FDA. This product has
been designed to meet a special classification of ClassIIIa. Under this classification with the Fat
Beam technology the acceptable energy levels (AEL) have been met. Therefore the maximum
potential exposure to the unaided eye is less than 4.95mW for a static beam. Additionally the (MPE)
or Maximum Permissible Exposure with this product is below acceptable levels for hum ocular or
tissue exposure.
Features
•10mW Fatbeam™ Laser technology produces 10-14mm beam which complies with IEC Safety
Standards under ClassIIIa
•276 preset patterns, 9 of the most popular patterns triggered by the remote
•Operating modes; Auto, Sound Active & Master/Slave
- Linking cable included
•Wireless remote included for Manual mode operation
•Scanning motors (micro stepping)
•Sound sensitivity control
•Rugged construction
•European design plastic case
Product Overview
DANGER: Laser Radiation emitted from this aperture.
Before connecting the unit to AC power, make certain that
the front aperture is pointed away from you or others.
AC Power Connection:
The unit is supplied with a power plug appropriate to its voltage
and destination. Should any other connections be required they
must be carried out with the following configuration.
Earth = Green/Yellow cable
Neutral = Blue cable
Live = Brown cable
Infrared sensor (front).
User can now select from 2
Infrared sensor locations (front)
or the (rear).
General Instructions
This fixture is designed to operate as a stand-alone unit or master/slave link. Linking the units in
master/slave connection, the first unit will control the other units to give an automatic sound activated
synchronized light show. This function is good when you want an instant show. Plug in the unit and
turn the ON/OFF switch to ON position, the unit will work. It will turn off the laser diode automatically
when the music stops after 7 seconds or no signal input.
LG-3355 User Manual 5 11/14/2007/18:12

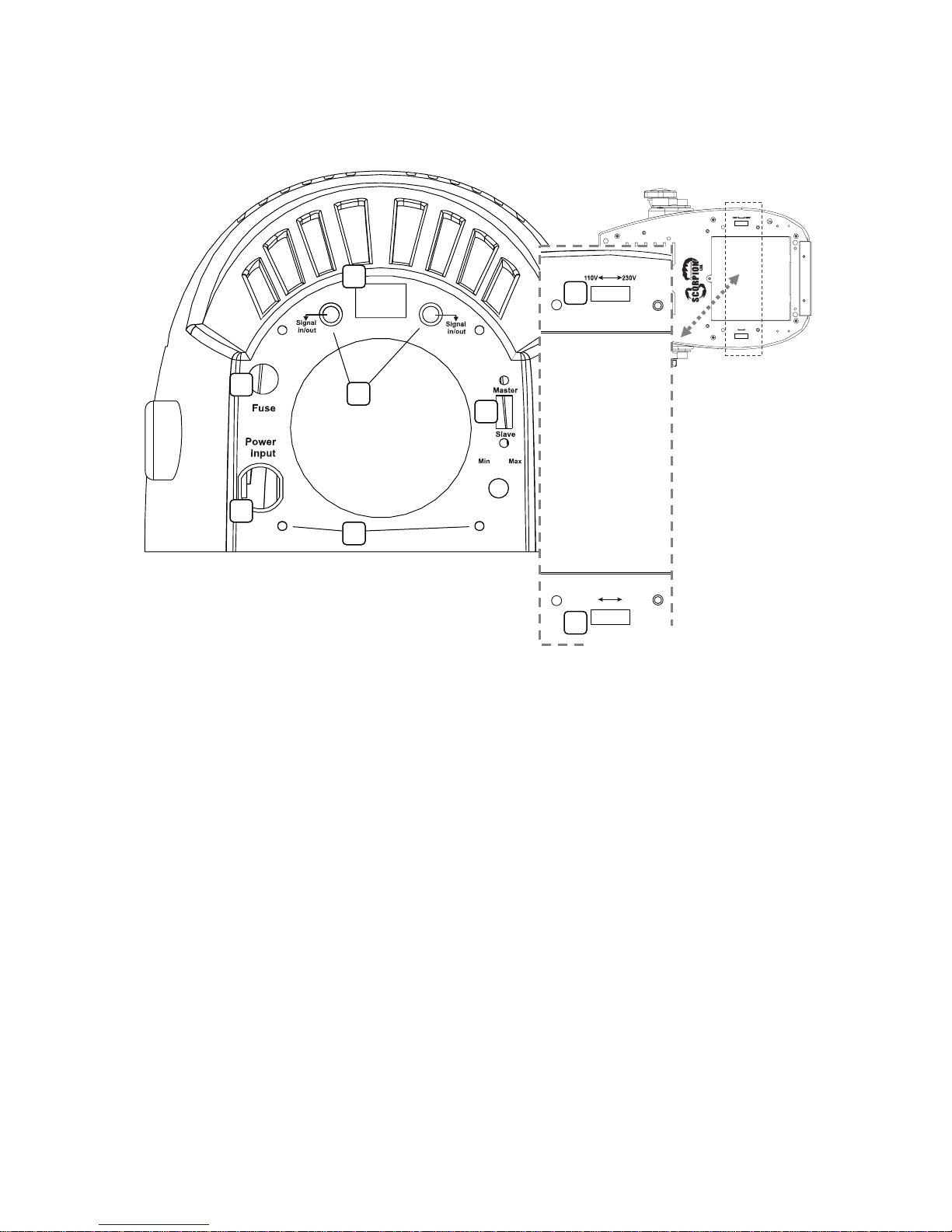

Rear Panel Control Details
Back
Infrared
Power On/Off
Sound
Back Front
Infrared Switch
Rear of fixture
Bottom of fixture
Back Front
Infrared Switch
Voltage select
Infrared sensor select
1
2
3
4
6 5
7
8
1) On/Off switch: Turn on/off the unit.
2) Power cord: This connection supplies main power to the fixture. Be sure the main power
matches the required power of your fixture.
3) Fuse holder: This housing stores the protective fuse. Always replace with the extra same type
fuse. Replacement with anything other than the specified part may damage your unit.
4) Red LED: Power indicator, Blue LED: Sound indicator.
5) Master/Slave Mode: Select the master/slaver mode.
6) Signal input/output: uses a 3.5mm stereo microphone cable to link the unit together for
master/slave link.
7) AC voltage selector switch
8) Infrared sensor (rear or front) selector switch
Master/Slave Operation
Note: Maximum linking in Master/Slave mode is 8 fixtures.
1) Turn Off all projectors.
2) Connect up to 8 fixtures using a daisy chain method. From the signal output of the first projector
to the signal input of the following projector and then repeat for the following projectors.
3) Set the Master/Slave switch on the first unit in the daisy chain to Master and turn this projector
ON before all other projectors.
Important: Turn Master unit On First otherwise link will not be consistent.
4) On all remaining units set the Master/Slave switch to Slave then turn those projectors on.
LG-3355 User Manual 6 11/14/2007/18:12

Wireless Controller
This unit comes with a wireless remote controller.
1) Laser ON/OFF: Turn on/off the laser beam.
2) Sound active: 10 programs. Press Sound button, 10 patterns
run to the sound. 9 of the 10 patterns are selectable by
pressing corresponding button but will not remain active.
3) Auto: 10 programs. Press Auto button, 10 patterns run
automatically. 9 of the 10 patterns are selectable by pressing
corresponding button but will not remain active.
4) Pattern: Press Pattern button, Select any one of 9 patterns. Pattern will remain active until
another number is pressed.
List of available patterns to the Remote
1. Tunnel
2. Tunnel (slow)
3. Square tunnel
4. Liquid Sky
5. Liquid Sky (oscillating effect)
6. Wave
7. Star
8. Zig Zag
9. Zig Zag (fast)
LG-3355 User Manual 7 11/14/2007/18:12

COMPLIANCE STATEMENT
Your LG-3355 complies with FDA/CDRH 21CFR1040 and Laser Notice 50 as well as IEC 60825-
1:2003. Due to a unique optic design, this product does not exceed output powers that exceed its
classification and output levels government agencies have determined to be appropriate for the
products function.
Laser Safety and Compliance Information
This product is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and
Drug Administrations (FDA) Standards listed under FDA Document 21 CFR 1040 and subsequent
laser notices.
Product Classification and Manufacturing Label Identification
Laser Classification Class IIIa
Laser Medium DPSS YVO4 532nm
Cooling Fan Cooled
Output <20mW
Beam Diameter at aperture 10 – 14mm
Beam Divergence Optically adjusted for compliance
Radiant Exposure at Aperture <4.95mW (7mm Human Limiting Aperture)
There is only one
laser aperture on
this product.

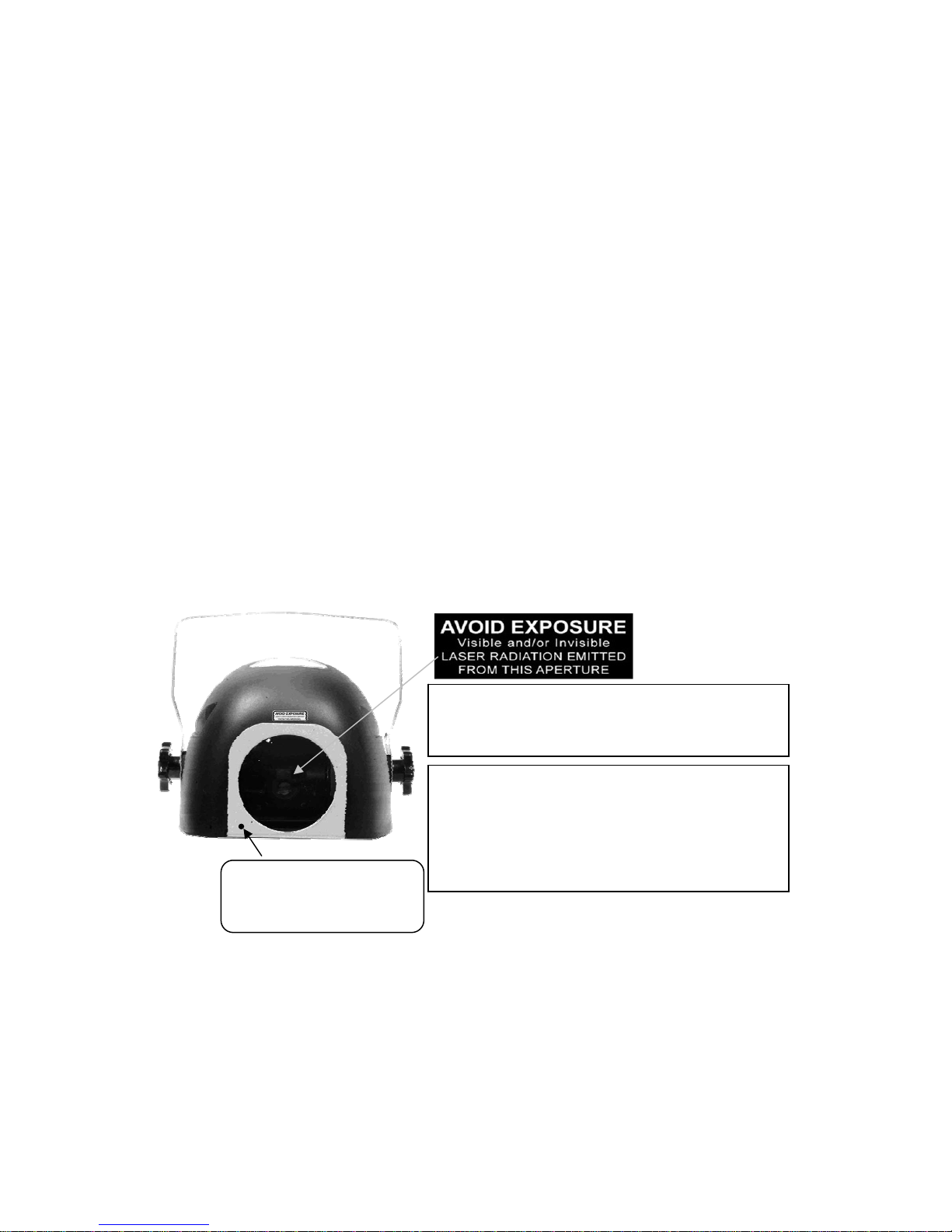

CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct
eye contact with laser light. Never intentionally expose
your eyes or others to direct laser radiation,
Non-Interlocked Housing Warning Labels. This unit
contains an embedded laser device that exceeds the output
of the intended class internally. Exposure to unsafe levels
of laser radiation when opened.
Additionally there are no user
serviceable parts inside. Tampering
or removing warranty seals will void
your products limited warranty.
CAUTION:
The use of corrective eye wear or
optics for viewing at distances such
as telescopes or binoculars within a
distance of 100mm may pose an eye
hazard.
LG-3355 User Manual 8 11/14/2007/18:12

Proper Usage
This unit has been designed to be hung. It is recommended that, for safety
purposes, your lighting effect are properly mounted using a suitable
hanging clamp and safety cable. CHAUVET offers a range of items, which
are ideal for safe mounting.
It is the responsibility of the manufacturer to provide useful instruction on
the proper use of this product.
According to FDA Regulations you should operate the product in the
fashion illustrated below.
CAUTION: Use of controls, adjustments, or performance of
procedures other than what is specified herein may result in
hazardous radiation exposure
LG-3355 User Manual 9 11/14/2007/18:12

APPENDIX
General Maintenance
To maintain optimum performance and minimize wear fixtures should be cleaned frequently. Usage
and environment are contributing factors in determining frequency. As a general rule, fixtures should
be cleaned at least twice a month. Dust build up reduces light output performance and can cause
overheating. This can lead to reduced lamp life and increased mechanical wear. Be sure to power off
fixture before conducting maintenance.
Unplug fixture from power. Use a vacuum or air compressor and a soft brush to remove dust
collected on external vents and internal components. Clean all glass when the fixture is cold with a
mild solution of glass cleaner or Isopropyl Alcohol and a soft lint free cotton cloth or lens tissue. Apply
solution to the cloth or tissue and drag dirt and grime to the outside of the lens. Gently polish optical
surfaces until they are free of haze and lint.
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates:
damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s
optics. Clean with soft cloth using normal glass cleaning fluid. - Always dry the parts carefully. - Clean
the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
Returns Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products
returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the
fixture. Be prepared to provide the model number, serial number and a brief description of the cause
for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate
packaging is the customer’s responsibility. CHAUVET reserves the right to use its own discretion to
repair or replace product(s). As a suggestion, proper UPS packing or double-boxing is always a safe
method to use.
Claims
Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise. It is the customer's responsibility to notify and
submit claims with the shipper in the event that a fixture is damaged due to shipping. Any other claim
for items such as missing component/part, damage not related to shipping, and concealed damage,
must be made within seven (7) days of receiving merchandise.
LG-3355 User Manual 10 11/14/2007/18:12
