CHEVROLET 2012 TDC
2021.05.28

INSTRUCTION MANUAL
CAR COMPATIBILITY SHEET
BRAND MODEL SCREEN YEAR
CHEVROLET
Malibu 7" 2012~2016
Alpheon 7" 2011~2016
Orlando
BUICK
LaCrosse 7" 2012~2016
Regal 7" 2012~2016
GL8 7" 2012~2016
HOLDEN Commodore 2015~

INSTRUCTION MANUAL

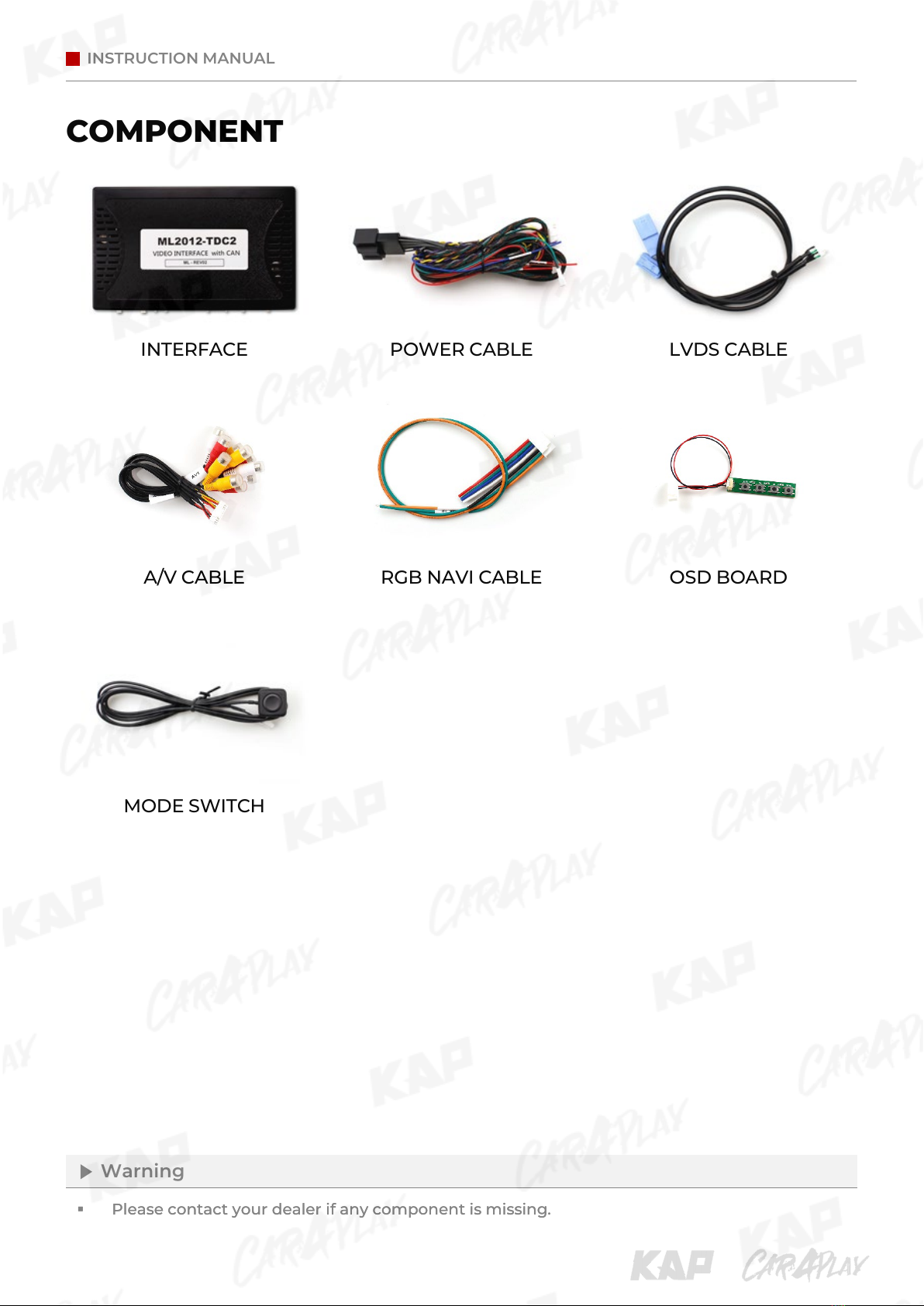

COMPONENT
▶Warning
Please contact your dealer if any component is missing.
▶Warning
Please contact your dealer if any component is missing.
INTERFACE
MODE SWITCH
RGB NAVI CABLE OSD BOARDA/V CABLE
POWER CABLE LVDS CABLE

INSTRUCTION MANUAL
INTERFACE SPEC
1INPUT
•Digital RGB IN (HDMI Port) x 1
•Analog RGB In (7pin) X 1
•CVBS Audio/Video X 2
•CVBS Front Cam In X 1
•CVBS Rear Cam In X 1
•LVDS In Command System X 1
2OUTPUT
•CVBS Video Out X 2
•CVBS Audio Out X 1
•LVDS Out Operation X 1
4POWER
•Input Power : 8VDC ~ 24VDC
•Consumption Power : 12Watt, Max
5SWITCH INPUT MODE
•Video source control via Dip Switch
•Vehicle model selection via Dip Switch
•Mode change with OEM button using CAN
3TOUCH
•Virtual Analog Touch
•UART Digital Touch

INSTRUCTION MANUAL
EXTERNAL DEVICE SPECIFICATIONS
2DIP SWITCH 1LCD IN/OUT
6POWER/CAN 7RESISTIVE TOUCH 8DIGITAL RGB
3IMAGE
6 7 8
31 2 4
4PROGRAM
9 10
9ALNALOG RGB
10 AUDIO/VIDEO
OSD connection
4PIN Touch NAVI IN
5
5LED
Interface error
check
AUDIO/VIDEO IN
FRONT CAMERA IN
REAR CAMERA IN
VIDEO OUT

INSTRUCTION MANUAL
CONNECTOR PIN ASSIGNMENT
1 2 3
No PORT INFORMATION
1POWER
/CAN
2TOUCH
3RGB
NAVI
No. Color Signal Assignment No. Color Signal Assignment
1 Red ACC 2
3Brown REAR DETECT 4Blue FRONT DETECT
5Green CAN1 LOW 6 Orange CAN1 HIGH
7Purple CAN2 LOW 8White CAN2 HIGH
9Yellow CAN3 LOW 10 Purple CAN3 HIGH
11 Green SWC 12 Red REAR VCC
13 Red FRONT VCC 14 Green MODE
15 Black GND 16 Black GND
1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16
No. Color Signal Assignment
1 Red Y-
2Green X-
3Blue Y+
4White X+
1 2 3 4
No. Color Signal Assignment
1 Red R DATA
2Green G DATA
3Blue B DATA
4White SYNC
5 Black GND
6Green DVB-T IR
7 Orange DVD IR
1 2 3 4 5 6 7
1
2
3

INSTRUCTION MANUAL

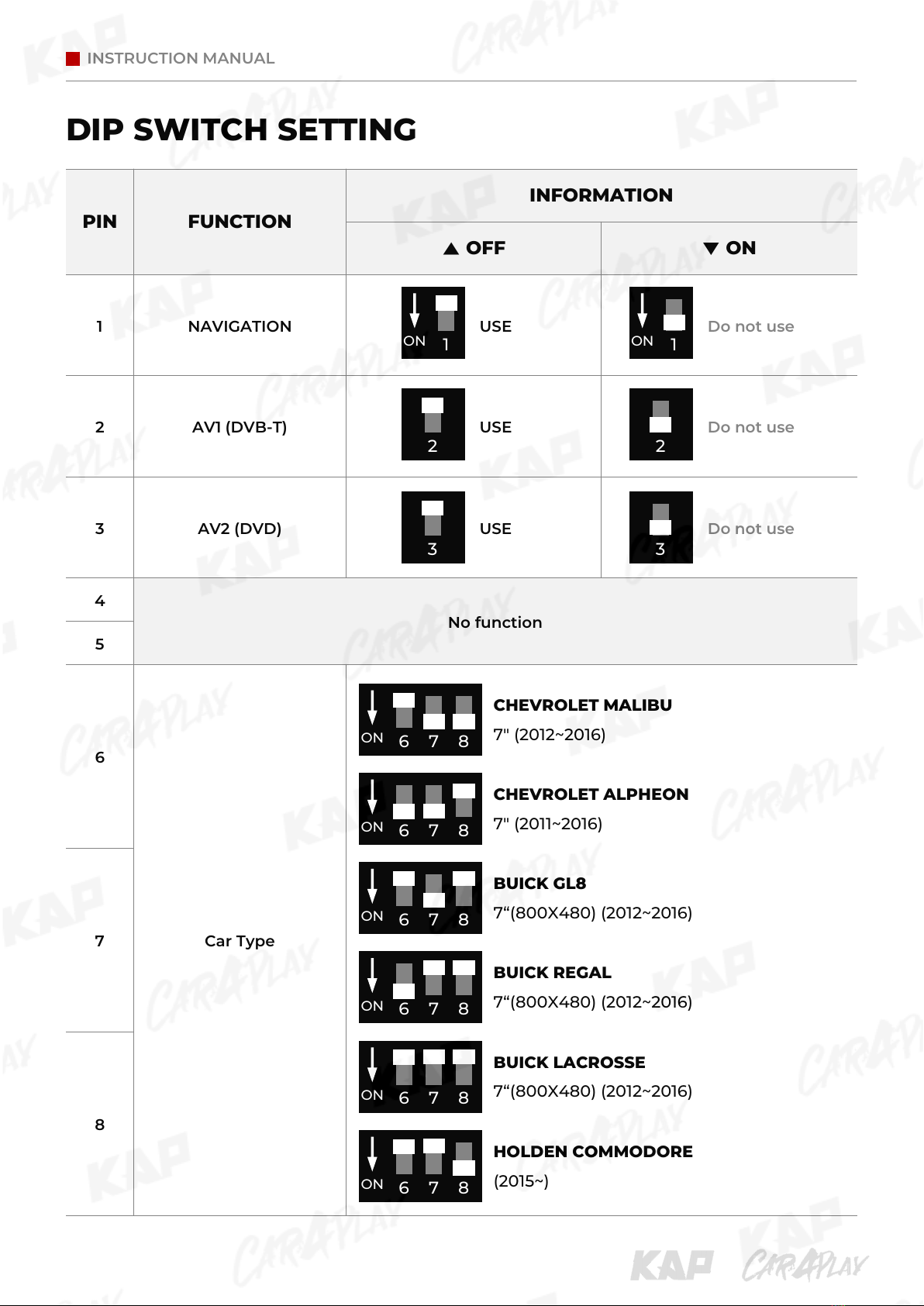

DIP SWITCH SETTING
PIN FUNCTION
INFORMATION
▲OFF ▼ON
1NAVIGATION USE Do not use
2AV1 (DVB-T) USE Do not use
3 AV2 (DVD) USE Do not use
4
No function
5
6
Car Type7
8
ON 1ON 1
2 2
3 3
ON 6 7 8
CHEVROLET MALIBU
7" (2012~2016)
ON 6 7 8
CHEVROLET ALPHEON
7" (2011~2016)
ON 6 7 8
BUICK GL8
7“(800X480) (2012~2016)
ON 6 7 8
BUICK REGAL
7“(800X480) (2012~2016)
ON 6 7 8
BUICK LACROSSE
7“(800X480) (2012~2016)
ON 6 7 8
HOLDEN COMMODORE
(2015~)

INSTRUCTION MANUAL
BUTTON CONTROL
Change Mode to Interface Screen
STEERING WHEEL BUTTONS
BUTTON PRESS FUNCTION
CALL/VOICE Long press OEM screen to interface screen
Interface screen to the OEM screen
HANG UP/MUTE Double click
SRC UP / DOWN Long press Show OEM screen for 3 seconds
▶Warning
Screen change sequence : OEM > NAVI > AV1 > AV2 > OEM
To use the CALL / VOICE / HANG UP / MUTE buttons, "SteeringWheelBtn" must be "ON" in
the OSD menu
To use the SRC UP / DOWN buttons, "SteeringChannel" must be "ON" in the OSD menu

INSTRUCTION MANUAL

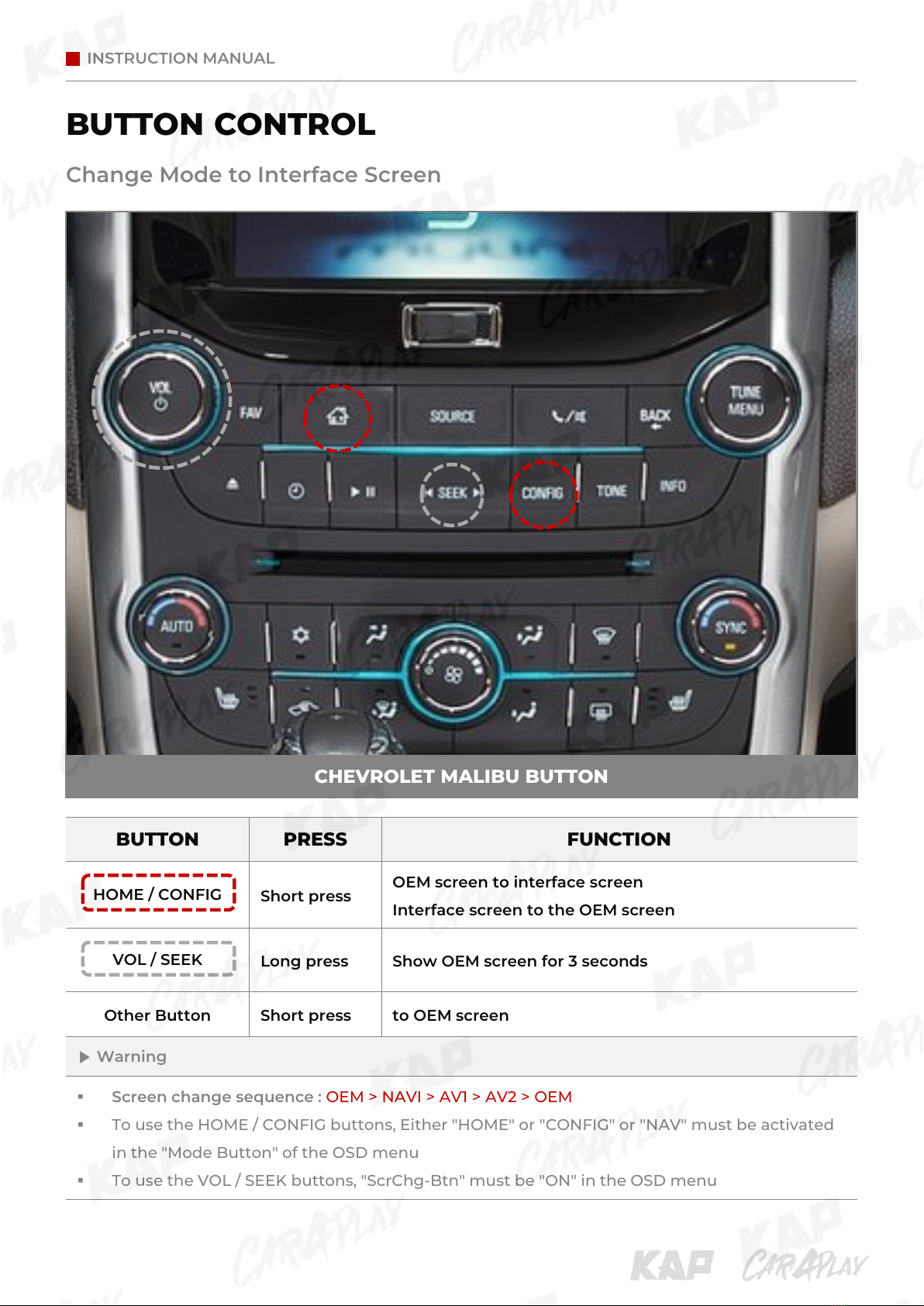

BUTTON CONTROL
Change Mode to Interface Screen
CHEVROLET MALIBU BUTTON
BUTTON PRESS FUNCTION
HOME / CONFIG Short press OEM screen to interface screen
Interface screen to the OEM screen
VOL / SEEK Long press Show OEM screen for 3 seconds
Other Button Short press to OEM screen
▶Warning
Screen change sequence : OEM > NAVI > AV1 > AV2 > OEM
To use the HOME / CONFIG buttons, Either "HOME" or "CONFIG" or "NAV" must be activated
in the "Mode Button" of the OSD menu
To use the VOL / SEEK buttons, "ScrChg-Btn" must be "ON" in the OSD menu

INSTRUCTION MANUAL
BUTTON CONTROL
Change Mode to Interface Screen
ALPHEON/LACROSSE BUTTON
BUTTON PRESS FUNCTION
CONFIG / NAV Short press OEM screen to interface screen
Interface screen to the OEM screen
VOL / TRACK Long press Show OEM screen for 3 seconds
Other Button Short press to OEM screen
▶Warning
Screen change sequence : OEM > NAVI > AV1 > AV2 > OEM
To use the CONFIG / NAV buttons, Either "HOME" or "CONFIG" or "NAV" must be activated in
the "Mode Button" of the OSD menu
To use the VOL / TRACK buttons, "ScrChg-Btn" must be "ON" in the OSD menu

INSTRUCTION MANUAL
BUTTON CONTROL
Change Mode to Interface Screen
REGAL BUTTON
BUTTON PRESS FUNCTION
CONFIG / NAV Short press OEM screen to interface screen
Interface screen to the OEM screen
TRACK Long press Show OEM screen for 3 seconds
Other Button Short press to OEM screen
▶Warning
Screen change sequence : OEM > NAVI > AV1 > AV2 > OEM
To use the CONFIG / NAV buttons, Either "HOME" or "CONFIG" or "NAV" must be activated in
the "Mode Button" of the OSD menu
To use the TRACK buttons, "ScrChg-Btn" must be "ON" in the OSD menu

INSTRUCTION MANUAL
BUTTON CONTROL
Change Mode to Interface Screen
GL8 BUTTON
BUTTON PRESS FUNCTION
CONFIG Short press OEM screen to interface screen
Interface screen to the OEM screen
TRACK / POWER Long press Show OEM screen for 3 seconds
Other Button Short press to OEM screen
▶Warning
Screen change sequence : OEM > NAVI > AV1 > AV2 > OEM
To use the CONFIG buttons, Either "HOME" or "CONFIG" or "NAV" must be activated in the
"Mode Button" of the OSD menu
To use the TRACK / POWER buttons, "ScrChg-Btn" must be "ON" in the OSD menu

INSTRUCTION MANUAL
TOUCH CONTROL
Touch Calibration
MENU Config NAVI
OSD Factory Reset Execute Cancel
IR-Ctrl Calibration Execute Cancel
Utility Version Interface version
or
Select OSD menu> Utility> Calibration.
Press and hold the display for longer than
10 seconds.
+ Touch according to the shape
coordinates
On interface Screen
(NAVI, AV1, AV2)
▶Warning
Touch control icon in DVBT / DVD

INSTRUCTION MANUAL
PARKING CONTROL
Parking Line / OPS Display
Parking Line ON Screen Parking Line OFF Screen
1Parking Line Display
Parking Line ON Screen Parking Line OFF Screen
2OPS Display

INSTRUCTION MANUAL
PARKING CONTROL
FrontCam Rcv Option
1FrontCam-RcvOpt : ON (1 -30s)
MENU Option NAVI
Config FronrCam-RcvOpt 30s
Option
Screen
Parking
OEM or
Interface Screen
REAR
Camera
Screen
FRONT
Camera
Screen
OEM or
Interface
Screen
Displays the front camera
screen for the set time
(1 -30second)
2FrontCam-RcvOpt : OFF (0s)
MENU Option NAVI
Config FronrCam-RcvOpt 0s
Option
Screen
Parking
OEM or
Interface Screen
REAR
Camera
Screen
FRONT
Camera
Screen
OEM or
Interface
Screen

INSTRUCTION MANUAL
ML2012 TDC2
DIGITAL RGB
DIP_S/WPROGRAM
POWER/CAN
LED
TOUCH AUDIO/VIDEO
IMAGE LCD IN/OUT
INSTALL MANUAL
DIGITAL NAVIGATION
No.1 -▲OFF
ON 1 2 3 4 5 6 7 8
HDMI
HDMI
NAVIGATION
LVDS OUTPOWER
MENU Option NAVI
Config NAVI-RGB “NAVIGATION MODEL”
Option DVB-T (DMB)
Image DVD
Screen RearCam
Parking FrontCam
MENU Option NAVI
Config NAVI-COM GU
Option Reset
Screen
Parking
※Please set in the OSD menu

INSTRUCTION MANUAL
ML2012 TDC2
DIGITAL RGB
DIP_S/WPROGRAM
POWER/CAN
LED
TOUCH AUDIO/VIDEO
IMAGE LCD IN/OUT
No.1 -▲OFF

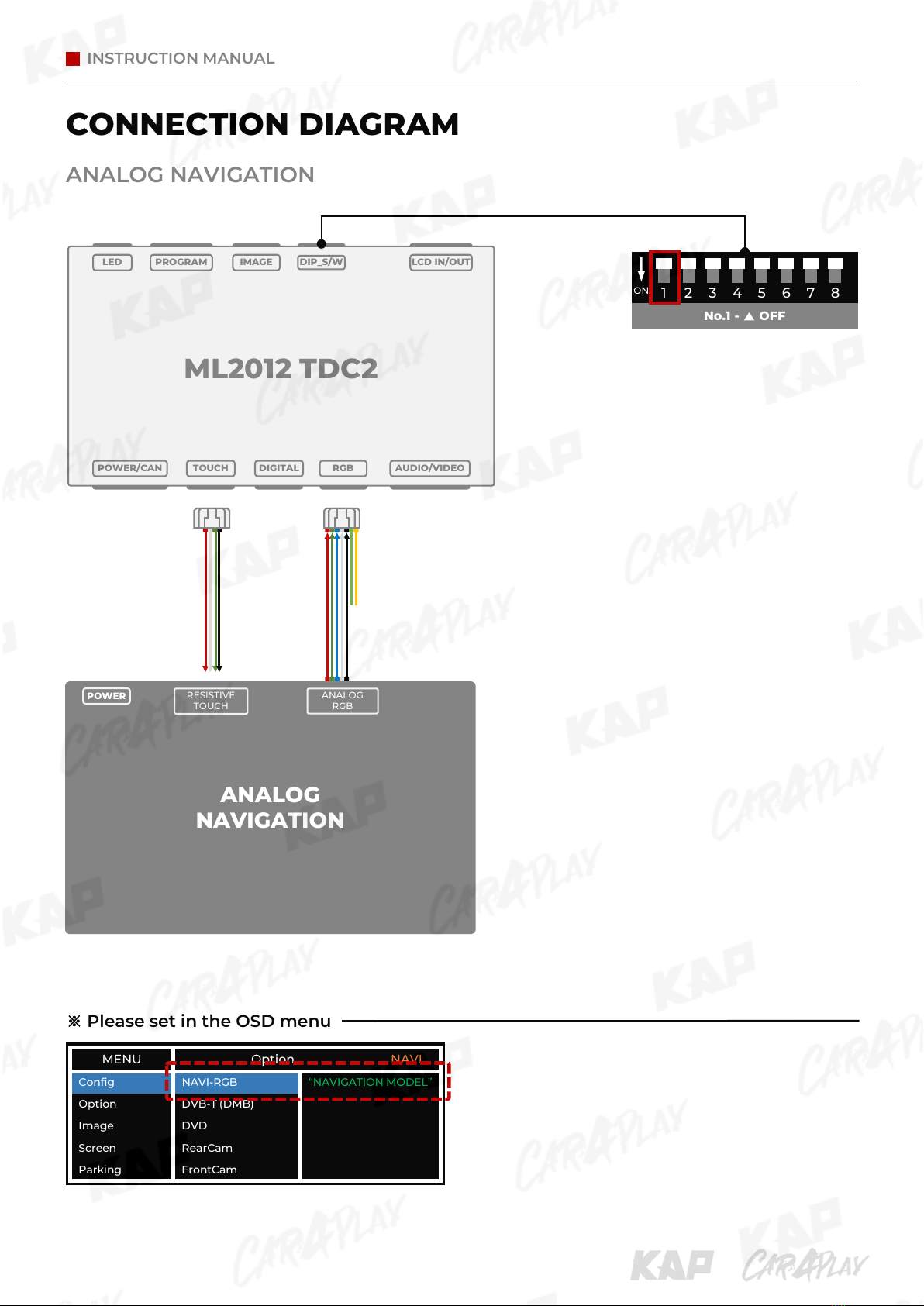

CONNECTION DIAGRAM
ANALOG NAVIGATION
ON 1 2 3 4 5 6 7 8
MENU Option NAVI
Config NAVI-RGB “NAVIGATION MODEL”
Option DVB-T (DMB)
Image DVD
Screen RearCam
Parking FrontCam
※Please set in the OSD menu
ANALOG
NAVIGATION
ANALOG
RGB
RESISTIVE
TOUCH
POWER

INSTRUCTION MANUAL
ML2012 TDC2
DIGITAL RGB
DIP_S/WPROGRAM
POWER/CAN
LED
TOUCH AUDIO/VIDEO
IMAGE LCD IN/OUT
DMB
MODEL
No.2 - ▲OFF
CONNECTION DIAGRAM
DVB-T (DMB)
ON 1 2 3 4 5 6 7 8
MENU Option NAVI
Config NAVI-RGB
Option DVB-T (DMB) “DMB MODEL”
Image DVD
Screen RearCam
Parking FrontCam
※Please set in the OSD menu
DVB-T-IR
MENU Option NAVI
Config
Option
Screen UI DVB-T(DMB) On Off
Parking UI DVD
ANALOG
RGB
AV1

INSTRUCTION MANUAL
ML2012 TDC2
DIGITAL RGB
DIP_S/WPROGRAM
POWER/CAN
LED
TOUCH AUDIO/VIDEO
IMAGE LCD IN/OUT
CONNECTION DIAGRAM
DVD
No.3 - ▲OFF
ON 1 2 3 4 5 6 7 8
DVD-IR
MENU Option NAVI
Config NAVI-RGB
Option DVB-T (DMB)
Image DVD “DVD MODEL”
Screen RearCam
Parking FrontCam
※Please set in the OSD menu
MENU Option NAVI
Config
Option
Screen UI DVB-T(DMB)
Parking UI DVD On Off
DMB
MODEL
ANALOG
RGB
AV2

INSTRUCTION MANUAL
ML2012 TDC2
DIGITAL RGB
DIP_S/WPROGRAM
POWER/CAN
LED
TOUCH AUDIO/VIDEO
IMAGE LCD IN/OUT
CAR
REAR
CAMERA
CONNECTION DIAGRAM
REAR CAM
MENU Option NAVI
Config NAVI-RGB AVM
Option DVB-T (DMB) AVM-DIGITAL
Image DVD Default
Screen RearCam
Parking FrontCam
※Please set in the OSD menu
REAR POWER
REAR DETECT
REAR
