CHIEF WP2 S Series User manual

INSTALLATION INSTRUCTIONS
WP2XS
WP2XUS
Short Throw Projector Wall Mounts
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
WP2XS, WP2XUS

WP2XS, WP2XUS Installation Instructions
2
DISCLAIMER
Milestone AV Technologies and its affiliated corporations and
subsidiaries (collectively "Milestone"), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief® is a registered trademark of Milestone AV Technologies.
All rights reserved.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING: Failure to provide adequate structural strength
for this component can result in serious personal injury or
damage to equipment! It is the installer’s responsibility to
make sure the structure to which this component is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component. The wall to which the mount is being attached
may have a maximum drywall thickness of 5/8" (1.6cm) for
wood stud installation, and 1/2" (1.3cm) for steel stud
installation.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the weight of the
projector does not exceed 25 lbs (11.3 kg).
WARNING: Use this mounting system only for its intended
use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
WARNING: Never operate this mounting system if it is
damaged. Return the mounting system to a service center for
examination and repair.
WARNING: Do not use this product outdoors.
IMPORTANT ! : The WP2XS and WP2XUS mounts are
designed to be mounted to:
• a bare 8" concrete wall;
• a bare 8"x 8"x16" concrete block wall;
• a 2" x 4" wood studs (16" on center); or
• a 2" x 4"-25ga minimum steel studs wall.
WP2XS models do not include UL Listed RSA series product
and are considered accessories.
--SAVE THESE INSTRUCTIONS--

Installation Instructions WP2XS, WP2XUS
3
DIMENSIONS
8.62
219.0
1.00
25.4
B
1-1/2" PIPE THREAD
ATTACH PROJECTOR MOUNT HERE
WP21S/US
DIMENSIONS: INCHES
[MILLIMETERS]

WP2XS, WP2XUS Installation Instructions
4
LEGEND
Tighten Fastener
Apretar elemento de fijación
Befestigungsteil festziehen
Apertar fixador
Serrare il fissaggio
Bevestiging vastdraaien
Serrez les fixations
Loosen Fastener
Aflojar elemento de fijación
Befestigungsteil lösen
Desapertar fixador
Allentare il fissaggio
Bevestiging losdraaien
Desserrez les fixations
Phillips Screwdriver
Destornillador Phillips
Kreuzschlitzschraubendreher
Chave de fendas Phillips
Cacciavite a stella
Kruiskopschroevendraaier
Tournevis à pointe cruciforme
Open-Ended Wrench
Llave de boca
Gabelschlüssel
Chave de bocas
Chiave a punte aperte
Steeksleutel
Clé à fourche
By Hand
A mano
Von Hand
Com a mão
A mano
Met de hand
À la main
Hex-Head Wrench
Llave de cabeza hexagonal
Sechskantschlüssel
Chave de cabeça sextavada
Chiave esagonale
Zeskantsleutel
Clé à tête hexagonale
Pencil Mark
Marcar con lápiz
Stiftmarkierung
Marcar com lápis
Segno a matita
Potloodmerkteken
Marquage au crayon
Drill Hole
Perforar
Bohrloch
Fazer furo
Praticare un foro
Gat boren
Percez un trou
Adjust
Ajustar
Einstellen
Ajustar
Regolare
Afstellen
Ajuster
Remove
Quitar
Entfernen
Remover
Rimuovere
Verwijderen
Retirez
Optional
Opcional
Optional
Opcional
Opzionale
Optie
En option
Security Wrench
Llave de seguridad
Sicherheitsschlüssel
Chave de segurança
Chiave di sicurezza
Veiligheidssleutel
Clé de sécurité

Installation Instructions WP2XS, WP2XUS
5
TOOLS REQUIRED FOR INSTALLATION
PARTS
3/8"
1/2"
5/32" (security)
1/4" (included)
Hardware required, not included:
Steel Stud Install
4 - Toggler® 1/4-20 (BB) Snap-Toggle
4 - Grade 2 or better 1/4-20 x 1-3/4" Phillips
pan head screws
4 - Grade 2 or better 1/4" washer
5/32"
(included)
All-Points
Security
Kit Card
ALL
MODELS
WP2XUS
MODELS
ONLY
A (1)
[Projector arm]
B (1)
[Wall plate
cover - left] C (1)
[Wall plate
cover - right]
D (1)
[End cap]
E (1)
[Wall plate]
F (4)
5/16" G (4)
5/16" x 2-1/2"
H (1)
M5 x 35mm
J (8)
M5 x 12mm
K (4)
[Anchor]
L (1)
5/32"
(security)
M (4)
10-24 x 3/8"
(security)
N (1)
5/16-18 x 1/2"
(security)
P (2)
10-24 x 3/8"
Q (4)
M3x25mm R (4)
M4x25mm S (4)
M5x25mm
T (4)
M6x25mm
U (4)
.500x.257x.625
W (1)
[SSB cover]
X (1)
[Base plate]
Y (4)
[SSB leg]
V (4)
[Thumb
AA (4)
8-32 x 1/4" AB (4) M2.5x10mm AC (4)
M3x10mm AD (4)
M4x10mm
AE (4)
8-32 x 3/8" AF (4)
M5x14mm AG (4)
M6x14mm
AH (4)
1/4-20
AI(4)
M4
AJ (1)
1/4"
AK (1)
5/32"
(security)
(WP21S shown)
nuts]
(WP21US shown)
OR

WP2XS, WP2XUS Installation Instructions
6
INSTALLATION
The WP2XS/WP2XUS short throw projector mounts are
designed to be mounted to an 8" concrete, 8"x8"x16" concrete
block, 2" x 4" wood studs (16" on center), or steel studs wall.
NOTE: Proceed to the Concrete or Concrete Block,Wood
Studs or Steel Studs Installation section, as
appropriate for installation.
Concrete or Concrete Block Installation
1. Determine mounting location on wall.
2. Using wall plate (E) as a template, mark four holes through
mounting holes in wall plate. (See Figure 1)
3. Drill four 3/8" holes at marked locations in wall. (See Figure 1)
4. Install four anchors (K) into drilled holes. (See Figure 1)
5. Install four 5/16 x 2-1/2" hex head lag screws (G) through
four 5/16" washers (F), holes in wall plate (E) and into four
anchors (K). (See Figure 1)
NOTE: Proceed to Install Short Throw Projector Arm to
Wall Plate section to continue installation.
Figure 1
Wood Studs Installation
1. Determine mounting location on wall. Use a stud finder to
locate studs.
2. Using wall plate (E) as a template, mark four holes through
mounting holes in wall plate. (See Figure 2)
3. Drill four 7/32" holes at marked locations in wall. (See
Figure 2)
4. Install four 5/16 x 2-1/2" hex head lag screws (G) through
four 5/16" washers (F), holes in wall plate (E) and into four
pilot holes. (See Figure 2)
Figure 2
NOTE: Proceed to Install Short Throw Projector Arm to
Wall Plate section to continue installation.
2
3
x 4
4
(K) x 4
5
(G) x 4
(E)
(F) x 4
2
3
x 4
(E)
4
(G) x 4
(F)

Installation Instructions WP2XS, WP2XUS
7
Steel Studs Installation
Site Requirements
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY OR
DAMAGE TO EQUIPMENT! The following figure identifies the minimum requirements for installation of mount onto a steel stud
structure. If the structure or its components do not meet these requirements contact the mount manufacturer for specific instructions
before attempting installation. It should also be noted that no other equipment should be mounted to the same stud. (See Figure 3)
Figure 3
(Must be centered over two studs)
Drywall
**1/2" minimum
Drywall Thickness
Short Throw Mount Installation Location
FRONT
(Both Sides of Stud)
There must be a minimum of
1-7/8" (48mm) clearance
inside wall
16" (on center) Studs
If back side of wall is unfinished, drywall must be installed
to a minimum of one stud left and right of the studs
being used to install the mount. Drywall must be
secured to studs with screws 12" on center
Steel Stud (2 x 4 / 25ga minimum)
Stud type and structural strength must conform to the North American
Specification for the Design of Cold-Formed Steel Structural Members.
**See hazard statement
on page 2!
[362, 125 18, C-Shape, S - Stud Section]

WP2XS, WP2XUS Installation Instructions
8
IMPORTANT ! : See Site Requirements section before
proceeding with Steel Studs installation to ensure
installation site meets requirements! The drywall must
have a minimum thickness of 1/2"!
1. Determine mounting location on wall. Use stud finder to
locate steel studs.
2. Line up four holes on wall plate (E) with center of studs at
desired mounting location. (See Figure 4)
3. Using wall plate as a template, mark four holes at the four
holes in wall plate. (See Figure 4)
4. Drill four 1/2" holes at marked locations on wall. (See
Figure 4)
Figure 4
5. Hold metal channel on Toggler® 1/4-20 (BB) Snap-Toggle
(not included) flat alongside plastic straps and slide channel
through hole. (See Figure 5)
Figure 5
6. Holdingplasticstrapson anchor,pullanchorawayfromwall
until channel rests flush behind wall making sure anchor
channel is positioned vertically on stud. (See Figure 6)
7. Slide plastic cap on anchor towards wall until flange of cap
is flush with wall. (See Figure 6)
Figure 6
8. Snap off plastic straps on anchor at wall by pushing side to
side, snapping off straps level with flange of plastic cap.
(See Figure 7)
9. Repeat Steps 6 through 8 for each mounting hole.
Figure 7
3
4
x 4
(E)
x 4
Drywall
Plastic Straps
5
anchor x 4
Plastic Cap
Drywall
Anchor Metal Channel
7
Steel Stud
6
(side view)
Plastic Straps
Drywall
Anchor Metal Channel
Plastic Cap
8
Steel Stud
(side view)

Installation Instructions WP2XS, WP2XUS
9
10. Place wall plate (E) over anchors and align mounting holes
in wall plate with holes in anchors. (See Figure 8)
11. Insert Grade 2 or better 1/4-20 x 1-3/4" Phillips pan head
screws (not included) through Grade 2 or better 1/4" washer
(not included), corresponding mounting hole on wall bracket
and into Snap-Toggle (not included) and tighten until flush
against mount. DO NOT overtighten! (See Figure 8)
12. Repeat Steps 10 and 11 for remaining 3 mounting holes.
WARNING: IMPROPER INSTALLATION CAN LEAD TO
EQUIPMENT FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! Overtightening of
mounting hardware can damage the steel studs. DO NOT
overtighten mounting hardware!
Figure 8
Installing Short Throw Projector Arm to Wall Plate
1. Lower projector arm (A) onto wall plate (E), ensuring that
tabs on projector arm slide into slots on wall plate. (See
Figure 9)
2. Fasten projector arm (A) to wall plate (E) using four
M4 x 12mm Phillips head cap screws (J). (See Figure 9)
Figure 9
3. Insert and slightly tighten one M5 x 35mm Phillips head cap
screw (H) into wall plate (E). (See Figure 10)
Figure 10
Drywall
Anchor Metal Channel
(E)
x 4
11
Steel Stud
x 4
(side view)
(A)
(E)
1
Tab
Slot
(J) x 4
2
3
(H) x 1
(E)

WP2XS, WP2XUS Installation Instructions
10
Projector Installation (WP2XUS Models Only)
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the weight of the
projector does not exceed 25 lbs (11.3 kg).
1. Assemble and attach SSBU (W, X and Y) to projector
following instructions included with SSBU.
NOTE: SSBU bracket may also be installed using the optional
All-Points Security Kit (L-P).
WARNING: IMPROPER INSTALLATION CAN LEAD TO
PROJECTOR FALLING RESULTING IN SERIOUS
PERSONAL INJURY OR DAMAGE TO EQUIPMENT. Ensure
that mounting slots in mount base slide under thumb screws
and that screws are seated in the back of slots.
2. Orient projector with attached SSBU bracket so that front of
projector faces wall. (See Figure 11)
3. Lift projector so that screws with thumb nuts (V) in SSBU
are aligned with mounting slots in projector arm base. (See
Figure 11)
4. Slide projector with SSBU bracket onto mounting slots in
projector arm base until screws are seated against the back
of mounting slots. (See Figure 11)
5. Turn thumb nuts until tight to secure projector to projector
arm. (See Figure 12)
6. Tighten the M5x35mm button head cap screw (H) on the
wall plate (E). (See Figure 12)
NOTE: Proceed to Adjustments section to continue
installation.
Figure 11
(A)
(W, X, Y)
Front of
projector
Mounting
slots
Mounting
slots
23
4
Figure 12
6
(H) x 1
(A)
(E)
5
(V)

Installation Instructions WP2XS, WP2XUS
11
Projector Installation (WP2XS Models Only)
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the weight of the
projector does not exceed 25 lbs (11.3 kg).
1. Assemble and attach UL Listed RSA Series product (not
included) to short throw projector arm threaded end
following instructions included with RSA.
2. Attach required interface bracket (not included) to projector
following instructions included with interface bracket.
WARNING: IMPROPER INSTALLATION CAN LEAD TO
PROJECTOR FALLING RESULTING IN SERIOUS
PERSONAL INJURY OR DAMAGE TO EQUIPMENT. Ensure
that mounting slots in RSA slide under thumb screws and that
screws are seated in the back of slots.
3. Orient projector with attached bracket so that front of
projector lines up with front of projector arm. (See Figure 13)
4. Lift projector so that screws with thumb nuts (V) in interface
bracket are aligned with mounting slots in projector arm
base. (See Figure 13)
5. Slide projector with interface bracket onto mounting slots in
projector arm base until screws are seated against the back
of mounting slots. (See Figure 13)
6. Turn thumb nuts until tight to secure projector to projector
arm. (See Figure 14)
7. Tighten the M5x35mm button head cap screw (H) on the
wall plate (E). (See Figure 14)
Figure 13
(A)
Interface
Front of
projector
Mounting
slots
Mounting
slots
34
5
bracket -
(not included)
Figure 14
7
(H) x 1
(A)
(E)
6
(V)

WP2XS, WP2XUS Installation Instructions
12
Adjustments
Distance from Wall / Screen Size (See Figure 15)
1. Loosen two Phillips screws (one on left, one on right).
2. Slide the RSA mount along the projector arm (A), as
required.
3. Tighten two Phillips screws.
Yaw Adjustment (See Figure 15)
4. Loosen yaw adjustment screw using a 5/32" hex key.
WARNING: Do NOT turn the RSA to the end of the pipe
threads. The projector, interface bracket and RSA will fall
from the pipe if it is unthreaded too far!
5. Adjust projector by turning the RSA on the pipe to the
desired position.
6. Tighten yaw adjustment locking screw using a 5/32" hex
key.
Pitch Adjustment (See Figure 15)
NOTE: Use a level to make this process easier.
7. Loosen two Phillips screws (one on right, one on left).
8. Tip up or down, as required.
9. Tighten two Phillips screws.
Roll Adjustment (See Figure 15)
NOTE: Use a level to make this process easier.
10. Loosen one Phillips screw.
11. Adjust horizontal tilt, as required.
12. Tighten one Phillips screw.
Figure 15
Projector Arm Height Adjustment
13. Loosen two Phillips screws (one on left, one on right) on
sides of projector arm plate. (See Figure 16)
14. Adjust the angle of the projector arm to counteract the
projector weight.
•Turn counterclockwise to lower projector arm angle.
• Turn clockwise to raise projector arm angle.
15. Tighten two Phillips screws (one on left, one on right) on
sides of projector arm plate. (See Figure 16)
Figure 16
Cable Management (Optional)
1. Route cables/cords from projector through opening on
projector arm and route to wall. (See Figure 17)
2. Guide cables/cords from wall end of projector arm
downward through slots in wall plate. (See Figure 17)
Figure 17
10 11 12
123
x 2
456
x 2
x 1
7 8 9
x 1
(SSBU and
(A)
(RSA
mount)
projector not shown)
13 15
14
OR
2
2
1
Cable management
covers
Cable
(examples)
OR

Installation Instructions WP2XS, WP2XUS
13

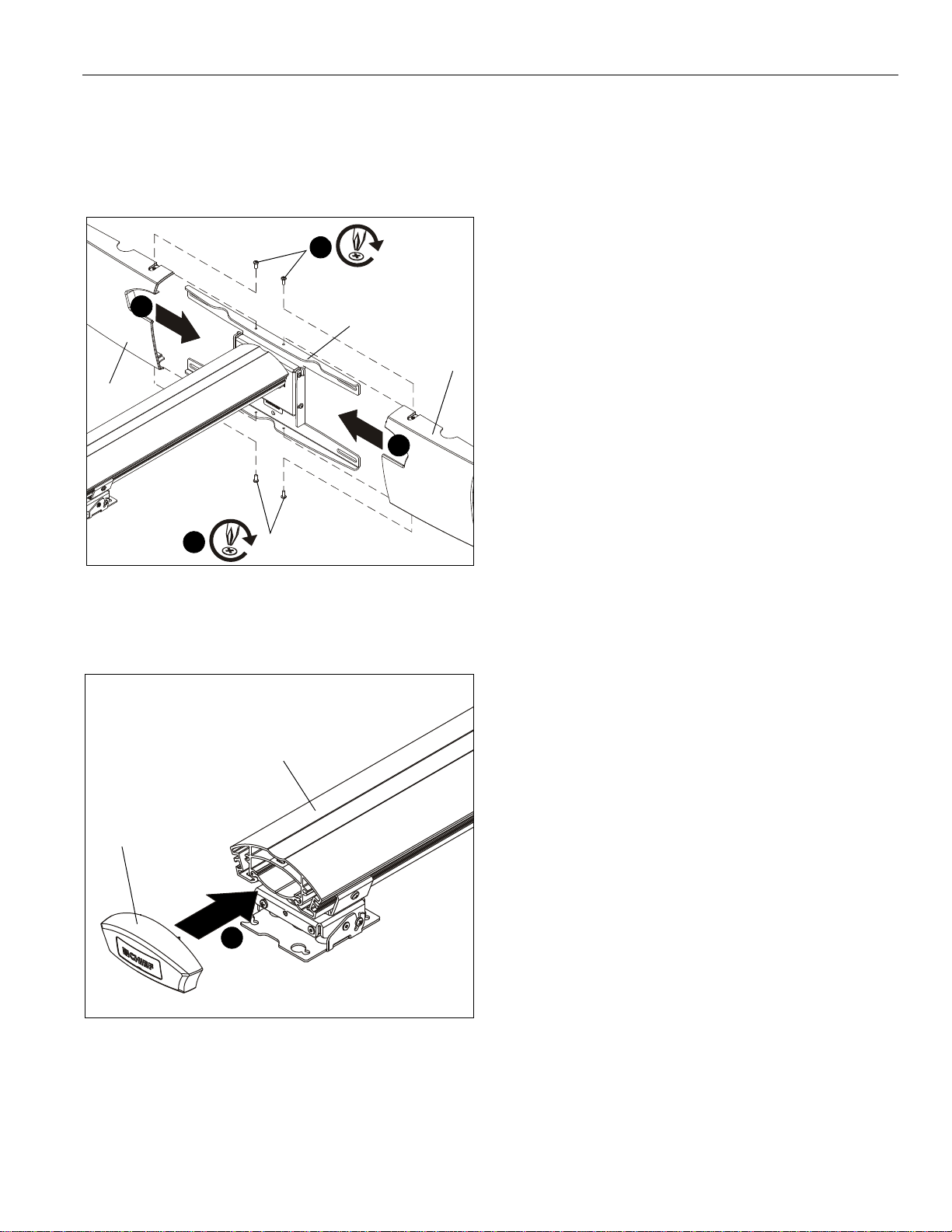

Add Covers
1. Add left and right wall plate covers (B and C) over wall plate
(E). (See Figure 18)
2. Fasten covers using four M5 x 12mm Phillips cap head
screws (J). (See Figure 18)
Figure 18
3. Add end cap (D) to end of short throw projector arm (A).
(See Figure 19)
Figure 19
2
(J) x 2
1
1
(B)
(C)
2
(J) x 2
(E)
(projector not shown)
(D)
(A)
3

WP2XS, WP2XUS Installation Instructions
14

Installation Instructions WP2XS, WP2XUS
15

WP2XS, WP2XUS Installation Instructions
USA/International A 6436 City West Parkway, Eden Prairie, MN 55344
P800.582.6480 / 952.225.6000
F877.894.6918 / 952.894.6918
Europe A Franklinstraat 14, 6003 DK Weert, Netherlands
P+31 (0) 495 580 852
F+31 (0) 495 580 845
Asia Pacific A Office No. 918 on 9/F, Shatin Galleria
18-24 Shan Mei Street
Fotan, Shatin, Hong Kong
P852 2145 4099
F852 2145 4477
Chief, a products division of
Milestone AV Technologies
8800-002102 Rev05
2016 Milestone AV Technologies
www.milestone.com
03/16
