Child Craft Soho F04026 User manual

1
AB20315A
Dressing Table
Foundations®Worldwide, Inc.
5216 Portside Dr, Medina OH 44256 USA • PH: 1 330.722.5033 • FAX: [phone]
www.childcraftbaby.com

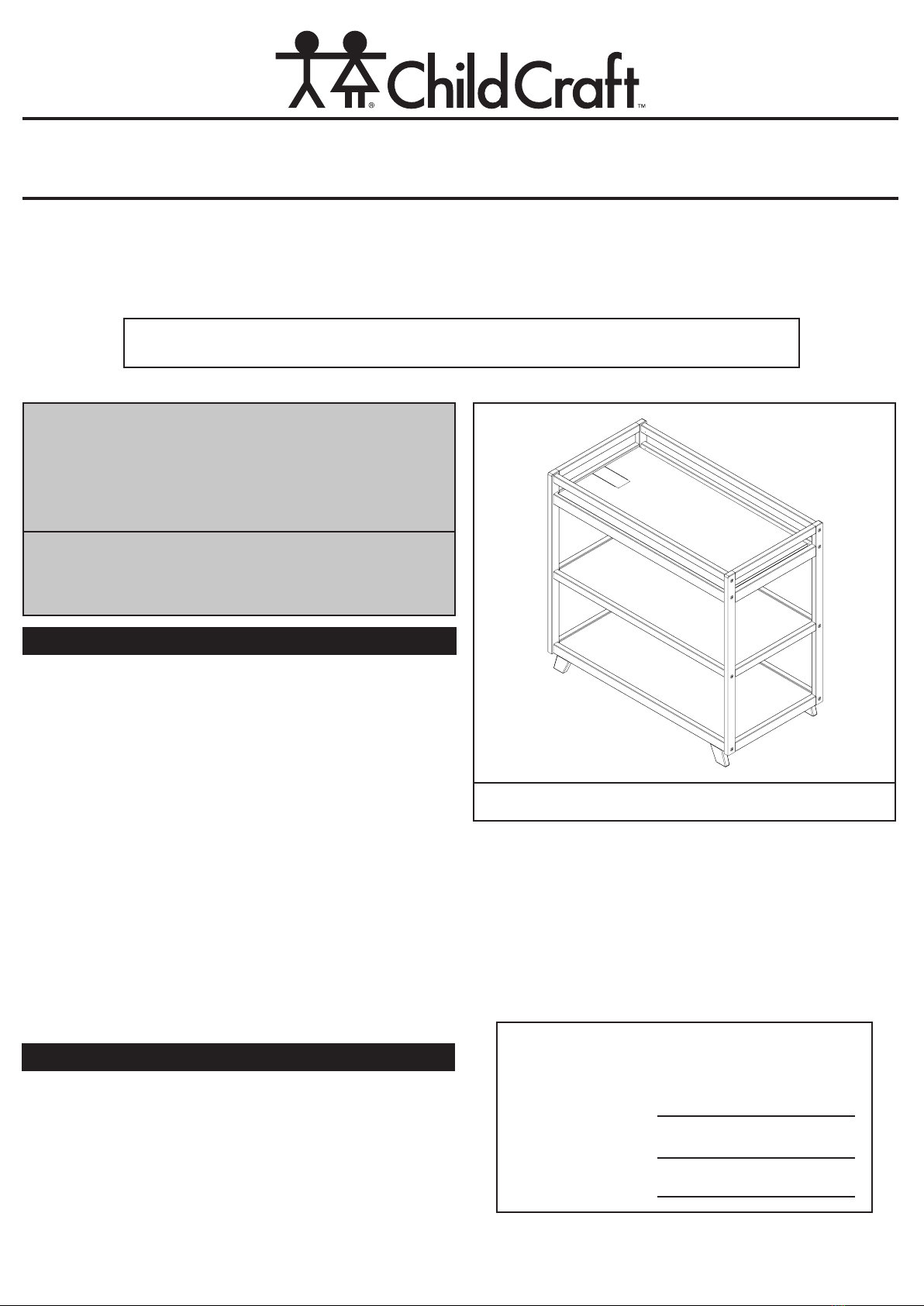

Soho™ Dressing Table
ASSEMBLY ASSISTANCE
IMPORTANT: retain for future reference read
carefully.
Foundations strives for the highest quality in our
products but occasionally a missing part or problem
can occur during assembly.
If any parts are missing or broken or you need
assistance with assembly, DO NOT return the
product to your dealer. Go to our website at
www.childcraftbaby.com or call Foundations
for assistance at 1-877-716-2757 (U.S. Only) or
1-330-722-5033 (Monday through Friday, 9:00
a.m.– 4:00 p.m. Eastern Time). Please have the
model number and manufacture date available
when you call or write us at:
Foundations, 5216 Portside Dr. Medina OH 44256
Read all instructions BEFORE assembly and USE of product.
KEEP INSTRUCTIONS FOR FUTURE USE .
FOR CUSTOMER SERVICE CALL
1-877-716-2757
(outside of U.S. 330-722-5033). DO NOT CALL
RETAILER OR RESELLER FOR SERVICE
AS THEY ARE NOT AUTHORIZED TO
RESOLVE ANY SERVICE ISSUES.
FOR WARRANTY AND FEDERAL SAFETY
STANDARD COMPLIANCE CERTIFICATES,
PLEASE VISIT OUR WEBSITE AT
www.childcraftbaby.com
Record the information for your product here:
Model number:
Manufacture date:
PO number:
Model Covered: F04026
• Adult assembly required.
• Read all instructions BEFORE assembly and USE
of product.
• Unpack carton, remove packing materials,
including poly bag. Identify and check all parts.
ASSEMBLY INSTRUCTIONS

2
A. End Assembly - Left
B. End Assembly - Right
C. Top Shelf
D. Lower Shelf
E. Dressing Pad
F. Base Rail
G. Middle Shelf Rail
H. Top Shelf Rail
I. Top Rail
J. Allen head Bolt 6mm x 35mm
K. Allen head Bolt 6mm x 20mm
L. Steel Pin
M. Nylon Washer
N. Hex Nut 6mm
P. Belt Sections
Q. Allen Wrench
R. Safety Bracket Kit
Hardware Package
AB20315_G3
J
P
Q
K
LN
R
M

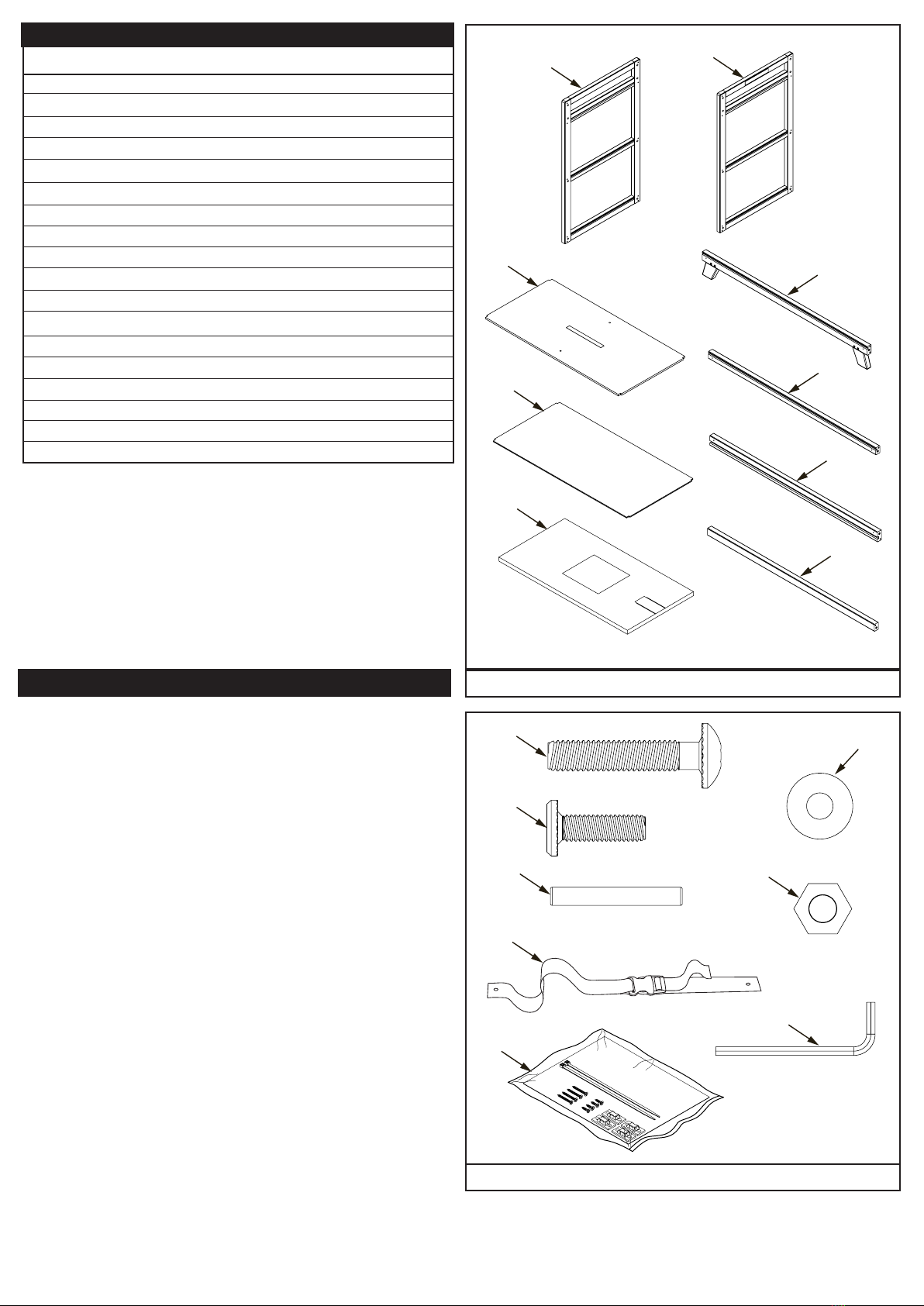

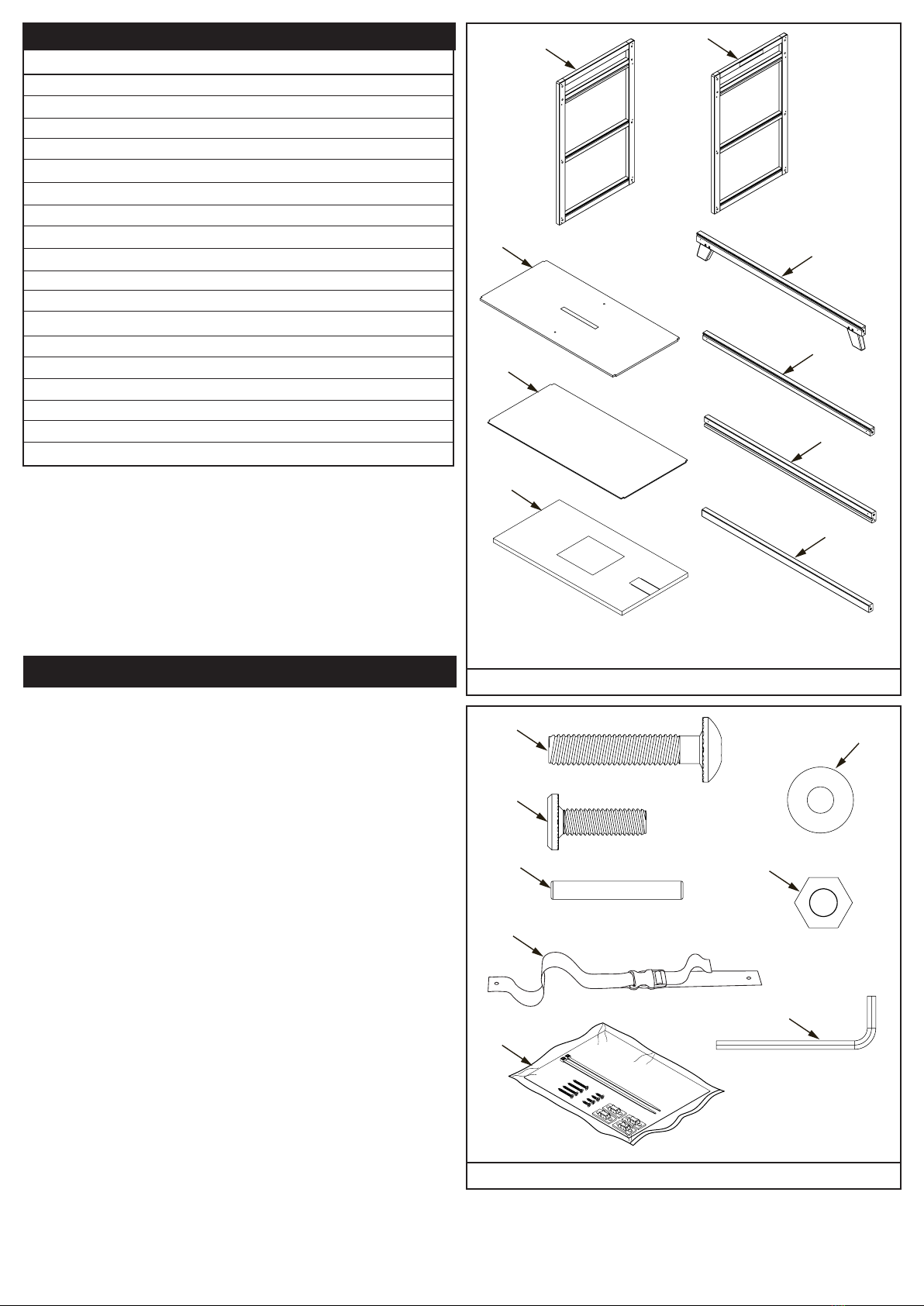

Dressing Table Parts
PARTS LIST
Part Description Part Number Quantity
1
1
1
2
1
2
2
2
2
16
2
20
2
2
1
1
1
PREPARATION
AB20315_G2
B
A
C
D
F
E
G
H
I
Carefully remove and lay out all hardware and parts.
Check quantities and match the parts list.
Construct Dressing Table on an even at oor.
Note: during the assembly process whenever
using screws or bolts, check each with the parts list
by letter and size identication. Place each screw
or bolt on the diagram of the item which is sketched
actual size. Be sure to use the proper size specied
in the assembly directions. If any parts are missing
or broken or you need assistance with assembly
DO NOT return your product to the dealer.
Please identify the dressing table by the model
number identication stamped on the inside face of
the assembly when you call or write to Foundations.
Make note of all identification numbers and include
this information with your request.
DO NOT Substitute Parts!
23100924
23100925
21100936
21100931
21100281
21100938
21100934
21100933
21100932
11201053
11201040
11201002
11300137
11201041
11100074
11200978
11201034

3

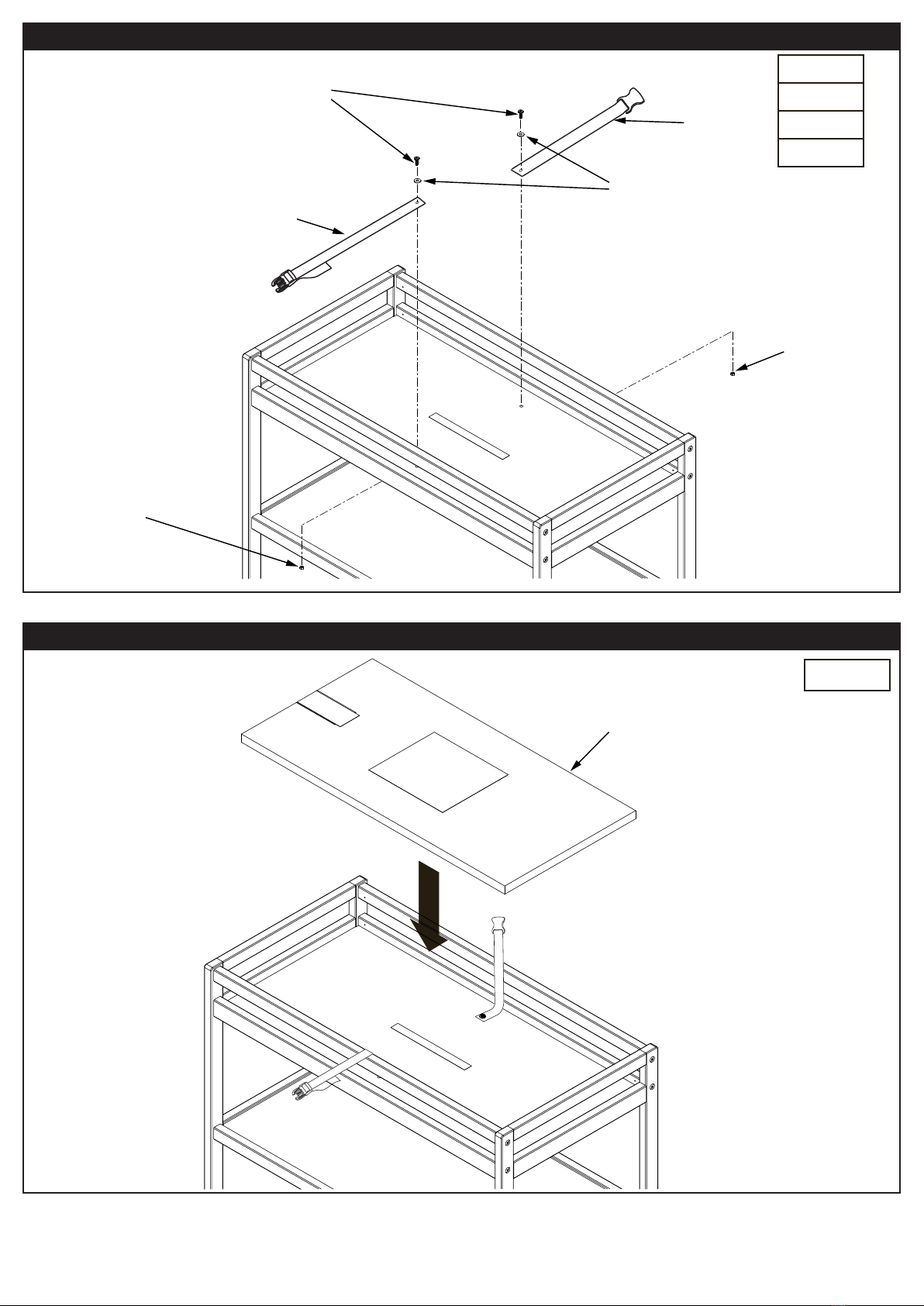

STEP 1
STEP 2
AB20315_G4
A
I
H
G
F
L x 5
J
J
J
H x 1
A x 1
I x 1
G x 1
F x 1
L x 5
J x 4
AB20315_G5
A
I
H
G
F
L x 5
J
J
J
H x 1
A x 1
I x 1
G x 1
F x 1
L x 5
J x 4

4

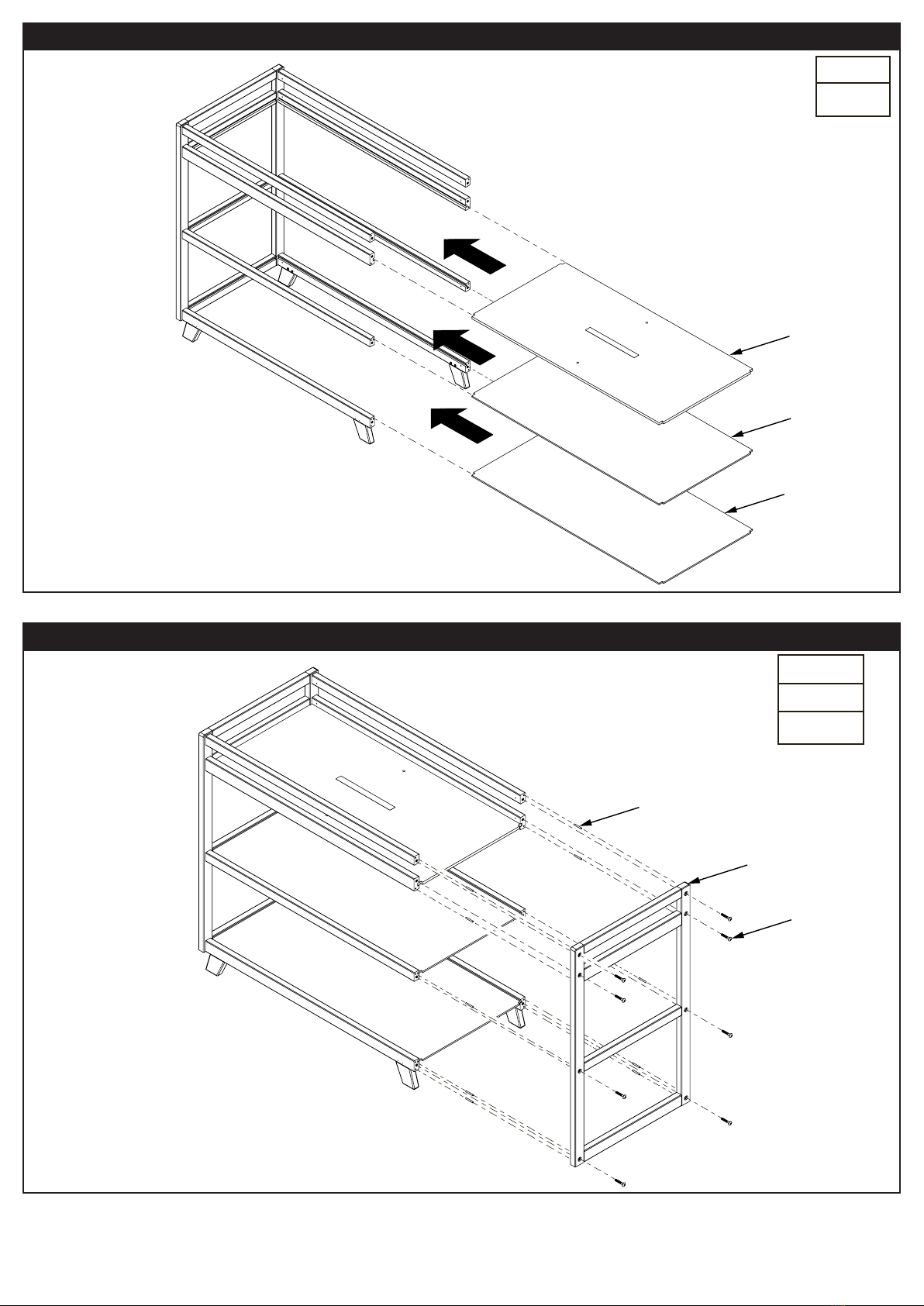

STEP 3
STEP 4
AB20315_G6
C
C x 1
D x 2
D
D
AB20315_G7
B
B x 1
J x 8
L x 10
J x 8
L x 10
