chinavasion CVADY-I544 User manual

Wireless kit
QUICK INSTALLATION GUIDE

Electrical safety
codes. We assume no liability or responsibility for any fires or electrical shock
caused by improper handling or installation.
Transportation security
transportation, storage and installation.
Installation
R before completing installation.
Qualified engineers needed
engineers. tions or
attempted repair.
Environment
The NVR should be installed in a cool, dry place away from direct sunlight and
inflammable or explosive substances, etc.
environments.
Accessories
included.
Lithium battery

1 Declaration
Please prevail in kind. The manual is for reference only.
This manual may contain inaccurate data or printing error.
The products described in this manual may be updated at any time.
Screenshots of the manual is not in a machine and only for display.
If in doubt, obtaining a copy of the latest procedure or the additional document,
please contact with the company's after-sales department.
2 Product Introduction
This series NVR is a high performance network video recorder, combined with
H.264 video compression, high-capacity hard disk storage, TCP / IP transmission,
embedded Linux operating system and a variety of other advanced technologies
in the electronic information industry, all those ensure that a high-quality, low bit
rate video storage characteristics, and good system stability.
2.1 Installation diagram
2.2 Antenna location
The signal coverage ofAntenna is similar to a round circle. Antenna located in

center of the round circle, signal of surrounding is much stronger, but much
weaker if antenna endpoints backoff direction. And in order to guarantee the
video quality, IPC antenna should try to keep in parallel or tangent with NVR
antenna.
2.3 Panel Description
3 Hard Disk Installation
Before you start:
Disconnect the power from the NVR before installing a hard disk drive (HDD). A
factory recommended HDD should be used for this installation.
Tools Required: Screwdriver.
Steps (for example):
Step 1: Remove the cover from the NVR by unfastening the screws on the rear
and side panel.
Step 2: Connect one end of the data cable to the motherboard of NVR and the
other end to the HDD.

Step 3: Connect the power cable to the HDD.
Step 4: Place the HDD on the bottom of the device and then fasten the screws on
the bottom to fix the HDD.
The form is for reference.Available time of HDD is based on access channels
and actual streams.
Test passed the full range of Western Digital, Seagate Sata HDD, recommend the
use ofAV-GP series Sata HDD.
Note: Please use the recommended HDD that is compatible with the NVR.
4 Basic Operations Guide
4.1 Power On
Install the NVR correctly (as above) and then connect the power. The NVR LED
should light up and the NVR will boot automatically.
If your hard drive is not properly connected, the following message will appear
on your screen.
.
4.2Power Off (Shutdown)
Right mouse click -[Exit System]-[Shutdown].

Note: Only change or attempt to reconnect the hard disk drive after shutting
down the NVR.
4.3 Restart
Right mouse click -[Exit System]-[Reboot].
4.4 Power recovery
Reboot after an outage or forceful shutdown, NVR will save the record before
outage and return to the normal operation mode.
4.5 Setup Wizard
Right mouse click - [Setup Wizard].
4.5.1 Help Information
[QR code]: From left to right: Android APP address, iPhone APP address, P2P
access address.

[Enable Boot Wizard]: If check, boot wizard after reboot.
[Next]: Enter the next configuration wizard.
[Cancel]: Quit the wizard .
4.5.2 Language and Region
[Time Zone]: Select the right Time Zone
[System Time]: Set the right Date and Time
[Sync Time]: Enable Sync Time to update the time when connecting to the
Internet
[Date Format]: Select the Date Format
[Language]: Select the language
[KeyPad Type]: Select the KeyPad Type
4.5.3 Fast Network
[Network Setup]: Two ways, Auto Config and Manual Config.
[Cloud(P2P)]: The code is used to add the device to the P2P account.

[Net Diagnose]: Diagnose whether the network is normal.
[Network Status]: Indicate whether the network is normal.

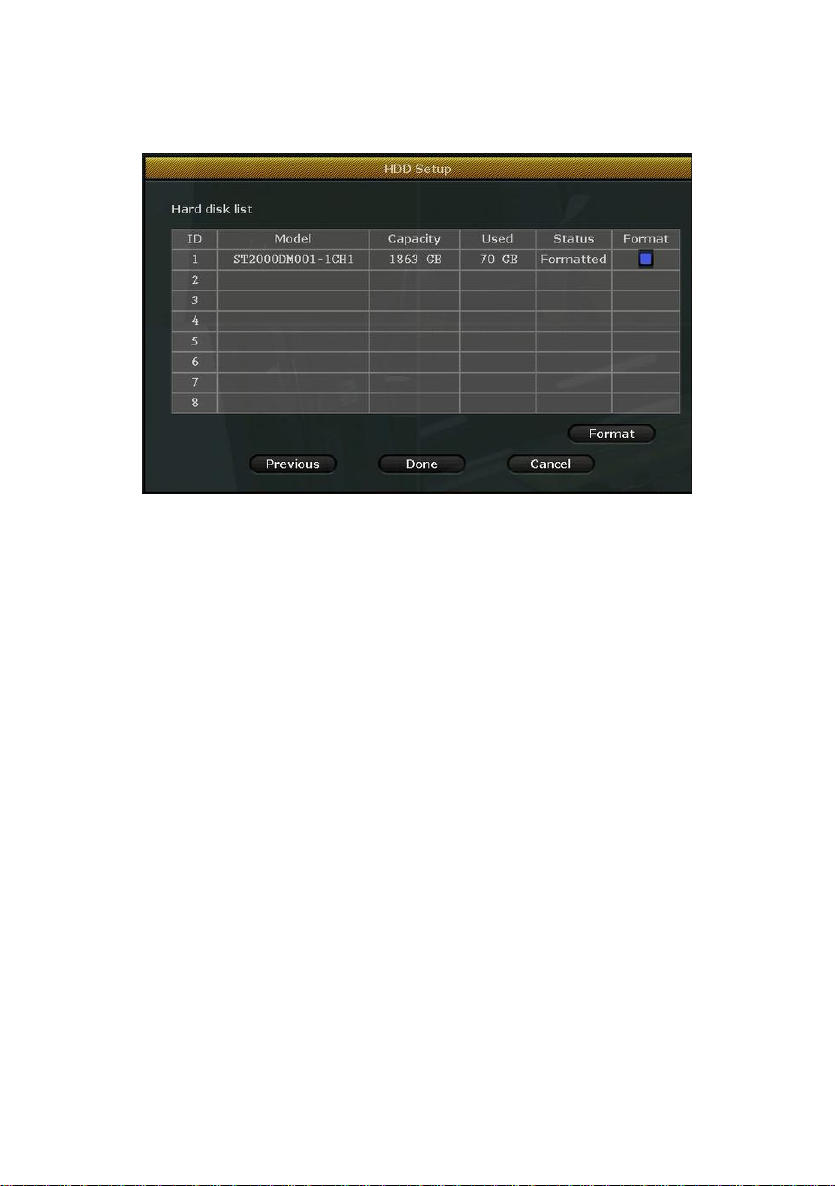

4.5.4 HDD Setup
[Format]: Format the disk.

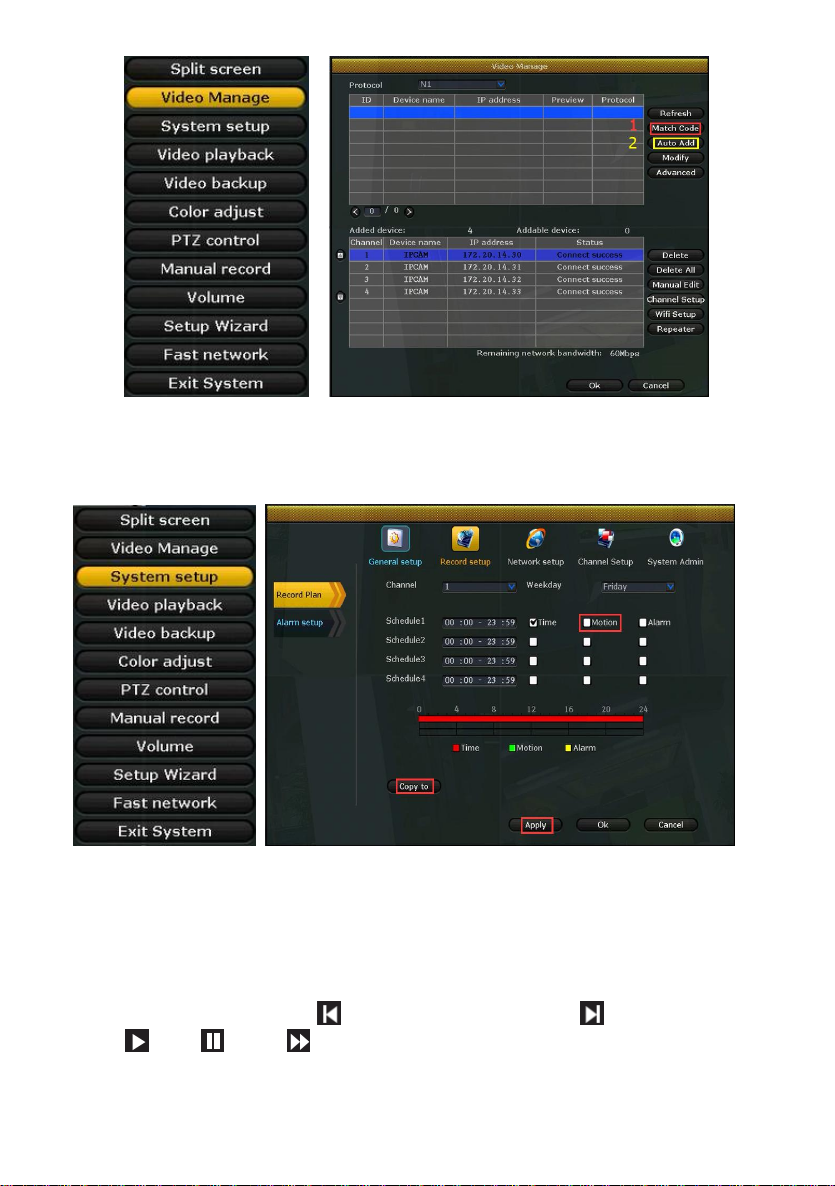

4.6 Add camera
Steps: Right mouse click - [Video Manage].
The cameras offered in the kit have been matched by factory. Power on the IP
cameras and NVR, the cameras will connect to the NVR automatically.
Match Code: If you need to add a new Wi-Fi camera. Firstly, take one network
cable and connect any NVR LAN port and power on the device. Make sure there
is still any channel can add one camera. Adding camera by click Match Code,
the camera transmits video images through wireless and NVR, IP is 17.20.14.X
AutoAdd(Two functions): (1)If you delete the matched camera without intention,
there is no need to Match Code again.Just clickAutoAdd, then the Wi-Fi
cameras deleted will connect to the NVR automatically. (2)If you need to add a
new IP camera with network cable. Firstly, take one network cable and connect
any NVR LAN port and power on the device. Make sure there is still any channel
can add one camera. Adding camera by clickAuto Add, the camera transmits
video images through the net cable and NVR, IP is 172.25.123.X

4.7 Video detection
Right mouse click - [System setup] - [Record setup] - Choose [Motion] - Click
[Copy to] - Click [Apply] to save setting.

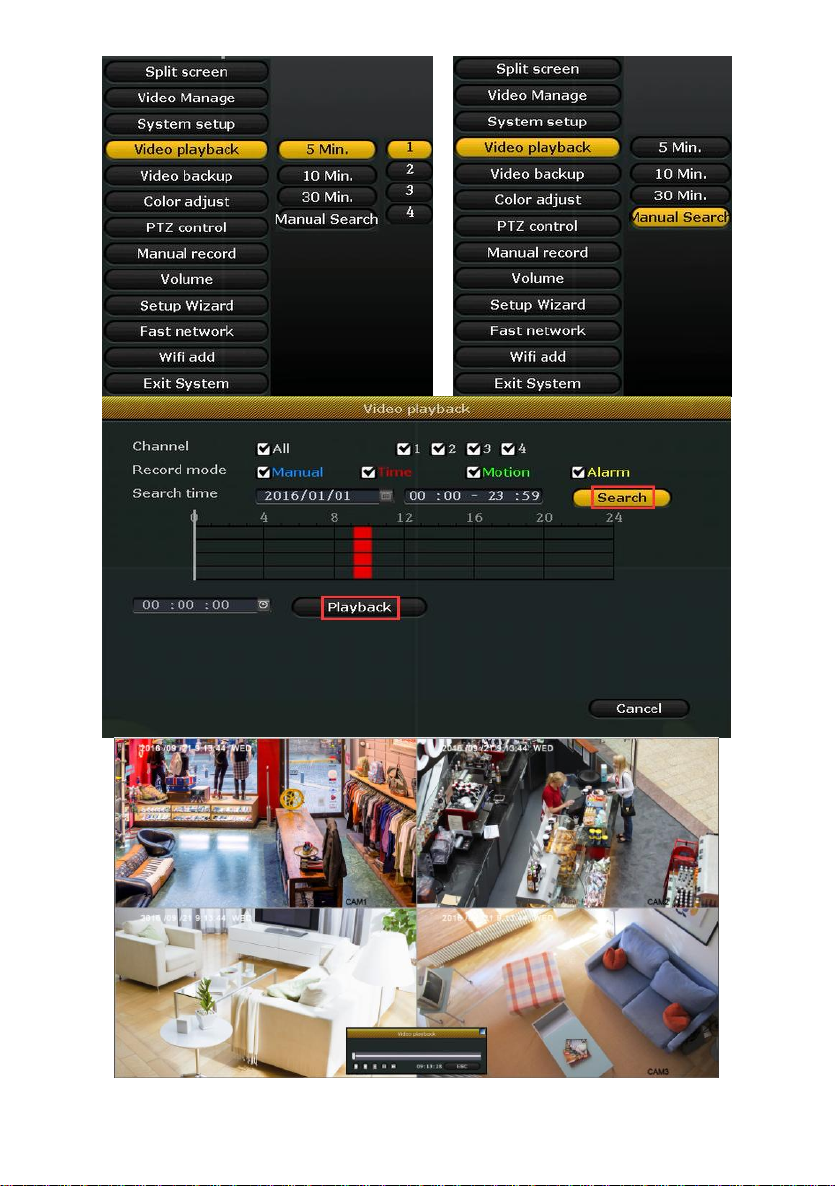

4.8 Video playback
Step: Right click mouse in main menu -Video playback
1: Choose playback time - Choose channel NO.
2: Choose [Manual Search] - Click search, recording will come out, drag time
bar - Click [Playback] to start.
Playback icon introduction: Playback 1 frame previous, Playback l frame
next, Play, Pause, Fast forward x2,x4,x8

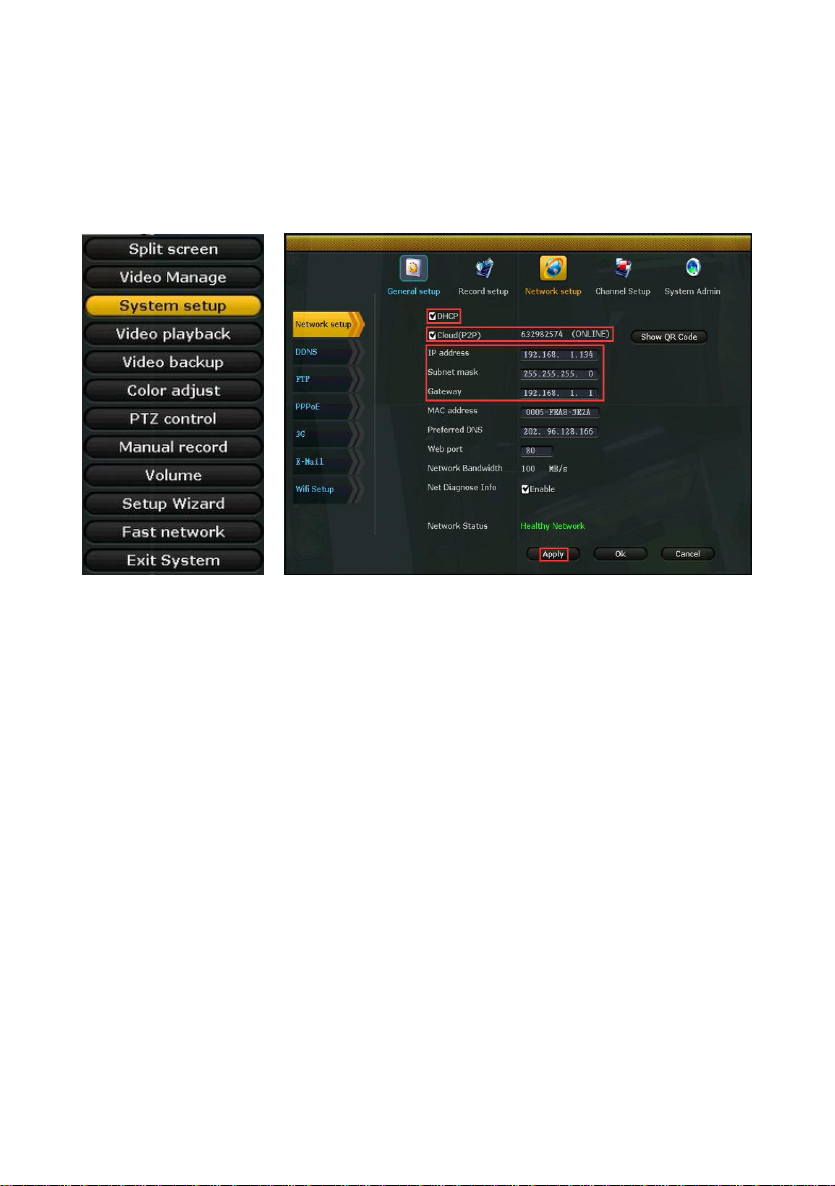

4.9 Generate IP-PRO ID
Precondition to generate IP-PRO ID is that make sure video recorder is
connected with network, and IP address is available right mouse click - [System
setup] - [Network setup]
If user is familiar with LAN, then no need to choose DHCP which help to get IP
address automatically. Manually input IP address and DNS address, video
recorder will generate ID by network, once generate, it will appear in menu.
5 WEB

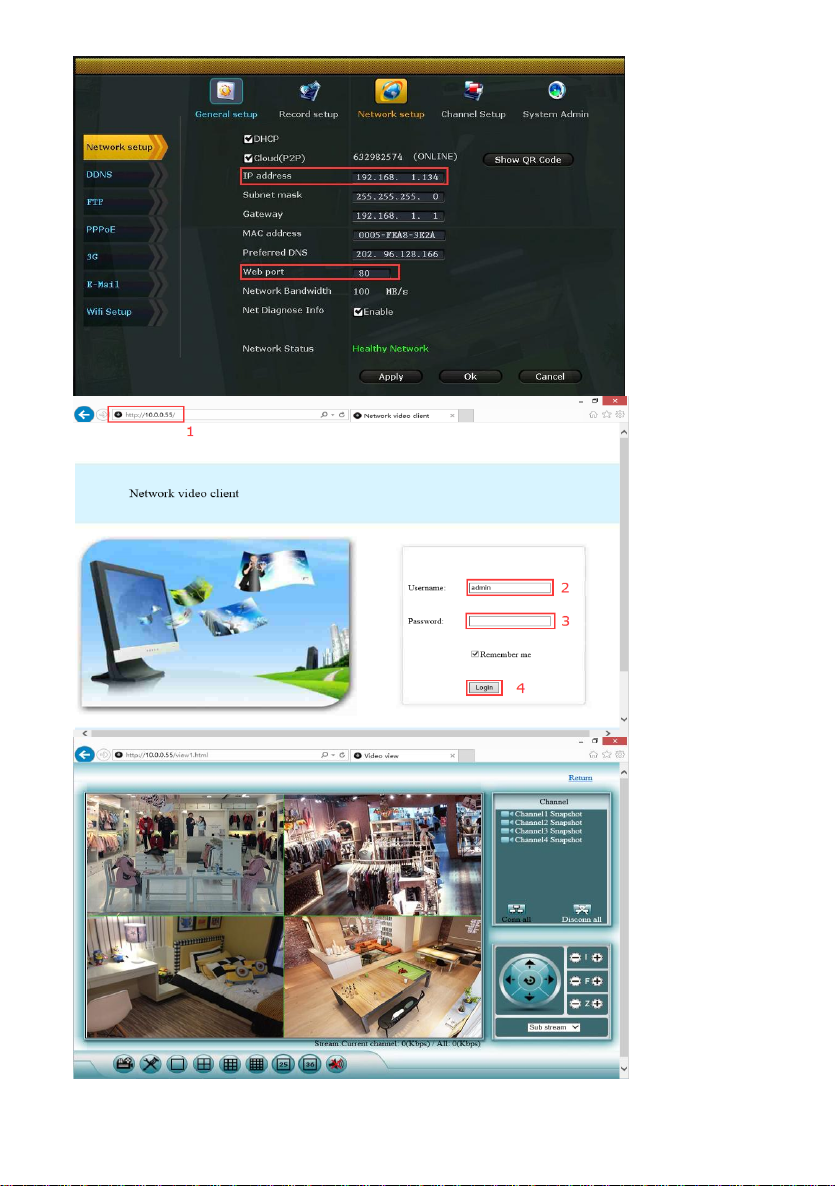

5.1 Access in LAN
Step 1: Right mouse click - [System setup] - [Network setup] - Check video
recorder IP address.
Step 2: Access by computer in same LAN, input video recorder IP address and
port( If port is 80, no need to input)in IE browser or any other browser. Then it
will access LAN log in web page, input user name and password, click log in .
Step 3: Once access successfully, can get video.
Tips: Please make sure video recorder and computer in same network .

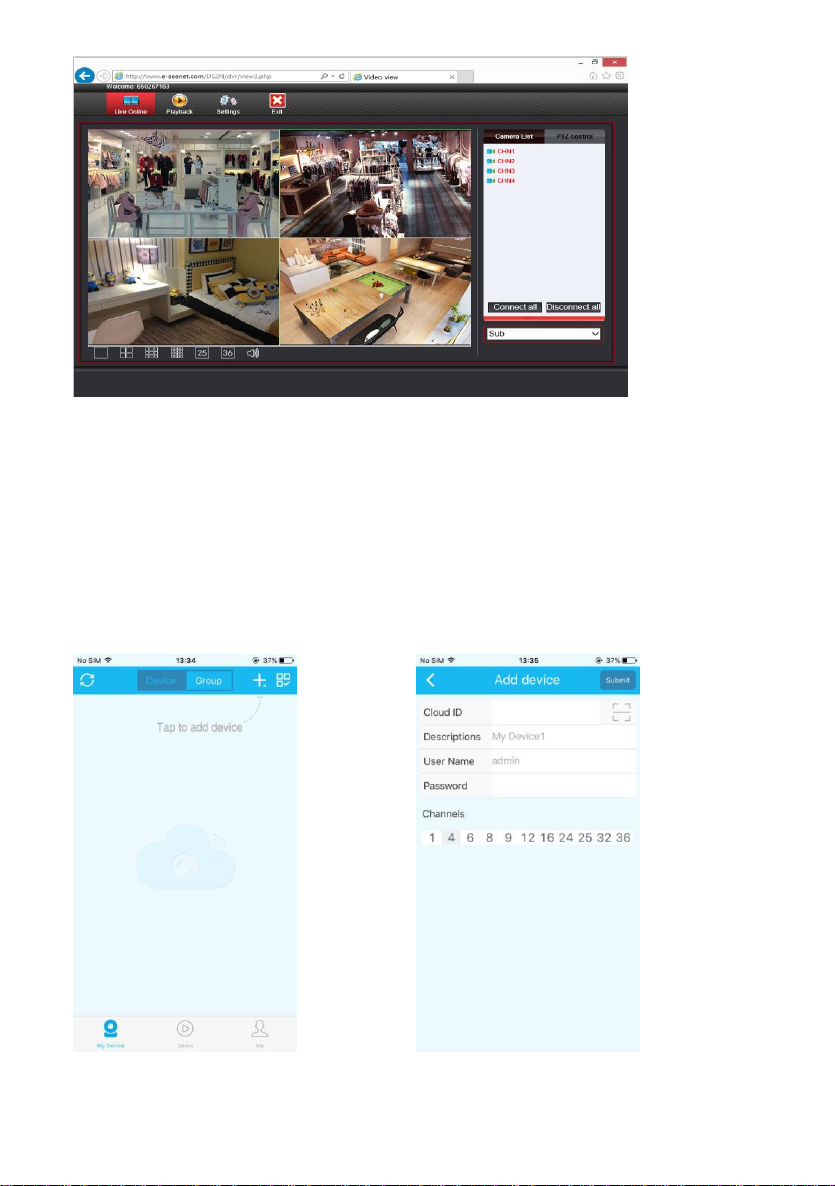

5.2 Access in WAN
Step 1: Right mouse click - [System setup] - [Network setup] - Check
Cloud(P2P) ID .
Step 2: Access by computer in WAN, input www.e-seenet.com in IE browser or
any other browser. Then it will access log in web page, input ID, user name and
password, click log in .
Step 3: Once access successfully, can get video recorder side upload and
computer side download speed, each channel need above 30KB

6 Mobile Client Access
a. Search "IP-PRO" in Google Play Store or APP Store, or scan the "Android
client link/IOS client link"QR Code on the Setup Wizard
b. Download and Install the "IP-PRO"
c. Open theAPP and add the device (shown as below)
Step 1: Tap "+" to add new device
Step 2: Tap to scan the QR code or enter the Device ID in setup wizard
Step 3: Scan the QR Code in Setup Wizard
Step 4: Live View
