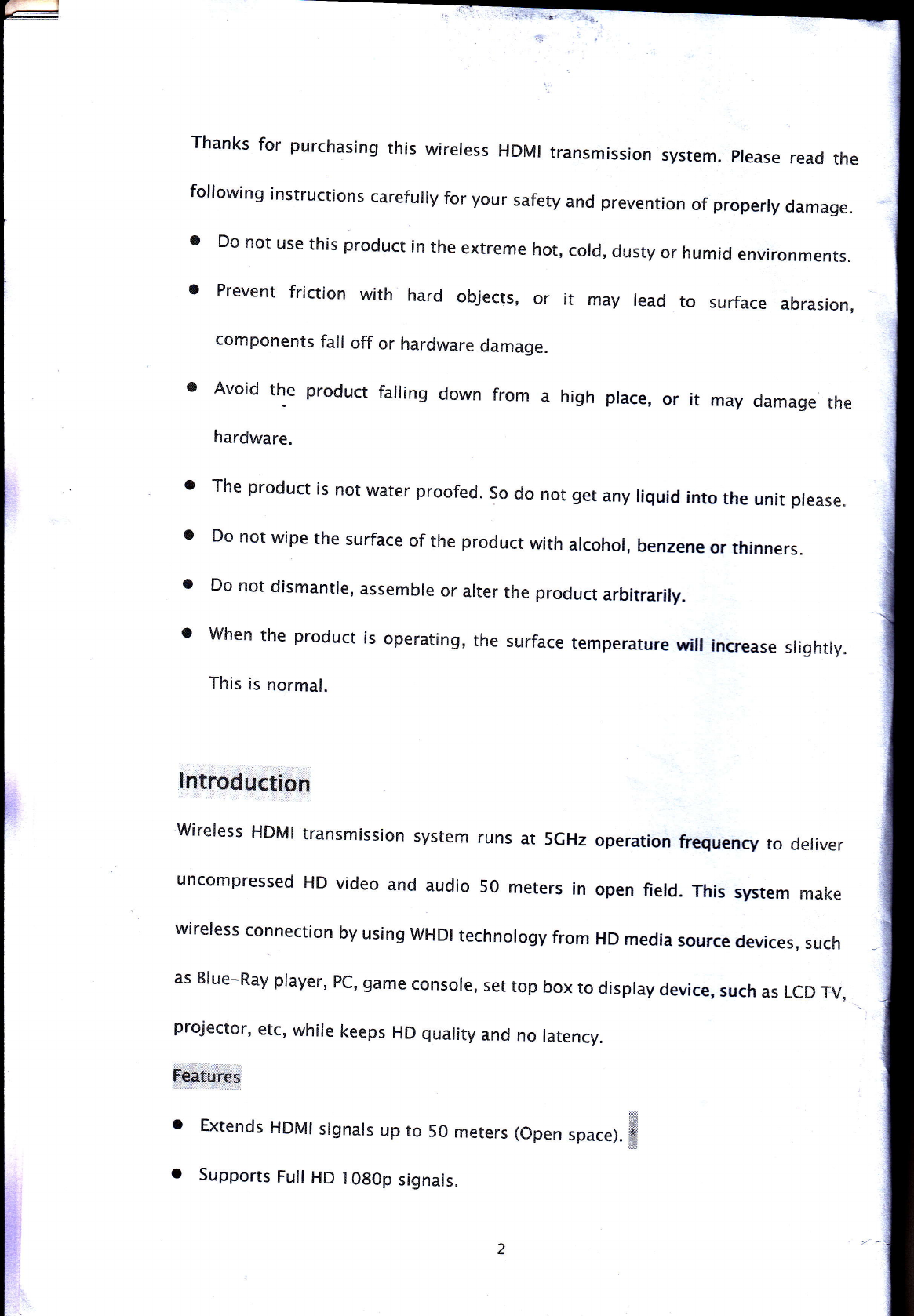

Thanks for purchasing this wireless HDMI transmission system. please read the
following instructions carefu!ly for your safety and prevention of properly damage.
' Do not use this product in the extreme hot, cold, dusty or humid environments.
o Prevent friction with hard objects, or it may lead to surface abrasion,
components fali off or hardware damage.
o Avoid the product failing down from a high prace, or it may damage the
hardware.
The product is nor water proofed. so do not get any liquid into the unit prease.
Do not wipe the surface of the product with alcohol, benzene or thinners.
Do not dismantre, assembre or arter the product arbitrariry.
o when the product is operating, the surf,ace temperature wiil increase slightly.
This is normal.
lrttr*dnctibn
wireless HDMI transmission system runs at 5GHz operation frequency to deliver
uncompressed HD video and audio 50 meters in open field. This system make
wireless connection by using wHDl technology from HD media source devices, such
as Blue-Ray player, PC, ganre console, set top box to display device, such as LCD TV,
projector, etc, while keeps HD quality and no latency.
r*=a**ie*
o Extends HDMI signals up to 50 meters (Open ,p"..). #
tA
o Supports Full HD 10g0p signals.

lin
o Real-time uncompressed audio is embedded within output stream.
o Suitable for use with home cinema and computer equipments.
o lnternal or extends lR and CEC signals for remote control of AV equipments.
o Connect to PC/player/game box with HDMI port conveniently.
o Supporting the point-point transmission function currently which can be
expanded to the multi-point to point transmission function.
S Actual distances will depend entirely on the construction of building and any walls
or floors that are situated between the transrnitter and receiver units.
Packing list
1 X Wireless HDMI transmitter
(rx)
I X Wireless HDMI receiver (RX)
I X Remote controller
2 X DC 5V power adapters for
D(/RX
t X lR extension cable
2 X USB cable
2 X HDMI cables
2 X Dock base
I X User manual
I
I
ri

L
F d*et,o:lrervi*w
l-]-_- n665 gsss
ir
1**i. I
i0 {(uclv I
] "l*:.J xfl,ll-1 I
Wireless Hp$41 Transrnitter Urnit

i
i
,,
I
i.
I
I
l
I
!
I
I
!
I
!
I
Ltnk I Etl
Videc LED t-ffiu*dj-
lffi ce lc:v i
lg6;;;rnrnr i
t-rLra*niflrA '
ii

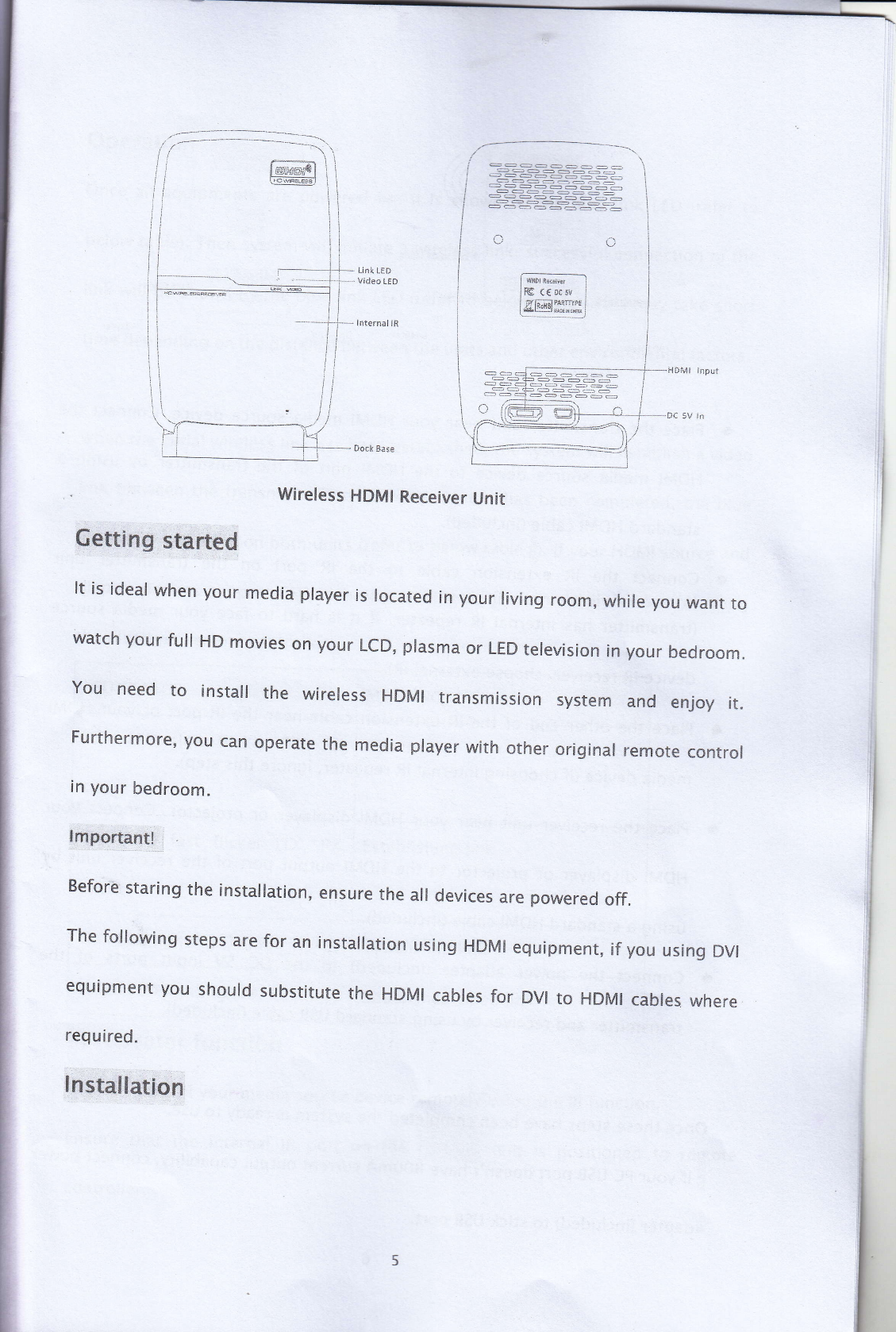

. Wireless HDMI Receiver Unit
Getting started
It is ideal when your media player is located in your living room, while you want to
watch your full HD movies on your LCD, plasma or LED tetevision in your bedroom.
You need to instail the wireress HDMr transrnission system and enjoy it.
Furthermore, you can operate the media player with other original remote control
in your bedroom.
lmportantl
BeforE staring the instailation, ensure the all devices are powered off.
The following steps are for an installation using HDMi equipment, if you using DVI
equipment you should substitute the HDMI cables for DVI to HDMI cables where
required.
:a: ::':.:-: .:.:r
ffietafialiod

I lR Extens:on Cable .
il \J
i Adapter
: -,--
ii
:

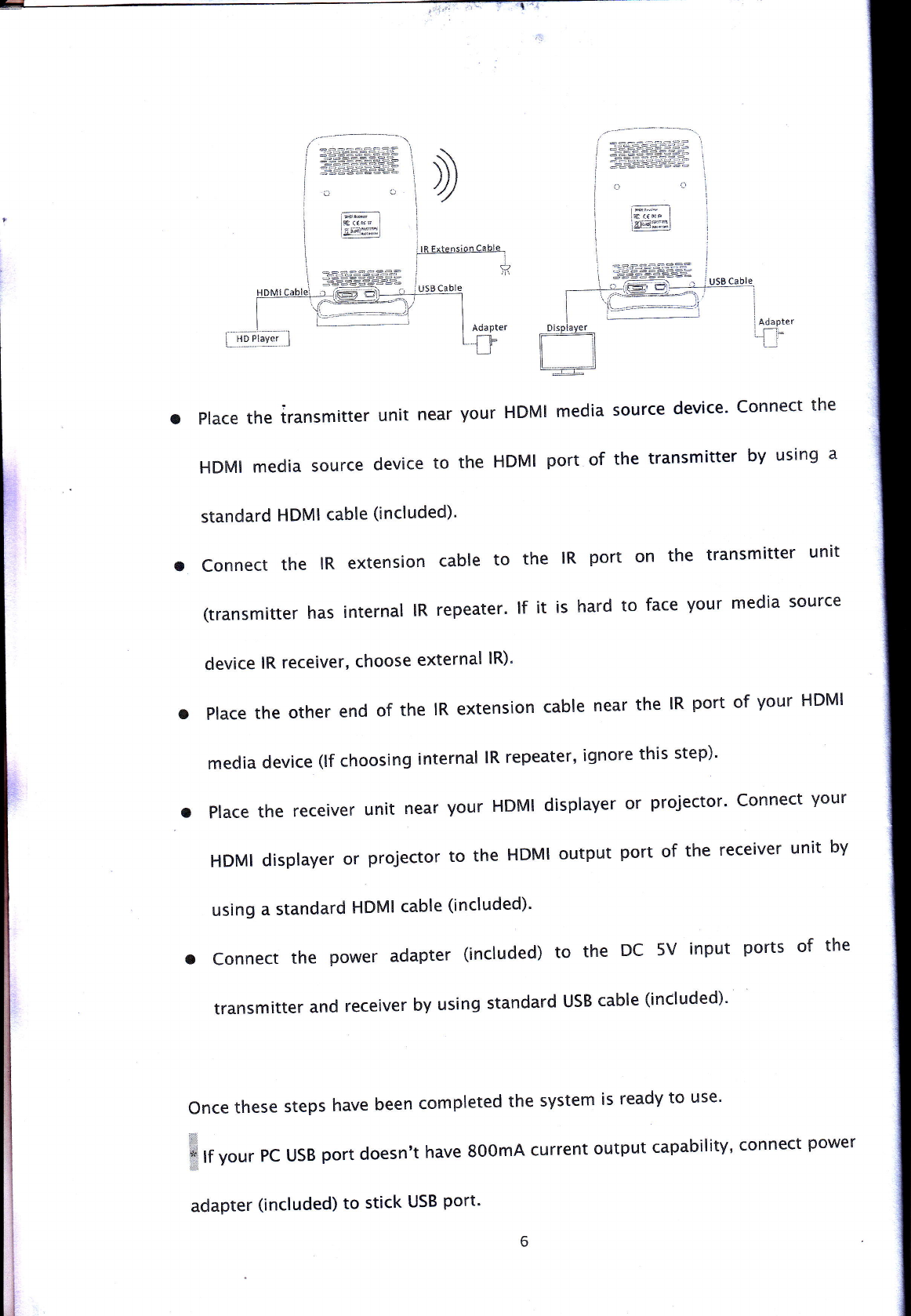

Place the transmitter unit near your HDMI media source device' Connect the
HDMi media source device to the HDMI port of the transmitter by using a
standard HDMI cable (included)'
Connect the lR extension cable to the lR port on the transmitter unit
(transmitter has internal lR repeater. lf it is hard to face your media source
device lR receiver, choose external lR)'
. Piace the other end of the lR extension cable near the lR port of your HDMI
media device (lf choosinE internal lR repeater' ignore this step)'
place the receiver unit near your HDMI displayer or projector. Connect your
HDMI displayer or projector to the HDMI output port of the receiver unit by
using a standard HDMI cable (included)'
Connect the power adapter (included) to the DC 5V input ports of the
transmitter and receiver by using standard usB cable (included)'
oncethesestepshavebeencompletedthesystenrisreadytouse.
$ lt yo* pC USB port doesn't have 800mA current output capability' connect power
adapter (included) to stick USB port'
I
D

I
i
t
t
E
t.
I
I
t
B - -iaa

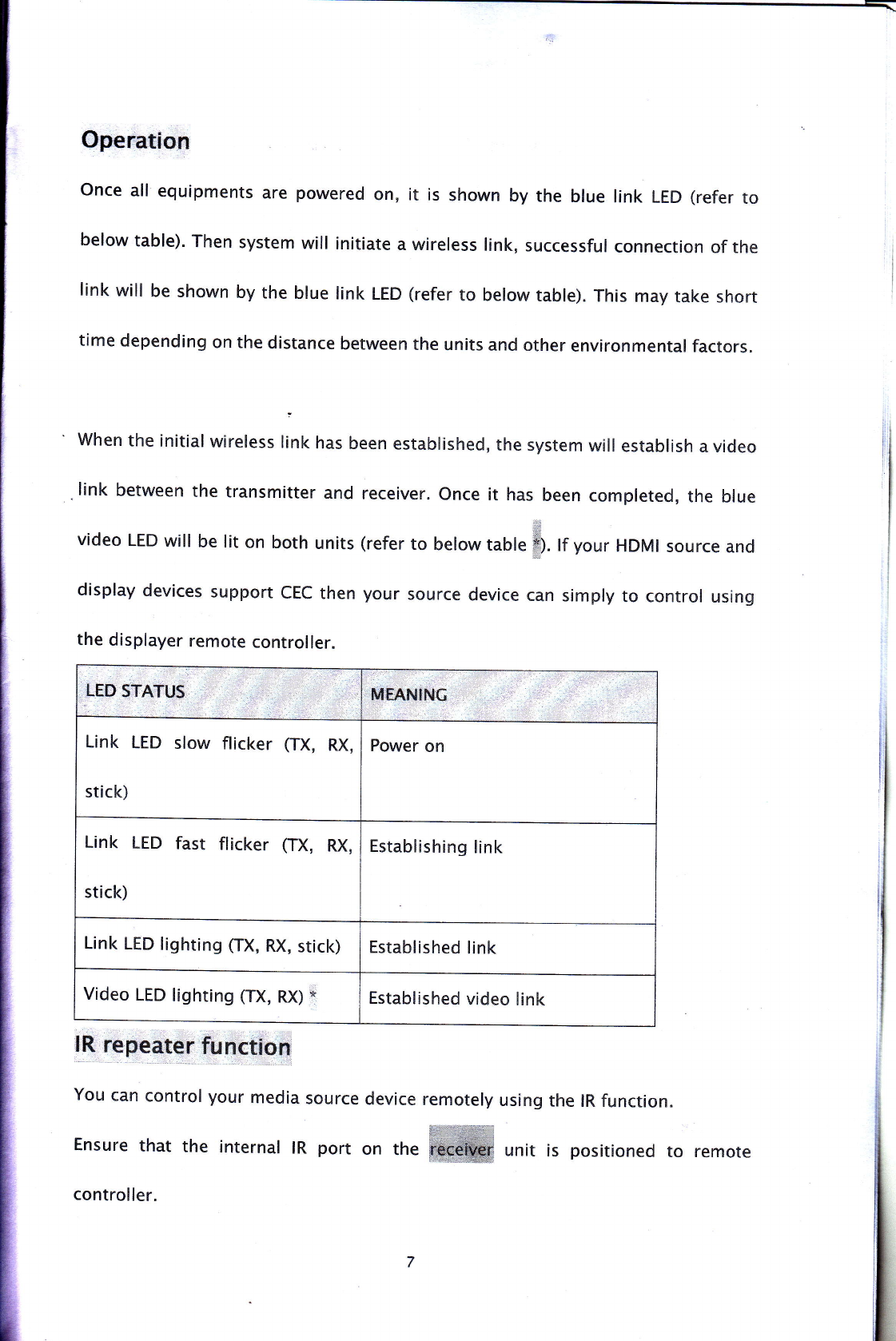

Once all equipments are powered on, it is shown by the blue link LED (refer to
below table). Then system will initiate a wireless link, successful connection of the
link will be shown by the blue link LED (refer to below table). This may take short
time depending on the distance between the units and other environmental factors.
:
When the initial wireless link has been establlshed, the system will establish a video
. link between the transmitter and receiver. Once it has been completed, the biue
video LED will be lit on both units (refer to below taUte 6. lf your HDMI source and
display devices support CEC then your source device can simply to control using
the displayer remote controller.
LEF S.T,ATUS l,&fffiN}.fitfr
Link LED slow flicker (TX, RX,
stick)
Power on
Link LED fast flicker (TX, M,
stick)
Establishing link
Link LED lighting (TX, RX, stick) Established link
Video LED lighting (TX, RX) tEstablished video link
I re piater : f*n cti*,B
You can control your media source device remotely using
Ensure that the internal IR port on the
controller.
the lR function.
l
is positioned to remote
unit

1. position the internal lR port of transmitter near the lR port of your media source
device.
2. lf internal lR port of transmitter is hard to face your media source device'
connect the supplied external lR repeater cable to the external lR input on the
transmitter unit.
You can contrpl your source device from the display side, using the source remote
controller.
@
@)
INPUT DEVICES
oos
{^ufrDr'$
CAUTION: RemoYe the
fiist fime.
nem*ta**mr' ler oPera'tio
Registration
Enter to setup mode
Exit setup mode
Wireless transmitter source
Searching and adding a new
wireless transmitter
Delete a wireless transmitter
Confirm keY
Change to source 1 2 3
paperft"om, hatterY *rn please u*hen"l'CIl3'u5e contraller

{
r
I
Use enclosed remote controller to search and add a new transmitter to delete
transmitter. use your remote controller point to transmitter.
Use enclosed remote controller to search and add a new transmitter to delete
transmitter. Use your remote controller point to transmitter.
Press the remote control MENU button, HDMI displayer shows
$etup !
*> Add new Video $*uree
-Il- Remoue Vidsa S*xrce
-*r" Modif1, Videc Scur*e lrlame
-f* Status
Wireless HDM! receiver unit (RX) rnenu
You can choose "Modifo Video Source Name" to change existing transmitter's name
with O€+O buttons.
*dd *, eti,trasi'dt r
l. Press ADD button of the remote controller facing reie.iver, displayer shows
Please Activate Hegistr*tlon *n Tr*nsmitt*r Unit

1.
:
r.'s
Press and hold REG
LED fast flicker.
Displayer shows
button of the remote controller facing *::::::::*a.ng{fl+,tt'e r u n t i I I i n k
Addi*g TX
pr*ssbK io tontinue *r Hxit t* cancsl
Then press OK button of remote controller facing recg$"
$ "r*" means the name of your transmitter. lt might be different in your device'
2. lf show
Q Connected to TX
the link is successful.
Select a wireless transmitter
Press the remote control souRCE button facing receiver, displayer shows
'i;.!z
t:..:::
IO

:
Use o o buttons to select a transmitter facing receiver, and then press the oK
button"
BC et '
Press the remote control #f*ff.* button, HDMI displayer shows,
$elect Mdeo Source
.b TXT
*}.. TX2
->* TX3
.*- Stahr$
ffi setup
*hoose $ource to Renlsve
*F TXT
->- TXg
-ll- T{3

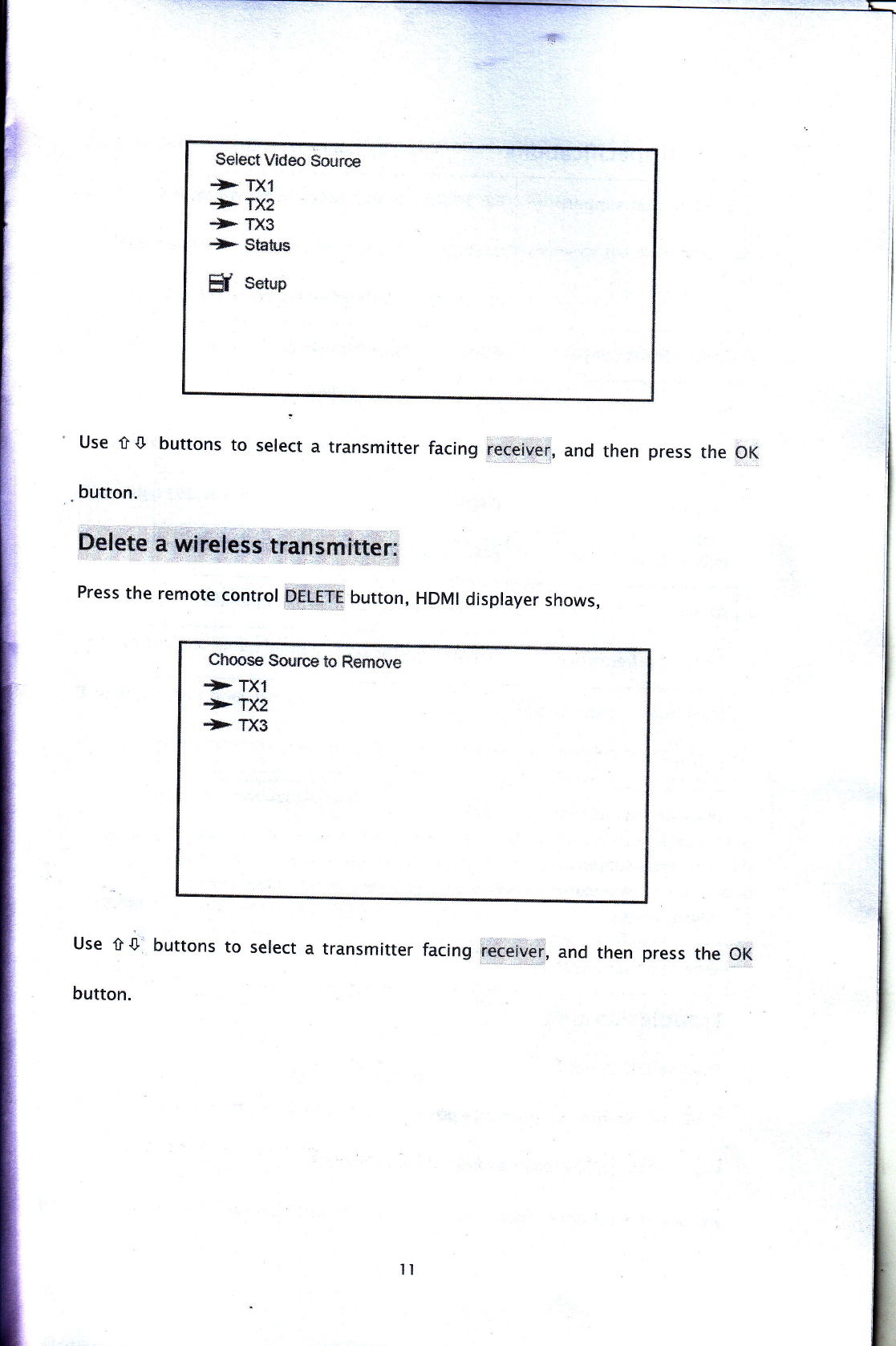

Use o O buttons to select a transmitter facing receiver, and then press the OK
button.
II

Ceneral sFecifieafions
TV: 1 080P, I O80i' 7?OP' 576P' 480P uP
to 60Hz
PC: up to 1920x108OPixles up to 60Flz
Video format suPport
PCM, DTS, DOLBY DIGITA!-
Audio format support
RF
sli stem
communication
Modulation
Less than l rns
lmaEe delaY
High performance internal antennas
Operation frequencY
Maximum transmission
power
lR carrier modulation
frequencY suPPort
AC inPut 100-240V' DC outPut 5V
Power suPPlY
Operation temPerature
5.1GHz to 5.gGHz
Trsub[e;hooting
The link LED is not lit
Check power supply' or change positions of transmitter and receiver'
Can't establish link when adding a new transmitter
Reduce the distance (more than 1 meter at least) between the transmitter
IZ

i.
I
,
i
t
F
r
i
i.
r
t
r
E
r
E
E
t
t
t
E
t
t
L
!
*
l
t
t
F
!
I
r
E
B
t
l
t
I
t
receiver units and then reconnect adapters.
can't establish Iink when connecting a existing transmitter
l ' Reduce the distance (at teast more than I meter) between the transmitter and
receiver units and then reconnect adapters.
2' lf it is not workable after step l, press REG button of remote controller facing
transmitter (don,t hold R.EG button).
3' lf it is not workable after step I and step 2, delete the source and re-add it.

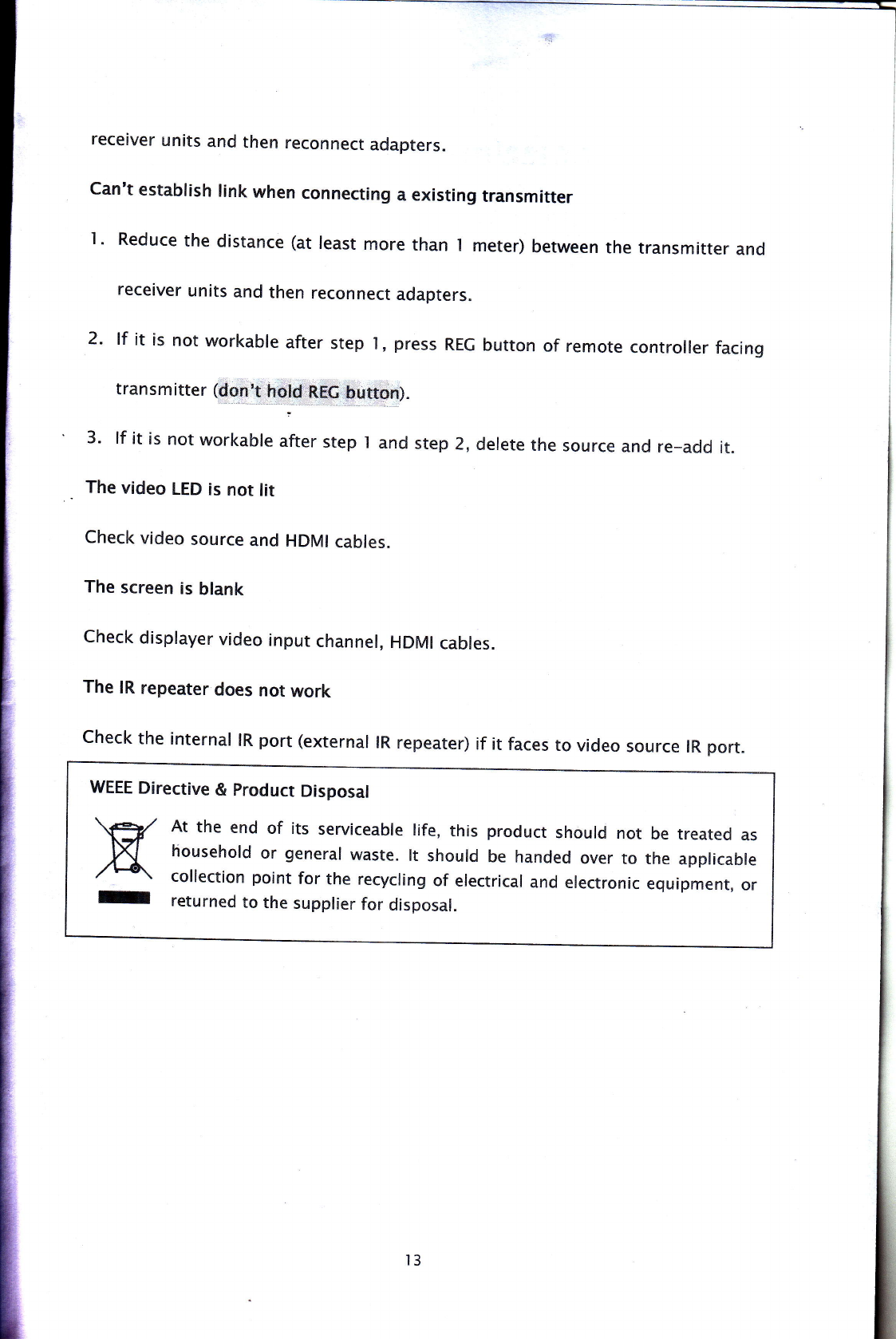

The video LED is not lit
Check video source and HDMI cables.
The screen is blank
Check displayer video input channel, HDMI cables.
The lR repeater does not work
Check the internal lR port (external lR repeater) if it faces to video source lR port.
WEEE Directive & product Disposal
