Chinavision CVXP-G436 User manual

SETTING .',.'...''',."., 8
PICTURE BROWSING AND E BOOK ..,.,....,.."..... 16

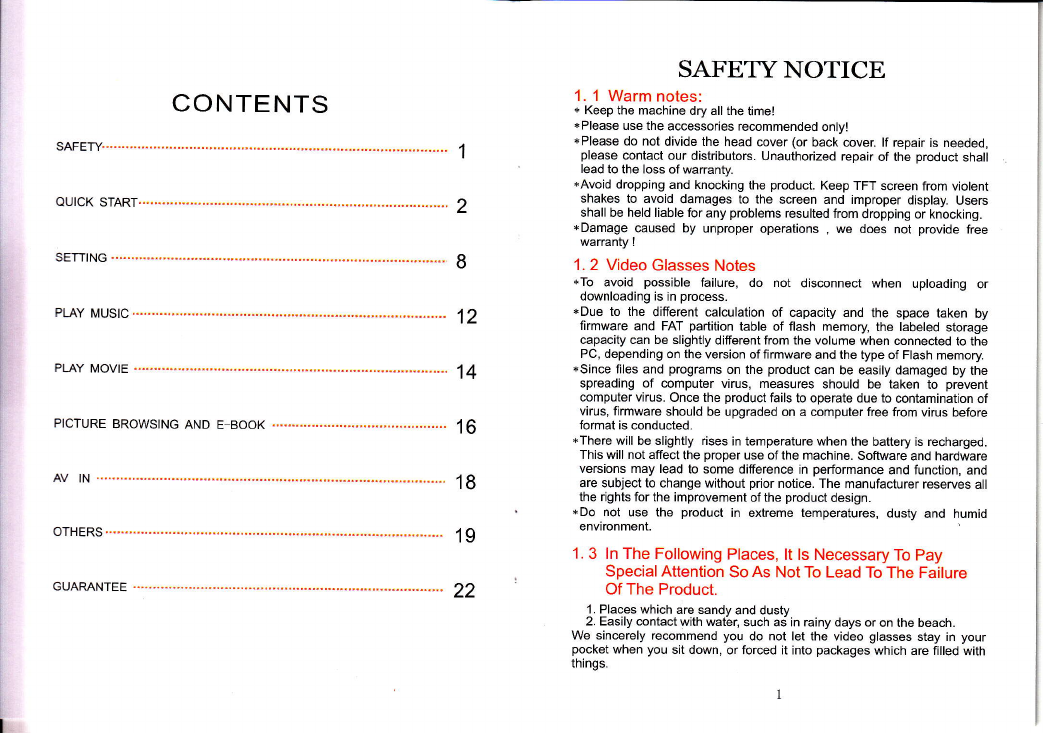

SAFETY NOTICE
1. 1 Warm notes:
* Keep the machine dry all the time!
*Please use the accessories recommended only!
*Please do not divide the head cover (or back coveL lf repair is needed,
please conlact our distributors. Unauthorized repair of the product shall
lead to the loss of warranty.
*Avoid dropping and knocking the product. Keep TFT screen from violent
shakes to avoid damages to the screen and improper display_ Users
shall be held liable for any problems resulted from dropping or knocking.
*Damage caused by unproper operations , we does nol provide free
warranty I
1. 2 Video Glasses Notes
*To avoid possible failure, do not disconnect when uploading or
downloading is in process.
*Due to the different calculation of capacity and the space taken by
firmware and FAT partition table of flash memory the labeled storage
capacity can be slightly different from the volume when connected to the
PC, depending on the version of firmware and lhe type of Flash memory.
*Since files and programs on the product can be easily damaged by the
spreading of computer virus, measures should be taken to prevent
computer virus. Once the product fails to operate due to contamination of
virus, firmware should be upgraded on a computer free from virus before
formal is conducted.
*There will be slightly rises in temperature when the battery is recharged.
This will not affect the proper use of the machine. Software and hardware
versions may lead to some difference in performance and function, and
are subject to change without prior notice. The manufacturer reserves all
the rights for the improvement of the product design.
*Do not use the product in extreme temperatures, dusty and humid
environment.
1. 3 ln The Following Places, lt ls Necessary To Pay
Special Attention So As Not To Lead To The Failure
Of The Product.
1. Places which are sandv and dustv
2. Easily contact with watar, such ad in rainy days or on the beach.
We sincerely recommend you do not let the video glasses stay in your
pocket when you sit down, or forced it into packages which are filled with
things.

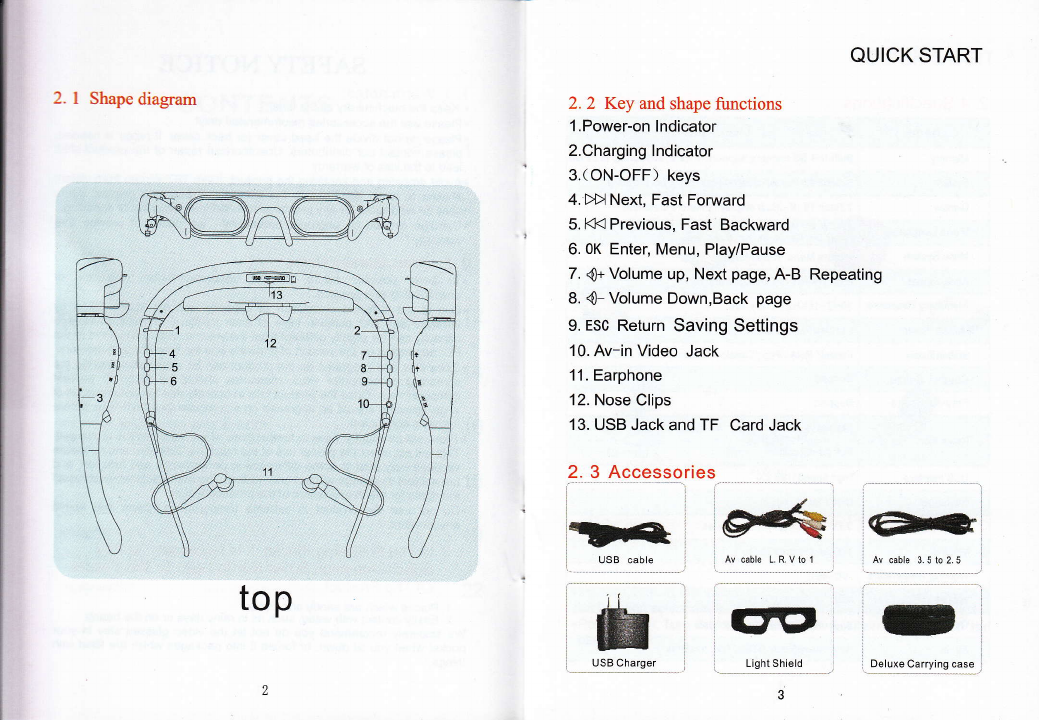

2. I Shapediagram
QUICK START
2.2 Key and shape flrnctions
l.Power-on lndicator
2.Charging lndicator
3.(ON-OFF) keys
4.DDNext, FastForward
5.1(( Previous, Fast Backward
6.0K Enter, Menu, Play/Pause
7. {+ Volume up, Next page, A-B Repeating
8. 4- Volume Down,Back page
9. ESC Return Saving Settings
10. Av-in Video Jack
11. Earphone
12. Nose Clips
13. USB Jack and TF Card Jack
:
2. 3 Accessor
rl Itrer
| !-:: ::,1: _;
iesffi
i CItr' i
i
Lisht Shield i
3
top h
USB Charger

QUICK START

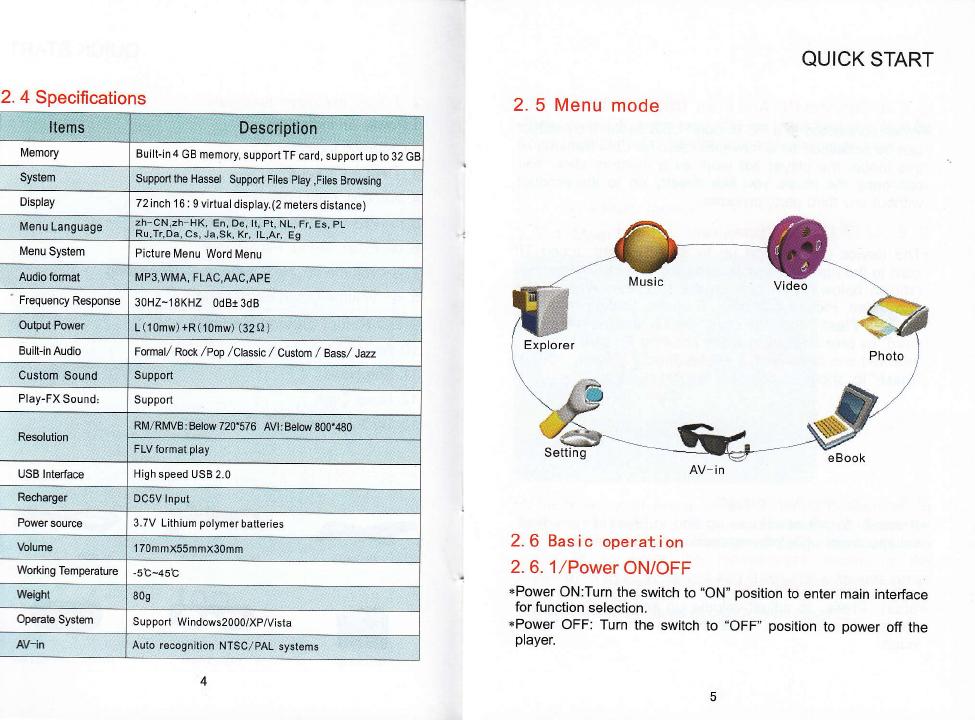

2. 4 Specifications 2.5 Menu mode
ETtr-.,#
--r.gH
/I.Sffi
I Explorer
+F&
.fftp ft'- H
AV in
2.6 Basic operation
2.6. 1/Power ON/OFF
*Power ON:Turn the switch to "ON" position to enter main interface
for function selection.
xPower OFF: Turn the swilch to "OFF" position to power off the
player.
lvlemory Built-in 4 GB memory support TF card, support up to 32 GE
System Supporthe Hassel Support Files Play,File6 Browsi0g
Display 72 jnch 1 6: I virtual display.(2 meters djstance)
Menu Language zh-cN,zh HK, En, Be, ll pr,NL. Fr, Es,pI
Ru,Tr,Oa, Cs, Ja,Sk, Kr, IL.Ar. Eo
Menu System Picture l\,,lenu Word Menu
Audiofmal MP3,WMA, FLAC.AAC.APE
- Frequency Response 30HZ-18KHZ 0dBt 3dB
0ulput Power L(lomu)+R(tomw) (328)
Built-in Audio Fomal/ Rock /Pop /Classic / Custom / Bass/ Jazz
Custom Sound Suppod
Play-FX Soundl Support
Rsdution RM/RMVBrBelos 720-576 AVI:8eiow 800'480
FLVfomat play
USB lnterface High speed USB 2.0
Recharger DCSV lnput
Power source 3.7V Lithium polymer batteries
Volume l70mmX55mmx3gmm
Working Temperature -5C-4s'c
Weighi 8os
Operate System Support Windows2000/XP/Vista
AV-in A$to recogniiion NT$C/PAL systems

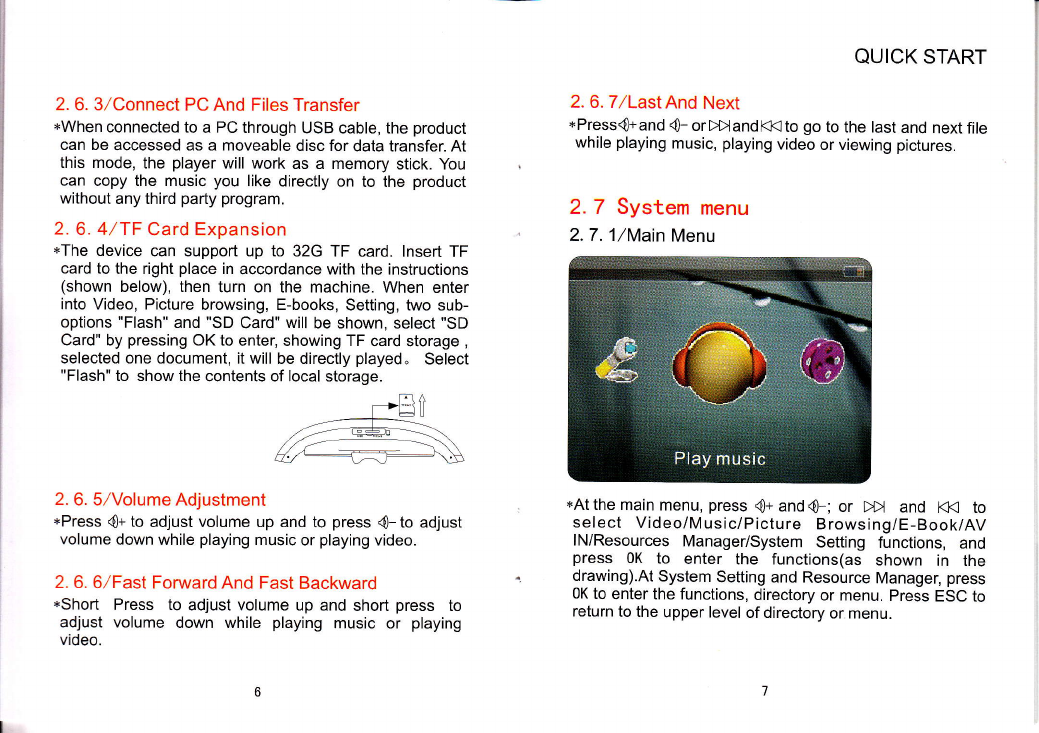

2. 6. 3,/Connect PC And Files Transfer
*When connected to a PC through USB cable, the product
can be accessed as a moveable disc for data transfer. At
this mode, the player will work as a memory stick. You
can copy the music you like directly on to the product
without any third party program.
2. 6. 4/TF Card Expansion
+The device can support up to 32G TF card. lnsert TF
card to the right place in accordance with the instructions
(shown below), then turn on the machine. When enter
into Video, Picture browsing, E-books, Setting, two sub-
options "Flash" and "SD Card" will be shown, select "SD
Card" by pressing OK to enter, showing TF card storage ,
selected one document, it will be directly played. Select
"Flash" to show the contents of local storage.
2. 6. S,/Volume Adjustment
*Press 4+ to adjust volume up and to press 4- to adjust
volume down while playing music or playing video.
2. 6. 6/Fast Forward And Fast Backward
+Short Press to adjust volume up and short press to
adjust volume down while playing music or playing
video.
QUICK START
2.6.7/LastAnd Next
*Press4+and 4- orDDlandl(to go to the last and next file
while playing music, playing video or viewing pictures.
2.7 System menu
2.7. 1/Main Menu
xAt the main menu, press 4+ and 4-; or >>l and K< to
select Video/Music/Picture Browsing/E-BookiAV
lN/Resources Manager/System Setting functions, and
press 0K to enter the functions(as shown in the
drawing).At System Setting and Resource Manager, press
0K to enter the functions, directory or menu. press ESC to
return to the upper level of directory or. menu.

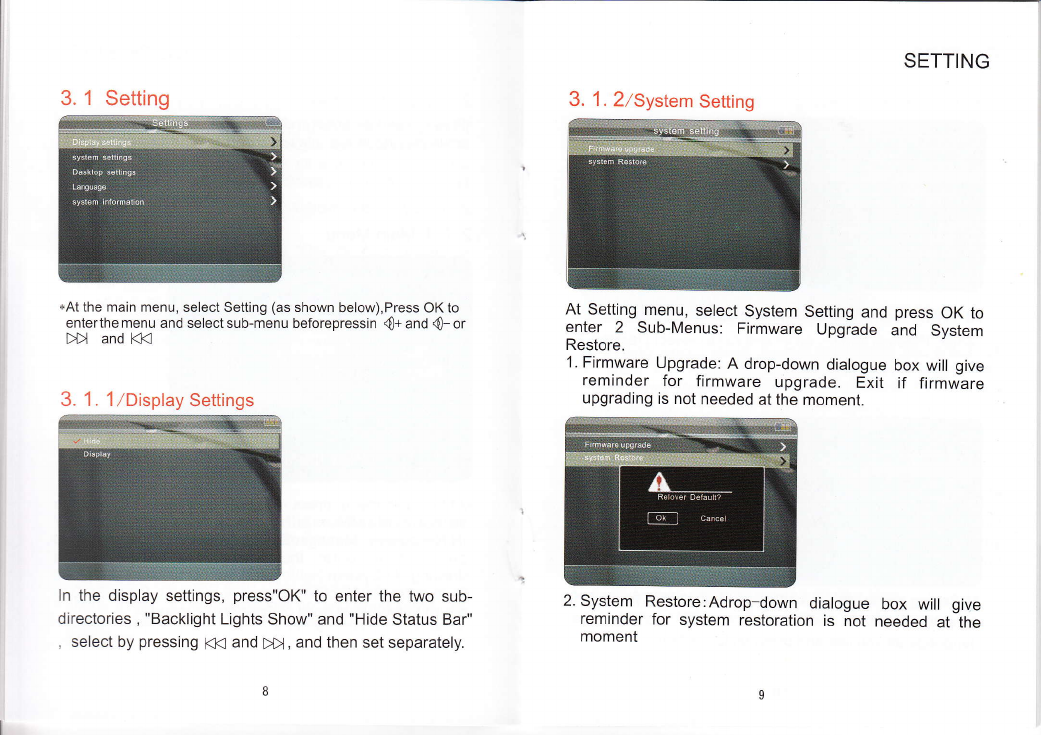

3. 1 Setting
SETTING
xAt the main menu, select Setting (as shown below),Press OK to
enterthe menu and select sub-menu beforepressin 4+ and 4- or
DDI and i({
ln the display settings, press"OK" to enter the two sub-
directories , "Backlight Lights Show" and "Hide Status Bar"
, select by pressing K( and >>1, and then set separately.
At Setting menu, select System Setting and press OK to
enter 2 Sub-Menus: Firmware Upgrade and System
Restore.
1. Firmware Upgrade: A drop-down dialogue box will give
reminder for firmware upgrade. Exit if firmware
upgrading is not needed at the moment.
2. System Restore:Adrop-down dialogue box will give
reminder for system restoration is not needed at the
moment
3. 1. 2/System Setting
3. 1. 1/Display Seitings

SETTING
)
J
At Setting menu, select Desktop Setting and press OK to
enter. Press4+and4-, orDDl and l(( to select Desktop 1-
8.
At Setting menu, select Language Setting and press OK
to enter. Press {+ and 4-, or DD and l(( to select the
language as you like and press 0K to confirm.
At Setting menu, select System lnformation and press OK
to show the information of the product: manufacturer,
model, chip version, software version, local memory and
card memory.
*9. t. 6/Saving Settinss
To save-any settings, return to the main interface and long
press ESC for about 2 seconds to power off the product.
The settings shall be saved and effective when the product
is powered on next time. lf the product is powered off by
directly turning power switch to "OFF" after changing
settings, all the changed settings will not be saved oi
effective when product powered on next time_
\
I
3. 1. 3/Desktop Setting 3. 1. SZSystem lnformation
l0

4. 1 Play Music
1.At the main menu, Select play music,press OK to
select to enter media library. This menu contains all
music, artist, album, caption, my Favorite, directory list,
upgrade library and replay. Selecting the items by press
4r and{-;sppplandi((and press Ok to enter. Setecting
the music you want to play and press OK to start.
2. At the media library, select all songs, press OK to enter
the directory list, selecting your favorite songs by
pressing >>tand K< ; or 4+ and {_, press OK tJ add
them to the favorite, press ,,OK,, few second again to
confirm the addition. At the media library selJct my
favorite, and the song you have added.
3.At play mode, press ,,OK,, few second to enter the
Setting Menu: Repeat Setting, play Setting, elayfX ,
EQMode, Favorite Ee Setting and Display o,ir"r""n.
PLAY MUSIC
4. 2 Repeat Setting
A. Normal play: Stop while the song end.
B. Repeat One: Replay the selected song
C. Repeat All: Replay all the songs once more.
D. All Repeat: Replay all the songs.
E. Scan: Scan each song in the directory for 10 seconds
(Replay all when the scan is over)
4. 3 etay Setting
Normal and Shuffle Play for users.
4.4 ro voae
B EQ Mode: Normal/ PlayFX Roct</POP/Ctassical
fi ruB assI J azzl Favorite
4. 5 Disptay On Screen
Users can set Lyric/EQ/Off to display on screen.
Note 1:
Lyric corresponding to the songs can either be downloaded
from websites like WWW.S1LRC.COM or made with
software. ln order to display lyric on the screen, keep the
lyric file synchronize for the MP3 by the same file name.
Note 2:
When lyric file by the same name is kept in the directory, it
will be displayed on the screen.
Note 3:
Very few MP3MMA/Audio files with special order can not
be played. Reproduction with audio converting tools should
be done before they can be played.
Note 4:
Only NORMAL and FAST version of APE songs in 3.95.
3.97and 3.98 are compatible
12 13

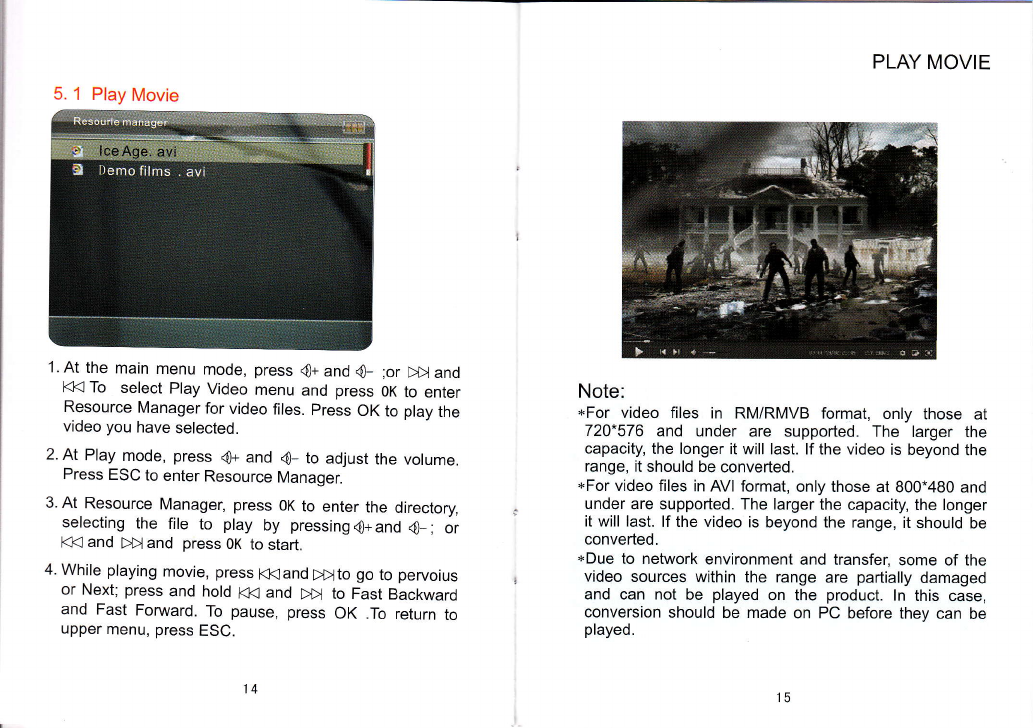

5. 1 Play Movie
1.At the main menu mode, press 4+ and O- ;or DDI and
KK To select Play Video menu and press 0K to enter
Resource Manager for video files. press OK to play the
video you have selected.
2. At Play mode, press {+ and 4- to adjust the volume.
Press ESC to enter Resource Manager.
3.At.Resource Manager, press 0K to enter the directory
selecting the file to play by pressing{+and {_; or
K< and DD and press 0K to start.
4. While playing movie, press K<and DDlto go to pervoius
or Next; press and hold l(( and DD to Fast Backward
and Fast Forward. To pause, press OK .To return to
upper menu, press ESC.
PLAY MOVIE
Note:
*For video files in RM/RMVB format, only those at
720-576 and under are supported. The larger the
capacity, the longer it will last. If the video is beyond the
range, it should be converted.
xFor video files in AVI format, only those at 800.480 and
under are supported. The larger the capacity, the longer
it will last. lf the video is beyond the range, it should be
converted.
xDue to network environment and transfer, some of the
video sources within the range are partially damaged
and can not be played on the product. ln this case,
conversion should be made on PC before they can be
played.

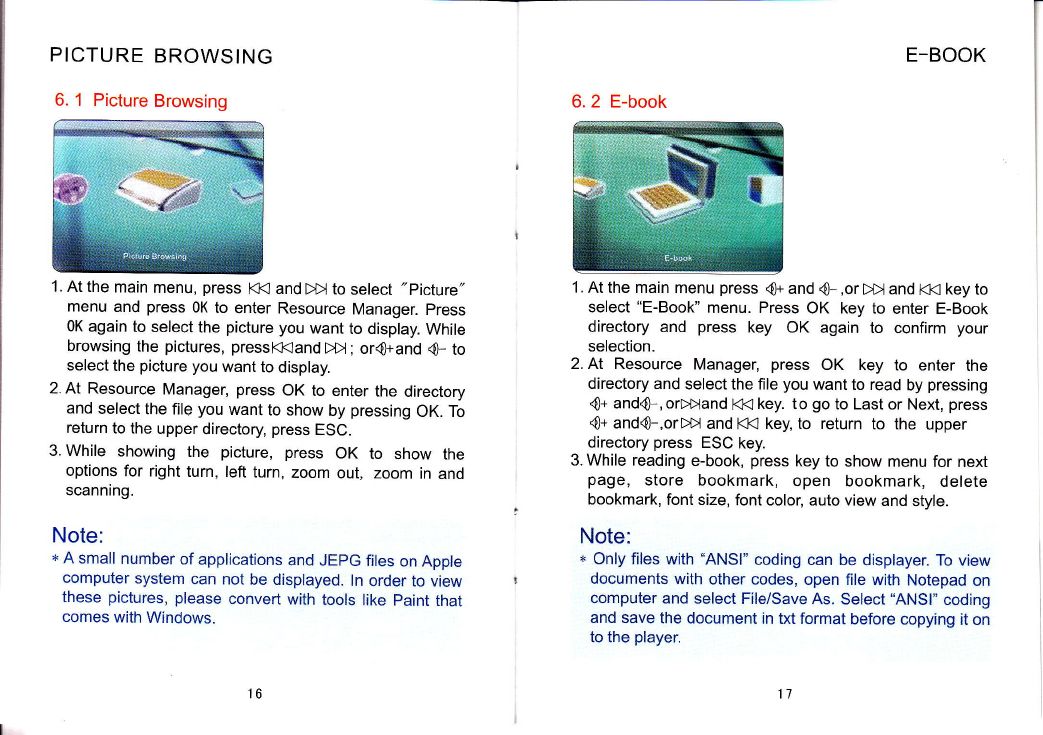

6. 1 Picture Browsing
PICTURE BROWSING
1. At the main menu, press K< and DD to select "piclure"
menu and press 0K to enter Resource Manager. press
0K again to select the picture you want to display. While
browsing the pictures, pressKl(and DD; or$rand 4- to
select the picture you want to display.
2. At Resource Manager, press OK to enter the directory
and select the file you want to show by pressing OK. To
return to the upper directory, press ESC.
3. While showing the picture, press OK to show the
options for right turn, left turn, zoom out, zoom in and
scanning.
Note:
x A small number of applications and JEpG files on Apple
computer system can not be displayed. ln order to view
these pictures, please convert with tools like paint that
comes with Windows.
E-BOOK
1. At the main menu press 4+ and 4-,or >>l and l(( key to
select "E-Book" menu. Press OK key to enter E-Book
directory and press key OK again to confirm your
selection.
2. At Resource Manager, press OK key to enter the
directory and select the file you want to read by pressing
4+ and+-, ooDtand K< key. to go to Last or Next, press
Sr and4-,or>> andKl( key, to return to the upper
directory press ESC key.
3. While reading e-book, press key to show menu for next
page, store bookmark, open bookmark, delete
bookmark, font size, font color, auto view and style.
Note:
x Only files with "ANSI" coding can be displayer. To view
documents with other codes, open file with Notepad on
computer and select File/Save As. Select "ANSI" coding
and save the document in txt format before copying it on
to the player.
6.2 E-book

AV-IN
6.3 AV IN
1. At the main menu, press K( andDDI to select "AV IN"
menu and press 0K to enterAV lN.
2. Connected smart phones, PMPs, DVD players, game
consoles and other video output device with AV cable.
Note:
x The device supports NTSC / PAL video signal input, the
system automatically identify the video signal format.
OTHERS
7.1 Resource Manager
A i Feature function of "Resource Manager,' makes users
scan all the stored files and directory clearly and
conveniently.
B:At the main menu press {+and{-,or>>l andKl<key to
select "Resource Manager". Press 0K to enter. Under
Resource Managel press 0K to enter the directory and
ESC to return to the upper level of directory. press
4+ and 4-, oDDIand K< to select the file you want to and
press OK to enter.
7.2 Play File
At the resource Manager, select the file you want to play by
pressing {+and 4- or DDI and KKl.
7.3 USB Mode
High-speed USB2.0 port and standard moveable disc
functions are fitted with the product. lt supports
Windows98 (Driver required) and support
Windows2O00/XP/Vista (No driver required). A few
seconds after connecting with PC, USB mode will be
displayed. Click the "Moveable Disc" in "My Computer" for
reading and writing.
WARNING:
File can not be played when the product is
connected with a PC at USB mode, otherwise the
screen will blink.
@@
@@
@@

7.4 Recharge
1.To charge the product, you can connect it with an
international standard charger through "DC IN" jack or
connect it with a computer through the USB port on the
product: please refer to the below diagram.
2. The battery icon on the top right of the screen will
display impulse state during charging when the product
is power on and the indicator light on the right ear
handle shall turn red if the product is power off. When
battery is fully charged the indicator light be off.
3.The product can be charged while working. However
when charged by being connected to computer USB
port, the product will automatically enter USB mode.
After exiting this mode, you can use the product while
charging.
4. To fully charge the battery when product is power off, the
battery needs to be continuously charged for 3 hours.
WARNING:
The product can be charged through "DC lN"
jack or USB port, but charging the product by
connecting it with the two ports at the same time
is strictly prohibited.
OTHERS
7.5 TROUBLE SHOOTING
7 . 5. 1/fhe player can't be turned on?
+Check if the battery is out.
xCheck again after connected to adapter.
*lf the product still can not be started after recharge,
contact our distributor.
7.5.2/No sound comes from the earphone?
+Check if the volume is turned to 0.
+Check the problem of earphone connection.
7. 5. 3,/Serious noise?
xCheck if the plug of the earphone is clean as dirt can
cause noise.
xCheck if the music file is damaged by playing other files.
lf it is damaged, serious noise or leaps can be resulted.
7. 5. 4/Unreadable Code?
*Please check if the language is suitable to be read. Set
the right one in Setting-Language Select.
7. 5. S/Unable to download
*Make sure PC is connected to the player correctly.
*Make sure the memory is not full.
*Make sure the USB connection cable is not damaged.
