Christie UHD751-P User manual
Service Guide
020-102686-01
UHD751-P
NOTICES
COPYRIGHT AND TRADEMARKS
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
GENERAL
Every effort has been made to ensure accuracy, however in some cases changes in the products or availability could occur which may not be reflected in this
document. Christie reserves the right to make changes to specifications at any time without notice. Performance specifications are typical, but may vary
depending on conditions beyond Christie's control such as maintenance of the product in proper working conditions. Performance specifications are based on
information available at the time of printing. Christie makes no warranty of any kind with regard to this material, including, but not limited to, implied
warranties of fitness for a particular purpose. Christie will not be liable for errors contained herein or for incidental or consequential damages in connection
with the performance or use of this material. Canadian manufacturing facility is ISO 9001 and 14001 certified.
WARRANTY
Products are warranted under Christie’s standard limited warranty, the complete details of which are available by contacting your Christie dealer or Christie. In
addition to the other limitations that may be specified in Christie’s standard limited warranty and, to the extent relevant or applicable to your product, the
warranty does not cover:
a. Problems or damage occurring during shipment, in either direction.
b. Problems or damage caused by combination of a product with non-Christie equipment, such as distribution systems, cameras, DVD players, etc., or use
of a product with any non-Christie interface device.
c. Problems or damage caused by misuse, improper power source, accident, fire, flood, lightning, earthquake, or other natural disaster.
d. Problems or damage caused by improper installation/alignment, or by equipment modification, if by other than Christie service personnel or a Christie
authorized repair service provider.
e. Problems or damage caused by use of a product on a motion platform or other movable device where such product has not been designed, modified or
approved by Christie for such use.
f. Except where the product is designed for outdoor use, problems or damage caused by use of the product outdoors unless such product is protected from
precipitation or other adverse weather or environmental conditions and the ambient temperature is within the recommended ambient temperature set
forth in the specifications for such product.
g. Image retention on LCD flat panels.
h. Defects caused by normal wear and tear or otherwise due to normal aging of a product.
The warranty does not apply to any product where the serial number has been removed or obliterated. The warranty also does not apply to any product sold
by a reseller to an end user outside of the country where the reseller is located unless (i) Christie has an office in the country where the end user is located or
(ii) the required international warranty fee has been paid.
The warranty does not obligate Christie to provide any on site warranty service at the product site location.
PREVENTATIVE MAINTENANCE
Preventative maintenance is an important part of the continued and proper operation of your product. Failure to perform maintenance as required, and in
accordance with the maintenance schedule specified by Christie, will void the warranty.
REGULATORY
The product has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the product is operated in a commercial environment. The product generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of the product in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at the user’s own expense.
CAN ICES-3 (A) / NMB-3 (A)
이 기기는 업무용(A급)으로 전자파적합등록을 한 기기이오니 판매자 또는 사용자는 이점을 주의하시기 바라며, 가정 외의 지역에서 사용하는 것을 목적으로 합니다.
ENVIRONMENTAL
The product is designed and manufactured with high-quality materials and components that can be recycled and reused. This symbol means that electrical
and electronic equipment, at their end-of-life, should be disposed of separately from regular waste. Please dispose of the product appropriately and according
to local regulations. In the European Union, there are separate collection systems for used electrical and electronic products. Please help us to conserve the
environment we live in!
Content
Replacement parts.................................................4
Important safeguards.................................................4
General safety warnings.............................................4
AC power precautions...............................................5
Package handling................................................... 5
Unpacking the panel............................................... 5
Cleaning the panel.................................................6
Related documentation................................................6
Avoiding image retention...............................................7
Index of parts and modules.............................................7
Replacement procedures............................................9
Removing the rear cover...............................................9
Replacing the power board.............................................10
Removing the LVPS board............................................. 11
Replacing the main AD board...........................................11
Replacing the joystick................................................12
Replacing the OPS board..............................................13
Replacing the USB board..............................................14
Replacing the Wi-Fi board............................................. 14
Replacing the speakers...............................................15
Replacing the T-con board.............................................15
Replacing the Bluetooth board.......................................... 15
Troubleshooting..................................................17
Understanding the LED status indicators....................................17
Wireless network not available.......................................... 17
Connection is slow..................................................17
Disruption during playback or slow reactions................................. 18
Internet connection not available.........................................18
Audio video sharing not working.........................................18
Invalid domain....................................................19
Remote control does not work...........................................19
UHD751-P Service Guide 3
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
Replacement parts
When ordering replacement parts, quote the part numbers of the items required.
Some parts identified in the service parts list may not be available separately. In addition, some parts
stocked as inventory are available only while the current supply lasts. All part numbers are subject to
change. When ordering replacement parts, provide the following information found on the product
license label:
• Panel Model
• Panel Serial Number
• Manufacture Date
Important safeguards
To prevent personal injury and to protect the device from damage, read and follow these safety
precautions.
General safety warnings
Warning! If not avoided, the following could result in death or serious injury.
• FIRE AND SHOCK HAZARD! Use only the attachments, accessories, tools, and replacement parts
specified by Christie.
• Always provide proper ventilation for the product to prevent overheating.
• FIRE HAZARD! Do not install near any devices that produce heat such as amplifiers, radiators,
heat registers, or stoves.
Caution! If not avoided, the following could result in minor or moderate injury.
• This product is intended for indoor use only.
• Do not operate the product at an altitude exceeding 2000 m.
• Do not operate the product in tropical climate regions.
• Only clean the components with Christie approved products.
• Do not place objects containing liquids on the product.
• Do not spray cleaners or pour liquids directly onto the surface of the product.
• Do not remove the protective housing.
UHD751-P Service Guide 4
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
AC power precautions
Warning! If not avoided, the following could result in death or serious injury.
• SHOCK HAZARD! Disconnect the product from AC before installing, moving, servicing, cleaning,
removing components, or opening any enclosure.
• FIRE AND SHOCK HAZARD! Do not attempt operation unless the power cord, power socket, and
power plug meet the appropriate local rating standards.
• Never compromise the ground or earth connection of the product.
• SHOCK HAZARD! The AC power cord must be inserted into an outlet with grounding.
• The appliance coupler and main power supply plug must be easily accessible for disconnecting
the product from the power source.
• FIRE OR SHOCK HAZARD! Do not overload power outlets and extension cords.
• SHOCK HAZARD! Only use the AC power cord provided with the product or recommended by
Christie.
• FIRE HAZARD! Do not use a power cord, harness, or cable that appears damaged.
• TRIP OR FIRE HAZARD! Position all cables where they cannot contact hot surfaces, be pulled, be
tripped over, or damaged by persons walking on or objects rolling over the cables.
Package handling
Learn how to remove the display panel from the packaging and how to handle the display panel.
Unpacking the panel
Learn how to remove the panel from the packaging.

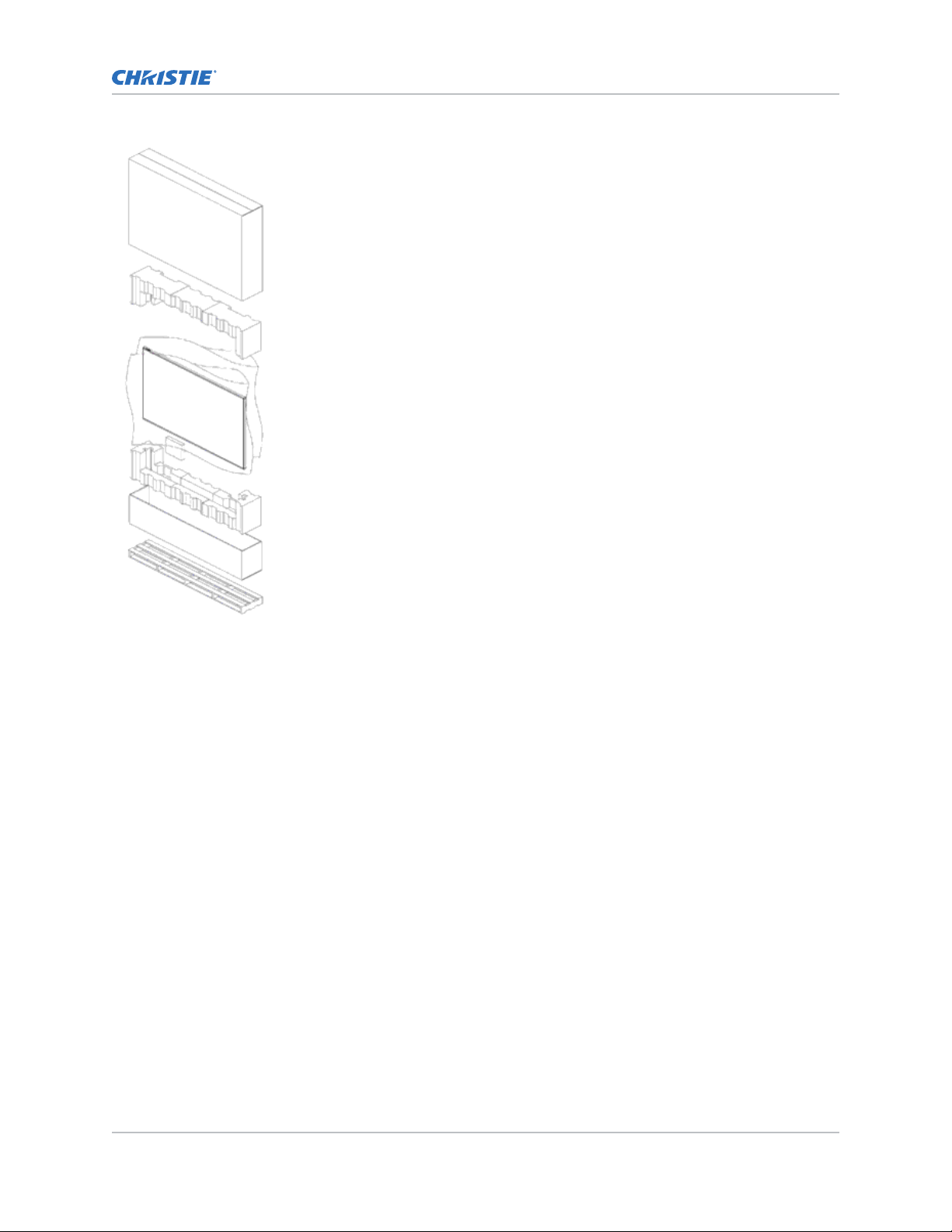

Each LCD panel is packed inside a box carton. To protect the panel during transportation, additional
packing material has been placed within the carton.
Replacement parts
UHD751-P Service Guide 5
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
1. Before unpacking, prepare a stable, level, and clean surface near a wall outlet.
2. Set the box in an upright position and pull out the white carton locks.
3. Lift up the top cover carton.
4. Remove the ESD bag before removing the display from the bottom tray carton.
5. Remove any additional packaging, such as protective stickers, from the display panel.
Cleaning the panel
Learn how to clean the display panel.
After disconnecting the power cable, wipe contaminated parts and each part of the product screen
lightly with a dry and soft cloth.
Do not use a liquid, spray cleaners, or any abrasive cleaners to clean the LCD panel.
Washing with various cleaning agents, brighteners, abrasives, waxes, benzene, alcohol, solvent,
surface active agent, may damage the surface of the product.
Related documentation
Additional information on the LCD panels is available in the following documents.
•Access Series LCD Panels Product Safety Guide (P/N: 020-102422-XX)
•Access Series LCD Panels Installation and Setup Guide (P/N: 020-102404-XX)
Replacement parts
UHD751-P Service Guide 6
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
•Installing the Touch Overlay (P/N: 020-102431-XX)
•Access Series LCD Panels External Controls (P/N: 020-102554-XX)
Avoiding image retention
Image retention can occur when static content appears on the display panel in as little as a few hours.
Image retention is not covered under warranty. To prolong the life of your display panel, follow these
recommendations.
• Operate the display panel within its rated ambient environment. Christie recommends an
operating temperature of 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit), with a
maximum relative humidity of 90%.
• Avoid static content. Christie recommends displaying moving images whenever possible, and
using a screen saver with a moving image.
• Turn off the display panel when it is not in use, or use the Scheduling feature to automatically
turn off the display panel at preset times of the day.
• Turn on the Pixel shift setting.
• When designing content for the display panels, consider the following:
• Regularly change the color of the text and background of the content
• Move text or images around the display
• Use colors of similar brightness levels
• Avoid using text color and background color with contrasting brightness, for example black
and white.
• Gray may contribute to image retention
Index of parts and modules
Check module markings, parts lists, and the relevant replacement procedure to ensure the module is
replaced correctly.
Components must be replaced with exact equivalents. Failure to do so may result in unsafe operation.
Replacement parts
UHD751-P Service Guide 7
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.

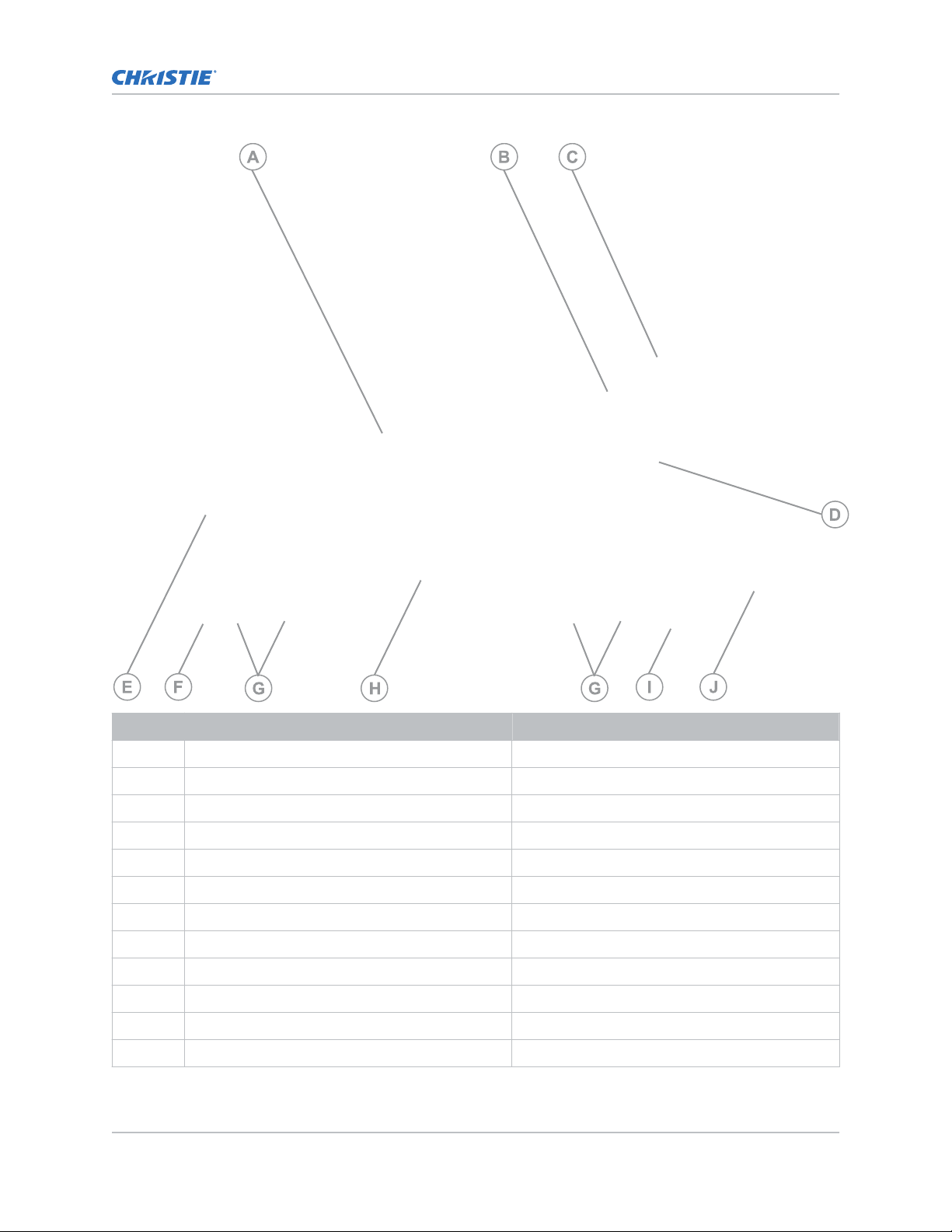

Description Part number
A Power board 003-121651-XX
B USB board 003-006332-XX
C OPS board 003-006411-XX
D Main AD board 003-121646-XX
E LVPS board 003-006418-XX
F Bluetooth board 003-006410-XX
G Speakers (Qty. 4) 003-121650-XX
H T-con board 003-121644-XX
I Wi-Fi board 003-006329-XX
J Joystick/Keyboard 003-006328-XX
— Remote control 003-006337-XX
— LVDS cable 003-121645-XX
Replacement parts
UHD751-P Service Guide 8
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
Replacement
procedures
When reinstalling a module, follow the removal instructions in reverse unless otherwise indicated.
Caution! If not avoided, the following could result in minor or moderate injury.
• SHOCK HAZARD! Disconnect the product from AC before installing, moving, servicing, cleaning,
removing components, or opening any enclosure.
Notice. If not avoided, the following could result in property damage.
• Observe all electrostatic precautions. Use a grounded wrist strap and insulated tools when
handling, servicing, or cleaning electronic assemblies.
• Christie products must be installed and serviced by Christie qualified technicians.
• All procedures must be performed by Christie qualified technicians.

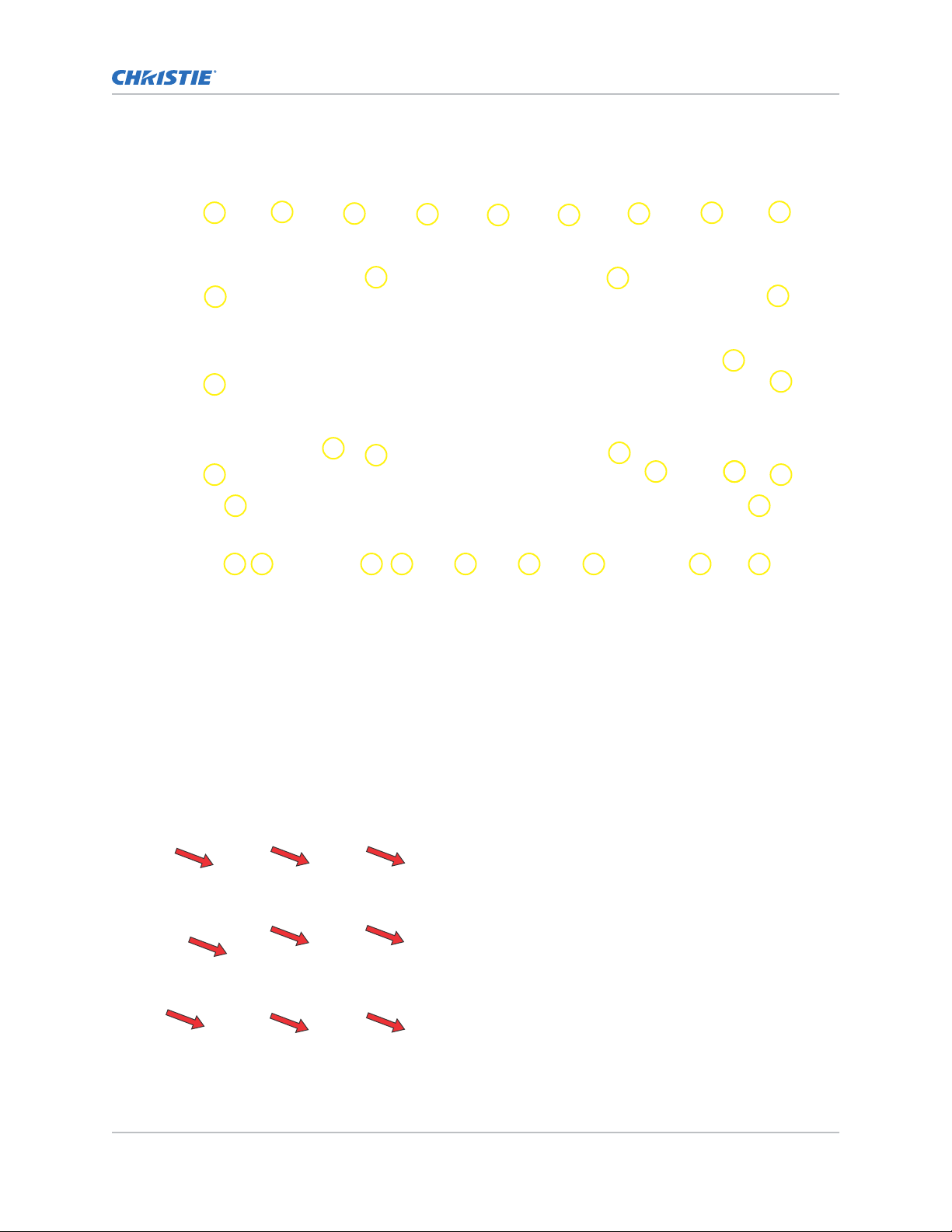

Removing the rear cover
The rear cover houses the replaceable components of the display panel.
Use a Phillips #1 screwdriver to remove all screws.
1. Place the display panel face-down on a clean, protective surface.
2. Remove the four mount screws.
3. Remove the three screws in the port recess.
4. Remove the screw securing the AC port.
5. Remove the 25 screws around the interior of the display panel rear case.
UHD751-P Service Guide 9
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
6. Lift the cover from the display panel.
7. To reinstall the cover, repeat these steps in reverse order.
Replacing the power board
The power supply module provides the required voltages for operating the electronics in the panel.
1. Remove all sources of power from the display panel.
2. Remove the rear cover.
3. Mark and remove all connectors.
4. Using a Phillips #1 screwdriver, remove the six screws from metal plate covering the power
board and the three screws securing the power board to the display panel.
5. Replace the power board.
6. To install the replacement part, follow these steps in reverse order.
Replacement procedures
UHD751-P Service Guide 10
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
Removing the LVPS board
Complete the following procedure to replace the low voltage power supply (LVPS).
1. Remove all sources of power from the display panel.
2. Remove the rear cover.
3. Mark and remove all connectors.
4. Using a Phillips #1 screwdriver, remove the six screws from metal plate covering the power
board and the three screws securing the power board to the display panel.
5. Replace the power board.
6. To install the replacement part, follow these steps in reverse order.
Replacing the main AD board
Learn how to remove and replace the main AD board.
1. Remove the rear cover.
2. Mark and remove all connectors.
3. Using a Phillips #1 screwdriver, remove the six screws securing the main AD board to the
display panel.
Replacement procedures
UHD751-P Service Guide 11
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
4. Replace the main AD board.
5. To install the replacement part, follow these steps in reverse order.
Replacing the joystick
The joystick navigates through on-screen display menus without the remote control.
1. Remove the rear cover.
2. Remove the two handles.
3. Remove the outer rear cover.
a) Remove the 27 screws from the perimeter of the display panel.
Replacement procedures
UHD751-P Service Guide 12
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
b) Remove the speakers.
c) Remove the four screws located under the speakers.
4. Mark and remove all connectors.
5. Using a Phillips #1 screwdriver, remove the two screws securing the joystick board to the
display panel.
6. Replace the joystick board.
7. To install the replacement part, follow these steps in reverse order.
Replacing the OPS board
The OPS board sends the content on the OPS module to the main AD board.
1. Remove the rear cover.
2. Mark and remove all connectors.
3. Using a Phillips #1 screwdriver, remove the four screws securing the OPS board to the display
panel.
Replacement procedures
UHD751-P Service Guide 13
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
4. Replace the OPS board.
5. To install the replacement part, follow these steps in reverse order.
Replacing the USB board
Learn how to remove and replace USB board.
1. Remove the rear cover.
2. Mark and remove all connectors.
3. Using a Phillips #1 screwdriver, remove the two screws securing the USB board to the display
panel.
4. Replace the USB board.
5. To install the replacement part, follow these steps in reverse order.
Replacing the Wi-Fi board
Learn how to remove and replace the Wi-Fi board.
1. Remove the rear cover.
2. Mark and remove all connectors.
3. Pull the clip holding the board in place away from the board, and lift the Wi-Fi board off the
post. Repeat for both sides of the Wi-Fi board.
4. Replace the Wi-Fi board.
5. To install the replacement part, follow these steps in reverse order.
Replacement procedures
UHD751-P Service Guide 14
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
Replacing the speakers
Learn how to remove and replace the speakers.
1. Remove the rear cover.
2. Mark and remove the speaker connectors from the main AD board.
3. Lift the speaker off the posts.
4. Replace the speaker.
5. To install the replacement part, follow these steps in reverse order.
Replacing the T-con board
Learn how to remove and replace the T-con board.
1. Remove the rear cover.
2. Mark and remove all connectors.
3. Using a Phillips #1 screwdriver, remove the two screws securing the T-con board to the display
panel.
4. Replace the T-con board.
5. To install the replacement part, follow these steps in reverse order.
Replacing the Bluetooth board
Learn how to remove and replace the Bluetooth board.
1. Remove the rear cover.
2. Mark and remove all connectors.
3. Using a Phillips #1 screwdriver, remove the single screw securing the Bluetooth board to the
display panel.
Replacement procedures
UHD751-P Service Guide 15
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
4. Replace the Bluetooth board.
5. To install the replacement part, follow these steps in reverse order.
Replacement procedures
UHD751-P Service Guide 16
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
Troubleshooting
Learn about common issues and their solutions.
Understanding the LED status indicators
Identify the LED state flashing pattern and meaning.
LED Status Status of the monitor
Power LED not lit Power on
Power LED lit Power off (Standby mode)
Power LED flashing (slow) Scheduler active
Power LED flashing (fast) Power up/down and software update
Wireless network not available
The wireless network does not appear in the list of available networks.
Resolution
• Ensure the display panel wireless connection is allowed through the network firewall.
• Try searching for wireless networks again.
• If the wireless network does not function properly, use the wired network.
• If the display panel does not function using the wired connection, check the modem and router.
• If the router does not have a problem, check the internet connection of your modem.
Connection is slow
The network connection to the display panel is slow.
Resolution
To get information on the internet service area, connection speed, signal quality, and other settings,
refer to the wireless modem documentation.
UHD751-P Service Guide 17
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
Disruption during playback or slow reactions
While content is playing on the display panel, the video is disrupted or slow to play.
Resolution
• Ensure the display panels are at least three meters away from microwave ovens, mobile
telephones, Bluetooth-enabled devices, or any other Wi-Fi compatible devices.
• Change the active channel on the WLAN router.
Internet connection not available
The display panel cannot connect to the internet.
Resolution
• Ensure the display panel wireless connection is allowed through the network firewall.
• The MAC address of the display panel is authenticated each time when connecting to the
internet. If the MAC address of the computer or modem is permanently registered, it is
possible that the display panel might not connect to the internet. Because the display panel
has its own MAC address, the internet service provider cannot validate the MAC address of the
display panel. For this reason, the display panel cannot connect to the internet.
Contact the internet service provider and request information on how to connect a different
device, such as the display panel, to the internet.
Audio video sharing not working
Audio and video cannot be shared to the display panel.
Resolution
• Ensure the display panel wireless connection is allowed through the network firewall.
• The MAC address of the display panel is authenticated each time when connecting to the
internet. If the MAC address of the computer or modem is permanently registered, it is
possible that the display panel might not connect to the internet. Because the display panel
has its own MAC address, the internet service provider cannot validate the MAC address of the
display panel. For this reason, the display panel cannot connect to the internet.
Contact the internet service provider and request information on how to connect a different
device, such as the display panel, to the internet.
Troubleshooting
UHD751-P Service Guide 18
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
Invalid domain
An invalid domain error is displayed when trying to share media.
Resolution
Prior to sharing any files in the media server program on the computer, ensure that an authorized
username and password is used for logging in, and that the domain is active. If the domain is invalid,
this might cause problems while browsing files in Audio Video Sharing mode.
Remote control does not work
Using the remote control has no impact on the display panel.
Resolution
For remote control commands to be received by the display panel, the IR extender cable must be
installed.
In certain conditions, direct light may impact the ability for the IR receiver to identify commands from
the remote control.
Troubleshooting
UHD751-P Service Guide 19
020-102686-01 Rev. 1 (01-2018)
Copyright © 2018 Christie Digital Systems USA Inc. All rights reserved.
For the most current technical documentation, please visit www.christiedigital.com
United Kingdom
ph: +44 (0) 118 977 8000
United Arab Emirates
ph: +971 4 3206688
Spain
ph:+34 91 633 9990
Singapore
ph:+65 6877-8737
Republic of South Africa
ph:+27 (0)11 510 0094
Korea (Seoul)
ph:+822 702 1601
Japan (Tokyo)
ph:81 3 3599 7481
India
ph:+91 (080) 6708 9999
Germany
ph: +49 2161 664540
France
ph: +33 (0) 1 41 21 44 04
Eastern Europe and
Russian Federation
ph: +36(0)1 47 48 100
China (Shanghai)
ph:+86 21 6278 7708
China (Beijing)
ph:+8610 6561 0240
Brazil
ph:+55 (11) 2548 4753
Australia
ph:+61 (0) 7 3624 4888
Worldwide offices
Italy
ph: +39 (0) 2 9902 1161
Consultant offices
Canada – Kitchener
ph: 519-744-8005
USA – Cypress
ph: 714-236-8610
Corporate offices
Table of contents
Other Christie Industrial Monitor manuals
