Christie LX505 User manual

Christie LX505
Classrooms
Houses of worship
Meeting rooms
Small auditoriums
Training rooms
An economical, easy-to-use solution
Looking for an affordable, easy to setup, high performance projector
with features that ensure long life and low maintenance? Look no
further than the Christie®LX505.
Create a perfectly aligned display with 3D Keystone™technology,
a new four-corner geometry correction tool. This easy-to-use feature
allows you to quickly configure your image, ensuring a geometrically
accurate display for every presentation.
The Christie LX505 presents exceptional image quality using
advanced LCD technology that utilizes inorganic 3LCD panels.
These inorganic panels have been designed for improved lifetime
performance over conventional 3LCD panels. With a 1000:1 contrast
ratio and 10-bit video processing, the Christie LX505 produces
natural, smooth color tone to ensure picture stability and flawless
video playback… a quality image every time.
Christie LX505 provides XGA resolution at 5000 ANSI lumens,
an ideal brightness level for medium-sized venues. You can easily
add the Christie LX505 to a network of projectors via the built-in
network port. This unit offers complete pro AV compatibility by
accepting signals from a variety of sources. The long-life AutoFilter
cartridge system and up to 3000 hour lamp (economy mode) ensures
low cost of ownership over the life of the product.
The Christie LX505 is equipped with motorized lens shift for zoom
and focus, with a center mount lens design and easy one-button
lens release capability. A suite of optional lenses are also available.
This quiet, compact projector is offered in an off-white color to blend
with a variety of surroundings.
The Christie LX505 offers the latest in LCD technology enhancements
in an affordable, easy-to-use package.

H/V digital keystone
3D Keystone
Corner
keystone
distortion
For the most current specification information, please visit www.christiedigital.com
Copyright 2013 Christie Digital Systems USA, Inc. All rights reserved. All brand names and product names are trademarks, registered trademarks
or tradenames of their respective holders. Christie Digital Systems Canada Inc.’s management system is registered to ISO 9001 and ISO 14001.
Performance specifications are typical. Due to constant research, specifications are subject to change without notice.
Printed in Canada on recycled paper. 3487 Apr 13
Performance specifications are typical and are subject to change
1Actual range depends on lens used
Bottom view
Front view
4-M6mm DIAMETER
DEPTH MAX 10mm/0.39"
195.5mm/7.70" 175mm/6.89"
75mm/2.95"
30mm/1.18"
160mm/6.30"
96mm/3.78" 158.8mm/6.25"
233.6mm/9.2"
150mm/5.91"
LNS S20 (STANDARD)
RC
416.2mm/16.39"
96.6mm/
3.80"
184.2mm/ 7.25"
(PANEL CENTER) 84.0mm/3.31"
FILTER COVER
4-M6mm DIAMETER
DEPTH MAX 10mm/0.39"
195.5mm/7.70" 175mm/6.89"
75mm/2.95"
30mm/1.18"
160mm/6.30"
96mm/3.78" 158.8mm/6.25"
233.6mm/9.2"
150mm/5.91"
LNS S20 (STANDARD)
RC
416.2mm/16.39"
96.6mm/
3.80"
184.2mm/ 7.25"
(PANEL CENTER) 84.0mm/3.31"
FILTER COVER
Corporate offices Worldwide offices
Christie Digital Systems USA, Inc.
USA – Cypress
ph: 714 236 8610
Christie Digital Systems Canada Inc.
Canada – Kitchener
ph: 519 744 8005
Australia
ph: [phone]
Brazil
ph: [phone]
China (Beijing)
ph: [phone]
China (Shanghai)
ph: [phone]
Eastern Europe and
Russian Federation
ph: [phone]
France
ph: [phone]
Germany
ph: [phone]
India
ph: [phone]
Japan (Tokyo)
ph: 81 3 3599 7481
Korea (Seoul)
ph: [phone]
Republic of South Africa
ph: [phone]
Singapore
ph: [phone]
Spain
ph: [phone]
United Arab Emirates
ph: [phone]
United Kingdom
ph: [phone]
Independent sales
consultant offices
Italy
ph: [phone]

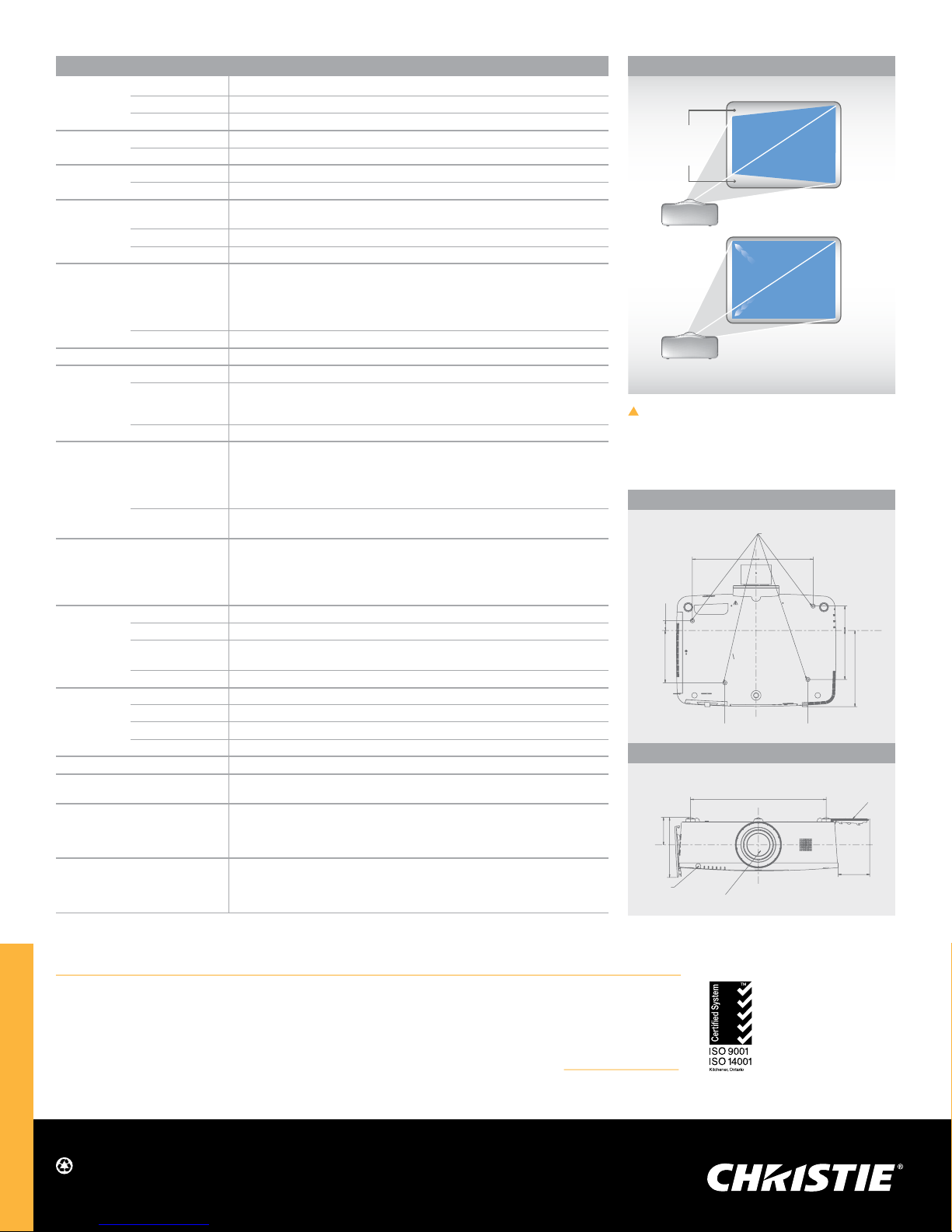

Christie LX505 (103-125108-01)
Image brightness • 5000 ANSI lumens
contrast • 1000:1 (full on/off)
uniformity • 80% brightness uniformity (corner to corner)
Display
technology
type • 3-chip 0.8" Polysilicon TFT active matrix type LCD panel – Inorganic
native resolution • XGA (1024 x 768)
Lamp type • Single 275W NSHA
typical life • Normal mode: up to 2000 hrs • Eco mode: up to 3000 hrs
Input signals • UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC
• HDTV formats (720p, 1035i,1080i, 1080p)
pixel clock • 140 MHz (analog)/162 MHz (digital)
scan rates • Horizontal: 15-100kHz • Vertical: 48-100Hz
Inputs,
control and
networking
inputs •Input 1: DVI-D x 1 (HDCP), D-Sub15 x 1 • Input 2: 5-BNC (R, G, B, H, V & Y,
Pb/Cb, Pr/Cr & Composite) • Input 3: S-video – Mini DIN 4-pin
• RCA x 3 (Video/Y, Pb/Cb, Pr/Cr) • Audio In – Mini jack x 2 (1, 2) (stereo)
•
RCA x 2 (R, L-mono) • Control port D-Sub 9 x 1
• R/C Jack – Mini jack x 1 (wired remote) • RJ45 LAN x 1
outputs • D-Sub15 (Monitor out) x 1 • Audio out – Mini jack x 1 (stereo)
Optical system • Motorized zoom, focus and lens shift • Vertical and Horizontal lens shift1
Lenses fixed • Short 0.8:1 (103-124108-XX)
zoom • Ships with standard lens – Standard 1.70-2.89:1 (103-126100-01-XX)
• Short 1.25-1.70:1 (103-125109-XX) • Long 2.89-4.60:1 (103-127101-XX)
• Long 4.60-7.36:1 (103-128102-XX)
offsets • Horizontal 50%1 • Vertical 10%1
Accessories standard • Quick setup manual • PIN code Label Registration card • UL cable card
• Lens adaptor • Power cord-AC cord UL type (NEMA 6-20P plug type)
•
AC cord (European 2P plug type) • Computer cable (D-Sub 15)
• Users Manual (CD-ROM) • Remote control • Lens mount cover
• Lens anti-theft screw • USB Cable
optional • CCM-LX for enhanced network options (103-115108-XX)
• AutoFilter cartridge (003-003084-XX) • Replacement lamp (003-120531-XX)
Enhanced
feature sets
• 10-bit image processing • Top loading lamp • 1-button quick lens release
• Digital keystone h/v and 3D Keystone technology • Easy menu navigation
•Up to 13,000 hour AutoFilter • Inorganic 3LCD • 360 degree on axis rotation
• Built-in – RJ45 • Expansion port for advanced networking module (CCM-LX)
•Customized logo capture
Power
requirements
operating voltage • 100-120 VAC ±10% • 200-240 VAC ±10%
operating current • In rush: 30A (AC100V); 60A (AC276V) • Current: 5.2A (AC100V); 2.5A (AC200V)
power
consumption
• 423W max
dissipation • 1375 BTU/hr max
Dimensions size • Body with lens (LxWxH): 17.12 x 19.27 x 6.50" (434.8 x 489.5 x 164.0mm)
shipping size • (LxWxH): 22.90 x 26.81 x 12.52" (581.0 x 681.0 x 318.0mm)
weight • 21.4lbs (9.7kg) with lens
shipping weight • 34.83lbs (15.8kg)
Noise • Standard mode: 38dBA • Eco mode: 31dBA
Operating environment •
Operating temperature: 41-104˚F (5-40˚C) • Storage temperature: 14-140ºF
(-10-60°C) • Humidity (non-condensing): 20-80% • Altitude: 0-8858ft (0-2700m)
Regulatory approvals This product conforms to the following regulations related to product safety,
environmental requirements and electromagnetic compatibility (EMC):
• FCC Part 15, Subpart B Class B • CISPR22/EN55022 • CISPR24/EN55024
• UL 60950-1 first edition • IEC60950-1:2001 • 2002/95/EC RoHS
Limited warranty • Projector: three years parts and labor
•
Lamp: 500 hours or one year from invoice date (whichever comes first)
•
Contact an authorized Christie representative for full details of
our limited warranty
3D Keystone technology
Utilizing 3D Keystone technology, a new
four-corner geometry correction tool, you can
quickly and easily align your image even in the
most challenging environments.
