Cino CN-CA User manual

COFFEE MACHINE
INSTRUCTION MANUAL
Read this instruction manual carefully before operating this machine.
MODEL: CN-CA

Precautions
1 2
In the event of an emergency: Immediately remove plug from power socket.
This product is intended for household and similar use only. The manufacturer
accepts no responsibility and the guarantee will not apply in the event of any
commercial use, inappropriate use or failure to comply with the instructions.
Check that the voltage quoted on the rating plate is the same as your voltage.
Connect the appliance to earthed power sockets only. An improper connection
voids warranty. Remove plug from socket if not in use for a long period of time.
Before cleaning, unplug the appliance and let it cool down. Never clean with
wet cloth or immerse plug, cord or appliance in any liquids.
This appliance can be used by children aged from 8 years and above if they have
been given supervision or instruction concerning use of the appliance in a safe way
and if they understand the hazards involved. Cleaning and user maintenance shall
not be made by children unless they are aged from 8 years and above and supervised.
Keep the appliance and its cord out of reach of children aged less than 8 years.
This appliance can be used by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the
hazards involved.
This appliance may become a safety hazard if these instructions and safety
precautions are ignored.
-Do not insert fingers into capsule compartment and capsule shaft,as there is
danger of injury.
-Do not use the appliance without the drip tray and drip grid.
-Keep the appliance/cord out of reach of children.
-Do not fill the water tank with hot water.
-Do not immerse the machine in liquids. Risk of electric shock.
-Only use capsules intended for this appliance. If the capsule does not fit, do not
force the capsule into the appliance.
-WARNING: To avoid the risk of injury, do not open the brew chamber during the
brew process.
Place on a flat, stable and heat-resistant work surface away from water
splashes and any heat sources.
Do not use the appliance if it is not in perfect working condition or if there is
evidence of damage. In such cases inform the seller.
Packaging materials ( plastic bags etc. ) are recyclable and are potential
hazards. Keep them out of reach of children.
Do not place the power cord near hot parts or sharp objects, etc.
Never touch the cord with wet hands. Do not unplug by pulling the cord.
Do not hang the power cord as there is danger of tripping. If it is damaged,
do not use the appliance. In order to avoid any hazards, only allow the seller
to repair the appliance and replace the power cord.
Do not attempt to open the appliance or insert anything into the openings.
All actions other than normal use, cleaning and care must be performed by the seller.
Unauthorized maintenance avoids warranty.
This marking indicates that this product should not be disposed with other household
wastes throughout the EU.To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device,please use the
return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safety.

4
Precautions
Product overview
Operating instructions
Functionality
Warning
Cleaning & care
Trouble shooting
Technical parameters
Contents
1
4
5
7
10
12
14
15
Water tank
Capsule
holder
assembly
Drip grid
Lungo
Espresso

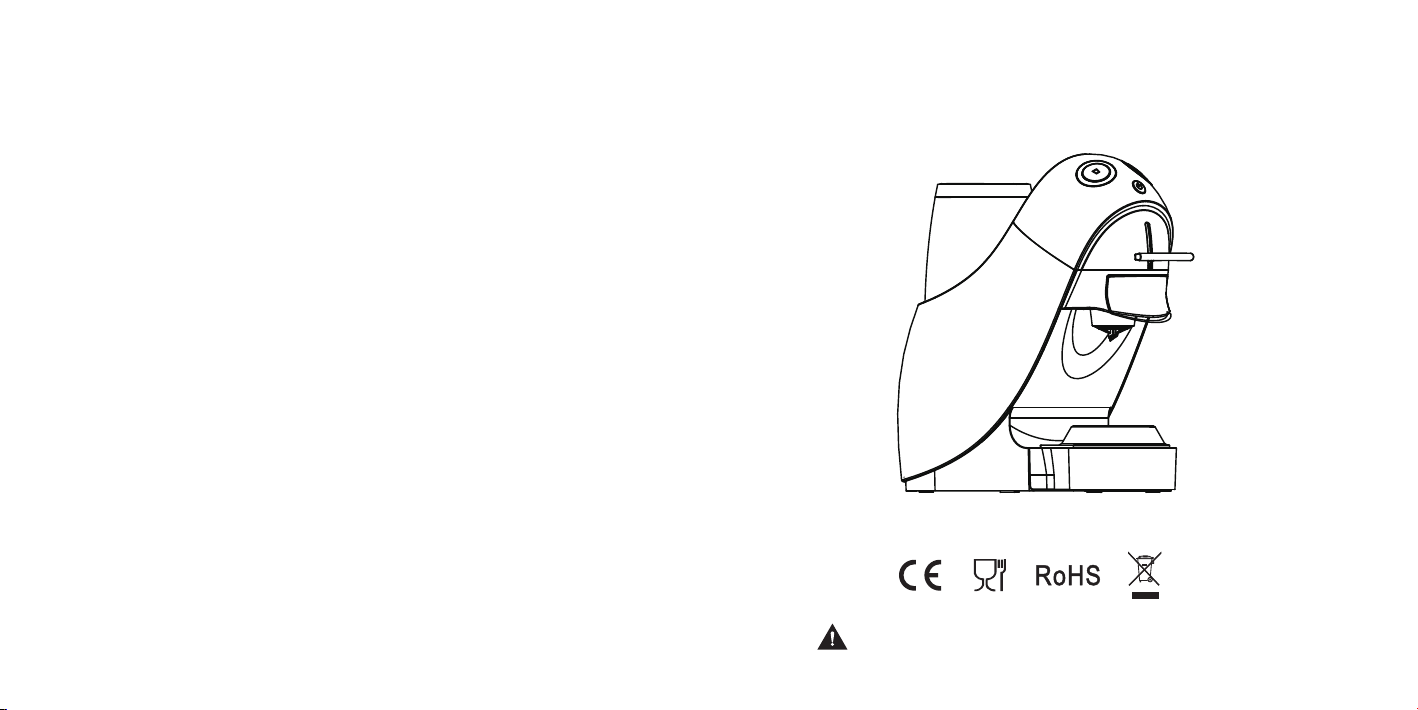

Product overview
Start
Handle
Drip grid
Drip tray

5 6
Operating instructions
Before operating the machine Extraction of coffee
1
Fill up the water tank.
2
Plug the power cable and
switch on power.
Power switch turns green and
links at 1Hz while cup volume
key lights up(now the system
starts heating up)
Both power switch (green)
and volume key light
up-heating finishes
Press power key and the
appliance starts to preheat.
3
54
Warm up you cup. Place your
cup, choose your volume and
run a cup of water.
Lift the handle, pull out capsule
holder to insert capsule. Fit
capsule holder into position
and press down handle.
Press espresso key or lungo
key.
The lungo key or espresso
key blinks at 1 time/s.(coffee
is brewing).
21 3
Brewing is done when the
indicator stops blinking.
Take out the used capsule
and dispose of properly.
5
4
Or
6
Only specific capsules are used on this machine. Please consult a specialized
distributor before use.
Immediately dispose of the used capsule each time after use.
Switch off the machine if you want to stop it during work.
Do not add hot water in water tank, Hot water may crack the tank, or cause
electric shock.
Please notice the maxim and minmum water level.

7 8

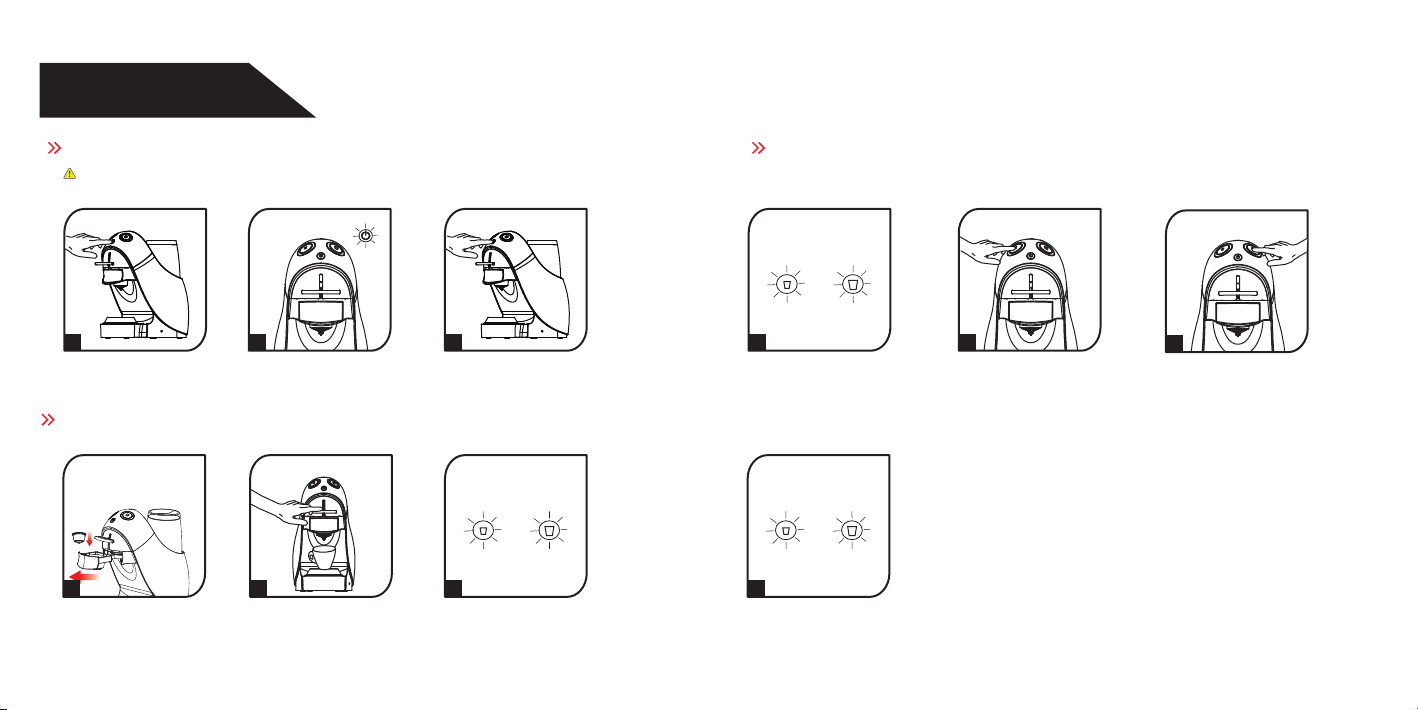

Cup volume setting
Power save mode Temperature setting
Functionality
1
Insert your capsule Press down the handle Press and hold lungo key
(espresso Key), start brewing
coffee until get the volume you
wanted then release the key, next
time you press espresso key(lungo
key) will get the volume you set.
2 3
Or
1
and
4
and
When powered on, the machine goes into power save mode if not used for 10 minutes.
Now the power consumption is < 1W.
1 3
Press power key can manually
Put the machine into power
Save mode.
Only power light blinking like
breath.
Press any key can leave
power save mode.
2
Press espresso key once, machine
temperature drop 1 ℃(press one
more time machine temperature
drop 2 ℃) by the same token
Maximum 4 degrees can be
decreased.
23
Press lungo key once, machine
temperature raise 1 ℃(press one
more time machine temperature
raise 2 ℃) by the same token
Maximum 4 degrees can be
increased.
After setting, press espresso
key and lungo key to save the
temperature setting
Temperature indicators：
a. If temperature drop 1℃, the Espresso indicator blink 1 time per 5 seconed, lungo
indicator are off, power indicators always on.
b. If temperature drop 2 ℃, Espresso indicator 2 time per 5 seconed, by the same
token maximum 4 degrees can be decreased.
C. On the contrary, If temperature raise 1℃, Lungo indicator blink, different
temperature shows different blinking times, maximum 4 degrees can be
increased.
d. Three indicators always light on means default temperature.
When the appliance is at Sleeping
mode, press and hold both volume
keys simultaneously for 3 seconds,
the appliance enters Temperature
setting. Both volume keys light,
power light blinking like breath.

9 10
Factory default setting Warning for water shortage
Warning for blockage
Counter setting
After setting buzzle will ring once,
Espresso key light and Lungo key
indicators will blink at the same time
factory default setting is recovered.
2 2
and
1
and
At Power save mode, press and hold both volume key and power key for 3 seconds
to enter counter seng.
1. When the cumulative number falls within 1-1000, both volume keys blink at a cycle of 1 time ( 1 time/s ),
pausing 2 seconds. loop always.
2. When the cumulative number falls within1001-2000, both volume keys blink at a cycle of 2 times ( 1 time/s ),
pausing 2 seconds. loop always.
3. When the cumulative number falls within 2001-3000, both volume keys blink at a cycle of 3 times ( 1 time/s ),
pausing 2 seconds. loop always.
4. When the cumulative number falls within 3001-4000, both volume keys blink at a cycle of 4 times ( 1 time/s ),
pausing 2 seconds. loop always.
5. When the cumulative number falls within 4001-5000, both volume keys blink at a cycle of 5 times ( 1 time/s ),
pausing 2 seconds. loop always
6. When the cumulative number falls within 5001-6000, both volume keys blink at a cycle of 6 times ( 1 time/s ),
pausing 2 seconds. loop always
7. When the cumulative number reaches >6000, both volume keys blink alternatively at a cycle of 1 time/s,
pausing 2 seconds. loop always
Warning
1
Water tank is out of water
during work.
Brewing unit is blocked by
capsule outdated or damaged.
Two volume key indicator
blinks at a cycle of 6 times
with 2 seconds of pausing.
buzzle will ring by 1Hz.
2
and
Two volume key indicator blinks
at a cycle of 6 times with 2 seconds
of pausing. buzzle will ring by 1Hz.
Open the handle and change for
a new capsule. Press any volume
key back to stand by.
Press any volume key to recover
stanby fill up the tank, press any
volume key again to start the
machine
13
3
At standby, press and hold
lungo keys and power key
for 3 seconds.

11 12

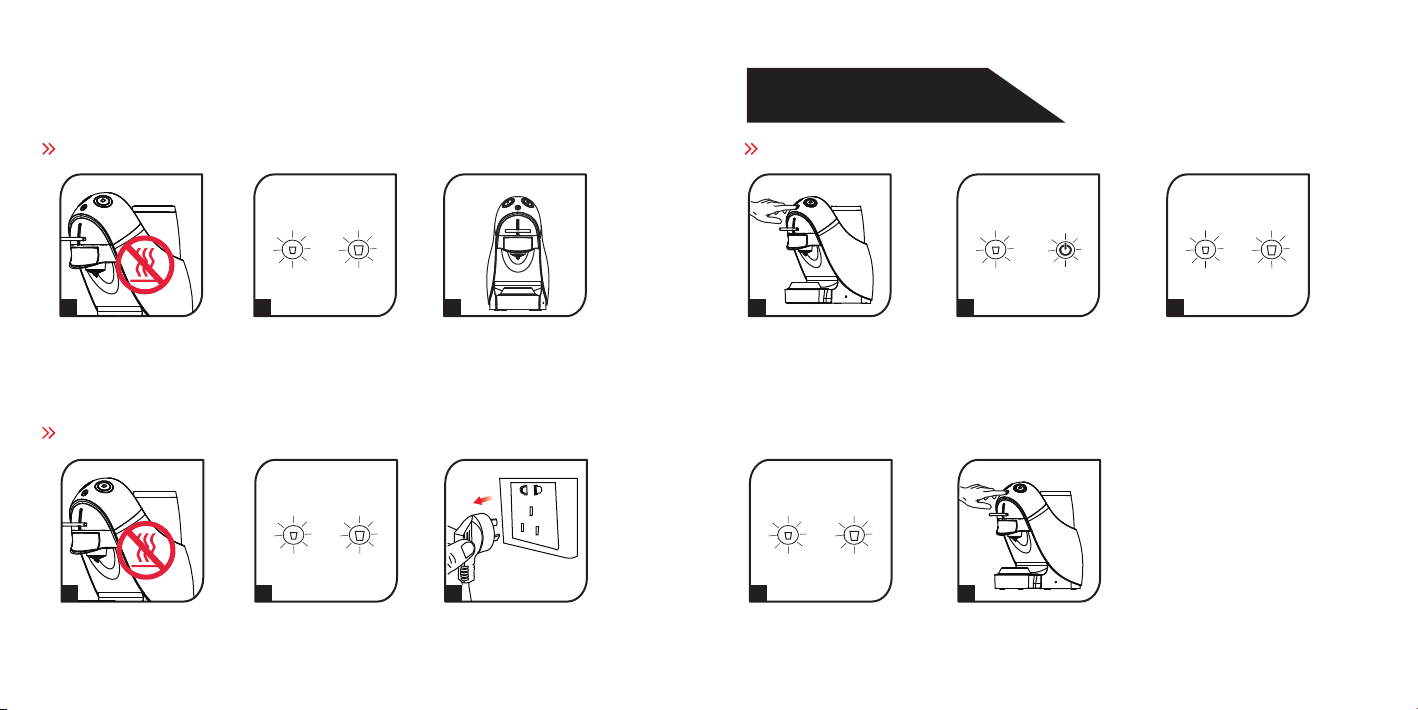

Warning for excessive use Empty the machine
Warning for NTC error
2
and
1
1
When the machine has worked/
brewed continuously for 2 liters
of water, the system will stop
working and give a warning(if
machine hasn’t worked/brewed
continuously or pausing more than
5 minutes, machine start recount)
The machine shuts down
both boiler and pump when
there is an NTC error.
Two volume key indicator
blinks at a cycle of 1 time/s.
3
and
4
and
In“empty the machine ”mode
both volume keys blink
together at 1 time/s.
After cleaning buzzle will
ring, different volume keys
blink alternatively.
2
and
Two volume key indicator
blinks at a cycle of 2 time/s,
buzzle will ring by 1Hz.
Shut down the machine and
rest 30 minutes before reuse.
3
Now pull plug off Eliminate
abnormal, plug power again,
press the handle, press power
key, machine will recover
preheating or preheating finished
3
Cleaning &care
1
Turn off the power key.
5
Turn off the power key to
leave “empty the machine”
mode.
Press Espresso key and
power key together for 3s
machine will come into“empty
the machine ”mode.
2
and
1.If boiler’s temputre is cool, different volume
keys blink alternatively at 1 time/s.
2. If boiler’s temputre is hot, different volume keys
blink alternatively at 1 time per 2 seconds.

13 14
Trouble shooting
Descaling mode
1
and
Press any volume key, water
pump start working, machine
start descaling.
2
Or
Press any volume key again,
water pump stop working.
3
Or
4
Indicator does
not function
·check plug.
·check if voltage is the same as specified on rating label.
Water is not pumped
·check water tank.
Handle can not be
fully pressed down
·check if there is foreign matter or capsule stuck in chamber.
·call service center.
Coffee flow is
not stable
·check water tank and make sure it is placed in position.
·check capsule and make sure it is placed in position.
Water, not coffee,
is brewed ·change for a new capsule.
Keys do not function ·plug off and plug on again
Other problems ·call service center.
·make sure water tank is positioned correctly.
·check if the capsule is as designated.
·nozzle blocked, use needle to clean it and run a cup of
water before use.
·call service center
Press different volume key
together for 3s, espresso
indicators and lungo indicators
blink by 2Hz, machine come into
cleaning mode, buzzle won’t ring.
Press lungo key or espresso
key for 3s,or turn off the power
key to leave the“descaling mode”.

15
Technical parameters
900ml
~ 3.0 kg
15/20 bar
See the data plate on the base of the machine.
167mm 302mm308mm
5 40
Please search the user manual information at www.cino.cn
