Cino XS speedmix H5 User manual

cino
xs speedmix H5
Operating manual
3rd edition 12/2003
Software version FXSHD 12A onwards / 23.09.2003

Operating manual XS Speedmix H5 Version FXSHD 12A onwards
© servomat steigler 1 29.12.2003

Version FXSHD 12A onwards XS Speedmix H3 Operating manual
29.12.2003 2 © servomat steigler
A
AA
AR
RR
RT
TT
T
A wide variety of Recipe Technical
coffee specialities step program quality control
Hot drink systems without The high quality of drinks produced Our electronic FlashCard-
Cappuccino are today almost with the A.R.T. system can be memory guards A+R. The
unthinkable. First of all the achieved only with the aid of finely service agent can adjust the feed for
site and taste of wide variety tuned step production program. some more/less water/product
depending
of coffee specialities cheer up Coffee, topping/whitener, chocolate upon the customer’s requirement.
the hearts of the consumers and and fine filtered hot water are He however does not have any access to
thus revs up the turnover. step by step transformed into R – recipe step production.
In the A.R.T. system you can creamy drinks.
find the following range : Each speciality of coffee has its
Cappuccino independent step-by-step Conclusion:
Cappuccino Extra production. The A.R.T. program guarantees
MoccaCino a consistent quality of drinks, the
CaféAulait level of which is simply determined
Espresso by the quality of products used.

Operating manual XS Speedmix H5 Version FXSHD 12A onwards
© servomat steigler 3 29.12.2003
This operating manual is meant for the following machine
Identification label of your machine
This manual is an integral part of the machine and must always be available in
the vicinity of the machine for reference, till such time as the machine gets
disposed off
If the manual gets misplaced or damaged, for reordering you must provide the
identification data given on the rating plate of the machine to the manufacturer.

Version FXSHD 12A onwards XS Speedmix H3 Operating manual
29.12.2003 4 © servomat steigler
Table of contents
Subject Page Chapter
Important notes 5-6 1
General cleaning instructions 7-8 2
Technical data 9 3
General information 10-12 4
Overview of machine parts 13-16 5
Unpacking and installation 17 6
Water and filter 18-19 7
Start-up 20-23 8
Installation of a payment system 24-25 9
Machine specifications 26 10
Basic programming functions 27-30 11
Setting the portioning 31 12
Portioning list 32-34 13
Setting the sales price 35 14
Setting the temperature 36 15
Miscellaneous settings 37-38 16
Diagnostics 39 17
Reading the sales data 40 18
Setting MDB functions 41 19
Setting the time 42 20
Reading the error messages 43 21
Service counter 44 22
First aid– error messages 45-47 23
User manual 48 24

Operating manual XS Speedmix H5 Version FXSHD 12A onwards
© servomat steigler 5 29.12.2003
1
1. . I Im mp po or rt ta an nt t n no ot te es s
1.1
Details concerning the quality
oThe quality of the machine is intended only for production
with coffee, cocoa, tee or other such drinks the machine is
meant for.
oThe typical application is as vending machine for
customers, guests and employees.
oThe installation, filling-up and cleaning must be done
according to the specifications given in this manual, by our
technical partner’s staff properly trained by servomat
steigler.
oFor changing the quality of coffee, or the product
quality, a readjustment by servomat’s technical partner is a
necessary prerequisite.
oThe machine must be installed in a dry, closed room free
of any external environmental effects (e.g. strong vibration).
oThe size and capacity, and the associated filling-
up/cleaning and servicing costs of model XS E are intended
for up to 50 portions per day, maximum 36000 portions in 24
months.
oIf the machine is filled up and cleaned by untrained staff
an extensive induction by technical partner of servomat is
absolutely necessary.
oThe manufacturer will not bear any liability for damage
caused by acts of vandalism or improper handling (e.g.
manipulation attempts with coins, tokens, cashless means
of payment .
oWear parts are those parts which undergo a natural wear
and tear or have a normally limited serviceable life. These
parts can fail during the statutory period of limitation
applicable for claims, i.e. 24 months. However, in legal
terms this is not to be seen as a defect. Following parts are
covered here:
O-rings/lighting devices/V-rings/grinding disk/mixing motors/
valves and water heating elements in case of calcification.
oThe use of water softners/ filters, such as BRITA-water
filter is strongly recommended at installation sites where
water hardness is more than 9° degree according to German
standards. Considerable functions of our coffee machine are
directly linked to the water conveying parts, such as valves,
boiler, heating elements.
oRegular servicing must be done according to the
enclosed checklist (minimum twice a year, however, after
every 5000 portions). During servicing wear parts must
replaced according to the enclosed list in order to ensure
overall functioning.
oThe guidelines for cleaning and hygiene given this
manual must be followed in order to ensure flawless
functioning of our machine.
Beimerstetten, den 01.01.2002
Text contents are protected by copyright.

Version FXSHD 12A onwards XS Speedmix H3 Operating manual
29.12.2003 6 © servomat steigler
1. Important notes
Servicing checklist 1.2
Following jobs must be performed within the purview
of maintenance guidelines:
Which parts? What must be done?
Water tank supply or
hard water supply - Clean the water tank and filter set
- Replace the seal O-ring inside
- Replace the water filter cartridge
- Replace the water filter cartridge for hard water
Boiler - Dismantle and clean the boiler, decalcify if
necessary
- Replace the gasket at the boiler outlet
- Clean the water level probes, decalcify if necessary
- Clean temperature sensor, decalcify if necessary
Mixing units
- Replace and clean the bowls
- Replace the mixer flange O-rings
- Replace the mixer motor V-rings
- Replace the O-rings of mixing bowl bush
- Replace the mixer disks
- Inspect mixer motors, replace if necessary
Fan - Dismantle the fan and clean
- Dismantle the fan duct and clean
- Dismantle the fan duct and clean
Aqua portioning system - Clean photoelectric barrier
Product container - Inspect the products, clean the product containers
if necessary
- Clean the product chutes
Drip pan
- Empty the drip pan and clean
- Clean the doors in the dispensing area
Payment / coin acceptor
unit
- Inspect and clean the payment system/ coin
acceptor
Water and electrical
plug connections
- Inspect all water and electrical plug connections
Portioning, temperature
and functioning - Check portioning of water and product
- Check the temperature
- Final inspection and test run, coin acceptance if
necessary

Operating manual XS Speedmix H5 Version FXSHD 12A onwards
© servomat steigler 7 29.12.2003
2. Cleaning instructions
2.1 General cleaning instructions
!
For this, we
recommend our ready
for use HACCP
cleaning agent
This cleaning instruction is an extension of the user
instructions given on inner surface of the machine cover. The
cleaning instructions constitute instructions for daily, weekly
and monthly cleaning. Please follow the cleaning instructions.
This would ensure more hygiene and lesser malfunctions.
2.2 Daily cleaning
1. Fill up the products: First of all check the level of all
existing products in the machine. Close the red shut-off flap of
the product container in advance. Now fill in the product given
on the product container. After this again open the red shut-off
flap of the product container.
2. Carry out the rinsing program:
Press the program button on the inner side of the machine
door. A program menu is shown on the display. Press key 4
where 4 = RINSING. Now place a large vessel under the
outlet. For the mixing bowl 1 press key 1. Now rinse this
mixing bowl thoroughly in multiple rinsing cycles. After that
press keys 2, 3 and so on. Press individual keys multiple times
until around 3 litre of hot water has been used for rinsing. After
that press the program key to re-enter the sales mode.
3. Clean the water drip pan: With the door open, remove the
drip pan as follows: lightly press downwards and pull out.
Remove the grid from the drip pan and clean both parts under
warm running water. After that again set the drip pan properly
in place.
4. Clean the doors in the product dispensing area: Clean
the doors in the product dispensing area from inside as well as
outside. Here you could find deposits caused by splashing of
the product. Use a damp sponge or cloth to clean these parts.
2.3 Weekly cleaning
Cleaning steps described under sections 1 to 4 are included
here.
5. Clean the mixing bowls: Turn the red locking clamp to left.
Now you can pull out the mixing bowl. Take out the mixing
bowls completely with pipe and discharge angle. Clean these
parts using the rinsing solution meant for the purpose. Again
dry up the parts carefully.
!
Product chutes get
clogged if they are
wet.
6. Clean the product chutes: Press the product chute lightly
against the product container and turn it to the left in the
anticlockwise direction. Clean these product chutes using the
rinsing solution meant for the purpose. Again dry up these
products properly before reinstallation.
7. Clean the water storage tanks: Lift the water storage tank
(blue) slightly using the handle, and pull out. Clean the water
storage tank by rubbing off the deposits under warm running
water. Remove lime deposits with mild vinegar. Afterwards
rinse the water tank several times. If you are using a filter set
in the water tank clean it the same way.

Version FXSHD 12A onwards XS Speedmix H3 Operating manual
29.12.2003 8 © servomat steigler
2. Cleaning instructions
Monthly cleaning 2.4
Steps for the daily and weekly cleaning described under section
1 to 7 are included here.
8. Clean the product container: First of all close the red shut-
off flaps on the product containers. Take out the product
containers by lifting these slightly at the front and then pulling
them out. Pour out the remaining product. Remove the product
chutes from the product containers. Put the product containers
and chutes in a rinsing solution meant for them. Wipe the
product containers clean with the help of a sponge. Dry out the
product containers properly. Preferably leave them to dry out
overnight and install them again next day and fill in.
9. Clean fan duct: When you have taken out the product
containers and the mixing bowls, you can pull out the plastic
drawer above the mixing bowls and below the product
containers. This is meant to be the suction channel for water
vapour suction. Here it is possible that the product also gets
sucked along. Clean the fan duct using the rinsing solution
meant for the purpose and dry it up properly before
reinstallation.
Cleaning aids 2.5
Use the Clean Set specially prepared for the machine . (Clean
Set for XS H5)
The Clean SET allows quick and easy cleaning of the machine. !
!!
!
Clean-Set XS H5
The Cleans Set consists of:
- Pre-assembled mixing bowl and outlet pipe for coffee
- Pre-assembled mixing bowl and outlet pipe for cocoa
- Pre-assembled outlet pipe for water meant for tea
- Right product chute for coffee
- Right product chute for cocoa
- Left product chute for milk
- 6 mm cleaning brush for discharge angle
- 10 mm cleaning brush for outlet pipe 9 x 6
- 5 Litre cleaning bucket
- Yellow sponge cloth
- Scratch-free sponge
- HACCP cleaner, diluted and ready for use.
Remember that:
Cleaning with our
Clean Sets is:
- quicker
and simpler
- fresher and
more appetizing
- more hygienic, and
causes lesser
malfunctions
Procedure
Perform steps as in case of daily, weekly and monthly cleaning.
Using the Clean Set you can immediately replace these parts
placed in a rinsing solution. The machine again becomes
immediately operational. The replaced parts should then be
sprayed with the HACCP cleaner and must be placed in a
rinsing solution diluted with the HCCP. After reaction time of
approximately 45 minutes you can rub off these parts with a
sponge cloth, rinse them under clear water and allow to dry up
well.
!
!!
!
With the aid of Clean
Sets you easily
replace fouled parts.
The machine again
becomes immediately
operational.
For your machine you can order as follows:
Clean Set XS H5 Item number: 100 542

Operating manual XS Speedmix H5 Version FXSHD 12A onwards
© servomat steigler 9 29.12.2003
3. Technical data
3.1 Technical data sheet
Dimensions Height (with closed cover)
Width (with closed doors)
Depth (with closed doors)
520 mm
390 mm
450 mm
Weight
Empty
Full 44 Kg 52 Kg
Electrical values Voltage supply
Max. power consumption
Consumption with approx. 50 cups per day (130 ml)
230 Volt 50 Hz 16 A
1350 Watt
1,7 Kw/h
Transformer Primary 230 V (black)
Secondary 24 V (blue) 90VA – 100VA
8,5 V (red) 10VA
230 Volt 50 Hz
24 Volt
8,5 Volt
Aqua portioning
system
Voltage supply
24 V DC
Boiler Heating element power
Capacity
Heating –up time
1300 W
4 Litre
approx. 10 minutes
Temperature control
Electronic PTC sensor
Product motor Voltage supply
Running speed 24 V DC 85 Upm
Mixer motor Voltage supply
Running speed adjustable from 24 V DC 2400 Upm to 16000 Upm
Valves
Voltage supply at inlet valve
24 V DC
Hard water supply
(optional) Water pressure
Water supply 1 – 8 Bar 3 / 8“ or 3 / 4“ external
Door lighting Fluorescent lamps - length 300 mm - diameter 16 mm 220 V / 8 Watt
Miscellaneous GSM useful via external modem
FLASH CARD programming with PC-Software
Signal lamp for production run
Coffee container
(small) Coffee capacity for approx. 0,4 kg
Sugar container
(small) Sugar capacity for approx. 1,0 kg
Cocoa container
(Wide) Cocoa capacity for approx. 2,1 kg
Milk container
(Small) Topping capacity for approx. 0,8 kg
Individual container
(Small) Individual capacity for approx. 1,0 kg

Version FXSHD 12A onwards XS Speedmix H3 Operating manual
29.12.2003 10 © servomat steigler
4. General information concerning the machine
Rating plate 4.1
The rating plate is an important label meant for information.
Please always mention the model and the machine number for
any spare part order placement (Matricola).
The rating plate is
located inside the right
side of machine . The
rating plate is defined as
follows:
Manufacturer’s data
Machine data
Machine number
Definition of machine data:
XS
Machine type
CINO XS
H / 5
Model - Design H = SpeedMix
5 = Number of instant
product containers
Matricola
Machine number
03270254
Kindly note 4.2
You can take good care of following parts by proper operation,
and avoid breakdowns:
- Measure quality of
water
- Insert water filter
Boiler/Inlet valve Lime and smudge - Clean periodically
or decalcify.
- Activate daily
rinsing program
Mixing bowls: Clogging due to product residues - Inspect periodically
- Replace V-rings
- Empty each month
and clean product
containers
Product motor: Products stick together in the product container - Use products suitable
for the machine
Rheaprojects
Rhea Projects S.r.l
Via Trieste, 49 I - 21042 Caronno P.Iia (VA) Italia
Società del Gruppo Rhea Vendors
Modello : XS H/5
230 V ~ 50 Hz 1350 W
Codice: D100005B221040
Matricola: 03270254

Operating manual XS Speedmix H5 Version FXSHD 12A onwards
© servomat steigler 11 29.12.2003
4. General information concerning the machine
4.3 Safety notes
!
This machine is manufactured keeping in mind the safety
aspects. Nevertheless, independent installation and operation
of the machine may only be entrusted to those persons who
have completed 18 years of age. Only a person, who is
qualified to handle such equipment on account of his training
and experience, and familiar with the relevant safety and
accident prevention regulations, and thus in a position to
identify and avert danger, is suitable for the job.
Before start-up this
operating manual must
be read in its entirety
in order to ensure safe
start-up and a flawless
operation.
Caution: Pull out the mains plug
before all maintenance jobs!
!The machine was manufactured in compliance with the
following European safety regulations:
- EN 60 335 - 1
” Safety of electrical household appliances and similar
products”.
4.4 Warning notes
• - Caution: there are hot parts on this machine. The
temperature can be more than 90°C at specific locations on
the machine.
• - Never operate the machine with a defective power supply.
• - Never immerse the machine in water.
• - Before cleaning the machine without the cleaning program
always ensure that the mains plug is pulled out.
• - Never allow children to work on the machine unsupervised
4.5 Safety devices
!Door contact switch
• Manually connected safety thermostat for the boiler
• Time controlled protection for the heating system
• Electronic monitoring system of the temperature regulator
• Time controlled protection for the refilling of water
• Flashing light during product dispensation

Version FXSHD 12A onwards XS Speedmix H3 Operating manual
29.12.2003 12 © servomat steigler
4. General information concerning the machine
Features of the machine 4.6
The machine is delivered with a water tank function. This water
tank involves a Tank in Tank filter set with a water filter cartridge.
To increase the water capacity, on one hand there is Aqua
module with 19 litre water tank and on the other a hard water kit
SpeedMix. We recommend that a water filter be installed for the
hard water . (See section Water and Filter)
The machine is normally delivered without the payment system.
For this there is an option for coin unit kit NRI G13. For cashless
payment systems the machine is prepared for the Executive and
MDB protocols.
Accessories 4.7
A wide range of accessories and special parts are available to
derive additional benefits from the machine: The installation kits
are delivered along with the installation instructions that must be
followed to ensure the safety of the machine. !
• XS coin unit KIT G13
• XS-Multicontainer
• Flash-Card
• FlashCard interface box
• Software editor for Flash Card
• XS front panel (various designs)
• XS accessories (cups, pots, spoons, tablets,
Sugar candy, cup warmer)
• XS SpeedMix basic spare parts set (all necessary parts)
• XS SpeedMix CLEAN-SET
• XS cash card kit
• XS AQUA module

Operating manual XS Speedmix H5 Version FXSHD 12A onwards
© servomat steigler 13 29.12.2003
5. Overview of machine parts

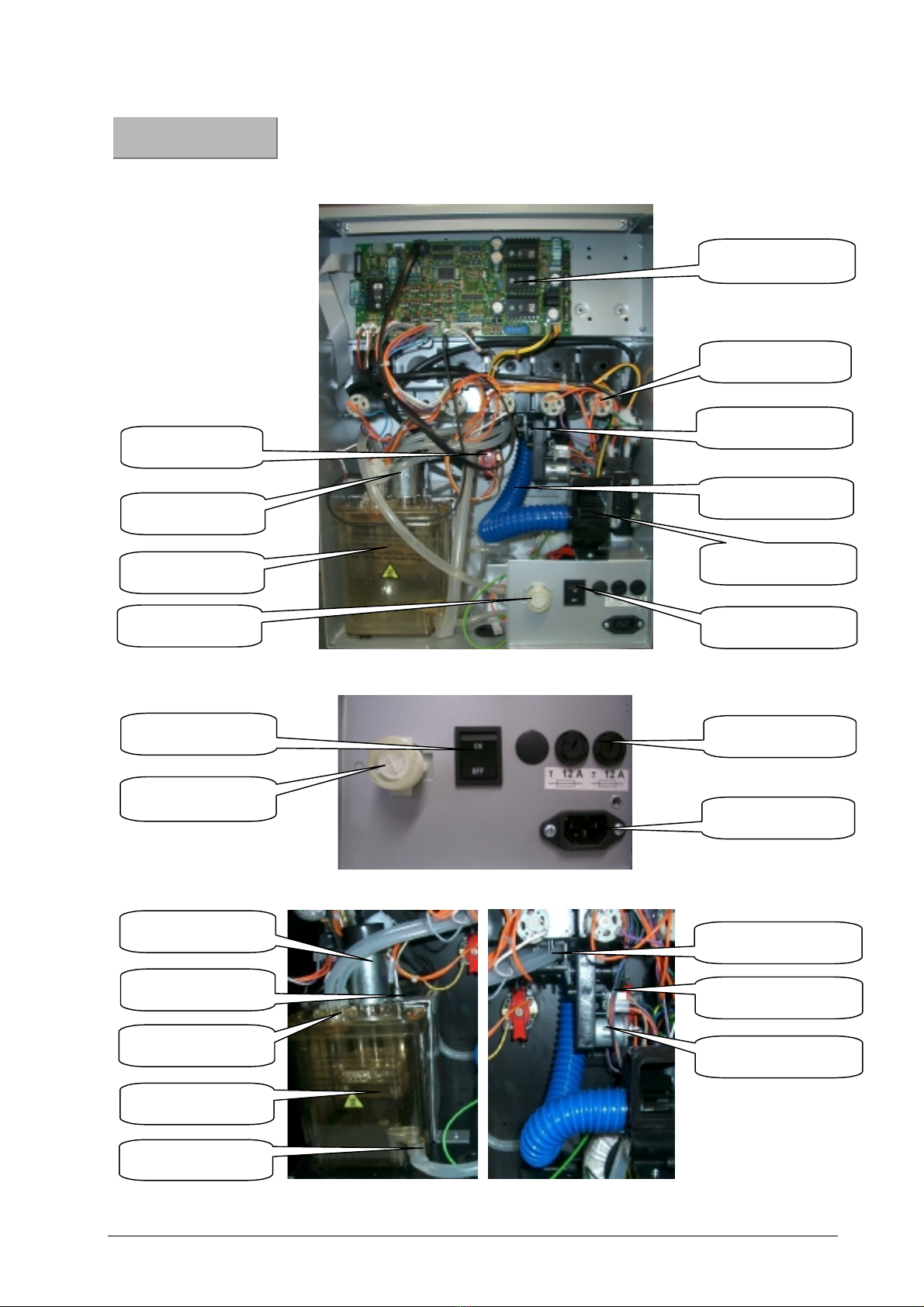

5.1 Rear panel view
Rear casing
Rear casing (power module)
Rear case (boiler+Aqua portioning system)
Main fuses
2 of 12 A each
Hard water supply
Mains switch
Mains socket
CPU
(Mother board)
Aqua portioning
system
Mixer motor
Fan
Mains switch (main
switch)
Product motor
Fan pipe
Pump
Boiler
Pipe guide
Aqua portioning system
Water outlet pipe
Water outlet nozzle
Boiler casing
Dry run protection
121°C
Pump
Sensor PCB
Aqua portioning system
Motor drive
Aqua portioning system
Hard water supply

Version FXSHD 12A onwards XS Speedmix H3 Operating manual
29.12.2003 14 © servomat steigler
5. Overview of machine parts
Front view 5.2
Outer casing
Inner casing
Inner casing (doors)
Product container
Door contact switch
Mixing bowl
Drip pan
Product chute
Flat strip cable
Mixing bowl
Display
Screen for the
installation of coin kit
Keyboard for
selection and
programming
Drip grid
Panel
Door lock
Drip pan
Casing cover
Program key
Lock
Flat strip cable Lock operating lever
Lighting box cover
Light signal
Product output
Coin slot
Cover for product
nameplates
Flashing light
Outlet clamp Outlet pipes

Operating manual XS Speedmix H5 Version FXSHD 12A onwards
© servomat steigler 15 29.12.2003
5. Overview of machine parts
5.3 Inside view
Inner door lighting
Flashing light on inner and outer doors
Boiler connections
Flash mode during
drink dispensation
Blue LED
3 pole connection
Transparent glass
Knob for program key
Starter socket
Choke
Fluorescent lamp
Connection for
flashing light
Starter
Pump
Heating connections
Water inlet nozzle
STB
88°C
Dry run protection
121°C
Water outlet nozzle
Temperature sensor
Transparent glass
Water level probe
long
Water level probe
short

Version FXSHD 12A onwards XS Speedmix H3 Operating manual
29.12.2003 16 © servomat steigler
5. Overview of machine parts
Rear view 5.4

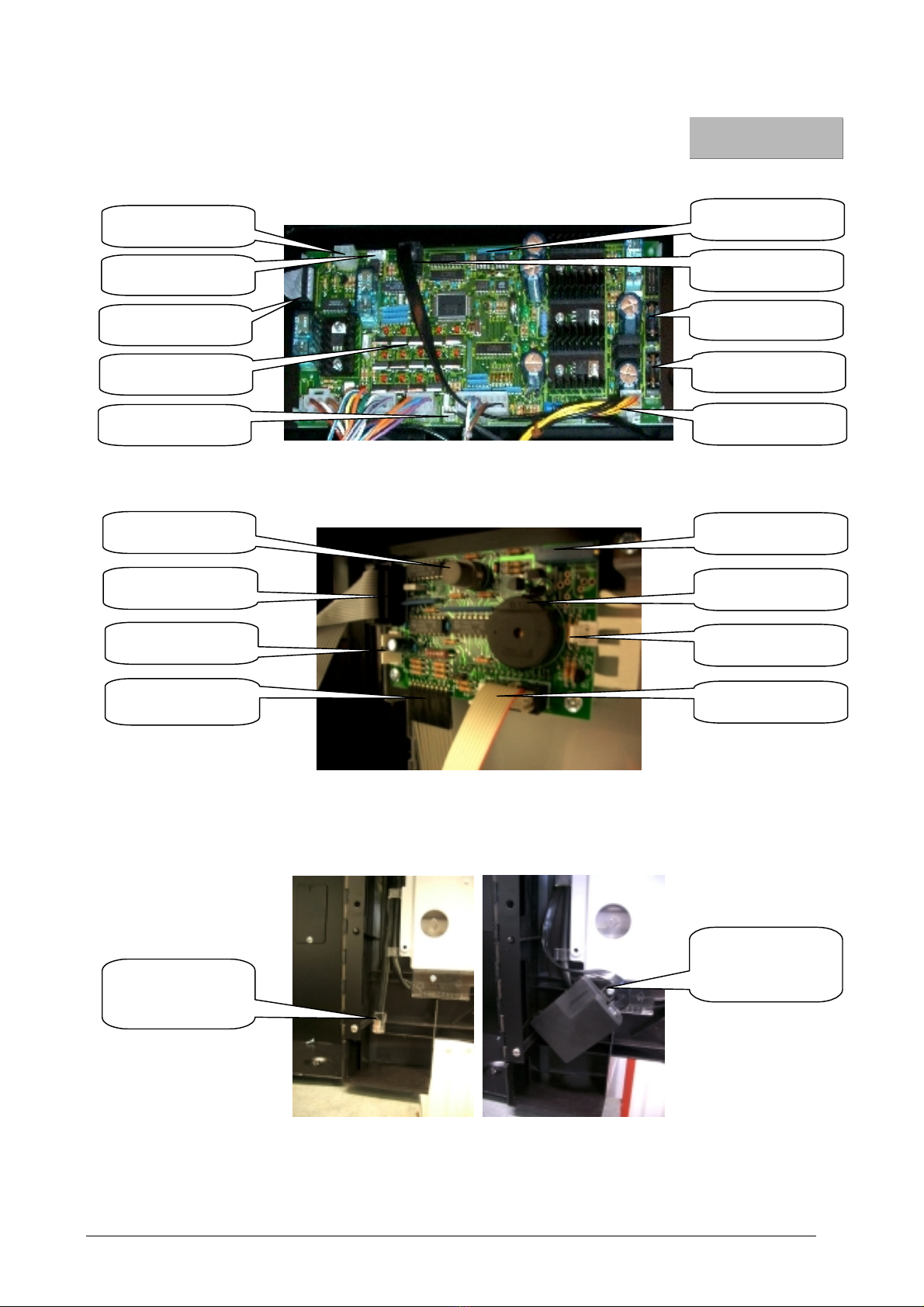

Control unit (CPU)
Display unit PCB
Inner doors
Flat strip cable for
CPU
Free socket
Key pad
8th
potentiometer for
contrast control
Indicator
Connection for
flashing light
Connection for coin
verifier
EA-Ram´s
Fine-wire fuse
6.3 A Time-lag
Fine-wire fuse
2.0 A
Voltage inputs
Executive connection
MDB connection
Transistors
Program key
Mounting suggestion
for FlashCard
interface box.
(accessories)
patch cable
connection for
FlashCard interface
box.
Flat strip cable for
display
Temperature sensor
Connection
Connection for patch
cable

Operating manual XS Speedmix H5 Version FXSHD 12A onwards
© servomat steigler 17 29.12.2003
6. Unpacking and installation
6.1 Instructions for installation
!Flawless operation of the machine is guaranteed in closed
rooms with a room temperature not less 5°C. The machine
should not be used in rooms where there is splash water.
Caution: As some products are sensitive to heat and
humidity, malfunctions are possible during
machine operation if the room temperature exceeds
30°C or the air humidity rises above 80%.
If such conditions prevail, the parts which come in direct contact
with the products must be cleaned daily.
6.2 Selection of installation site
!While selecting the place of installation please bear in mind that
easy access must be ensured for operating, servicing and
loading the machine.
6.3 Installation
•
••
•After carefully removing the packing check whether
the machine is in a flawless
condition. Check whether all parts of the
machine are installed properly. a
aa
a
•
••
•The machine keys are tied firmly to the drip pan a
aa
a
•
••
•While selecting the place of installation ensure that a flat,
vibration-free base is available and there is sufficient place for
operation a
aa
a
•
••
•The machine must be installed with proper vertical and
horizontal alignment so that the door closes flawlessly. a
aa
a
•
••
•The machine must neither be exposed to frost and humidity, nor
to the direct solar radiations a
aa
a
•
••
•Basically a minimum distance of 10 cm
must be maintained between the wall and the rear
panel of the machine. a
aa
a
•
••
•The machine comes with a mains cable having a shockproof
plug. A 220V A.C. shockproof socket with16A fuse is required. a
aa
a

Version FXSHD 12A onwards XS Speedmix H3 Operating manual
29.12.2003 18 © servomat steigler
7. Water and filter
Quality of water 7.1
The German Coffee Association e.V. has compiled the
following basics for the optimisation of safety and quality .
Among other things, following criteria form a prerequisite for
highly aromatic coffee content (naturally by using high-grade
roasted coffee):
• Water fresh in taste = oxygenous
• ph – value of 6.5 – 7.5
• Total hardness between 7 – 12° hardness (dH) according to
German standards
• Carbonate hardness between 3 – 4° kH
!
Water filter 7.2
* Aforementioned
materials are food
grade. By
impregnating the active
charcoal with silver
growth of bacteria is
restrained.
Our water filter systems perform twofold work:
1. The activated charcoal removes substances that cause
smell and spoil taste, e.g. chorine and chloride compounds
as well as their residues
2. The ion exchanger * reduces, among other things, lime
deposits (Carbonate hardness) and specific heavy metals
which could appear depending upon the place of
installation.
!
Espresso systems
function at specially high
temperature and high
water pressure.
Therefore, our mobile
machines with tank
systems are normally
fitted with tank filter.
Conclusion: More aroma,
less lime deposit,
reduced servicing and
operating costs,
minimum downtime.
Capacity of a filter cartridge BC 06
Procedure for the
replacement of Aqua-
Aroma filter cartridge:
1. Unscrew filter
cartridge
2. Put in the new filter
cartridge and tighten
easily
3. Check the filter
system
for leaky places.
Carbonate
hardness Capacity Number of cups / tumblers *
Carbonate
hardness in
degrees
In litres 130 ml 150 ml
6° kH 700 5300 4600
8° kH 520 4000 3400
10° kH 420 3200 2800
12° kH 350 2600 2300
14° kH 300 2300 2000
16° kH 260 2000 1700
18° kH 240 1800 1600
* Capacity data does not include any rinsing and cleaning
cycles
Instructions for the
installation of Aqua-
Aroma filter cartridge:
Recommended
maximum usage period
6 months or refer to
table Capacity.
For placing a repeat
order:
1 piece of BRITA connection head Article no. 799
051
for 06 BC
1 piece of BRITA AquaQuell filter 06 BC Article no. 799 052
!

Operating manual XS Speedmix H5 Version FXSHD 12A onwards
© servomat steigler 19 29.12.2003
7. Water and filter
7.3 Cleaning the boiler
The boiler is the most important element in the water cycle of the
machine. Therefore, protect the water system from dust and
calcification. Carry out periodic maintenance and servicing work, even
at the time of water filter installation. The most important parts are
given below:
1. Clean the boiler
outlets
2. Remove the
outlets by turning
them in the
clockwise direction.
3. Pull out the
complete outlet
module from the
boiler.
4. Now again turn
the outlet nozzle
and its spout in the
clockwise direction.
5. Separate the
parts.
6. Remove the
large V-ring.
Replace it if
necessary.
7. Put the outlet
spout and the outlet
casing in a cleaner
or a decalcification
agent. Clean the
outlet nozzles. Here
residues of dust
and lime can lead
to severe water
fluctuations.
8. Clean the short
water level probe,
the temperature
sensor as well as
the long water
level probe.
Please do not use
any emery paper
or wire brush. Put
the parts without
connections in
container with
cleaner or
decalcification
agent.
9. In the suction
casing check the
fastening screw of
the impeller for
tightness.
10. Inspect the V-
ring on the pump
axis. It should not
be too tight. It is
only meant to be a
splash protection.
11. If you want to
decalcify the
complete boiler,
first remove the
dry run protection.
Hold the top part in
the boiler housing.
After this rinse the
parts properly.
1. 2. 3.
4. 5. 6.
7. 8.
9. 10 11
