Cino CN-F User manual

Model: CN-F
Please read this manual carefully before operating this machine!
User manual
COMMERCIAL CAPSULE COFFEE MACHINE
CINO TECHNOLOGY (SHENZHEN) LTD
4/F , BLDG G, LICHENG SCIENTIFIC AND TECHNOLOGICAL INDUSTRIAL PARK,XINHE BLVD,
SHAJING, BAO'AN, SHENZHEN CHINA ( 518104 )
www.cino.cn
MANUFACTURER:

IMPORTANT SAFETY PRECAUTIONS
READ ALL INSTRUCTIONS
IMPORTANT SAFEGUARDS
BEFORE USING THE CAPSULE MACHINE. KEEP THESE INSTRUC-
TIONS FOR FUTURE REFERENCE.
Electrical safety
WARNING: For safety reasons, this appliance MUST be earthed. The terminal
marked is for equipotential bonding.
This appliance is intended to be used in working environments including staff
kitchen areas, in shops and offices, farm houses, clients in hotels, motels, bed
and breakfasts and other environments.
Unplug the appliance from the mains before cleaning or maintaining. For details,
please refer to CLEANING - DAILY.
Do not operate any appliance with a damaged lead or plug, or after the appli-
ance malfunctions or has been damaged, cracked or dropped in any manner.
If the power cord is damaged it must, for safety reasons,be replaced by CINO
or a qualified,authorised CINO repairer.
This appliance conforms to directive 2014/30/EU regarding electromagnetic
compatibility.
Do not pull the power supply cable over sharp edges, clamp it or allow it to hang
down. It should not be allowed to come into contact with hot or damp surfaces.
THIS IS AN ATTENDED APPLIANCE.Do not leave unattended during use, unplug
after use (risk of fire if an unattended appliance is left operating)
Warning: This is a commercial product and must only be used by a trained
operative who has read and fully understands this manual.
Ensure that the voltage of the appliance corresponds to that of the mains supply.
This appliance must not be used by children younger than 8 years old or
persons with very extensive and complex disabilities. Children aged 8-14 years
and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge shall not use this appliance, unless they are super-
vised and have been given instruction concerning the use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children unless
they are older than 8 and supervised. Keep the appliance and its cord out of
reach of children less than 8 years old.
Never touch the cable with wet hands.
The use of extension cables not authorised by the manufacturer may cause
damage, accidents or fire.
General safety
Do not use if dropped, craked or damaged. Risk of fire, electric shock or
injury to persons.
The use of accessory attachments not recommended by CINO may result in
fire, electric shock or injury to persons.
Product surface and inside is subject to residual heat after use.
D o not place the appliance on a polished wood surface, it could damage the
surface.
D o not place on a metal tray or surface that may collect liquid or other metal
surface during use.
D o not operate on an uneven surface.
D o not use the appliance without water as this may cause damage to the pump.
D o not place the appliance over or close to sources of heat such as electric
rings, hot ovens or open flames.
D o not leave the appliance in a room with a temperature below 0°C, as any
water remainingin the appliance could freeze and cause damage.
The coffee maker shall not be placed in a cabinet when in use.
Do not overfill the water tank.
Do not use sparkling water (with carbon dioxide).
Never fill the tank with hot or boiling water.
Only use the appliance with the Drip Trays correctly fitted.
Do not immerse in water or other liquids.
Your machine is fitted with a Pressure Release Valve that dispenses into the
Drip Trays.
Warning: Drip Trays, Large and Small Cup Holders may be hot due Small
Cup Holders may be hot due cool before handling.
Ensure Water Softening Device is removed before descaling solution is
placed in the water tank. Risk of contamination or injury.
Donot use the machine for any purpose other than mentioned in this
Otherwise, this may result in an injury caused by misuse.
If there is internal water leakage,do not operate the capsule machine and
unplug it at once in order to avoid electric hazard.
Turn the appliance off and unplug when not in use.
To prevent damage to the appliance use CINO approved descaling agent for
Cleaning/Descale program. Use a soft cloth and mild detergent to clean
external parts.

Do not use a scouring pad or abrasive cleaner on the main body.
H ot water Hazard. Avoid direct contact with hot water. Unplug the appliance from
the mains to allow to cool before cleaning, maintaining or moving. For details, please
refer to cleaning section.
We recommend that the appliance is plugged into a socket that has no other
appliance connected to it. Failure to do this may cause an overload, trip a circuit
breaker or blow a fuse. Preferably the socket outlet should be protected by a
residual current device (RCD).
Do not come into contact with the coffee outlets, risk of scalding.
Keep this manual and your proof of purchase in a safe place.
R ead this instruction manual before you start using the machine. It gives you
important safety information and will ensure you get the most out of your
BARETTO produ ct.
Only use capsules intended for this appliance. If the capsule does not
fit, do not force the capsule into the appliance.
Warning: To avoid the risk of injury, do not open the brew chamber
during the brew process.
INSTRUCTIONS ON ENVIRONMENT PROTECTION
BEFORE FIRST USE
Steam and Hot Water Hazard. Do not get into direct contact with hot liquid or
steam as this may cause burns or scalding.
Never use a damaged or deformed capsule.Water could flow around the
capsule when not perforated by the blades and damage the appliance.
Always close the lever completely and never lift it during operation.Do not put
fingers into the capsule compartment or the capsule shaft. Danger of injury!
Never put the appliance or part of it in a dishwasher.
The appliance must not be cleaned by a water jet.
The appliance is not suitable for installation in an area where a water jet could
be used.
The new hose-sets supplied with the appliance are to be used and that old
hose-sets should not be reused.
This appliance is only suitable indoor use. This appliance is intended to be used
in working environments including staff kitchen areas, in shops and offices, farm
houses, clients in hotels, motels, bed and breakfasts and other environments
residential.
Do not dispose of this product in the usual household garbage at the end of
its life cycle. Please hand it over to a collection point for the recycling of
electrical and electronic appliances. The symbol on the product, the instruc-
tion of use or the packaging will inform you about the methods of dispos-
al.The materials are recyclable as mentioned on its marking.By recycling,
material recycling or other forms of reutilization of old appliances you are
making an important contribution to protect our environment. Please enquire
at the community administration for the authorised disposal location.
T he water tank must be washed with warm soapy water, then rinsed and dried.
F ollow the instructions for First Use, ensuring no capsule is inside.
THE COFFEE & TEA MACHINE MUST BE FLUSHED THROUGH
WITH WATER BEFORE THE FIRST USE.

Content
Overview .............................................................................................1
Operation description ..........................................................................2
Beverage extraction.............................................................................2
Cup volume/Temperature setting .......................................................3
Restore of factory settings ..................................................................4
Emptying system .................................................................................4
Cleaning and descaling ......................................................................4
Power off ..............................................................................................4
Power saving........................................................................................5
Warning ................................................................................................5
Beverage dispensing volume .............................................................6
Additional information...........................................................................6
Cleaning & care ...................................................................................7
Technical data ......................................................................................7
Trouble shooting...................................................................................8

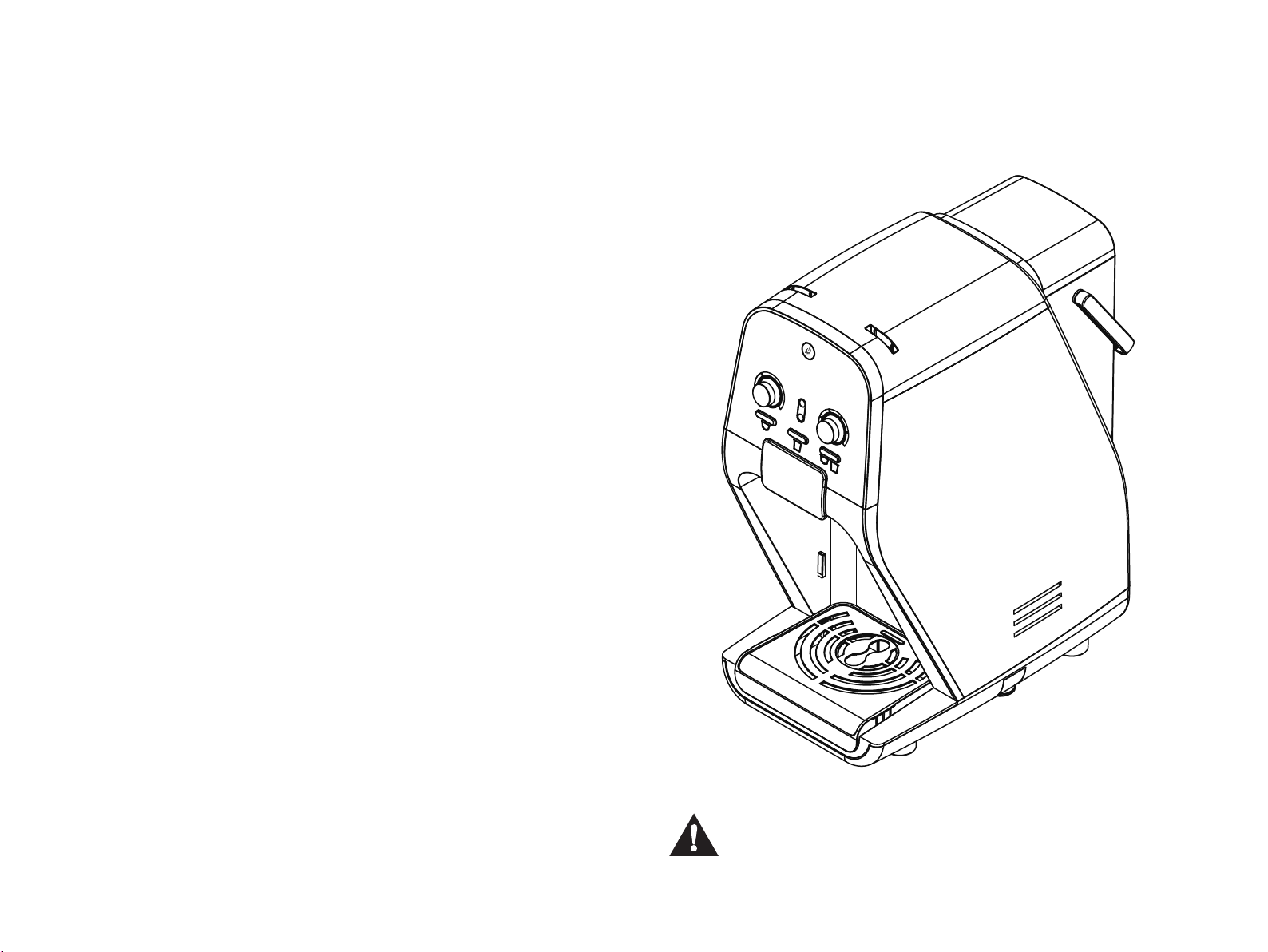

1.Overview
>> Description for indicator lights
Water tank
Indicator light
Cup volume scale
Key 3 (Dispensing
two capsules at the
same time)
Key 1
Key 2
Capsule cup
Drip tray
Power button
Temperature scale
Plug in the power plug of the machine (The machine is powered on, in the power
saving mode). The buzzer “beeps” once and the lights of all the keys are lit up once
and then off. Then the power button is lit up.
Machine warm-up: Pressing the power button, the buzzer “beeps”
once and the machine starts its normal warm-up.
In default, the machine shall warm up to 80
°C temperature scale (The
cup volume is in one scale).
If any other temperature scale is selected during warm-up, the
machine shall warm up to the corresponding temperature in standby.
When in standby, the temperature scale can be lowered as you prefer.
But getting the temperature higher requires extra warm-up time.
Standby mode: The power, LOGO, temperature (selected), cup volume
(selected) indicator light are lit up. The extraction indicator lights (both)
are unlit, and then you can make your beverage at any time.
Power saving mode: Only the indicator light of the power button is on
and flickers like breathing (Approx. 1 time every 4 seconds).
1

2. Operation description
3. Beverage extraction
>> Preparation before the usage
2
Plug in the power of the
machine
Press the power button. It shall
flicker during warm up and
keeps lit up in red after the
completion of warm up.
Start to dispense.
Take out the capsule
cup.
Lower grid for big
cup.
Upper tray for
small cup.
Adjust the cup holder
level by different cup
Press the key of the
corresponding beverage
After the water pump stops for
2 seconds, the buzzer makes a
long “beep” and the beverage
extraction is completed.
Place a capsule at its
proper position and then
push the capsule cup to
its proper position
Place the water cup
Method 1
Fill in water into the
water tank and place it
at a proper position
1 2 3
4 5 6
3
Take out the capsule cup, get rid
of the used capsule and push the
capsule cup back to its proper
position again.
Please empty the waste water
according to the actual usage
situation.
4. Cup volume/Temperature setting
Take out a capsule cup and place a
capsule to its proper position. Then
push the capsule cup to its proper
position
Rotate the cup volume scale clockwise
(Increase gradually and the scale lights
are lit up in order); rotate the cup
volume scale anti-clockwise (Decrease
gradually and the dial lights are lit up in
order)
>> Beverage key description
Press and hold Key 3 for 3
seconds. The order of extraction of
Key 3 under the extraction state is
switched, so does the flash of the
lights. Both are saved automatically.
Press Key 3 Firstly brews the
beverage of Key 1. The key
flashes at one time per second.
Then brew the beverage of Key 2.
The key flashes at one time per
second while other lights are lit up.
Press Key 1 The indicator
light flashes at one time
per second while the light
of Key 2 is unlit and other
lights keep lit up.
Press Key 2 The indicator
light flashes at one time
per second while the light
of Key 1 is unlit and other
lights are lit up.
87
Method 2
Connect the water piper/bucket to
add water (Please select this
option according to your actual
version)The optional water supply
has a pressure range of 0 bar.

5. Restore of factory settings
6. Emptying system
7. Cleaning and descaling.
8. Power off
4
Press the power button to enter the power saving mode and
then switch it on again (Or unplug it to cut the power and switch
on again) and the machine is restored to its factory settings.
In standby, press Key 1 and Key 2 simultaneously for 3
seconds. The buzzer “beeps” once. The machine is in the
emptying mode. The heating unit and the water pump start
working together till the water in the water tank is sucked out
completely. After the water pump is out of water, the water
pump stops working. The boiler keeps heating till the water
content in the boiler is completely evaporated. After emptying is
completed, the boiler and the water pump stop working. After
the buzzer makes a long “beep”, press Key 3. The two lights
flashes and are lit up. All the cup volume lights flash at the
same time at 2 times per second, indicating emptying is
completed. Now only pressing the power button or unplugging
the power line can clear this state.
In the standby mode, press Key 2 and Key 3 simultaneously for
3 seconds. The buzzer “beeps” once and then the product will
enter in descaling mode. The heating unit and the water pump
start working together till the water in the water tank is
extracted completely. After the buzzer makes a long “beep”, the
process is over and the machine returns to standby mode. Now
only pressing the power button or unplugging the power line
can clear up this state.
In any state, pressing the power button for 3 seconds, the
machine enters its power-off state after a long “beep”.
All the indicator lights are unlit (Including the power button
light).
9. Power saving
10. Warning
5
The capsule cup is not placed or is not placed at a
proper position. The machine shall automatically send
a warning. All the temperature indicator lights keep
flashing together (The flash frequency is 2 times per
second). Now it is only required to place the capsule
cup properly to clear the warning.
When the machine is lack of water in dispensing, the
machine sends out a warning automatically. The
warning method: All the cup volume indicator lights
keep flashing (The flash frequency is 2 times per
second). And the buzzer keeps “beeping” in the same
frequency as the indicator lights. Now it is required to
add water to the water tank and then press any key of
extraction to clear the warning.
When the machine cannot brew any beverage in
dispensing due to any expired capsule or bad capsule,
the machine sends out a warning automatically. The
warning method: All the cup volume indicator lights
keep flashing (The flash frequency is 2 times per
second). And the buzzer keeps “beeping” in the same
frequency as the indicator lights. Now it is required to
reset, take out the capsule cup, replace a new
beverage capsule and press any key of extraction to
clear the warning.
Power
saving mode
Capsule
cup warning
Warning for
lack of water
Warning for
being blocked
After powered on, press Key 1 and Key 3 for 3 seconds.
The buzzer makes a long “beep” and the two indicator
lights of Key 3 are lit up together for 3 seconds. The
machine has the power saving mode in this state.
1.
In the standby mode, the machine enters the power
saving mode if no operation occurs in a consecutive 10
seconds.
2.
In any state, press the power button. The coffee machine
enters the power saving mode after a “beep”.
3.
After powered on, press Key 1 and Key 3 for 3 seconds.
The buzzer makes a long “beep” and the two indicator
lights of Key 3 flashes together 5 times at 3 times per
second. The machine has no power saving mode in this
state.
3.
Rotate the temperature scale clockwise
(The light is lit up individually); rotate the
temperature scale anti-clockwise (The light
is switched and lit up individually)

11. Beverage dispensing volume
12.Additional information
6
Note: According to the actual operating condition, there shall be some
differences between temperature and flow volume.
When the water pump keeps working over 2 minutes,
the machine sends out a warning automatically. The
warning method: All the indicator lights flash together
(Temperature light + cup volume light) for 3 times and
then stop for 3 seconds (The flash frequency is 2 times
per second) and then flash again. And the buzzer
keeps “beeping”. Now the machine needs to rest for
one minute to automatically clear the warning or unplug
the power line to clear the warning.
Warning for
water pump
working overtime
Temperature scale
Temperature(℃)Normal
temperature
(Key 1 beverage)
35ml (clean water）
50ml (clean water）
(Key 2 beverage) (Key 3 beverage)
80℃ 90℃
Key
Flow
volume
1 beverage 50 + 2
beverage 180 =
230ml (clear water)
180ml (clean water）
240ml (clear water）
300ml (clean water）
7
14. Technical data
13. Cleaning & care
Please select the correct voltage marked on the label at the bottom of the
machine and use the corresponding power.
1.9L
~ 6.1kg
15bar
220-240V~ 50-60Hz 1400-1600W
127V~ 60Hz 1500W
120V~ 60Hz 1400W
110V~ 60Hz 1250W
100V~ 50-60Hz 1450W
235mm 415mm355mm
5℃-30℃
The first new machine arrive from factory with close
system , cannot make any brewing unless we will add some
credit as above point n.
USB
WATER filter Machine must use the water filter ; the machine the machine
is set from the factory that after 2500 capsule the machine will
be stopped and for to continue use must change the filter by
follow the appropriate instruction.
< 70dB A
Do not immerse the
machine in water.
Electric shock.
Clean the capsule
cup.Clean drip grid
and drip tray.
Clean water tank. Clean the nozzle
with the needle.

98
Please search for user manual information at www.cino.com.cn
Other questions · Please contact the authorized service center.
No water
is dispensed
· Check if the water tank with water. Please
add water if there is none.
· The water tank is not properly placed.
· Please contact the authorized service center
for repair or a distributor.
15. Trouble shooting
No indicator light
· Check if the plug is properly plugged in.
· Check if the power voltage is the same as
the one marked on the label.
Keys have
no response
· Unplug the power and replug.
· Please contact an authorized service center
for repair or a distributor.
Coffee flow
volume is not even
· Check the water tank if it is properly placed.
· Check the capsule and place it back again.
Dispense water
but no coffee · Replace a new capsule.
