CISA eFAST TOUCH MORTICE Series User manual

1
EN
“eFAST TOUCH MORTICE” SERIES PANIC EXIT DEVICE - Installer’s instruction sheet
Item 59751 - To be installed with a panic function mortice lock.
Limit values prescribed by the UNI EN 1125 standard with extension. This product is certied for use on standard and/or re doors.
> 200
(400 max) -10
+50 °C
Max.
1,6 m
Max.
3,5 m
SYMBOLS
Right-handed door (R).
Left-handed door (L).
Single leaf door (1).
Double leaf door (2).
Use of outside access devices (OD).
Optional part supplied on request
(OPT) .
L
R
R
L
L R
12
O
P
T
Check atness Place Align Use template See notes See instructions
Ref. Q.ty COMPONENTS Ref. Q.ty COMPONENTS
1 1 Main case 8 1 Spindle
2 1 Rear support 9 1 Secondary cover
3 1 Front bracket 10 1 Bar
4 1 Rear bracket 11 1Rear bar plug
5 1 Connecting rod 12 1 Front bar plug
6 1 Main cover 13 1 Plate
7 2 Main cover plug 14 1 Connecting cable
8
17
6
3
12
10
11
9
2
4
5
= 9 mm 07083-5X-0
07083-75-0
07083-70-0
= 8 mm 07085-76-0
L
13
14
Ref. Templates used to position:
AMain case
DRear support
The templates must be cut out and are included in the instruction sheet on page 11.
Small hardware items used
Q.ty = 7 Q.ty = 5
O
P
T

2
Type of installation on blind doors (C) with tubular frame/glazed doors (T) and wooden doors (L)
Several lengths are available:
- L=1200 mm (Item 1.59751.00.0)
- L=840 mm (Item 1.59751.01.0)
(A) (B)
(1) (2) (3)
1(C) MITO PANIC
1-43112-65-0-xx-xx
1-07074-70-0-XX
1-07076-22/24/26-0-XX (A)
1-07076-21/23/25-0-XX (B)
1-06142-8X-0-XX (1)
1-07073-20-0 (1)
1-07176-61-0-XX(A) (2)
1-07176-66-0-XX(A) (2)
Main leaf
(1) (2) (3) (A) (B)
2(C) MITO PANIC
1-43192-65-0
1-43193-65-0
1-07074-70-0-XX (A)
1-07076-22/24/26-0-XX (A)
1-07076-21/23/25-0-XX (B)
T.1 PANIC FUNCTION LOCK INSTALLATION
G
G
DDG
DG D
1000 ± 100 mm
1
LR L
2

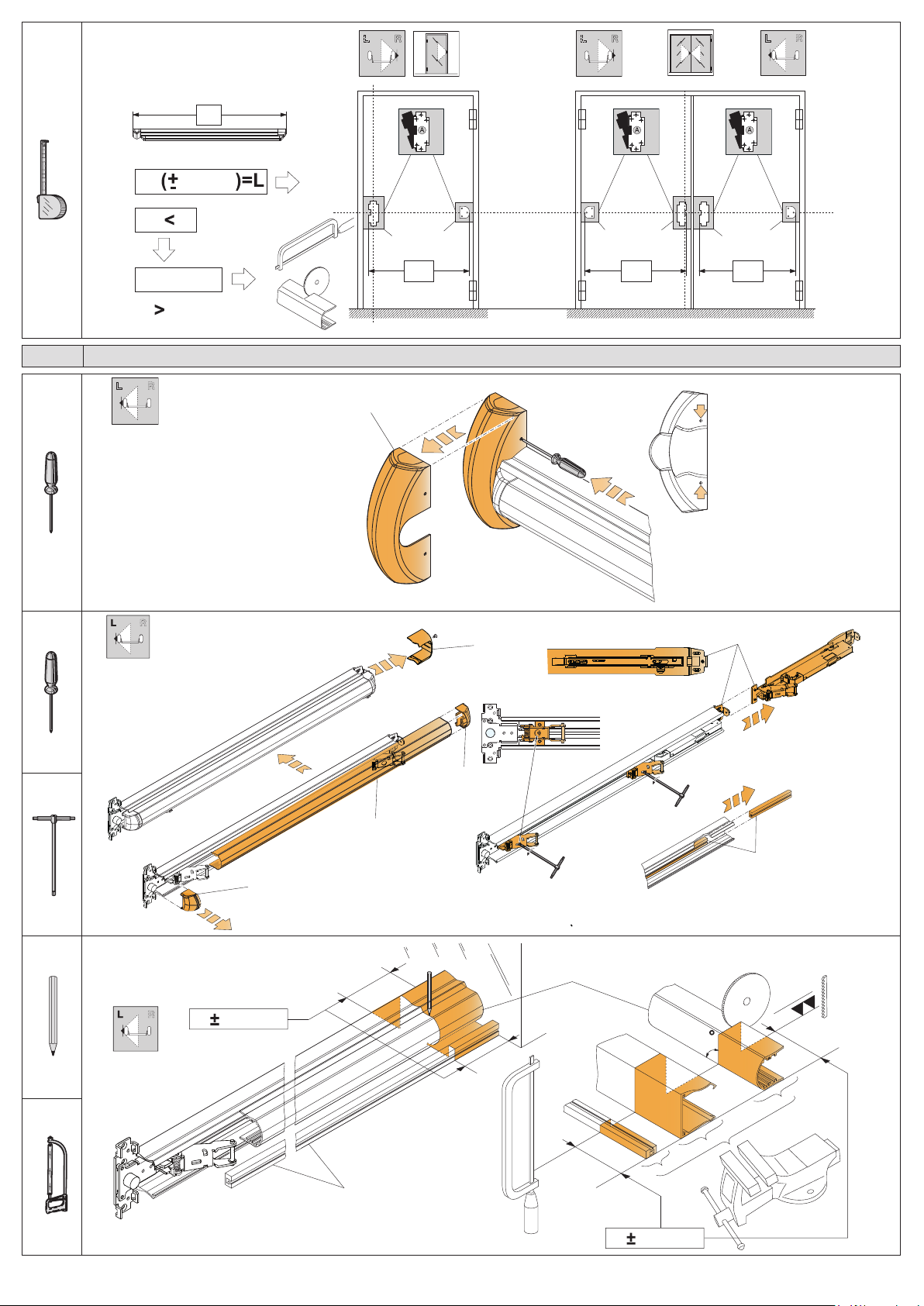

T.2 PANIC EXIT DEVICE LENGTH CHECKING
A
A
A
G D
D
D
G
D
AD DA
1
LRL
2

3
A A
D
Lx T.2
5 mm
D
DA
Lx L
L 600 mm
X L - Lx=
L
Lx Lx Lx
1
RL
2
R
T.3 PANIC EXIT DEVICE LENGTH ADJUSTMENT
6
L
92
12
10
12 5
5
10
90
X 0,5 mm
X 0,5 mm

4
1
Push the rod 5until it touches the front bracket 3.
3
Pull the front bracket lever 3outwards to check it is fully open.
2
Place the rear bracket 4against the end of the rod 5.
4
Connect the power supply cable 14.
L
3
1
2
5
53
4
2
5
4

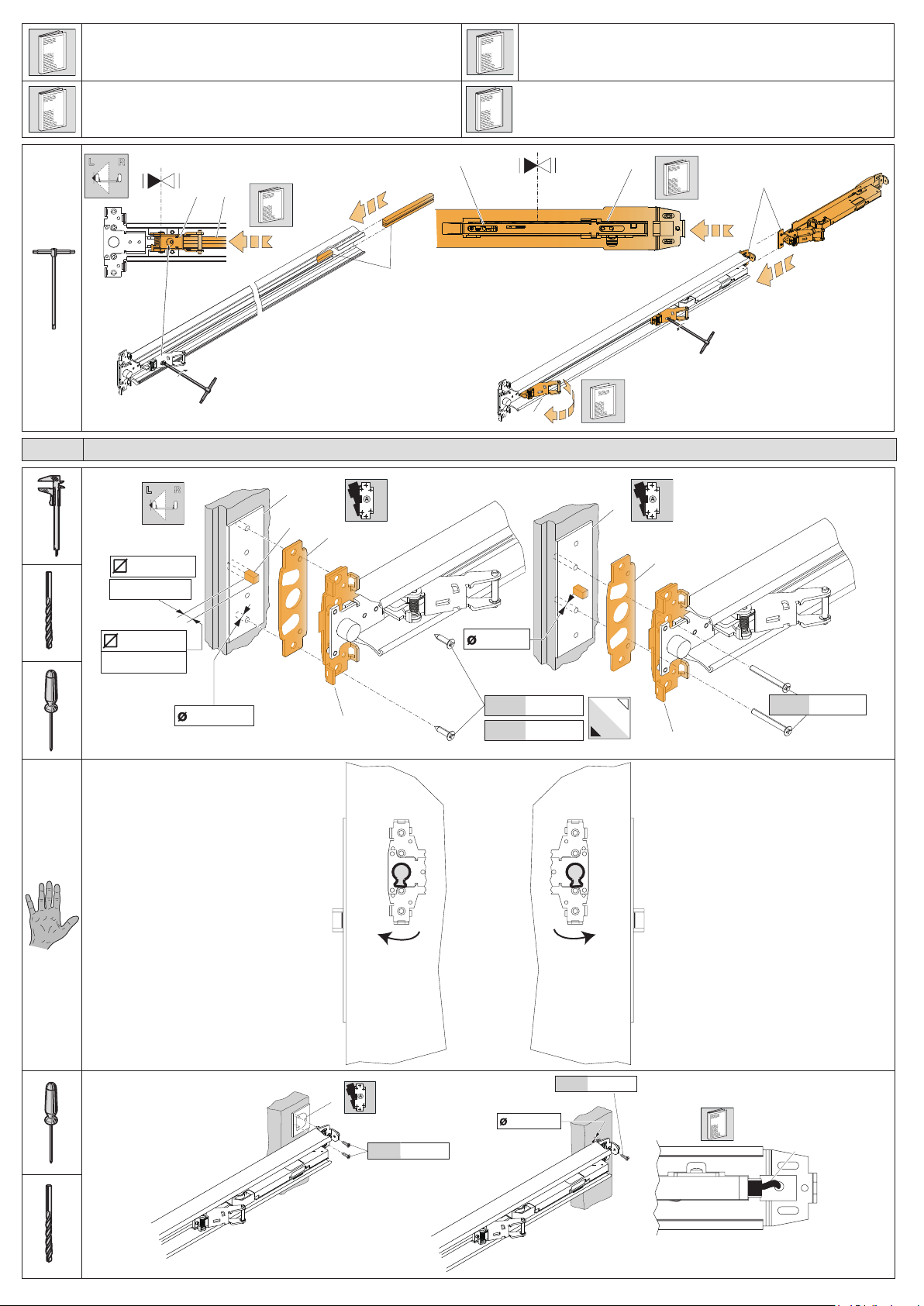

T.4 PANIC EXIT DEVICE INSTALLATION
CSA 4,2x19
CSF M4x19 CSC M5x90
6 mm
3,2 mm
18 mm
8
1
AA
1
13 13
= 8 mm
8 mm
= 9 mm
L
OP
T
4
14
CSA 4,2x19
3,2 mm
D
CSA 4,2x19

5
1
Push the rod 5until it touches the front bracket 3.
3
Pull the front bracket lever 3outwards to check it is fully open.
2
Place the rear bracket 4against the end of the rod 5.
4
Connect the power supply cable 14.
T.4 PANIC EXIT DEVICE INSTALLATION
4
14
CSA 4,2x19
3,2 mm
DCSA 4,2x19
T.5 WIRING
MOTOR CHARACTERISTICS
Power supply voltage 12
Absorbed current (max) 1.5A @ 12V
Degree of protection IP X0
Operating temperature -10 ÷ +55°C
Certications See “Regulatory Addendum”
1Hold open switch (optional)
2Remote opening button
3Ext V 1 = 12V , min I = 1 mA
4Lock closed LED (optional) ext V 2 = 12V , max I = 0.5 A
5Int V = 12V , I = 2 A
6Lock open LED (optional) ext V 3 = 12V , max I = 0.5 A
7Programming cable Item 1.07030.41.0 (optional)
8
This conguration is an alternative to 5
Power supply with battery charger (UPS function)
Class B 12V , I=2A. Bu󰀨er battery 12V, 0.8Ah
Recommended when installing device on re doors
WARNING:
Do not connect the product directly to the mains 230V ~.
CISA declines all responsibility for the compliance of the existing
system to current regulations.
1
3
5
7
N.C.
11
N.C.
2
4
6
8
N.C.
12
N.C.
2 1
14 13
8,5 mm
16 mm
Pinout Colour fo Signal Descriptions Specications
1Green TX - Programming cable -
2Green/White TX +
3Orange OUT1 / C Lock status securely locked 12 V , max I = 0.5 A
4Orange/White OUT1 / NO
5Brown OUT2 / C Lock status open 12 V , max I = 0.5 A
6Brown/White OUT2 / NO
7Blue IN1+ Input for opening 12 V , 12V ~
Min I = 1mA
8Blue/White IN1-
9- - Not connected -
10 - - Not connected -
11 Red V+ Power supply 12 V , I = 1.5 A
12 Black V-
13 - - Not connected -
14 - - Not connected -
TXD + TXD - GND
V
est 3
V
est 2
V
est 1
1
2
3
4
6
7
7
7
+ -
8 5
PSU
+-
PSU
+-
Batt
Opzionale

6
The cable supplied can be connected with the existing electric system.
Check the maximum length of the cables with the table.
WARNING:
CISA declines all responsibility for the compliance of the
existing system to current regulations.
Cable section (mm²) Max length (m) (*)
0,5 5
0,75 10
115
1,5 or higher 25
(*) The table gives the minimum section of the cables depending on the length
of the cable to connect with the cable supplied.
WARNING:
Use the cable supplied with the lock only.
We recommend using cable guards (see the accessories section) for the power supply cable between the frame and the door.
The motor must be powered at all times, even when the door is open.
The power supply is not supplied with the kit.
See item 1.07060.10.0 in the accessories section.
WARNING: A power supply with the following characteristics is recommended:
Output: 12V - 2A
Protection with fuse 2A, 250V
Protection: OVP (overvoltage), OCP (overcurrent)
Certications: CE, in compliance with directives 2014/30/EU, 2014/35/EU Class 2 (double insulation), LPS source (in compliance with IEC
62368), SELV, UL Listed or UL Recognized.
OPERATION
The panic exit device has the same features as the mechanical version, in compliance with EN1125, with an additional power-
assisted opening function thanks to the interaction between the mechanics and the electronics.
INTERFACING FOR OPENING
The panic exit device is opened by pressing button 1 or opening switch 2 (see diagram 1).
1. Single opening: when button 1 is pressed, the panic exit device opens for 3 seconds (this time can be set up to 180 sec on the PC), after
which it closes and the latchbolts automatically engage.
2. Hold open mode: the panic exit device can be interfaced with a switch 2.
When the switch is closed, the panic exit device remains open; it will lock again only when the switch is opened.
Cannot be installed on re doors.
WARNING:
The electric current produced by some applications can be high, keeping the lock open even after the opening button has been
released. It is advisable to interface the input command with a repeater relay and connect the motor as shown in diagram 3.
WARNING: POWER FAILURE
If there is a power failure, the panic exit device will always revert to locked when power is restored.
INTERFACING FOR PANIC EXIT DEVICE STATUS
(example of installation with an actuator to open and close the door)
OUT1 and OUT2 outputs can be used to remotely control the status of the panic exit device.
OUT1 output is activated when the panic exit device is locked (latchbolt and lock engaged).
OUT2 output is activated when the panic exit device is completely open (latchbolt and lock withdrawn).
IMPORTANT: Both the outputs are free contacts normally open (C, NO) with a maximum capacity of 60V, 0.5mA
WARNING:
Connect devices with a maximum current absorption of 0.5A and a maximum voltage of 60V.
CISA declines all responsibility for the compliance of third-party devices used.
It is possible to connect 12V lights (see the accessories) directly to the lock power supply. Respect the polarity (+/-) of the lights/LEDs.
A repeater relay (item 1.07022.20.0) is needed to control locks, electric strike coils or 230V devices.

7

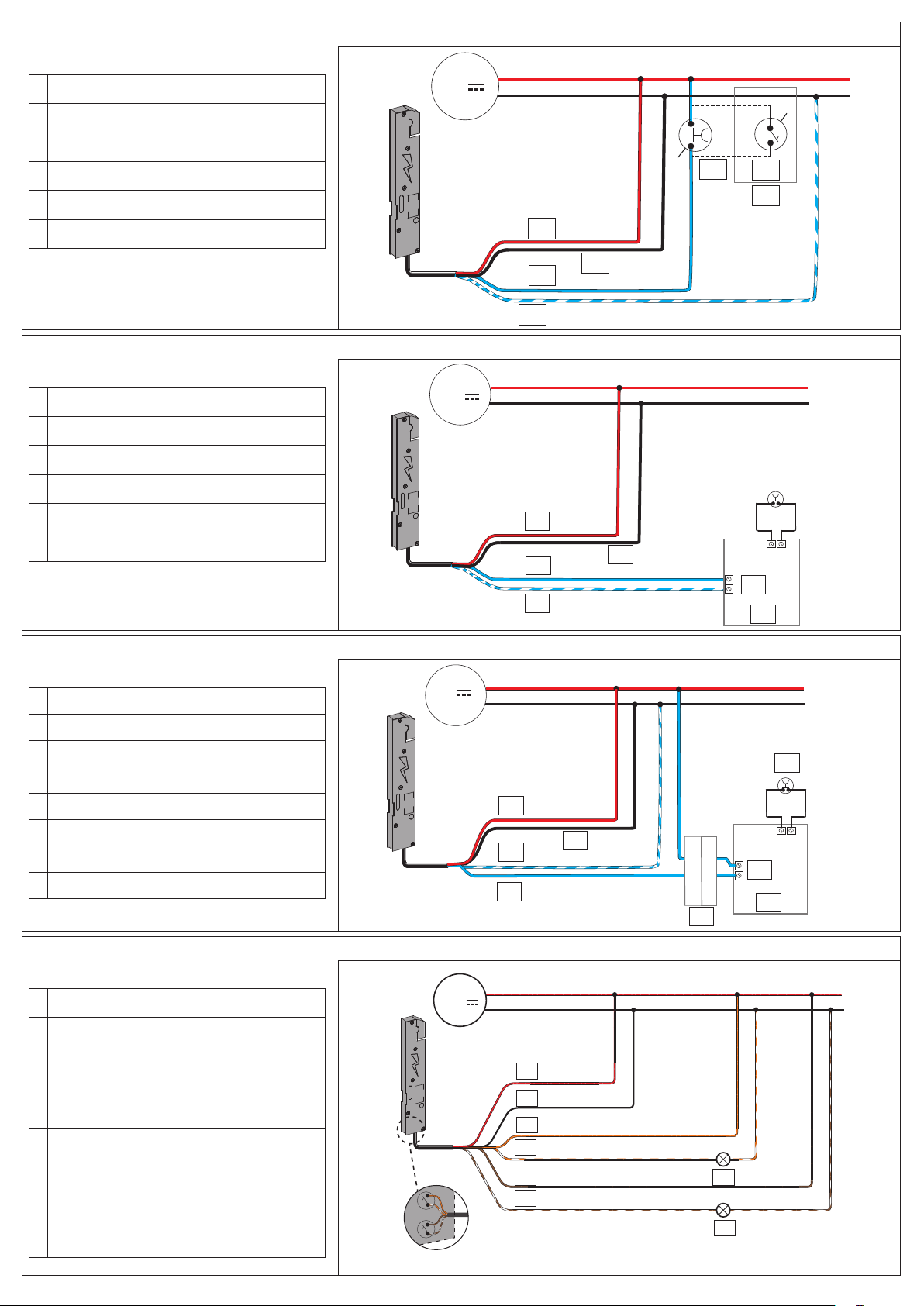

Diagram 1: example of button/switch connection to panic exit device power supply.
KEY
1 Red | V+ | Power supply (+)
2Black | V- | Power supply (-)
3Blue | IN1+ | Input for opening (+)
4Blue/white | IN1- | Input for opening (-)
5Button
6Optional switch for passage mode
12V
+
-
1
2
1
2
3
4
56
7
Diagram 2: example of panic exit device connection to an intercom.
KEY
1 Red | V+ | Power supply (+)
2Black | V- | Power supply (-)
3Blue | IN1+ | Input for opening (+)
4Blue/white | IN1- | Input for opening (-)
5Lock 12V~
6Intercom
12V
+
-
5
6
1
2
3
4
Diagram 3: example of panic exit device connection to an intercom using a repeater relay.
KEY
1 Red | V+ | Power supply (+)
2Black | V- | Power supply (-)
3Blue/white | IN1- | Input for opening (-)
4Blue | IN1+ | Input for opening (+)
5Lock 12V~
6Intercom
7Opening button
8Relay
12V +
-
COM A1
NO A2
1
2
4
35
6
7
8
Diagram 4: interfacing for panic exit device status (example of installation with an actuator to open and close the door)
KEY
1 Red | V+ | Power supply (+)
2Black | V- | Power supply (-)
3Orange | OUT1/C | Lock status securely
locked
4Orange/white | OUT1/NO |
Lock status securely locked
5Brown | OUT2/C | Lock status open
6Brown/white | OUT2/NO | Lock status open
7Door status locked
8Door status open
-+
-+
12V
+
-
OUT1
OUT2
Max
60V - 0,5A
Max
60V - 0,5A
1
2
3
4
5
6
7
8

8
T.6
INSTALLATION COMPLETION - FINAL CHECKS
4
Insert the front bracket pins 3 in the grooves of the bar 10.
5
Insert the front bar plug inserts 12 in the grooves of the bar 10.
CSC 4x8
10
11
12 3
10 9
10
L
4
5
6
Check with the door closed: the latchbolt and/or tips of the rods enter the strikers correctly.
7
Grease the point where the latchbolt and/or tips of the rods enter the striker.
5 8 mm
5 8 mm
5 8 mm
L
L
R
7
6
6
6
7
7

9
8
Press the bar 10 before inserting the cover 6.
9
Check the bar 10 springs back to its original position after it has been pushed.
10
During nal checking, ensure assembly compliance by measuring the operating strength necessary to work the exit device by
using a dynamometer.
After installation has been completed, register the installed product codes and measured operating e󰀨ort on the “Certicate of
correct installation”.
7
66
10
6
9
9
8
10
T.7 ACCESSORY INSTALLATION
CSC M 5x90
CSC M 5x90
IOP
T
OP
T
Art. 07176-66-0
Art. 07176-62-0 I=85 mm
Art. 07176-61-0 I=72 mm
Art. 07176-63-0 I=92 mm

10
T.8 ACCESSORIES
Art. 07030-41-0
Art. 07126-02-0
11,5
7
5,8
Art. 07126-01-0
Art. 07030-40-0
Art. 07060-10-0
Item 07126-01-0
Red LED
Item 07126-02-0
Green LED
Item 07030-40-0
Power supply cable (L = 4 m).
Item 07030-41-0
Programming cable
Item 07060-10-0
Power supply:
- Input: 110÷240V AC 50/60Hz 0.7A
- Output: 12V DC 2.5A Class 2
output
- Certied UL Listed
Item 06525-75-0
Cabled keypad for individual access
control by PIN code, for E0000
CISA MOTOR series. Polished
black nish.
AVAILABLE FINISHES
- Satin-nished chrome (n. B1)
Item 06515-00-0
Concealed cable guard
Item 06515-00-0
Concealed cable guard
Items 06515-20-0 - 06515-21-0
External cable guard with spring
Art. 06525-75-0
75
15
77.6
1723
260
Art. 06515-15-0
Art. 06515-20-0 300 mm
Art. 06515-21-0 600 mm
L
22
13
11
35
55
15.2
30
2 87
20
Art. 06515-00-0
CERTIFICATES OF CONFORMITY
THIS PRODUCT IS CERTIFIED IN COMPLIANCE WITH FOLLOWING CONSTRUCTION PRODUCTS REGULATION NO. 305/2011.
Panic exit device with touch bar “eFAST TOUCH MORTICE” series, installed with locks from the MITO PANIC series.
Classication: B - Designed for use on re doors.
S ingle or double leaf wooden re door: I120 (ref. EN1634-1)
Single or double leaf steel re door: I120 (ref. EN1634-1)
Test reports at: www.cisa.com
These locks are also designed in such a way that turning the spindle from the outside does not a󰀨ect the operation of the panic exit device.
0425-797
EN 1125:2008
3 7 7B1 4 2 2 B A
0425 - CPR-005515
VIA OBERDAN, 42
48018 FAENZA (RA)
ITALY
22

11
Code 067890910/A www.cisa.com
TEMPLATES TO CUT OUT
A
D
D
A
23,5 mm
23,5 mm
15 mm
21,5 mm
21,5 mm
30 mm
< 30 mm
11 mm
DG
L
R
10 mm
10 mm
Instructions in other languages can be downloaded at: www.cisa.com
The products illustrated in this instruction sheet have all the technical characteristics which are described in CISA S.p.A. catalogues and are to be used exclusively for the pur-
poses indicated therein.
CISA S.p.A. will not guarantee any performance or technical feature which is not expressly illustrated in these instructions; NO modications can be made to the product other
than those expressly indicated by CISA S.p.A. without forfeiting the guarantees provided by law and any certications of product conformity.
For specic security requirements, please contact retailers or locksmiths of these products or CISA S.p.A. directly as they will be able to recommend the most suitable product
to meet the customer’s specic needs.
