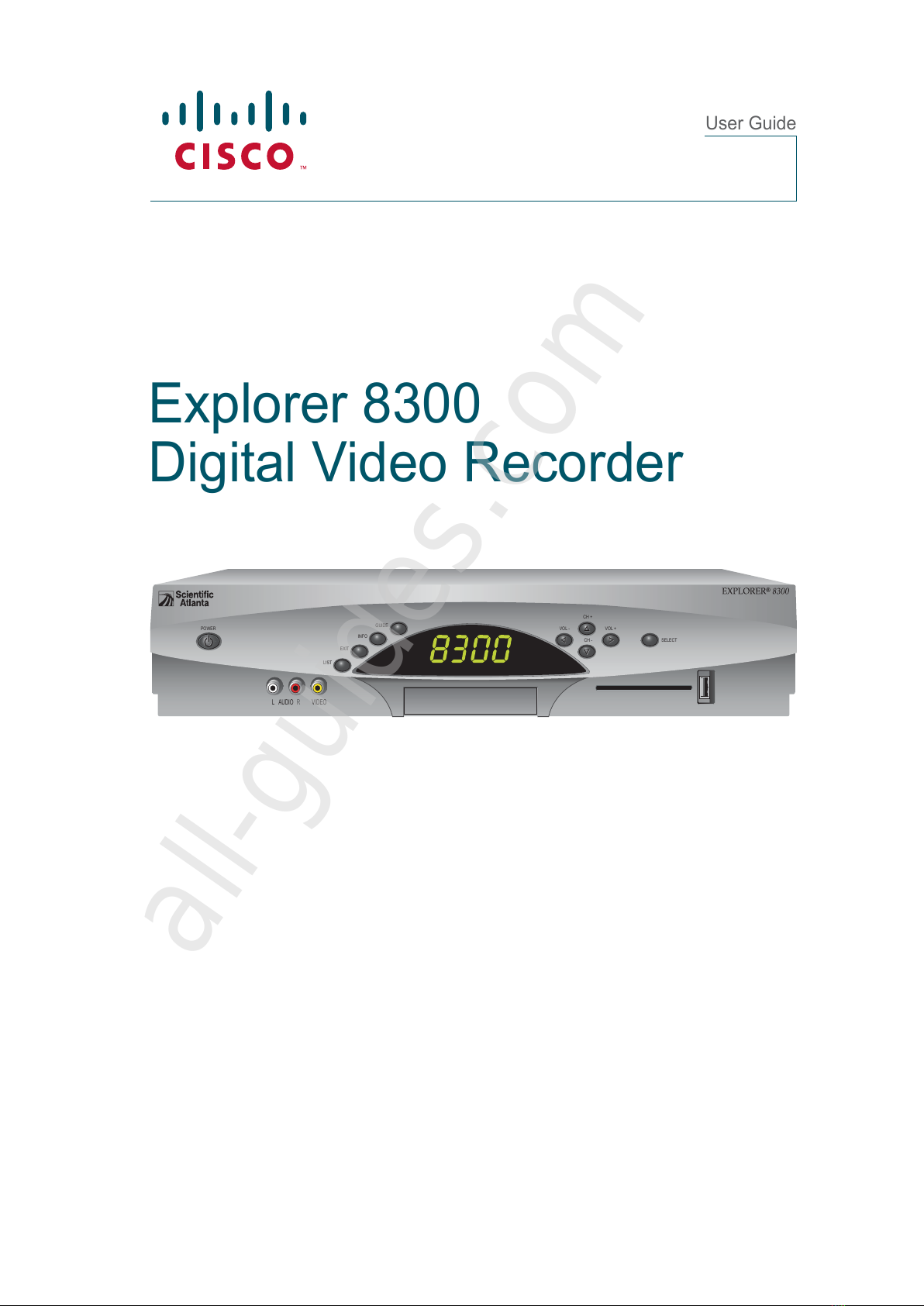

Cisco Scientific Atlanta Explorer 8300 User manual

User Guide
Explorer 8300
Digital Video Recorder
LIST
AUDIO VIDEOL R
EXIT
INFO
GUIDE
CH +
CH - SELECT
POWER VOL +VOL -
All manuals and user guides at all-guides.com
all-guides.com

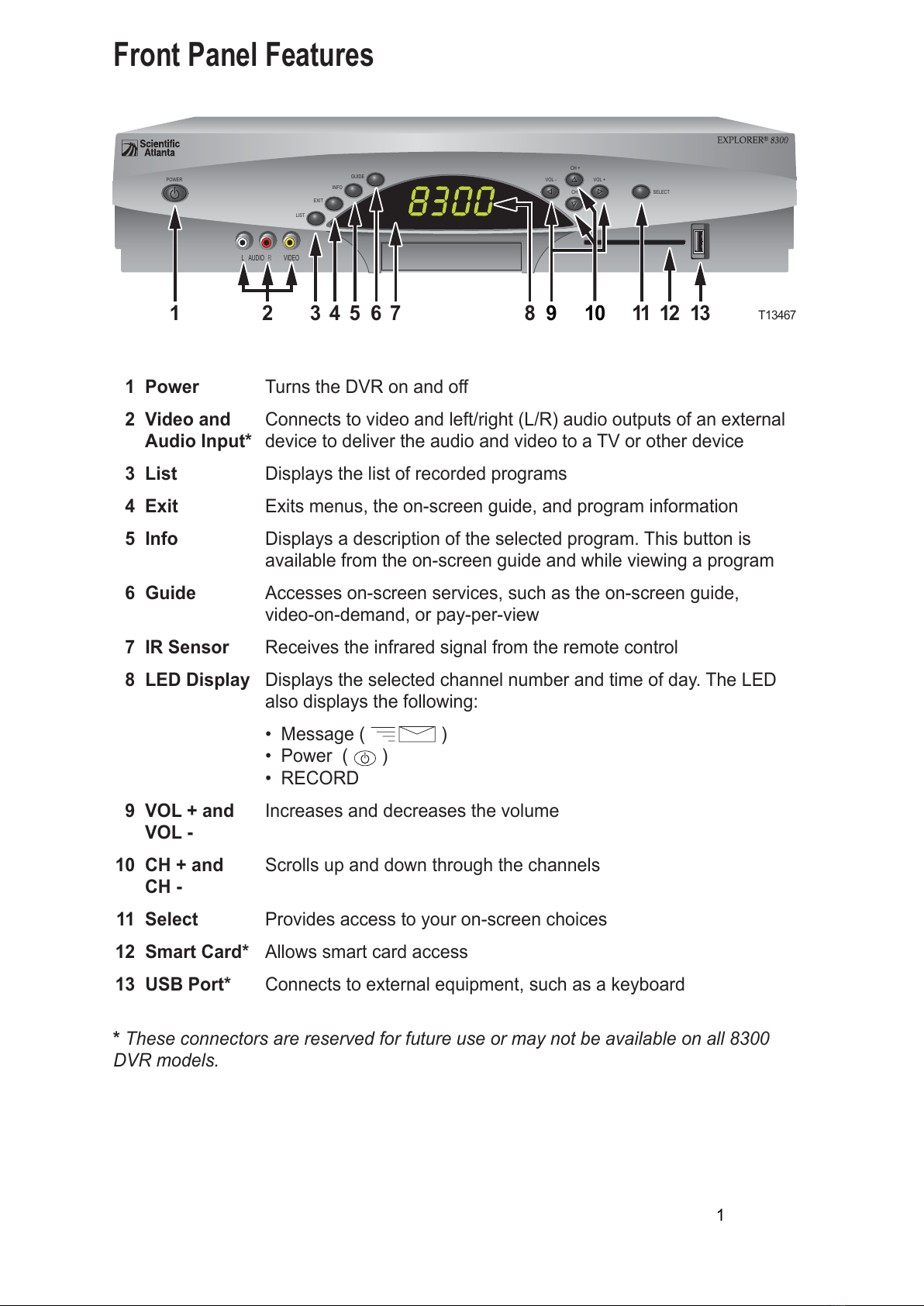

Front Panel Features
1 Power Turns the DVR on and off
2Video and Connects to video and left/right (L/R) audio outputs of an external
Audio Input* device to deliver the audio and video to a TV or other device
3List Displays the list of recorded programs
4Exit Exits menus, the on-screen guide, and program information
5Info Displays a description of the selected program. This button is
available from the on-screen guide and while viewing a program
6Guide Accesses on-screen services, such as the on-screen guide,
video-on-demand, or pay-per-view
7IR Sensor Receives the infrared signal from the remote control
8LED Display Displays the selected channel number and time of day. The LED
also displays the following:
• Message ( )
• Power ( )
• RECORD
9VOL + and Increases and decreases the volume
VOL -
10 CH + and Scrolls up and down through the channels
CH -
11 Select Provides access to your on-screen choices
12 Smart Card* Allows smart card access
13 USB Port* Connects to external equipment, such as a keyboard
*These connectors are reserved for future use or may not be available on all 8300
DVR models.
LIST
AUDIO VIDEOLR
EXIT
INFO
GUIDE
CH +
CH - SELECT
POWER VOL +VOL -
T13467
1 2 11 13123 74 5 68
910
1
All manuals and user guides at all-guides.com

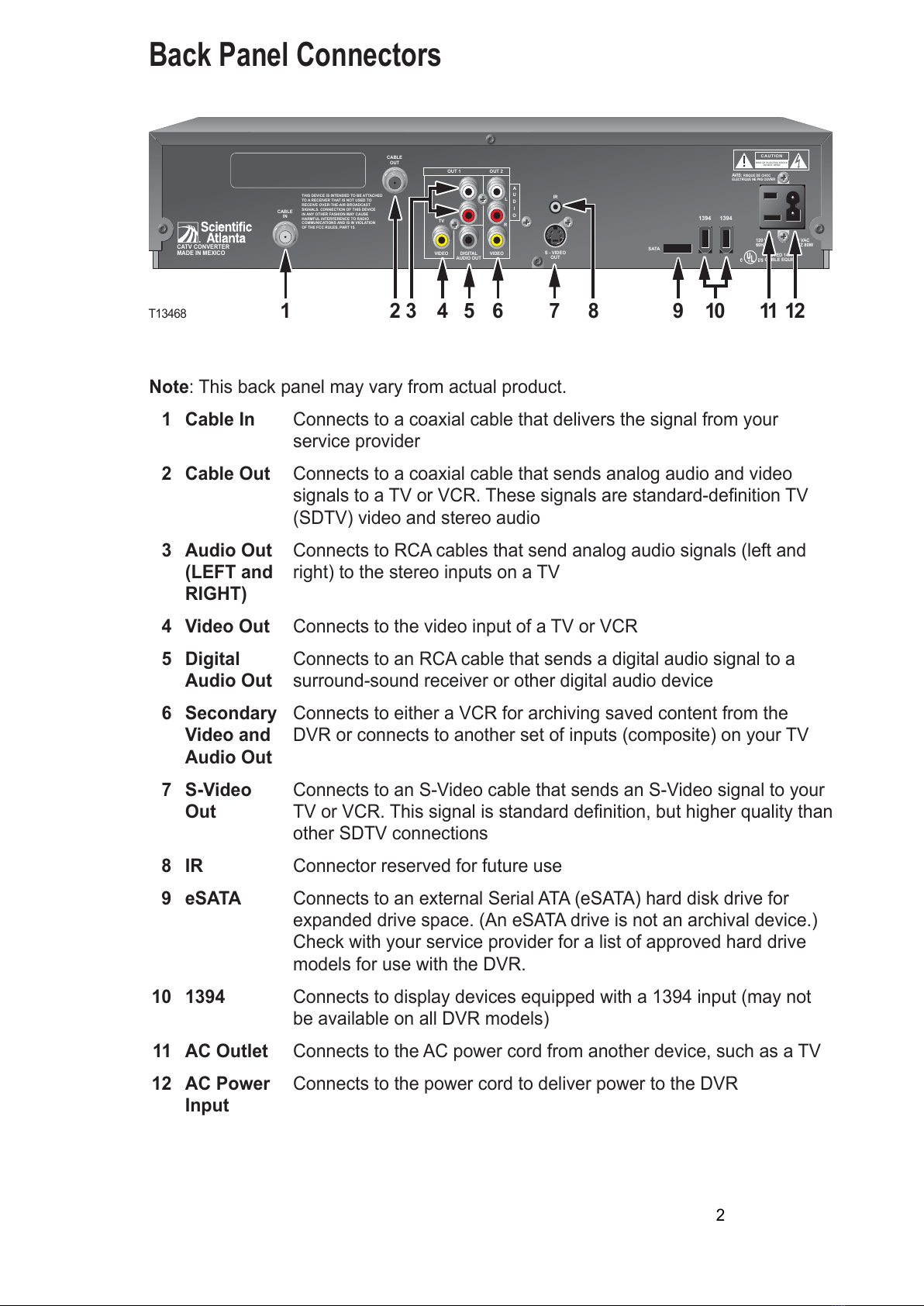

Back Panel Connectors
Note: This back panel may vary from actual product.
1 Cable In Connects to a coaxial cable that delivers the signal from your
service provider
2Cable Out Connects to a coaxial cable that sends analog audio and video
signals to a TV or VCR. These signals are standard-definition TV
(SDTV) video and stereo audio
3 Audio Out Connects to RCA cables that send analog audio signals (left and
(LEFT and right) to the stereo inputs on a TV
RIGHT)
4 Video Out Connects to the video input of a TV or VCR
5 Digital Connects to an RCA cable that sends a digital audio signal to a
Audio Out surround-sound receiver or other digital audio device
6 Secondary Connects to either a VCR for archiving saved content from the
Video and DVR or connects to another set of inputs (composite) on your TV
Audio Out
7 S-Video Connects to an S-Video cable that sends an S-Video signal to your
Out TV or VCR. This signal is standard definition, but higher quality than
other SDTV connections
8IR Connector reserved for future use
9eSATA Connects to an external Serial ATA (eSATA) hard disk drive for
expanded drive space. (An eSATA drive is not an archival device.)
Check with your service provider for a list of approved hard drive
models for use with the DVR.
10 1394 Connects to display devices equipped with a 1394 input (may not
be available on all DVR models)
11 AC Outlet Connects to the AC power cord from another device, such as a TV
12 AC Power Connects to the power cord to deliver power to the DVR
Input
T13468
IR
CABLE
OUT
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
IN ANY OTHER FASHION MAY CAUSE
HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15.
120 VAC
60HZ 5A
LISTED 14H1
CABLE EQUIP.
120 VAC
60HZ 80W
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CABLE
IN
SATA
S - VIDEO
OUT
CATV CONVERTER
MADE IN MEXICO
VIDEOVIDEO
TV
OUT 1 OUT 2
A
U
D
I
O
DIGITAL
AUDIO OUT
L
R
AVI S: RISQUE DE CHOC
ELECTRIQUE NE PAS OUVRIR
1394 1394
1 75 64 98 11 1232 10
2
All manuals and user guides at all-guides.com

Connecting the DVR
To connect your DVR to your entertainment devices, complete these steps.
D
3
1
2
4
5
POWER
6
Connect the coaxial cable that carries the signal from your service
provider to the CABLE IN connector on the back panel of the set-top.
7
VCR DVD Other
Home Theater External
SATA Drive
Connect your SDTV to the DVR. Refer to the Connections for a
Standard-Definition TV and Standard VCR section on page 5.
Identify the additional
devices you will connect
to the DVR and TV.
See pages 5through
7and the related
user guides for more
information.
Plug the DVR and the TV into an AC power source.
Important: To protect the set-top from power surge damage,
ground (earth) your cable product to provide some protection
against voltage surges and built-up static charges. To avoid these
voltage surges that can be caused by lightning storms and power
outages, plug the set-top into a surge protector to reduce the risk of
damage.
Do not turn on the DVR or TV yet.
It may take several minutes for the DVR to receive the latest
software, programming, and service information. Wait until one of
the following appears on the front panel of the DVR to indicate the
update is complete:
• Current time • Four dashes (- - - -)
Note: If four dashes appear, your DVR is not authorized. Call your
service provider.
To begin watching TV, turn the TV ON, and press POWER on the
front panel of the DVR or press Power on the remote control.
3
All manuals and user guides at all-guides.com

Performance Tips
If the DVR does not perform as expected, the following tips may help. If you need
further assistance, contact your service provider.
No Picture
• Verify that the power to your TV is turned on.
• If the DVR is plugged into a wall switch, verify the wall switch is in the ON position.
Note: You should avoid plugging the DVR into an outlet that is controlled by a wall
switch.
• Verify that all cables are properly connected.
• If your system includes a VCR or stereo, verify that you have properly connected
them to the DVR.
• Verify that the TV is set to the proper input channel.
No Color
• Verify that the current TV program is broadcast in color.
• Adjust the TV color controls.
No Sound
• If your setup includes a stereo, verify that you have properly connected it to the
DVR.
• Verify that the volume is turned up.
• Verify that the Mute function is not engaged.
Automatic Software Updates
The TV screen may display a message that indicates the DVR is automatically
updating its software. Should this occur, wait for the time to appear on the front panel
of your DVR before continuing. When the time appears, the update is complete.
Frequently Asked Questions
Where Are the Connection Diagrams?
The diagrams are on pages 5through 7of this guide. The diagrams show examples
of common ways to connect the DVR to your TV, VCR, and home theater receiver.
However, these diagrams do not show every possible combination of devices. Refer
to the user guides that came with your other electronic devices for further information.
What Cables Do I Need?
The required cables are shown in the connection diagrams in this guide. Some of the
cables and adaptors shown in the diagrams may not be included with the DVR.
4
All manuals and user guides at all-guides.com

WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the DVR.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the DVR.

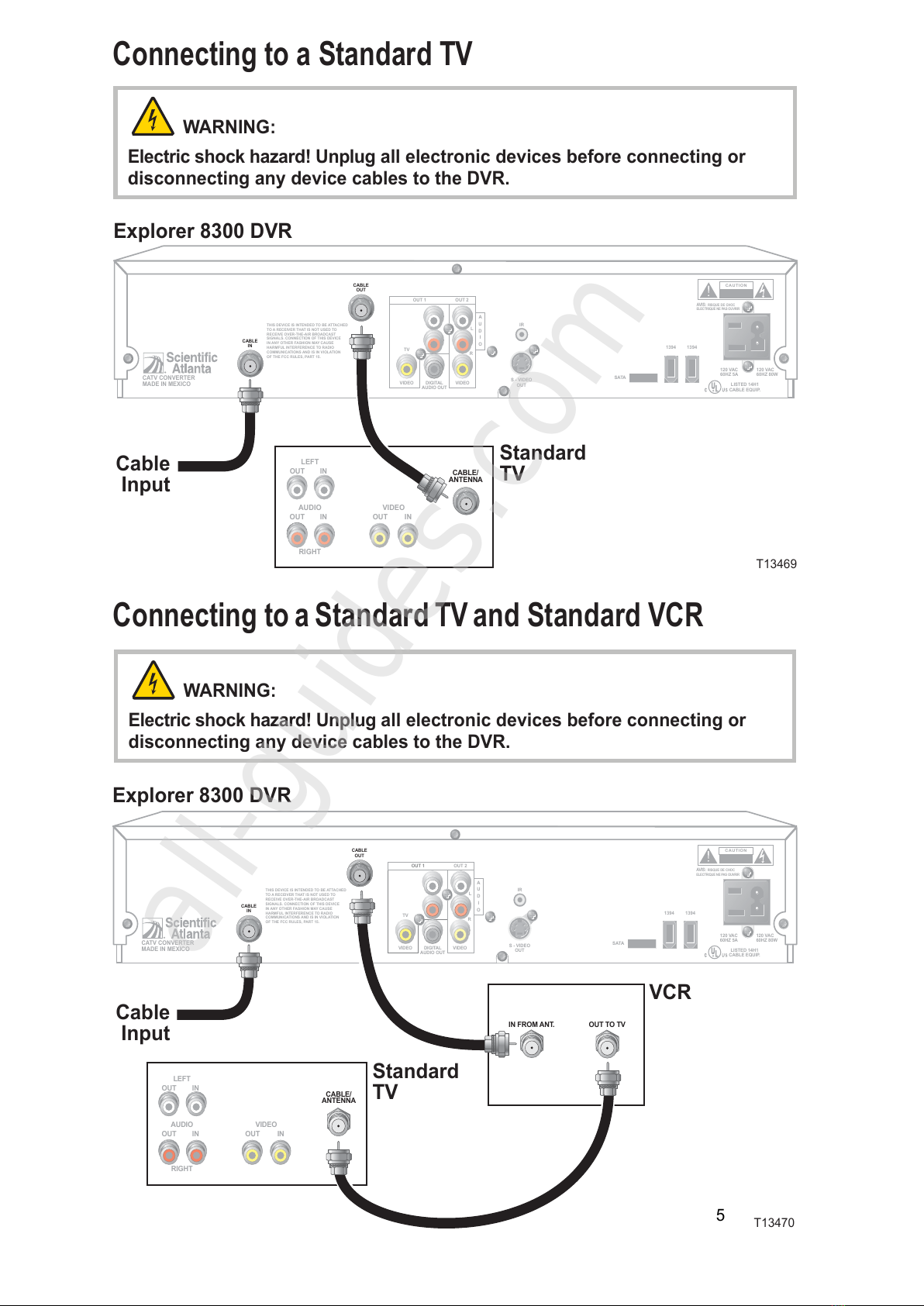

Connecting to a Standard TV
Connecting to a Standard TV and Standard VCR
Explorer 8300 DVR
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
IN ANY OTHER FASHION MAY CAUSE
HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15.
CABLE
IN
VIDEOVIDEO
TV
OUT 1
A
U
D
I
O
DIGITAL
AUDIO OUT
L
R
CATV CONVERTER
MADE IN MEXICO
IR
S - VIDEO
OUT
120 VAC
60HZ 5A
LISTED 14H1
CABLE EQUIP.
120 VAC
60HZ 80W
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVI S: RISQUE DE CHOC
ELECTRIQUE NE PAS OUVRIR
OUT 2
Cable
Input
CABLE
OUT
SATA
13941394
T13469
Standard
TV
RIGHT
INOUT
LEFT
AUDIO
INOUT CABLE/
ANTENNA
VIDEO
INOUT
Explorer 8300 DVR
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
IN ANY OTHER FASHION MAY CAUSE
HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15.
CABLE
IN
VIDEO VIDEO
TV
OUT 1
A
U
D
I
O
DIGITAL
AUDIO OUT
L
R
CATV CONVERTER
MADE IN MEXICO
IR
S - VIDEO
OUT
120 VAC
60HZ 5A
LISTED 14H1
CABLE EQUIP.
120 VAC
60HZ 80W
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVI S: RISQUE DE CHOC
ELECTRIQUE NE PAS OUVRIR
OUT 2
CABLE
OUT
SATA
13941394
T13470
VCR
IN FROM ANT.
Cable
Input
Standard
TV
RIGHT
INOUT
LEFT
AUDIO
INOUT CABLE/
ANTENNA
VIDEO
INOUT
OUT TO TV
5
All manuals and user guides at all-guides.com
all-guides.com

Explorer 8300 DVR
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
IN ANY OTHER FASHION MAY CAUSE
HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15.
CABLE
IN
VIDEOVIDEO
TV
OUT 1
A
U
D
I
O
DIGITAL
AUDIO OUT
L
R
CABLE
OUT
CATV CONVERTER
MADE IN MEXICO
IR
S - VIDEO
OUT
120 VAC
60HZ 5A
LISTED 14H1
CABLE EQUIP.
120 VAC
60HZ 80W
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVI S: RISQUE DE CHOC
ELECTRIQUE NE PAS OUVRIR
OUT 2
SATA
13941394
Home
Theater
Receiver
VIDEO
COMPONENT VIDEO
1
Y
PB
PR
2
Y
PB
PR
Y
PB
PR
L
R
AUDIO
S-VIDEO
DIGITAL
AUDIO TV/CABLE
1
2
3
4
VIDEO
L
R
AUDIO
S-VIDEO
DVD
S-VIDEO
VIDEO 1
S-VIDEO
OUT
VIDEO OUT
MONITOR
VIDEO
L
R
AUDIO
S-VIDEO
OUTIN
OUT
Cable
Input
VIDEO
L
R
AUDIO
OUT
RIGHT
INOUT
LEFT
AUDIO 1
INOUT
CABLE/
ANTENNA
VIDEO 1
INOUT
Stereo
TV
RIGHT
INOUT
LEFT
AUDIO 2
INOUT VIDEO 2
INOUT
T13472
Connecting to a Home Theater Receiver and Stereo TV
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the DVR.
6
All manuals and user guides at all-guides.com

Explorer 8300 DVR
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
IN ANY OTHER FASHION MAY CAUSE
HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15.
CABLE
IN
SATA
VIDEO VIDEO
TV
OUT 1
A
U
D
I
O
DIGITAL
AUDIO OUT
L
R
CATV CONVERTER
MADE IN MEXICO
IR
S - VIDEO
OUT
120 VAC
60HZ 5A
LISTED 14H1
CABLE EQUIP.
120 VAC
60HZ 80W
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVI S: RISQUE DE CHOC
ELECTRIQUE NE PAS OUVRIR
OUT 2
CABLE
OUT
Cable
Input
T13473
External SATA
Hard Disk Drive
SATA
To
Unswitched
Wall Outlet
To Unswitched
Wall Outlet
WARNING:
Electric shock hazard! Unplug all
electronic devices before connecting
or disconnecting any device cables
to the DVR.

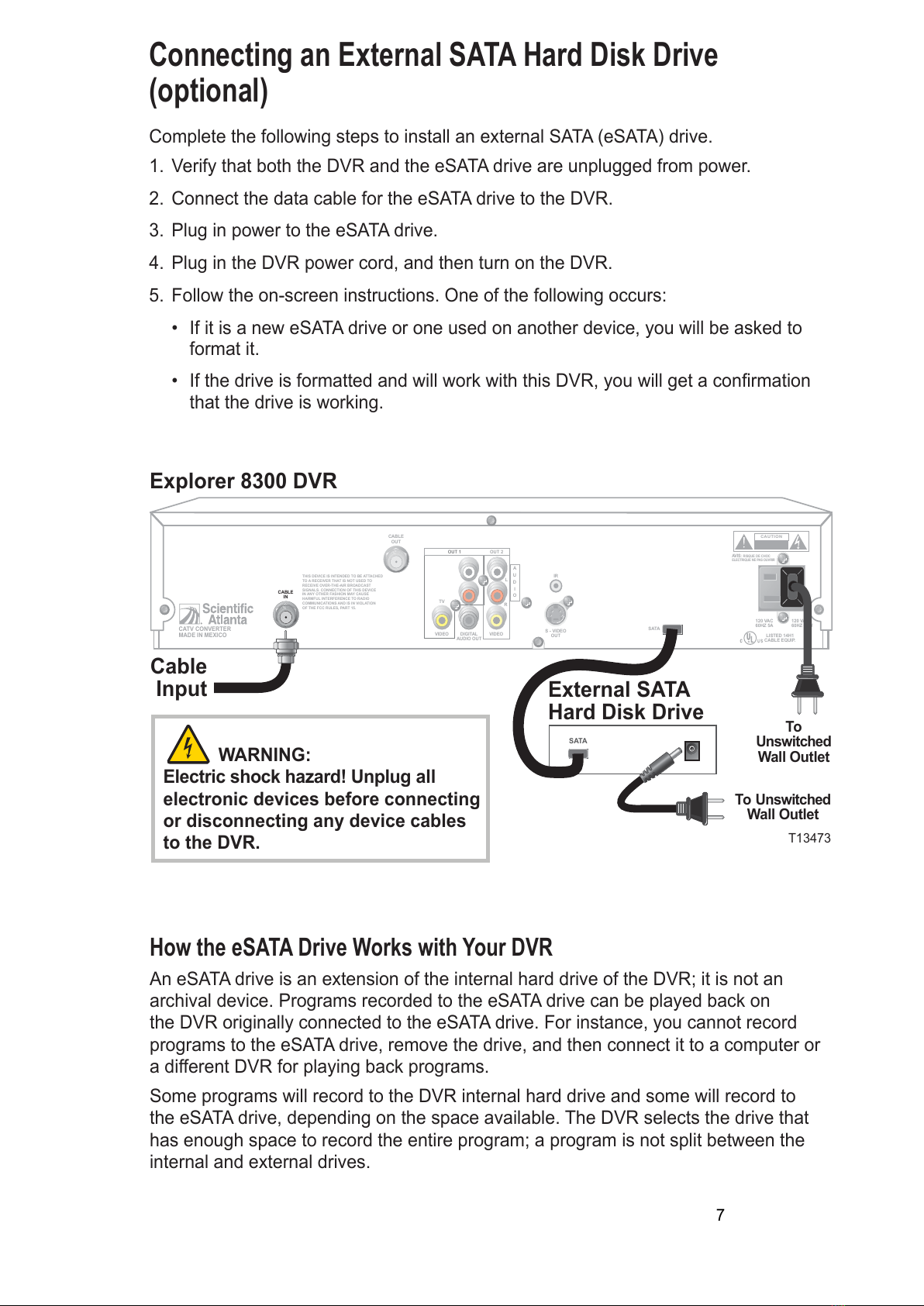

Connecting an External SATA Hard Disk Drive
(optional)
Complete the following steps to install an external SATA (eSATA) drive.
1. Verify that both the DVR and the eSATA drive are unplugged from power.
2. Connect the data cable for the eSATA drive to the DVR.
3. Plug in power to the eSATA drive.
4. Plug in the DVR power cord, and then turn on the DVR.
5. Follow the on-screen instructions. One of the following occurs:
• If it is a new eSATA drive or one used on another device, you will be asked to
format it.
• If the drive is formatted and will work with this DVR, you will get a confirmation
that the drive is working.
How the eSATA Drive Works with Your DVR
An eSATA drive is an extension of the internal hard drive of the DVR; it is not an
archival device. Programs recorded to the eSATA drive can be played back on
the DVR originally connected to the eSATA drive. For instance, you cannot record
programs to the eSATA drive, remove the drive, and then connect it to a computer or
a different DVR for playing back programs.
Some programs will record to the DVR internal hard drive and some will record to
the eSATA drive, depending on the space available. The DVR selects the drive that
has enough space to record the entire program; a program is not split between the
internal and external drives.
7
All manuals and user guides at all-guides.com
