Cisco EHWIC-4SHDSL-EA Instruction sheet

Cisco Systems, Inc.
www.cisco.com
Configuring Cisco Multimode G.SHDSL
EFM/ATM in Cisco ISR G2
OL-24505-04
Last Updated: October 14, 2013
This document describes how to configure Cisco G.SHDSL Ethernet in the first mile (EFM) and
Asynchronous Transfer Mode (ATM). Cisco G.SHDSL EFM/ATM Enhanced high-speed WAN interface
card (EHWIC) connect Cisco Integrated Services Routers Generation 2 (ISR G2s) with central office
Digital Subscriber Line Access Multiplexers (DSLAMs) and provide up to four lines of G.SHDSL
(ITU-T 991.2) connectivity. The C888EA provides four pairs of multimode G.SHDSL connectivity.
There is one EHWIC model and one fixed platform model:
•EHWIC-4SHDSL-EA—A double-wide multimode EHWIC G.SHDSL, 4 pair, 802.3ah, EFM and
ATM mode interface card
•C888EA—A multimode G.SHDSL, 4 pair 802.3ah, EFM and ATM mode fixed platform
Finding Support Information for Platforms and Cisco IOS Software Images
Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image
support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on
Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at
the login dialog box and follow the instructions that appear.
Contents
This document shows the configuration process for the EHWIC-4SHDSL-EA multimode EFM and ATM
card and the C888EA EFM and ATM mode fixed platform.
•Prerequisites for Cisco G.SHDSL EFM/ATM EHWICs, page 2
•Information About Cisco G.SHDSL EFM/ATM, page 2
•Connecting Cisco G.SHDSL EFM/ATM to the Network, page 4
•Configuring Cisco G.SHDSL EFM/ATM, page 4
•Troubleshooting Cisco G.SHDSL EFM/ATM, page 26

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Prerequisites for Cisco G.SHDSL EFM/ATM EHWICs
2
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
•Firmware Update, page 45
•Command Reference, page 49
•Additional References, page 81
Prerequisites for Cisco G.SHDSL EFM/ATM EHWICs
•Ensure that you have the appropriate Cisco router to serve as the host router.
The following Cisco routers support Cisco G.SHDSL EFM/ATM EHWICs:
– Cisco 1921 ISR
– Cisco 1941 ISR
– Cisco 2901 ISR
– Cisco 2911 ISR
– Cisco 2921 ISR
– Cisco 2951 ISR
– Cisco 3925 ISR
– Cisco 3925-E ISR
– Cisco 3945 ISR
– Cisco 3945-E ISR
•Use the show version command to ensure that the router is running the correct IOS software. The
C888EA and EHWIC-4SHDSL-EA models require Cisco IOS Release Release: <optional, example:
Cisco IOS Release 15.1(1)T> or later.
Note When minimum release requirements are met, you can change images on the router without
affecting performance.
•Install the Cisco G.SHDSL EFM/ATM EHWIC on the router, using the directions provided in Cisco
Interface Cards Hardware Installation Guide and Cisco Network Modules and Interface Cards
Regulatory Compliance and Safety Information.
Information About Cisco G.SHDSL EFM/ATM
Cisco G.SHDSL EFM/ATM EHWICs support up to four pairs of digital subscriber lines (DSL). The
fixed platform model (C888EA) also supports up to four pairs. The DSL pairs are bundled in groups and
configured in the Cisco IOS command-line interface (CLI) by using the dsl-group command. Selecting
the mode is done by using the mode command.
See the “Command Reference” section on page 49 for more information about commands used with
Cisco G.SHDSL EFM/ATM.

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Information About Cisco G.SHDSL EFM/ATM
3
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Cisco G.SHDSL EFM/ATM
The Cisco EHWIC-4SHDSL-EA provides up to four lines of connectivity through one RJ-45 connector
(see Figure 1), in EFM or ATM modes. The Cisco 888EA fixed platform (see Figure 2) supports up to
four lines of connectivity through one RJ-45 connector, in EFM or ATM modes.
Note The C888EA and the Cisco EHWIC-4SHDSL-EA support the Dying Gasp feature. The term dying gasp
refers to power status as defined in ITU-T standard G.991.2, section 7.1.2.5.3.

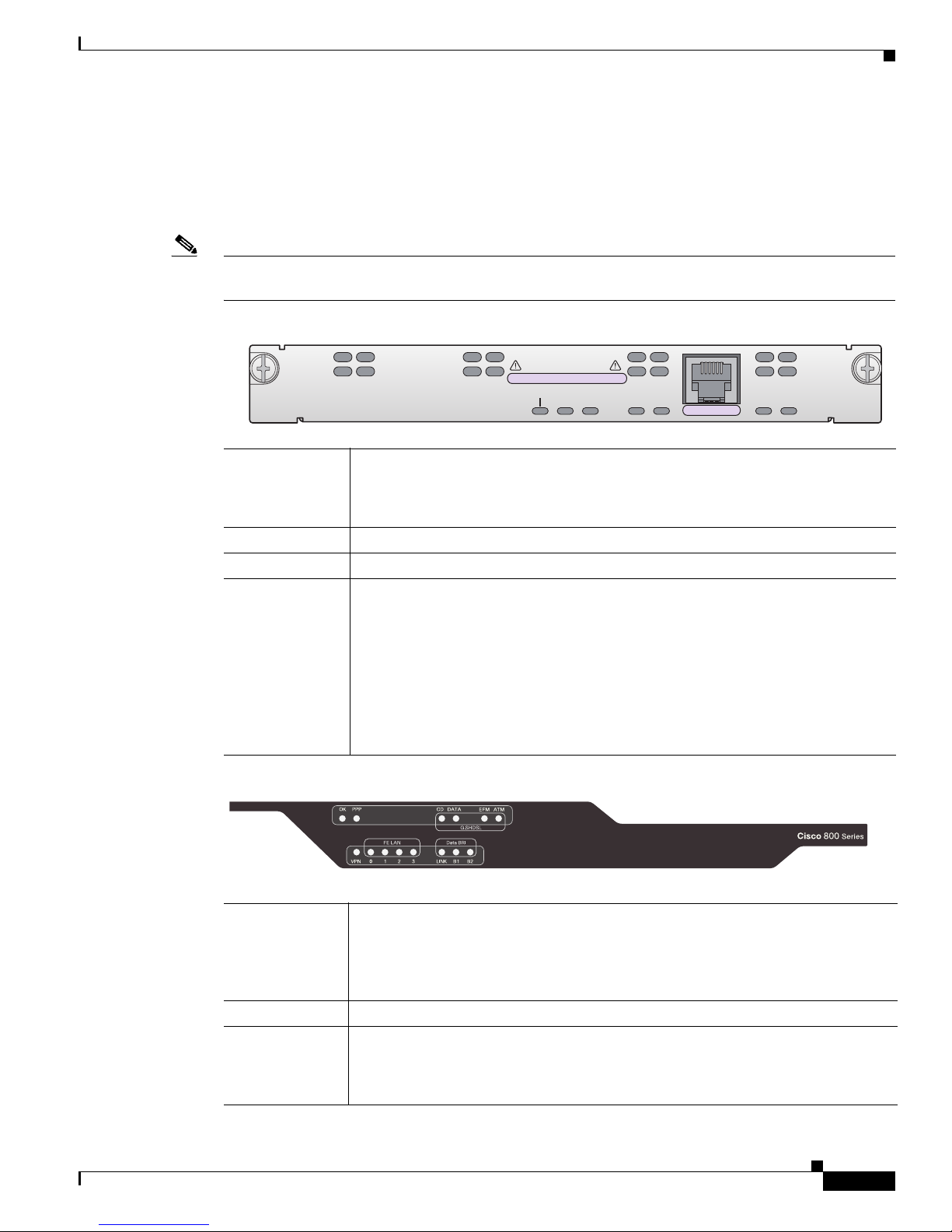

Figure 1 Cisco EHWIC-4SHDSL-EA EFM/ATM Faceplate
Figure 2 Cisco 888EA Faceplate
255037
SHDSL
EHWIC-
4SHDSL-EA
EN/LP
EFM ATM
SEE MANUAL BEFORE
INSTALLATION
RJ45 CONNECTOR ONLY
L3 L2 L1 L0
EN/LP Status of the system:
Green—Operating system is running.
Amber—Loopback mode.
EFM Green—Indicates EFM mode.
ATM Green—Indicates ATM mode.
L0, L1, L2, L3 Status of link:
Green on—Link is active.
Off—Link is inactive or not configured.
Amber—Link alarm.
Blinking green—Link is training. Slow blinking indicates Inverse Multiplexing
Over ATM (IMA) link training. Fast blinking indicates non-IMA link training.
Amber and green blinking simultaneously—Loopback mode. EN/LP is also amber.
300152
OK On—DC power is being supplied to the router and the Cisco IOS software is
running.
Blinking—Bootup is in process, or the router is in ROMMON monitor mode.
Off—Power is not supplied to the router.
PPP On—At least one PPP session is established.
CD Green—xDSL interface is connected to the DSLAM6.
Blinking Green—Training to the line.
Off—A connection has not been established or the port is shut down.

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Connecting Cisco G.SHDSL EFM/ATM to the Network
4
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
What to do next
See the “Connecting Cisco G.SHDSL EFM/ATM to the Network” section on page 4 for cable
information.
Connecting Cisco G.SHDSL EFM/ATM to the Network
For connecting Cisco G.SHDSL EFM/ATM EHWICs to a network, see the section about connecting an
interface card to a network in Connecting DSL WAN Interface Cards.
What to Do Next
See the “Configuring Cisco G.SHDSL EFM/ATM” section on page 4 for information about configuring
DSL groups.
Configuring Cisco G.SHDSL EFM/ATM
Configure DSL groups for Cisco G.SHDSL EFM/ATM using the Cisco IOS CLI on the router in
privileged configuration mode.
•Configuring EFM or ATM Mode and a DSL Group, page 5
•Configuring the G.SHDSL Service on a Cisco Router, page 6
•Configuring 2-Wire Non-bonding DSL Group, page 17
•Configuring Bonding Groups in ATM Mode, page 19
•Configuring Auto Groups in ATM Mode, page 22
•Configuring an EFM-Bonding Group, page 23
•Configuring Auto Groups in EFM Mode, page 25
Note The annex configuration option is available only if the termination is central office (CO).
DATA Blink—xDSL interface is either receiving or transmitting data.
Off—No data is being transmitted or being received.
EFM Green—Indicates EFM mode.
ATM Green—Indicates ATM mode.
VPN On—VPN is connected.
FE LAN Green—Ethernet port is connected.
Blinking Green—Data is either being received or being transmitted.
Off—Ethernet port is not connected.
Data BRI On—ISDN D channel is connected.

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
5
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring EFM or ATM Mode and a DSL Group
Use the Cisco IOS CLI on the router in global config-controller mode to configure the mode on the
Cisco EHWIC-4SHDSL-EA or the C888EA.
Note The dsl-group must be removed before changing from a previously configured mode.
SUMMARY STEPS – ATM
1. mode atm
2. One of the following:
•dsl-group auto
•dsl-group DSL_group_number pairs link {m-pair | ima}
SUMMARY STEPS – EFM
1. mode efm
2. One of the following:
•dsl-group auto
•dsl-group DSL_group_number pairs link {efm-bond}

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
6
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
DETAILED STEPS – ATM
DETAILED STEPS – EFM
Configuring the G.SHDSL Service on a Cisco Router
To configure the G.SHDSL service on the Cisco EHWIC-4SHDSL-EA or C888EA using the
Cisco IOS CLI in global configuration mode, follow these steps.
Note For EHWICs, use the three-tuple notation (slot number/subslot number/0). For fixed platforms, use the
single-tuple notation (slot number).
SUMMARY STEPS
1. controller shdsl slot number/subslot number/0
2. dsl-group DSL_group_number pairs link-number
3. shdsl rate {number | auto}
4. exit
5. exit
6. One of the following:
•interface ethernet <slot>/<subslot>/<0> (in EFM mode)
•interface atm <slot>/<subslot>/<0> (in ATM mode)
Command Purpose
Step 1 mode atm
Example:
Router(config-controller)# mode atm
Router(config-controller)#
Selects the ATM mode.
Step 2 dsl-group DSL_group_number pairs link ima
Example:
Router(config-controller)# dsl-group 0 pairs 0-1 ima
Router(config-controller-dsl-group)#
Configures IMA group.
Command Purpose
Step 1 mode efm
Example:
Router(config-controller)# mode efm
Router(config-controller)#
Selects the EFM mode.
Step 2 dsl-group DSL_group_number pairs link efm-bond
Example:
Router(config-controller)# dsl-group 0 pairs 0-1
efm-bond
Router(config-controller-dsl-group)#
Configures EFM bond.

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
7
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
7. ip address <IP-address> <subnet mask>
8. exit
9. exit
10. One of the following:
•show interface ethernet [slot/port-adapter/port] (in EFM mode)
•show interface atm [slot/port-adapter/port] (in ATM mode)
Note In CPE, Annex and TC-PAM (Trellis Coded Pulse Amplitude Modulation) are not configurable. They
are configured automatically according to the central office (CO) settings.

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
8
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
DETAILED STEPS
Command Purpose
Step 1 controller shdsl slot number/subslot number/0
Note For EHWICs, use the three-tuple notation
(slot number/subslot number/0) shown here. For
fixed platforms, use the single-tuple notation
(slot number).
Example:
Router# conf t
Router(config)# controller shdsl 0/3/0
Selects controller and enter DSL group configuration
mode.
Note See the “Configuring Cisco G.SHDSL
EFM/ATM” section on page 4 for details about
creating and configuring DSL groups.
Step 2 dsl-group DSL_group_number pairs link-number
Example:
Router(config-controller)# dsl-group 0 pairs 0
Router(config-controller-dsl-group)#
Selects DSL pair link number.
Step 3 shdsl rate {number | auto}
Example:
Router(config-controller-dsl-group)# shdsl rate
2304
For more information, refer to the “Command Reference”
section on page 49.
Selects rate for controller.
Step 4 exit
Example:
Router(config-controller-dsl-group)# exit
Router(config-controller)#
Exits dsl-group configuration mode.
Step 5 exit
Example:
Router(config-controller)# exit
Router(config)#
Exits controller configuration mode.
Step 6 For EFM mode:
interface Ethernet <slot>/<subslot>/<0>
Example:
Router(config)# interface ethernet 0/3/0
Router#
For ATM mode:
interface atm <slot>/<subslot>/<0>
Example:
Router(config)# interface atm 0/3/0
Router#
For EFM mode:
Enters the interface Ethernet configuration mode.
For ATM mode:
Enters the interface atm configuration mode.

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
9
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Default dsl-group configurations
For the dsl-group command, the following default values apply.
Step 7 For ATM mode:
interface atm <slot>/<subslot>/<0>
Example:
Router(config)# interface atm 0/3/0
Router#
Step 8 ip address <IP-address> <subnet mask>
Example:
Router(config)# ip address 5.5.5.1 255.255.255.0
Router(config-if)#
Assigns an IP address to the DSL Ethernet/ATM/IMA
interface.
Step 9 For ATM mode:
pvc vpi/vci
Example:
Router(config-if)# pvc 1/100
Creating a pvc on the atm/ima interface
Step 10 For ATM mode:
cbr pcr
Example:
Router(config-if)# cbr pcr
Configures atm traffic class of service.
Step 11 exit
Example:
Router(config-if)# exit
Router(config)#
Exits from interface configuration mode.
Step 12 exit
Example:
Router(config)# exit
Router#
Exits from global configuration mode.
Step 13 For EFM mode:
show interface ethernet [slot/port-adapter/port]
Example:
Router# show interface ethernet 0/3/0
For ATM mode:
show interface atm [slot/port-adapter/port]
Example:
Router# show interface atm 0/3/0
For EFM mode:
Verifies the Ethernet interface configuration.
For ATM mode:
Verifies the ATM interface configuration.
Command Purpose

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
10
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Examples
The examples in this section show the output of a 2-wire configuration in EFM mode and in ATM Mode.
The commands include:
•show controllers shdsl
•show controllers ethernet
EFM mode
The following examples show the output of a 2-wire configuration in EFM mode.
show controllers shdsl
Router# sh controllers shdsl 0/3/0
Controller SHDSL 0/3/0 is UP
Hardware is EHWIC-4SHDSL-EA, rev 0 on slot 0, hwic slot 3
Capabilities: EFM: 2-wire, EFM-Bond, Annex A, B, F & G
ATM: 2-wire, Mpair, IMA, Annex A, B, F & G
CPE termination
cdb=0x14F0584, plugin=0x14DF8BC, ds=0x12FFBEF0 base=0xEC600000
FPGA Version is A11
NPU Source: System
NPU Firmware version: SHDSL_EA_FW_20110906071435
Vendor: Infineon, Chipset: SOCRATES-4e
PHY Source: System
IDC Firmware version: V1.7.2.0
DFE Firmware version: V-1.1.7.10__2 10
Group info:
Type: EFM 2-wire status: Up
Ethernet Interface: Ethernet0/3/0, hwidb: 0x131CF7A4
ATM Interface: ATM0/3/0, hwidb: 0x131D428C
Currently active interface: Ethernet
Configured/active num links: 1/1, bit map: 0x1/0x1
Line termination: CPE, Annex: B
PMMS disabled,Line coding: 16-TCPAM
Configured/actual rate: AUTO/2304 kbps
Loopback type: None
Dying Gasp: Present
SHDSL wire-pair (0) is in DSL UP state
LOSW Defect alarm: none
Option Default Value Description
shdsl rate auto Selects the best data rate possible for the given configurations at
Central Office (CO) and Customer Premise Equipment (CPE)
locations.
You can configure the current and worst case SNR margins using the
shdsl rate auto command to enable rate
adaption/PMMS/line probing.
Example:
Router(config-controller-dsl-group)# shdsl rate auto ?
current Current SNR Margin
worst Worst SNR Margin
<cr>
For more information, refer to the “Command Reference” section on
page 49.

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
11
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
SNR Margin alarm: none
Loop Attenuation alarm: none
Termination: CPE, Line mode: 2-wire, Annex: B
Line coding: 16-TCPAM
Configured/actual rate: AUTO/2304 kbps
Modem status: UP_DATA_MODE,Condition: GHS_TRANSFER_
Reason: ERR_UNUSED_
DSL Stats:
Power Back Off: 6dB
LoopAttn: 0dB, SnrMargin: 19dB
Current 15 minute statistics (Time elapsed 265 seconds)
ES:0, SES:0, CRC:0, LOSW:0, UAS:0
Previous 15 minute statistics
ES:0, SES:0, CRC:0, LOSW:0, UAS:0
Current 24 hr statistics
ES:0, SES:0, CRC:0, LOSW:0, UAS:0
Previous 24 hr statistics
ES:0, SES:0, CRC:0, LOSW:0, UAS:0
EFM Stats:
EFM-TC Tx: data frames: 1
EFM-TC Rx: data frames: 1
RMII Device Stats at NPU:
tx_packets: 1, rx_packets: 1
tx_bytes: 81, rx_bytes: 81
tx_dropped: 0, rx_dropped: 0
tx_err_fcs: 0, rx_err_fcs: 0
tx_mac_pause: 0, rx_mac_pause: 0
SS-SMII FA Stats at NPU:
forward_packets: 1, forwarded_bytes: 77
tx_queue_drop_packets: 0, mtu_drop_packets: 0
SS-SMII Device Stats at NPU:
tx_packets: 1, rx_packets: 1
tx_bytes: 81, rx_bytes: 81
tx_dropped: 0, rx_dropped: 0
tx_err_fcs: 0, rx_err_fcs: 0
tx_mac_pause: 0, rx_mac_pause: 0
show controllers ethernet
Router# sh controllers ethernet 0/3/0
IOS DS Rx/Tx Counters:
--------------------------:
Tx Head = 6
Tx Tail = 6
Tx Count = 0
Rx Head = 0
Rx Tail = 0
IOS DS Misc counters
----------------------
HWIC Host Reg Addr = 0xECFEC000
HWIC Common Reg Addr = 0xEC600000
HW Namestring = Ethernet0/3/0
Tx Ring Entries = 64
Rx Ring Entries = 64
IRQ 1 Count = 0
DDR Tx CRC = 0
DDR Clock Miss = 0
DDR Tx Overrun = 0
MAC Tx Underrun = 0
MAC Rx Overrun = 0
MAC Large Frame = 0

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
12
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
MAC Rx CRC = 0
SW filtered pak = 0
Multicast related information
------------------------------
Software MAC address filter(hash:length/addr/mask/hits):
-------------------------------------------------------
0x00: 0 ffff.ffff.ffff 0000.0000.0000 0
0xBB: 0 0021.1bfc.aea0 0000.0000.0000 0
0xC0: 0 0180.c200.0002 0000.0000.0000 0
0xC0: 1 0100.0ccc.cccc 0000.0000.0000 0
0xC5: 0 0180.c200.0007 0000.0000.0000 0
Hardware MAC address filter table:
----------------------------------
Multicast ingress filter control reg is 0x1F
Exact filter at address: address to be filtered
-------------------------------------------------
0xEC602104: 0021.1BFC.AEA0
0xEC60210A: FFFF.FFFF.FFFF
0xEC602110: 0180.C200.0007
0xEC602116: 0180.C200.0002
0xEC60211C: 0100.0CCC.CCCC
0xEC602122: 0000.0000.0000
0xEC602128: 0000.0000.0000
0xEC60212E: 0000.0000.0000
0xEC602134: 0000.0000.0000
0xEC60213A: 0000.0000.0000
Exact filter at address 0xA4E8208 5 free, in_use: 1 1 1 1 1 0 0 0 0 0
Multicast@0xA4E8284 hash:
hash table 0 : 0000
hash table 1 : 0000
hash table 2 : 0000
hash table 3 : 0000
Multicast hash key instances:
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Promiscuous Mode is OFFMAC110 general registers
Control Register (0x8210):
MAC Enable 1 Short Packet Padding 1
Loopback Mode 0 TXCRC Gen 1
Latency Register: (0xFFFE)
Tx FIFO MAX Packet Count : 31
Tx FIFO MAX Byte Count : 2046
Congestion Management Info:
tx-ring-limit: 64, high water_mark: 64, low water_mark: 60
Congestion Notification Register: (0x8000)
Queue Id : 0
Queue Status : Below low watermark
Status Register (0x0004):
TX MAC pause 0 RX MAC pause 0
MAC110 Frame statistics registers
---------------------------------
Egress frame counters:
----------------------
Frame Count 6
Byte Count 486
Abort Count 0
Tx64 Bytes Packet Count0
Tx65_to_127 Bytes Packet Count6

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
13
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Tx128_to_255 Bytes Packet Count0
Tx256_to_511 Bytes Packet Count 0
Tx512_to_1023 Bytes Packet Count 0
Tx1024_to_1518 Bytes Packet Count 0
TxUndersize Packet Count 0
TxOversize Packet Count 0
Ingress frame counters:
--------------------------
Frame Count 6
Byte Count 486
Multicast Filt Drops 6
Multicast Frames 6
CRC Error Count 0
Congestion Drop Count 0
Oversize Drop Count 0
Pause Frame Count 0
Rx64 bytes Packet Count 0
Rx65_to_127 bytes Packet Count 6
Rx128_to_255 bytes Packet Count 0
Rx256_to_511 bytes Packet Count 0
Rx512_to_1023 bytes Packet Count 0
Rx1024_to_1518 bytes Packet Count 0
RxUndersize Packet Count 0
RxOversize Packet Count 0
******* HWIC Host Registers at ECFEC000 *******
Status (0x00):
Card Present Low 0 Graceful Stop Tx Complete 0
Config (0x0000360E):
Hwic Reset 0 Hwic Host Reset 0
Hwic DDR Bus 50MHZ Enable 0 Hwic EHWIC Mode Enable 1
Hwic IRQ2 Type Mgmt Hwic IRQ1 Type Err
Rx Queue Watermark Enable 0 Auto XOFF When Full 0
Rx Int On Last 0 Graceful Stop Tx 0
Generic Rx Enable 1 Generic Tx Enable 1
DDR Enable 1 Loopback 0
Error Interrupt Enable (0x20D7E):
GDF Rx Resume Error Int 0
Rx Done Error Int 1 Card Present Change Int 0
Hwic Int Frame Error Int 0x00 Tx First Last Error Int 1
Tx Done Error Int 1 IRQ2 Int 0
IRQ1 Int 1 Host Specific Error Int 0
Rx Overrun Int 1 DDR RxClk Missing Int 1
Reg RW Timeout Int 1 Reg RW Error Int 1
Rx CRC Int 1 Rx Format Error Int 1
DMA Error Int 0
Management Interrupt Enable (0x0200):
Hwic Int Frame Mgmt Int 0x00
IRQ2 Int 1
IRQ1 Int 0 Graceful Stop Tx Int 0
Network Interrupt Enable (0x00001C01):
GDF Ring 3 Interrupt Enables:
Rx Frame Drop Int 0 Generic Frame Tx Int 0
Generic Frame Rx Int 0
GDF Ring 2 Interrupt Enables:
Rx Frame Drop Int 0 Generic Frame Tx Int 0
Generic Frame Rx Int 0
GDF Ring 1 Interrupt Enables:
Rx Frame Drop Int 0 Generic Frame Tx Int 0
Generic Frame Rx Int 0
GDF Ring 0 Interrupt Enables:
Rx Frame Drop Int 0 Generic Frame Tx Int 1
Generic Frame Rx Int 1 DMA Write Int 1

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
14
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
IRQ2 Int 0 IRQ1 Int 0
Int Frame Network Int 0x01
Error Interrupt Event (0xA94B6BF):
GDF Rx Resume Error Event 1
Rx Done Error Event 0 Card Present Change Event 0
Hwic Int Frame Error Event 0x0B Tx First Last Error Event 0
Tx Done Error Event 1 IRQ2 Event 1
IRQ1 Event 0 Host Specific Error Event 1
Rx Overrun Event 0 DDR RxClk Missing Event 1
Reg RW Timeout Event 1 Reg RW Error Event 1
Rx CRC Event 1 Rx Format Error Event 1
DMA Error Event 1
Management Interrupt Event (0x9072):
Hwic Int Frame Mgmt Event 0x09
IRQ2 Int 0
IRQ1 Int 0 Graceful Stop Tx Event 0
Network Interrupt Event (0x24222044):
GDF Ring 3 Interrupt Events:
Rx Frame Drop Event 0 Generic Frame Tx Event 0
Generic Frame Rx Event 0
GDF Ring 2 Interrupt Events:
Rx Frame Drop Event 1 Generic Frame Tx Event 0
Generic Frame Rx Event 0
GDF Ring 1 Interrupt Events:
Rx Frame Drop Event 0 Generic Frame Tx Event 1
Generic Frame Rx Event 0
GDF Ring 0 Interrupt Events:
Rx Frame Drop Event 1 Generic Frame Tx Event 0
Generic Frame Rx Event 0 DMA Write Event 0
IRQ2 Event 0 IRQ1 Event 0
Int Frame Network Event 0x44
HWICRegisterOffset 0x0000 HWICRegisterErrorAddress 0x00000000
HWICRegisterTimeout 0x0000C350
TxControlFrameCounter 0x0280A9 RxControlFrameCounter 0x02657B
TxDataFrameCounter 0x000001 RxDataFrameCounter 0x000000
RegisterRWErrorCounter 0x0000 RxOverrunErrorCounter 0x0000
RxCRCErrorCounter 0x0000 RxFrameDropCounter 0x0000
TxBufferExtension 0x00 RxBufferExtension 0x00
HWICQueueBaseExtension 0x00
GDF Ring 0 Registers:
HWICQueueConfig Register 0x0007 HWICQueueBase 0x1DAD
TXQueueTailBase Register 0x4038
TxQueueBase 0x08 TxQueueTail 0x07
TxQueueSize 0x40 TxQueueHead 0x07
RxQueueHeadBase Register 0x4800
RxQueueBase 0x09 RxQueueHead 0x00
RxQueueSize 0x40 RxQueueTail 0x00
RxBufferSize 0x060C RxQueueHighWaterMark 0x00
RxQueueLowWaterMark 0x00
DMAOffsetExtension 0x00
DMAOffset 0x0000 DMAWindow 0x0000
HWICSuspResDbg Register 0x0000 HWICArbConfig Register 0x000F
GDF Ring 1 Registers:
HWICQueueConfig Register 0x0000 HWICQueueBase 0x0000
TXQueueTailBase Register 0x0000
TxQueueBase 0x00 TxQueueTail 0x00
TxQueueSize 0x00 TxQueueHead 0x00
RxQueueHeadBase Register 0x0000
RxQueueBase 0x00 RxQueueHead 0x00
RxQueueSize 0x00 RxQueueTail 0x00
RxBufferSize 0x0000 RxQueueHighWaterMark 0x00
RxQueueLowWaterMark 0x00
GDF Ring 2 Registers:
HWICQueueConfig Register 0x0000 HWICQueueBase 0x0000

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
15
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
TXQueueTailBase Register 0x0000
TxQueueBase 0x00 TxQueueTail 0x00
TxQueueSize 0x00 TxQueueHead 0x00
RxQueueHeadBase Register 0x0000
RxQueueBase 0x00 RxQueueHead 0x00
RxQueueSize 0x00 RxQueueTail 0x00
RxBufferSize 0x0000 RxQueueHighWaterMark 0x00
RxQueueLowWaterMark 0x00
GDF Ring 3 Registers:
HWICQueueConfig Register 0x0000 HWICQueueBase 0x0000
TXQueueTailBase Register 0x0000
TxQueueBase 0x00 TxQueueTail 0x00
TxQueueSize 0x00 TxQueueHead 0x00
RxQueueHeadBase Register 0x0000
RxQueueBase 0x00 RxQueueHead 0x00
RxQueueSize 0x00 RxQueueTail 0x00
RxBufferSize 0x0000 RxQueueHighWaterMark 0x00
RxQueueLowWaterMark 0x00
GDF Error Interrupt Enable Register (0x0000):
GDF Rx Resume Error Int 0x00 GDF Rx Done Error Int 0x00
GDF Tx First/Last Error Int 0x00 GDF Tx Done Error Int 0x00
GDF Error Interrupt Event Register (0x0000):
GDF Rx Resume Error Event 0x00 GDF Rx Done Error Event 0x00
GDF Tx First/Last Error Event 0x00 GDF Tx Done Error Event 0x00
******* HWIC Common Registers at EC600000 *******
HWIC ID: 0x2
HWIC Revision: 0x0
HWIC Status: 0x0
HWIC DDR TXCRC:0x0
HWIC Control: 0xC000
DDR Enable 1 Software Reset 1
Interrupt Module Reset 0 GDF Module Reset 0
DMA Module Reset 0 Flow Control Reset 0
IRQ2 Global Int Mask 0 IRQ1 Global Int Mask 0
DDR TXCRC Int Mask 0 DDR TXClk Loss Int Mask 0
TX Fifo Overrun Int Mask 0
HWIC Interrupt Event: 0x0
DDR TXCRC Int 0 DDR TXClk Loss Int 0
TX Fifo Overrun Int 0
HWIC Diag 1: 0x0
HWIC Diag 2: 0x1C05
******* HWIC Rx/Tx Rings *******
rxr @(1DAD4800) head (0) tail (0) entries (64) serviced (0)
txr @(1DAD4000) head (7) tail (7) entries (64) serviced (7) count (0)
bd(1DAD4800): flags 0000 length 0000 address 1CE8D780
<Output abbreviated due to space constraints>
ATM Mode
The following examples show the output of a 2-wire configuration in ATM mode.
•show controllers shdsl
•show controllers atm
show controllers shdsl
Router# sh controllers shdsl 0/3/0
Controller SHDSL 0/3/0 is UP
Hardware is EHWIC-4SHDSL-EA, rev 0 on slot 0, hwic slot 3
Capabilities: EFM: 2-wire, EFM-Bond, Annex A, B, F & G
ATM: 2-wire, Mpair, IMA, Annex A, B, F & G

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
16
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
CPE termination
cdb=0x14F0584, plugin=0x14DF8BC, ds=0x12FFBEF0 base=0xEC600000
FPGA Version is A11
NPU Source: System
NPU Firmware version: SHDSL_EA_FW_20110906071435
Vendor: Infineon, Chipset: SOCRATES-4e
PHY Source: System
IDC Firmware version: V1.7.2.0
DFE Firmware version: V-1.1.7.10__2 10
Group info:
Type: ATM 2-wire status: Up
Ethernet Interface: Ethernet0/3/0, hwidb: 0x1520110
ATM Interface: ATM0/3/0, hwidb: 0xA5FD144
Currently active interface: ATM
Configured/active num links: 1/1, bit map: 0x1/0x1
Line termination: CPE, Annex: B
PMMS disabled,Line coding: 16-TCPAM
Configured/actual rate: AUTO/2304 kbps
Loopback type: None
Dying Gasp: Present
SHDSL wire-pair (0) is in DSL UP state
LOSW Defect alarm: none
SNR Margin alarm: none
Loop Attenuation alarm: none
Termination: CPE, Line mode: 2-wire, Annex: B
Line coding: 16-TCPAM
Configured/actual rate: AUTO/2304 kbps
Modem status: UP_DATA_MODE,Condition: GHS_TRANSFER_
Reason: ERR_UNUSED_
DSL Stats:
Power Back Off: 6dB
LoopAttn: 0dB, SnrMargin: 26dB
Current 15 minute statistics (Time elapsed 150 seconds)
ES:0, SES:0, CRC:0, LOSW:0, UAS:0
Previous 15 minute statistics
ES:0, SES:0, CRC:0, LOSW:0, UAS:0
Current 24 hr statistics
ES:0, SES:0, CRC:0, LOSW:0, UAS:0
Previous 24 hr statistics
ES:0, SES:0, CRC:0, LOSW:0, UAS:0
ATM Stats:
ATM-TC Tx: data cells: 0, Idle/Unassigned: 254933993
ATM-TC Rx: data cells: 0, uncorr HEC: 14
ATM-TC Rx: OCD: 2, LCD start: 0, LCD end: 0
RMII Device Stats at NPU:
tx_packets: 0, rx_packets: 0
tx_bytes: 0, rx_bytes: 0
tx_dropped: 0, rx_dropped: 0
tx_err_fcs: 0, rx_err_fcs: 0
tx_mac_pause: 0, rx_mac_pause: 0
ATM Stats at NPU:
UTOPIA device Stats at NPU:
tx_cells: 0, rx_cells: 0
tx_oam_cells: 0, rx_oam_cells: 0
tx_clp0_cells: 0, rx_clp0_cells: 0
rx_crc_err_cells: 0, rx_unsupported_cells: 0
show controllers atm
Router# show controllers atm0/3/0
Interface: ATM0/3/0, Hardware: MPC ATMSAR, State: up
IDB: 0x0A5FD144 Instance: 0x1334B2E4 PHY Inst: 0x00000000 us_bwidth: 2304
Slot: 0 Unit: 3 pkt Size: 4528

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
17
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Sar ctrl queue: max depth = 0, current queue depth = 0,
drops = 0, urun cnt = 0, total cnt = 0
VC TX ring stats:
VCD VPI VCI Tx_ring_High_Watermark Tx_ring_Low_Watermark Queue_Depth
==========================================================================
VC queues buffering status:
VCD VPI VCI Buffering status
================================
VC QoS Summary
--------------
Active Scheduled
VCD VPI VCI COS ST COS PCR(c) PCR(a) SCR/MCR(c) SCR/MCR(a)
--------------------------------------------------------------------------
OAM statistics (vcd/count/drop)
-------------------------------
1/0/0 2/0/0 3/0/0 4/0/0 5/0/0 6/0/0 7/0/0 8/0/0
Misc Oam Drops: 0
ATM Encap Mapping
Tx Congestion
Entry MAC address VPI/VCI VCD sts set clr fastsend safestart
drops
------------------------------------------------------------------------------------------
-----
<Output abbreviated due to space constraints. The show controller ethernet output follows from this
point.>
Configuring 2-Wire Non-bonding DSL Group
To configure a 2-wire non-bonding DSL group on a Cisco G.SHDSL EFM/ATM, use the Cisco IOS CLI
on the router in global configuration mode. Configuring 2-wire non-bonding DSL group is the same for
EFM and ATM modes.
Note For EHWICs, use the three-tuple notation (slot number/subslot number/0). For fixed platforms, use the
single-tuple notation (slot number).
SUMMARY STEPS
1. controller shdsl slot number/subslot number/0
2. mode {atm | efm}
3. dsl-group DSL_group_number pairs link-number
4. shdsl rate {number | auto}

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
18
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
DETAILED STEPS
Examples
The following examples use the G.SHDSL commands to configure a 2-wire DSL group on a Cisco
EHWIC-4SHDSL-EA or C888EA in ATM and EFM modes.
•2-Wire DSL Group Configuration in ATM mode
•2-Wire DSL Group Configuration in EFM mode
2-Wire DSL Group Configuration in ATM mode
Router(config)# controller shdsl 0/2/0
Router(config-controller)# mode atm
Router(config-controller)# dsl-group 0 pairs 0
Router(config-controller-dsl-group)#
*Oct 1 10:49:03.331: %LINK-3-UPDOWN: Interface ATM0/2/0, changed state to down
*Oct 1 10:49:04.331: %LINEPROTO-5-UPDOWN: Line protocol on Interface ATM0/2/0, changed
state to down
Router(config-controller-dsl-group)# shdsl rate ?
<192-5696> DSL Rate (excluding DSL overhead) in kbps
auto auto rate mode
Command Purpose
Step 1 controller shdsl slot number/subslot number/0
Note For EHWICs, use the three-tuple notation
(slot number/subslot number/0) shown here. For fixed
platforms, use the single-tuple notation (slot number).
Example:
Router(config)# controller shdsl 0/2/0
Router(config-controller)#
Selects the controller and enters config-controller
mode.
See the “controller shdsl” section on page 68 for
more information.
Step 2 mode {atm |efm}
Example:
Router(config-controller)# mode efm
Router(config-controller)#
Selects the mode.
Step 3 dsl-group DSL_group_number pairs link-number
Example:
Router(config-controller)# dsl-group 0 pairs 0
Router(config-controller)#
Creates a non-bonding DSL group and enters
config-controller-dsl-group mode.
See the “dsl-group” section on page 70 for more
information.
Step 4 shdsl rate {number | auto}
Example:
Router(config-controller-dsl-group)# shdsl rate 2048
Router(config-controller-dsl-group)#
For more information, refer to the “Command Reference”
section on page 49.
Defines the SHDSL rate.

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
19
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Router(config-controller-dsl-group)# shdsl rate 2304
Router(config-controller-dsl-group)# exit
Router(config-controller)# exit
2-Wire DSL Group Configuration in EFM mode
Router(config)# controller shdsl 0/3/0
Router(config-controller)# mode efm
Router(config-controller)# dsl-group 0 pairs 0
Router(config-controller-dsl-group)#
*Mar 31 08:46:26.412: %SHDSL_EA-5-DSLGROUP_UPDOWN: SHDSL dsl-group state changed to down.
*Mar 31 08:46:28.412: %LINK-3-UPDOWN: Interface Ethernet0/3/0, changed state to down
*Mar 31 08:46:29.412: %LINEPROTO-5-UPDOWN: Line protocol on Interface Ethernet0/3/0,
changed state to down
Configuring Bonding Groups in ATM Mode
Use the Cisco IOS CLI on the router in global configuration mode to configure bonding groups in the
ATM mode on the Cisco EHWIC-4SHDSL-EA, or on the C888EA. There are two types of bonding
groups possible in ATM mode: M-pair and IMA.
Note To ensure a successful bonding group in the ATM mode configuration, confirm that the central office
(CO) network equipment that is connected with the Cisco EHWIC-4SHDSL-EA is also configured with
the same bonding group type.
Note For EHWICs, use the three-tuple notation (slot number/subslot number/0). For fixed platforms, use the
single-tuple notation (slot number).
SUMMARY STEPS
1. controller shdsl slot number / slot number / 0
2. mode atm
3. dsl-group DSL_group_number pairs link {m-pair | ima}
4. shdsl rate {number | auto}
Note Annex and TC-PAM (Trellis Coded Pulse Amplitude Modulation) are not configurable. They are
configured automatically according to the central office (CO) settings.

Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
Configuring Cisco G.SHDSL EFM/ATM
20
Configuring Cisco Multimode G.SHDSL EFM/ATM in Cisco ISR G2
DETAILED STEPS
Examples
The examples in this section show how to configure bonding groups in the ATM mode on the Cisco
EHWIC-4SHDSL-EA, or on the C888EA. The examples include:
•Configuring an M-pair bonding DSL group on a Cisco EHWIC-4SHDSL-EA
•Configuring an M-pair bonding DSL group on a C888EA
Command Purpose
Step 1 For EHWICs:
controller shdsl slot number/subslot number/0
Example:
Router(config)# controller shdsl 0/2/0
Router(config-controller)#
For C888EA fixed platform:
controller shdsl slot number
Example:
Router (config)# controller shdsl 0
Router (config-controller)#
Selects the controller and enters config-controller
mode.
See the “controller shdsl” section on page 68 for
more information.
Step 2 mode atm
Example:
Router(config-controller)# mode atm
Router(config-controller)#
Selects the ATM mode.
Step 3 For M-pair:
dsl-group DSL_group_number pairs link m-pair
Example:
Router(config-controller)# dsl-group 0 pairs 0-1
m-pair
Router(config-controller-dsl-group)#
For IMA:
dsl-group DSL_group_number pairs link ima
Example:
Router(config-controller)# dsl-group 0 pairs 0-1
ima
Router(config-controller-dsl-group)#
For M-pair:
Creates an M-pair bonding DSL group and
enters config-controller-dsl-group mode.
For IMA:
Creates an IMA DSL group and enters
config-controller-dsl-group mode.
See the “dsl-group” section on page 70 for
more information.
Step 4 shdsl rate {number | auto}
Example:
Router(config-controller-dsl-group)# shdsl rate 2048
Router(config-controller-dsl-group)#
For more information, refer to the “Command Reference”
section on page 49.
Defines the SHDSL rate.
