1. Function
The auto-cutter units are designed to cut various media such as labels, tickets
and tags precisely and accurately as the setting cut length.
2. Main specications of auto-cutter
Cutting method: Guillotine cutter
Maximum cut paper thickness: 0.25 mm (0.01”)
Minimum cut paper length: 25.4 mm (1”)
Cut paper width: Maximum: 177.8 mm (7”)
Minimum: 50 mm (1.97”)
Durability:
Number of cuts:
Minimum 500,000 times
(for a paper thickness of 60 to 150 µm)
Minimum 200,000 times
(for a paper thickness of 150 to 250 µm)
Note
zMedia with adhesive substance may be excluded from the number of cuts.
zThe number of cuts can vary according to the quality of the paper.
Media and paper types:
Roll or label (continuous, die-cut, fanfold, tag and ticket).
However, the following paper cannot be used:
zPaper with thickness of 0.06 mm (0.0024”) or less
zRoll paper with paper core diameter of 50 mm (2”) or less
Note
Using paper other than the specied types may cause problems such as
paper jams, so the paper specication must be checked before use.
Cut accuracy:
zCut length tolerance: ±1.5 mm or less
zLeft and right cut tolerance: ±1.5 mm
Note
Cutting position can be adjusted using
printer commands (see page 11).
CA
UTION
zWhen using adhesive media, dot not cut
labels itself. Adjust the printer to cut the
liner only. If label glue sticks to the cutter
blades, irregular cutting will occur.
Direction of paper feed
Left and right cut tolerance: ±1.0 mm or less
Cut length tolerance: ±1.0 mm or less

-7-
3. Checking items inside the accessory box
Note
Auto-cutter is not available for the printer with the peeler.
You should check that all of the following items are inside the accessory box.
If any are missing, please contact your supplier.
Cutter Stand Unit ...................................................................................... 1 piece
Cutter Unit .................................................................................................. 1 piece
Screws ......................................................................................................... 2 pieces
User’s Manual.............................................................................................. 1 piece
Manual for service personnel ............................................................... 1 piece
Cutter Stand UnitCutter Unit
Screws (2) User’s Manual
Manual for service personnel

-8-
4. Auto-cutter settings
“Cut On” menu will be selected automatically when the auto-cutter is
installed; thus, the printer can be used without adjustment. However, some
printers may not have the “AutoCongure”function. In this case, select the
“After Print” menu of the menu setup mode, and the “Cut On” menu on the
“Function Select” menu. If the printer has the “AutoCongure”function, the
“AutoCongure”menu will be printed out in front of “Function Select” menu
when you print the “Current Setup”.
Note
See the printer’s User’s Manual (CD-ROM) for details on“Print Menu Settings”.
Loading Media

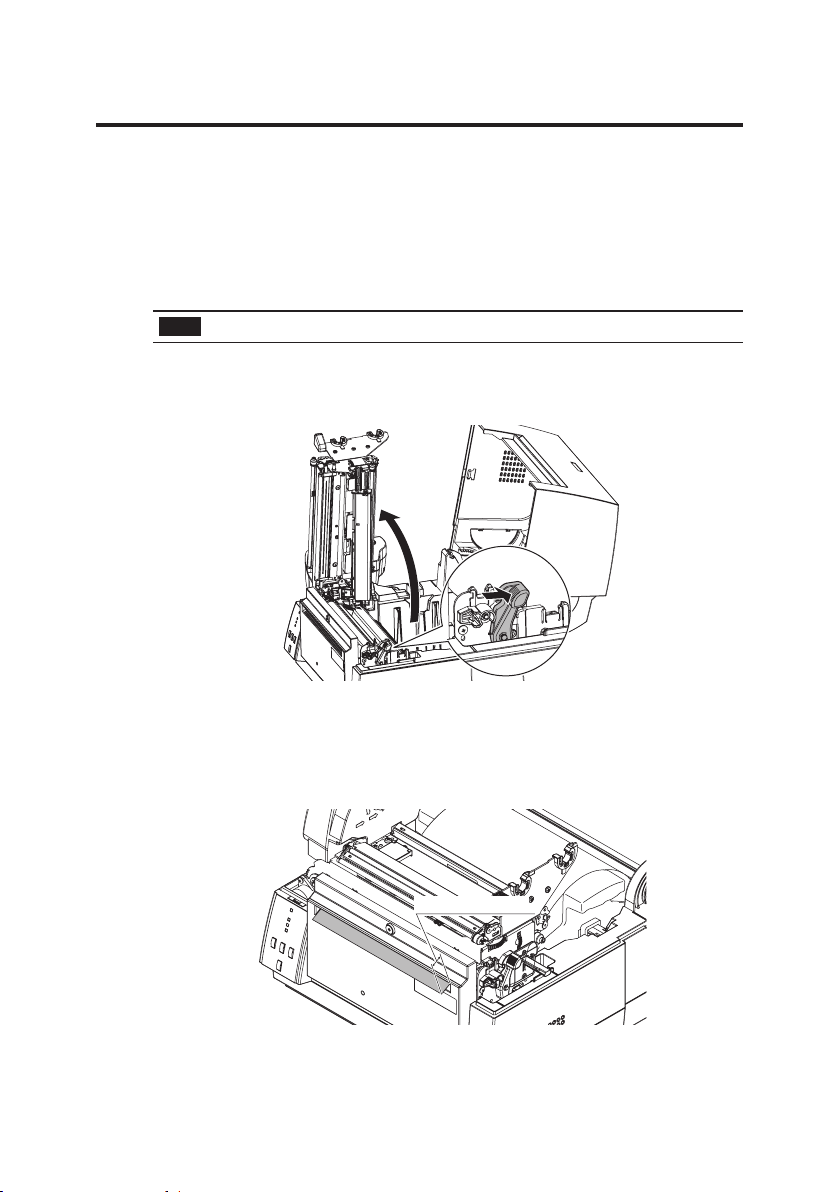

(1) Press the printhead lever, and then open the head unit and sensor arm.
Printhead lever
(2) With scissors, cut the end of the media loaded in the media holder.
(3) Feed the end of the media through the cutter assembly until the end
extends 10 mm past the cutter cover.
(4) Close the head unit and sensor arm.
Approx. 10 mm
(5) The cutter will operate one time when the FEED key is pressed.

-9-
CA
UTION
zWhen a paper jam has occurred, or when the auto cutter has
malfunctioned, your supplier or your service representative. Never
attempt to repair the auto cutter yourself, it could result in a risk of
injury.

-10-
5. Cut position

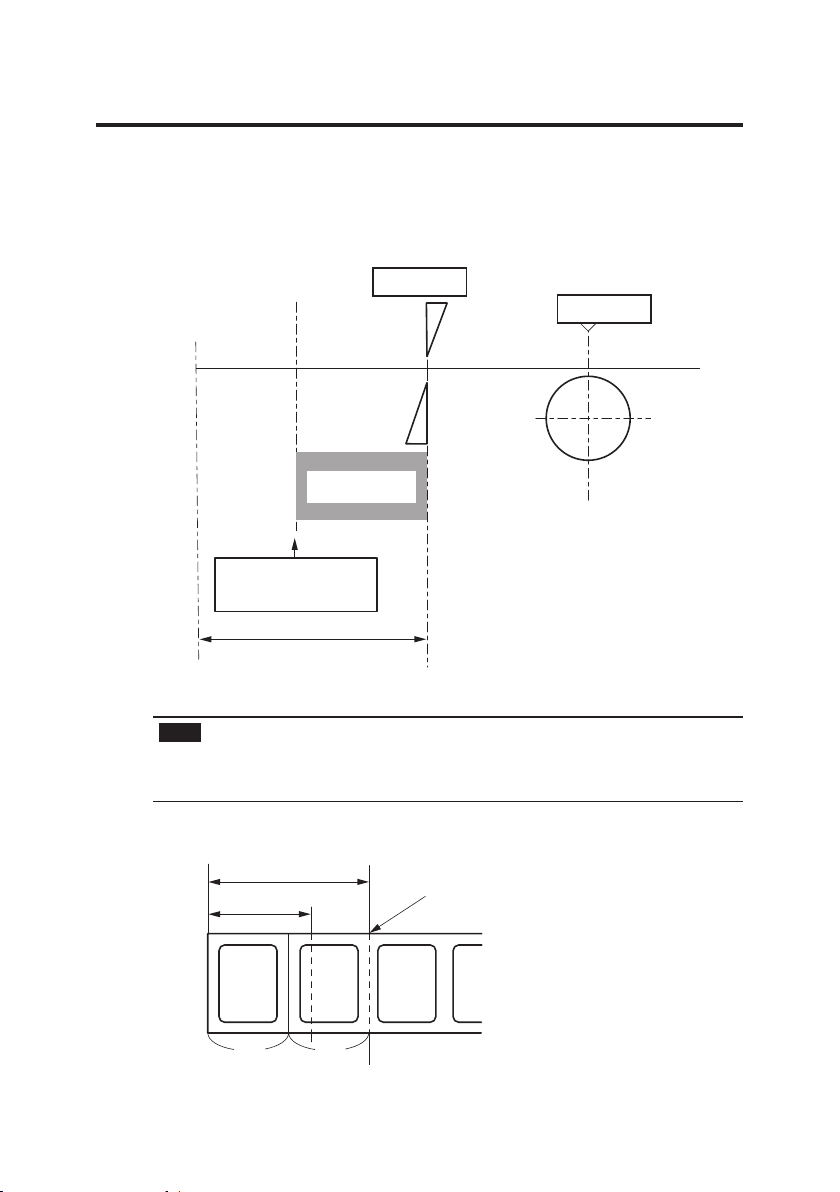

The following diagram gives the distance from the media sensor and the
thermal printhead to the cutter blade.
56.18 mm (2.21")
30.58 mm (1.2") 25.6 mm (1.01")
Platen
Media cut position
Cutter blade
Printhead position
Sensor position
Note
The measurements shown here are approximate.

-11-
6. Cut settings
The auto-cutter-related commands are described below. See the Command
Reference manual for more details.
The following commands set the cut position and number of operations.
Cut-position setup command STX fnnn
This command species the distance between the sensor and the media cut
position.
Media-cut command STX o
This command executes one media-cut operation.
Software-switch setup command STX Vn
zThis command temporarily selects the on/o state of the auto cutter or
the peeler, which are normally set in memory.
Examples:
n = 1: The auto cutter is set in the on state
n = 0: The auto cutter is set in the o state
Note
See the Command Reference manual for a detailed description of the
parameter n of the command.
Sheet-cutting interval command cnn (two-digit entry method)
:nnnn (four-digit entry method)
This command instructs the printer to cut the media after a specied number
of sheets have been printed.
Example: To set the sheet-cutting interval to 10 sheets
Two-digit data method
(Other label format commands) (Other label format commands)
Four-digit data method
ST
X L
c10
E
STX L
：0010
E

-12-
7. Auto cut-length detection
If media with a cut length shorter than the minimum cut length of 25.4 mm
(1.0 in) is used, the cut media may remain in the cutter unit and cause paper
jams. To prevent this, when the printer detects a cut length shorter than the
minimum, it feeds the media without operating the cutter. Therefore, use a cut
length of 25.4 mm (1.0 in) or longer when setting the media cut length.
Lc > 25.4 mm (1.00")
Minimum cut length:
25.4 mm (1.00")
Printhead
Cutter
Cut prohibition
Cut length Lc
Note
Media is fed and not cut when its media cut length is 12.7 mm (0.5 in) or
less. However, if the total length of several labels (for example, two or more)
on one label sheet is more than 12.7 mm (0.5 in), the media can be cut in
intervals of multiple labels (for example, every two or more labels).
Lc = 10 mm (0.39")
Lc Lc
20 mm (0.78")
12.7 mm (0.5")
Example:
Cut

-13-
8. User maintenance
If the platen of the printer becomes dirty, the cutter may perform defective
cutting even if the auto cutter does not malfunction. Therefore, clean the
platen regularly. (See the printer user’s manual)
Remove the platen
(1) Push the head open lever downwards to open the head unit and sensor
arm.
(2) Grasp the mounting device of the platen and lift it up as shown in the
gure.
(3) Remove the gear side of the platen, and remove the platen while pulling
the mounting device of the platen toward you.
(4) Remove dirt from the platen with a soft cloth or cotton swab containing
a small quantity of ethyl alcohol. (See the printer user’s manual)

-14-
9. Troubleshooting
If an error is detected, an alarm will sound and an LED on the control panel will
display the nature of the error.
List of error displays
Error Print
LED
Condition
LED
Error
LED
Media Out
(media location cannot be
detected)
OFF
OFF
ON
OFF
ON
Auto Cutter Abnormality
(such as blade jamming)
OFF
OFF
ON
Abnormal auto-cutter
temperature
OFF
ON
OFF ON
OFF
CA
UTION
Contact your supplier or service representative, if the following conditions
are observed.
zThe cutter does not cut the media well.
The blade of the cutter may be worn out or covered by a label glue.
zAbove error condition is occurred.

PXZ00093-10
PMC-1609
363 V
an Ness Way, Suite 404
T
orrance, CA 90501. USA
T
el: [phone]
Fax:
[phone]
http://www
.citizen-systems.com
Otto-Hirsch-Brücken 17
Elizabeth House, 56-60 London Road
70329 Stuttgar
t Staines-Upon-Thames, TW18 4HF
Ger
many United Kingdom
T
el: [phone] Tel: [phone]
Fax:
[phone] Fax:[phone]
http://www
.citizen-europe.com
6-1-12, T
anashi-cho, Nishi-Tokyo-shi
T
okyo, 188-8511. Japan
T
el: [phone]
Fax:
[phone]
http://www
.citizen-systems.co.jp
