Citizen CT-S2000DC User manual

LINE THERMAL PRINTER
MODEL CT-S2000/CT-S2000DC
User’s Manual
Mode d’emploi
Benutzerhandbuch
Manuale dell’utente
Manual de Usuario

IMPORTANT: This equipment generates, uses, and can radiate radio frequency energy
and if not installed and used in accordance with the instruction manual, may cause
interference to radio communications. It has been tested and found to comply with
the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC
Rules, which are designed to provide reasonable protection against such interference
when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct
the interference.
CAUTION: Use shielded cable for this equipment.
Sicherheitshinweis
Die Steckdose zum Anschluß dieses Druckers muß nahe dem Gerät angebracht und
leicht zugänglich sein.
For Uses in Canada
This Class A digital apparatus complies with Canadian ICES-003.
This digital apparatus does not exceed the class A limits for radio noise emissions
from digital apparatus, as set out in the radio interference regulations of the Canadian
department of communications.
Pour L’utilisateurs Canadiens
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Cet appareil numérique ne dépasse pas les limites de carégorie a pour les émissions
de bruit radio émanant d’appareils numériques, tel que prévu dans les réglements
sur l’interférence radio du départment Canadien des communications.
This printer conforms to the following Standards:
Low Voltage Directive 73/23/EEC, 93/68/EEC and the EMC Directive 89/336/EEC,
92/31/EEC, 93/68/EEC.
LVD:EN60950-1
EMC : EN55022 Class A
EN61000-3-2
EN61000-3-3
EN55024
This declaration is applied only for 230V model.
Declaration of Conformity

ENGLISH

— 1 —
GENERAL PRECAUTIONS
●Before using this product, be sure to read through this manual. After having read
this manual, keep it in a safe, readily accessible place for future reference.
●The information contained herein is subject to change without prior notice.
●Reproduction or transfer of part or all of this document in any means is prohibited
without permission from Citizen Systems.
●Note that Citizen Systems is not responsible for any operation results regardless
of missing, error, or misprinting in this manual.
●Note that Citizen Systems is not responsible for any trouble caused as a result of
using options or consumables that are not specified in this manual.
●Except explained elsewhere in this manual, do not attempt to service, disassemble,
or repair this product.
●Note that Citizen Systems is not responsible for any damage attributable to
incorrect operation/handling or improper operating environments that are not
specified in this manual.
●Data is basically for temporary use and not stored for an extended period of time
or permanently. Please note that Citizen Systems is not responsible for damage
or lost profit resulting from the loss of data caused by accidents, repairs, tests or
other occurrence.
●If you find loss of information, error, or uncertain matter, please contact your
Citizen Systems dealer.
●If you find any disordered or missing page(s), contact your Citizen Systems dealer
for replacement.
CITIZEN is registered trade mark of CITIZEN WATCH CO., LTD., Japan
CITIZEN es una marca registrada de CITIZEN WATCH CO., LTD., Japón
THE TABLE OF CONTENTS
1. GENERAL OUTLINE .................................................................... 7
2. EXPLANATION OF PRINTER PARTS........................................ 10
3. PREPARATION ........................................................................... 12
4. MAINTENANCE AND TROUBLESHOOTING ........................... 17
5. OTHER ....................................................................................... 22

— 2 —
SAFETY PRECAUTIONS ... WHICH SHOULD BE STRICTLY OBSERVED
Before using this product for the first time, carefully read these SAFETY PRECAUTIONS. Improper
handling may result in accidents (fire, electric shock or injury).
In order to prevent injury to operators, third parties, or damage to property, special warning symbols
are used in the User’s Manual to indicate important items to be strictly observed.
●After having read this Manual, keep it in a safe, readily accessible place for future reference.
●Some of the descriptions contained in this manual may not be relevant to some printer models.
The following describes the degree of hazard and damage that could occur if the printer is improperly
operated by ignoring the instructions indicated by the warning symbols.
This symbol is used to alert your attention to important items.
WARNING
Neglecting precautions indicated by this symbol may result in injury or damage to properties.
CAUTION
This symbol is used to alert you to the danger of electric shock or electrostatic damage.
This symbol denotes a request to unplug the printer from the wall outlet.
This symbol is used to indicate useful information, such as procedures, instructions or the
like.
This symbol is used to indicate prohibited actions.
Neglecting precautions indicated by this symbol may result in fatal or serious injury.

— 3 —
■Do not use or store this product in a place where it will be exposed to:
* Flames or moist air.
* Direct sunlight.
* Hot airflow or radiation from a heating device.
* Salty air or corrosive gases.
* Ill-ventilated atmosphere.
* Chemical reactions in a laboratory.
* Airborne oil, steel particles, or dust.
* Static electricity or strong magnetic field.
•Neglecting these warnings may result in printer failure, overheating, emission of
smoke, fire, or electric shock.
■Do not drop any foreign object nor spill liquid into the printer. Do not place any
object on the printer either.
■Do not drop any metallic object such as paper clip, pin or screw into the printer.
■Do not place a flower vase, pot or cup containing water on the printer.
■Do not spill coffee, soft drinks or any other liquid into the printer.
■Do not spray insecticide or any other chemical liquid over the printer.
•Ametallic foreign object, if accidentally dropped into the printer, may cause printer
failure, fire, or electric shock. Should it occur, immediately turn the printer off,
unplug it from the supply outlet, and call your local Citizen Systems dealer.
Do not handle the printer in the following ways:
■Do not allow the printer to sustain strong impacts or hard jolts (e.g., trampling,
dropping, striking with a hard edge).
■Never attempt to disassemble or modify the printer.
•Neglecting to handle properly may result in printer failure, overheating, emission
of smoke, fire, or electric shock.
■Install, use, or store the printer out of the reach of children.
•Electric appliances could cause an unexpected injury or accident if they are handled
or used improperly.
•Keep the power cord and signal cables out of the reach of children. Also children
should not be allowed to gain access to any internal part of the printer.
•The plastic bag the printer came in must be disposed of properly or kept away
from children. Wearing it over the head may lead to suffocation.
WARNING

— 4 —
Please observe the following precautions for power source and power cord:
■Do not plug or unplug the power cord with a wet hand.
■Use the printer only at the specified supply voltage and frequency.
■Use only the specified AC adapter with the printer.
■Check to make sure that the supply outlet from which the printer is powered has a
sufficient capacity.
■Do not supply the printer from a power strip or current tap shared with other
appliances.
■Do not plug the power cord into a supply outlet with dust or debris left on its plug.
■Do not use a deformed or damaged power cord.
■Do not move the printer while the printer power is on.
•Neglecting to handle properly may result in printer failure, emission of smoke, fire,
or electric shock.
•An overload may cause the power cord to overheat or fire or the circuit breaker to
trip.
■Do not allow anything to rest on the power cord. Do not place the printer where
the power cord will be trampled on.
■Do not use or carry the printer with its power cord bent, twisted, or pulled.
■Do not attempt to modify the power cord unnecessarily.
■Do not lay the power cord in the neighbor of a heating device.
•Neglecting these cautions may cause wires or insulation to break, which could
result in leakage, electric shock, or printer failure. If the power cord sustains
damage, contact your Citizen Systems dealer.
■Do not leave things around the supply outlet.
■Supply power to the printer from a convenient wall outlet, readily accessible in an
emergency.
•The printer may not be immediately shut down in an emergency.
■Insert the power plug fully into the outlet.
■If the printer will not be used for a long time, leave it disconnected from its supply
outlet.
■Hold the plug and connector when plugging or unplugging the power cord or signal
cable after turning off the printer and the appliance connected to it.
WARNING

— 5 —
Do not use the printer under the following conditions.
■A state subject to vibration or unstable state.
■A state with this product slanted.
• Otherwise dropping may cause injury.
• Poor print quality may occur.
■A state where the printer ventilation holes are obstructed by a nearby wall or other
equipment.
■A state where any object is placed on the printer
■A state where the printer is covered or wrapped by a cloth or bed clothing
•Be careful about internal heat buildup, which could cause fire and deform the case.
■Avoid using the printer near a radio or TV set or from supplying it from the same
outlet as these appliances.
■Avoid using the printer interconnected with a cable or cord that has no protection
against noise. (For interconnections, use shielded or a twisted pair of cables and
ferrite cores, or other anti-noise devices.)
■Avoid using the printer with a device that is a strong source of noise.
•The printer may have an adverse effect on nearby radio or TV transmissions. There
may also be cases when nearby electrical appliances adversely influence the printer,
causing data errors or malfunction.
■A state where this product is installed vertically or sidelong.
•Malfunction, failure, or electric shock may result.
■Use the printer with its grounding post connected to a convenient grounding facility.
•If leakage occurs electric shock may result.
■Do not connect the printer’s grounding post onto any of the following facilities:
* Utility gas piping
• A gas explosion could result.
* Telephone line ground
* Lightning rod
• If lightning strikes a large surge of current may cause fire or shock.
* Utility water pipes
• Plastic water pipes should not be used for grounding. (Those approved by
a Waterworks Department may be used.)
■Before connecting or disconnecting the grounding lead to or from the printer, always
unplug it from supply outlet.
CAUTION
Caution label is attached on the
position shown in the following figure.
Carefully read the precautions in
handling before using the printer.
THIS LABEL INDICATES THE
RISK OF ANY INJURY DUE TO
“HIGH TEMPERATURE” OF
THE PRINT HEAD.

— 6 —
To prevent possible malfunction or failure observe the following.
■Avoid operating the printer without paper properly loaded.
■Avoid the use of paper not complying with specifications.
•May result in poor print quality.
■Avoid using torn pieces of paper or spliced with plastic adhesive tapes.
■Avoid forcibly pulling already loaded paper by hand.
■Avoid wedging the paper into the printer.
•May jam paper. To release, refer to “Removing Jammed Paper” in this manual.
■Avoid using a sharp pointed device to operate panel keys.
■Be sure to firmly insert the cable plug into its mating socket.
•Across connection may damage the printer’s internal electronics or the host
system’s hardware.
■Only use the printer with devices that have designated solenoid specifications for
the cash drawer interface connector.
•Neglecting this caution may result in malfunction or failure.
■Do not transport this printer with the paper roll inside.
•Printer failure or breakage may occur.
CAUTION
To prevent injury and printer failures from worsening, observe the following:
■Do not touch the printing surface of the thermal head.
■Do not touch any of the moving parts (e.g., paper cutter, gears, active electrical
parts) while the printer is working.
■In case of trouble do not attempt to repair the printer. Ask Citizen Systems
service for repair.
■Be careful that the printer cover does not entrap your hands or fingers.
■Be careful with sharp edges on the printer. Do not allow them to injure you or
damage property.
•May result in electric shock, burn, or injury.
If the printer emits smoke, an odd smell, or unusual noise while printing, immediately
abort the current print session and unplug the printer from the supply outlet.
Observe the following precautions for daily maintenance.
■When cleaning the printer, always turn it off and unplug it from the supply outlet.
■Use a soft, dry cloth for cleaning the surface of the printer case.
■For severe stains, use a soft cloth slightly dampened with water.
■Never use organic cleaning solvent such as alcohol, paint thinner, trichloroethylene,
benzene, or ketone. Never use a chemically processed cleaning cloth.
■To remove paper dust, use a soft brush.
DAILY MAINTENANCE
CAUTION
•The thermal head is at a dangerously high temperature immediately after printing.
Allow it to cool off before launching maintenance work.

— 7 —
1. GENERAL OUTLINE
The CT-S2000/CT-S2000DC are thermal line printers designed for use with a broad array
of terminal equipment including data, POS, and kitchen terminals.
With extensive features, they can be used in a wide range of applications.
1.1 Features
● Compact, easy-to-use universal design.
●Drop-in Paper Roll mechanism facilitating easy paper handling and head cleaning.
●Drip-proof design
●High speed (220 mm/s) printing.
●Versatile Roll Capacity with ability to use 83 mm, 80 mm, 60 mm and 58 mm wide
paper rolls.
●Can use paper roll with a maximum of 102 mm diameter.
●Equipped with USB interface as standard
●Replaceable interface board.
●High-speed parallel interface (Parallel interface model)
●Built-in cash drawer interface.
●Auto cutter mechanism provided as a standard.
●User customization such as memory switch setting are available.
●Page mode. Now you can arrange pages freely.
●Registration of user-defined characters and logos into flash memory.
●Barcode printing
●2-color printing is supported(When specified paper is used).
●Error indication is available with LED or buzzer.

— 8 —
CT-S2000
(AC power type)
Sample paper roll
User’s manual
(This manual)
AC power cord
1.3 Model Classification
The printer models are classified by the following designation method:
CT-S2000DC
(DC power supply type)
AC adapter
(Option)
CT - S2000 RS E - BK -
Label/Black mark
No marking: Standard
L: Label
M: Black mark
Body case color
WH: Cool white
BK: Black
GR: Dark Grey
Interface
PA: IEEE1284 & USB
RS: RS-232C & USB
UB: USB only (Option)
Power supply
No marking: AC power type
(built-in power supply)
DC: DC power supply type
Character set, AC cable,
E: Europe
U: USA
Sample paper roll
User’s manual
(This manual)
AC power cord
(Option)
1.2 Unpacking
When unpacking the printer, confirm that the following are provided:
●Printer: 1
●AC adapter (Option, only for CT-S2000DC): 1
●AC power cord (Option, only for CT-S2000DC): 1
●Sample paper roll: 1 roll
●User’s manual (This manual): 1

— 9 —
1.4 Basic Specifications
Item Specifications
Model CT-S2000 PA, CT-S2000 RS, CT-S2000DC PA, CT-S2000DC RS
Print method Line thermal dot print method
Print width *1 80 mm/640 dots, 72 mm/576 dots, 54.5 mm/436 dots,
54 mm/432 dots
Dot density 8 ×8 dots/mm (203 dpi)
Print speed 220 mm/s (Fastest, print density 100 %), 1760 dot lines/s
Number of print
columns *2
Character size *4 Font A: 1.50 ×3.00 mm
Font B: 1.13 ×3.00 mm
Font C: 1.00 ×2.00 mm
Character type Alphanumeric, International, PC437 PC850/852/857/858/860/863/864/
865/866/WPC1252/Katakana/Thai code 18
User memory 384 KB (Capable of registering user-defined characters and logos)
Types of bar code UPC-A/E, JAN (EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR, CODE 93
Line spacing 4.23 mm (1/6 inch)
Paper roll
Thermal paper roll: 83 mm/80 mm/60 mm/58 mm ×Maximum φ102 mm
Paper thickness: 65-85 µm
Interfacing Serial (RS-232C compliant), Parallel (IEEE 1284 compliant), USB
Cash drawer interface 2 cash drawers are supported.
Input buffer 4k bytes/45 bytes
Supply voltage DC 24 V ±7%
Power consumption Approx. 70W (in normal printing)
AC adapter Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA
Rated output: DC 24 V, 2A
Model 35AD1 for CT-S2000 / Model 35AD2 for CT-S2000DC
Weight CT-S2000:Approx. 2 kg, CT-S2000DC:Approx. 1.8 kg
Outside dimensions 147 (W) ×207 (D) ×147 (H) mm
Operating temperature 5 to 45°C, 10 to 90% RH (No condensation)
and humidity
Storage temperature −20 to 60°C, 10 to 90% RH (No condensation)
and humidity
Reliability Print head life: 150 km, 2 ×108pulses (At normal temperature/
humidity with recommended paper used)
Auto cutter life:2 million cuts (At normal temperature/
humidity with recommended paper used)
Safety standard *3 UL, C-UL, FCC Class A, TÜV-GS, CE Marking
+0
−1
83mm 80mm 60mm 58mm
Font A 53 48 36 35 12 ×24
Font B 71 64 48 46 9 ×24
Font C 80 72 54 52 8 ×16
Number of print columns
(columns)
Dot configuration
(Dot)
Paper width
Font
+0
−1
+0
−1
+0
−1
Notes:
*1: When paper width is 83, 80, 60, 58 mm
*2: The number of printable columns is selectable with a Memory Switch.
The number of columns in this table refers to typical model. Printer varies partly in the number of
columns depending on printer specifications.
*3: This rating is obtained by the use of specified AC adapter (35AD1 or 35AD2).
*4: As each character size includes the space inside the character font, actual character looks smaller.

— 10 —
2. EXPLANATION OF PRINTER PARTS

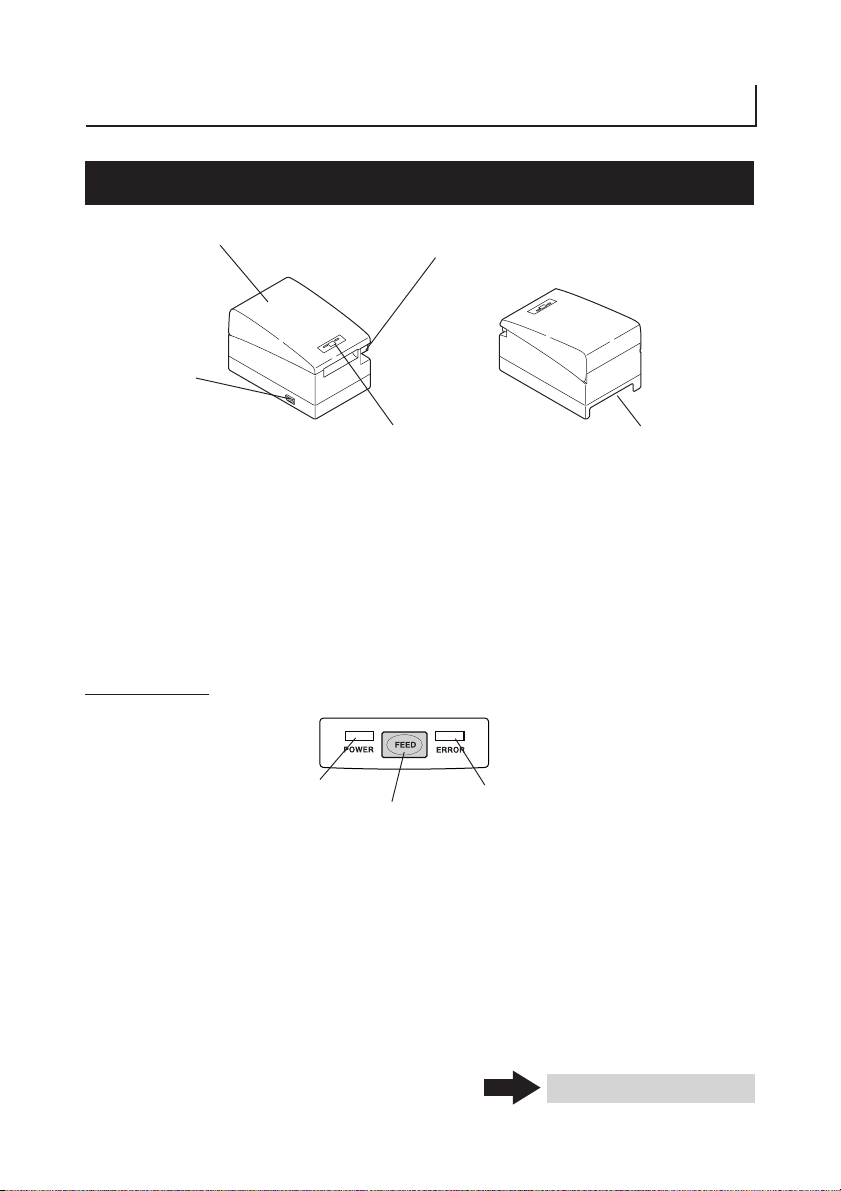

2.1 Printer Appearance
●Printer cover
Paper is loaded under this cover.
●Cover open button
To refill or replace paper, open the printer cover by lifting the cover open button.
●Power switch
This switch turns the printer power ON/OFF.
POWER LED
FEED button
ERROR LED
Operation Panel
●POWER LED
Illuminated when the printer power is on and off when the printer power is off. May
blink or light in a special mode or in case of failure.
●ERROR LED
Illuminated or blinks when paper is empty or in case of failure.
The interval length of blinking represents the type of error.
●FEED button
Pressing this button once causes the paper to feed one line. The longer the button is
pressed, the more paper is fed.
In case of auto cutter error, press the FEED button after removing the cause of the
error.
See 4.6 Error Indication
Power switch
Operation panel Rear connector
(Front view) (Rear view)
Printer cover Cover open button

— 11 —

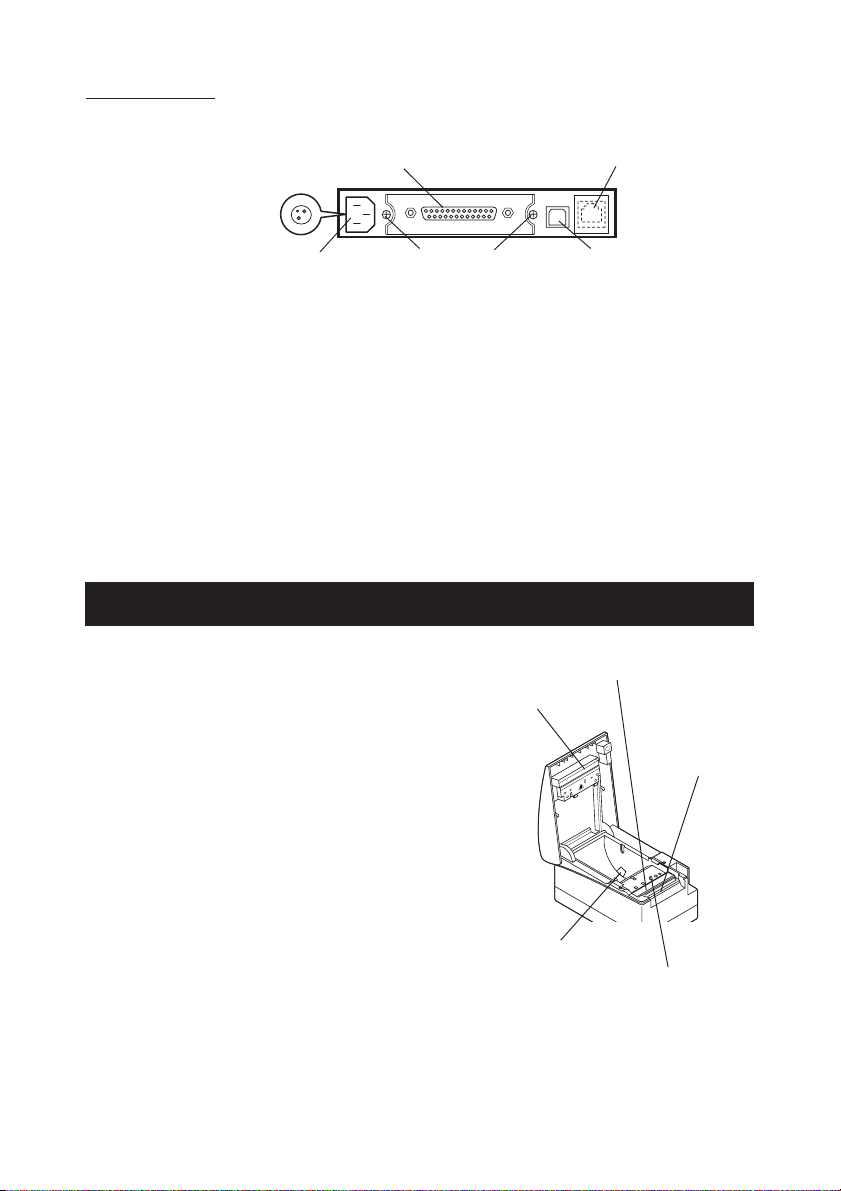

2.2 Printer Cover Inside
●Paper feed roller
Feeds paper as part of print mechanism.
●Paper-near-end sensor
Detects near paper end, change position in
accordance with the outer diameter of paper
core.
●Auto cutter
Cuts the paper with a command at the end
of printing. Cutting method is selectable
between partial cut and full cut with a
command.
●Print (thermal) head
Prints characters and/or graphic data on
thermal paper.
●Paper-end sensor
Stops printing when this sensor detects
paper end.
Print (thermal) head
Paper-end sensor
Paper-near-end
sensor
Auto cutter
Paper feed roller
●Interface connector (Serial, parallel, etc.)
Connects to the interface cable. A DIP switch is provided on the serial interface board.
●Cash drawer kick-out connector
Connects to the cable from the cash drawer.
* Remove the protection seal of cash drawer kick-out connector before use.
●AC inlet (AC power type)
Connects to AC power cord
●Power connector (DC power supply type)
Connects to the cable from AC adapter.
Interface connector
(Serial, parallel, etc.)
Cash drawer
kick-out connector
Power connector
(DC power supply type)
Rear Connectors
Interface board
mounting screws
AC inlet
(AC power type)
USB connector

— 12 —
3. PREPARATION
3.1 Connecting the AC Power Cord
1. Turn off the printer power.
2. ●For AC power type (with built-in power supply), connect the AC power
cord to the AC inlet at the back of the printer and plug the AC power cord
into the wall outlet.
●For DC power type, connect the AC adapter cable connector to the power
connector at the back of the printer with its flat surface facing interface
connector side. Then connect the AC power cord to the AC inlet of the AC
adapter and then plug the AC power cord to the wall outlet.
CAUTION!
■Use only the specified AC adapter with the printer.
■When disconnecting a cable, DO NOT pull out by the cable. Always hold the plug.
■Always keep the AC power supply away from other noise generating equipment.
■DO NOT pull the AC power cord. Otherwise fire, electric shock, or power disconnection
may result.
■If lightning is approaching, unplug the AC power cord from the wall outlet. Otherwise
fire or electric shock may result.
■Keep the power cord away from heat generating appliances. Otherwise the shield of
power cord may be fused resulting in a fire or electric shock.
■If the printer will not be used for a long time, leave it disconnected from its supply
outlet.
■Avoid locating the AC power cord in places which may cause tripping or falling.
AC inlet
AC power cord
AC power type
(built-in power supply) DC power supply type
AC power cord
AC inlet
Cable connector
Power connector
AC adapter
Flat side

— 13 —

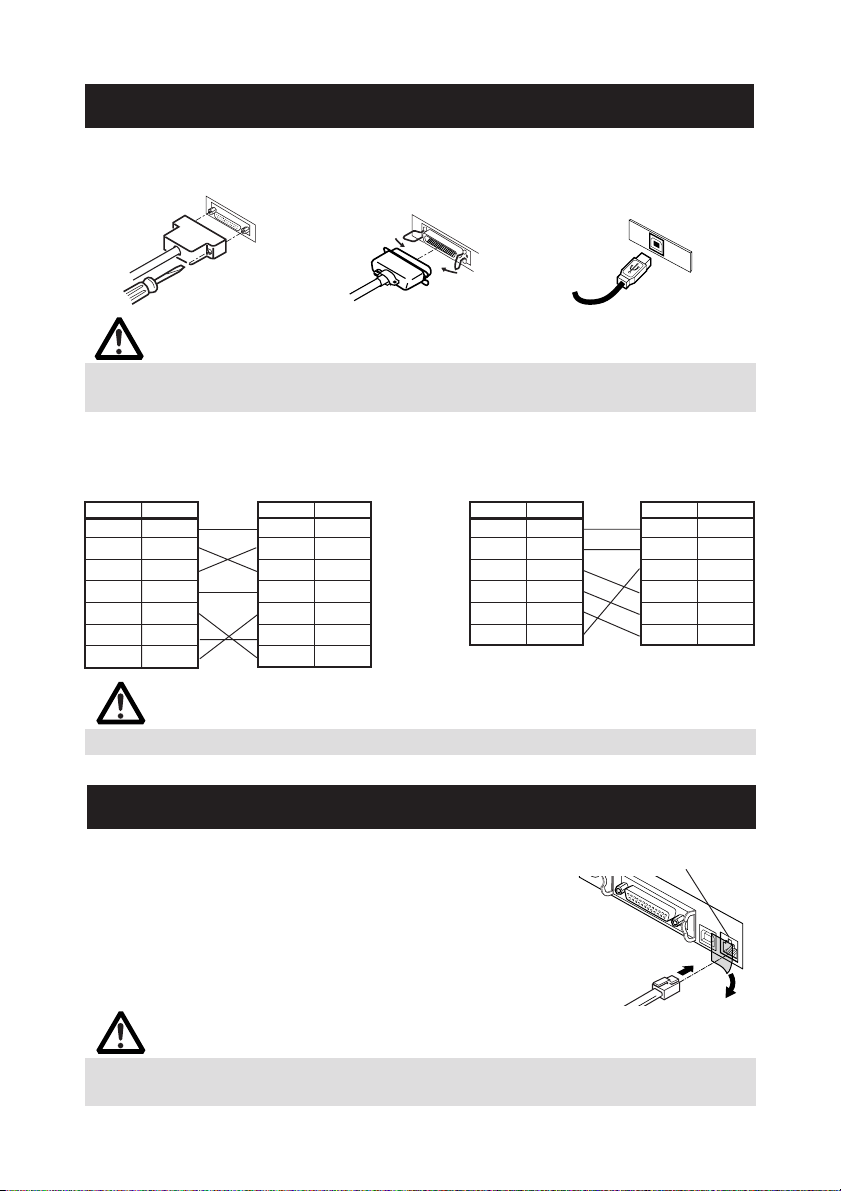

3.2 Connecting Interface Cables
Confirm that the power switch is OFF and connect the interface cable.
Orient the interface cable terminal correctly and insert it into the interface connector.
Printer
Pin Signal
2TXD
3RXD
4RTS
6DSR
7SG
20 DTR
PC
Signal Pin
FG 1
TXD 2
RXD 3
CTS 5
DSR 6
SG 7
DTR 20
CAUTION!
■When disconnecting the cable, always hold the connector.
■Be careful not to insert the USB interface cable into the cash drawer kick-out connector.
Serial Interface Parallel Interface
For serial interface cable, use the one with the following connection.
Printer
Pin Signal
1FG
2TXD
3RXD
4RTS
6DSR
7SG
20 DTR
PC
Signal Pin
RXD 2
TXD 3
DTR 4
SG 5
DSR 6
CTS 8
USB Interface
CAUTION!
Avoid locating the interface cable in places which may cause tripping or falling.
25-pin - 25-pin cable 9-pin - 25-pin cable
②
③
Cash drawer
kick-out connector
Cash drawer cable
connector
3.3 Connecting the Cash Drawer
1. Confirm that the power switch is OFF.
2. Detach the protection seal of the cash drawer
kick-out connector.
3. Confirm the top and bottom of the cash drawer
cable connector and insert it into the cash
drawer kick-out connector at the back of the
printer.
4. Screw the cash drawer's ground wire to the body
of the printer.
CAUTION!
DO NOT connect any other device than the specified cash drawer to the cash drawer
kick-out connector. (DO NOT connect a telephone line either.)

— 14 —

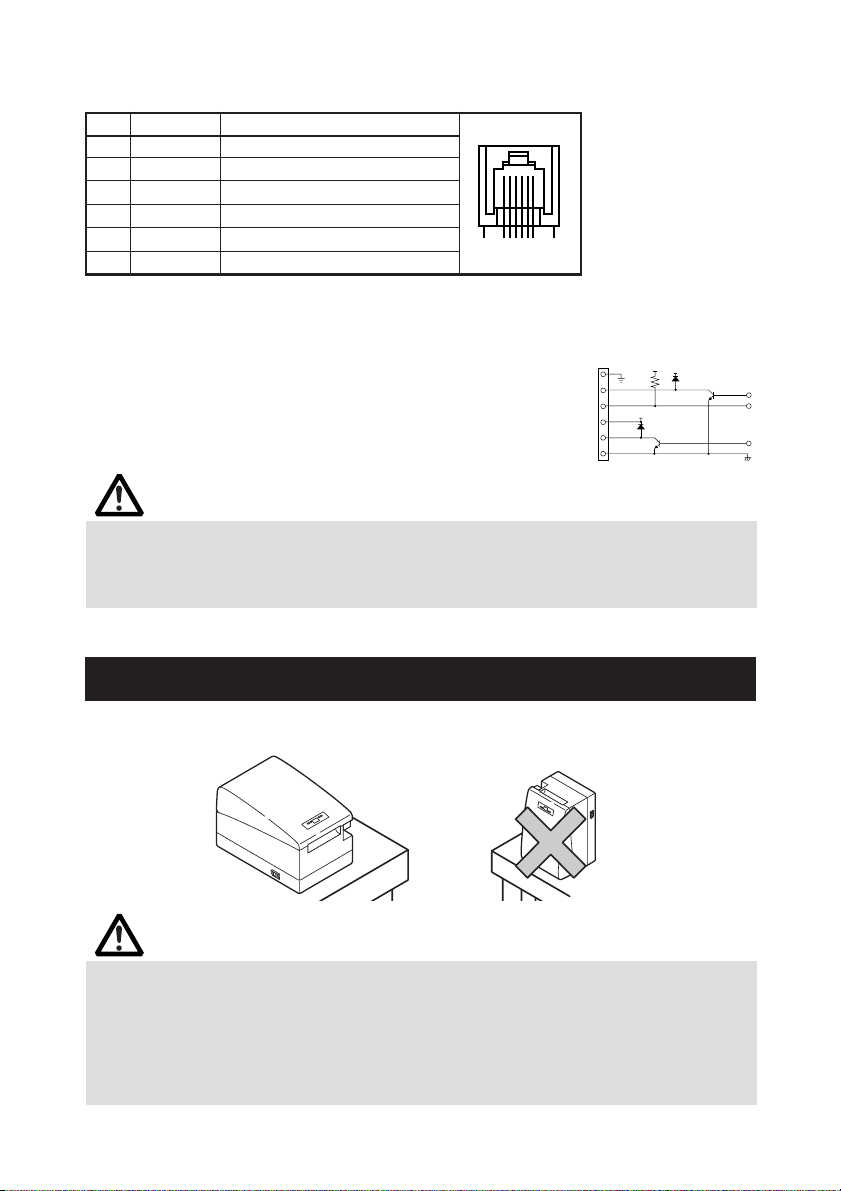

(1) Connector Pin Configuration
No. Signal Function
1FG Frame Ground
2DRAWER 1 Drawer 1 drive signal
3DRSW Drawer switch input
4VDR Drawer drive power supply
5DRAWER 2 Drawer 2 drive signal
6GND Common ground on circuits
61
Connector used:
TM5RJ3-66 (Hirose)
or equivalent
Applicable connector:
TM3P-66P (Hirose) or
equivalent
VDR
1
2
3
4
5
6
VDR
5V
CAUTION!
■No output is produced while printing.
■The cash drawers 1 and 2 cannot be driven simultaneously.
■A solenoid used for the cash drawer should be of 24 Ωor more. The output current
should be kept at 1A or less; otherwise, breakdown or burning could occur.
CAUTION!
DO NOT use the printer under the following conditions.
■A state subject to vibration or unstable state.
■A state with this product slanted.
• Otherwise dropping may cause injury.
• Poor print quality may occur.
■A state where this product is installed vertically or sidelong.
• Malfunction, failure, or electric shock may result.
Horizontal position Vertical position
(2) Electrical characteristics
1) Driving voltage: 24 VDC
2) Driving current: Approx. 1A max. (shall not exceed 510
ms.)
3) DRSW signal: Signal levels: “L” = 0 to 0.5 V, “H” = 3 to 5 V
(3) DRSW signal
DRSW signal status can be tested with the DLE+EOT,
GS+a, or GS+r command or
at pin 34 on the parallel interface port.
(4) Drive Circuit (printer side)
3.4 Precautions in Installing the Printer
The printer must only be operated horizontally. Do not operate vertically or install on a
wall.

— 15 —
80
mm
58mm
60mm
InitialSettings
1 Communication condition DIP switch setting Memory switch OFF
setting method setting
2Hand shake XON/XOFF DTR/DSR OFF
3Bit length 7 bits 8 bits OFF
4Parity check With parity None OFF
5Parity selection Even parity Odd parity OFF
6ON
7ON
8INIT Reset Invalid OFF
3.6 Setting DIP Switch
CAUTION!
When setting the partition to the slot for 58 mm or 60 mm paper roll, be sure not to set
it slanted.
DIP switch
Interface board
mounting screws
CAUTION!
When setting the DIP switch, DO NOT remove screws other than those for mounting
the serial interface board.
The DIP switch is present on the serial interface
board.
Remove the board fixing screws, take out the
interface board, and then set the DIP switch. The
function of each switch is as shown below.
3.5 Partition for Paper Roll
Selecting baud rate
Switch No.
67
2400 OFF OFF
4800 ON OFF
9600 OFF ON
19200 ON ON
38400, 57600 and 115200 bps can also be selected by a command, etc.
Switch No. Function ON OFF
Baud rate selection See Table below.
Baud Rate (bps)
Partition
At the time of shipment, this partition is set to “80-mm
wide roll paper position”.
1. Confirm that the power switch is OFF.
2. Open the printer cover.
3. Set the partition to each to the slot which
meets the width of the paper roll used. When
using the 83-mm wide paper roll, remove the
partition.
4. Change the setting of paper width by reffering
to the section 5.2, "Manual Setting of Memory
Switch".

— 16 —
43
2
1
3.7 Adjusting the Paper Near-end Sensor
1. Lightly push in the paper near-end sensor unit.
2. Move the paper near-end sensor unit to the right and left while keeping to
press it. The sensor position is as shown below depending on the diameter
of the roll paper used.
Sensor Position
*1 φ22 φ18
2φ25 φ22
3φ29 φ25
4φ34 φ32
* Factory setting
CAUTION!
■Paper remaining differs by the type of paper roll used.
■The external diameter of the paper roll is only for reference.
■When a paper end error is detected incorrectly during using a paper roll with a honey-
comb type core, move the sensor position to the larger number.
Roll paper diameter at the
detection of near-end
Outer core diameter of
roll paper used
Paper-near-end
sensor unit

— 17 —
CAUTION!
■Always use the specified types of paper roll.
■Confirm that the paper roll is set correctly.
■When the paper is skewed and not extended straightforward from under the printer
cover, open the printer cover and adjust the paper correctly.
■When the cover is opened after paper setting, be sure to pull the paper straightforward
by several cm out of the printer, and then close the cover.
■When closing the printer cover, press on the center part of the cover to close it firmly.
■When setting paper, be careful not to have your finger injured by the paper edge.
4. MAINTENANCE AND TROUBLESHOOTING

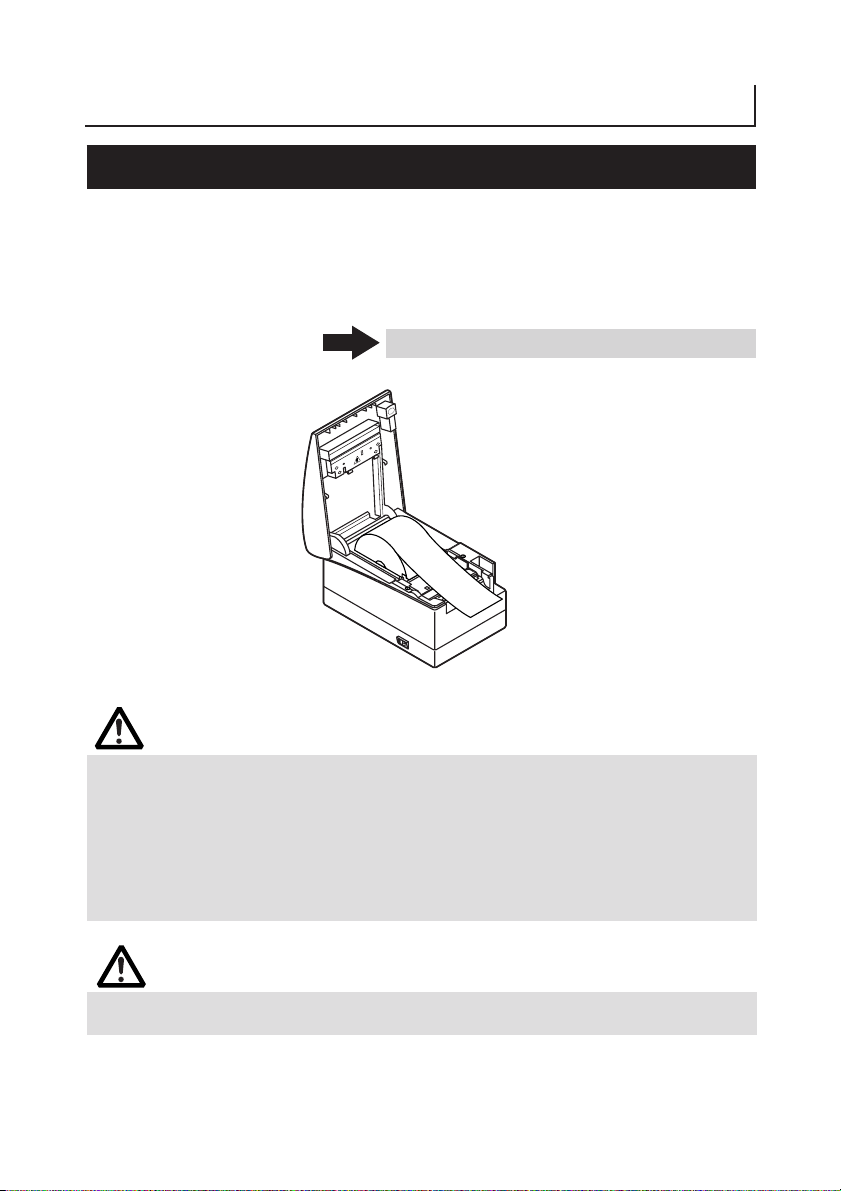

4.1 Setting/Replacing the paper roll
1. Lift the cover open button.
2. Open the printer cover.
3. Insert a paper roll with its print area facing down as shown in the figure and
pull out the paper end straightforward by several cm out of the printer.
4. Firmly close the printer cover until a click can be heard. With the factory
setting, the paper is fed and cut automatically.
See 5.3 Manual Setting of Memory Switch
WARNING
When opening the printer cover, DO NOT touch the print head or cutter blade. Otherwise,
burning or injury of hand may result.
