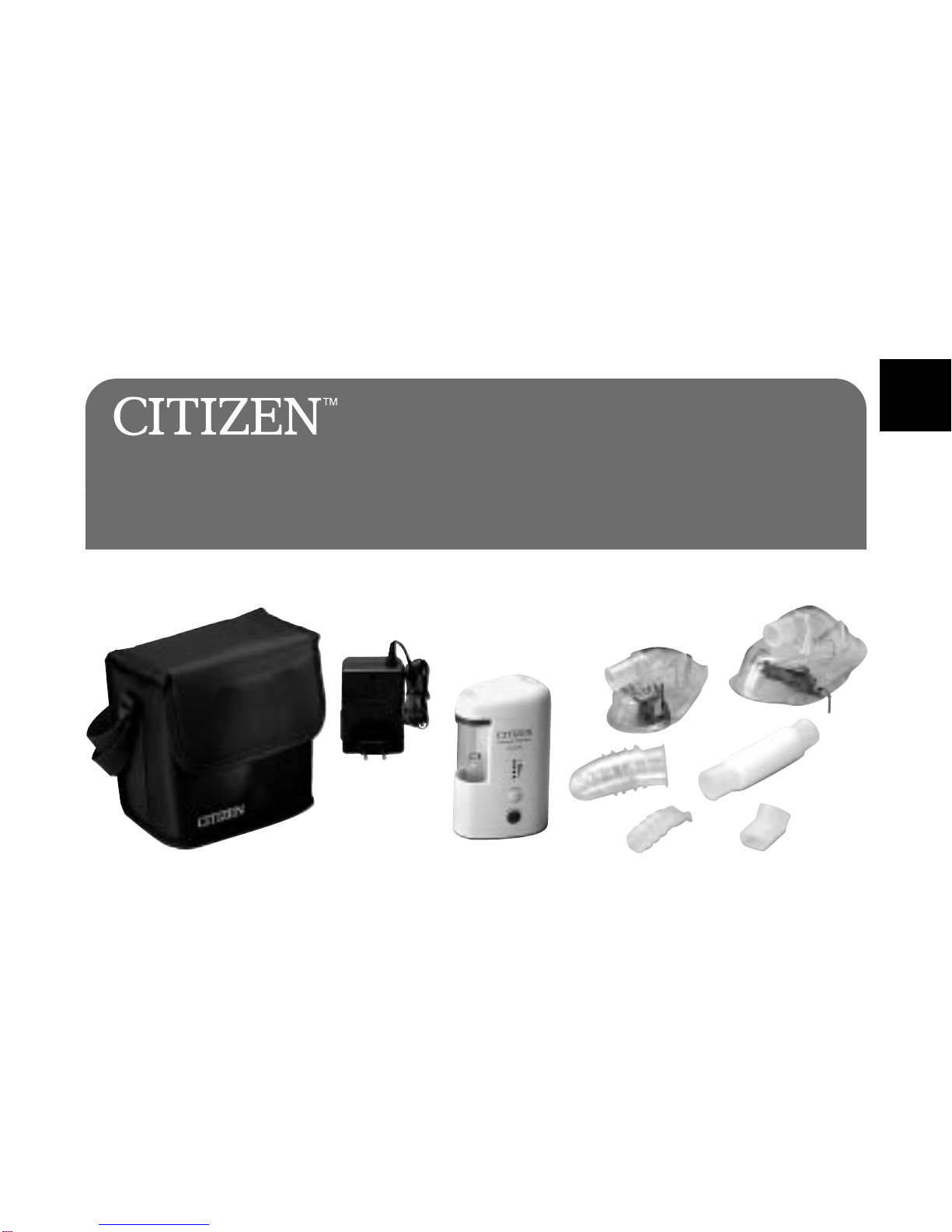

INSTRUCTION MANUAL
FOR
ULTRASONIC NEBULIZER
MODEL CUN60
- Eng 1 -

- Eng 2 -
★Handy design - with built-in detachable battery pack; compact and light-
weight.
★Easy to use - uses water as ultrasonic conducting medium, no gel re-
quired.
★Silent operation - thanks to the ultrasonic vibration technology.
★3-speed nebulization rate control - provides optimal treat-ment for all
kinds of medication with different density.
★Built-in timer - automatically shuts off after 10-minute use.
★Electromagnetic compatibility - complies with EN60601-1-2 requirement
as specified in EC directive 89/336/EEC.
FEATURES

English Español
Português
Deutch Français
- Eng 3 -
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS CAREFULLY BEFORE USE
PREPARATION
★Use the equipment only for its intended use as de-
scribed in this manual. Do not use attachments not
recommended by the manufacturer.
★Use the equipment with medications only under the
instruction of your physician.
★Do not use the equipment if it has any damaged parts,
or it has fallen into water. Return the product to a ser-
vice center for examination and repair.
★Always unplug this product before filling and after use.
★To use the equipment for the first time, or after stor-
ing it for an extended period, be sure to clean and
sterilize all necessary parts as described on page 8.
★Do not handle the power cord with wet hands or im-
merse the AC adapter. An electrical shock may result.
★The medication cup, mouth nozzle and air filter should
be checked before each use. Replace with a new one
if they are dirty or worn out.
★Do not fill medication cup over 8 ml or the nebuliza-
tion will be very weak.
OPERATION
★Close supervision is required when this equipment is
used by children or invalids.
★Stop using the equipment immediately if any abnor-
mality occurs.
★Keep your eyes away from the output of medication
mist.
★Do not use the equipment where flammable gas is
being used.
★Never operate the equipment with empty water tank
or medication cup.
★Do not use solutions other than water for the tank. It
may damage the transducer. Change the water after
each use.
★Do not tilt or shake when operation.

- Eng 4 -
★Never open the clear cover during operation. It may
cause a severe injury.
★Do not use the equipment for more than 30 minutes.
Do not reuse within 30 minutes.
★Some medications may not have good atomization.
Check with the physician or manufacturer of medica-
tion.
CLEANING
★Never immerse the equipment in water. It may dam-
age the unit.
★Clean all necessary parts after each use, as described
on page 8.
STORAGE
★Do not store the unit under direct sunlight, high tem-
perature or humidity.
★Keep the unit out of reach of small children.
★Always keep the unit unplugged while not in use.
Manufacturer:
Name: Vega Technologies Inc.
Address: 11F-13, 100 Chang-Chan Road,
Taipei, Taiwan

English Español
Português
Deutch Français
- Eng 5 -

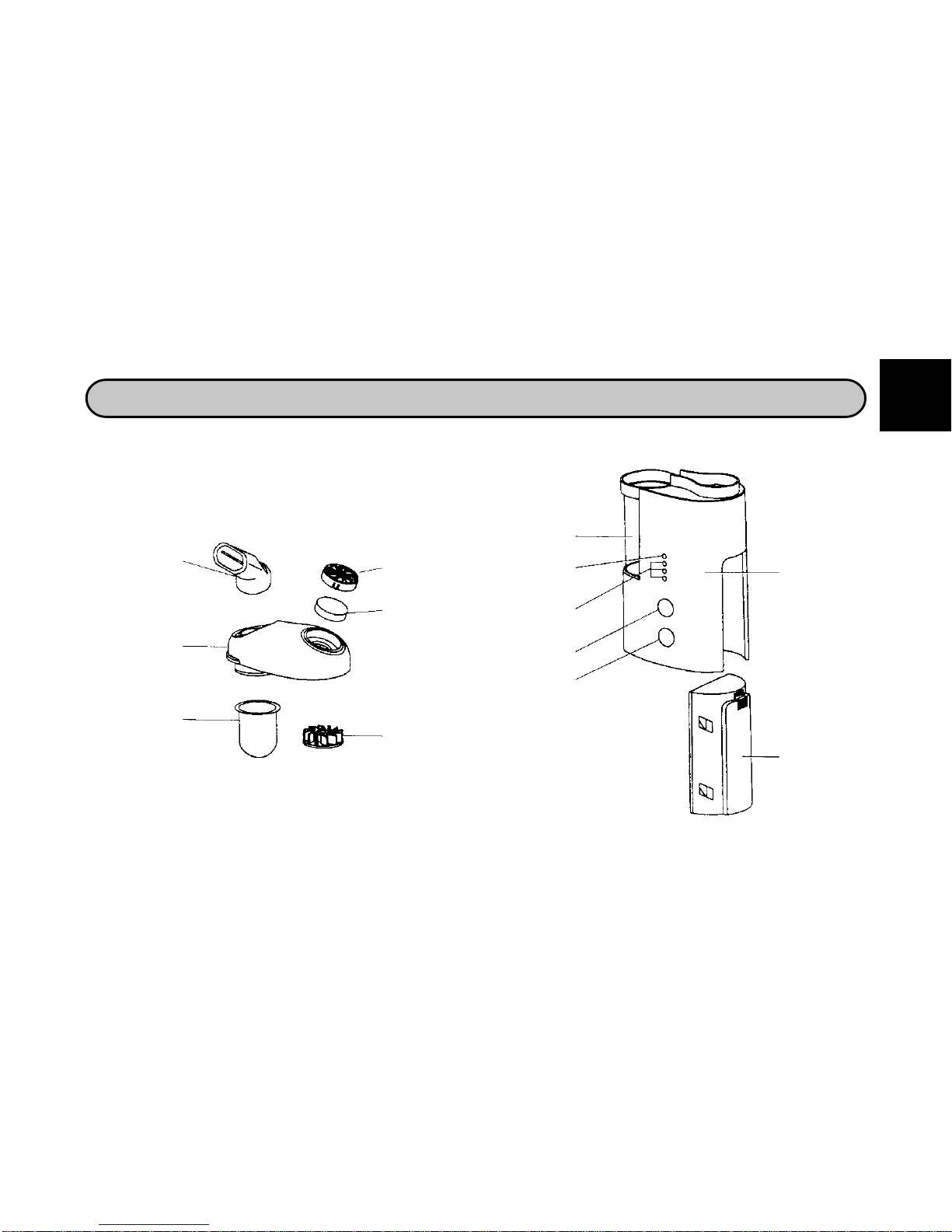

PARTS DESCRIPTION
Mouth nozzle Filter cover
Air filter
Top cover
Medication cup
Fan
Water reservoir
Low-battery
indication lamp Main body
Nebulization rate
Indication lamps
ON/OFF button
Nebulization rate
control button
Rechargeable
Battery pack

- Eng 6 -
★To use the equipment for the first time, or after stor-
ing it for an extended period, be sure to clean and
sterilize all necessary parts as described on page 8.
★Always unplug this product and turn off the switch at
bottom before filling and after use.
1. FILLWATER RESERVOIR
a. Remove the top cover and medication cup.
b. Fill water reservoir with tap water or distilled water to
correct level (between 2 lines in water reservoir).
Note:
1. Use water at room temperature (20 - 30°C).
2. Use of cool water (below 20°C) will result lower
nebulization rate.
3. For higher nebulization rate, use warm water (over
30°C).
Caution:
1. Do not use solutions other than water for the res-
ervoir. It may damage the transducer.
2. Make sure the water level is between 2 lines in the
reservoir.
OPERATION
2. FILL MEDICATION CUP
a. Replace medication cup on water reservoir.
b. Fill medication directly into medication cup.
c. Replace top cover.
Caution:
1. Do not fill more than 8 ml, otherwise the nebuliza-
tion rate will be very weak.
2. Use medications only under instructions of your
physician.
3. PLUG INTHE POWER CORD
Follow the correct sequence below.
a. First connect adapter’s plug to the unit’s power re-
ceptacle.
b. Then plug the adapter into an AC outlet.
Note:
1. Unit can also be operated with battery pack only.
2. As soon as the AC adapter is connected to unit’s
receptacle, the power from battery pack will be
cut off.

English Español
Português
Deutch Français
- Eng 7 -
4. TURN ONTHE POWER
a. Make sure water reservoir and medication cup are
properly filled, and the unit is placed on a flat and dry
surface.
b. Turn the switch at bottom of unit to “ON” position.
The LED indicator should be lit.
c. Press the On/Off button once. The unit will start work-
ing with “high” nebulization rate. The corresponding
“nebulization rate indication lamp” will illuminate.
5. ADJUST NEBULIZATION RATE &
BEGINTREATMENT
a. Press the “nebulization rate control button” to adjust
the nebulization rate at high, medium or low speed,
which will be illuminated by corresponding indication
lamp.
b. Begin treatment according to your physician's instruc-
tions.
Caution:
Stop operation immediately if any abnormality is
noted.
6. FINISH OPERATION
a. Press the On/Off button to stop operation.
b. Turn the switch at bottom to “OFF/CHARGE” position.
c. Unplug the adapter from AC outlet first and then from
unit's receptacle.
Note:
1. Stop operation when the medication is finished.
2. Operation will stop automatically after 10-minute
continuous use.
3. To reuse, wait for approx. 10 minutes for the unit
to cool down.
4. The switch at bottom must be turned to "OFF/
CHARGE" position to save battery power and avoid
unwanted operation against accidental press of the
on/off button.

- Eng 8 -
CLEANING
★Be sure to clean and sterilize all necessary parts after
each use.
★Always unplug this product before cleaning.
★Never immerse the equipment in water. It may dam-
age the unit.
1. DISPOSE EXCESS MEDICATION AND
WATER
a. Remove top cover.
b. Pour remaining medication out of cup.
c. Drain water from water reservoir.
Caution:
Do not touch water, it is hot after use.
2. CLEANING
a. Nose piece, mouth nozzle, extension tube, mask, top
cover, medication cup, air filter & filter cover: Clean
with mild detergent or commercially available disin-
fectant. Rinse all parts thoroughly and let air dry.
b. Main body: Clean with a soft cloth moistened with
water and non-abrasive cleanser.

English Español
Português
Deutch Français
- Eng 9 -
SPECIFICATIONS
Power: 220-240VAC 50/60Hz
Power consumption: Approx. 10W
Ultrasonic frequency: 2.5MHz
Nebulization rate: 3-speed adjustable, 0.2 - 0.7 ml/min. depending on medication density
Particle size: 5 µm MMAD
Medication cup capacity: Approx. 8 ml max.
Transport & storage condition: –10 ~ 50°C; 45 ~ 85%
Safety classification: Type B apparatus;
Class II insulation
Auto shut-off timer: Approx. 10 min.
Dimensions (L ×W ×H): 88 ×53 ×143 mm
Weight: Approx. 230g (350g with battery pack)
Accessories: Nose piece
Mouth nozzle
Extension tube
Adult & child masks
AC adapter
Medication cup (5 pieces)
Soft carrying case
Specifications subject to change without notice.

- Eng 10 -
TROUBLESHOOTING
★Should any problem persist after you have made the following checks, return the product to a nearest service center
for examination and repair.
Symptom Cause and/or solution
• Check that AC adapter is plugged in firmly.
• Check that switch at bottom is turned ON.
• Check that water reservoir is filled to the correct level.
• If using with battery only, check that battery pack is firmly attached to the unit.
• Check that battery is fully charged.
• Check that there's medication in the cup.
• Check that the medication cup is not broken or transfigured.
• Check medication level in medication cup.
• Check that transducer is clean.
• Check that the fan is firmly and properly mounted on the motor shaft.
Unit does not operate when
ON/OFF button is depressed.
No atomization or low
atomization rate
Fan is not working properly

English Español
Português
Deutch Français
- Eng 11 -
RECHARGEABLE BATTERY
★The RB60L rechargeable battery is used to provide
power for NB-08L nebulizer while AC power is not
available or not used.
★Do not use the battery with equipment other than
RB60L nebulizer, or attempt to modify if for other use.
★Do not store the battery under direct sunlight, high
temperature or humidity.
★Do not put the battery on any metal or wet surface, or
inside any metal box. It might short-circuit the bat-
tery positive & negative contacts and cause the bat-
tery to heat up or explode.
★The life of the battery is approx. 2 years. However,
battery life differs according to the usage and charg-
ing conditions.
★To save battery power and avoid accidental operation,
always turn the switch at bottom at “OFF/CHARGE”
while not in use.
1. CHARGINGTHE BATTERY
a. Install the battery pack by sliding it into the right-bottom
of nebulizer.
b. Make sure the switch at bottom is turned to “OFF/
CHARGE” position.
c. Connect adapter’s plug to nebulizer’s power recep-
tacle.
d. Plug the adapter into an AC outlet.
e. The required charging time is 24 hours for the first
time of use, and 4 to 12 hours thereafter depending
on duration of usage. It is recommended that the bat-
tery is charged after each use, and let charged over-
night. A fully charged battery will last for approx. 30
minutes of continuous use.

- Eng 12 -
2. USINGTHE BATTERY
a. Turn the switch at bottom of nebulizer to “ON” posi-
tion. The LED indicator will be lit.
b. Start using the nebulizer as described on page 6.
c. After operation is finished, turn the switch at bottom
to “OFF/CHARGE” position to save battery power.
d. To remove battery pack, press the grooved area and
release it from nebulizer by sliding down.
Note:
The switch at bottom of unit is designed to avoid un-
wanted operation against accidental press of on/off
button while the unit is stored in carrying case and
the battery is installed.

English Español
Português
Deutch Français
- Eng 13 -
Battery type: Ni-MH
Battery voltage: 12VDC
Charging current: 40 ~ 100 mA
Charging time: Minimum 24 hours first time;
4 ~ 12 hours thereafter depending on duration of usage
Capacity: 480 mAH/12VDC
(approx. 30-minute continuous use)
Operating temperature: 0 ~ 45°C (32 ~ 112°F)
Storage temperature: –18 ~ 45°C (0 ~ 112°F)
Dimensions (L ×W ×H): 47 ×28 ×84 mm
Weight: Approx. 125 g
Specifications subject to change without notice.
RECHARGEABLE BATTERY

●CITIZEN is a registered trademark of Citizen Watch Co., Japan.
Consumer Electronics Division
CBM Bldg. 5F, 5-68-10, Nakano, Nakano-ku, Tokyo 164-0001, Japan
