CK WORLDWIDE Remote Amperage Control User manual
How to Adjust the Tension on the Remote Amperage Control

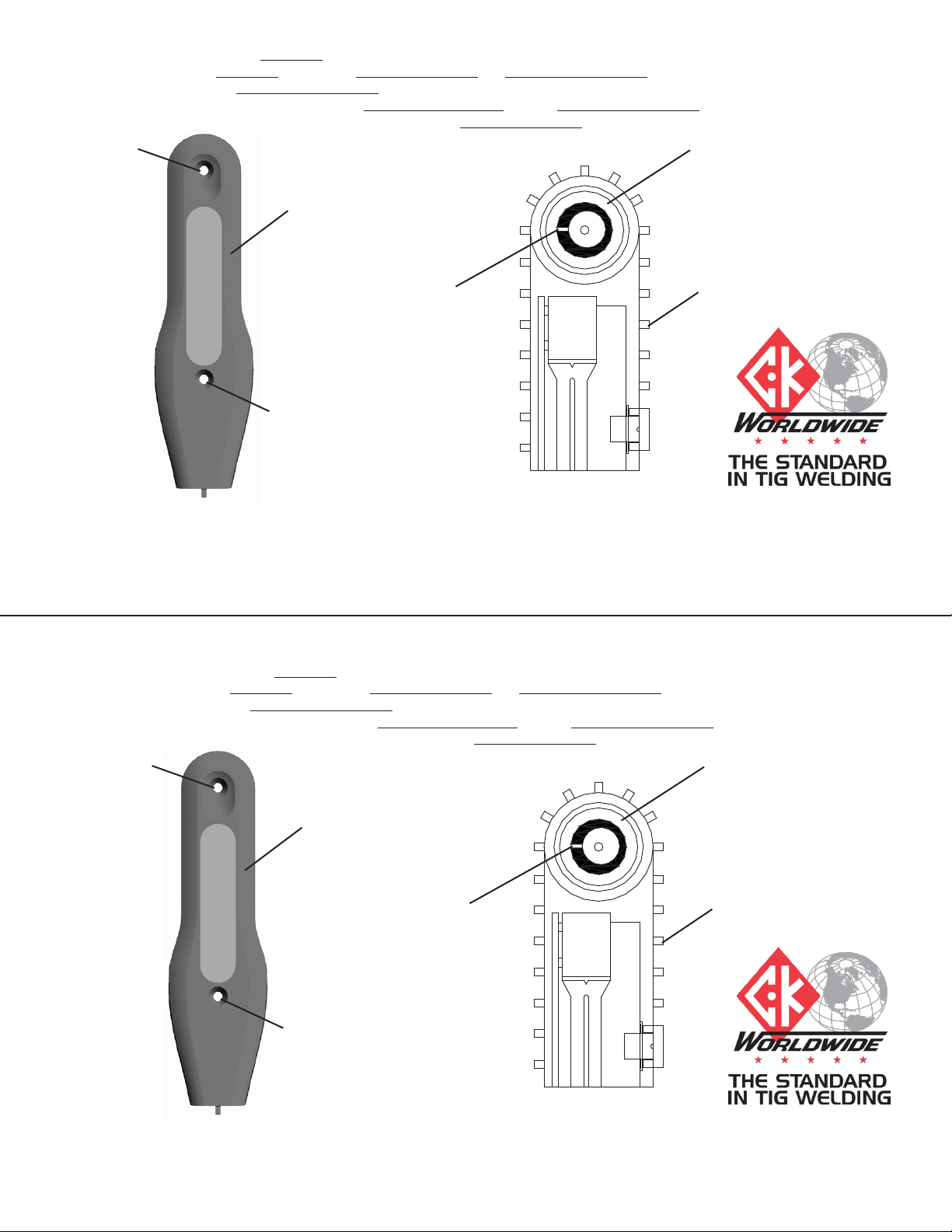

1. Remove the two (2) cover plate screws. (FIG. 1)
2. Remove the cover plate exposing the amperage control belt and tension adjustment wheel. (FIG. 2)
3. Locate notch in tension adjustment wheel. (FIG. 2)
4. Useasmallat-headedscrewdriverintension adjustment notch to rotate tension adjustment wheel
clockwise from the 6:00 to the 12:00 position to tighten amperage control belt tension.
SCREW
SCREW
COVER PLATE
TENSION ADJUSTMENT WHEEL
TENSION
ADJUSTMENT NOTCH
AMPERAGE
CONTROL BELT
FIGURE 1
FIGURE 2 Form 9500_H
March, 2017
CK Worldwide, Inc.
P.O. Box 1636 Aurburn, WA 98071
Ph:(253)854-5820
Fax:(253)939-1746
www.ckworldwide.com
Form 9500_H
March, 2017
CK Worldwide, Inc.
P.O. Box 1636 Aurburn, WA 98071
Ph:(253)854-5820
Fax:(253)939-1746
www.ckworldwide.com
AMPERAGE
CONTROL BELT
How to Adjust the Tension on the Remote Amperage Control
1. Remove the two (2) cover plate screws. (FIG. 1)
2. Remove the cover plate exposing the amperage control belt and tension adjustment wheel. (FIG. 2)
3. Locate notch in tension adjustment wheel. (FIG. 2)
4. Useasmallat-headedscrewdriverintension adjustment notch to rotate tension adjustment wheel
clockwise from the 6:00 to the 12:00 position to tighten amperage control belt tension.
SCREW
SCREW
COVER PLATE
TENSION ADJUSTMENT WHEEL
TENSION
ADJUSTMENT NOTCH
FIGURE 1
FIGURE 2
IMPORTANT
Read Me First
Important Belt Tension Instructions
On Reverse Side of Page
Do Not Throw Out
IMPORTANT
Read Me First
Important Belt Tension Instructions
On Reverse Side of Page
Do Not Throw Out
