Thank you for purchasing this Clarion product.
• Please fully read this owner’s manual before operating this equipment.
• Check the contents of the enclosed warranty card and store it in a safe place with this manual.
Contents
1. FEATURES.......................................................................................................................2
2. PRECAUTIONS ................................................................................................................2
Front Panel / General Information..................................................................................3
USB Port........................................................................................................................ 3
3. CONTROLS ......................................................................................................................4
Operational Panel .......................................................................................................... 4
Remote Control (RCX001: Sold separately).................................................................. 5
Notes for use of Optional Remote Control..................................................................... 5
Optional Wired Remote Control Unit Operations........................................................... 6
Zone Control .................................................................................................................. 6
5. OPERATIONS...................................................................................................................7
Basic Operations............................................................................................................7
System Setup.................................................................................................................7
Audio Setup.................................................................................................................... 8
Tuner Operations........................................................................................................... 9
SiriusXM Satellite Radio Operations..............................................................................9
USB Operations........................................................................................................... 10
iPod, iPhone & iPad Operations................................................................................... 11
Bluetooth Operations ................................................................................................... 12
AUX Operations........................................................................................................... 13
6. TROUBLE SHOOTING................................................................................................... 14
7. ERROR DISPLAYS.........................................................................................................15
8. SPECIFICATIONS ..........................................................................................................15
9. INSTALLATION / WIRE CONNECTION GUIDE............................................................ 16
CLARION PRODUCT REGISTRATION INFORMATION
For USA and Canada only
www.clarion.com
Dear Customer,
Congratulations on your purchase of a Clarion mobile electronic product. We are condent
that you’ll enjoy your Clarion experience.
There are many benets to registering your product. We invite you to visit our website at
www.clarion.com to register your Clarion product.
We have made the product registration process simple with our easy to use website.
The registration form is short and easy to complete. Once you’re registered, we can keep you
posted on important product information.
Register at www.clarion.com - it’s easy to keep your Clarion product up to date.
Please periodically check the Clarion website for software updates and improvements for your
Clarion product. These updates can be found under the “Get Support” tab, then “Software Update
/ Download”.

English
2M608
8 Channel Amplier
iPod/iPhone/iPad
(Connect via USB)
Expanding Audio Features

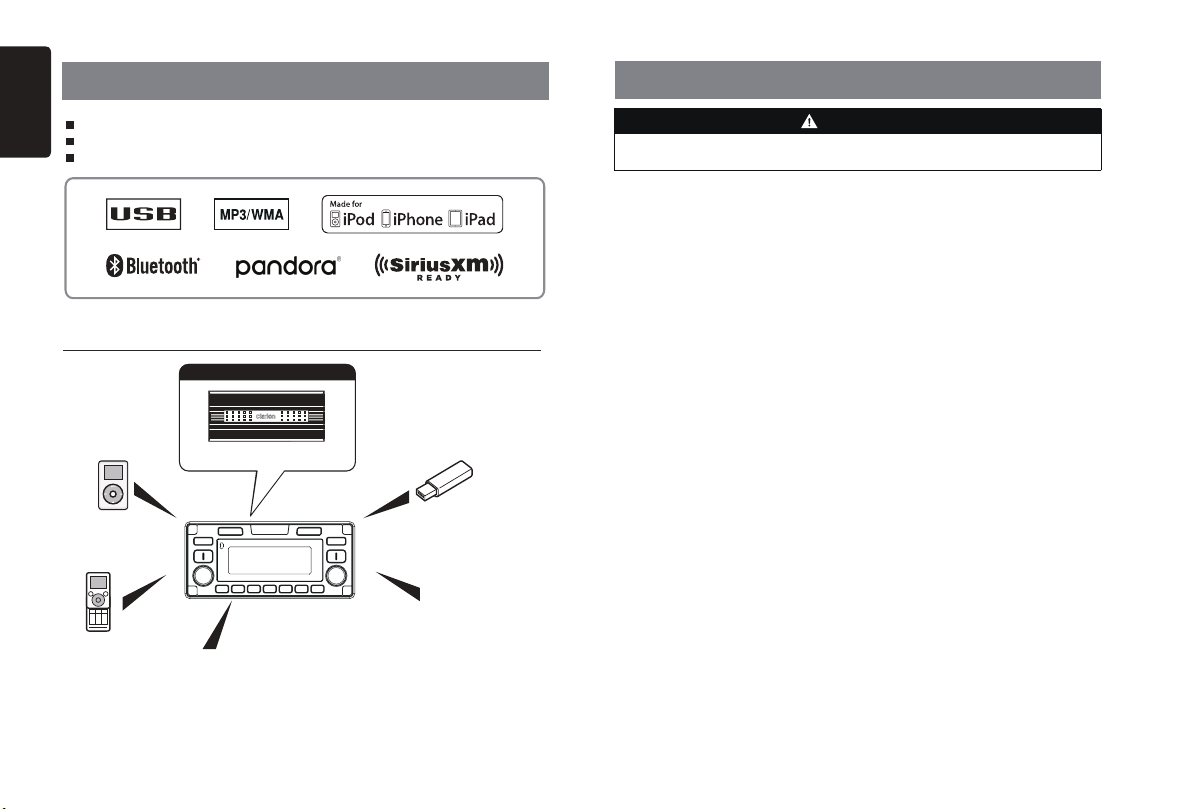

1. FEATURES
Compatible with iPod®/ iPhone®/ iPad®with Pandora®internet radio App
SiriusXM-Ready™ (Tuner and Subscription required and sold separately)
8ch RCA Output and BEAT-EQ with 3 Band Parametric Equalizer
Note:
•The items listed only show connectivity options and are not included with the unit.
Expanding System Options
2. PRECAUTIONS
For your safety, the driver should not operate the unit while driving.
Also, while driving, keep the volume to a level at which external sounds, such as voices and sirens can be heard.
1. When the interior of the boat is extremely
cold and the player is used soon after
switching on the heater, moisture may
form on the internal circuitry of the player
and proper playback may not be possible.
If moisture forms inside of the player, do
not use the player for about one hour.
The condensation will disappear naturally
allowing normal operation.
2. This unit uses precision parts and compo-
nents for its operation. In the event of any
operating issues, never open the case,
disassemble the unit, or lubricate the
rotating parts. Contact your Clarion dealer
or service center.
3. FCC STATEMENT
1. This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:
(1)This device may not cause harmful
interference.
(2)This device must accept any interfer-
ence received, including interference that
may cause undesired operation.
2. Changes or modications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
NOTE:
This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed
to provide reasonable protection against
harmful interference in a residential instal-
lation.
This equipment uses and can radiate
radio frequencies and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
WARNING
guarantee that interference will not occur
in a particular installation. If this equip-
ment does cause harmful interference to
radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try
to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving
antenna.
•Increase the separation between the
equipment and receiver.
•Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced
radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. This equipment
should be installed and operated with
minimum distance 20cm between the unit
& your body
4. “Made for iPod”, “Made for iPhone” and
“Made for iPad” mean that an electronic
accessory has been designed to con-
nect specically to iPod, iPhone or iPad,
respectively, and has been certified by
the developer to meet Apple performance
standards.
Apple is not responsible for the operation
of this device or its compliance with safety
and regulatory standards.
Please note that the use of this accessory
with iPod, iPhone or iPad may affect wire-
less performance.
iPod, iPhone, iPad and iTunes are trade-
marks of Apple Inc., registered in the U.S.
and other countries.
SiriusXM-Connect™
Tuner
USB Memory
Portable Player
(Connect via AUX IN Jack)
Bluetooth®
Cellular Phone

English
3
M608
USB Port
• The USB memory sticks must be recognized
as “USB” to work properly. Some models
may not operate correctly.
In the event data is lost or damaged under
any condition, Clarion shall not be liable
for any damage.
When using the USB memory stick, we rec-
ommend that you backup your data (music)
to a personal computer before using.
• Data (music) files may be damaged when
using USB memory sticks in the following
situations:
Removing the USB memory stick or turning
the power off while reading data. Static elec-
tricity and/or an electrical surge can damage
the contents on the USB memory device.
Connect/disconnect the USB memory stick
when it is not accessed.
• Disconnect the USB memory device when
not in use.
INFORMATION FOR USERS:
Changes or modications to this product not
approved by the manufacturer will void the
warranty and will violate FCC approval.
Front Panel / General
Information
For a longer service life, be sure to read the fol-
lowing cautions.
• Do not allow any liquids or fluids to enter
the unit. Doing so may damage the internal
circuitry.
• Do not disassemble or modify the unit in any
way. Doing so may result in damage.
• Do not let any materials burn the display.
Doing so may damage or deform the body.
• If a problem should occur, have the unit
inspected at your store of purchase.
• The remote control unit may not work if the
remote control sensor is exposed to direct
sunlight.
Cleaning the Body
• Use a soft, dry cloth and gently wipe off any
dirt or dust.
• For tough dirt, apply some neutral detergent
diluted in water to a soft cloth, wipe off the
dirt gently, then wipe again with a dry cloth.
• Do not use benzene, thinner, boat cleaner,
etc., as these substances may damage the
body or cause the paint to peel. Also, leaving
rubber or plastic products in contact with
the body for long periods of time may cause
stains.
Supported iPod/iPad/iPhone devices:
iPhone 6s plus
iPhone 6s
iPhone 6 plus
iPhone 6
iPhone 5S
iPhone 5C
iPhone 5
iPad Mini4
iPad Air2
iPod touch (6th generation)
iPod touch (5th generation)
5. Pandora, the Pandora logo, and the
Pandora trade dress are trademarks or
registered trademarks of Pandora Media,
Inc. used with permission. Pandora is only
available in certain countries. Please visit
pandora.com/legal for more information.
If you have any issues with the Pandora
application on your mobile phone, please
direct them to pandora-support@pandora.
com.
6. The Bluetooth word mark and logos are
registered trademarks owned by the Blue-
tooth SIG, Inc. and any use of such marks
by Clarion Co., Ltd is under license.
Other trademarks and trade names are
those of their respective owners.
7. SiriusXM and all related marks and logos
are trademarks of Sirius XM Radio Inc. All
rights reserved.
8. IC warning
This device complies with Industry Cana-
da’s licence-exempt RSSs.
Operation is subject to the following two
conditions:
(1) This device may not cause interference
(2) This device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.

English
4M608
3. CONTROLS
Operational Panel
Names of Buttons
[ / SRC ] Button
• Toggles the audio sources
• Power on / Power off (Long Press)
[ BND ] Button
• RADIO mode – Select tuner band
[ ] Button
• Audio adjustments
• Zone link (Long Press)
[VOLUME] Knob
• Adjust volume level
[SCAN] Button
• RADIO mode – Preset scan /
Auto store (Long Press)
[ MENU/ ] Button
• USB mode – Search function
• iPod mode – iPod menu
• Pandora mode – Station select
• SiriusXM mode – Instant Replay (Short
Press)
• In menu/le list – Back
• Tuner mode - No function
• AUX mode - No function
• Adjust mode (Long Press)
[ENT] button
• Conrm/enter when accessing menus
• Change song information displayed in digital
sources
• Turn off LCD display (Long Press)
[ / ]Buttons
• RADIO mode – Manual tuning /
Auto search (Long Press)
•USB/iPod mode
– Previous / next track
– Fast Forward / Fast Backward (Long
Press)
• Pandora mode – Skip track ( )
• SiriusXM mode – Channel Up/Down
[UP/DOWN] Knob
• Radio mode - Toggle from the preset
stations
• USB mode - Select folder/le
• Pandora mode – Select search mode/
station
• SiriusXM mode – Select category /
(Operates on Category and Channel modes)
[MUTE] Button
• Mute the volume output
[1 - 5] Buttons
• [1] Button: Repeat play / Preset station 1 /
Preset station memory 1 (Long Press)
• [2] Button: Random play / Preset station 2
/ Preset station memory 2 (Long Press) /
Pandora mode – Bookmark track
• [3] Button: Play/Pause / Preset station 3 /
Preset station memory 3 (Long Press) /
Pandora mode - Bookmark artist
• [4] Button: Previous folder / Preset station 4
/ Preset station memory 4 (Long Press)
Pandora mode - Thumbs down
• [5] Button: Next folder / Preset station 5 /
Preset station memory 5 (Long Press) /
Pandora mode - Thumbs up
[SUB] Button
• Subwoofer menu (Short Press)
• SiriusXM mode – Direct tune (Long
Press)
[SCAN]
Remote
Sensor
[ SRC]
[ BND ]
[ ]
[VOLUME]
[1 - 5] Buttons [SUB]
[MUTE]
[MENU]
[ENT]
[ , ]
[UP/DOWN]
