Clarke RANGER 64 Instruction Manual

1
OPERATION & MAINTENANCE
INSTRUCTIONS ©
RANGER 64
AIR COMPRESSOR
0507
RANGER 64
AIR COMPRESSOR

2
Thank you for purchasing this Clarke Ranger air compressor which is fitted with
a 50 litre air receiver.
Please read this leaflet thoroughly and carefully follow all instructions. In doing
so you will ensure the safety of yourself and that of others around you, and you
can look forward to the compressor giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months
from the date of purchase. Please keep your receipt as proof of purchase. This
guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned without prior permission. This guarantee does not effect your statutory
rights.
CONTENTS PAGE
SafetyPrecautions ........................................................................... 3
Warning Symbols ............................................................................. 8
Electrical Connections...................................................................... 9

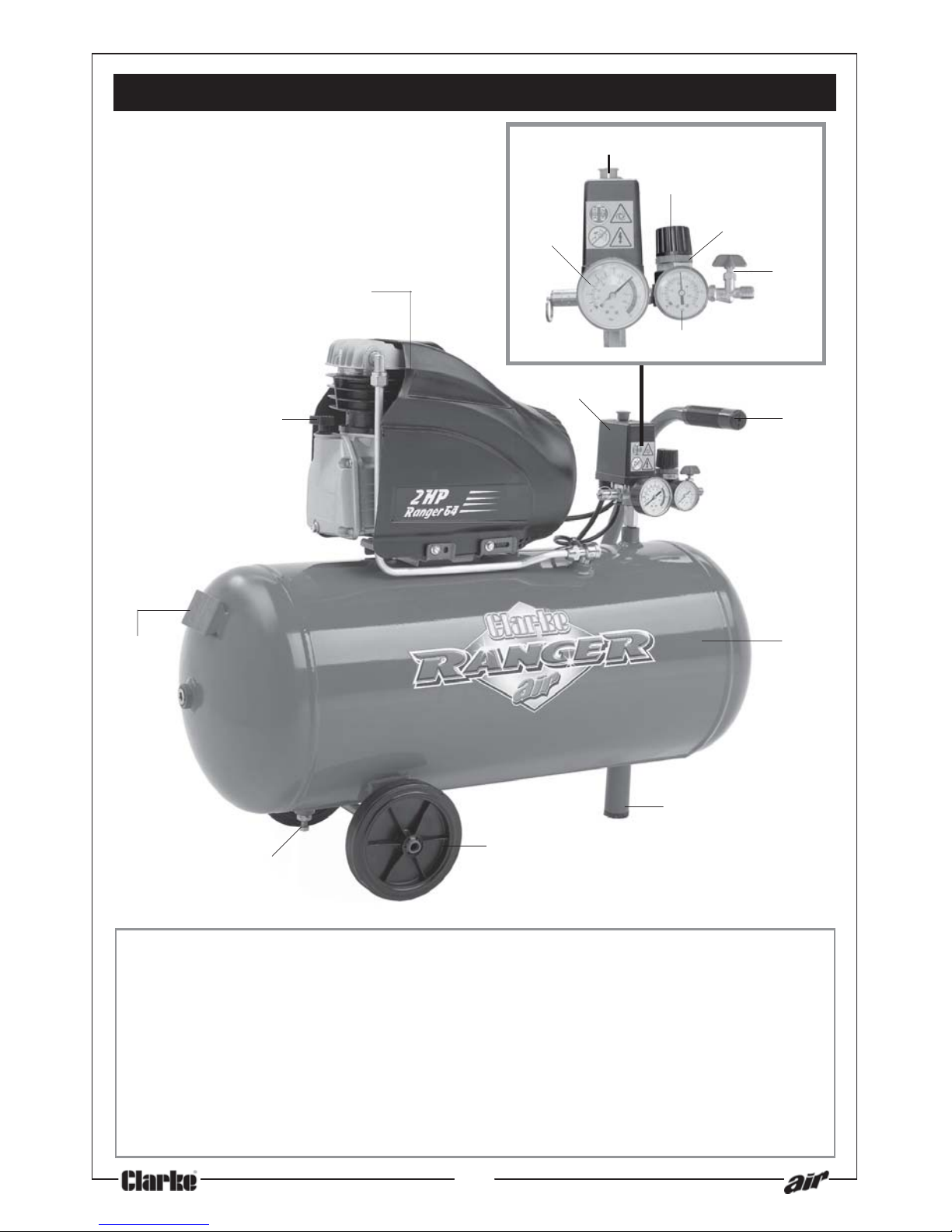

Parts Identification............................................................................ 10
Assembly.......................................................................................... 11
Preparation for use........................................................................... 12
Operating instructions ...................................................................... 14
RoutineMaintenance ....................................................................... 18
Troubleshooting ............................................................................... 19

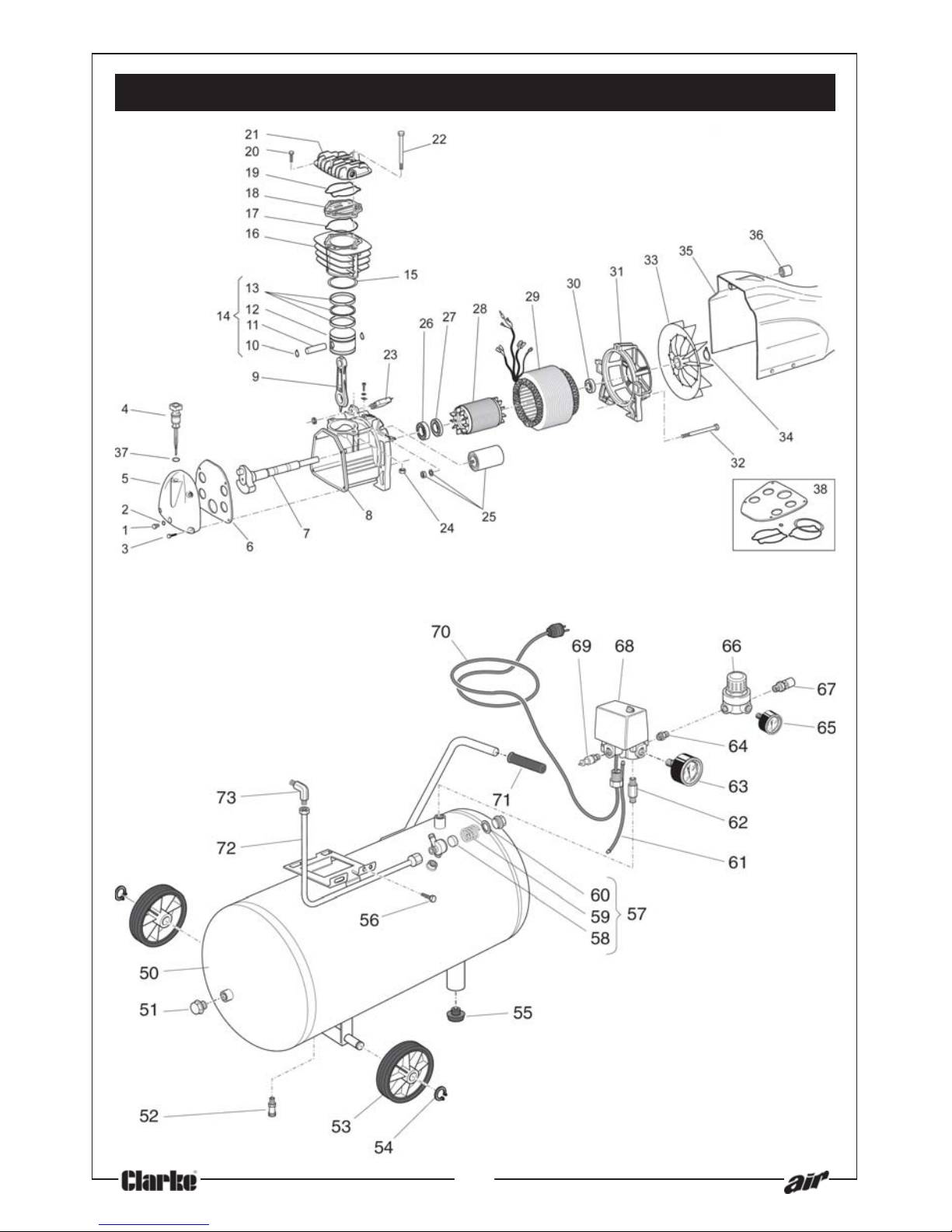

Exploded Diagram............................................................................ 20
Exploded Diagram Parts List............................................................ 21
Specifications ................................................................................... 22

3
WARNING!
As with all machinery, there are certain hazards involved with their operation
and use. Exercising respect and caution will considerably lessen the risk of
personal injury. However, if normal safety precautions are overlooked, or
ignored, personal injury to the operator, or damage to property may result. It
is in your own interest to read and pay attention to the following rules:
WARNING!
When using the air compressor, you should follow basic safety precautions
including the following to reduce the risk of personal injury. Make sure that
you have read all of the instructions before using the air compressor. Keep
this booklet with the compressor for future reference by the operator. Persons
who have not read this booklet should not use the air compressor.
WARNING!
Compressed air can be dangerous. Death or serious injury could result from
improper or unsafe use of this compressor. To avoid these risks, use your
common sense and follow these basic safety instructions. Compressed air
should never be inhaled as it may contain toxic vapours or solid particles.
Always work in good ventilation, especially when spraying paints or other
toxic substances and always use a suitable face mask. Do not spray near
sources of possible ignition.
WARNING!
Attachments, hoses and accessories must meet or exceed the maximum
pressure rating of this compressor.
If low pressure parts are used, the air pressure could cause them to explode
or fly apart, resulting in serious injury. Always take great care when releasing
the pressure and connecting/disconnecting tools.
WARNING!
This compressor must be connected to a power socket that is safeguarded
by a suitable circuit breaker or fuse.
SAFETY PRECAUTIONS

4
TRAINING: Prior to use all operators should become familiar with the instructions
in this booklet. In particular, become familiar with the ON/OFF control for
emergency stopping.
ALWAYS USE EYE PROTECTION: When operating the air compressor, always use
eye protection, and make sure that other people in the work area are also
using eye protection. Eye protectors must provide protection from flying
particles both from the front and from the side.
NEVER TOUCH MOVING PARTS: Never place your hand near any moving parts
on the air compressor or operate with the covers removed.
PROTECT YOUR SELF AGAINST ELECTRIC SHOCK: Never operate the air
compressor in wet or damp locations.
DRESS PROPERLY: Loose clothing or jewellery may be caught in moving parts.
Always tie long hair back.
KEEP VISITORS/CHILDREN AWAY: Do not allow visitors/children to handle the air
compressor or attachments and ensure that any people in the work area are
suitably dressed.
KEEP THE WORK AREA CLEAN: Cluttered areas invite accidents, clear the work
area of all unnecessary tools, debris and furniture.
DISCONNECT THE AIR COMPRESSOR: Always disconnect the air compressor from
the mains power supply and decompress before performing maintenance,
changing any parts and when not in use.
DO NOT ABUSE THE CABLE: Never pull on the cable when removing the plug
from the mains socket, or lift the compressor by the mains cable.
BREATHING QUALITY AIR: This compressor should not be used to supply breathing
quality air.
DO NOT ABUSE THE COMPRESSOR: Do not stand on the compressor.
SAFETY VALVE: Never remove or attempt to adjust the safety valve. Keep the
safety valve free from paint and dirt.
AVOID UNINTENTIONAL STARTING: When connecting the air compressor to the
mains supply make sure the red button on top of the air compressor is in the OFF
(down) position.
SAFETY PRECAUTIONS

5
STORE THE AIR COMPRESSOR PROPERLY: When not in use the air compressor
should be stored in a secure, dry place out of the reach of children. Always lock
up the storage area.
PROTECT YOUR HEARING: Ear protection should be worn when operating this
compressor.
MAINTAIN THE AIR COMPRESSOR WITH CARE: If the air compressor is damaged in
any way, have it repaired by a qualified service engineer.
EXTENSION LEAD: Only use extension leads that have an appropriate power
rating and are suitable for the work environment. Extension leads must have an
earth connection. Inspect the extension lead regularly and replace if
damaged.
ONLY USE PARTS AND ACCESSORIES RECOMMENDED IN THIS MANUAL: The use of
unauthorised accessories or attachments is not permitted and may result in
personal injury and damage to the air compressor. Do not attempt to repair or
modify the air compressor.
STAY ALERT: Watch what you are doing, use common sense, and do not operate
the air compressor when you are tired. The air compressor should not be used if
you are under the influence of alcohol, drugs or any medication that makes
you drowsy.
BEFORE EACH USE CHECK THE AIR COMPRESSOR AND HOSE FOR DAMAGED
PARTS: Never use the air compressor if it has been damaged in any way. Have
the air compressor repaired by a qualified service engineer. Do not use the air
compressor if the On/Off switch does not operate correctly.
HANDLE THE AIR COMPRESSOR CAREFULLY: Operate the air compressor
according to the instructions contained within this instruction booklet. This air
compressor should never be operated by children or individuals unfamiliar with
its operation.
KEEP THE AIR VENTS CLEAR: Keep the air vents clear and free from dust, wipe
regularly to maintain an adequate supply of clean air to the air compressor.
OPERATE THE AIR COMPRESSOR AT THE CORRECT VOLTAGE: Make sure that the
mains supply voltage is the same as the voltage shown on the rating plate.
DO NOT WIPE THE PLASTIC PARTS WITH SOLVENT: Do not use solvents or thinners
such as petrol, benzene, carbon tetrachloride or alcohol to clean the air
compressor, as these chemicals will damage the finish. With the air compressor
unplugged from the supply, use a dry cloth to wipe over the plastic casing.
SAFETY PRECAUTIONS

6
KEEP ALL SCREWS AND COVERS TIGHTLY IN PLACE: Check the screws and covers
periodically.
ADEQUATE VENTILATION: The compressor should only be used in areas with
adequate ventilation and should not be exposed to heat, or used near
inflammable substances.
NEVER USE AN AIR COMPRESSOR WHICH APPEARS DEFECTIVE OR IS OPERATING
ABNORMALLY: If the compressor operates unusually or makes strange noises,
switch off immediately and purge the air tank. Arrange repair with an
authorised service centre.
DO NOT MODIFY THE AIR COMPRESSOR: Do not attempt to modify the air
compressor, tank, fittings or attachments in any way. Doing so will invalidate the
guarantee and could result in personal injury.
DO NOT MODIFY THE TANK: Do not modify the tank or operate at pressures or
temperatures outside the limits stated in this booklet.
TURN OFF THE AIR COMPRESSOR WHEN NOT IN USE: When not in use, turn off the
air compressor by pressing the On/Off switch, remove the plug from the mains
supply and slowly undo the drain valve to release the pressure from the tank.
Remember to close the drain valve before storage and ensure it is fully
tightened before use.
DO NOT TOUCH HOT SURFACES: During operation, the motor, connections,
compressor body, cylinder head and tubes may get hot, please take care.
DO NOT DIRECT THE AIR STREAM AT THE BODY: Do not direct the air stream at
people or animals, as injury may result. Compressed air can cause soft tissue
damage and propel dirt and other particles at high speed.
ONLY USE RECOMMENDED PARTS: To avoid the risk of bursting, only hoses with a
rated pressure of 8 bar, or more should be used. Never attempt to repair faulty
hoses.
DO NOT USE THIS COMPRESSOR TO INFLATE SMALL, LOW-PRESSURE OBJECTS: Items
such as children's toys or footballs can explode if over-inflated.
AVOID KINKING OR TRAPPING THE AIR HOSE: Always replace faulty hoses - never
attempt a repair if a leak is detected.
DRAIN TANK: Drain the tank after each use. Switch off and slowly open the drain
valve to release the air then tilt the compressor to empty condensed water.
SAFETY PRECAUTIONS

7
NEVER STOP THE COMPRESSOR BY REMOVING THE PLUG OR SWITCHING OFF AT
THE MAINS SUPPLY: Always use the On/Off switch on the compressor.
NEVER OPERATE WITHOUT ALL GUARDS IN PLACE: Never operate without all
guards or safety features in place and in proper working order.
NEVER OPERATE IN THE PRESENCE OF FLAMMABLE LIQUIDS OR GASES: The air
compressor produces sparks during operation.
CHECK FOR DAMAGED PARTS AND AIR LEAKS: If any part of the compressor is
damaged, it should be carefully checked to determine that it will operate
correctly and perform its intended function. Check for the alignment of parts,
damage to parts, air leaks and any other conditions that may affect its
operation. A guard or any other part that is damaged or defective should be
properly repaired or replaced by an authorised service centre. Defective
pressure switches must be replaced prior to further use of the compressor.
ONLY USE WITHIN THE RECOMMENDED OPERATING TEMPERATURE RANGE: This
compressor should only be used in an ambient temperature of between 0OC
and 25OC.
CLEANING AND CONDITION OF THE COMPRESSOR: Keep the external surfaces of
the tank clean. Avoid impact damage and do not allow the tank to come into
contact with abrasive or corrosive materials.
MOVING THE COMPRESSOR: Always transport the compressor by lifting or pulling
it with the appropriate grips or handles.
USING THE COMPRESSOR FOR PAINTING:
• Do not work in enclosed areas or near naked flames.
• Make sure that the area in which you are working has good ventilation.
• Protect your nose and mouth with a suitable face mask.
• Always check the safety data sheets for substances being sprayed &
ensure manufacturers instructions are followed.
MOTOR HOUSING: Do not insert your fingers or other objects inside the motor
housing to avoid physical damage or damage to the compressor.
SAFETY PRECAUTIONS

8
WARNING SYMBOLS
READ THIS INSTRUCTION BOOKLET CAREFULLY BEFORE
POSITIONING, OPERATING OR ADJUSTING THE
COMPRESSOR.
Risk of electric shock. The compressor must be disconnected
from the mains supply before removing any covers. Do not
use in a damp environment.
Risk of accidental start-up. The compressor could start
automatically in the event of a power cut and subsequent
reset. Do not carry the compressor while it is connected to the
power source, or when the tank is filled with compressed air.
This compressor contains surfaces which may reach a high
temperature during operation. Never operate with the motor
housing removed.
Air and condensation water can burst from the compressor
when the drain plug is removed.
Wear a safety goggles and ear protectors when using this
compressor
This compressor produces a high sound level during
operation. Ear protection should be worn.

9
ELECTRICAL CONNECTIONS
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through
an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
WARNING! THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in the mains lead are coloured in accordance with
the following code:
Green & Yellow - Earth
Blue - Neutral
Brown - Live
As the colours of the flexible lead of this appliance may not correspond with the
coloured markings identifying terminals in your plug proceed as follows:
• Connect GREEN & YELLOW cord to terminal marked with a letter “E”
or Earth symbol “ ” or coloured GREEN or GREEN & YELLOW.
• Connect BROWN cord to terminal marked with a letter “L” or
coloured RED.
• Connect BLUE cord to terminal marked with a letter “N” or coloured
BLACK.
If this appliance is fitted with a plug which is moulded onto the electric cable
(i.e. non-rewireable) please note:
1. The plug must be thrown away if it is cut from the electric cable.
There is a danger of electric shock if it is subsequently inserted into a
socket outlet.
2. Never use the plug without the fuse cover fitted.
3. When replacing a detachable fuse carrier, ensure the correct
replacement is used (as indicated by marking or colour code).
4. Replacement fuse covers can be obtained from your local dealer
or most electrical stockists.
FUSE RATING
The fuse in the plug must be replaced with one of the same rating (13 amps)
and this replacement must be ASTA approved to BS1362.
We strongly recommend that this machine is connected to the mains supply via
a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.

10
PARTS IDENTIFICATION
1
8
9
10
11
12
13
7
1 Motor housing
2 On/Off switch (red button)
3 Main reservoir pressure gauge
4 Output pressure regulator
5 Regulator locking ring
6 Output pressure gauge
7 Trolley handle
8 Support foot
9 Drain valve
10 Compressed air reservoir
11 Wheel
12 Data plate
13 Pressure regulator and cut-out
14 Oil dipstick
15 Outlet tap
14
2
4
3
6
5
15

11
ASSEMBLY
WARNING!
Before assembling and using the air compressor, make sure that you have
read and understood all of the safety instructions.
Installation
Take care when lifting the compressor from the packaging. Use the rear handle
and place one hand under the front of the tank.
Caution! Do not lift the compressor by the Pressure regulator and cut-out. Get
assistance if necessary. This unit weighs 30kg.
After removing the compressor from its packaging, check the integrity of the
unit, making sure it has not been damaged in transit.
Positioning the air compressor
This compressor should be placed on a stable,
flat surface. See figure 1.
If it is placed on a shelf or surface raised off the
ground, it must be secured appropriately to
prevent it from falling off during use.
Do not cover or box in the compressor. Always
position it with good all round ventilation.
Moving the air compressor
Before moving the compressor, switch it off and disconnect from the mains
power supply.
• Always use the handle.
• Do not lift by (or put strain on) the air regulator fittings, valves or hoses.
• Take care when moving the compressor to avoid damaging the valves or
fittings.
The compressor is heavy, take care when lifting and moving this compressor,
get assistance if necessary to avoid personal injury.
Figure 1
12345678901234567890
1
234567890123456789
0
1
234567890123456789
0
12345678901234567890
150

12
PREPARING FOR USE
Before connecting your compressor to the mains supply, check the following:-
• The mains voltage is 230V.
• The ON/OFF switch is in the OFF (lower) position.
• The pressure regulator should be set at its lowest setting, i.e. turned fully
anticlockwise.
• If the compressor has not been used for 24 hours or more, open the drain
valve to drain any condensate which may have accumulated. When
clear, close the valve, finger tight.
IMPORTANT: If the receiver is under pressure, keep your hands well away
from the air being expelled.... remember, compressed air is DANGEROUS!
WARNING!
Before connecting any airtool, make sure you have read and fully
understood the manufacturers instruction booklet for the tool being used.
Also ensure that the tool is compatible with the compressor and hose
specifications.
If the pressure rating of the tool is less than 8 bar, the pressure regulator must
be used to adjust the output pressure.
1 Attach the air hose to the air outlet tap
using the hose nut. See figure 5.
• Ensure that the drain valve is finger
tight.
2 Finally, plug the mains cable into the
supply socket and switch on the power.
Hose nut
Figure 5
Figure 6
On/Off Switch

13
PREPARING FOR USE
Check the Oil
1. Lift the dipstick out of the oil reservoir. See
figure 7.
2. Ensure the oil level is between the min and
max marks on the dipstick. See figure 8.
• If needed top up the reservoir using
suitable oil, taking care not to exceed the
maximum mark.
Figure 7
Figure 8

14
OPERATING INSTRUCTIONS
Switching the air compressor ON
The compressor will make a continuous loud noise when the tank is charging -
this is normal.
1 Lift the red On/Off switch located on top of the pressure regulator to switch
the compressor ON.
• The compressor will then charge the main tank to 8 bar (116 psi). When
this pressure is reached, the compressor will switch itself off.
• The compressor will restart automatically whenever the pressure in the
main tank falls below around 6 bar (87 psi).
2 Check the operation of the safety
valve, under pressure, daily by pulling
the ring as shown in figure 9. Air should
be released you pull the ring and stop
when the ring is released.
• If the valve does not operate as
described, or if the valve is stuck, it
must be replaced by qualified
service personnel before using the
compressor.
WARNING!
Do not remove or attempt to adjust the safety valve.
3 Loosen the locking ring and select the
pressure you need using the pressure
regulator.
4 Tighten the locking ring by holding the
pressure regulator firmly in place and
rotating the locking ring anticlockwise
until it tightens against the underside
of the pressure regulator. See figure
10.
5 Open the outlet tap.
Figure 10
Figure 9
Pressure
regulator
Locking ring
Output pressure
gauge

15
OPERATING INSTRUCTIONS
Figure 11
Switching the air compressor OFF
To switch the air compressor off,
1 Close the outlet tap and press down on the on/off button (red button).
2 Switch off the mains supply and remove the plug.
• You should never leave the compressor air reservoir unattended while
under pressure.
• Always release the pressure from the resevoir when not in use or prior to
storage, as described in 'draining the reservoir' on page 16.
Removing a tool from the air hose
Warning!
Always set the pressure regulator to zero before attempting to remove or
replace a tool.
1 Press down on the on/off button (red button) located on top of the
pressure regulator.
2 Close the air outlet tap and trigger the tool (spraygun, air tools etc), to
release air from the air hose BEFORE disconnecting the hose from the
compressor.
Reset button
This compressor is equipped with a thermal
overload device.
When the motor overheats for any reason,
the overload device automatically cuts
the power thereby preventing damage to
the motor.
Wait around 5 minutes for the motor to
cool and press the reset button. See figure
11.
If you restart the compressor and the
overload cutout activates again, switch
off the compressor, remove the plug from
the mains and have your compressor
checked by a qualified service agent.

16
Figure 12
Drain valve

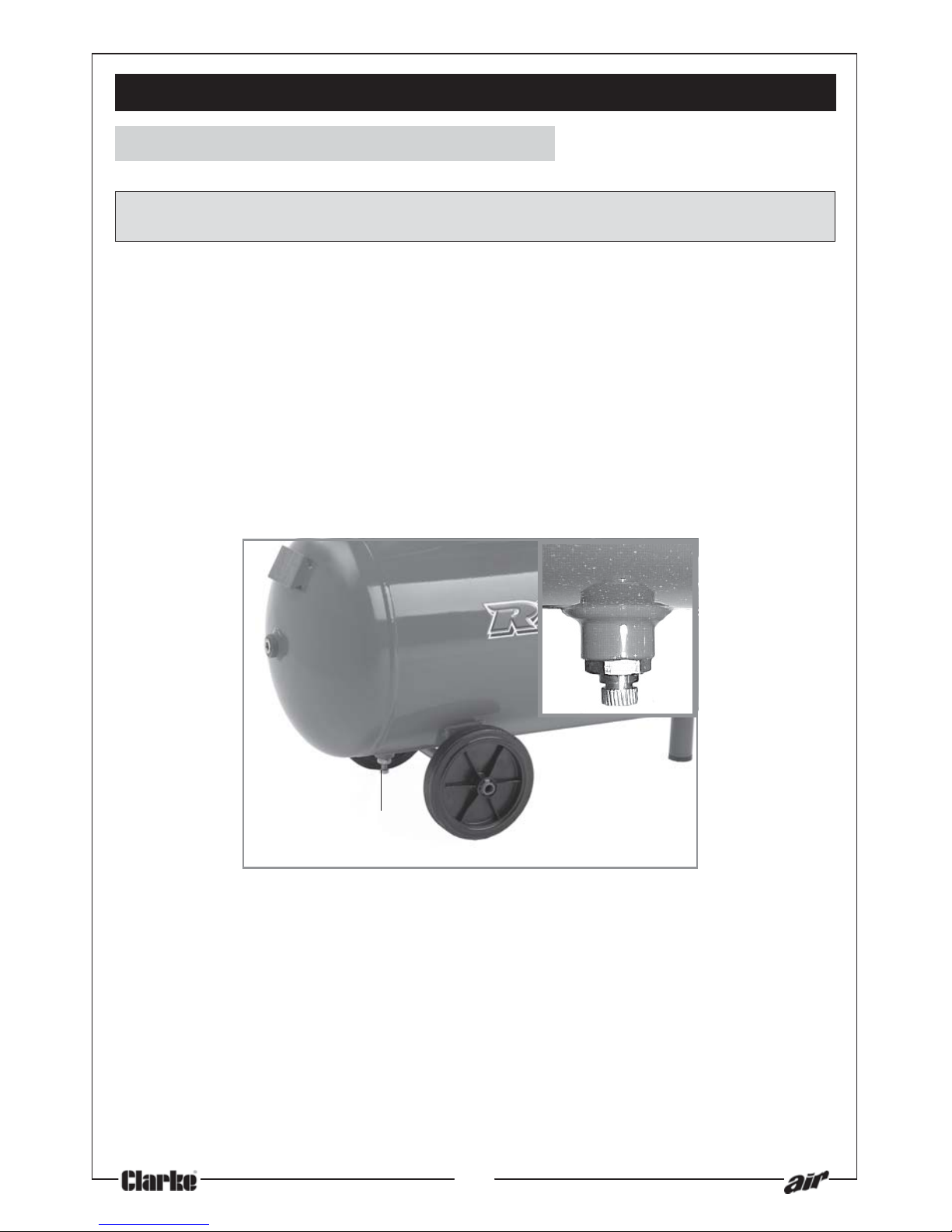

Draining the reservoir
Caution! It is important to drain the reservoir before storage.
1 Switch the air compressor off, by pressing down the red on/off button, and
remove the plug from the mains supply.
• Place a suitable container beneath the compressor to catch any
condensate.
2 Carefully undo the drain valve anti-clockwise until you hear a hissing noise,
this is the reservoir depressurising.
• When the gauge indicates zero and the hissing has stopped, tighten the
drain outlet nut again.
OPERATING INSTRUCTIONS

17
Figure 13
ROUTINE MAINTENANCE
IMPORTANT: Before carrying out any maintainence, always disconnect the
compressor from the mains supply, drain the air receiver and, if necessary,
allow the machine to cool down before starting work.
Daily
Check Oil
Ensure the oil level is between the min and max marks on the dipstick. See page
13 and top-up if necessary - (use Clarke SAE40 compressor oil, available from
your local dealer).
Drain the tank
After use, always open the drain valve to ensure that any liquid that may have
condensed, is drained off. See page 16.
Monthly
The air intake filter should be inspected on a MONTHLY basis, and more often in
dusty conditions.
To clean the air intake filter,
1. Remove the sponge element shown in fig.13.
2. Clean the sponge and the inner housing using
a soft brush.
• If necessary, the sponge filter may be gently
washed in warm soapy water.
3. Rinse and allow the filter to dry thoroughly
before refitting.

18
ROUTINE MAINTENANCE
Every six months
Make sure that all bolts are securely tightened.
Clean all the external parts of the compressor.
Oil
After the first 100 hours use, replace the
oil completely using Clarke SAE40
compressor oil. Then replace the oil after
every 500 hours of operation or every 6
months.
To empty the oil from the machine,
remove the oil drain plug from the
crankcase cover.

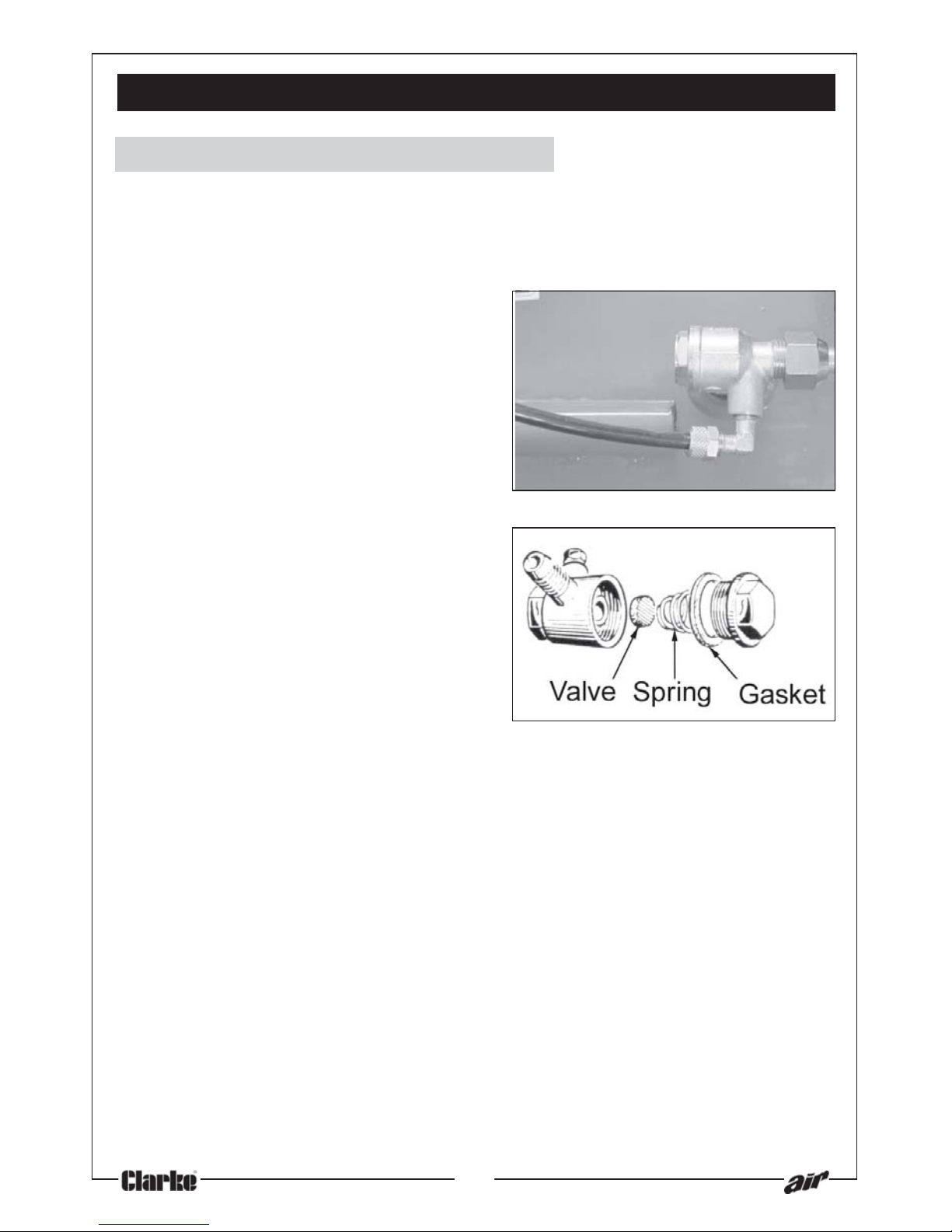

Non Return Valve
Examine the non-return valve, and
replace the gasket and valve if
necessary.
Figure 14
Figure 15

19
TROUBLE SHOOTING
With considerate use, your Clarke Ranger Air Compressor should provide you
with long and trouble free service. Routine checks should be made on both the
electrical supply as well as on all the compressed air lines and connections. If
any fault appears, the reason for which is not immediately obvious, we
recommend that you contact your local Clarke dealer.
CAUTION Do not attempt any repair or adjustment if you are uncertain as
to how it should be done. If you have any queries, contact your local
Clarke Dealer.
tluaF esuaC ydemeR
rosserpmocehT
seoddnadeppots
.tratston
.snoitcennocdaB
hctiwstuotucdaolrevO
ytudrodeppirtsah
neebsahelcyc
.dedeecxe
tnrubsgnidniwrotoM
.tuo
lacirtcelekcehC
dnanaelC.snoitcennoc
.yrassecensanethgit
tiawdnaffohctiwS
erofebsetunim5xorppa
nottubteser
ehtgnisserp
.niaganognihctiwsdna
ekralClacolruoytcatnoC
tnemecalperarofrelaed
.rotom
rosserpmocehT
hcaerton
seod
erusserpteseht
staehrevodna
.ylisae
daehrosserpmoC
evlavronwolbteksag
.nekorb
otrosserpmocroftiaW
elbmessasid,nwodlooc
ynaecalperdnadaeh
.stnenopmocnekorb
gnilaesllanaelcylluferaC
erof
ebsecafrus
tbuodnifI.gnilbmessaer
ekralCruoytcatnoc
.relaed
seodrosserpmoC
.tratston
degrahcreviecerriA lepxeotevlavniardnepO
dluohsrosserpmoC.ria
erusserpnehwniagatrats
.isp59.xorppaotsecuder
morfgnikaelriA
er
usserpeht
nehwevlavhctiws
sirosserpmoceht
.gninnurton
.evlavnruter-nonytluaF reviecerniardtsriF
evomeR.riafoyletelpmoc
,gulpdneevlaveht
evlavehtnaelcylluferac
dnateksagehtdnataes
.61e
rugiFeeS.elbmessaer
morferusserpriA
lliwrotalugereht
.tsujdaton
nihtiwmgarhpaidehT
siydobrotalugereht
.nekorb
rotalugerecalpeR
sirosserpmocehT
dnaysionyrev
cillatemasekam
.dnuosgnikconk
degamadrosserpmoC
.luahrevosdeendna
otenihcamehtnruteR
ecivrestseraenruoy
.tnega

20
PARTS DIAGRAM
