Clarke EZ-8 User manual

Division of
Form No. 78425C 7/03 Printed in the U.S.A.
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read
this book prior to operating or attempting any service or maintenance procedure to your Clarke
American Sanders machine could result in injury to you or to other personnel; damage to the machine
or to other property could occur as well. You must have training in the operation of this machine
before using it. If your operator(s) cannot read this manual, have it explained fully before attempting
to operate this machine.
Si Ud. o sus operadores no pueden leer el Inglés, se hagan explicar este manual completamente
antes de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator’s position at the rear of the machine.
For new books write to: Clarke®, 2100 Highway 265, Springdale, Arkansas 72764
EZ-8
Sander
Operator's
Manual

Page 2 Clarke®American Sanders EZ - 8 Sander Operator's Manual
Operator Safety Instructions ......................................................... 3
Introduction and Machine Specifications .......................................5
How to Transport the Machine ...................................................... 6
Machine Set-Up ...........................................................................7
How to Operate the Machine ........................................................ 7
Sanding Cuts and Sandpaper .................................................... 9
Sander Adjustment Procedures ..................................................10
Routine Maintenance.................................................................. 11
Troubleshooting .........................................................................12
Section II Parts and Service Manual

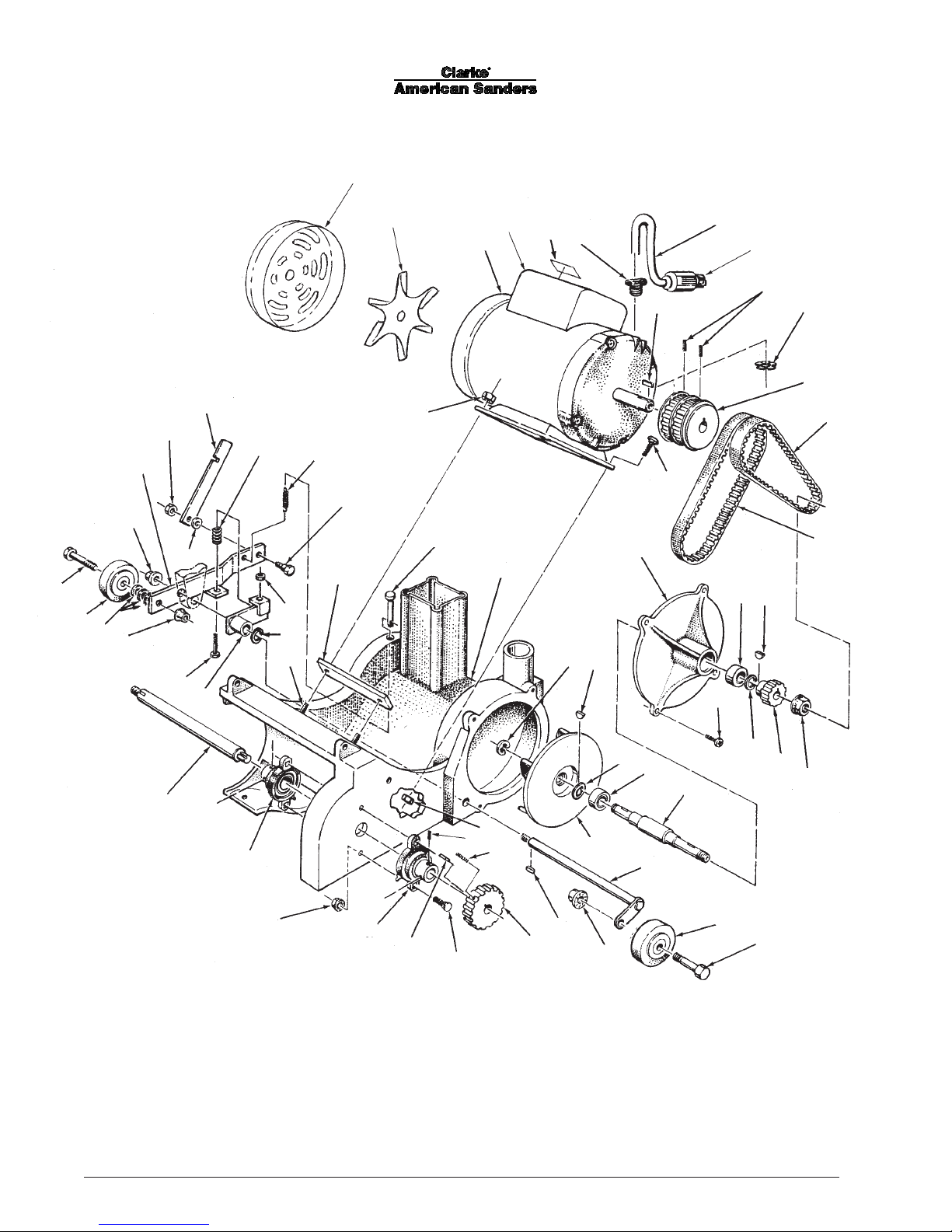

Assembly Drawing #1 ................................................................ 14
Assembly Parts List #1 ..............................................................15
Assembly Drawing #2 ................................................................ 16
Assembly Parts List #2 ..............................................................17
Wiring Diagram.......................................................................... 18
Contents of this Book

Clarke®American Sanders EZ - 8 Sander Operator's Manual Page 3
DANGER means: Severe bodily injury or death can occur to you or other personnel if the
DANGER statements found on this machine or in this Owner's Manual are
ignored or are not adhered to. Read and observe all DANGER statements
found in this Owner's Manual and on your machine.
WARNING means: Injury can occur to you or to other personnel if the WARNING statements
found on your machine or in this Owner's Manual are ignored or are not
adhered to. Read and observe all WARNING statements found in this Owner's
Manual and on your machine.
CAUTION means: Damage can occur to the machine or to other property if the CAUTION state-
ments found on your machine or in this Owner's Manual are ignored or are not
adhered to. Read and observe all CAUTION statements found in this Owner's
Manual and on your machine.
DANGER: Failure to read the Owner's Manual prior to operating or attempting any service or mainte-
nance procedure to your Clarke American Sanders machine could result in injury to you or
to other personnel; damage to the machine or to other property could occur as well. You
must have training in the operation of this machine before using it. If your operator(s)
cannot read English, have this manual explained fully before attempting to operate
this machine.
DANGER: Sanding/finishing wood floors can create an environment that can be a fire hazard or
explosive. Do not operate this machine around solvents, thinners, alcohol, fuel, floor
finishes, wood dust or any other flammable materials. Vapors and wood dust generated by
sanding or finishing wood flooring can create an explosive environment. Cigarette lighters,
pilot lights, electrical sparks and all other sources of ignition should be extinguished or
avoided. Keep work area well ventilated.
DANGER: Hitting a nail while sanding can cause sparks and create an explosion or fire. Always use
a hammer and punch to countersink all nails before sanding floors.
DANGER: Spontaneous combustion or an explosion can occur when working with sanding dust. The
sanding dust can ignite and cause injury or damage. Never over fill dust bag or leave
machine unattended with dust in bag. Empty the sanding dust in a metal container clear of
any combustible materials. Do not empty into fire.
DANGER: Operating a machine that is not completely or fully assembled could result in injury or
property damage. Do not operate this machine until it is completely assembled. Keep
all fasteners tight. Keep adjustments according to machine specifications.
DANGER: Moving parts of this machine can cause severe injury. Keep hands, feet and loose clothing
away from all moving parts of the sander. Disconnect machine from power source before
accessing the sanding drum, drive belts, or fan chamber. Do not operate unless drum cover,
belt guard, and dust pipe are in place. Never leave machine unattended while motor is running
or connected to power source.
WARNING AVERTISSEMENT ADVERTENCIA
OPERATOR SAFETY INSTRUCTIONS

Page 4 Clarke®American Sanders EZ - 8 Sander Operator's Manual
DANGER: Electrocution or injury could occur if the power cord encounters the sanding drum. Keep the
cord clear of the sanding drum. Always lift the power cord over the machine.
DANGER: Electrocution or severe injury could occur if machine is connected to an electrical system that
is not properly grounded. Do not remove or disable grounding pin.
DANGER: Electrocution could occur if maintenance or repairs are performed on a machine that has not
been disconnected from the power source. Always unplug machine before servicing.
WARNING: Sanding dust can be airborne and can be breathed in while operating a sander. Always wear
a dust mask while operating sanding equipment.
WARNING: Injury to the eyes and/or body can occur if protective clothing and/or equipment is not worn
while sanding. Always wear safety goggles, protective clothing, and a dust mask while
performing any sanding operation.
CAUTION: Maintenance and repairs performed by unauthorized personnel could result in damage or
injury. Maintenance and repairs performed by unauthorized personnel will void your warranty.
Servicing of this unit must always be referred to an authorized Clarke American Sanders
distributor.
CAUTION: Use of this machine to move other objects or to climb on could result in injury or damage. Do
not use this machine as a step or furniture. Do not ride on this machine.
CAUTION: The machine is heavy. Use the proper lifting technique when transporting the machine. Get
help to lift the machine.
CAUTION: Serious damage to the floor can occur if the machine is left running in one spot while the
sanding drum is in contact with the floor. To avoid damage to the floor, feather cut in at a normal
sanding rate. Do not dwell while lowering or raising the sanding drum. Always sand at a
constant rate.

Clarke®American Sanders EZ - 8 Sander Operator's Manual Page 5
Introduction & Machine Specifications
Model 07057A 07058A 07059A 07060A
Abrasive Size 8 in x 193/16 in 8 in x 19 in 8 in x 193/16 in 8 in x 19 in
sheet sleeve sheet sleeve
Abrasive Rate 2680 ft/min 2830 ft/min 2230 ft/min 2360 ft/min
Drum Rate 1800 RPM 1800 RPM 1500 RPM 1500 RPM
Dust Control Rate 76 CFM 76 CFM 64 CFM 64 CFM
Drum Pressure 25 lbs 25 lbs 25 lbs 25 lbs
LevelingControls Externally Externally Externally Externally
Adjustable Adjustable Adjustable Adjustable
OperatingControls Lever Lever Lever Lever
Operated Operated Operated Operated
Motor 1½ HPTEFC 1½ HPTEFC 1½ HPTEFC 1½ HPTEFC
Thermally Thermally Thermally Thermally
Protected Protected Protected Protected
Power Cable 40' 12 Gauge 40' 12 Gauge 40' 12 Gauge 40' 12 Gauge
Abrasive Abrasive Abrasive Abrasive
Resistant Resistant Resistant Resistant
Voltage/Frequency 115 / 60 115 / 60 240 / 50 240 / 50
Amperage 12 12 6 6
Dimensions (in)* 21½x16x35½" 21½x16x35½" 21½x16x35½" 21½x16x35½"
Weight (lbs)* 125 125 125 125
*Shipping Value
CAUTION: Your equipment may be inappropriate on some installations. Always consult with
the flooring manufacturer on the proper installation, preparation, and finishing of
their product. Determine suitability of your equipment in preparing the product.
Operating
Control Lever
Control Switch
Control Link
Transport Handle Dust Pipe
Locking Collar
Handle Latch
Level Adjustment
Transport Handle
Drum Cover

Page 6 Clarke®American Sanders EZ - 8 Sander Operator's Manual
How to Transport the Machine
Transporting the Machine With Limited
Cargo Area:
To transport the machine, follow this procedure:
1. Lower sanding drum with control lever. See figure
#1.
2. Slide collar beyond overlap of control link; remove
pin from notch. See figure #2.
3. Twist and remove handle pigtail from motor cord.
See figure #3.
4. Release handle latches and remove handle from
chassis. See figure # 2.
5. Remove dust pipe from chassis.
6. Lift chassis with transport handles and place in
cargo area. See figure # 4.
WARNING: Machine is heavy (95 lbs.). To
avoid injury or damage grasp
transport handles firmly; use
proper lifting technique.
7. Secure chassis to prevent movement in cargo area.
Place handle and dust pipe in cargo area.
Figure # 2
Figure # 3
Figure # 1
Figure # 4

Clarke®American Sanders EZ - 8 Sander Operator's Manual Page 7
Machine Set-up
To set up the machine follow this procedure:
1. Familiarize yourself with the machine. Read all
danger, warning, and caution statements as well
as the Operator's Manual. If operator is unable
to read English, have the manual explained
before operating.
2. Install handle and fasten latches. See figure # 6.
3. Insert control link into notch and slide collar to
pin. Raise sanding drum with control lever. See
figure # 5 & # 6.
4. Install dust tube. Tie dust bag over bell opening
of dust tube.
5. Connect the handle pigtail to the motor cord.
Align ground pin, insert and twist. See figure # 7.
6. To install abrasive on sanding drum equipped
with paper clamp: loosen screws to paper clamp
with a coin. Do not remove screws or clamp
from the sanding drum. Insert one edge of
abrasive under paper clamp. Rotate sanding
drum to wrap abrasive around drum. Insert other
edge of abrasive under paper clamp. Center
abrasive and take up any slack in the abrasive.
Tighten screws on paper clamp. Close drum
cover. See figure # 8.
To install abrasive on sanding drum equipped for
sleeve abrasive: slide abrasive over drum, center
abrasive, and close drum cover.
How to Operate the Machine
To operate the machine follow this procedure:
1. Set any exposed nails with a hammer and punch
to avoid encounter with sanding drum. Connect
the machine to an appropriate grounded and
fused circuit (power supply). Press the selector
switch to the start (S) position. Once started,
allow switch to return to run (R) position.
Figure # 5
Figure # 6
Figure # 7
Figure # 8

Page 8 Clarke®American Sanders EZ - 8 Sander Operator's Manual
How to Operate the Machine (cont.)
CAUTION: To prevent damage to the surface,
make sure the machine is always
moving when the sanding drum is
in contact with the floor.
2. Work right to left. For each forward pass, move
the machine 4" over the pass you have just
finished. Retrace your reverse path without
overlapping. See figure # 9
3. Feather-cut in by easing the sanding drum down
onto the surface with the control lever while the
sander is in motion.
4. When sanding drum is fully engaged with the
surface, release control lever and adjust your
pace for adequate stock removal. Keep sander
in motion while the sanding drum is engaged with
the surface or dwell marks will occur.
5. Move the machine in the direction of the grain in
the wood whenever possible. Sand the surface
at a constant pace.
6. Gradually feather-cut out at the termination point
(the end of your pass) by easing the sanding
drum up with the control lever. Stagger the
termination points for a better blend when
edging. See figure # 9.
7. When replacing abrasive, emptying contents of
dust bag, or when sanding operation is com -
pleted, press selector switch to off (O) position.
Disconnect the machine from the power supply.
8. Empty dust bag whenever it is 1/3 full. Never
leave a dust bag unattended with sanding dust in
it. Sanding dust can spontaneously ignite and
cause a fire or explosion. Empty dust into a
metal container clear of any combustible mate-
rial.
Figure 9
1
3
2
4

Clarke®American Sanders EZ - 8 Sander Operator's Manual Page 9
945390/25
945391/25
945392/25
945930/10 945416/10
945395/25
945933/10 945418/10
945397/25
945398/25 945935/10 945420/10
945399/25 945936/10 945421/10
945400/25 945937/10 945422/10
Sanding Cuts and Sandpaper
12 grit For removing gross imperfections and restore
16 grit evenness to old flooring. To remove build-up of
20 grit paints and varnishes
24 grit
36 grit For the first sanding of new flooring (maple, oak).
40 grit For removing minor imperfections and finishes
from old flooring.
50 grit For first sanding of new flooring (cedar, pine, fir)
For clean-up of 16 grit.
60 grit For clean-up from initial cut 36 grit.
80 grit For final sanding of certain hardwoods. For
clean-up of initial cuts (50 grit).
100 grit For final sanding of certain hardwoods and
conifers where a smooth surface is desired.
Grain Use
Initial Cut
The purpose of the initial cut is to remove old finish and gross imperfections on the floor surface. A coarse
abrasive should be used. If the surface is severely damaged by deep scratches, pre-existing dwell marks,
uneven planks, etc., it may be necessary to sand across or diagonally to the grain to restore evenness to the
surface. If these conditions are not present, the initial cut should be done in the direction of the grain.
If glazing, loading, or burning takes place immediately into an initial cut, select a coarser abrasive. If this
should occur during an initial cut, the abrasive has dulled and must be replaced.
Final Cuts
The purpose of a finishing cut is to remove the scratches produced during the initial cut. Use a fine (60 - 80
grit) grain abrasive.
If the surface remains rough after a finishing cut, it may be necessary to use an even finer grain of abrasive (80
- 100 grit). Care should be taken in selecting the grit size of the abrasive. A very fine grain will close the
pores on a wood floor making admission of a stain difficult.
If glazing or burning should occur immediately into a finishing cut, increase pace. If it should occur during a
finishing cut, the abrasive has dulled and must be replaced.
8 x 18 19 /32 Sheet 8x 19 Sleeve 8 x 18 55 /64 Sleeve
Part No./ Cnt. Cloth Back Paper Back
Part No./Cnt. Part No./Cnt.

Page 10 Clarke®American Sanders EZ - 8 Sander Operator's Manual
Sander Adjustment Procedures
DANGER: Electrocution could occur if main-
tenance and repairs are performed
on a unit that is not properly dis-
connected from the power source.
Disconnect the power supply be-
fore attempting any maintenance
or service.
DANGER: Moving parts of this machine can
cause serious injury and/or dam-
age. Keep hands, feet and loose
clothing away from all moving parts
of the sander.
The following information provides details on how to
adjust different features/controls of the sander.
Dust Shoe
To adjust the dust shoe follow this procedure:
1. Disconnect machine from power supply.
2. Loosen the four screws fastening the dust shoe to
the chassis.
3. Adjust the dust shoe towards the drum to improve
recovery of fine particles.
4. Adjust the dust shoe away from the drum to
improve recovery of coarse particles.
5. Align the dust shoe with the drum and tighten
screws. See figure # 10.
Leveling
To adjust the machine leveling follow this procedure:
1. Locate the leveling screw. See figure # 11.
2. Tighten the screw (compress the leveling spring)
to sand heavier on drive belt side of sanding drum.
3. Loosen the leveling screw (relax the leveling
spring) to sand heavier on the side opposite the
drive belts.
Figure # 10
Figure # 11

Clarke®American Sanders EZ - 8 Sander Operator's Manual Page 11
Routine Maintenance
The following items need to be periodically inspected
and maintained to keep your sander in good working
condition.
Sanding Chamber
Periodically blow out the sanding chamber to prevent
large accumulations of debris which could interfere
with the performance of the dust recovery system.
Wheels
Periodically remove the debris from the truck and
caster wheels. Debris can cause waves on a sanded
surface.
Dust Bag
Remove the dust bag from the machine and shake it
thoroughly to remove the sanding dust from the dust
bag. Turn the dust bag inside out and machine wash
in cold water to prevent pore blockage and loss of
dust recovery.
Drive Belt
Periodically check the drive belts for broken cogs or
frayed edges. Frayed edges may indicate poor
tracking. Realign effected belt.
Bearings
Arbor shaft Relubricate every 150
hrs. w/.10 oz. of a NLGI
grade 2, -300F to 2500F,
58-75 SUS at 2100F,
grease lubricant.
Motor shaft after 1st 5000 hrs.
Fan shaft After first 1500 hrs.
Periodically check the bearings for wear or damage
according to the following schedule.

Page 12 Clarke®American Sanders EZ - 8 Sander Operator's Manual
Troubleshooting
Problem Cause Action
Drive belts jump teeth or squeak. Damaged belt. Replace belt.
Insufficient tension. Tension drive belt.
Poor belt tracking. Align Pulley.
Squealing, growling or grinding Damage and/or worn bearing. Remove drive belts, rotate arbor
noise coming from machine. motor and fan shafts to locate
dragging or rough bearing.
Contact an authorized Clarke
American Sanders dealer.
Dust pick-up is poor. Dust bag is over 1/3full. Empty contents of bag.
Dust bag is dirty. Shake debris from bag and wash.
Dust shoe is improperly adjusted. Readjust dust shoe.
Dust chute is obstructed. Remove dust shoe and clear throat.
Motor will not start. Defective motor starter. Contact an authorized Clarke
American Sanders dealer.
Defective start capacitor. Contact an authorized Clarke
American Sanders dealer.
Defective start switch. Contact an authorized Clarke
American Sanders dealer.
Poor connections. Check connections.
Motor overload tripped. Remove power. Depress reset
button on motor
Defective motor. Contact an authorized Clarke
American Sanders dealer.
No power. Check power supply and connections.
Motor runs sluggishly. Low voltage from excessive length, Locate power source nearer to work
undersized extension cord, or poor site. Check connections.
connection.
Defective run capacitor. Contact an authorized Clarke
American Sanders dealer.
Defective motor. Contact an authorized Clarke
American Sanders dealer.
Motor overload trips/repeatedly Low voltage from excessive length, Remove power, allow motor to cool.
trips undersized extension cord, or poor Depress reset button on motor.
connection. Locate power source nearer to
worksite. Check connections.
Contact an authorized Clarke
American Sanders dealer.
Excessive load. Contact an authorized Clarke
American Sanders dealer
Defective start switch. Contact an authorized Clarke
American Sanders dealer.
Defective motor starter. Contact an authorized Clarke
American Sanders dealer.
Defective motor. Contact an authorized Clarke
American Sanders dealer.
Defective capacitor. Contact an authorized Clarke
American Sanders dealer.
Uneven cut. Leveling out of adjustment. Readjust leveling.
Burning or glazing. Dull abrasive. Replace abrasive.
Too fine of an abrasive. Use a coarser abrasive.
Waves on sanded surface. Debris on wheels. Remove and clean wheels.
Flat spot on tire(s). Replace tires.

Clarke®American Sanders EZ - 8 Sander Operator's Manual Page 13
Division of
EZ-8
Sander
Section II
Parts and Service Manual
(78425C)

Page 14 Clarke®American Sanders EZ - 8 Sander Operator's Manual
EZ-8 Sander
Assembly Drawing #1 11/01
1
2
4
53 5
52
55
51
56
6
8
9
7
10
11 12
13
14
15
16
19 12
18 11
17
20
21
23
24
25
26
29
7
31
32
33
4
28
27
32
34
35
36
46
49
48
47
54
45
44
43
25
22
23
30
37
38
42
41
40
39
50
57
58

Clarke®American Sanders EZ - 8 Sander Operator's Manual Page 15
Ref. # Part No. Description Qty
31 915082 Key 3/16 x 3/16 x ¾ 1
32 51178A Bearing, Arbor 2
33 81211A Nut, Flanged 5/16 -18 4
34 67459A Shaft, Arbor Clamp 1
35 60434A Arm, Truck Level 1
36 85835A Screw ¼-20x 2½ 1
37 920196 Nut, ½-13 Jam 1
38 980645 Washer 3/8 SAE 2
39 60435A Arm, Truck, Lift 1
40 920110 Nut 5/16 -18 ESNA 1
41 65707A Link Adjust 1
42 58698A Spring, Truck Leveling 1
43 58699A Spring, Drum, Pressure 1
44 80026A Bolt, Shoulder 3/8x ½ 1
45 920284 Nut ¼ ESNA 1
46 68015A Stud 2
47 69031A Spacer, Shim 1
48 82504A Pin, Clevis 5/16 x ¾ 1
49u25903A Frame, Main 1
50 81208A Nut Flanged 5/16-24 2
51 44642A Motor, 1.5Hp 115V/60Hz 1
44648A Motor, 1.5 Hp 230V/50Hz 1
52 170637 Relief, Strain 1
53 915580 Key 3/16 x 1½ 1
54 57423A Ring, Retaining 1
55 77234A Label, Lifting Warning 1
56 51095A Cover, Capacitor 1
57 40545A Fan 1
58 52465A Cover, Fan 1
EZ-8 Sander
Assembly Drawing #1 7/03
Ref. # Part No. Description Qty
1 41949A Cord, Motor 1
2 912169 Plug L5-15P 1
4 962831 Screw Set 10-32 x 5/16 3
5 170686 Nut Conduit ½ 1
6 61089A Pulley, Fan/Drum 1
7 80027A Screw 5/16 -18x1 Sq. Neck 6
8 50917A Belt, Fan 1
9 50916A Belt, Drum 1
10u22122A Cover, Fan 1
11 902567 Bearing 2
12 915561 Key, Hardened 2
13 920196 Nut ½-13 Jam 1
14 66159A Pulley, Fan 1
15 167312 Ring, Retaining 1
16 962798 Screw 10-24 x 1/23
17 67457A Shaft, Fan 1
18 980681 Washer, Bowed 1
19 877307 Ring, Retaining 1
20 65005A Impeller 1
21 60166A Axle, Truck 1
22 980648 Spacer 3
23 59945A Wheel 2
24 86113A Screw ½-13 x 2 1
25 920365 Nut 1/2- 13 Nylock 2
26 80501A Key 3/16 x 1¼ 1
27 81211A Nut, Flanged 5/16 -18 2
28 962689 Screw Set ¼-28 x ¼ 4
29 66161A Pulley, Drum 1
30 86114A Screw ½-13 x 2½ 1
Motor 44648A
Part No. Description Qty
41306A Capacitor Run 1
41307A Capacitor Start 1
47390A Starter Switch (Cubical) 1
47409A Starter Switch (Cylindrical) 1
47391A Thermal Switch 1
Motor 44642A
Part No. Description Qty
41308A Capacitor Run 1
41309A Capacitor Start 1
47392A Thermal Switch 1
Motor Parts Not Illustrated
NOTE: uindicates a change has been made
since the last publication of this manual.

Page 16 Clarke®American Sanders EZ - 8 Sander Operator's Manual
EZ-8 Sander
Assembly Drawing #2 10/01
26
25
27
26
28
29
30
31
41
42
32
33
40
39 38 37
77
34
36
35
1
2
3
50
49
55
51
52
69
71
56 70
48
47
45
44
57
46
43
75
5
6
76
4
66
67
68
64
62
7
58
8
9
10
61
11
60
12
13 14 15 16
20
19
74
53
54
73 21
59
22
23
24
17
18
63
65

Clarke®American Sanders EZ - 8 Sander Operator's Manual Page 17
Ref. # Part No. Description Qty
1u69106A Tube, Handle 1
2 69107A Tube, Dust 1
3 50951A Bag, Dust 1
4 68285A Support Tube 1
5u23807A Guard, Belt 1
6 962988 Screw ¼-20 x 1¼ 2
7 52125A Caster Asm. Complete 1
8 67612A Shoe, Dust 1
9 962826 Screw 10-24 x 3/84
10 32364A Cover, Drum 1
11 962823 Screw ¼-20x½ 13
12 65310A Key, Washer 1
13 920365 Nut 1/2- 13 Nylock 3
14 85313C Screw 6-32 x 3/84
15 68613A Plate, End 1
16 162007 Clamp, Paper 1
17 962733 Screw 12-24 x 1 3
18 62711A Drum, Clamp Style 1
19 962170 Screw Set 10-24 x ¼ 1
20 66948A Retainer, Bumper 1
21 31223A Bumper, Front 1
22u22123A Cover, Front 1
23 64469A Handle, Front 1
24 61659A Collar 1
25 65706A Link, Control 1
26 960952 Bolt, Shoulder 3/8 x 3/82
27 34609A Grip, Lever 1
28 65618A Lever, control 1
29 980022 Washer, Wave 1
30 920110 Nut 5/16 -18 ESNA 1
31 980645 Washer 3/8SAE 2
32 63928A Guard, Switch 1
33 34610A Grip, Handle 2
34 930093 Rivet
1/82
35 97100A Trim, Vinyl, Black Ref
36 74052A Plate Safety 1
37 42183A Cord Set, Power 115V 1
42184A Cord Set, Power 230V 1
38 911248 Plug 5-15P 1
39 41807A Contactor 1
41808A Contactor 230V 1
NOTE: uindicates a change has been made since
the last publication of this manual.
EZ-8 Sander
Assembly Parts List #2 7/03
Accessories Available:
70401A- Package of two disposable paper dust collection bags
13509A- Three hole-paper clamp bar, packaged with three clamp screws
837304- Bag retainer for 70401A
Ref. # Part No. Description Qty
40 47387A Switch, Control 1
41 u24525A Housing Control 1
42 81210A Nut, Fixture 3/8PT 1
43 980675 Washer 1
44 962677 Screw 10-24 x 3/46
45 962826 Screw 10-24 x 3/81
46 962109 Screw 10-24 x 5/82
47 337504 Relief, Strain 1
48 911461 Adapter L5-15R 1
49 41948A Cord, Interconnect 1
50 51523A Relief, Strain 1
51 962094 Screw ¼-20 x 3/82
52 170892 Washer, ¼ Lock 2
53 920196 Nut, ½-13 Jam 1
54 980648 Washer ½ 1
55 55711A Latch 1
56 * 920296 Nut #10 ESNA 2
57* 69098A Wear, Strip 1
58* 22603A Drum Expansion 1
59u70488A Logo 1
60 65103A Insert 3
61 13507A Asm., Drum, Clamp 1
includes 10, 18, 11, 14,
15, 16, 17, & 60
62 59960A Wheel Caster 1
63 80012A Bolt, Shoulder 5/16 x 1½ 1
64 81307A Nut, 7/16 -14 Jam 1
65 67468A Shaft, Caster 1
66 51194A Bearing, Caster 2
67 29405A Yoke, Caster 1
68 920284 Nut, ¼-20 ESNA 1
69* 81217A Nut, ¼-20 x .218H Nylk. 2
70* 60906A Block, Wear 2
71* 962505 Screw, ¼-20 x 5/82
72* 77299A Label, Caution 1
73* 85381A Screw, 10-24 x 3/4 PN-SB 2
74 85517A Screw, 10-24 x ½ PN-SB 5
74* 85517A Screw, 10-24 x ½ PN-SB 3
75 980603 Washer, #10 Lock Ext. Th. 1
76* 68651A Plate Drum End 2
77 70175A Tag Warning 1
*NOTE: Equipped on sleeve units only

Page 18 Clarke®American Sanders EZ - 8 Sander Operator's Manual
EZ-8 Sander
Wiring Diagram 9/92

Clarke®American Sanders EZ - 8 Sander Operator's Manual Page 19
PRODUCT SUPPORT BRANCHES
PRODUCTION FACILITIES
ALTO Danmark A/S, Aalborg
Blytaekkervej 2
DK-9000 Aalborg
[phone]
ALTO Danmark A/S, Hadsund
Industrikvarteret
DK-9560 Hadsund
[phone]
SALES SUBSIDIARIES
Clarke®Canada Ltd., Rexdale Ontario
24 Constellation Ct.
[phone]
ALTO Overseas Inc., Sydney (Australia)
1B/8 Resolution Drive
Caringbah NSW 2229
[phone]
ALTO Cleaning Systems Asia Pte Ltd., Singapore
No. 17 Link Road
Singapore 619034
[phone]
ALTO Deutschland GmbH, Bellenberg (Germany)
Guido-Oberdorfer-Straße 2-8
89287 Bellenberg
[phone]
ALTO Cleaning Systems (UK) Ltd., Penrith
Gilwilly Industrial Estate
Penrith
Cumbria CA11 9BN
[phone]
ALTO France S.A. Strasbourg
B.P. 44, 4 Place d’Ostwald
F-67036 Strasbourg
Cedex 2
[phone]
ALTO Nederland B.V. Vianen
Stuartweg 4C
NL-4131 NJ Vianen
[phone]
ALTO Sverige AB, Molndal (Sweden)
Aminogatan 18
Box 4029
S-431 04 Molndal
[phone]
ALTO Norge A/S, Oslo (Norway)
Bjornerudveien 24
N-1266
[phone]
U. S. A. Locations European Locations
HEAD OFFICE
ALTO U.S.Inc., St.Louis, Missouri
16253 Swingley Ridge Road, Suite 200
Chesterfield, Missouri 63017-1725
PRODUCTION FACILITIES
Clarke®, Springdale, Arkansas
2100 Highway 265
Springdale, Arkansas 72764
[phone]
Customer Service - 1-800-253-0367
Technical Service - 1-800-356-7274
American Lincoln®, Bowling Green, Ohio 43402
1100 Haskins Road
SERVICE FACILITIES
Clarke®, Carlstadt, New Jersey 07072
150 Commerce Road
[phone]
Clarke®, Elk Grove, Illinois 60007
2280 Elmhurst Road
[phone]
Clarke®, Denver, Colorado 80204
1955 West 13th Ave.
[phone]
Clarke®, Houston, Texas 77040
7215 North Gessner Road
SALES AND SERVICE FACILITIES
American Lincoln®/ Clarke®, Madison Heights,
Michigan 48071-0158
29815 John R.
[phone]
American Lincoln®/ Clarke®, Marietta, Georgia 30062
1355 West Oak Common Lane
[phone]
Clarke®
Clarke American Sanders
A.L. Cook
Customer Service Headquarters and Factory
2100 Highway 265
Springdale, Arkansas 72764
[phone]
Technical Service
1-800-356-7274

Clarke®American Sanders U. S. Warranty
This Clarke American Sanders Industrial/Commercial Product is warranted to be free from defects in
materials and workmanship under normal use and service for a period of one year from the date of purchase,
when operated and maintained in accordance with Clarke American Sanders' Maintenance and Operations
Instructions.
This warranty is extended only to the original purchaser for use of the product. It does not cover normal
wear parts such as electrical cable or V-belts.
If difficulty develops with the product, you should:
(a). Contact the nearest authorized Clarke American Sanders repair location or contact the ALTO Service
Operations Department, 2100 Highway 265, Springdale, Arkansas 72764, for the nearest authorized Clarke
American Sanders repair location. Only these locations are authorized to make repairs to the product under
this warranty.
(b). Return the product to the nearest Clarke American Sanders repair location. Transportation charges to
and from the repair location must be prepaid by the purchaser.
(c). Clarke American Sanders will repair the product and or replace any defective parts without charge within
a reasonable time after receipt of the product.
Clarke American Sanders' liability under this warranty is limited to repair of the product and/or replacement
of parts and is given to purchaser in lieu of all other remedies, including INCIDENTAL AND CONSEQUENTIAL
DAMAGES.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE SPECIFIED HEREIN. THERE ARE NO
WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. NO WARRANTIES,
INCLUDING BUT NOT LIMITED TO WARRANTY OF MECHANTABILITY, SHALL BE IMPLIED. A warranty
registration card is provided with your Clarke American Sanders product. Return the card to assist Clarke
American Sanders in providing the performance you expect from your new floor machine.
Clarke, 2100 Highway 265, Springdale, Arkansas 72764.
Division of
Clarke American Sanders reserves the right to make
changes or improvements to its machine without notice.
Always use genuine Clarke American Sanders Parts for repair.
2100 Highway 265
Springdale, Arkansas, 72764
