Clarke CONTRACTOR GC0511 Installation and operation manual

OPERATING & MAINTENANCE
INSTRUCTIONS
GC0511
15 DEGREE COIL NAILER
Model CON15
Part No: 3110295

2
INTRODUCTION
Thank you for purchasing this CLARKE Coil Nailer
Before attempting to operate the machine, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the product giving you long and satisfactory service.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Do not dispose of this product with general household waste. All tools,
accessories and packaging should be sorted, taken to a recycling
centre and disposed of appropriately.
PARTS & SERVICE
For parts & Servicing, please contact your nearest dealer, or
CLARKE International, on one of the following numbers.
PARTS & SERVICE TEL: [phone]
PARTS & SERVICE FAX: [phone]
or e-mail as follows:
PARTS: [email protected]
SERVICE: [email protected]

3
OVERVIEW
The CON15 Coil Nailer is suitable for use on softwood, hardwood, plywood,
hardboard, fibreboard or MDF, and will penetrate flexible plastics, leather,
fabrics, PVC & rubber sheet materials. It is not suitable for piercing hard
laminates, brittle plastics or metals (other than light foil).
Unpack and lay out the components, checking against the following list. Any
damage or deficiency should be reported to your Clarke dealer immediately.
• Coil Nailer
• Oil Bottle
• 4 x Hexagonal Keys (3, 4, 5 & 6 mm)
• 1 x Nail Roll
• Black Moulded Case
• Operators Manual (this document)
Your Coil Nailer has been designed to give long and trouble free service. If,
however, having followed the instructions in this booklet carefully, you
encounter problems, take the unit to your local Clarke dealer.
TECHNICAL SPECIFICATION
erutaeF noitacificepS
thgieWgk4
)hxwxl(snoisnemiDmm553x031x033
erusserPriAgnitarepO)rab9.6-8.4(isp001-07
erusserPriA
xaM)rab2.8(isp021
deepSevirDnim/slian003
noitpmusnoCriAdesserpmoCmfc5.6
noitcennoCenilriAelamPSB"4/1
yticapaC
enizagaMslian003
erusserPdnuoSxaM)A(Bd5.99
derusaeMrewoPdnuoS)A(Bd5.211
Please note that the details and specifications contained herein, are correct at the
time of going to print. However, CLARKE International reserve the right to change
specifications at any time without prior notice.

4

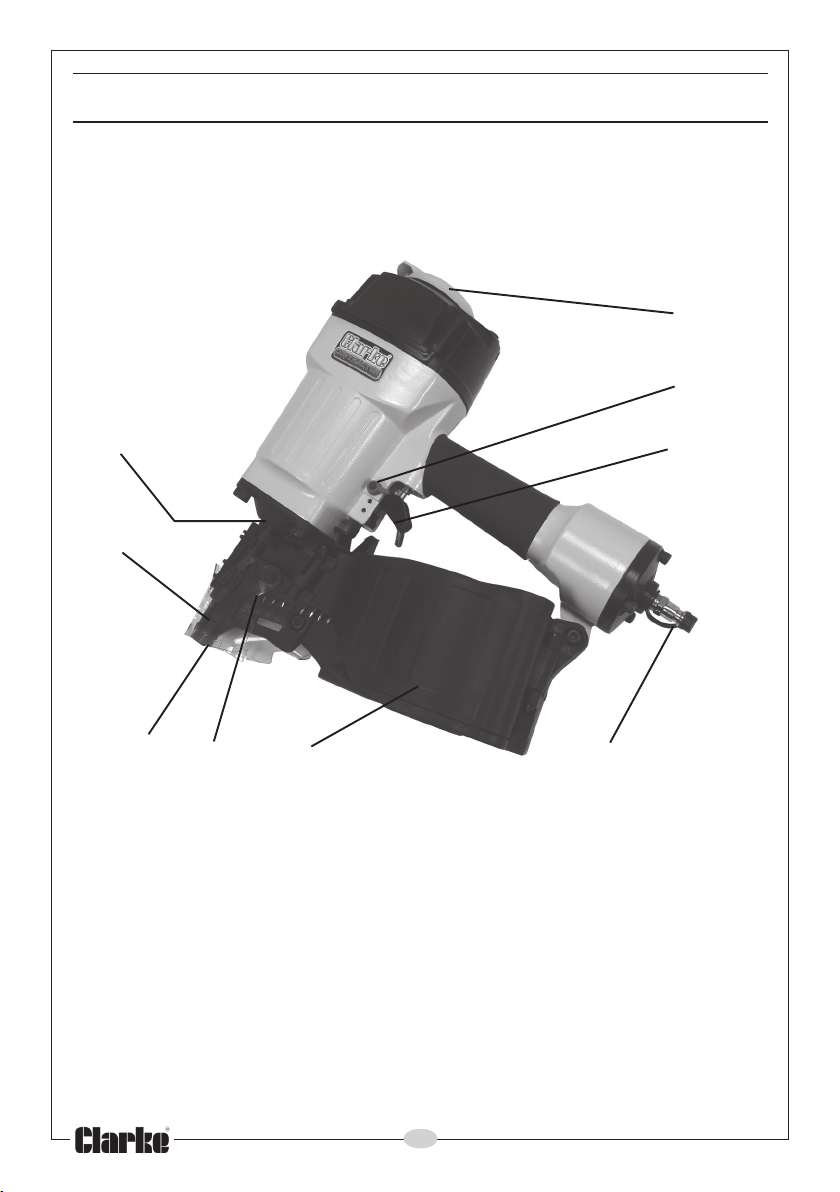

COMPONENTS
1. Nail Magazine
2. Drive Pawl
3. Protective Screen
4. Safety Yoke (muzzle)
5. Mode Switch (single/full contact sequential actuation)
6. Trigger
7. Pressure Adjuster
8. Compressed Air Hose Connector
9. Exhaust Deflector
1
2
3
4
9
8
76
5

5
GENERAL SAFETY PRECAUTIONS
WORK AREA
1. ALWAYS Keep the work area clean and well lit. Floors should always be
kept clear. Cluttered or dark areas invite accidents.
2. ALWAYS keep children and bystanders away while operating a power tool.
Distractions can cause loss of control.
PERSONAL SAFETY
1. ALWAYS stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you are tired
or under the influence of medication, drugs or alcohol. A moment of
inattention can result in personal injury.
2. ALWAYS use safety equipment when operating this tool. Always wear
suitable protective clothing and eye protection including industrial gloves,
ear defenders and approved impact resistant safety glasses. (Eye glasses
are NOT safety glasses)
3. NEVER over-reach. Keep your proper footing and balance at all times to
enable better control of the machine in unexpected situations.
4. NEVER point the tool at anyone or any part of your own body. Keep all
parts of your limbs behind the safety guard at all times.
5. ALWAYS keep a safe distance between yourself and others when using
the tool.
6. NEVER attempt any repairs yourself. If you have a problem with the
machine contact your local Clarke dealer.
7. ALWAYS store power tools out of reach of children.
8. ALWAYS dress properly. Never wear loose clothing or jewellery which could
be caught on moving parts.
GENERAL POWER TOOL USE AND CARE
1. NEVER force or misuse the tool. It will do a better and safer job at the rate
for which it was designed.
2. ALWAYS maintain the tool with care and keep it clean for best / safest
performance.
3. NEVER use this tool if any part is damaged. Have it inspected and repaired
by a competent technician.
4. NEVER modify this tool in any way. Use it ONLY for the purpose for which it
is designed.
5. NEVER carry the tool with your finger on the trigger. The nailer is fitted with
a safety yoke mechanism to prevent accidental firing.

6
6. ALWAYS disconnect the tool from the air supply when not in use, and
before carrying out any maintenance or re-loading with fresh nails.
7. ALWAYS Store the tool out of reach of children.
8. NEVER allow persons unfamiliar with these instructions to operate this tool.
SERVICING
1. ALWAYS have power tools serviced by your Clarke dealer, using only
identical replacement parts. This will ensure the safety of the power tool is
maintained.
COIL NAILER SAFETY INSTRUCTIONS
1. Although the Coil Nailer is water resistant and may be used outdoors, DO
NOT leave it exposed to the elements. Avoid direct sunlight, direct heat,
rain/moisture etc.
2. ALWAYS keep the air hose away from the nailer and ensure that the
operator is not restricted by the length of the hose.
3. ALWAYS take care when a long air hose is required in the work area as it
presents a trip hazard. Coil the hose away as soon as the job is finished.
4. NEVER abuse hoses or connectors. NEVER carry a tool by the hose, or yank
it to disconnect from the air supply. Keep hoses away from heat, oil and
sharp edges. Check hoses for leaks or worn condition before use, and
ensure that all connections are secure.
5. NEVER use with an air supply greater than 8.2 bar (120 PSI).
6. NEVER use any other type of gas such as bottled oxygen or other bottled
gas as a power source to operate this tool. Use compressed air ONLY.
7. NEVER load the tool with the trigger depressed in case of accidental firing.
8. NEVER fire tool at an incline. It must be perpendicular to the work surface.
9. NEVER drive in nails at the edge of a work surface, as the edge could fail
and fly off, endangering yourself or others in the vicinity.
10. ALWAYS take care not to fire a nail into an existing metal fastening in case
the nail should ricochet causing personal injury.
11. NEVER operate the tool unless the safety nose is in contact with the
workpiece, or without any nails or damage to the tool could result.
12. ALWAYS keep hands away from the nose of the tool when connecting to
the compressed air supply.
13. ALWAYS ensure only the correct nails are used, as specified for this tool.

7
THE COMPRESSED AIR SUPPLY
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE THOROUGHLY FAMILIAR WITH SAFETY PROCEDURES RELATING TO
THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLIES.

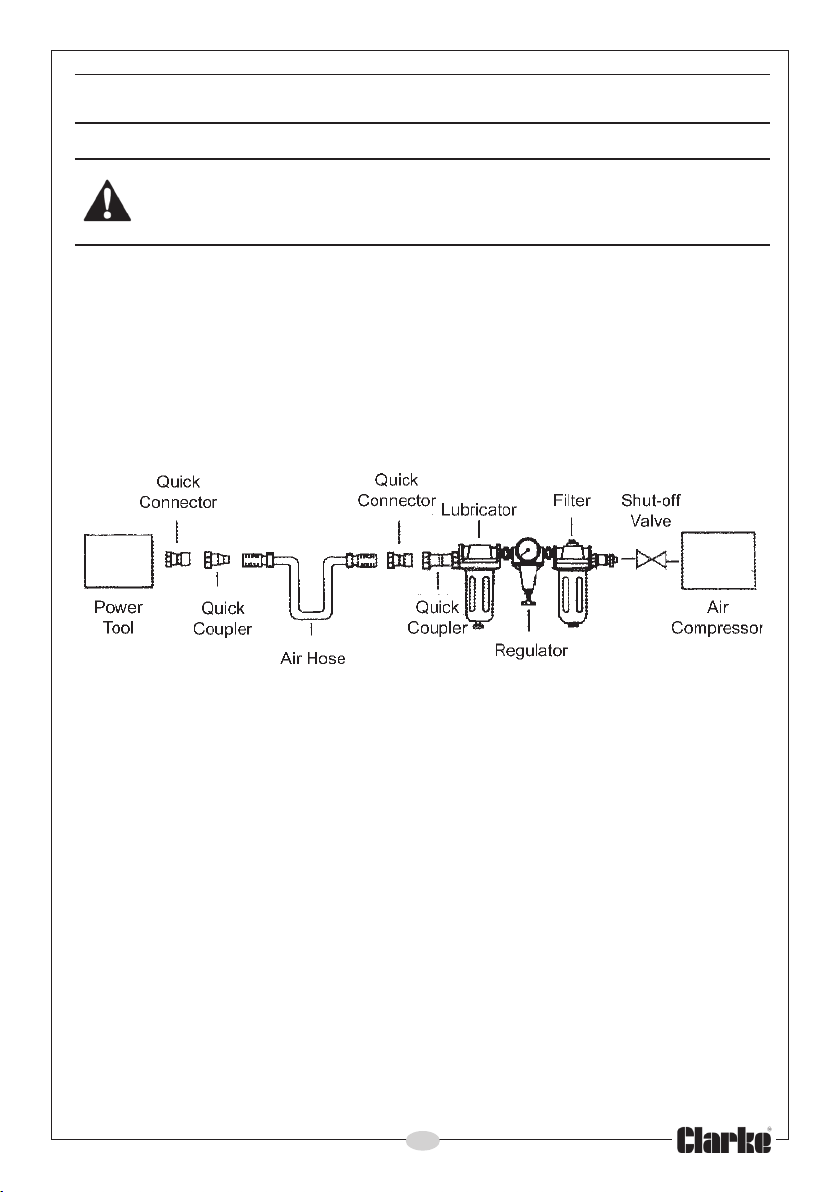

A filtered, lubricated and regulated air supply will be required as shown in the
layout below.
Ensure the pressure available is within the range of 70-100 psi. Higher pressure
or contaminated air will shorten the tool’s life because of increased wear,
and could be a safety hazard. Higher pressure will also increase the noise
level.
The air inlet used for connecting the air supply has a standard ¼” BSP thread.
For best performance, a quick-fit connector can be used at each end of the
line.
Line pressure, or hose internal diameter should be increased to compensate
for unusually long air hoses (over 10m). Minimum hose diameter should be
6mm (¼”) ID, and fittings should have the same internal dimensions.
Check the quality of the compressed air supply before starting work. Water in
the air line will cause damage to the tool, and a dirty filter will reduce the
available air pressure.
Ensure there are no leaks in any of the connections.

8
LOADING THE COIL NAILER
WARNING: ENSURE THE COMPRESSED AIR SUPPLY IS DISCONNECTED
BEFORE ATTEMPTING TO LOAD THE COIL NAILER. DO NOT HOLD THE
TRIGGER WHILE LOADING THE NAILER.
The machine is loaded with nails as follows:

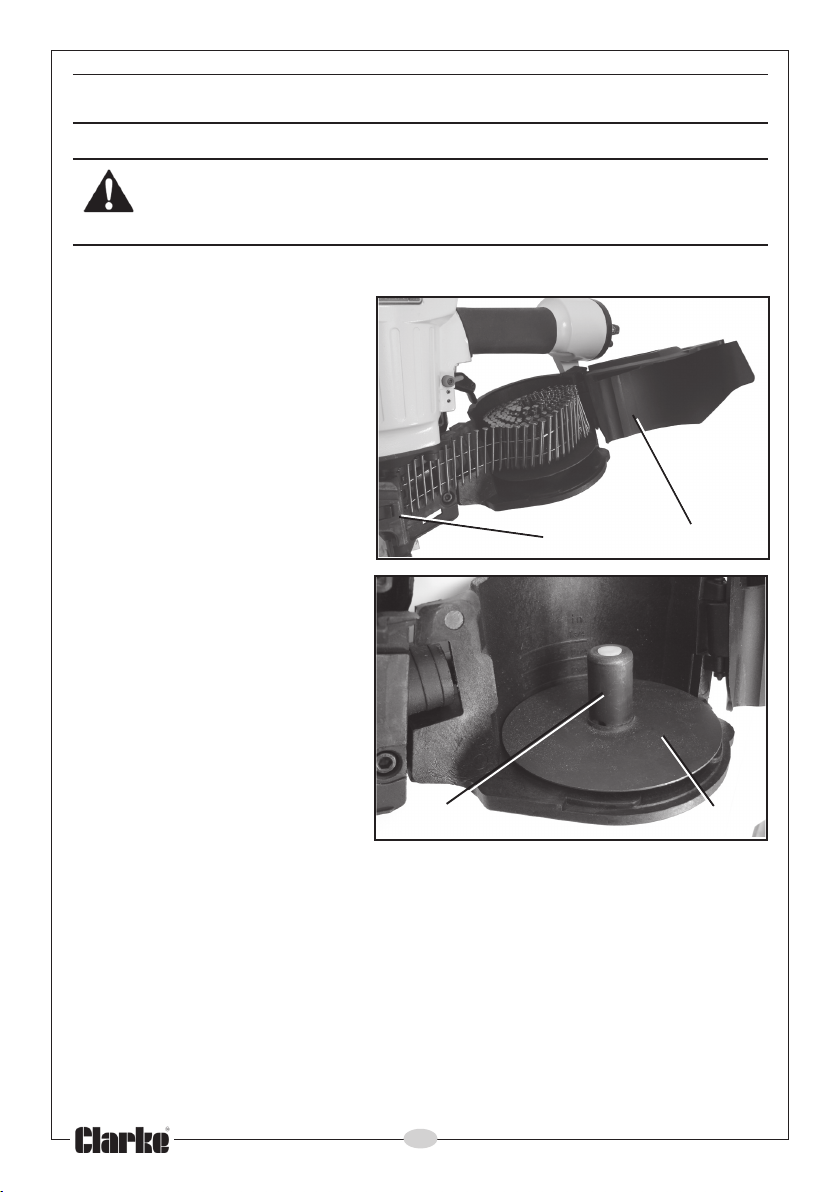

1. Press the latch (1) open
and pull the magazine
cover (2) back.
2. Knowing the nail size to be
used, raise and twist the
adjuster 90 degrees for the
chosen nail size as required.
3. Insert a strip of nails into the
magazine, (pointed end
downwards), taking care
that the strip is wound
evenly around the centre
spigot (3) of the height
adjuster (4). Note that 3
different nail sizes can be
used, as indicated by the
markings on the inside of
the magazine. The sizes
available are listed on
page 12.
4. Take care when handling
the nails, that they do not become bound together.
3 4
1 2

9
5. Offer the end of the strip of
nails into the gun, taking
care that the nail heads lay
flat in the groove (5) closest
to the machine body and
that the first nail in the strip is
resting in the drive pawl (6).
6. Close the magazine cover
and close the latch.
• This will not be possible if the
nails are not positioned
correctly. The machine is now ready to use.
OPERATION
1. Connect the nailer to the air
supply. With the air supply
turned off, connect the air
line to the ¼” BSP connector.
(A whip hose with quick-fit
coupling is available from
your Clarke dealer).
2. Turn on the air supply.
• Check for air leaks. If any are
apparent, rectify before
proceeding.
3. Ensure the operating pressure
is set to between 70 -100 psi .
This may be adjusted, dependant upon the density of the workpiece. The
harder the target material, the higher the air pressure required. e.g. When
nailing into softwoods, a pressure of only 70 psi may be all that is required.
NEVER OPERATE THE TOOL UNLESS THE SAFETY YOKE IS IN CONTACT
WITH THE WORKPIECE, OR WITHOUT ANY NAILS OR DAMAGE TO THE
TOOL COULD RESULT.
Quick release Airline
Connection
6 5

10

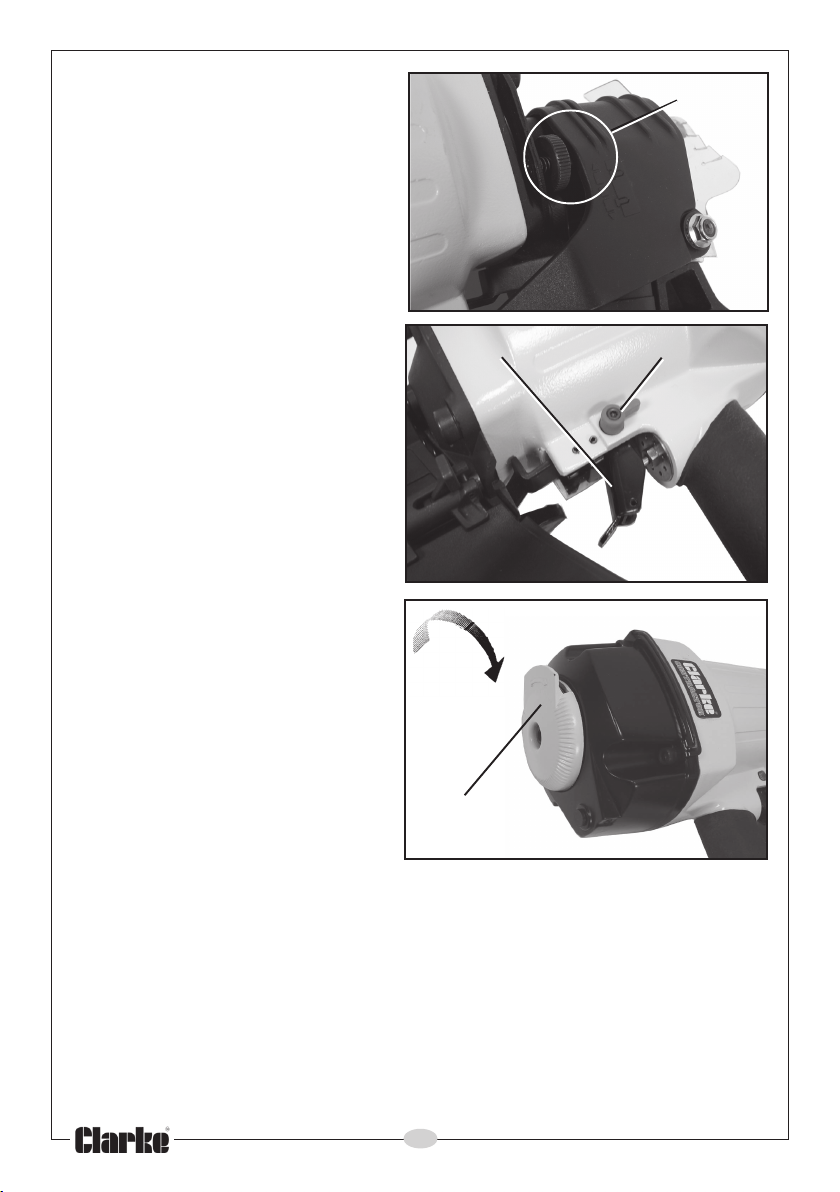

4. Before starting work, test the
nailer on a piece of scrap wood
to check that the driving depth
is correct. If the nails are being
driven too far or not deep
enough into the timber, adjust
the air pressure adjuster located
on the side of the nose section
accordingly. (Remember,
whatever pressure adjustment is
to be carried out on the tool is
dependant upon the pressure
received from the airline).
5. Hold the tool so that it is at right
angles to the workpiece. Lower
it so that the yoke contacts the
work surface and with a slight
downwards pressure, pull the
trigger to drive in the nail.
6. The machine is equipped with
a switch that can change the
operating mode from single
shot to sequential shots. When
the red switch is pointing
towards the operator, the coil
nailer will fire a single nail only.
To fire the next nail the trigger
must be released. When the
switch is pointing away from the
operator, the nailer can fire
sequentially.
7. An adjustable exhaust deflector
is fitted. Turn the deflector into
any chosen position to avoid
the blast from the exhaust.
CLEARING A JAM
Should the coil nailer jam, for example, with the last nail of a batch,
disconnect the air supply and pull the trigger to ensure the air line is not under
pressure. Open the magazine and latch and clear the jam before re-loading.
Deflector
Pressure
adjuster
Trigger Mode Switch

11
MAINTENANCE
WARNING: ENSURE THE COMPRESSED AIR SUPPLY IS DISCONNECTED
BEFORE ATTEMPTING ANY MAINTENANCE ON THE COIL NAILER.
DAILY BEFORE USE
1. Check and clean, if necessary, the air inlet gauze filter located inside the
air hose connection point.
2. A bottle of Clarke airline oil is supplied with the coil nailer. Unscrew the cap
& withdraw the nozzle which is reversed within the neck of the bottle.
Screw the cap and nozzle correctly into place and squirt a few drops of
oil, into the air inlet. This should be carried out regardless of whether or not
an air line lubricator is used.
3. Inspect the tool for worn or damaged parts, or for any loose screws or
bolts.
4. Examine the trigger mechanism for free movement.
5. Keep the magazine and yoke free of grime or abrasive particles.
6. If working conditions are below freezing it is advisable to store air tools in a
warmer place.
DURING USE
For lubricating the internal components when in operation, an airline
lubricator should be used with Clarke Airline Oil, and adjusted to 2 drops per
minute.
If an airline lubricator is NOT used, this procedure should be repeated after
every two to three hours of use.
Make a regular inspection of the trigger, spring and safety mechanism for free
movement.
AIRLINE WORKING CONDITIONS
Be aware that factors other than the tool’s condition may effect it’s
operation and efficiency. Anything which will reduce the air supply, such as
reduced compressor output, excessive demand on the airline, moisture or
restrictions in the line, or the use of connectors of improper size or poor
condition will all reduce tool performance.

12
Grit or gum deposits in the unit may also reduce efficiency. This condition can
be corrected by cleaning the air strainer and flushing out the tool with gum
solvent oil, or failing this, the tool should be dismantled, thoroughly cleaned,
dried and reassembled. This is a task for your Clarke dealer.
If the nailer runs erratically or becomes inefficient, and the air supply is sound,
it will be necessary to dismantle the piston assembly and replace worn or
damaged parts, which is best carried out by your Clarke dealer.
STORAGE
If the coil nailer is to be stored, or is idle for longer than 24 hours, run a few
drops of Clarke airline oil into the air inlet before storing.
Ensure the protective cap is replaced on the airline connector, once the
airline is disconnected.
ACCESSORIES & CONSUMABLES
A wide range of airline accessories is available, including Filter/Regulators.
Lubricators, High Pressure Hoses from 5 to 100 metres, Whip Hoses etc.
Contact your Clarke dealer for further information, or Clarke International
Sales Department on 01992 565333.
Wire-collated nails are available for the CON15 in three sizes:
Part No Nail Size
1800462 2.3 x 44mm Nails (300pcs)
1800464 2.5 x 50mm Nails (300pcs)
1800466 2.9 x 70mm Nails (250pcs)
Clarke airline oil (1 litre) is available from your Clarke dealer; Part No 3050825
IMPORTANT: The use of parts other than genuine Clarke replacement parts
may result in safety hazards, decreased tool performance and will invalidate
your warranty.

13
TROUBLESHOOTING
MOTPMYS MELBORP NOITULOS
fopotraenkaelriA
rolootreggirtehtni
.aera
evlavreggirtnignir-O.1
.degamadaera
sidaehevlavreggirT.2
.
degamad
laes,metsevlavreggirT.3
.degamaderagnir-Oro
gnir-Oecalper&enimaxE.1
.ecalper&enimaxE.2
reggirtecal
perdnaenimaxE.3
.gnir-Orolaes,metsevlav
fomottobraenkaelriA .loot .swercsesooL.1
gnir-OdegamadronroW.2
.rep
mubro
swercsnethgiT.1
gnir-Oecalper&enimaxE.2
.repmubro
ydobneewtebkaelriA
.pacrednilycdna
swercsesooL.1..
-O
degamadronroW.2 slaesrosgnir..
.swercsnethgiT.1
gnir-Oecalper&enimaxE.2
.repmubro
nevirdgnieberasliaN
.peedo
otni
.repmubnroW.1
.hgihootteserusserpriA.2
.repmubecalpeR.1
.erusserpriatsujdA.2
lianevirdtonseodlooT
gnit
areposirollew
.ylhsigguls
.ylppusriaetauqedanI.1
.noitacirbuletauqedanI.2
gnir-OdegamadronroW.3
.laesro
red
nilycnitroptsuahxE.4
.dekcolbsidaeh
ylppusriaetauqedamrifnoC.1
otniliofospord6-2tresnI.2
.telniria
gnir-Oe
calper&enimaxE.3
.laesro
degamadecalpeR.4
.straplanretni
ehtllaerifotsliaflooT
.nrutnislian rorepmubnroW.1
g
nirpsdegamad.
.etalptnorfnitriD.2
egamadroemirG.3
gnivommorfslianspots
.enizagamniyleerf
nognir-OyrdronroW.
4
.noitacirbulfokcal/,notsip
laesrevocrednilyC.5
.gnikael
rorepmubecalpeR.1 .gnirpsrehsup
nolennahcevirdnae
lC.2 .etalptnorf
fotuoemirgnaelC.3
.enizagam
.gnir-Oecalper&enimaxE.4
.rehsawgnilaesecalpeR.5
.smajlooTdegam
adrotcerrocnI.1
.srenetsaf
revirdnrowrodegamaD.2
.ediug
wercsesonroenizagaM.3
.esool
.ytridsienizagaM.4
tcerrocesudnaegnahC.1
.srenetsaf
ehtecalperdnaenimaxE.2
.revird
.enizagamehtnethgiT.3
.enizagamehtnaelC.4
In the event that any of the above situations occurs, requiring the dismantling
and overhaul of the tool, contact your Clarke International Service
Department on 020-8988-7400.

14
PARTS LIST
oN noitpircseD oNtraP oN noitpircseD oNtraP
1tloB10051NOCTH62ydoBnuG62051NOCTH
2rotcelfeDriA20051NOCTH7256.2x51gniR-O72051NOCTH
3etalPgnirpS30051NOCTH8
2eveelSevlaV82051NOCTH
4tloBrednilyC40051NOCTH926.1x61gniR-O92051NOCTH
552x6MtloBxeH50051NOCTH03eveelSevlaV03051N
OCTH
6rotcetorPydoBnuG60051NOCTH138.1x1.6gniR-O13051NOCTH
7revoCrednilyC70051NOCTH232x4.6gniR-O23051NOCTH
85x5Mt
loBdedaeHxeH80051NOCTH338.1x9gniR-O33051NOCTH
9rehsaW90051NOCTH43gnirpSreggirT43051NOCTH
01 rehsaWgnirpS01051NOCT
H53eldnipSreggirT53051NOCTH
11 esaBgnirpS11051NOCTH635.1x5.2gniR-O63051NOCTH
21 gnirpSpmoCevlaVecnalaB21051NOCTH735
6.2x81gniR-O73051NOCTH
31 3x7.14gniR-O31051NOCTH83bonKhctiwS83051NOCTH
41 ylbmessAevlaVecnalaB41051NOCTH9303x3niP9
3051NOCTH
51 )riap(1.3x65sgniR-O51051NOCTH04esaBgnidilS04051NOCTH
61 ralloC61051NOCTH14reggirT14051NOCTH
71 5x5.24g
niR-O71051NOCTH24esoNytefaS24051NOCTH
81 notsiPniaM81051NOCTH3461x3niP34051NOCTH
91 3x88gniR-O91051NOCTH44rehsaWpanS4
4051NOCTH
02 gniRdexiF02051NOCTH54llaBleetS54051NOCTH
12 3x5.75gniR-O12051NOCTH64gnirpS64051NOCTH
22 7.5x5.55gniR-O2
2051NOCTH74yeKtfihS74051NOCTH
32 rednilyC32051NOCTH848x4MtloB84051NOCTH
42 rehsaWrepmuBedistuO42051NOCTH948.1x95gni
R-O94051NOCTH
52 rehsaWrepmuBedisnI52051NOCTH058.1x4gniR-O05051NOCTH

15
PARTS LIST
oN noitpircseD oNtraP oN noitpircseD oNtraP
15 ediuGrevirD15051NOCTH67gnirpSnoisserpmoC67051NOCTH
25 boNKgnitsujdA25051NOCTH77ekoYytefaS77051NOCTH
53 gni
rpSnoisserpmoC35051NOCTH87enizagaM87051NOCTH
45 tloBgnitsujdA45051NOCTH97revoCenizagaM97051NOCTH
55 52x8MtloB55051
NOCTH08livnA08051NOCTH
65 lwaP65051NOCTH18kooHgnirpS218051NOCTH
75 gnirpSlwaP75051NOCTH28etalPgnitsujdA28051NOCTH
85 n
iP85051NOCTH38eveelSgnitsujdA38051NOCTH
95 4.2x9.9gniR-O95051NOCTH48esaBgnitsujdAhtpeDliaN48051NOCTH
06 notsiP0605
1NOCTH58rehsaWrebbuR58051NOCTH
16 3.2x3.02gniR-O16051NOCTH68gnirpS68051NOCTH
26 gnirpS26051NOCTH786MtloB78051NOCTH
36 rehsaWpmuBnotsiP36051NOCTH8804x6MtloB88051NOCTH
46 esaBgnirpS46051NOCTH98gniRdexiF98051NOCTH
56 reniateRpanS56051N
OCTH09revoCdaeHliaN09051NOCTH
66 draoBrevoC66051NOCTH19mliFevitcetorP19051NOCTH
76 doRgnicennoC76051NOCTH29rehsaW290
51NOCTH
86 gnihsuB86051NOCTH39rehsaWrebbuRdexiF39051NOCTH
96 lwaP96051NOCTH49rehsaWetalPdnE49051NOCTH
07 gnirpSnois
serpmoC07051NOCTH59etalPdnE59051NOCTH
17 niP17051NOCTH69rehsaWgnirpS69051NOCTH
27 rebbuRdexiF27051NOCTH7922x5MtloB790
51NOCTH
37 gnirpS37051NOCTH89gulPtelnIriA89051NOCTH
47 ebuTevlaVreggirT47051NOCTH99esaCgulPriA99051NOCTH
57 21x3niP5
7051NOCTH00103x6MtloB00151NOCTH
101rehsaW10151NOCTH

16
PARTS DIAGRAM

17
VIBRATION EMISSIONS
MODEL No: CON15
DESCRIPTION: COIL NAILER
Declared vibration emission value in accordance
with EN12096
Measured vibration emission value - a: 3.3m/s2
Uncertainty value - K: 3.5m/s2
Values determined according to EN28622-1
Employers are advised to refer to the HSE publication “Guide for Employers”.
All hand held power tools vibrate to some extent, and this vibration is
transmitted to the operator via the handle, or hand used to steady the tool.
Vibration from about 2 to 1500 hertz is potentially damaging and is most
hazardous in the range from about 5 to 20 hertz.
Operators who are regularly exposed to vibration may suffer from Hand Arm
Vibration Syndrome (HAVS), which includes ‘dead hand’, ‘dead finger’, and
‘white finger’. These are painful conditions and are widespread in industries
where vibrating tools are used.
The health risk depends upon the vibration level and the length of time of
exposure to it……in effect, a daily vibration dose.
Tools are tested using specialised equipment, to approximate the vibration
level generated under normal, acceptable operating conditions for the tool
in question. For example, a grinder used at 45° on mild steel plate, or a
sander on softwood in a horizontal plane etc.
These tests produce a value ‘a
’ , expressed in metres per second per second,
which represents the average vibration level of all tests taken, in three axes
where necessary, and a second figure ‘K’, which represents the uncertainty
factor, i.e. a value in excess of ‘a’, to which the tool could vibrate under
normal conditions. These values appear in the specification panel below.
HAND-ARM VIBRATION

18
You will note that a third value is given in the specification - the highest
measured reading in a single plane. This is the maximum level of vibration
measured during testing in one of the axes, and this should also be taken into
account when making a risk assessment.
‘
a ’ values in excess of 2.5 m/s2are considered hazardous when used for
prolonged periods. A tool with a vibration value of 2.8 m/s2may be used for
up to 8 hours (cumulative) per day, whereas a tool with a value of 11.2 m/s2
may be used for ½ hour per day only.
The graph below shows the vibration value against the maximum time the
respective tool may be used, per day.
The uncertainty factor should also be taken into account when assessing a
risk. The two figures ‘
a ’ and ‘ K ’may be added together and the resultant
value used to assess the risk.
It should be noted that if a tool is used under abnormal, or unusual conditions,
then the vibration level could possibly increase significantly. Users must always
take this into account and make their own risk assessment, using the graph
above as a reference.
Some tools with a high vibration value, such as impact wrenches, are
generally used for a few seconds at a time, therefore the cumulative time
may only be in the order of a few minutes per day. Nevertheless, the
cumulative effect, particularly when added to that of other hand held power
tools that may be used, must always be taken into account when the total
daily dose rate is determined.

19
DECLARATION OF CONFORMITY
